1500 Вт Ручной Волоконно-лазерный сварочный аппарат 4-в-1 с проводным питателем
368 682,06 ₽ - 390 369,24 ₽
Горячая 1200 Вт ручной лазерный сварочный аппарат сварщик для углеродистой стали
- Категория: >>>
- Поставщик: Jinan Consure Electronic Technology Co. Ltd.
Сохранить в закладки 1601168535527:
Описание и отзывы
Характеристики
Products Description
Machine Desciption
Laser welding is a new type of welding method and one of the important aspects of the application of laser material processing technology. Laser welding is mainly for the welding of thin-walled materials and precision parts. The welding process is of thermal conductivity type, that is, the surface of the workpiece is heated by laser radiation, and the surface heat Diffusing into the interior through heat conduction, and by controlling parameters such as the width, energy, peak power and repetition frequency of the laser pulse, the workpiece is melted to form a specific molten pool. It can realize spot welding, butt welding, stitch welding, sealing welding, etc., with high aspect ratio, small weld width, small heat-affected zone, small deformation, fast welding speed, smooth and beautiful weld, no need to handle or just need to be processed after welding Simple processing, high weld quality, no air holes, precise control, small focus spot, high positioning accuracy.
Main Feature
1.The hand-held welding gun replaces the previous fixed optical path, which is more flexible and convenient, realizes long-distance laser welding, and overcomes the limitation of the workbench stroke space;
2.The hand-held welding head is light and flexible, and the operation is convenient and simple, which can meet the welding of various angles and positions;
3.Infrared positioning is used for welding head position verification and position verification during welding. The welding position is more accurate and the welding seam is more beautiful;
4.The laser welding depth is large and the welding is firm;
5.It is not easy to deform, easy to be polished, and solves the problems of weld penetration, weld bead, welding quality and so on when using argon arc welding;
6.It is also suitable for various complex welding seams and spot welding of various devices.
2.The hand-held welding head is light and flexible, and the operation is convenient and simple, which can meet the welding of various angles and positions;
3.Infrared positioning is used for welding head position verification and position verification during welding. The welding position is more accurate and the welding seam is more beautiful;
4.The laser welding depth is large and the welding is firm;
5.It is not easy to deform, easy to be polished, and solves the problems of weld penetration, weld bead, welding quality and so on when using argon arc welding;
6.It is also suitable for various complex welding seams and spot welding of various devices.
Industry Application
1.Laser welding of sheet metal, chassis and water tank.
2.All kinds of hardware and lighting laser welding machine
3.Laser welding of door and window frames
4.Laser sealing welding of kitchen, bathroom and wash basin hardware
5.Laser welding of billboards and advertising characters Suitable for most metals such as stainless steel, titanium, water-plated plate, iron sheet, aluminum copper and other materials.
2.All kinds of hardware and lighting laser welding machine
3.Laser welding of door and window frames
4.Laser sealing welding of kitchen, bathroom and wash basin hardware
5.Laser welding of billboards and advertising characters Suitable for most metals such as stainless steel, titanium, water-plated plate, iron sheet, aluminum copper and other materials.
Technical Parameters
Machine Name | Handheld Fiber Laser Welding Machine |
Model | CS-FL1000W CS-FL1500W CS-FL2000W |
Laser Power | 1KW 1.5KW 2KW |
Laser Wave Length | 1080nm |
Laser Source | Raycus / JPT / IPG |
Fiber Length | 10M |
Cooling Mode | Water cooling |
Laser Pulse Frequency | 1-20HZ |
Pulse Width | 0.1-20ms |
Adjusted spot range | 0.1-5mm |
Minimum Welding pool | 0.1mm |
Gas source | 0.2Mpa (Argon ) |
Working Voltage | 1kw 1.5kw AC220V / 50Hz / 60HZ 2kw AC380V / 50Hz / 60HZ |
Package Size | 162CM L *70CM W*144CM H |
Gross Weight | 320KG |
Handheld Fiber Laser Welding Machine Welding Ability for reference | ||||||||
1000W | ||||||||
Stainless Steel | Iron | Carbon Steel | Aluminum | Galanized sheet | ||||
2mm | 2mm | 1.7-2mm | 1.5mm | |||||
1500W | ||||||||
Stainless Steel | Iron | Carbon Steel | Aluminum | White Galanized sheet | ||||
3mm | 3mm | 1.7-2.5mm | 2mm | 1.5-2mm | ||||
2000W | 2000W | |||||||
Stainless Steel | Iron | Carbon Steel | Aluminum | White Galanized sheet | ||||
4mm | 4mm | 1.7-2.5 mm | 2mm | 1.5-3mm | ||||
Machine configurations
Wobble handheld welding head
Light shape, economic deign,it offers so much welding convenience for welding.High speed digital motor swing design, several spot mode switch freely.
Fiber Laser source
Adopting famous brands (Raycus / JPT/Max. And Germany IPG) the photoelectric conversion rate is greatly improved, laser power is enhanced, has better welding effect, can according to the needs of customers with different configurations to meet customer needs.
Industrial Water chiller
One of the biggest convenience of the machine is the inside water chiller. It saves a lot of the machine's dimension.It is constant temperature industrial type.
Touch Screen Control Panel
Easy to operate, interactive control system expand the tolerance range and welding width of the processing parts, and solve the disadvantage of minor laser welding spot, and provide better welding forming. Support Chinese, English, Korean, Russian, Vietnamese Language.

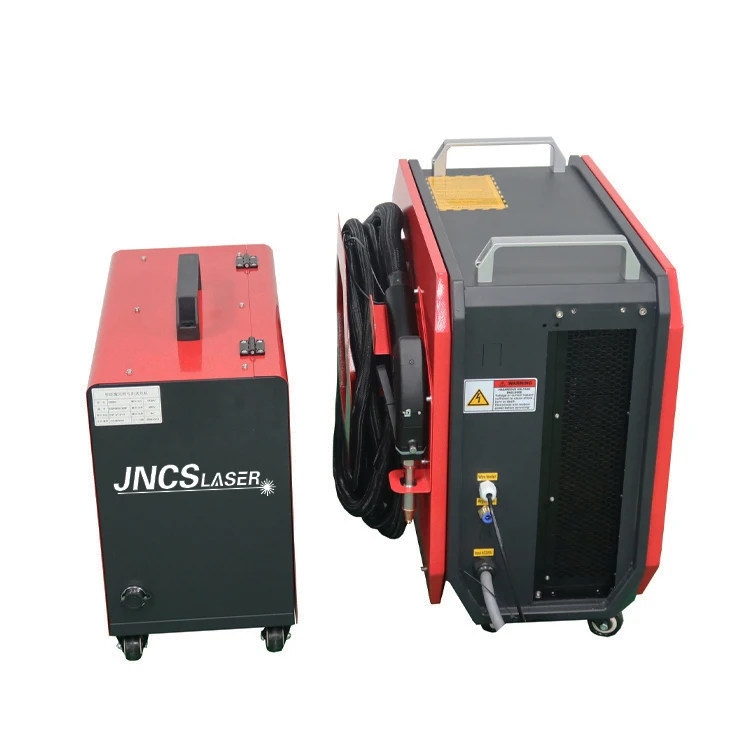

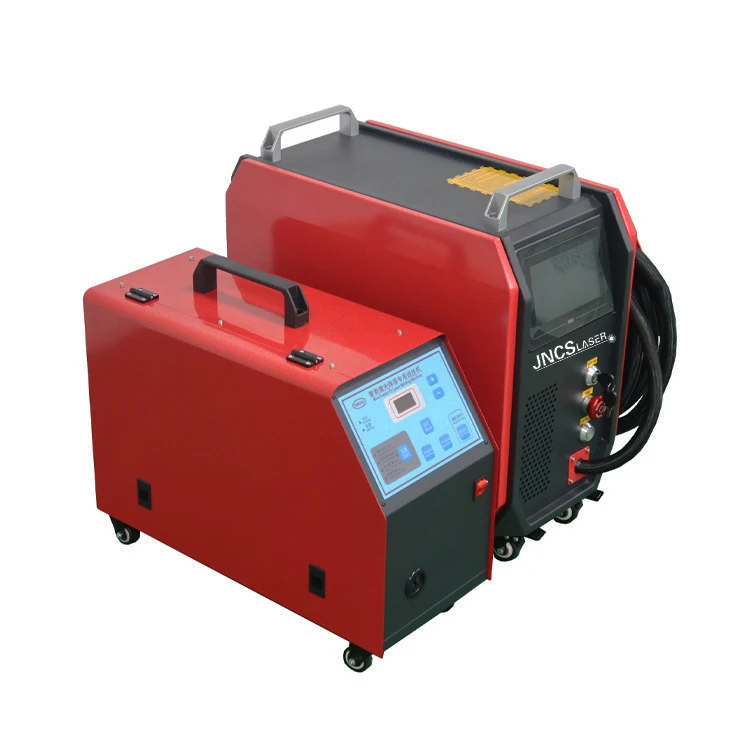

Automatic Wire feeder device
Auto mode and Manual mode. Wire feeder device will be not selected if gap within 0.5mm. If gap is more than 0.5mm, wire feeder device must be selected. If gap is 0.6mm, you can use 0.9mm wire. If gap is 0.8mm, you can use 1.1mm wire. If gap is 1.0mm, you can use 1.3mm

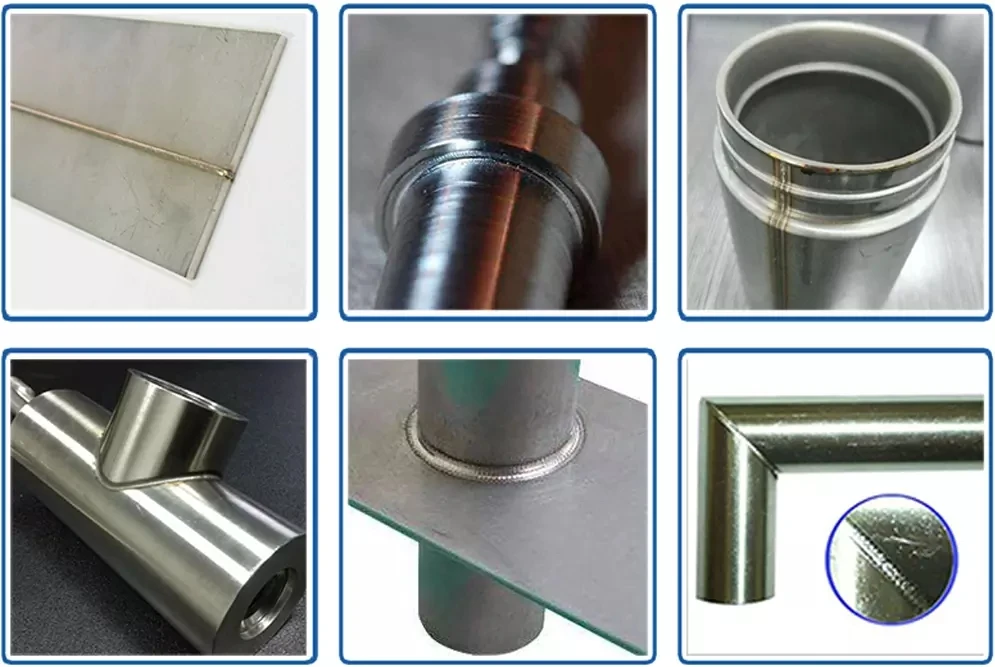

Sample Show
More Products
Our Company
Packing&Payment
FAQ
Похожие товары
Высококачественная Новая лазерная сварочная машина-Цена Пластиковый лазер сварочный аппарат лазерный сварочный аппарат для алюминия

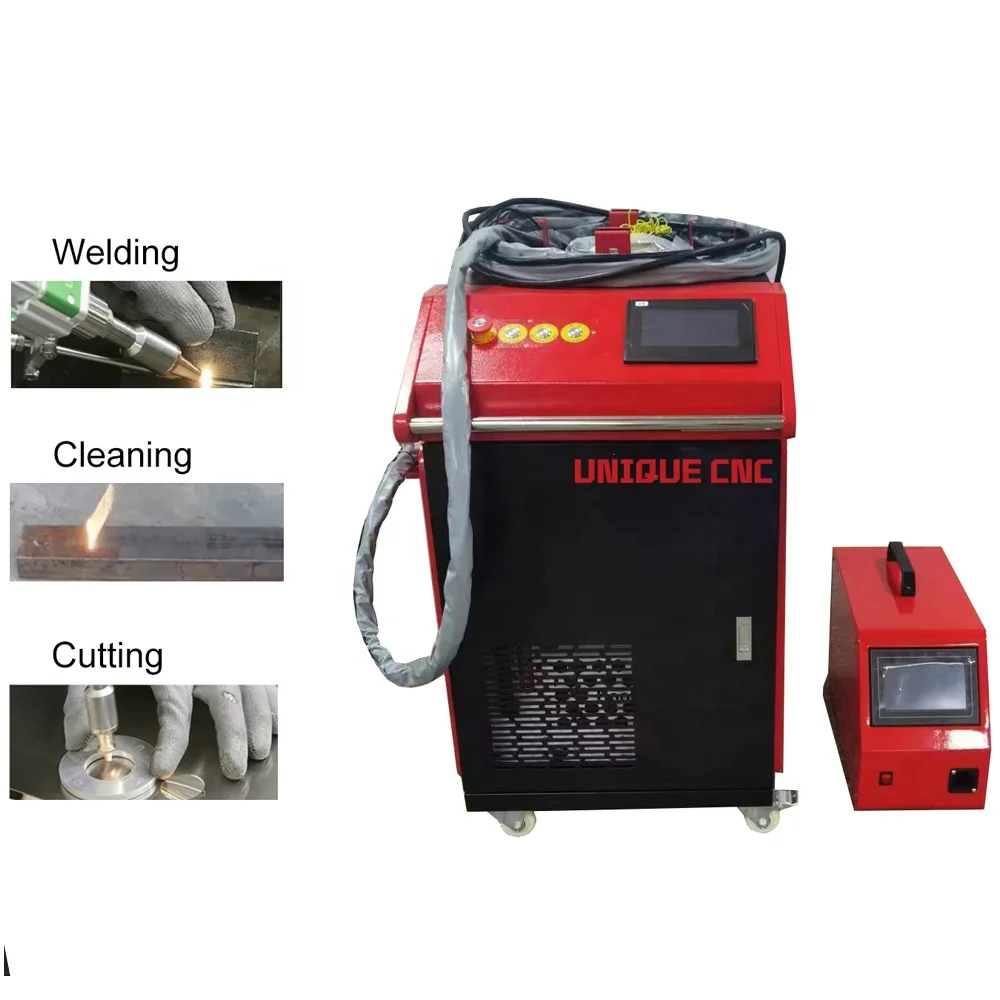

Металлическая сварка для очистки, компактная 1000 Вт, 1500 Вт, 2000 Вт, ручная волоконно-лазерная сварочная машина для продажи
368 682,06 ₽ - 542 179,50 ₽
Электрический сварочный аппарат двойного назначения безвоздушный двухэкранный сварочный аппарат Бытовая универсальная 220 В промышленная аргоновая дуговая сварка
2024 ювелирный лазерный сварочный аппарат для чистого золота, серебра, меди, алюминиевых цепных колец, ювелирных изделий, лазерный сварщик, ремонт
303 512,09 ₽ - 325 199,27 ₽

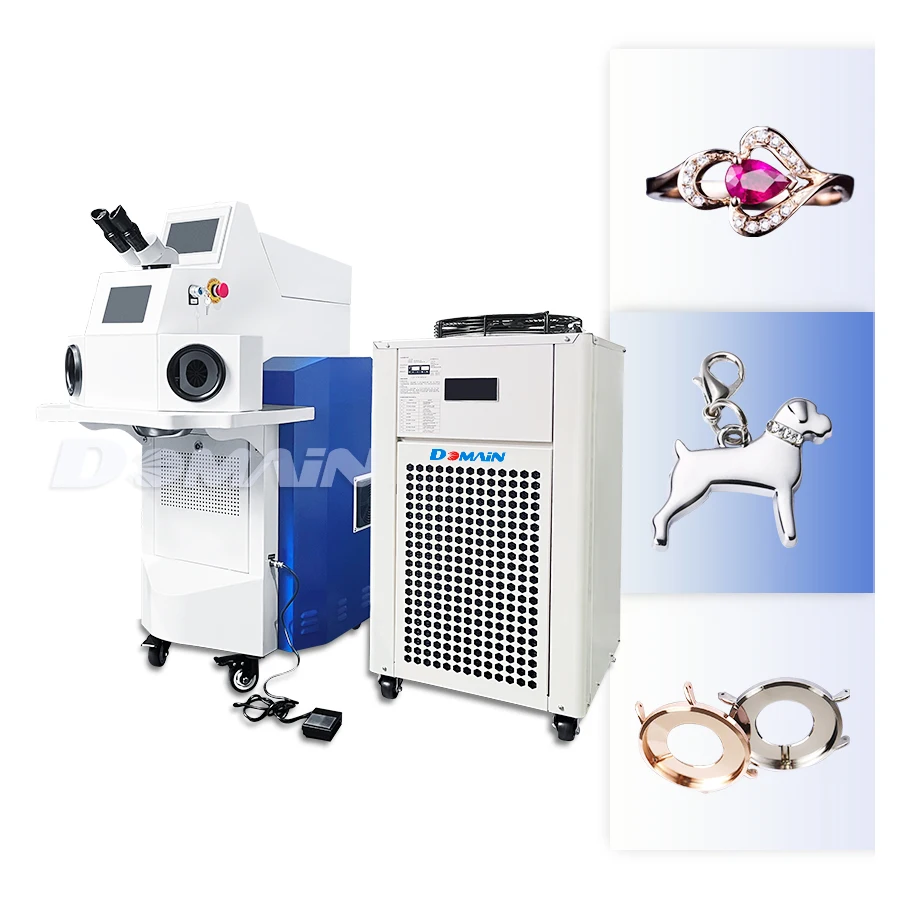

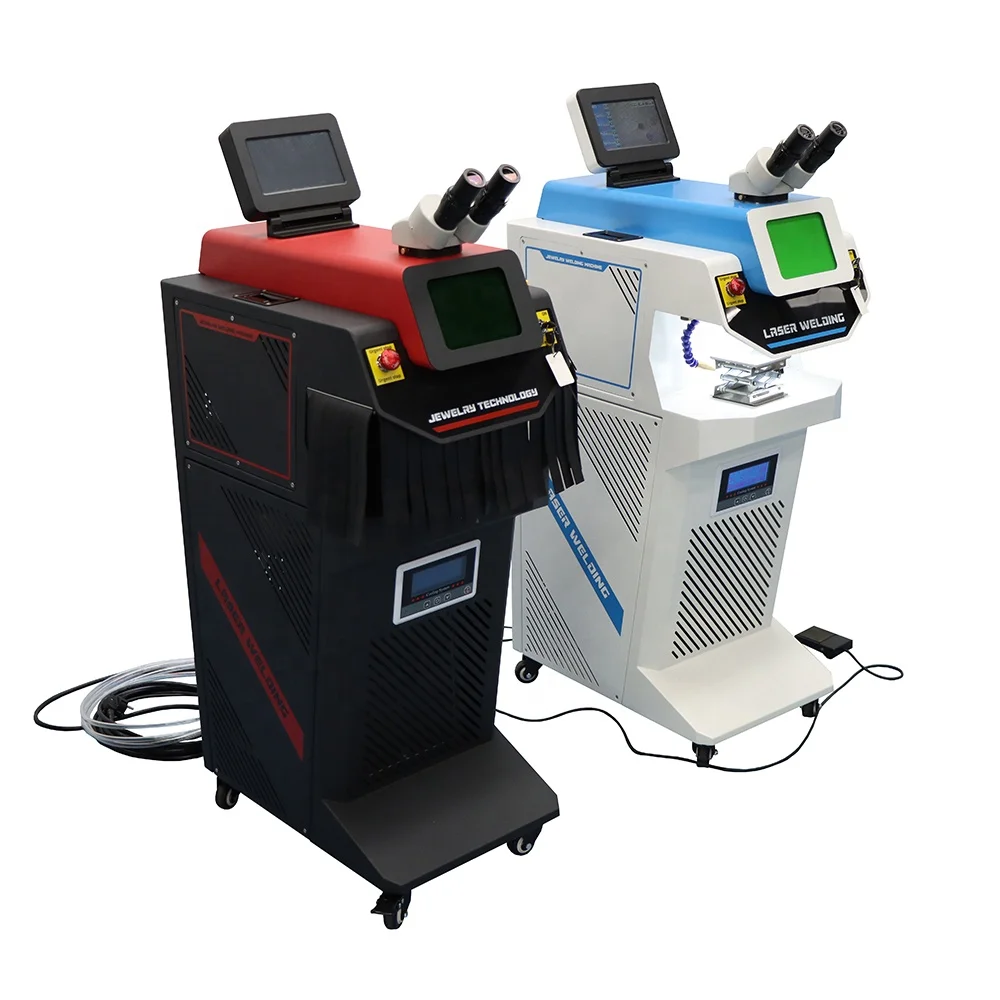

200 Вт напольная подставка для ювелирных изделий точечный лазерный сварочный аппарат со встроенным водяным охладителем для золота, серебра, меди, латуни, платины
292 776,93 ₽ - 325 307,70 ₽

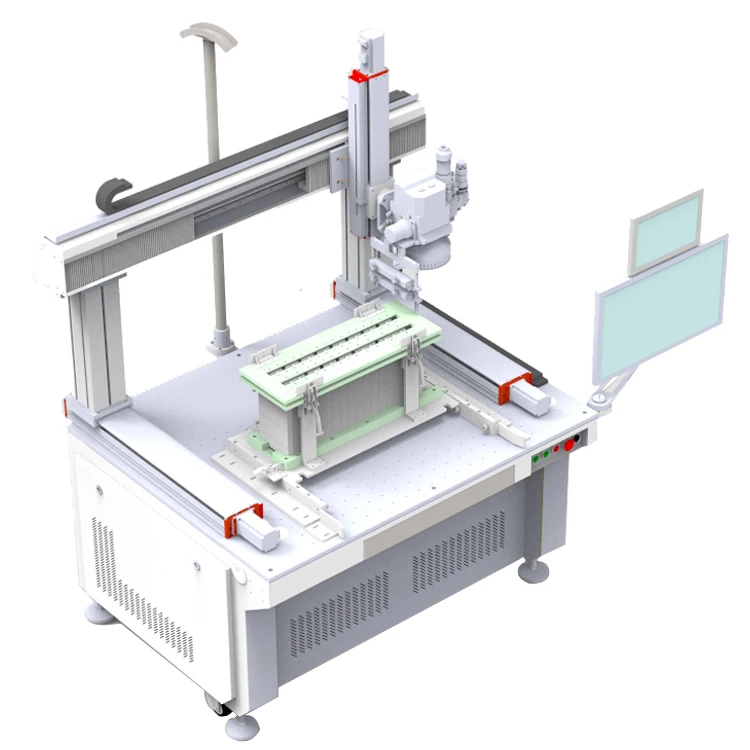

Хорошее качество Автозапчасти ЧПУ лазерный сварочный аппарат для электромобиля 1000 Вт 2000 Вт
2 710 897,50 ₽

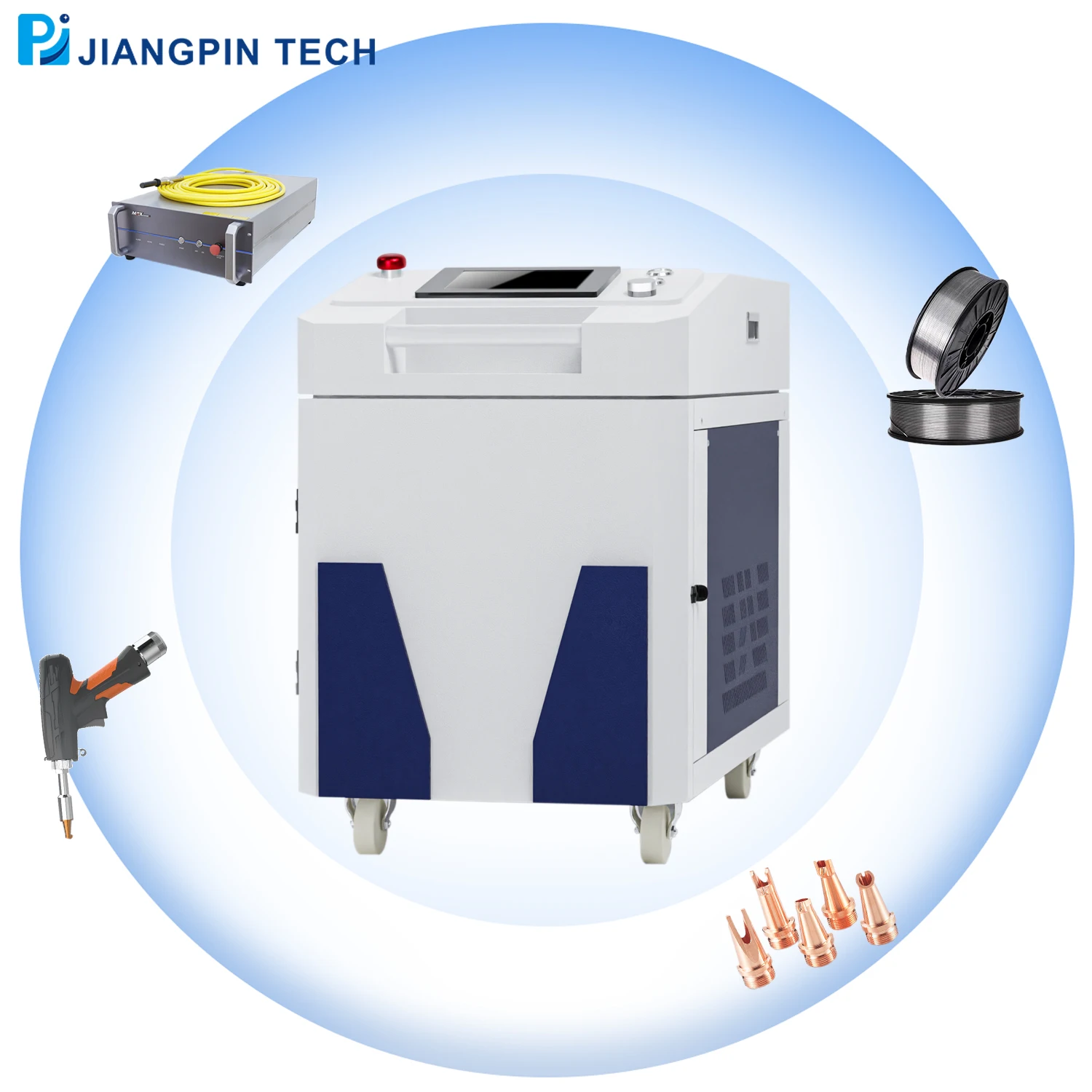

Лучший продавец, портативная машина «Все в одном» со встроенной функцией подачи проволоки, лазерный сварочный аппарат «Три в одном»
