SLH150-50 Jet Mud Mixer With Hopper For Oilfield Mud Solids Control






Product Description


The unit is used to make up drilling fluid or increase total amount of the drilling fluid, change the fluid density, viscosity, and dehydration. When making up again, put the materials of drilling fluid (such as bentonite and barite powder) and corresponding chemical additives (such as polymer) into the recycle tank through the jet unit. If put them directly, the materials of drilling fluid and chemical additives will be deposited largely or dump together and we can’t obtain diffused and well-proportioned drilling fluid.





SLH jet mixing device is a unit used together with the solid control system for petroleum drilling. It is suitable for drilling from 1,500 meters to 6,000 meters and can strengthen and make up drilling fluid through the fixed control system horizontally. The unit includes one sand pump, one jet mixing funnel and one jet mixer that are installed in a base with pipe valves. It is safe and stable and can be moved conveniently.






















































































Model




SLH150-50




SLH150-40




SLH150-35




SLH100-25




Matching Pump




SB8×6-13J(55Kw)




SB6×5-13J(45Kw)



SB5×4-13J(30Kw)


SB4×3-11J(15Kw)



Capacity




240m³/h




180m³/h




120m³/h




60m³/h




Pressure




0.25~0.40Mpa




0.25~0.40Mpa




0.25~0.40Mpa




0.25~0.40Mpa




Inlet Size




150mm




150mm




150mm




100mm




Nozzle
Size




50mm




40mm




35mm




25mm




Hopper Diameter




750×750mm




750×750mm




600×600mm




500×500mm




Burden Speed




≤100Kg/min




≤80Kg/min




≤60Kg/min




≤40Kg/min




density




≤2.8g/cm³




2.4g/cm³




≤2.0g/cm³




≤1.5g/cm³




viscosity




≤120s




≤120s




≤80s




≤60s

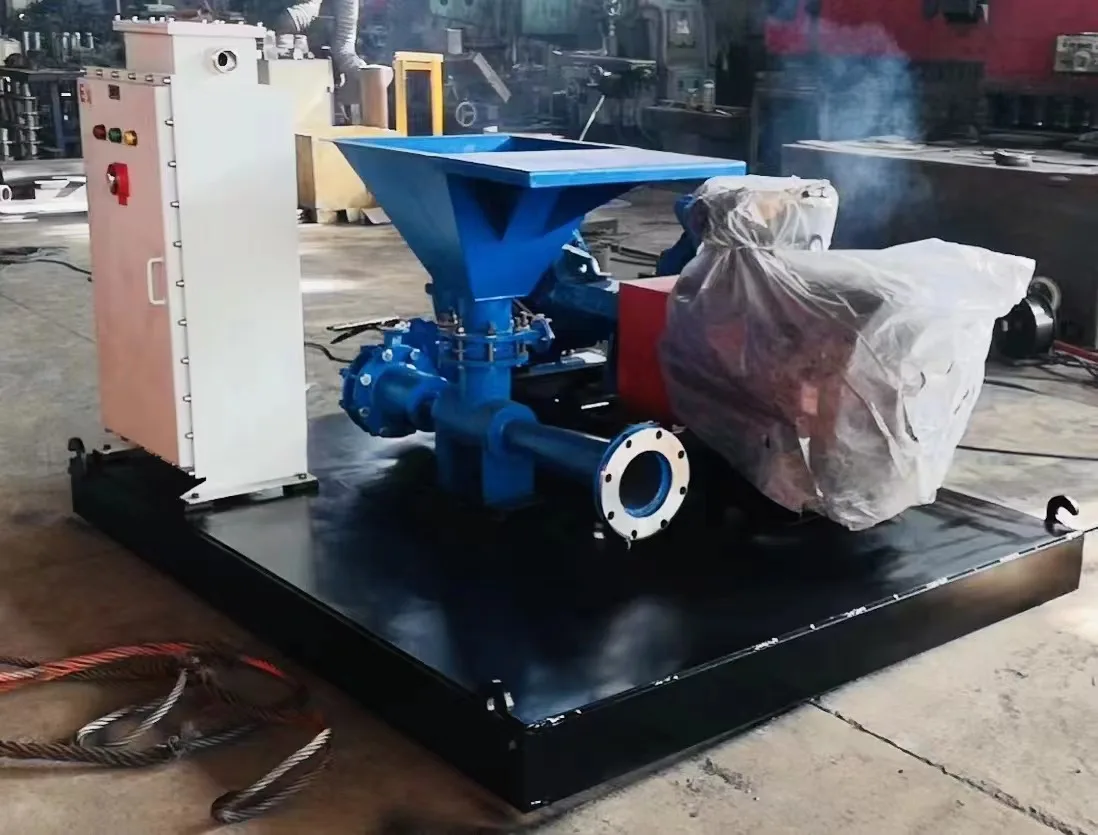

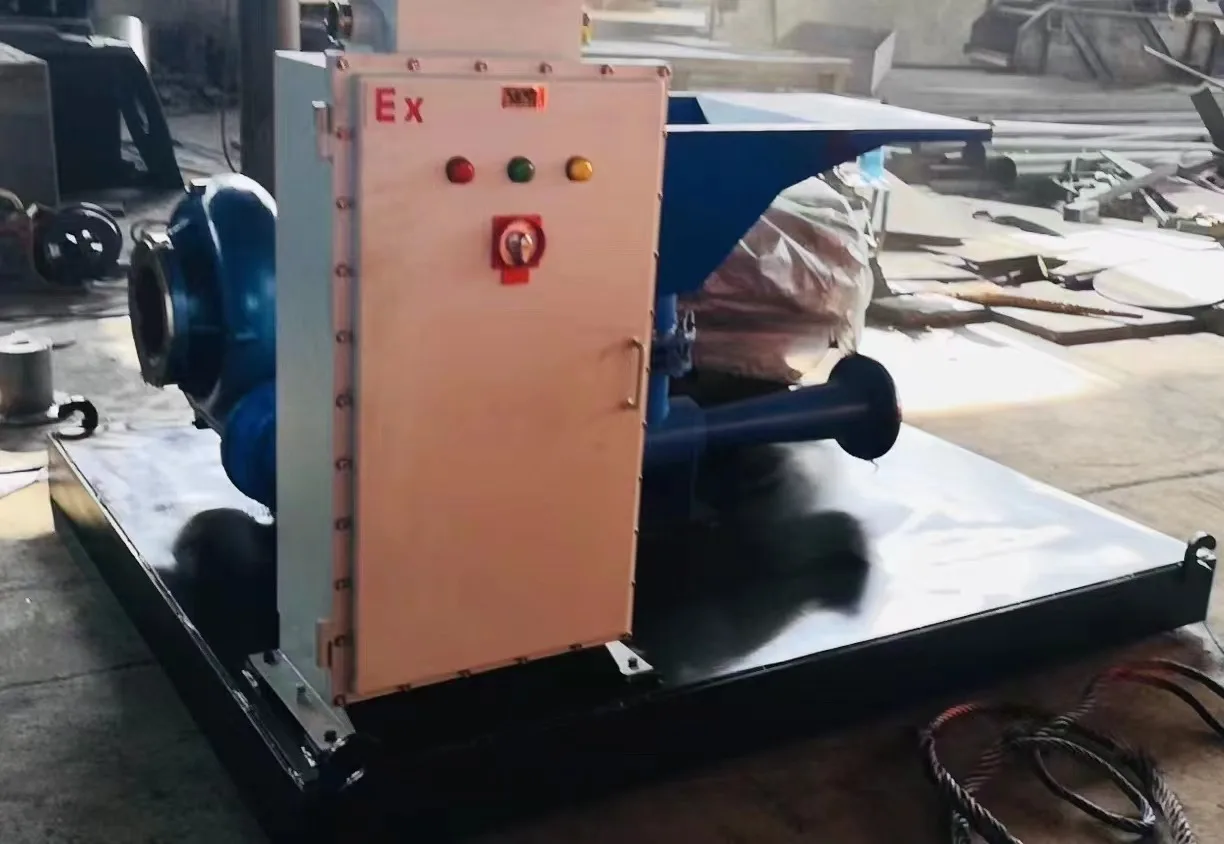

Jet mud mixer (2).jpgJet mud mixer.jpg







Similar Product


.jpg











Company Information





shandong yacheng petroleum technology are established in 2003 year, located in Dongying city, shengli oilfield,which is  second largest oilfield of China.





Our business scope includes oilfield equipment supply, such as, drilling equipment and spares, wellhead equipment ,oil recovery equipment. We have been served Sinopec -Shengli oilfield in the last 19 years, established a solid partnership and network with quality OEM factories. Based on our responsive and responsible  engineering & commercial team, we can provide one-stop shop service to our customer, and package plan of procurement which brings added value in terms of delivery time, fair prices, inventory in stock.





We are Looking forward to build up partnership with your company and provide our attentive service to you.










Exhibition















Packaging & Shipping

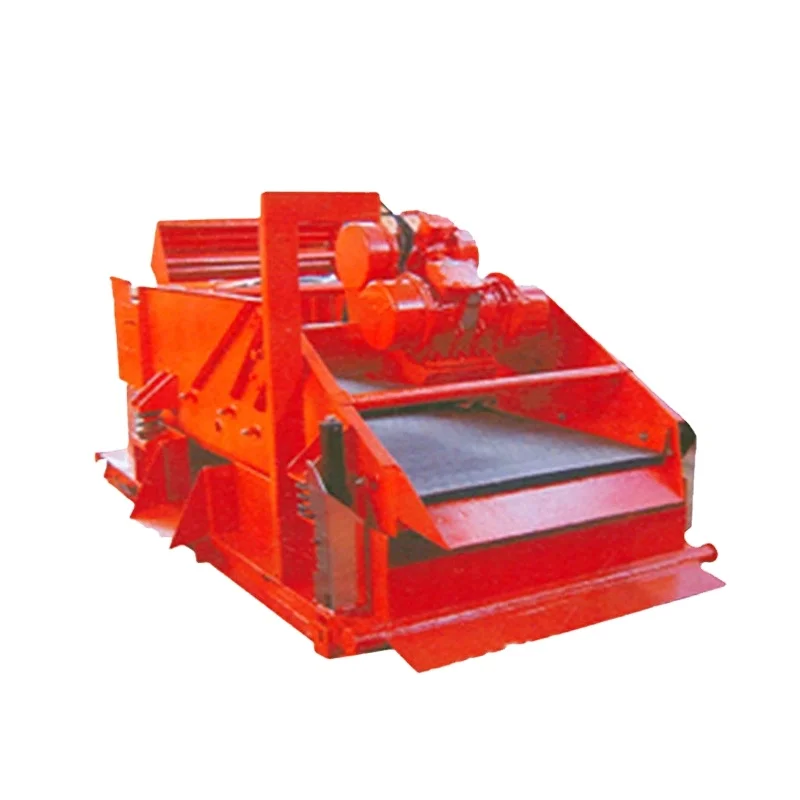

shale shaker.pngvacuum degasser.jpg
