Скоростная Складная машина самая продаваемая 2023 Автоматическая фрикционная с высококачественным материалом для экспортеров
918 396,80 ₽
Скорость 490T 8H4W F параллельная Складная машина однолистная высокоскоростная
- Категория: >>>
- Поставщик: Guangdong Speed Machinery Technology Co. Ltd.Guangdong Ltd.
Сохранить в закладки 1601168862390:
Описание и отзывы
Характеристики
Product Description

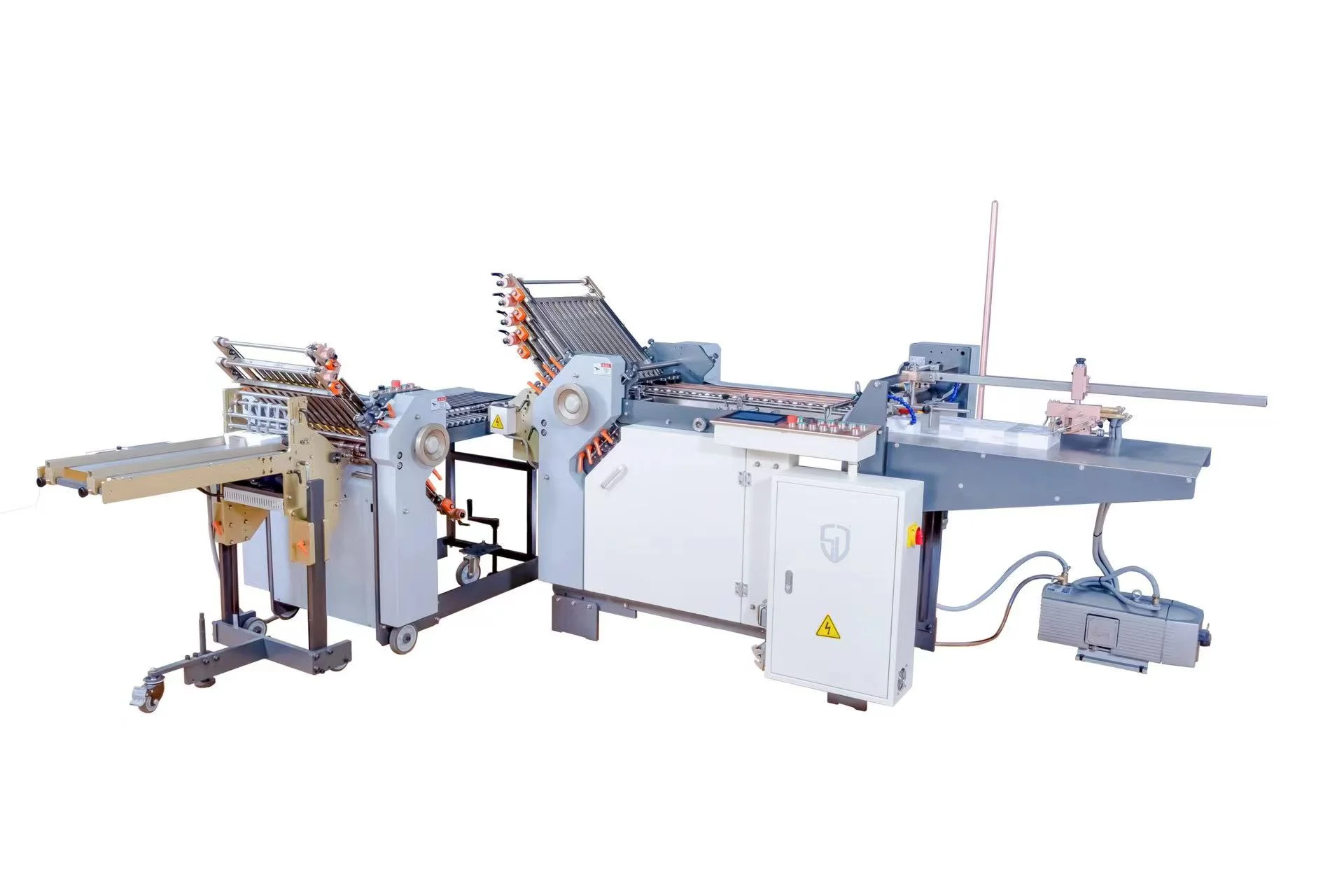

T490 (paper folding machine)
Industry-specific Attributes
Type: Paper Folding Machine
Production Capacity: 180m/min
Max. Workable Width:490mm*1000mm
SPPED Group -Buckle Folding MachinesSPEED buckle folding machine As aninternationally active global market leaderin the field of
post-press finishing, we canalso fulfill individual requirements andthus make an important contribution tothe optimization of your
folding processes.
Type: Paper Folding Machine
Production Capacity: 180m/min
Max. Workable Width:490mm*1000mm
SPPED Group -Buckle Folding MachinesSPEED buckle folding machine As aninternationally active global market leaderin the field of
post-press finishing, we canalso fulfill individual requirements andthus make an important contribution tothe optimization of your
folding processes.
Product Configuration
beautiful buckles
gear
quick transit
Features at a glance
gear box free maintenance
advanced box
durable feeder
Specification
Item | Parameter |
Folding Machine Type | T490 (optional) |
Min.sheet size | 60mm*100mm |
Max.sheet size | 490 * 1000mm |
Max.height ofpaper pile | 750mm |
Sheet range | 35-200g |
Min.size offence | 20mm |
Max.folding roller speed | 180m/min |
Machine power | 3.5kw |
Voltage | 380 |
Overall dimensions(Lx Wx H) | 4650mm*1100mm*1500mm |
Machine net weight | 990kg |
Company Profile
FAQ
Q1:Are you a manufacturer?
answer： Yes. We are a professional manufacturer of machine for more than 10 years
Q2:How many years for free exchange components?
answer：one years for parts and whole life for tech support
Q3:Can your machine be customized?
answer：Yes, almost all of our products can be customized,including the sizes, colorlogo, package and so on
answer：Yes, almost all of our products can be customized,including the sizes, colorlogo, package and so on
Q4:How about your package?
answer：Our machines are well wrapped by plastic film to be water proof frst, then loading and fixing
inaplywoodcase,lfbyCL(full container loading) we might use the wooden case
inaplywoodcase,lfbyCL(full container loading) we might use the wooden case
Q5:What's the delivery time?
answer：Within 15-35 days after get the payment
Q6:What is your after sale service?
answer： Any questions will be responded within 24 hours by emai, Skype, call orWhatsapp/Wechat lnaddition,wehaveprofessional engineer available foroverseas service
answer： Any questions will be responded within 24 hours by emai, Skype, call orWhatsapp/Wechat lnaddition,wehaveprofessional engineer available foroverseas service
Q7:lf the machines spare parts broken , where can l get?
answer：We will qive you the spare parts which is vulnerable and some critical partslike gear box our quality is goodincaseit broken within one year we willsent you for free
answer：We will qive you the spare parts which is vulnerable and some critical partslike gear box our quality is goodincaseit broken within one year we willsent you for free
Q8:Can you take care of the shipping?
answer：Yes, please tell me the destination port or address, we have rich experience in shipping
SPEED Group exhibits
SPEED Group
SPEED Group
Folding machine packaging and shipping
High-performance electronic feeder
The microcomputer-controlled feeder has sophisticated Paper separation function, controllable negative pressure function, light Loosens paper of various sizes.
Human-computer interface
The more ergonomically designed cantilever control panel is easy to operate, and the height and angle can be adjusted according to personal preferences, making it more convenient to operate
The industry's first exclusive patented technology: gear coupling transmission + self-lubrication system
Compared with the belt drive, the gear transmission has a stronger torque, there is no slippage, the speed difference of the origami roller, etc., when the thicker paper or more folded work, the gear transmission can still maintain excellent performance and achieve perfect operation (When the belt drive is working on multi-fold or thicker paper, the performance will be greatly reduced, and there will be slippage, poor speed of the origami roller, etc.)
gear coupling transmission + self-lubrication system
The gear lubrication box designed by the exclusive research and development can seal the grease in the oil shell, and when the equipment is running, the gear drives the grease to make it fully lubricate the gear repeatedly, which solves the trouble of frequent maintenance of the equipment and reduces the maintenance cost. Under the sealing protection of the oil shell, it ensures that the grease will not fly everywhere, effectively solves the problem of cleanliness and hygiene of the equipment, and is the preferred model for pharmaceutical companies and pharmaceutical package manufacturers
gear coupling transmission + self-lubrication system
With the blessing of the lubrication system, the equipment can maintain excellent folding accuracy and excellent performance even when running at high speed or full speed, and can also maintain low noise. It is worth mentioning that not only the gears do not need to be maintained, but the bearings also do not need to be lubricated, which is truly maintenance-free.

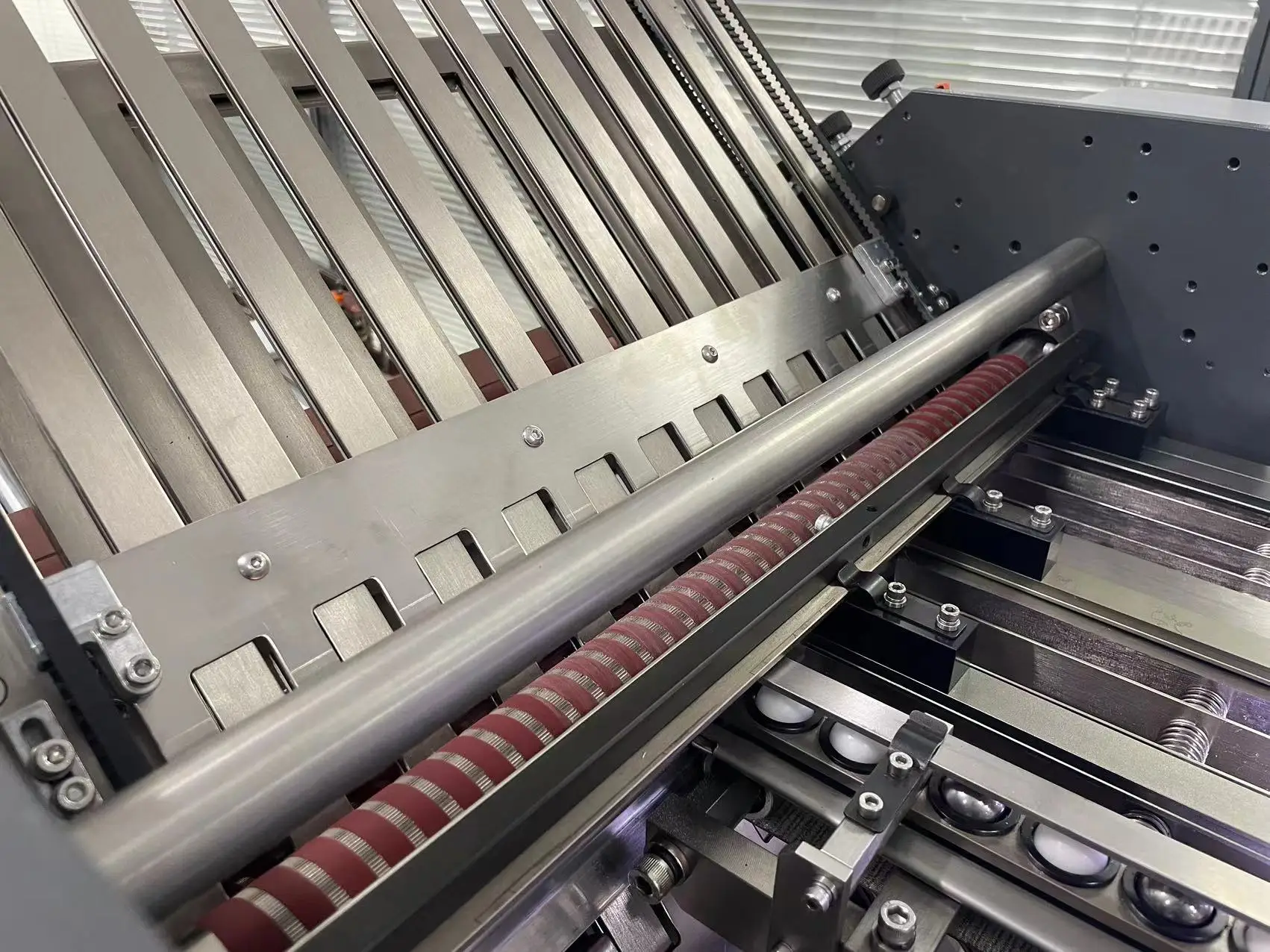

Origami sticks
Spiral structure, 76% of the colloidal area, has a larger colloidal area than the traditional straight-grained roller, has
excellent paper gripping strength, more close to the paper, makes the folding more accurate and not easy to wrinkle, imported polyurethane colloid, anti-slip and wear-resistant, and the service life is greatly increased
excellent paper gripping strength, more close to the paper, makes the folding more accurate and not easy to wrinkle, imported polyurethane colloid, anti-slip and wear-resistant, and the service life is greatly increased

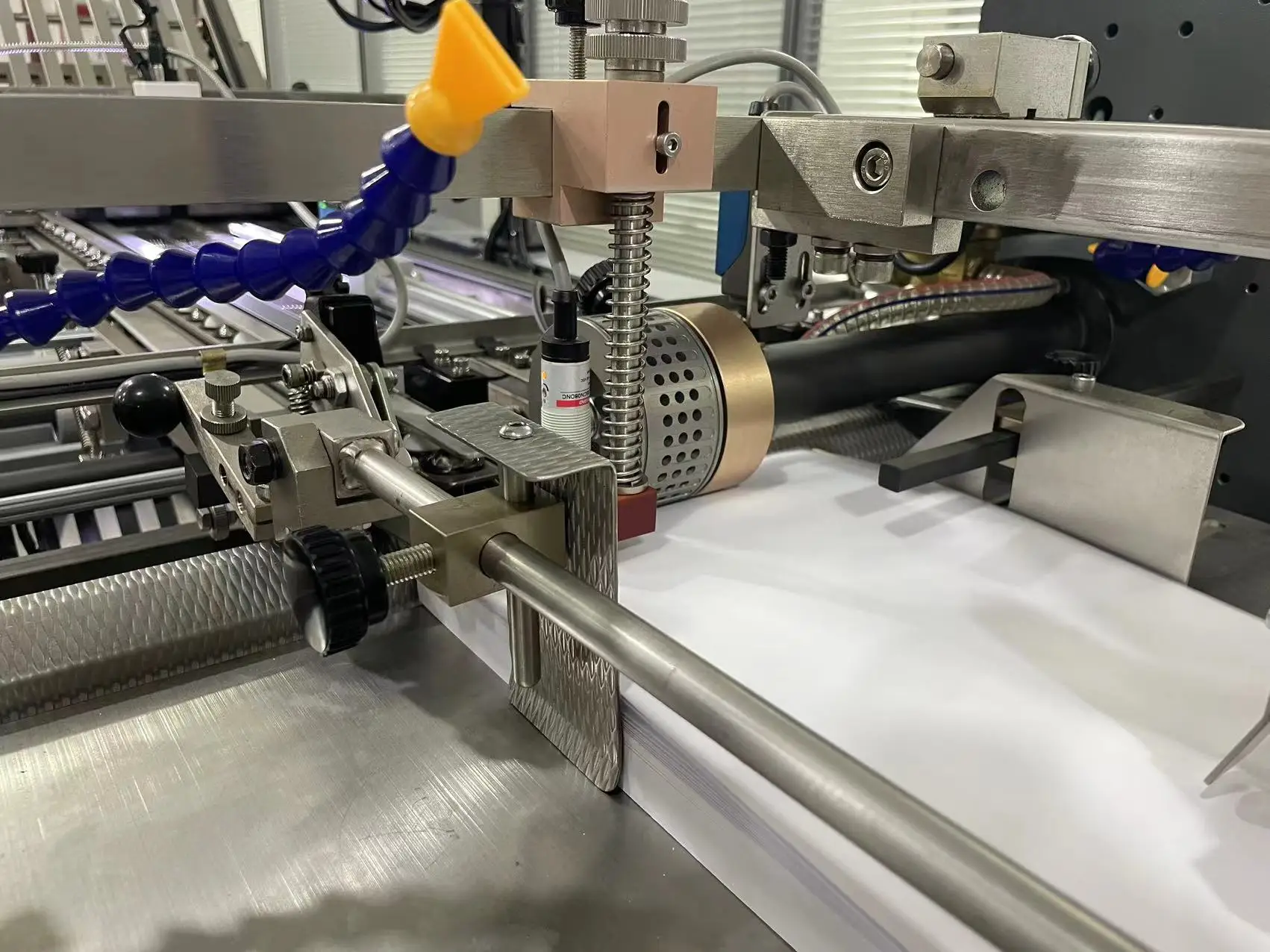

Origami fence
Xikong digital position display, accurate position display, adjusting the fence more efficient, convenient and fast The special wire drawing process and anti-static coating treatment on the surface make the folding more stable The plate is hardened to make the fence not easy to deform, and the higher hardness is not easy to be bruised
Three advantages of fast transfer device
The design that can be extended into the second unit, the unique angle design, More stable transmission method, so that the utilization rate of origami rollers is increased by 70%
BECKER
The air pump adopts German Beck, and the pressure is stable, which provides strong support for the stable operation of the equipment
Core suppliers, ranked in no particular order
