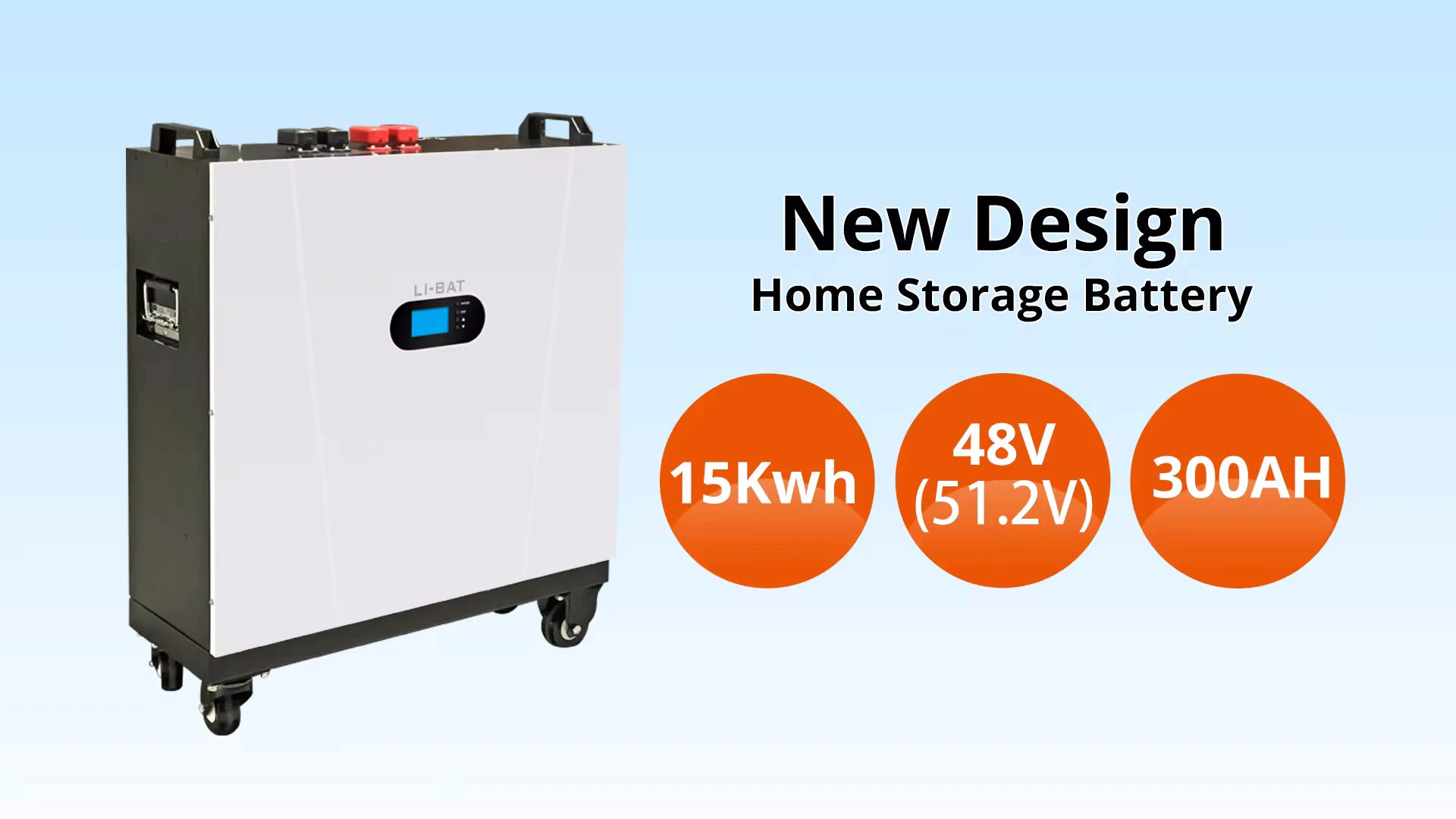

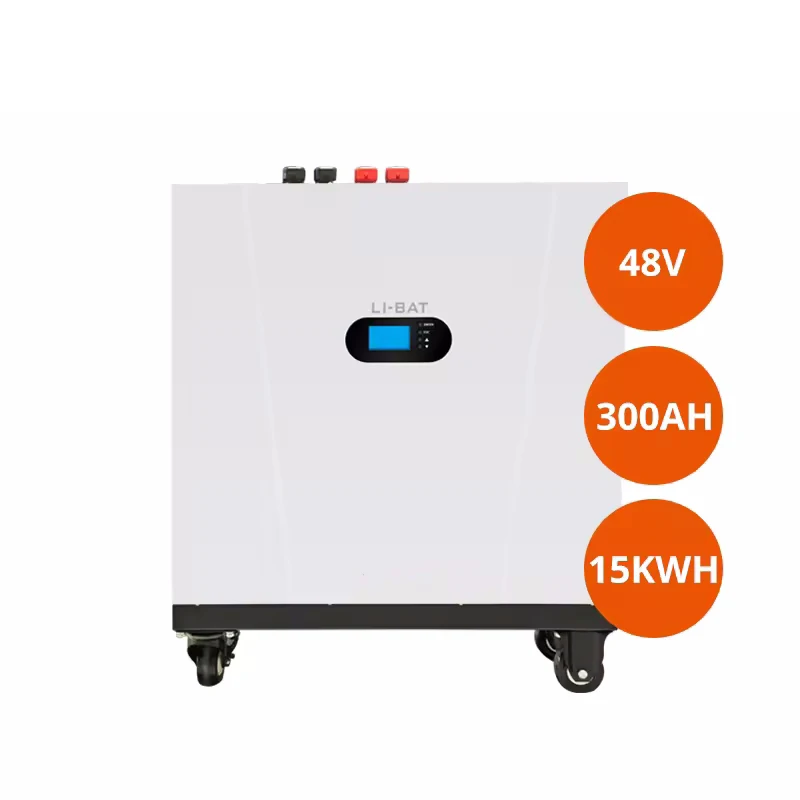

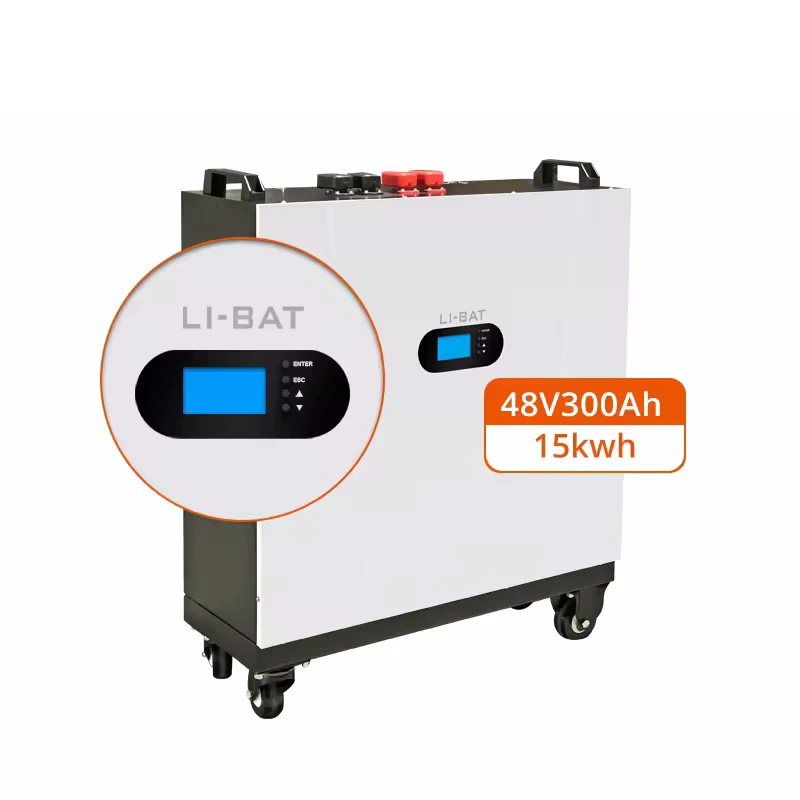

Литий ионный аккумулятор Lifepo4 48 В 300 А · ч
- Категория: >>>
- Поставщик: Ningbo Essolx Solar Co. Ltd
Сохранить в закладки 1601169372233:
Описание и отзывы
Характеристики
Product Description

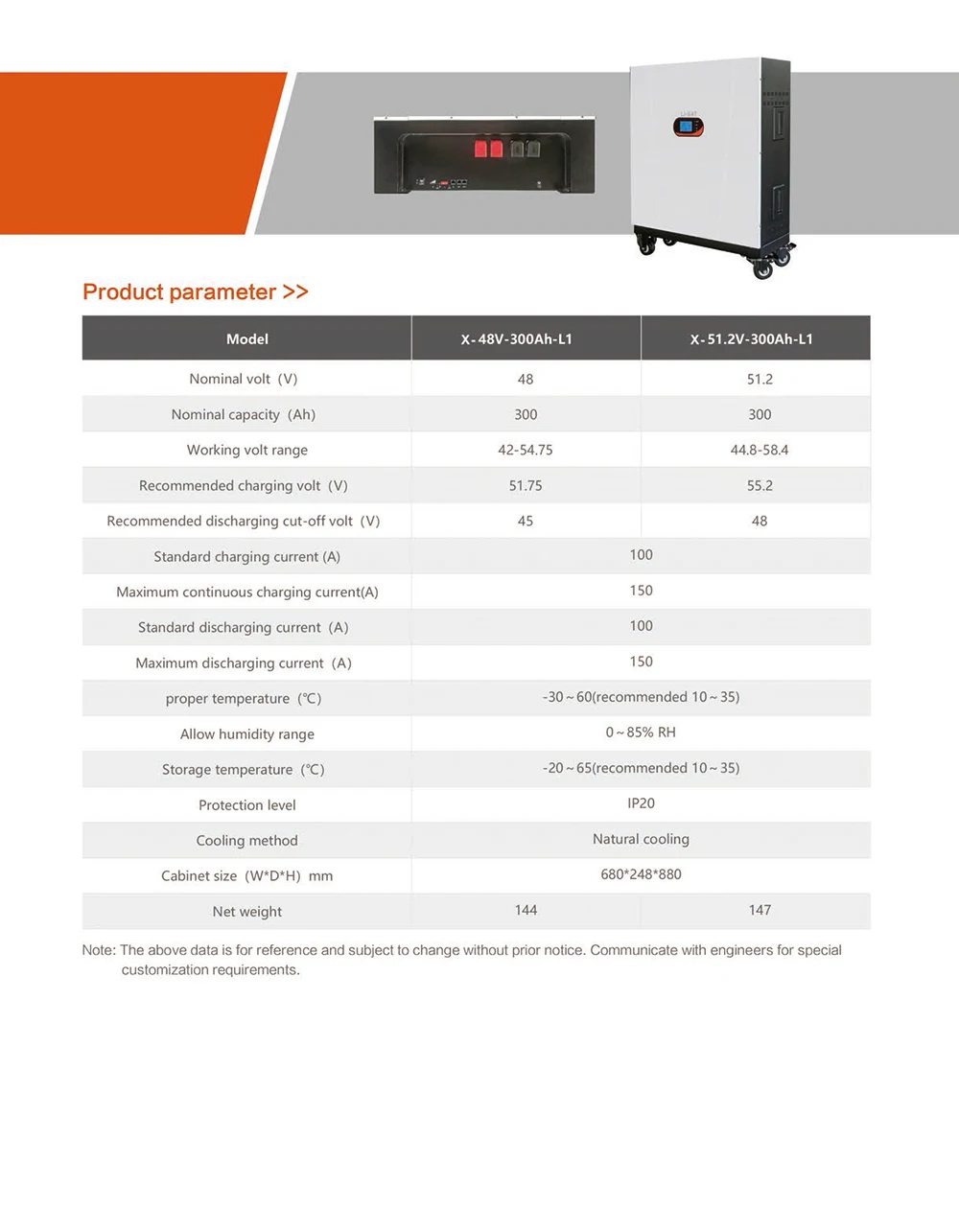

Specification
Model | 48V/300Ah-XP |
Nominal Voltage (V) | 48V |
Battery Capacity (AH) | 300AH |
Output Power Range | 15kWh |
Dimension (L*W*H) | 679*681*246 |
Weight | 145kg |
Communication Port | CAN, RS485,Can be customizable |
Protection Class | IP20 |
Nominal Voltage | 48V |
Nominal capacity | 315AH |
Operating voltage range | 37-55(V) |
Standard discharge current | 60A |
Maximum discharge current | 150A |
Applicable temperature | -30℃~60℃(Recommended 10℃~35℃) |
Allowable humidity range | 0~85% RH |
Storage temperature | -20℃~65℃(Recommended10℃~35℃) |
Cooling method | natural air cooling |
FEATURES
1.Using the technology of LiFePO4 cell,superior safety,thousands of cycles,under normal conditions.
2.Built-in automatic protection of over-charge,over discharge,over current and over temperature.
3.Lighter Weight:About 40% of the weight or a comparable lead acid battery.
4.Higher Power:High Discharge rate and High Energy Capacity.
5.Wider Temperature Range:-20℃ to 60 ℃
1.Using the technology of LiFePO4 cell,superior safety,thousands of cycles,under normal conditions.
2.Built-in automatic protection of over-charge,over discharge,over current and over temperature.
3.Lighter Weight:About 40% of the weight or a comparable lead acid battery.
4.Higher Power:High Discharge rate and High Energy Capacity.
5.Wider Temperature Range:-20℃ to 60 ℃
Built in high class inteligent BMS
The batteries are equipped with a high class BMS (battery management system).The task of this system is to monitor the voltage and
temperature of the cells during both charging and discharging.If dangerous values are exceeded,the system cuts off the power
supply,thus ensuring the safety of the battery,connected devices and most of all,the user!
temperature of the cells during both charging and discharging.If dangerous values are exceeded,the system cuts off the power
supply,thus ensuring the safety of the battery,connected devices and most of all,the user!
1.What is the difference between a lithium-ion battery and a regular battery?
Lithium batteries feature primary cell construction. This means that they are single-use—or non-rechargeable. Ion batteries, on the other hand, feature secondary cell construction. This means that they can be recharged and used over and over again.
2. What is lithium-ion battery and how does it work?
The anode and cathode store the lithium. The electrolyte carries positively charged lithium ions from the anode to the cathode and vice versa through the separator. The movement of the lithium ions creates free electrons in the anode which creates a charge at the positive current collector.
3. What are lithium-ion batteries used for?
Lithium-ion batteries are currently used in most portable consumer electronics such as cell phones and laptops because of their high energy per unit mass relative to other electrical energy storage systems.
4. What is a disadvantage of lithium batteries?
Despite its overall advantages, lithium-ion has its drawbacks. It is fragile and requires a protection circuit to maintain safe operation. Built into each pack, the protection circuit limits the peak voltage of each cell during charge and prevents the cell voltage from dropping too low on discharge.
5. What are 3 important uses of lithium?
The most important use of lithium is in rechargeable batteries for mobile phones, laptops, digital cameras and electric vehicles. Lithium is also used in some non-rechargeable batteries for things like heart pacemakers, toys and clocks.
6. Can lithium-ion batteries be recharged?
Lithium-ion batteries, on the other hand, are rechargeable. We call this type of cell a secondary cell. This means that the lithium ions can move in two directions: from the anode to the cathode while discharging and from the cathode to the anode when recharging.
Lithium batteries feature primary cell construction. This means that they are single-use—or non-rechargeable. Ion batteries, on the other hand, feature secondary cell construction. This means that they can be recharged and used over and over again.
2. What is lithium-ion battery and how does it work?
The anode and cathode store the lithium. The electrolyte carries positively charged lithium ions from the anode to the cathode and vice versa through the separator. The movement of the lithium ions creates free electrons in the anode which creates a charge at the positive current collector.
3. What are lithium-ion batteries used for?
Lithium-ion batteries are currently used in most portable consumer electronics such as cell phones and laptops because of their high energy per unit mass relative to other electrical energy storage systems.
4. What is a disadvantage of lithium batteries?
Despite its overall advantages, lithium-ion has its drawbacks. It is fragile and requires a protection circuit to maintain safe operation. Built into each pack, the protection circuit limits the peak voltage of each cell during charge and prevents the cell voltage from dropping too low on discharge.
5. What are 3 important uses of lithium?
The most important use of lithium is in rechargeable batteries for mobile phones, laptops, digital cameras and electric vehicles. Lithium is also used in some non-rechargeable batteries for things like heart pacemakers, toys and clocks.
6. Can lithium-ion batteries be recharged?
Lithium-ion batteries, on the other hand, are rechargeable. We call this type of cell a secondary cell. This means that the lithium ions can move in two directions: from the anode to the cathode while discharging and from the cathode to the anode when recharging.
Packing & Delivery
Company Profile
ABOUT ESSOLX
Essolx is an international,comprehensive growing company committed to provide Energy Storage Solar System,Solar Panels,Lithium Ion Batteries and solar parts globally.
Essolx was founded in 2015,aiming at becoming Pioneer Energy Sustainable Solution Supplier,
Essolx Solar has adopted international advanced production equipements and dedicated to provide high performance solar panel system with competitive cost.
Essolx, your energy storage specialist, looking forward to work with your company!
ESS: Energy Storage System
SOL: Solar/Sun
X: Expert/Specialist
ESSOLX, Energy Storage Specialist!
SOL: Solar/Sun
X: Expert/Specialist
ESSOLX, Energy Storage Specialist!
Essolx is an international,comprehensive growing company committed to provide Energy Storage Solar System,Solar Panels,Lithium Ion Batteries and solar parts globally.
Essolx was founded in 2015,aiming at becoming Pioneer Energy Sustainable Solution Supplier,
Essolx Solar has adopted international advanced production equipements and dedicated to provide high performance solar panel system with competitive cost.
Essolx, your energy storage specialist, looking forward to work with your company!
Похожие товары

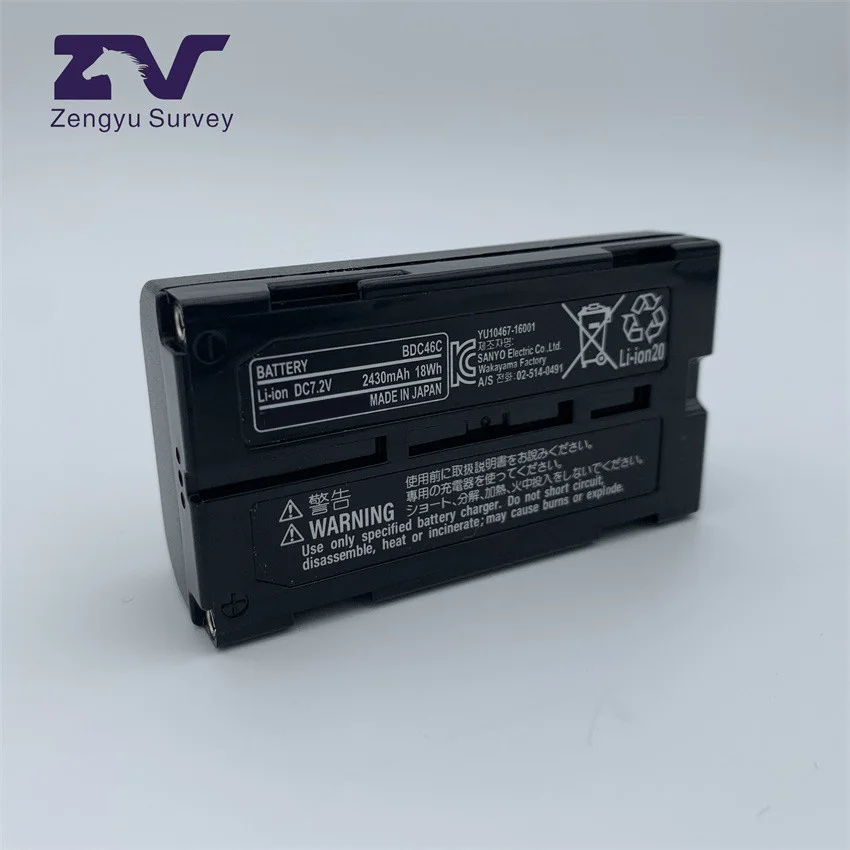

Zengyu BDC46C сменный аккумулятор 7,2 в 2430 м Ач для общей станции Topco
2 734,84 ₽ - 3 281,81 ₽

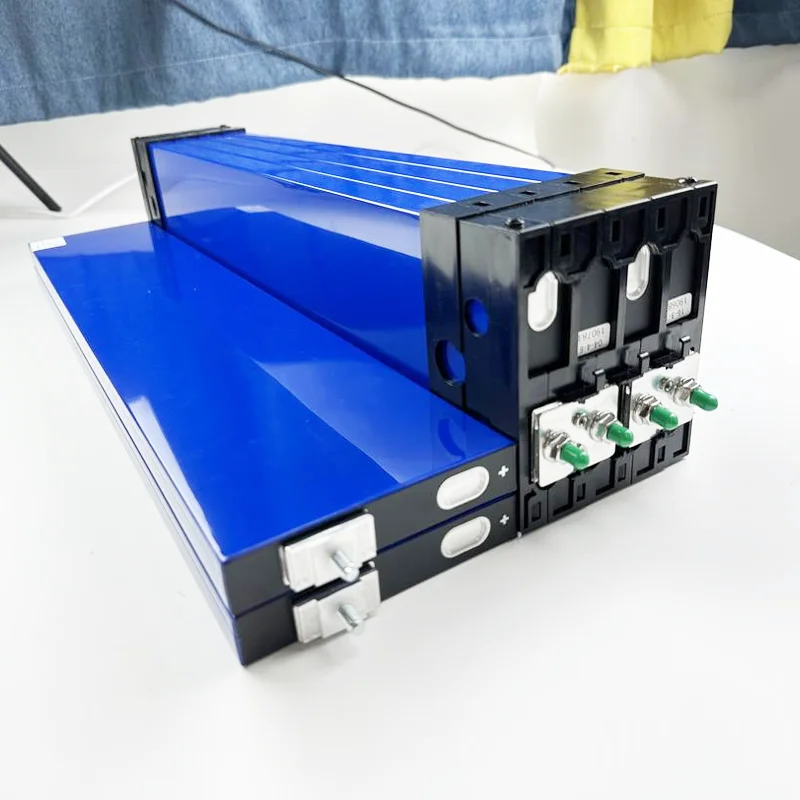

2024 Новый литиевый аккумулятор сделай сам 196Ah LiFePO4 с бесплатными шинами и шпильками класса 3,2 В blade battery cell lfp
2 734,84 ₽ - 3 172,41 ₽
DIY 12,8 В 100ah высокоэффективный Аккумулятор Lifepo4 аккумуляторная литиевая аккумуляторная батарея с Smart BMS
13 127,21 ₽ - 16 190,23 ₽

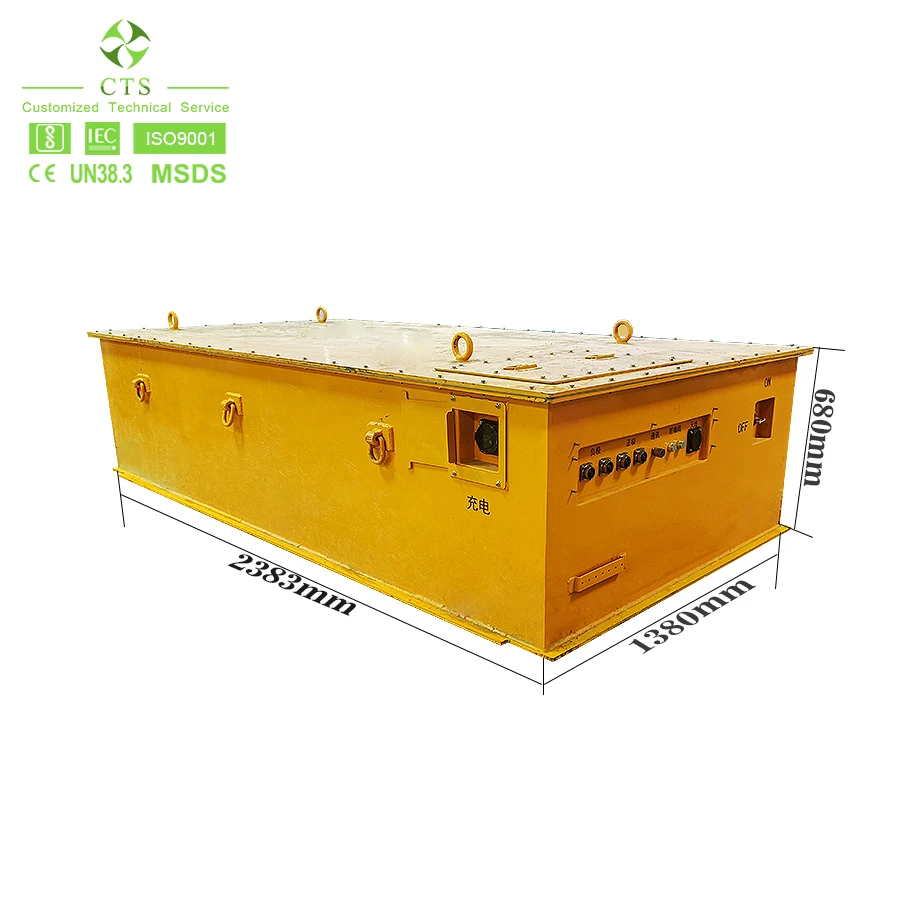

350 В 537 В 420Ah литий-ионный локомотивный Аккумулятор LiFePO4 225 кВтч для локомотива
791 242,47 ₽ - 973 601,26 ₽
Набор для литиевых батарей 48 В Lifepo4, коробка для diy Smart JK BMS без батареек для eve 51,2 В 230A 173A 280A 300A 310A CATL CALB
Топ А + класс дизайн для 10 лет + стойка 48 В/52 В 100Ah/200Ah 5KWH 10KWH LiFePo4 батарея

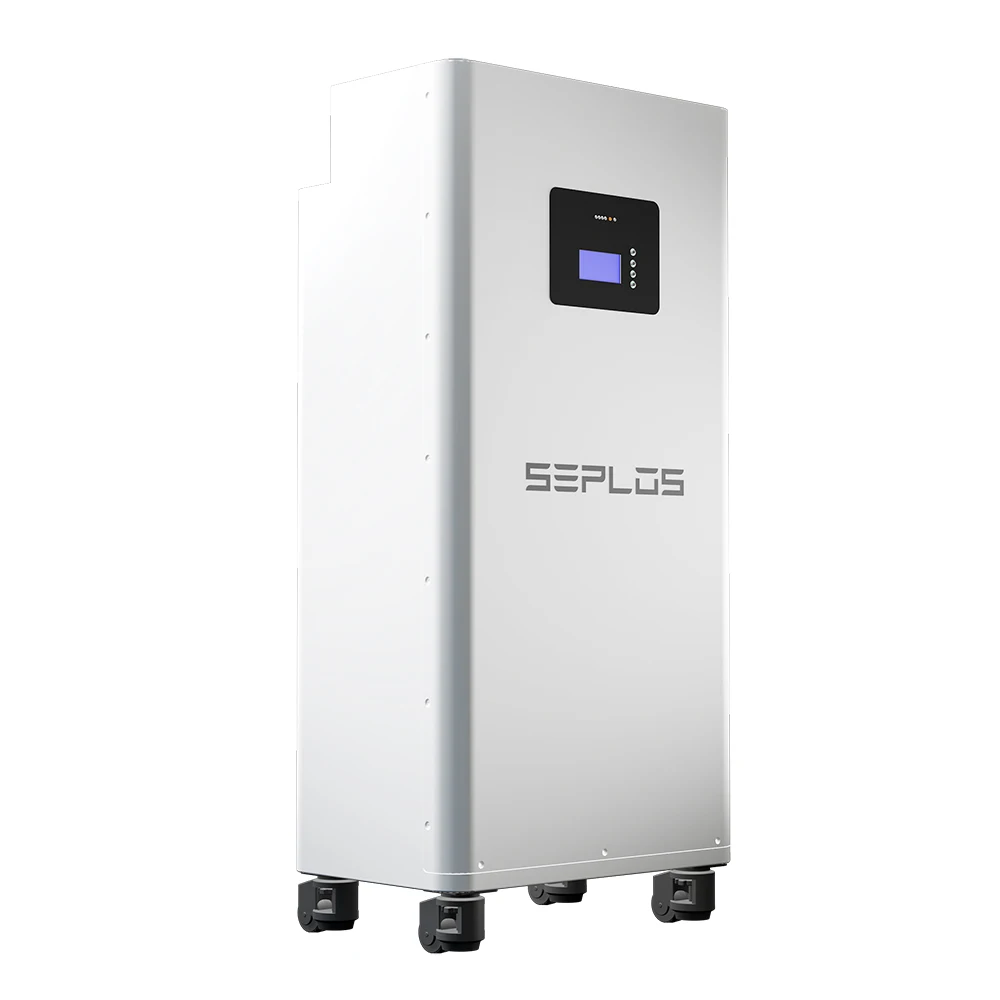

Комплект для самостоятельной сборки Seplos, 51,2 в, Ач, система аккумуляторных батарей на солнечной энергии с литий-ионными батареями Lifepo4
