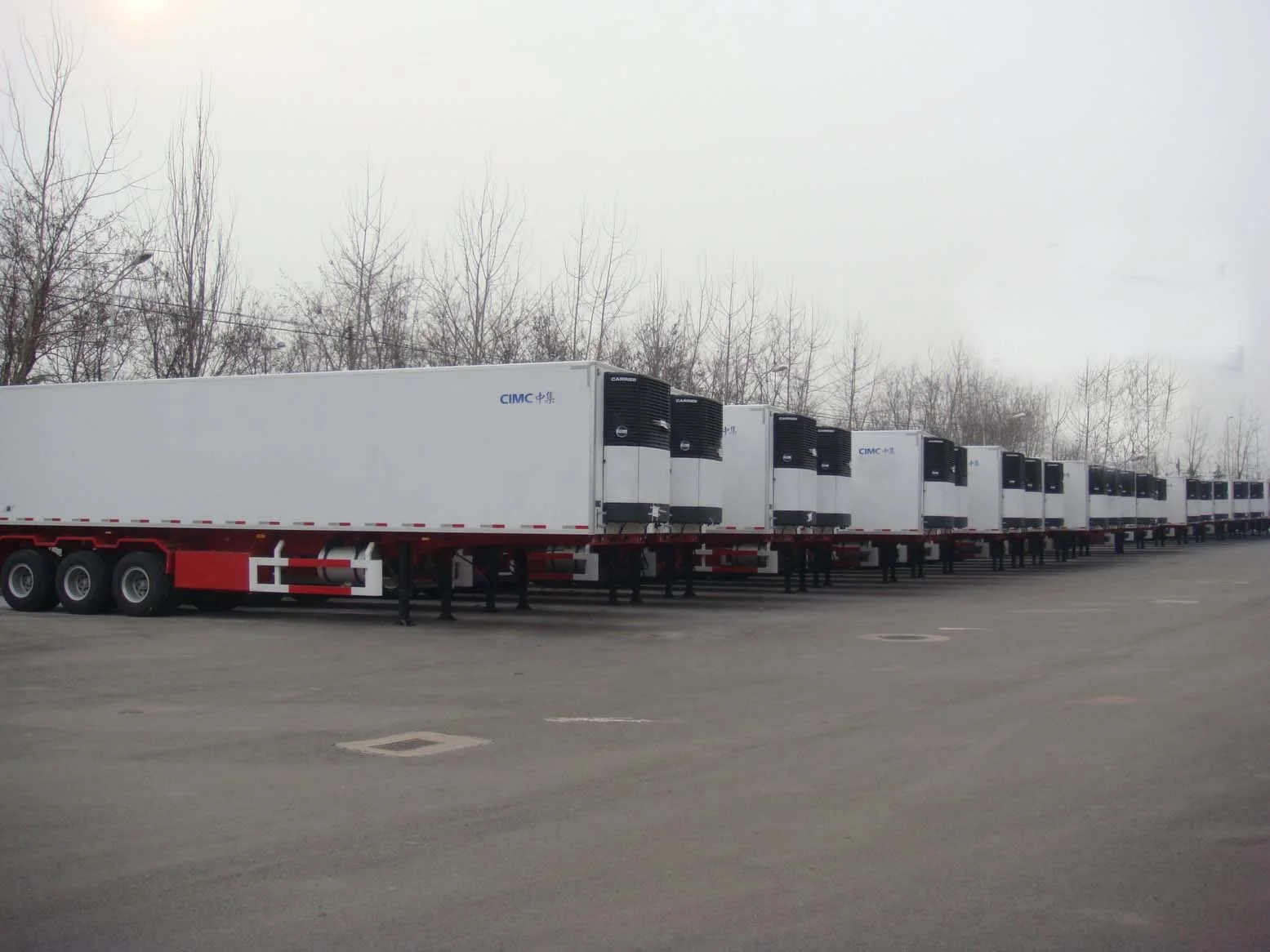

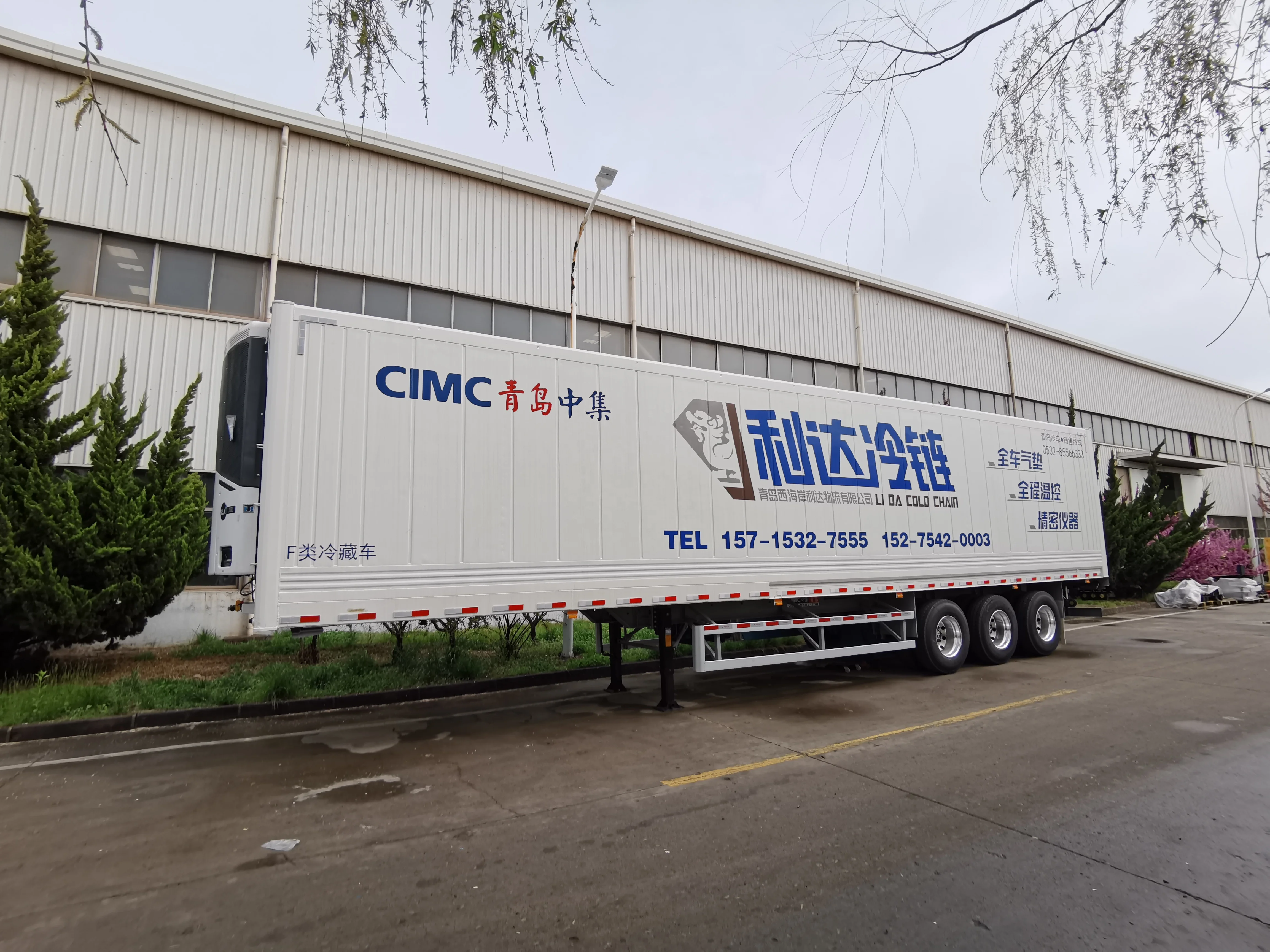

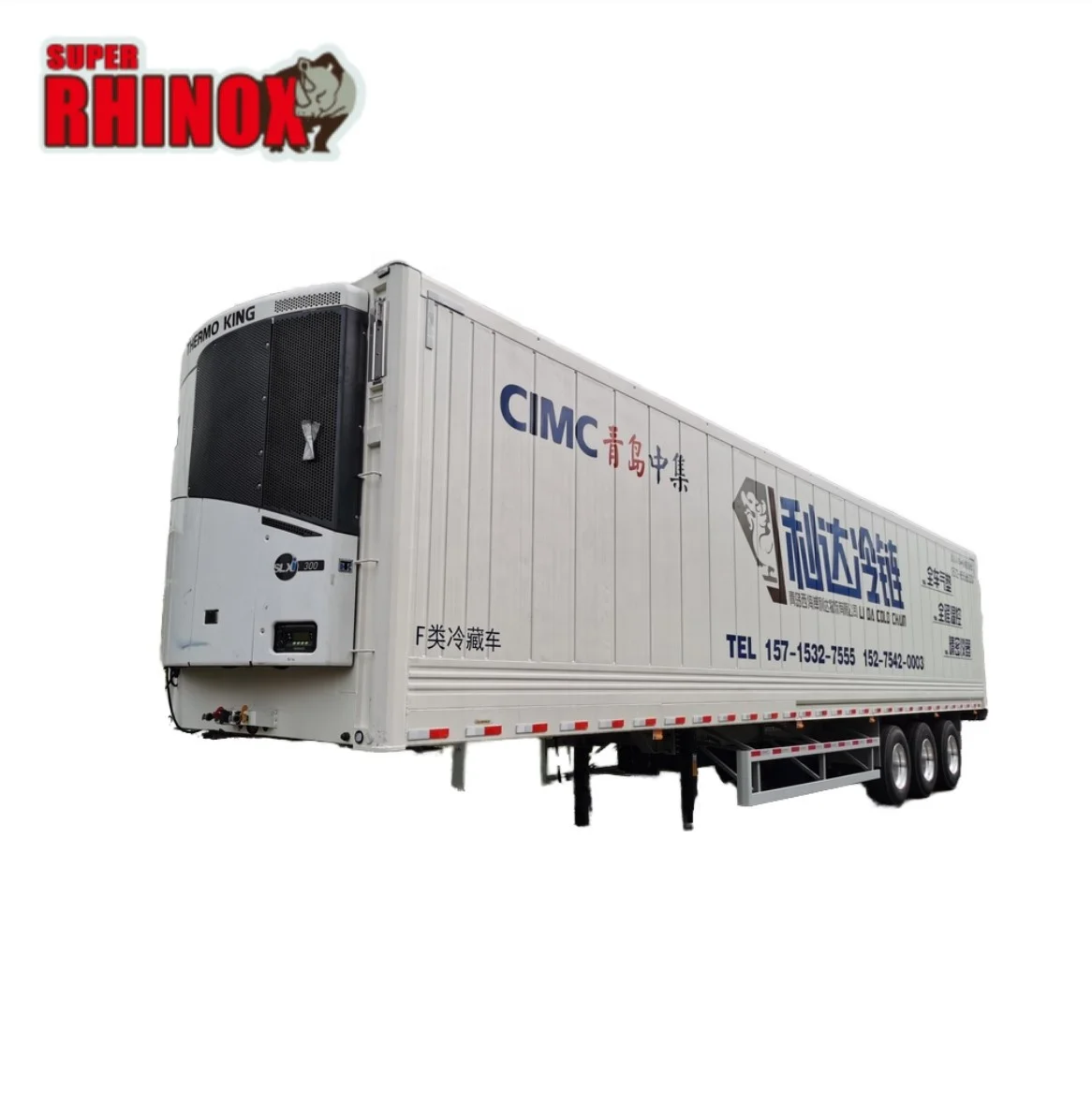

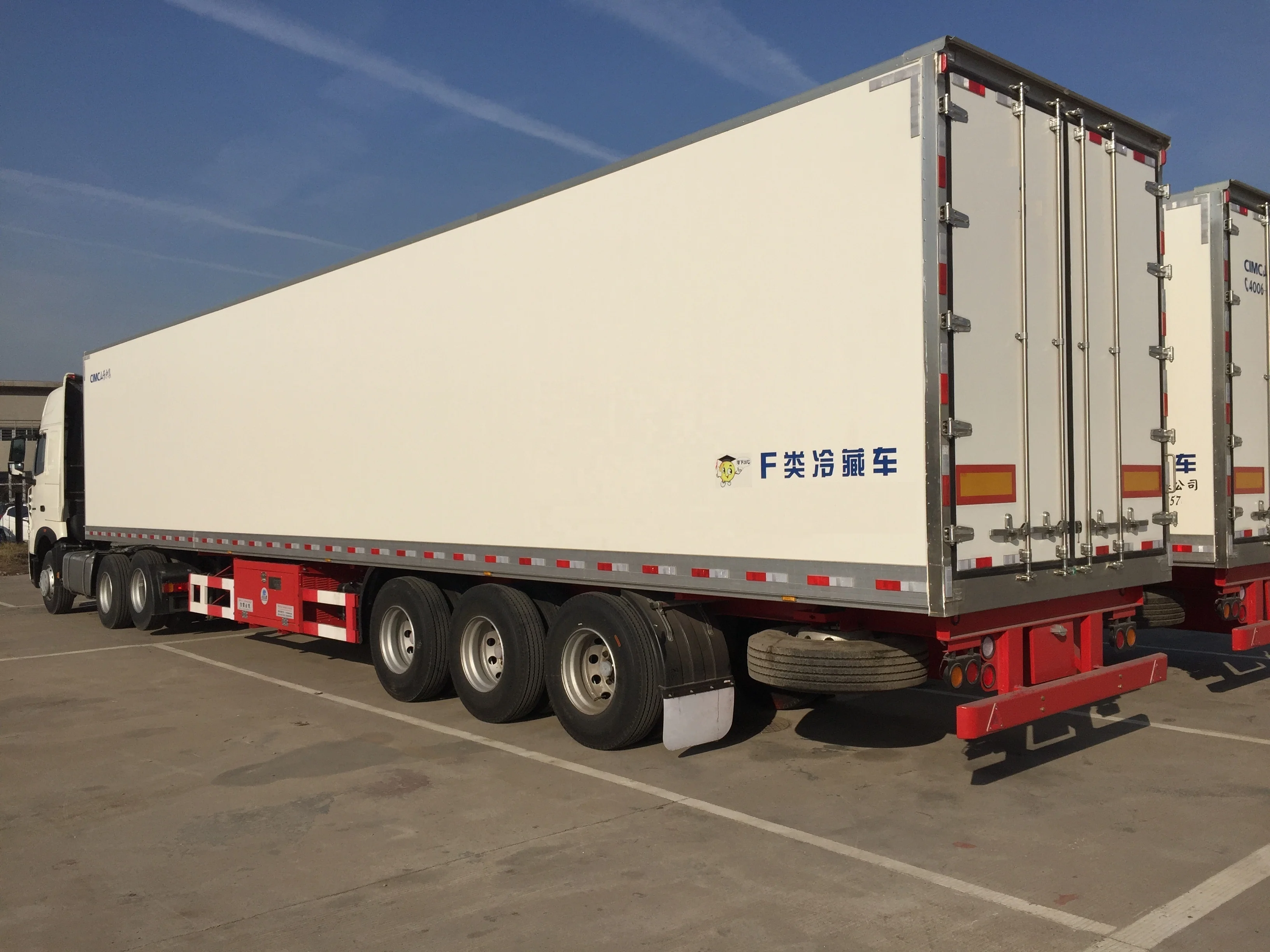

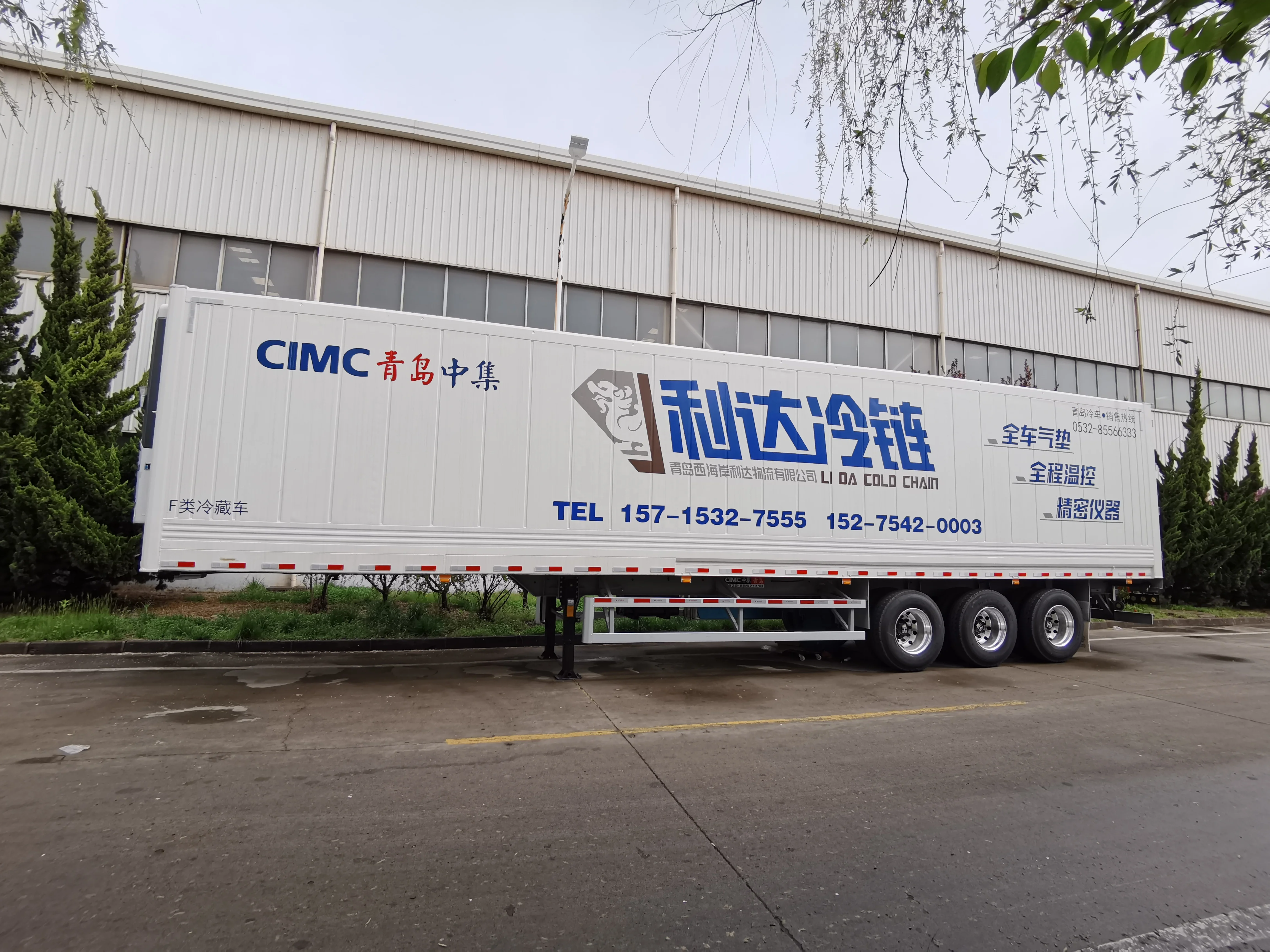

40 футовый РЕФРИЖЕРАТОРНЫЙ полуприцеп с термо королем и носителем охлаждающие машины спецификация стального материала

DIMENSIONS

Overall Length 12500mm

Overall Width 2600mm

Overall Height 4150mm

Interior Length 12324mm

Interior Width (Liner to Liner) 2480mm

Interior Height 2665mm

Coupler Height 1200mm

Internal volume, m.cube. 81m3

Kingpin Setting TBD

INSULATION PACKAGE

Blowing Agent LBA (Green & Environmental)

Sidewall Thickness 60mm

Roof Thickness 80mm

Nose Thickness 100mm

Rear Door Thickness 76mm

Floor Thickness 199mm(insulation 64mm)

SIDEWALLS

Side Sheets 1.0mm thick Pre-painted white Aluminum sheet, rivet design

ROOF

Roof Skin 1.0mm thick Pre-painted white Aluminum sheet

REAR DOOR

Rear Door Type Swing door

Rear Door Out Skin 1.0mm thick Pre-painted white Aluminum sheet

Door Lock Rods 1 piece of stainless steel door lock bars on each door

Hinges 4 pieces. Heavy duty stainless steel hinges on each door

TRAILER CHASIS

Axle & Suspension Mechanical  suspension ,FUWA 13T axle with DRUM brakes

Chassis frame Made of high tensile strength steel

Kingpin Jost 50mm Kingpin or equivalent

Brake System WABCO

Tire (13) pieces of 11R22.5 tires, China Brand

Rim (13) pieces of  steel wheels, China Brand

Landing Gear JOST A400 or SAF-Holland or equivalent

Electrical Outfit According to CHINA  standard

Lights&Harness Group Star & Phillips

Rear Bumper CIMC furnished
