Лидер продаж нержавеющая сталь пищевой высоковязкий роторный лопастной насос для сливочного сахарного сиропа
- Категория: >>>
- Поставщик: Wenzhou Fengle Machinery Co. Ltd.Wenzhou Ltd.
Сохранить в закладки 1601169609717:
Описание и отзывы
Характеристики
Features
This cam lobe pump is a multi-purpose transfer pump which adopts two-lobe, tri-lobe, butterfly or multi-lobe rotor. As a sanitary volumetric delivery pump, it has the characteristics of low speed, high output torque, high temperature resistance, corrosion resistance, etc. Its unique working principle and characteristics are embodied in conveying high viscosity, high temperature, and highly corrosive materials. Its conveying process is smooth and continuous, and it can ensure that the physical properties of the materials are not broken during the conveying process, and the viscosity of the conveyable materials can be up to 1,000,000 CP.Product Parameters
Model | Capacity (L/100R) | Speed (RPM) | Flow (L/Hour) | Power(kw) | ||||
ZB3A-3 | 3 | 200-500 | 300-800 | 0.55 | ||||
ZB3A-6 | 6 | 200-500 | 650-1600 | 0.75 | ||||
ZB3A-8 | 8 | 200-500 | 850-2160 | 1.5 | ||||
ZB3A-12 | 12 | 200-500 | 1300-3200 | 2.2 | ||||
ZB3A-20 | 20 | 200-500 | 2100-5400 | 3 | ||||
ZB3A-30 | 30 | 200-400 | 3200-6400 | 4 | ||||
ZB3A-36 | 36 | 200-400 | 3800-7600 | 4 | ||||
ZB3A-52 | 52 | 200-400 | 5600-11000 | 5.5 | ||||
ZB3A-66 | 66 | 200-400 | 7100-14000 | 7.5 | ||||
ZB3A-78 | 78 | 200-400 | 9000-18000 | 7.5 | ||||
ZB3A-100 | 100 | 200-400 | 11000-22000 | 11 | ||||
ZB3A-135 | 125 | 200-400 | 15000-30000 | 15 | ||||
ZB3A-160 | 160 | 200-400 | 17000-34000 | 18.5 | ||||
Customizable according to customer requirements | ||||||||
Note
The flow range in the table refers to the data measured when the medium is “water”.It adopts stepless variable speed motor or frequency converter to adjust the speed range from 200 to 900 rpm. When conveying high viscosity concentrated liquid, the motor power must be increased. The data in this form is subject to change without prior notice. The correct parameters are subject to the actual product provided.
The flow range in the table refers to the data measured when the medium is “water”.It adopts stepless variable speed motor or frequency converter to adjust the speed range from 200 to 900 rpm. When conveying high viscosity concentrated liquid, the motor power must be increased. The data in this form is subject to change without prior notice. The correct parameters are subject to the actual product provided.
Transmission Section Selection:
* Motor + Fixed Ratio Reducer: this method of transmission is simple, the rotor speed is constant, which also determines the flow rate is not adjustable.

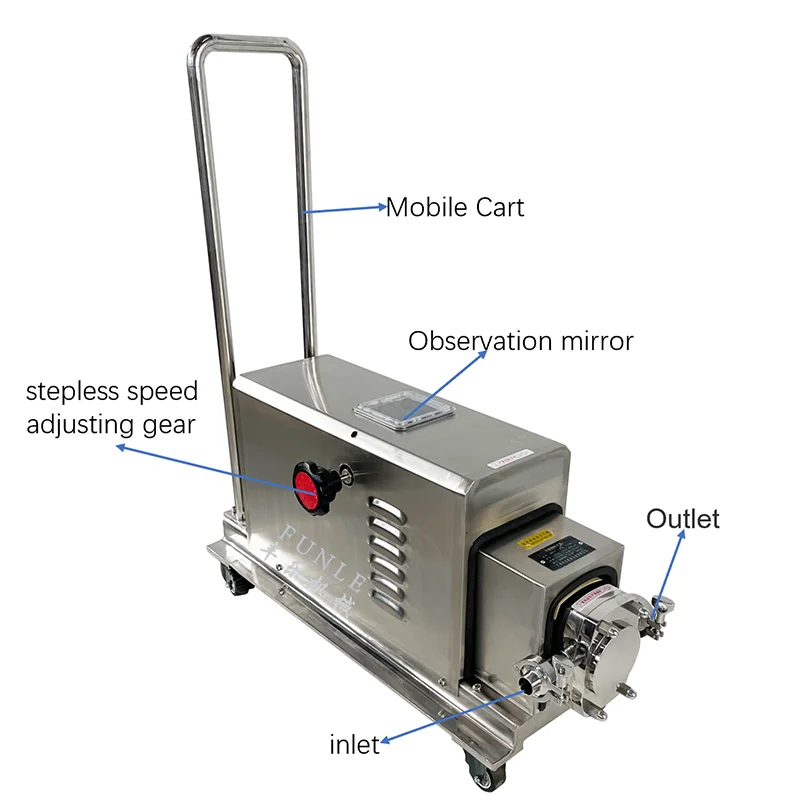

* Motor + Mechanical Friction Type Stepless Transmission: this type of transmission is manually adjusted to achieve variable speed. It is characterized by safe and reliable, large torque, flow adjustable stepless. Disadvantages are non-automatic adjustment and more troublesome. The speed must be adjusted in the working process, and it must not be adjusted under stop state. Please refer to the manufacturer's instructions for use and maintenance specifications.
* Converter Motor + Converter: the speed can be automatically adjusted in this way, which means that the flow can be adjusted steplessly. The advantage is that the degree of automation is high and the low speed torque is large; the disadvantage is that the price of the inverter is relatively high. Please refer to the manufacturer's instruction manual for maintenance specifications.
* Motor + Fixed Ratio Reducer: this method of transmission is simple, the rotor speed is constant, which also determines the flow rate is not adjustable.
* Motor + Mechanical Friction Type Stepless Transmission: this type of transmission is manually adjusted to achieve variable speed. It is characterized by safe and reliable, large torque, flow adjustable stepless. Disadvantages are non-automatic adjustment and more troublesome. The speed must be adjusted in the working process, and it must not be adjusted under stop state. Please refer to the manufacturer's instructions for use and maintenance specifications.
* Converter Motor + Converter: the speed can be automatically adjusted in this way, which means that the flow can be adjusted steplessly. The advantage is that the degree of automation is high and the low speed torque is large; the disadvantage is that the price of the inverter is relatively high. Please refer to the manufacturer's instruction manual for maintenance specifications.
Product details
Working Principle

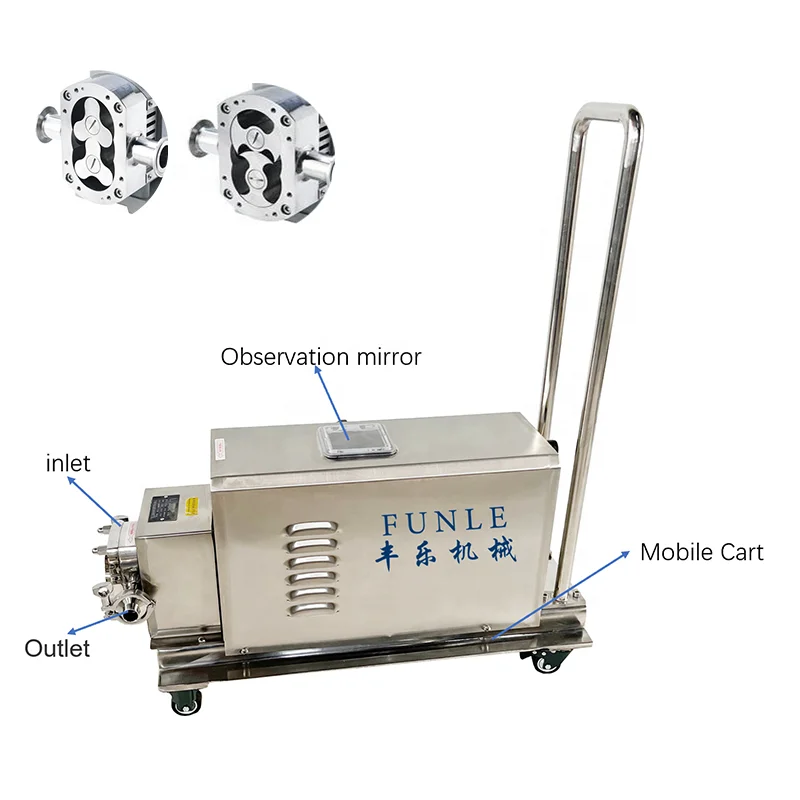

The rotor pump has two synchronously reversed rotors (2-4 teeth). When they rotate, there is suction (vacuum) generated at the inlet to suck in the material to be transported. The two rotors divide the rotor chamber into several small pieces. In the space,they operate in the order a→b→c→d. When operating to position a, only chamber I is filled with media; At location b, part of the medium is enclosed in room B; At position c, the medium is also enclosed in chamber A; At position d, Room B and Room A communicates with Chamber II, and the media is conveyed to the discharge port. In this way, the medium (material) is continuously sent out.
The rotor pump has two synchronously reversed rotors (2-4 teeth). When they rotate, there is suction (vacuum) generated at the inlet to suck in the material to be transported. The two rotors divide the rotor chamber into several small pieces. In the space,they operate in the order a→b→c→d. When operating to position a, only chamber I is filled with media; At location b, part of the medium is enclosed in room B; At position c, the medium is also enclosed in chamber A; At position d, Room B and Room A communicates with Chamber II, and the media is conveyed to the discharge port. In this way, the medium (material) is continuously sent out.
Related Products
1. About Delivery term
Q: What's the delivery term for doing business with you?
A: EXW/FOB/CIF/DDU… it depends on preference of clients.
2. About Lead time
Q: What's the leading time after placing order?
A: After getting your confirmation, mixing tank about 25 days, pump 15 days, colloid mill 10 days. However, it depends on
production schedule is in slack or peak season, and the complication of machines.
3. About Payment time
Q: What's the payment term?
A: T/T 40% as down payment, 60% balance payment before delivery.
4. About Quality
Q: How do you control your quality?
A: All machines before delivery will be tested and send video for customer, if no problem then arrange balance payment.
Meanwhile,CE is available for customers' needs.
5. About Packing
Q: How do you pack the machines?
A: Standard export wooden case, to avoid damage during delivery.
6. About Customized
Q: Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings.
Q: What's the delivery term for doing business with you?
A: EXW/FOB/CIF/DDU… it depends on preference of clients.
2. About Lead time
Q: What's the leading time after placing order?
A: After getting your confirmation, mixing tank about 25 days, pump 15 days, colloid mill 10 days. However, it depends on
production schedule is in slack or peak season, and the complication of machines.
3. About Payment time
Q: What's the payment term?
A: T/T 40% as down payment, 60% balance payment before delivery.
4. About Quality
Q: How do you control your quality?
A: All machines before delivery will be tested and send video for customer, if no problem then arrange balance payment.
Meanwhile,CE is available for customers' needs.
5. About Packing
Q: How do you pack the machines?
A: Standard export wooden case, to avoid damage during delivery.
6. About Customized
Q: Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings.
