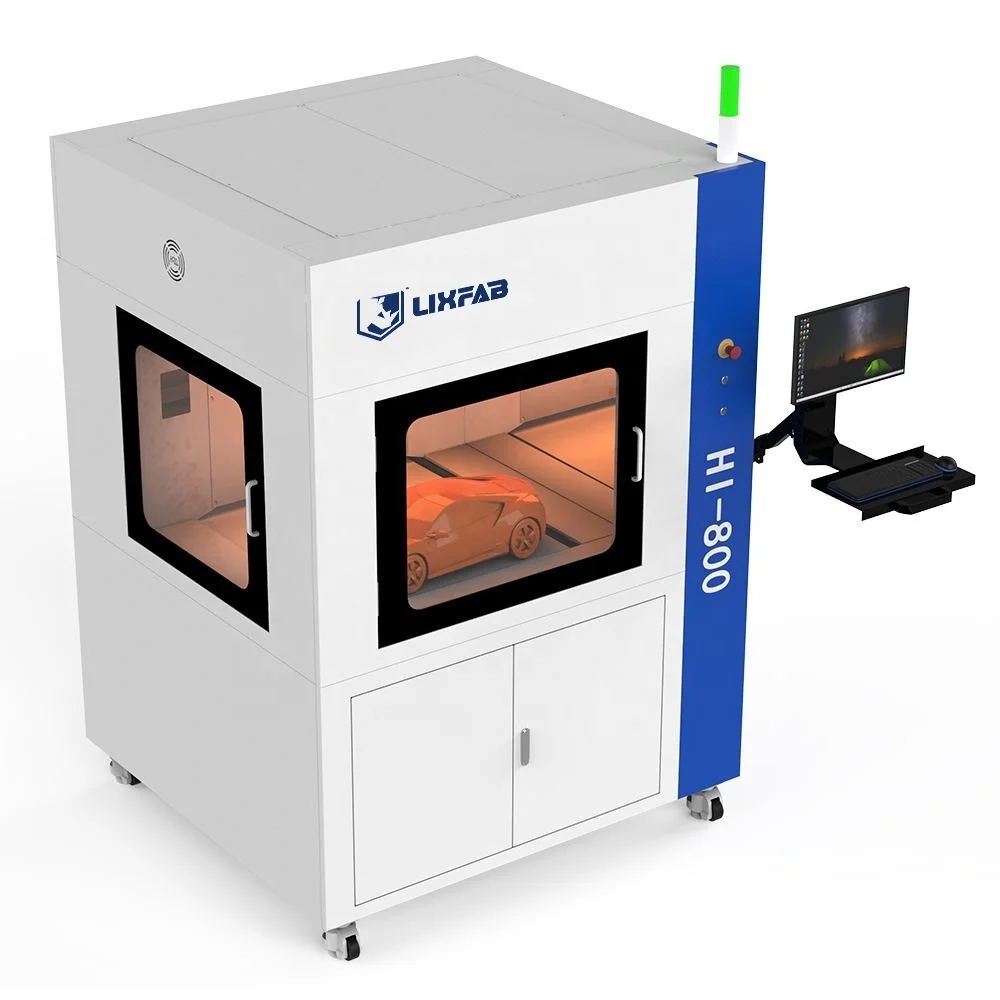

Промышленный Высокоточный медицинский полимерный прототип инженерный принтер SLA 3D (SLA600/800/1100/1600/2000/2400)

Промышленный Высокоточный медицинский полимерный прототип инженерный принтер SLA 3D (SLA600/800/1100/1600/2000/2400)

Категория: >>>
Поставщик: Lingxi Zhizao (tianjin) Technology Co. Ltd.Lingxi Ltd.

Цена:3 247 865,50-4 547 011,70 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

VISTAR Industrial High Precision 3D Printer (SLA600/800/1100/1600/2000/2400)

LASER SYSTEM
Type	Diode-pumped solid-state laser Nd:YVO4
Wavelength	355 nm
Power at vat at 5000 hours	300mW
Power auto-adjustment	Optional
RECOATING SYSTEM
Process	Intelligent reduced vacuum press recoater
Normal build style	0.1mm
Quick build style	0.1~0.15mm
Precision build style	0.05~0.1mm
OPTICAL & SCANNING
Beam (diameter@1/e2 )	0.10-0.15mm
Focus style	ScanLab
Part drawing speed	Recommended 6.0m/s
Beam jump speed	Recommended 10.0m/s
Reference Build Weight	30 ~ 80g/hr
ELEVATOR
Vertical resolution	0.0002mm
Position repeatability	±0.01mm
Maximum part weight	30kg
RESIN VAT
Volume	Approx. 250kg
Maximum build box	800800500mm
Resin heated style	Hot air
SOFTWARE
Data interface	SLC file, CLI file
Build software	ZERO 4.0 build software
CAD interface	3D design software, STL file format
INSTALLATION CONDITION
Power	200-240VAC 50/60Hz, single phase, 8Amps
Ambient temperature	20-26ºC
Built-in air condition	Optional
Relative humidity	Less than 40%, non-condensing
Size	157014502190mm
Weight	500kg
WARRANTY (Terms & conditions apply)
Laser	5000 hours or 12months (whichever comes first)
Main machine	One (1) year from installation date

SLA 3D Printer Features:

* Fine detail and smooth surface finishing
* Print intricate details with accuracy achievable up to 0.05mm
* Convenient and user- friendly for printing concept models, functional prototypes and end-products
* Three options of quick printing mode and precision mode available,Variable spot technology
* Dynamic focus and super fast scanning style
* large surface intelligent partitioning scanning
* Granite integrated Z axis lifting platform
* Intelligent positioning and vacuum adsorption recoater
* Damaged parts can be deleted immediately
* High market share in China, more than 3000 sets industrial 3D printers installed in China and all over the world.
* Have been researched 3D printing technology since year 1998.
* One-stop solution for machine, software and materials.
* Rich product range including SLA, SLM, SLS and ceramic machines.
* World Well-known brands for key components to guarantee the machine quality and stability.
* English and fast response online support guys.

Q: Are you a factory or a trading company?

A: Factory

Q:What is the biggest feature of your resin SLA 3D printer?

A:High precision ,High stability ,Open system ,Open material ,second in the world

Q:Can I get a SLA 3D Printing sample for test before order, what is the MOQ ?
A: MOQ is 1set, we welcome sample sending to test Quality.

Q:Do you offer 3D Printing service ?
A:We offer professional 3D Printing base on customers 3D Files.Welcome to order testing on our 3D Printer machine before orders.

Q: What is the printing service process like?

A: Customers prepare 3D drawings and requirements in advance - customer service personnel quote through 3D drawings - both parties confirm the price - sign the contract - receive payment for goods, arrange processing - deliver goods

Q : Do you only provide rapid prototyping service?
A : No,we can not only make prototype but also open moulds,that means your order quantities can change from 1pcs to a large quantity.

Q: How to process the order if I want design my own Product ?

A:First, sign NDA before start protect your ideas.Then Send you design we will check and follow OEM.

Q: How about after-sales service?

A: We provide customers with free training, and provide commissioning, training

Q: How do you ship the Chinese large SLA 3D Printer and how long it will arrive?

A: 1-5sets, We often Test it for 2 Weeks and Ensure the Quality first and then sennd by Sea Or Air, if By Sea, will take about 15-30 workings days. By Air will get fast about 3-7 working days.

Q: How about the Shipping Method?

A: DHL/UPS/TNT/Fedex and other air shipments and sea shipments are all workable.We will suggest you best shipping method based on.
