Цикл жизни более 3000 раз 12 В 24 В 36 В 48 В 72 В 12ah 20ah 45ah e велосипед электрический скутер lifepo4 литиевая батарея
13 012,31 ₽
Китайский золотой поставщик E bike литиевая батарея 12V 24V 36V 48V 60V LiFePO4
- Категория: >>>
- Поставщик: Guangdong Yifei Maker Technology Co. Ltd.
Сохранить в закладки 1601171723019:
Описание и отзывы
Характеристики
Product Description

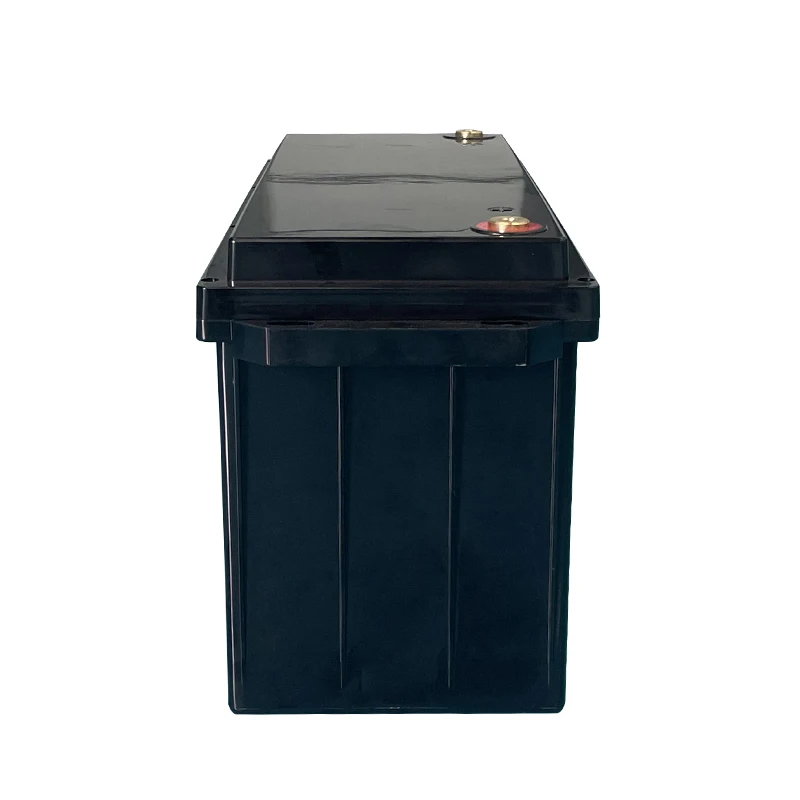

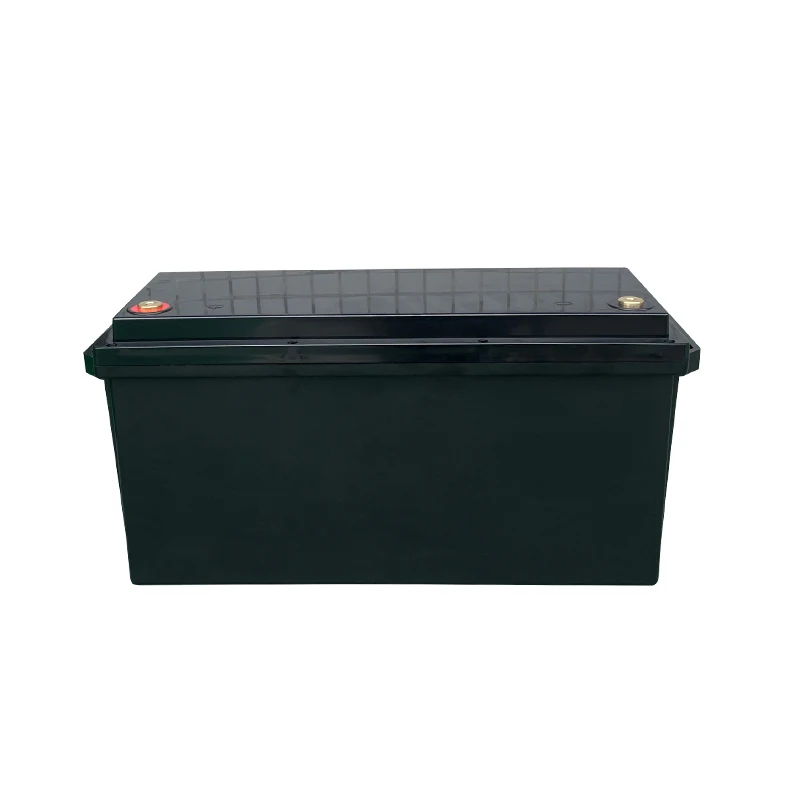

China Gold Supplier E bike Lithium Battery 12V 24V 36V 48V 60V LiFePO4 Lithium Battery
Lead-acid battery to lithium Battery Specification(12.8V) | ||||||||
Eelectrical Characteristic | Model | 4S1P-12.8V100A(100A) | 4S1P-12.8V200A(200A) | 4S1P-12.8V300A(300A) | ||||
Voltage | 12.8V | |||||||
Nominal Capacity | 100Ah | 206Ah | 300Ah | |||||
Power | 1280Wh | 2636Wh | 3840Wh | |||||
Battery Cycle Life | ≥6000 cycles@80%DOD@35℃ | |||||||
Monthy Discharge | ＜3% | |||||||
Charge Efficiency | 97% | |||||||
Discharge Efficiency | ≥98% | |||||||
Charging Stangards | Charge Current | 50A | 100A | 100A | ||||
Charge Limit Voltage | 14.4V | |||||||
Discharge Standard | Continous Discharge | 100 | 200 | 200 | ||||
Discharge Current | 50A | 100A | 100A | |||||
Discharge Cut-off Voltage | 9.2V | |||||||
Temperature Characteristic | Operating Temperature | 0℃~50℃ | 0℃~45℃ | 0℃~50℃ | ||||
Discharge Tempature | ﹣20℃~55℃ | ﹣20℃~60℃ | ﹣20℃~55℃ | |||||
Storage Temperature | 0℃~＋45℃（Less than 1 month） 0℃~＋35℃（Less than 6 months） | |||||||
Other | Waterproof Rating | IP68 | ||||||
Material System | LiFePO4 | |||||||
Plastic Housing Material | ABS | |||||||
Product Size | 339*185*218mm | 522*238*218mm | 522*238*218 | |||||
N.W. | 9.5kg | 18kg | 28kg | |||||
Arrangement | 4S1P | |||||||
Lead-acid battery to lithium Battery Specification(25.6V) | ||||||
Eelectrical Characteristic | Model | 8S1P-25.6V100A(100A) | 4S1P-12.8V200A(200A) | |||
Voltage | 25.6V | |||||
Nominal Capacity | 100Ah | 200Ah | ||||
Power | 2560Wh | 5120Wh | ||||
Battery Cycle Life | ≥6000 cycles@80%DOD@35℃ | |||||
Monthy Discharge | ＜3%Month | |||||
Charge Efficiency | 97% | |||||
Discharge Efficiency | ≥98% | |||||
Charging Stangards | Charge Current | 50A | 50A | |||
Charge Limit Voltage | 28.8V | |||||
Discharge Standard | Continous Discharge | 100A | 100A | |||
Discharge Current | 50A | 50A | ||||
Discharge Cut-off Voltage | 18.4V | |||||
Temperature Characteristic | Operating Temperature | 0℃~50℃ | ||||
Discharge Tempature | ﹣20℃~55℃ | |||||
Storage Temperature | 0℃~＋45℃（Less than 1 month） 0℃~＋35℃（Less than 6 months） | |||||
Other | Waterproof Rating | IP68 | ||||
Material System | LiFePO4 | |||||
Plastic Housing Material | ABS | |||||
Product Size | 502*182*253mm | 502*182*243mm | ||||
N.W. | 18kg | 35kg | ||||
Arrangement | 8S1P | |||||
[Technical support] : one-to-one customized voltage, current, capacity, battery size, etc.please contact customer service for more information! | ||||||

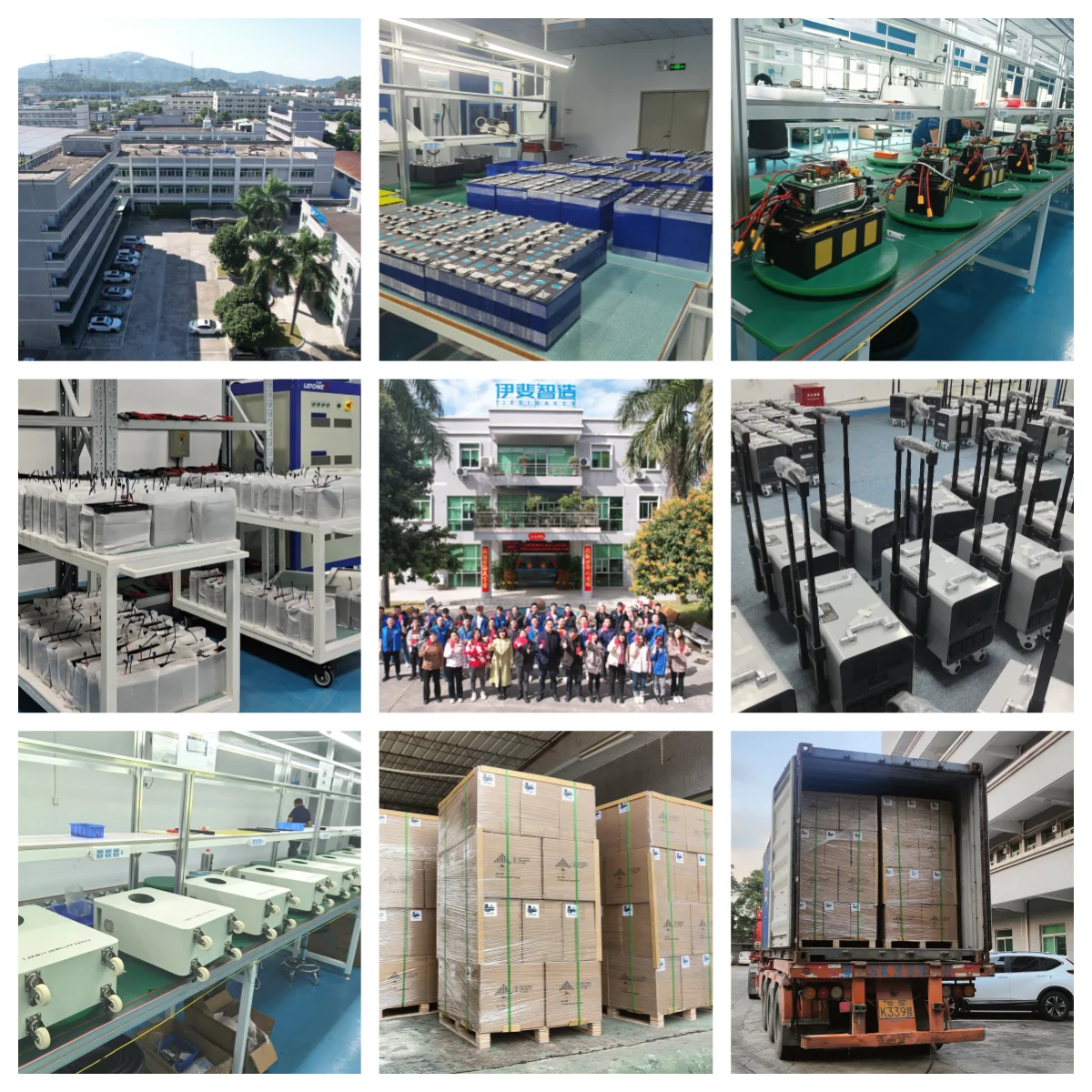

Company Profile
About Yifei Power
Yifei Power is a large new energy production enterprise, headquartered in Dongguan, Guangdong, focusing on the design, R&D and production of all kinds of power battery products and solar panel products, our company has two production bases in Dongguan, Guangdong, independent industrial park, plant area of more than 20,000 square meters, and set up a research and development center in Xiamen. Our team core members have more than 15 years of experience in the new energy industry, and many members have held important positions in international giant battery companies such as BYD and Ningde Times. Relying on the formed factory and a strong R & D team, we has launched dozens of household energy storage, portable energy storage, photovoltaic modules, new energy overall solutions and other series of products and services, providing OEM/ODM services for many brand customers around the world. We have independent development capabilities, and rich experience in product development, has a strong appearance, electronic control, structure, software, system, machine and other full set of development capabilities, and low pressure, high pressure design and development capabilities, can provide you with from 0 to the whole machine design, development, production, assembly, testing and other comprehensive services. We has obtained a number of Chinese national patents, and has passed the IS09001, ISO14001, ISO45001 certification. Up to now,our products have been exported to many countries around the world, and have been widely recognized by customers.
We partner with customers worldwide to build a cleaner and more sustainable future together.
We partner with customers worldwide to build a cleaner and more sustainable future together.
Package&transport
Order Protection
Worry About your Product quality and order shipment time and payment?
don't worry,we support Alibaba Trade Assurance.
100% energy storage PRODUCT QUALITY PROTECTION!
100% ON-TIME SHIPMENT PROTECTION!
100% PAYMENT PROTECTION!
100% energy storage PRODUCT QUALITY PROTECTION!
100% ON-TIME SHIPMENT PROTECTION!
100% PAYMENT PROTECTION!
Regular solution for customer complaints
FAQ
1.:Are you a manufacturing factory?
A:yes. We are a LifePO4 Battery,solar panel manufacturer and energy storage solution provider.welcome to visit our factory and production workshop.
2:MOQ and OEM/ODM
A:Low MOQ, 1 pc for sample checking is available, mixed samples are welcomed.
For bulk order, We also provide your brand OEM and technology ODM services according to your needs.
3:Quality Control
A:Has passed ISO9001, TUV SUD, Alibaba and other authoritative certification bodies of the field factory quality certification; From source design, raw material purchasing，production, testing to product packaging can be achieved internal control ; Products have obtained CE,ROHS,FCC and other product certificates that meet various market .requirements.
4:Tech Support
Energy storage batteries are exclusive private models, and all models have appearance patents. Many years of experience in the R&D personnel, can match your product design needs, to provide you with excellent product solutions.
5:Lead Time
Standard model sample needs 3-5 days, mass productions time needs about 15-35 days according to model number and order quantity.
6:Shipping cost/Shipping method/Transport time
It’s depends on weight, packing size and destination and your logistics selection. We usually could offer the following shipping quotes:
Sample/Small order would be ship by International Expresses (normally 3-7 working days)or International logistics parcel(15-20 days). Bulk order would be ship by Airline(5-7 working days airport to airport ) and sea shipping(15-40 days port to port ).
7:Warranty
According to the quality assurance industry standards of different types of products, we provide 1-25 years of whole machine/energy storage battery/solar panel warranty services, please refer to our product warranty policy for details.
A:yes. We are a LifePO4 Battery,solar panel manufacturer and energy storage solution provider.welcome to visit our factory and production workshop.
2:MOQ and OEM/ODM
A:Low MOQ, 1 pc for sample checking is available, mixed samples are welcomed.
For bulk order, We also provide your brand OEM and technology ODM services according to your needs.
3:Quality Control
A:Has passed ISO9001, TUV SUD, Alibaba and other authoritative certification bodies of the field factory quality certification; From source design, raw material purchasing，production, testing to product packaging can be achieved internal control ; Products have obtained CE,ROHS,FCC and other product certificates that meet various market .requirements.
4:Tech Support
Energy storage batteries are exclusive private models, and all models have appearance patents. Many years of experience in the R&D personnel, can match your product design needs, to provide you with excellent product solutions.
5:Lead Time
Standard model sample needs 3-5 days, mass productions time needs about 15-35 days according to model number and order quantity.
6:Shipping cost/Shipping method/Transport time
It’s depends on weight, packing size and destination and your logistics selection. We usually could offer the following shipping quotes:
Sample/Small order would be ship by International Expresses (normally 3-7 working days)or International logistics parcel(15-20 days). Bulk order would be ship by Airline(5-7 working days airport to airport ) and sea shipping(15-40 days port to port ).
7:Warranty
According to the quality assurance industry standards of different types of products, we provide 1-25 years of whole machine/energy storage battery/solar panel warranty services, please refer to our product warranty policy for details.
8:Pre-sales and After-sales Service
Yifei Power has a number of sales engineers whom with more than 10 years of foreign trade experience and annual sales of millions of US dollars: to recommend the most suitable standard products for you, to provide you with the best ODM product solutions; Track and update the whole process from design, sample, mass production, testing, packaging, inspection and transportation for you; Help you easily solve product certification, transportation, appointed delivery time and other issues, receiving worry-free; keep in touch to focus on your market and product needs, solve possible product issues when use or even after warranty time.
Yifei Power has a number of sales engineers whom with more than 10 years of foreign trade experience and annual sales of millions of US dollars: to recommend the most suitable standard products for you, to provide you with the best ODM product solutions; Track and update the whole process from design, sample, mass production, testing, packaging, inspection and transportation for you; Help you easily solve product certification, transportation, appointed delivery time and other issues, receiving worry-free; keep in touch to focus on your market and product needs, solve possible product issues when use or even after warranty time.
Похожие товары
Лучшая оптовая цена, литиевая солнечная батарея Lifepo4 класса 20AH 27AH 30AH Lifepo E Bike Ev Ups, гольф-Кар, аккумуляторные батареи
18 434,11 ₽ - 21 145,01 ₽
Настраиваемый высококачественный комплект литиевых батарей для электровелосипеда 1V1 36 В 48 В lifePO4
32 422,34 ₽

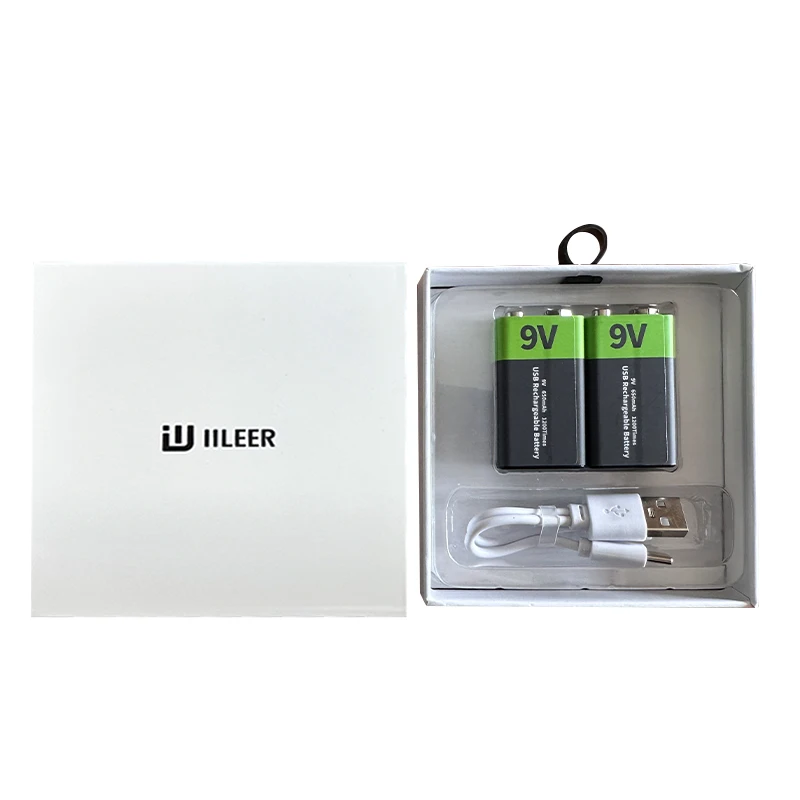

Оптовая цена 3700mWh 9 В USB литиевая аккумуляторная батарея 650 мАч 1200 циклы с портом типа C для дома
180,01 ₽ - 338,33 ₽

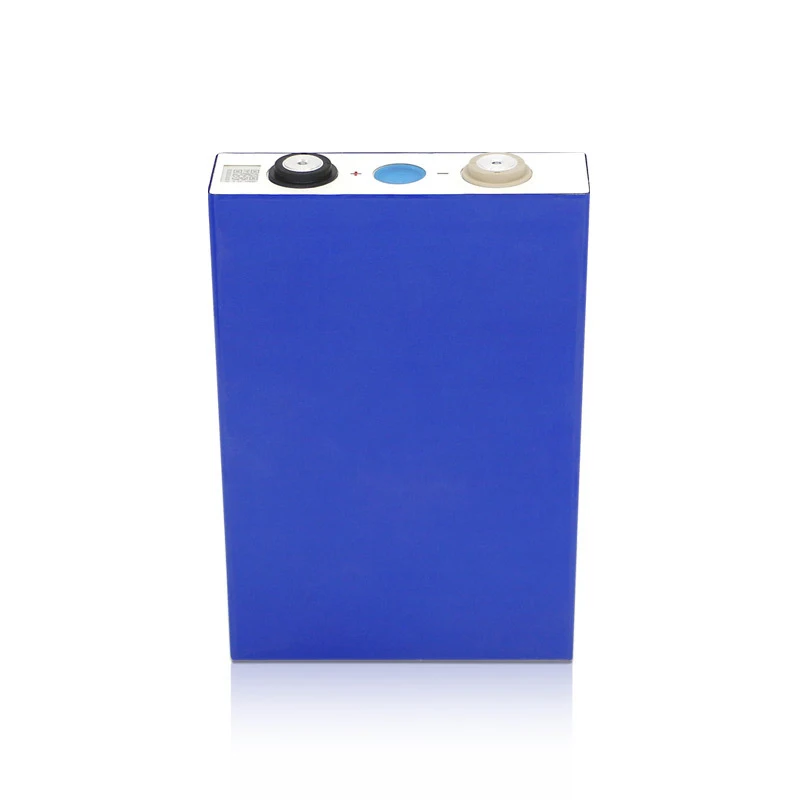

Оптовая продажа, литий-ионные батареи 3,2 В, 200 А · ч, литиевые батареи, 3,2 В, 105 А · ч, 3,2 В, 25 А · ч, 100 3,2 В, литиевые батареи, 200

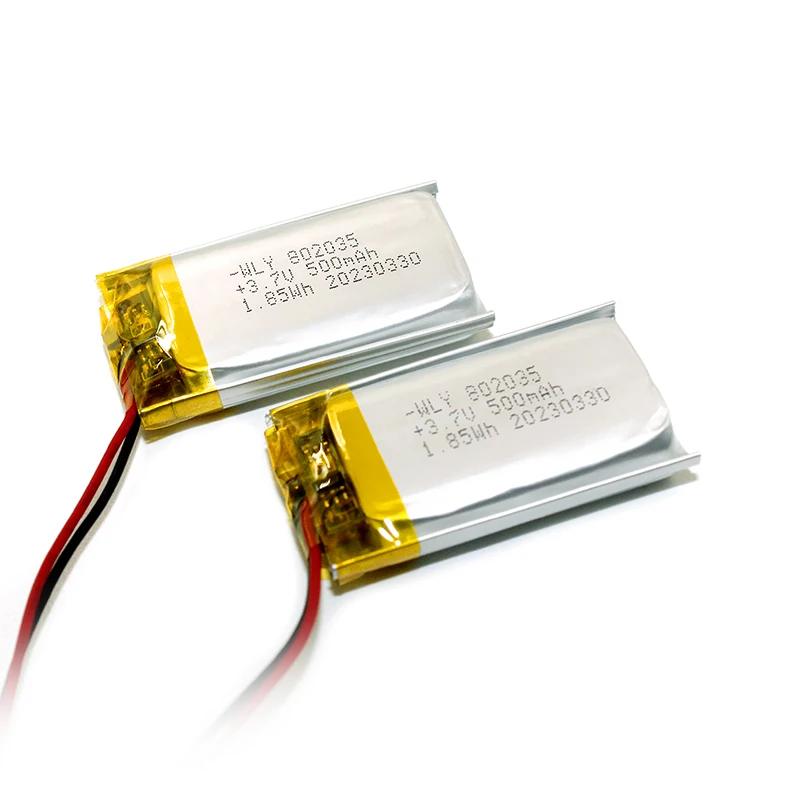

Сертифицированный KC/CE полимерный литий-ионный аккумулятор 802035 500 мАч 3,7 В для коммуникационного оборудования плеер вибратор
82,42 ₽ - 147,48 ₽

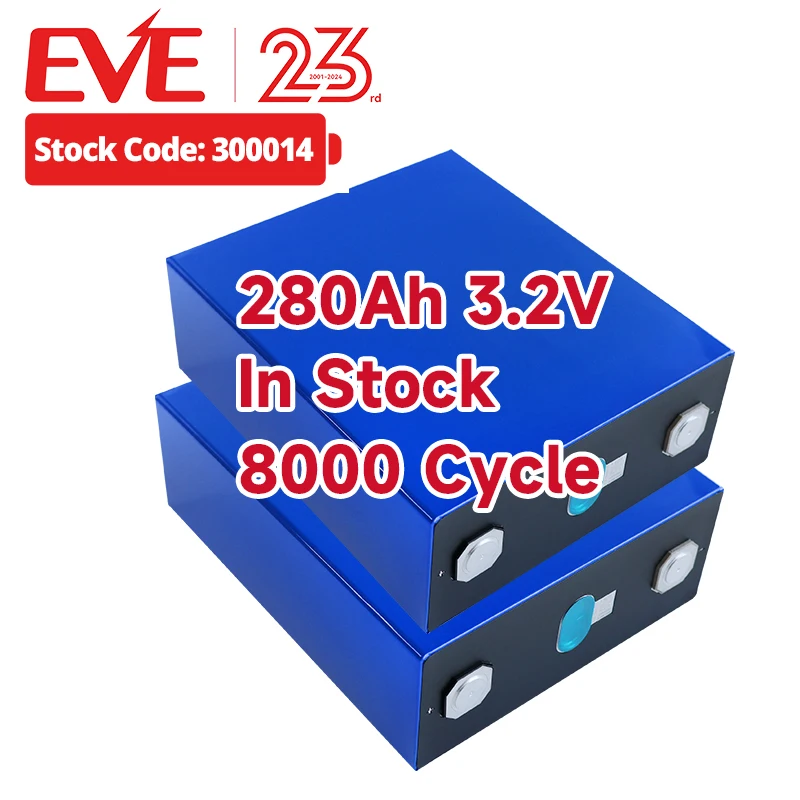

EVE LF280K V3 lifepo4 3,2 В 280Ah eve 280ah Ukraine poland 280ah lifepo4 литий-ионный аккумулятор hithium 280ah
6 018,20 ₽ - 6 560,38 ₽

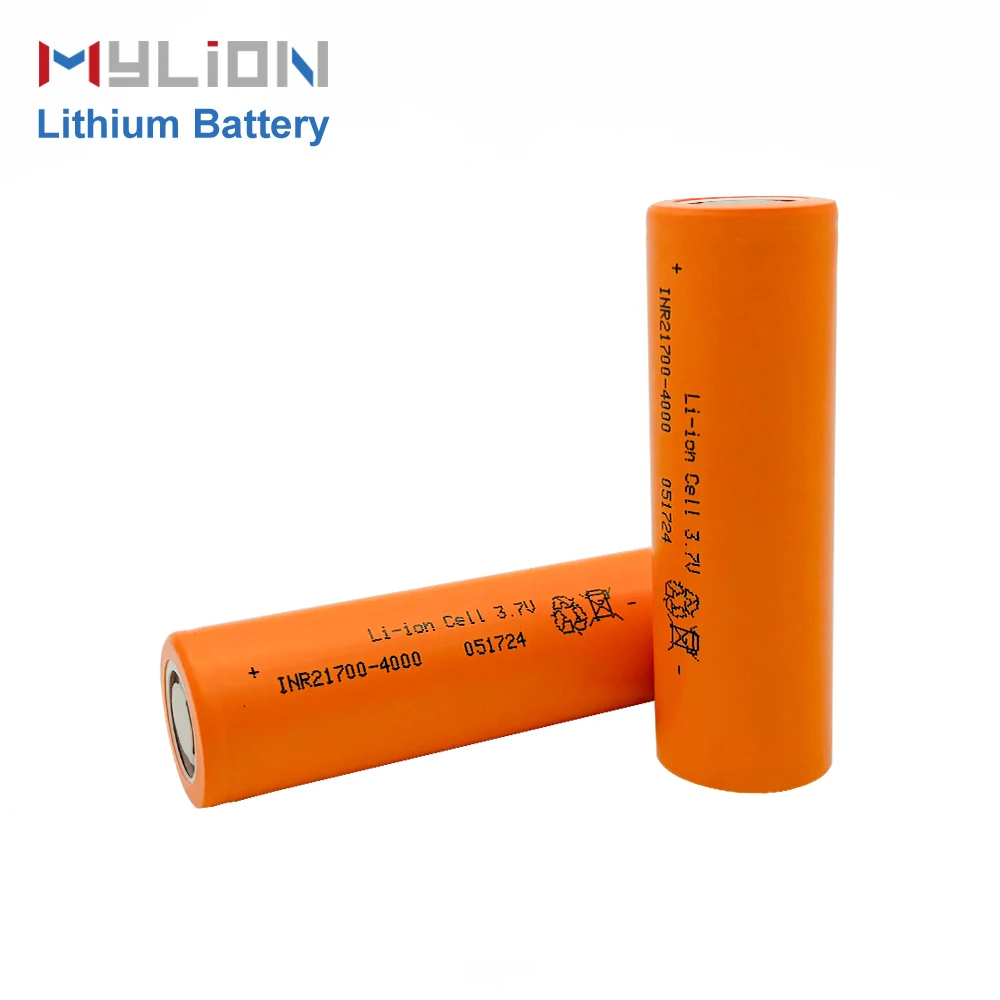

Высокая емкость 21700 4000 мАч литий-ионный аккумулятор для электроинструментов, фонарей и электромобилей
