12 дюймов 8000 ватт 260 60H V4 Для электрического скутера мотоцикла BLDC бесщеточный двигатель ступицы
- Категория: >>>
- Поставщик: Taizhou Tongshuo Trade Co. Ltd.
Сохранить в закладки 1601171978485:
Описание и отзывы
Характеристики
Products Description
12inch 8000 Watt 260 60H V4 For Electric Scooter Motorcycle BLDC Brushless In Wheel Hub Motor |
QS Motor Specification
Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor,QSMOTOR
Motor Design: Double axle with 12inch moped rim (integrated)
Rim size: 12x3.5inch
P.S: For width tire 12*5.0inch, it will costs additional $15.0/PCS.
Magnet Height: 60mm, 16 pole pairs
Stator: Aluminum Core
Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor,QSMOTOR
Motor Design: Double axle with 12inch moped rim (integrated)
Rim size: 12x3.5inch
P.S: For width tire 12*5.0inch, it will costs additional $15.0/PCS.
Magnet Height: 60mm, 16 pole pairs
Stator: Aluminum Core
Rated Power: 8000W
Speed: 30KPH-130KPH, it's customized, genearlly we will design as 72V100KPH.
Work voltage range: 48V-96V, will be 72V as default.
Max Torque approx 330N.m
KV: Depends on customer's top speed requirement(optional)
Thermic Probe: KTY83-122 (as default, optional)
Max Efficiency approx 88%
Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
Drop-outs: 230mm
Dual Halls with waterproof connectos(One for spare, in case of damage)
25mm² Phase Wire
Waterproof Grade: IP54
Color: Black (as default), Yellow or White/Luminous

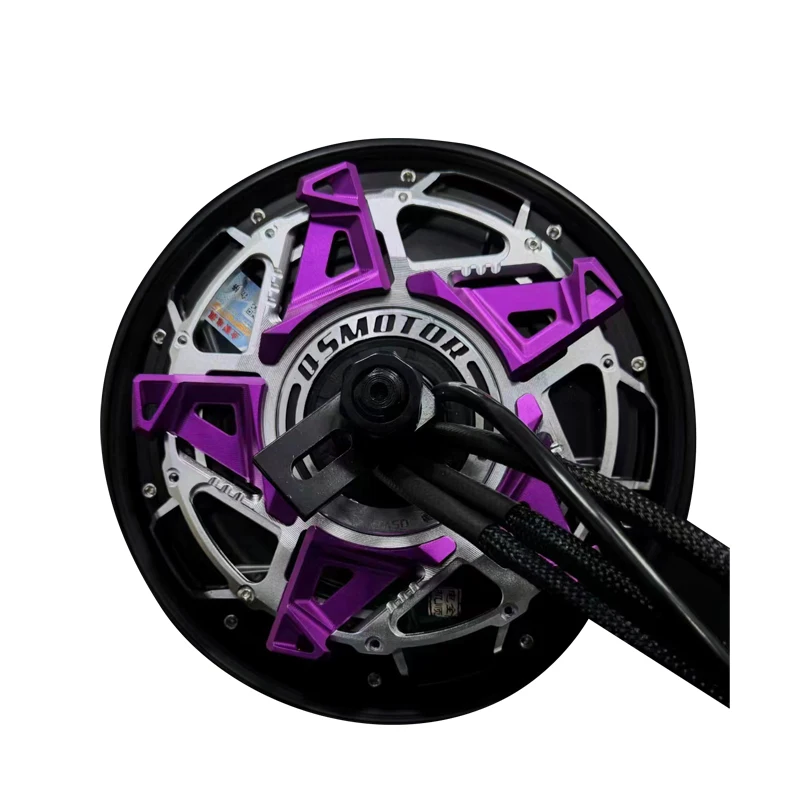

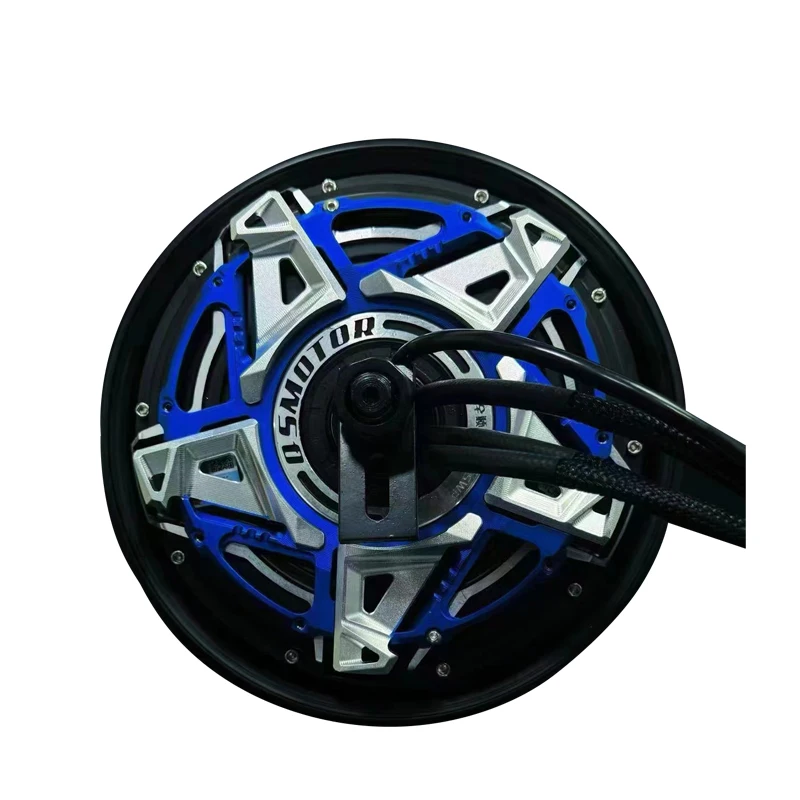

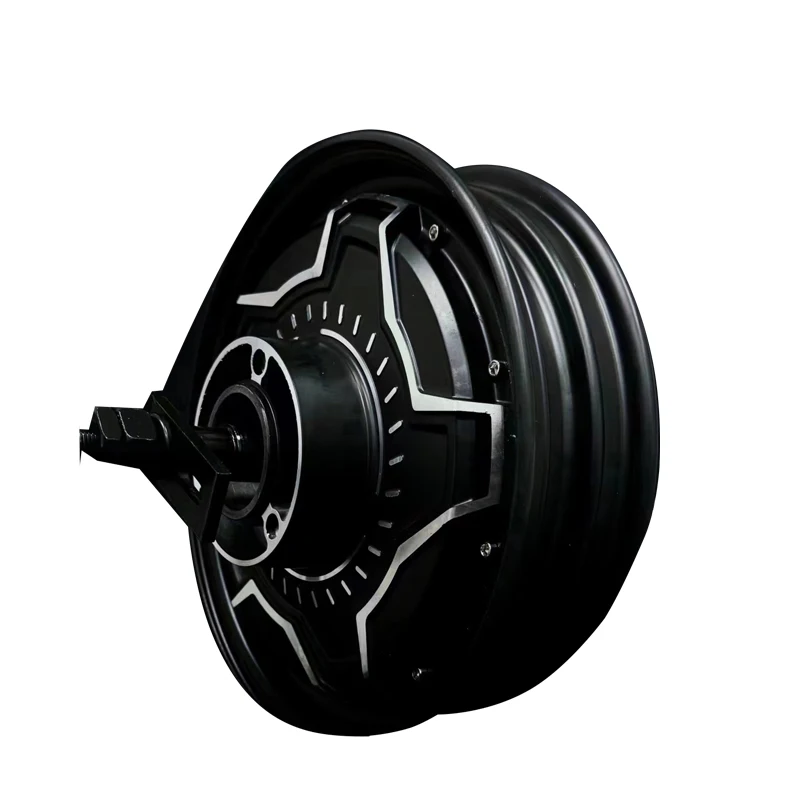

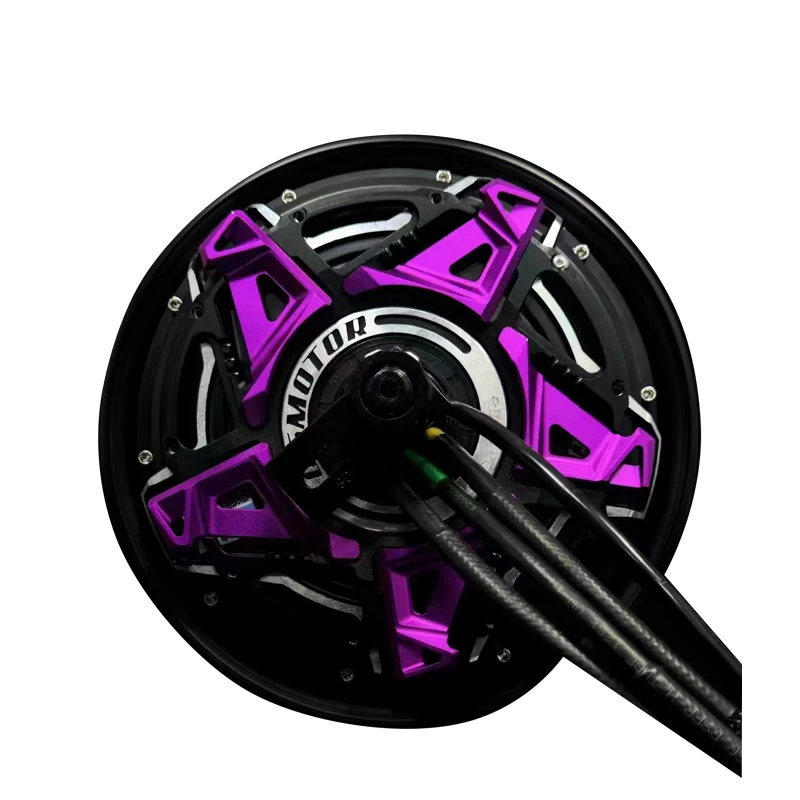

1.Pictures Show
Size 12*3.5inch
Speed: 30KPH-130KPH, it's customized, genearlly we will design as 72V100KPH.
Work voltage range: 48V-96V, will be 72V as default.
Max Torque approx 330N.m
KV: Depends on customer's top speed requirement(optional)
Thermic Probe: KTY83-122 (as default, optional)
Max Efficiency approx 88%
Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
Drop-outs: 230mm
Dual Halls with waterproof connectos(One for spare, in case of damage)
25mm² Phase Wire
Waterproof Grade: IP54
Color: Black (as default), Yellow or White/Luminous
1.Pictures Show
Size 12*3.5inch
2.Drawing
3.QS Motor 12inch 260 E-Scooter Hub Motor Price List
Note for 12X5.0inch 260 detachable wheel Motor(Electroplating design): Normal 12inch 260 Motor+ USD: 15.0/PCS.
Only electroplating wheel rim (not side cover).
Only electroplating wheel rim (not side cover).
4. How to find suitable hub motor
Firstly, To customize a suitable electric hub motor for your vehicle, could you please inform the points in below?
1. E-bike, E-scooter, E-tricycle or E-car?
2. Weight of vehicle with battery, loading weight (weight with load only)?
3. Tire model/diameter?
4. Rated voltage and wattage of motor, nominal speed/top speed, and climb angle or torque @ what speed?
5. Battery nominal voltage, peak voltage, capacity and vehicle range?
6. What's the drop-outs/rear fork width of your frame?
Within your details information, we could make assessment and calculation accordingly for your project
1. E-bike, E-scooter, E-tricycle or E-car?
2. Weight of vehicle with battery, loading weight (weight with load only)?
3. Tire model/diameter?
4. Rated voltage and wattage of motor, nominal speed/top speed, and climb angle or torque @ what speed?
5. Battery nominal voltage, peak voltage, capacity and vehicle range?
6. What's the drop-outs/rear fork width of your frame?
Within your details information, we could make assessment and calculation accordingly for your project

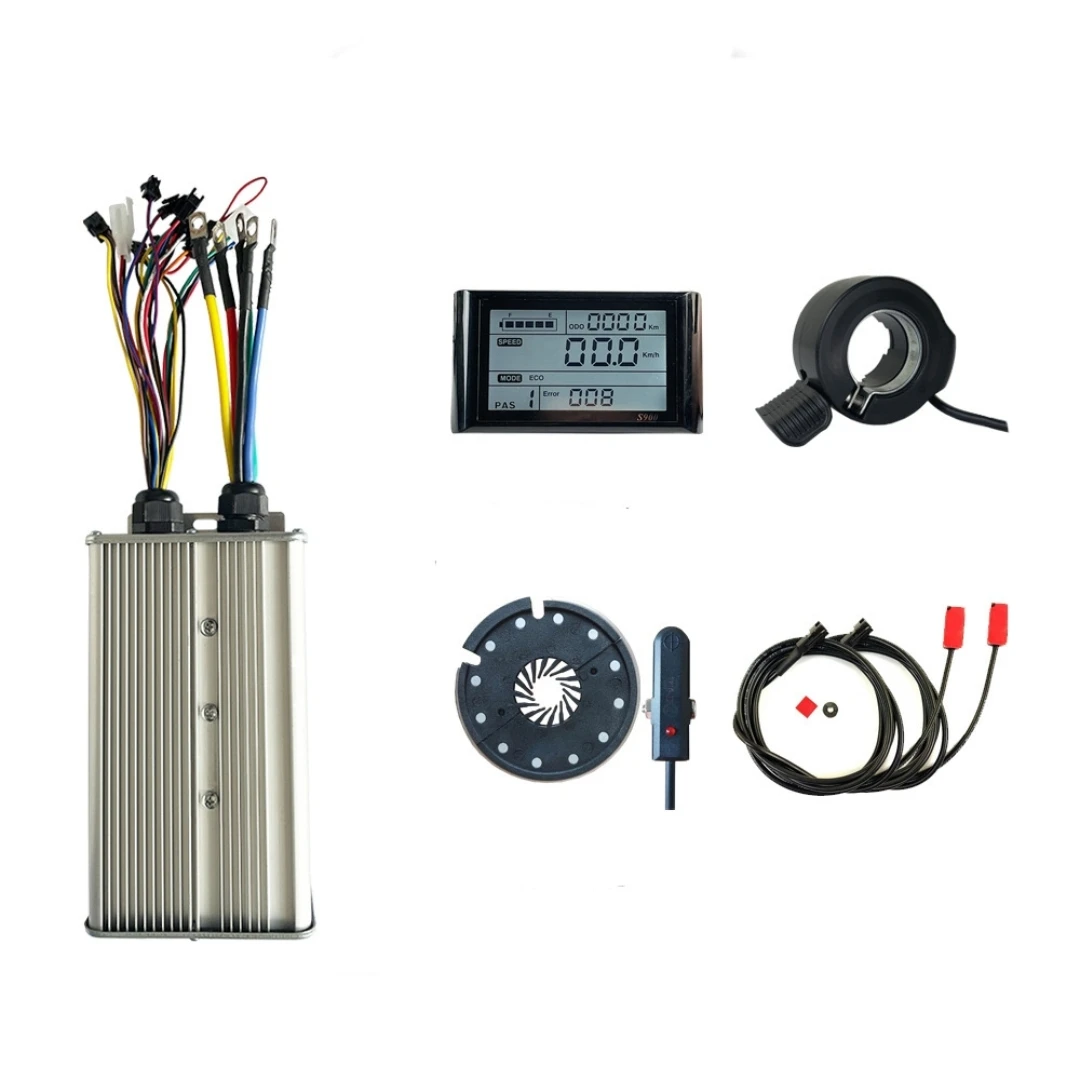

5.Conversion kits for 12inch in-wheel hub motor
We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.
Difference V3 and V4
We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.
Difference V3 and V4
More Products
Our Company
Certifications
Packing&Shipping
FAQ
Q1. Are you trader or manufacture?
A: We're manufacture.
Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).
The specific delivery time depends on the items and the quantity of your order.
Q3. How long is your warranty time?
A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.
Q4. About Customs Clearance
For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
Special countries list:
Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.
Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.
05. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949
A: We're manufacture.
Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).
The specific delivery time depends on the items and the quantity of your order.
Q3. How long is your warranty time?
A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.
Q4. About Customs Clearance
For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
Special countries list:
Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.
Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.
05. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949
