Машина для смешивания огнеупорного цемента
8 900,00-9 500,00 $
Пневматический смесительный и транспортировочный блок для транспортировки твердого увлажненного раствора Лидер продаж 4 м3/ч
- Категория: >>>
- Поставщик: Zhengzhou Wode Heavy Industry Co. Ltd.Zhengzhou Ltd.
Сохранить в закладки 1601172166995:
Описание и отзывы
Характеристики
Product Description

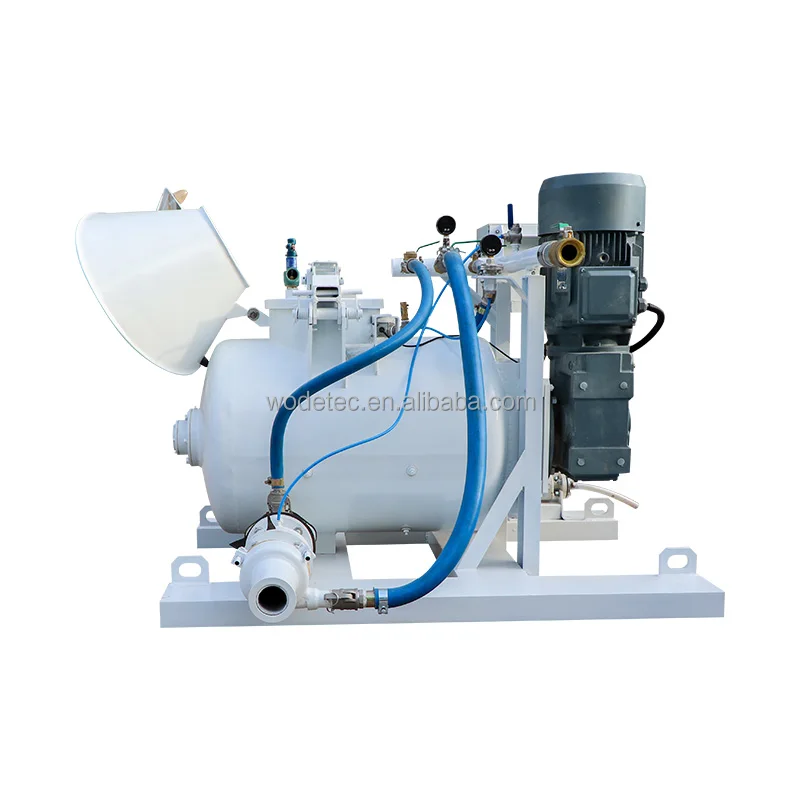

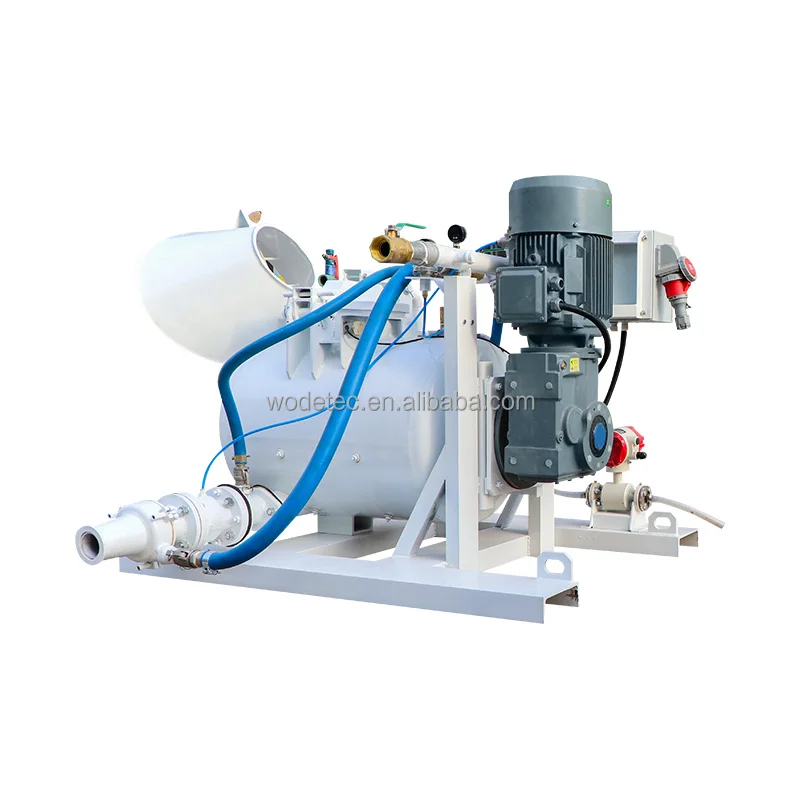

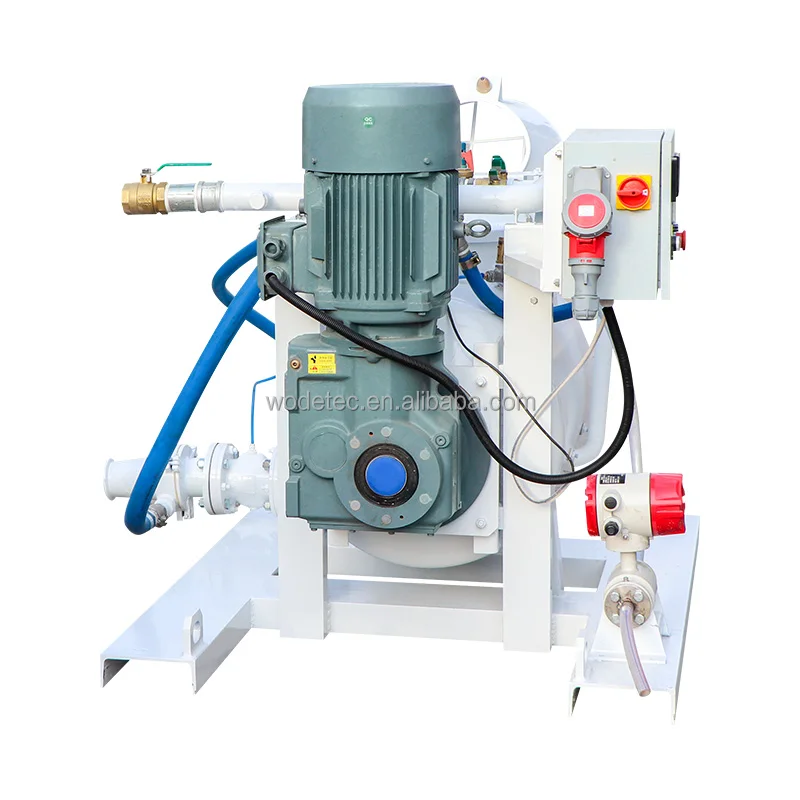

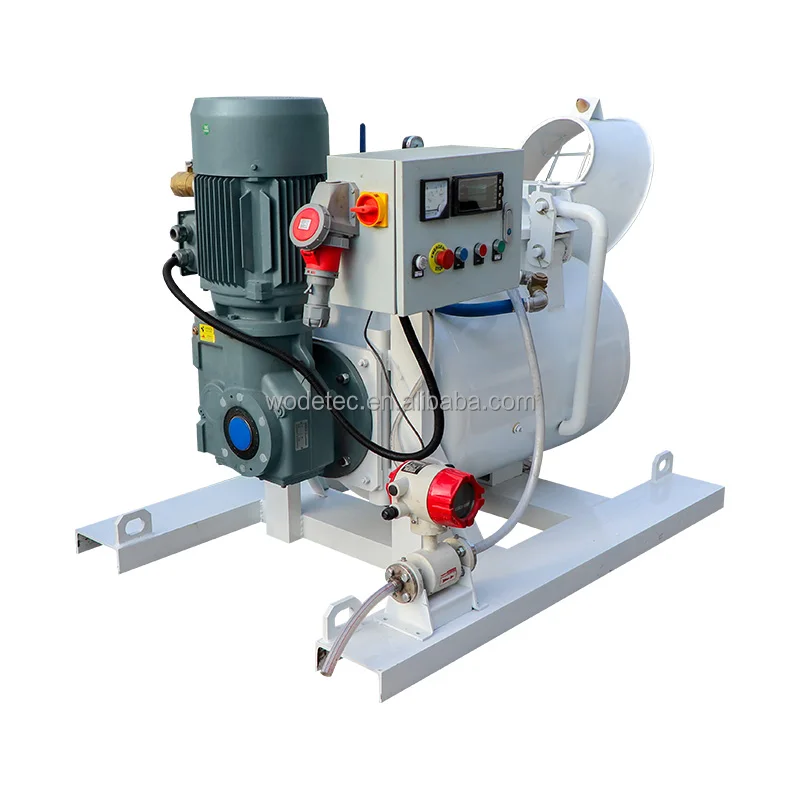

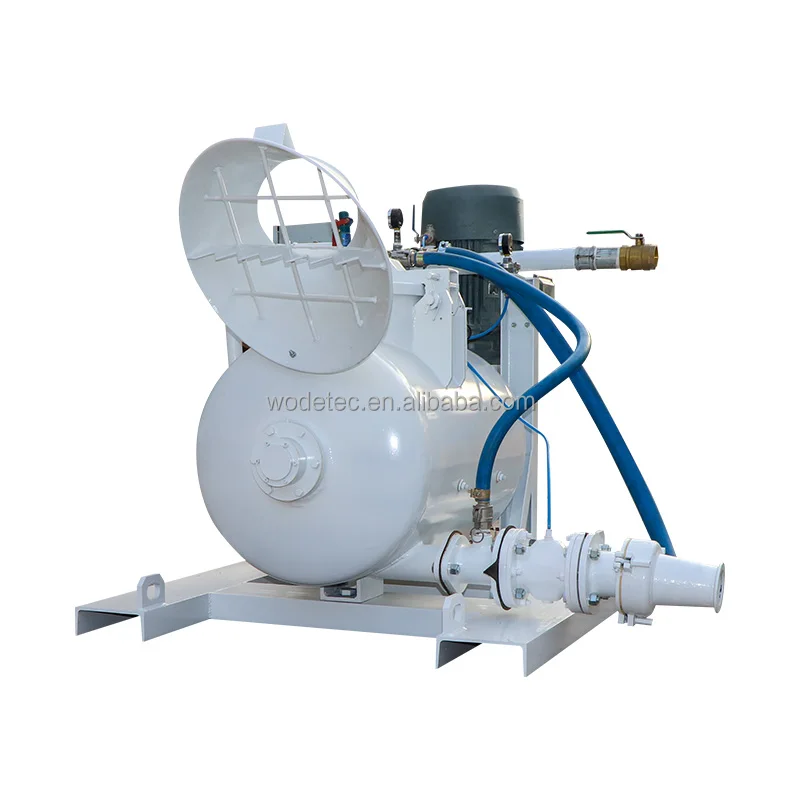

The pneumatic mixing and conveying unit is specially designed for conveying of solid and moistened mortar, concrete mixture and refractory castable. It is suitable for the using in the metallurgical industry produce permanent linings for ladles, tundish, blast furnace runners, on industrial and melting furnaces for the glass and aluminium industry. The machine can be used also in the building (construction) industry at the concreting of base of building, floors and larger concreted areas.
Product Paramenters
Model | WDPX200 | WDPX500 | WDPX600 | ||
Output Capacity | 4m3/h | 10m3/h | 10m3/h | ||
Useful vessel volume | 200L | 500L | 600L | ||
Total vessel volume | 250L | 660L | 800L | ||
Max. Grain size of mixture | 16mm | 32mm | 32mm | ||
Electric motor power | 11Kw | 22Kw | 30Kw | ||
Conveying distance | Horizontal 100m, Vertical 40m | ||||
Operating pressure | 0.2~0.4Mpa | 0.2~0.4Mpa | 0.2~0.4Mpa | ||
Max. vessel pressure | 0.8Mpa | 0.8Mpa | 0.8Mpa | ||
Required compressed air | 4~6m3/min | 5~10m3/min | 5~10m3/min | ||
Dimension | 1.55x1.55x1.25m | 2.88x1.4x1.85m | 3.32x1.4x1.85m | ||
Weight | 668Kg | 1640Kg | 1740Kg | ||
Advantage
★ Rigid and compact mixing and conveying unit;
★ Exact electronic water dosage system;
★ Mixture of consistently homogenous mixing quality;
★ Easy to handle system regarding installation, conveying and cleansing;
★ Saving of manpower and cost;
★ Conveying of materials that are difficult to pump.
★ Exact electronic water dosage system;
★ Mixture of consistently homogenous mixing quality;
★ Easy to handle system regarding installation, conveying and cleansing;
★ Saving of manpower and cost;
★ Conveying of materials that are difficult to pump.
Product Structure
Product Application
★ Manufacture and transport of solid and damp concrete mixture and refractory materials.
★ In metallurgy, for pig iron production, spout and gutter concreting, in steel production for steel ladle and lid concreting etc.
★In civil engineering, for structure foundation floor and large concrete area pumping.
★ In metallurgy, for pig iron production, spout and gutter concreting, in steel production for steel ladle and lid concreting etc.
★In civil engineering, for structure foundation floor and large concrete area pumping.
Related Product
Company Profile
Zhengzhou Wode Heavy Industry Co., Ltd. (short: "Wodetec") owns the advanced imported production equipment and complete production technology. Wodetec is a manufacturer specializing in R&D and the sale of concrete machines.
Wodetec has reached international standards. Based on continuous technological innovation, design capabilities of mixing and conveying unit, mini concrete pumps, hose pumps, grouting pump/station, shotcrete machines, refractories mixing and gunning machines, foam concrete machines, etc.
Wodetec has reached international standards. Based on continuous technological innovation, design capabilities of mixing and conveying unit, mini concrete pumps, hose pumps, grouting pump/station, shotcrete machines, refractories mixing and gunning machines, foam concrete machines, etc.
Contact Us
We are a mixing and conveying unit factory, we can customize it according to your requirements. If you have any questions, please contact us and we will provide you with the corresponding product parameters and quotations.
2. What output do you need, 4m3/h, 10m3/h?
3. Drive type mode? Do you want an electric or air motor?
4. Do you have any other special requirements for this machine?
Contact us for more information.
1. What's the project you will use the machine to do?2. What output do you need, 4m3/h, 10m3/h?
3. Drive type mode? Do you want an electric or air motor?
4. Do you have any other special requirements for this machine?
