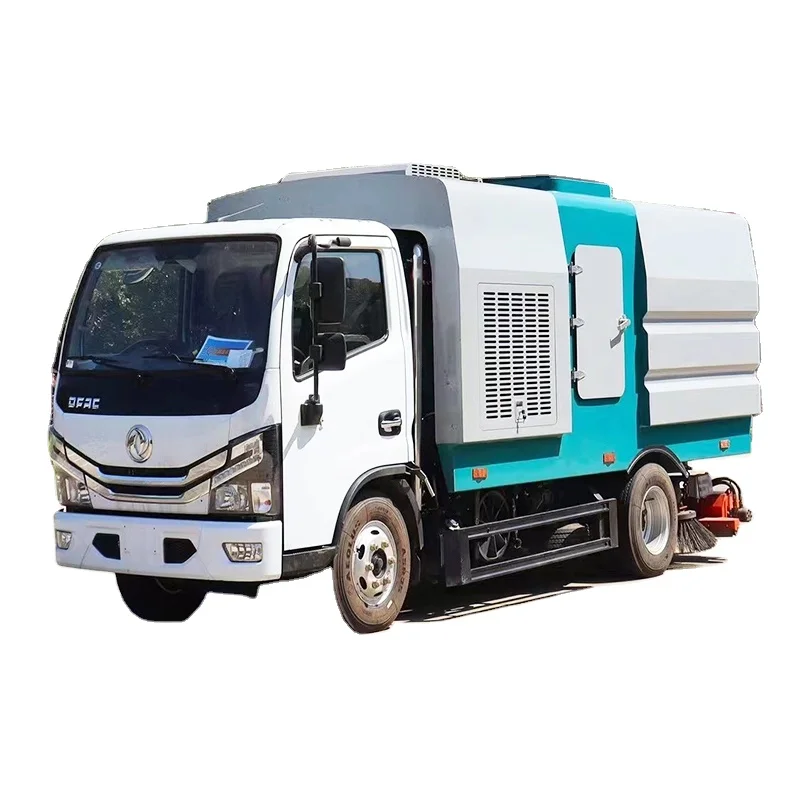

Высококачественная автоуборочная машина DONGFENG 4*2 муниципальная санитарная мойка и подметальная для продажи

Сохранить в закладки 1601172681726:


Цена:50 000,00-53 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики

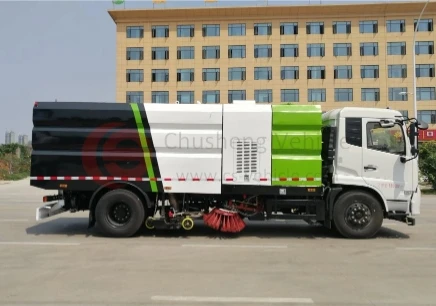

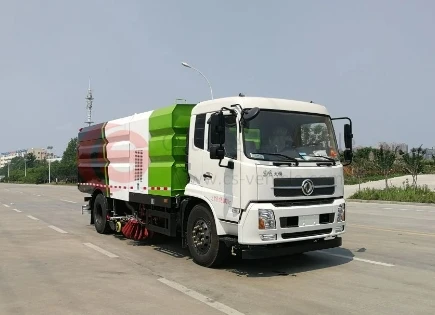

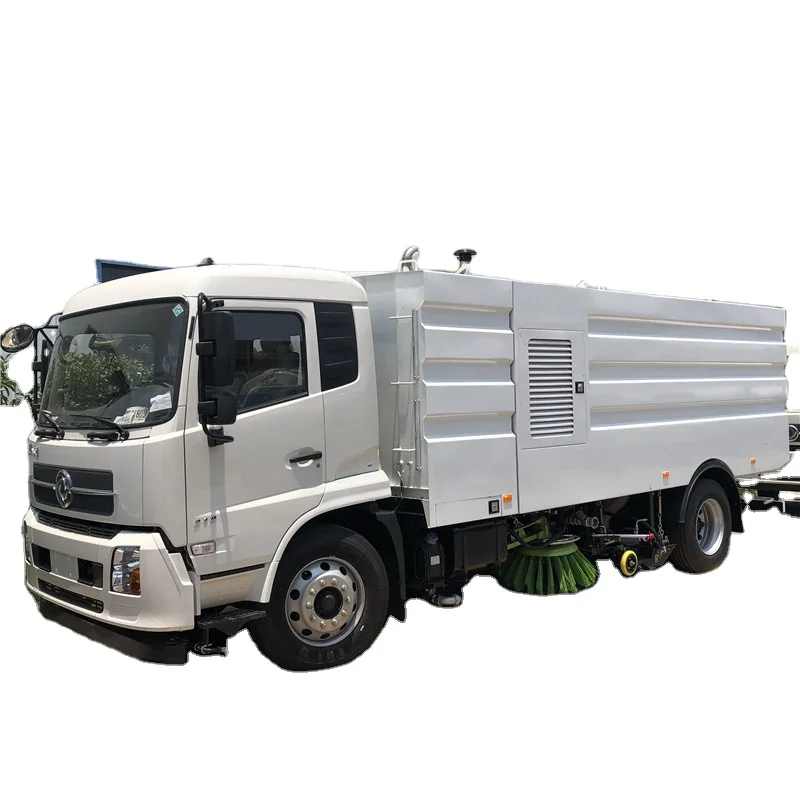

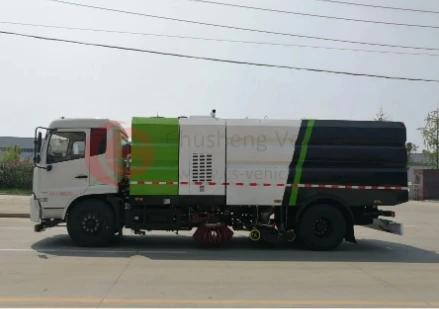

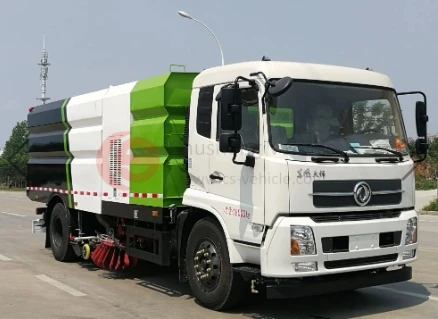

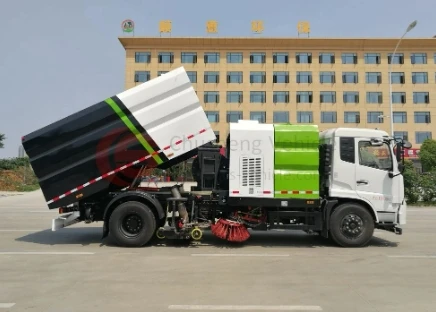

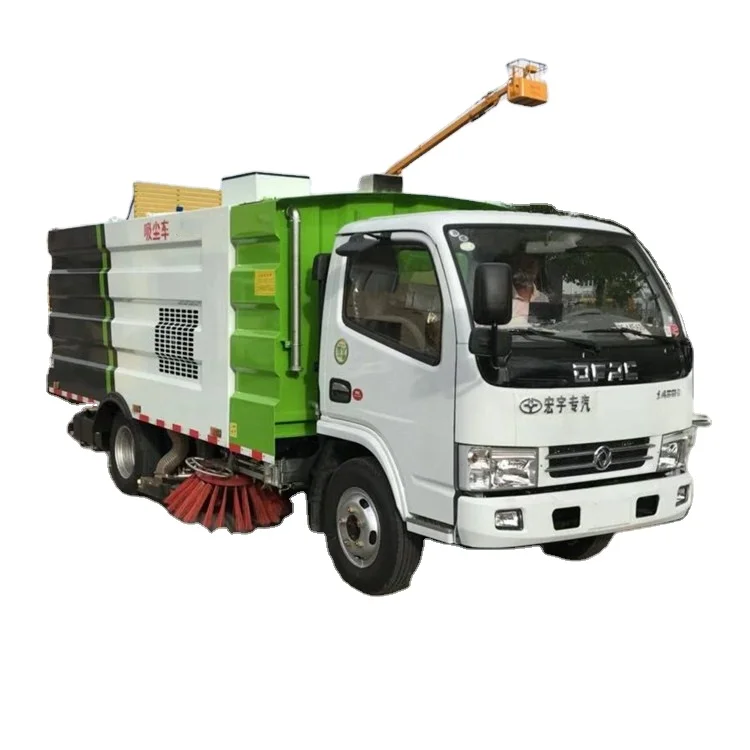

High Quality DONGFENG 4*2 Road Sweeper Truck  Municipal Sanitation Washing and Sweeping Truck for sale





What is a Road Sweeper Truck?


A Road Sweeper Truck, also known as a street sweeper truck or road sweeper, is a specialized vehicle designed for the maintenance of roads and urban areas by removing debris, dirt, and other waste materials. These trucks play a crucial role in keeping streets clean, preventing pollution, and maintaining the aesthetic appeal of urban environments.


Features of a Road Sweeper Truck



  • Hydraulic Sweeping Mechanism: Automated sweeping arms that rotate to sweep debris into a collection hopper.

  • Water Spray System: A system to dampen the dust and debris, making it easier to sweep and preventing air pollution.

  • Collection Hopper: A large bin or hopper where the collected waste is stored.

  • High-Pressure Water System: For washing the road surface and truck body.

  • Cab Controls: Ergonomic controls within the driver's cab for easy operation of sweeping functions.

  • Safety Features: Indicators, flashing lights, and sometimes a camera system for enhanced visibility and safety.


Applications of Road Sweeper Truck


Road Cleaning Trucks are utilized in various settings to maintain cleanliness and order:



  • Urban Streets: Regular sweeping of city streets to remove litter and dirt.

  • Highways and Motorways: Keeping long stretches of road clean from debris and dust.

  • Construction Sites: Clearing dust and construction waste from access roads.

  • Parking Areas: Sweeping parking lots and garages to maintain cleanliness.

  • Airports and Seaports: Maintaining cleanliness in large, open areas.


Categories and Uses of Road Sweeper Truck


Road Cleaning Trucks can be categorized into several types based on their functionality and size:



  1. Mechanical Broom Trucks: Use brushes to sweep debris into a collection hopper.

  2. Regenerative Air Trucks: Use powerful vacuums and air currents to pick up debris.

  3. Water-Only Trucks: Rely on water jets to wash away dirt and grime.

  4. Combination Trucks: Incorporate multiple cleaning methods for more thorough cleaning.

  5. Small and Compact Trucks: Designed for narrow streets and tight urban environments.


Maintenance and Care of Road Sweeper Truck


Regular maintenance is essential for the performance and longevity of a Road Cleaning Truck:



  • Daily Checks: Inspect the sweeping brushes, hopper, and water levels before each use.

  • Hydraulic System Maintenance: Regularly check the hydraulic fluid levels and condition.

  • Water System: Ensure the water pumps and hoses are clean and functioning properly.

  • Lubrication: Keep moving parts well lubricated to prevent wear and tear.

  • Cleaning: Regularly clean the truck, especially the hopper and water tanks, to prevent buildup and corrosion.


Technical Parameters of Road Sweeper Truck :




























































































































































































WeightGVW 18000 kg
Pay Load 6000 kg
CAB & Chassis Mass 12000 kg
Axle load (front/rear) 7000/13000 kg
EngineBrand Dongfeng Cummins
Model ISD270 50
Type

 6 Cylinders inline, 4 Strokes high pressure


common rail, water cooling,


 Intercooler turbocharged diesel engine,


Emission standard EURO-III


Rated Power 270HP(196kW)/ 2300rpm
Maximum Torque 1100Nm @ 1200rpm
Piston Displacement 6700 cc
Bore×Stroke 109×125mm
Auxiliary Engine EQB160-20; 160 HP
Fuel Tank 200 L
TransmissionType 9JS119T-B, 9 forward speeds, 1 reverse speed
Drive 4×2 Right Hand Drive
Clutch Hydraulically operated
Tire & WheelTire 11R22.5
No. of wheel 7, including 1 spare
SuspensionFront & Rear Steel leaf springs  Power assistance
 Steering
DimensionOverall (L×W×H) 8970 ×2500 × 3150 mm
Wheelbase 6100 mm
Ground clearance 280 mm
Approach/departure angle 19°/12°
Electrical SystemStarter/Alternator/Battery type 24V, 7 5kW/3-phase, 24V, 2kW/2x12V-165Ah
CabinType Single cabin with A/C
Seating capacity 3 seats including driver’s seat
PerformanceMin. Ground clearance 280 mm
BodyOperation Maximumprocessing capacity 97%
working width 3.5 m
speed 3-20 km/h
sweeping capacity 70000 m2h
Type of fan High pressure centrifugal fan
Clean water tank 9000 L
Garbage tank 7000 L
High pressure water pumpPF36 Germany Brand, high pressure plunger pump
Control modeCAN bus control
Operation panel

 Two sets of one button intelligent operation


 panels in the cab and at the rear


Hydraulic systemOpen type, electrohydraulic control centralized operation
Sprinkler cleaning system

Front impact, rear spray, 20m automatic return reel


with high- pressure water gun



Manual pump emergency


 lifting system



When the hydraulic  system is  unavailable due  to


an auxiliary  engine failure, and the suction  cup


and  trunk cannot be lifted or lowered,  the manual


pump emergency lifting system can be used for operation


Tank material304 material, numerical control bending, all laser cutting, argon arc welding and one-time welding forming












Enterprize information:










1,Hubei Chusheng Vehicle Co.,Ltd is a renowned and the largest manufacturer in the field of special-purpose vehicles in China for over 20 years. We have more than 3,000 workers and 400 technical personnel, with a factory size exceeding 690,000 square meters.





2,Our products have been exported to 60 countries, including regions and countries in the Middle East, Asia, Africa, and Eastern Europe. Our products have passed the ISO 9001 quality system certification and CCC certification.





3,Our company has over 1,000 units of advanced production equipment, forming production lines for dump trucks, tanker trucks, tow trucks, garbage trucks, and other special trucks and semi-trailers, with an annual production capacity of 50,000 units.





.png





Packing and Delivery:





.jpg





Enterprize products:










Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.





Successfull cases:





Case .jpg





Customer visiting:





.png


Our services:


Pre-sale service:


1. Reply enquiries in 24 hours.


2. Market research and forecast for customer.


3. Provide unique and professional solutions based on customer's requirement.


4. Data sheet and samples offer.


5. Other services, such as special packing design, factory visiting and so on.





In-sale service:


1. Tracking report in producing.


2. Quality test report for every order.


3. Photos and videos as per customer's requirement.


4. Free spare parts.





After-sale service:
1. Lifetime free maintenance and upgrade.


2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.


3. Customer satisfaction tracking report.


4. Free technician training.


5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.


6. Special service for big project, such as stadium, exhibitions, squares and so on.
