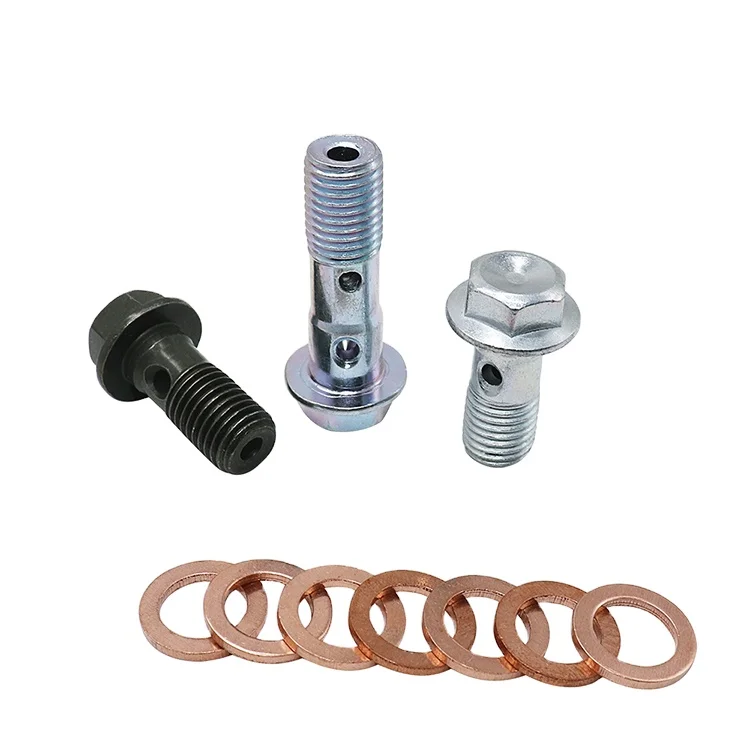

Китайский профессиональный прямой оптовый банджо болты из алюминиевого сплава мотоциклетный тормозной Масляный шланг
88,17 ₽
Китайская заводская цена все размеры крепежная розетка с полной резьбой углеродистая сталь
- Категория: >>>
- Поставщик: Shanghai G&T Industry Co. Ltd.
Сохранить в закладки 1601172885343:
Описание и отзывы
Характеристики
Products Description

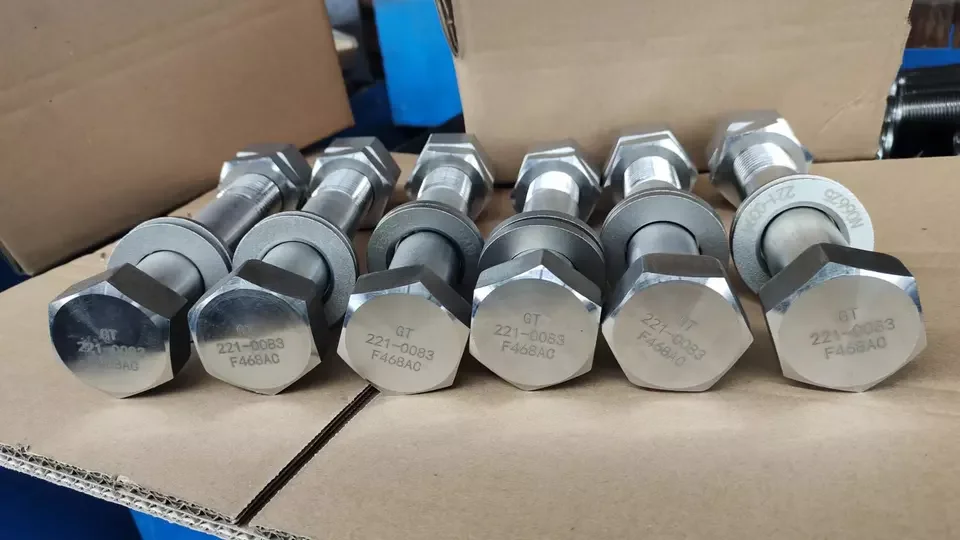

ASTM A325, Type 1
Description: A heavy hex bolt made of medium carbon steel. The bearing surface shall be flat and washer faced,
and the point is
chamfered.
Applications: Commonly used in structural steel joints in heavy construction.
Material: Carbon steel
ASTM A490, Type 1
Description: A heavy hex bolt made of alloy steel. The bearing surface shall be flat and washer faced, and the point is chamfered.
Applications: Commonly used in structural steel joints in heavy construction.
Material: Alloy Steel
and the point is
chamfered.
Applications: Commonly used in structural steel joints in heavy construction.
Material: Carbon steel
ASTM A490, Type 1
Description: A heavy hex bolt made of alloy steel. The bearing surface shall be flat and washer faced, and the point is chamfered.
Applications: Commonly used in structural steel joints in heavy construction.
Material: Alloy Steel
Structural Bolts, A325 & A490 : Performance & Mechanical Stats | ||||
ASTM A325, Type 1 | ASTM A490, Type 1 | |||
Description | A heavy hex bolt made of medium carbon steel. The bearing surface shall be flat and washer faced, and the point is chamfered. | A heavy hex bolt made of alloy steel. The bearing surface shall be flat and washer faced, and the point is chamfered. | ||
Applications | Commonly used in structural steel joints in heavy construction. | Used in structural steel joints in heavy construction when greater yield strengths than those of an A325 bolt are required. | ||
Material | Carbon steel | Alloy Steel | ||
Heat Treatment | Heat treated, quenched in a liquid medium from above the austenitizing temperature and then tempering by reheating to a temperature of at least 800 Degrees (F) | Heat treated, quenched in oil from above the transformation temperature and then tempered by reheating to a temperature of at least 800 Degrees (F). | ||
Hardness | 1/2"- 1" D: Rockwell C24-35 1-1/8"- 1-1/2" D: Rockwell C19-31 | Rockwell C33-38 | ||
Proof Load | 1/2"- 1" D: 85,000 psi 1-1/8"- 1-1/2" D: 74,000 psi | 120,000 psi | ||
Yield Strength | 1/2"- 1" D: 92,000 psi min 1-1/8"- 1-1/2" D: 81,000 psi min | 130,000 psi min | ||
Tensile Strength | 1/2"- 1" D: 120,000 psi min 1-1/8"- 1-1/2" D: 105,000 psi min | 150,000 - 170,000 psi | ||
Application
Company Profile
Quality & Test
Packing & Shipping
Exhibition
Certifications
FAQ
1. Q: Could you send me your catalog and price list?
A: As we have more than thousands of products, it is really too hard to send all of catalog and price list for you. Please
inform us the style you interested, we can offer the price list for your reference.
A: As we have more than thousands of products, it is really too hard to send all of catalog and price list for you. Please
inform us the style you interested, we can offer the price list for your reference.
2. Q: How about the quality of your product?
A: 100% inspection during production. Our products are certified to ISO9001, TS16949 international quality standards.
3. Q: What material of the product can you supply?
A: Carbon Steel, Alloy Steel, Stainless Steel, Brass, Copper or according to your requirement.
A: 100% inspection during production. Our products are certified to ISO9001, TS16949 international quality standards.
3. Q: What material of the product can you supply?
A: Carbon Steel, Alloy Steel, Stainless Steel, Brass, Copper or according to your requirement.
4. Q: What's your packing?
A: Our Normal packing is bulking in Cartons, 25kg/carton, 36 cartons/ pallet. We also can pack products according to your
requirement.
5. Q: What about the warranty?
A: We are very confident in our products, and we pack them very well to make sure the goods in well protection.
To avoid any subsequent trouble regarding quality issue, we suggest you check the goods once you receive them. If there is any transport damaged or quality issue, don't forget take the detail pictures and contact us as soon as possible, we will properly handle it to make sure your loss to reduce to the smallest.
A: Our Normal packing is bulking in Cartons, 25kg/carton, 36 cartons/ pallet. We also can pack products according to your
requirement.
5. Q: What about the warranty?
A: We are very confident in our products, and we pack them very well to make sure the goods in well protection.
To avoid any subsequent trouble regarding quality issue, we suggest you check the goods once you receive them. If there is any transport damaged or quality issue, don't forget take the detail pictures and contact us as soon as possible, we will properly handle it to make sure your loss to reduce to the smallest.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Похожие товары

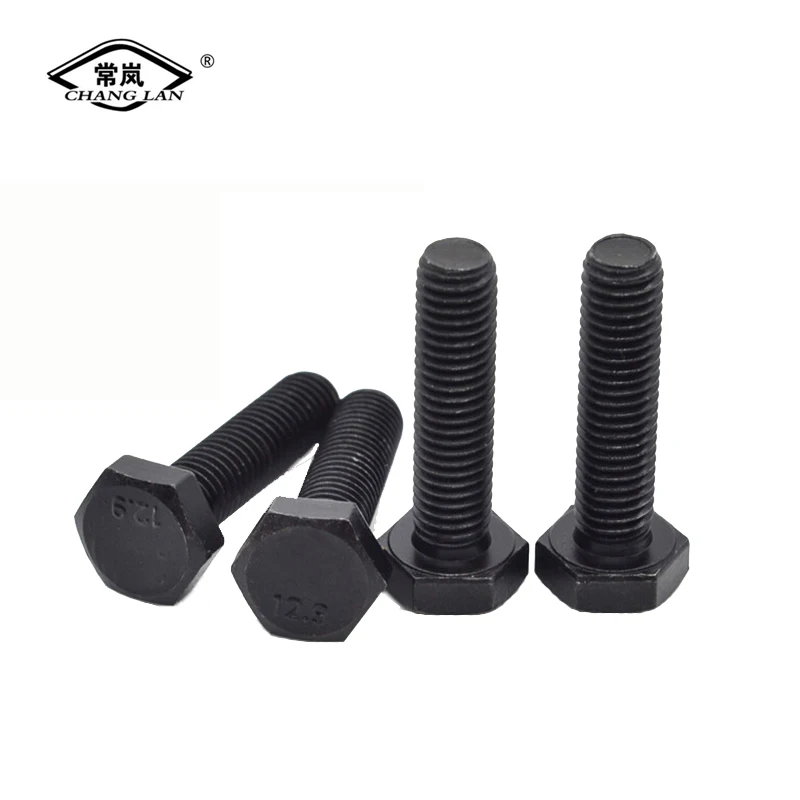

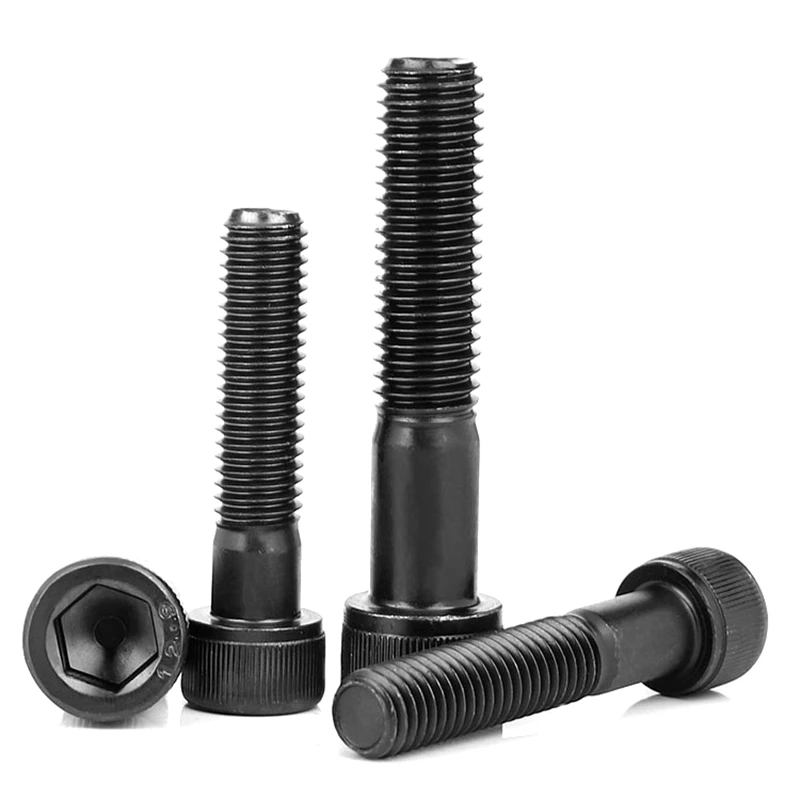

Высокопрочная легированная сталь Din912 черный 12 9 шестигранный ключ болт M5-M52 DIN 912 С Шестигранной Головкой
8,82 ₽ - 22,05 ₽

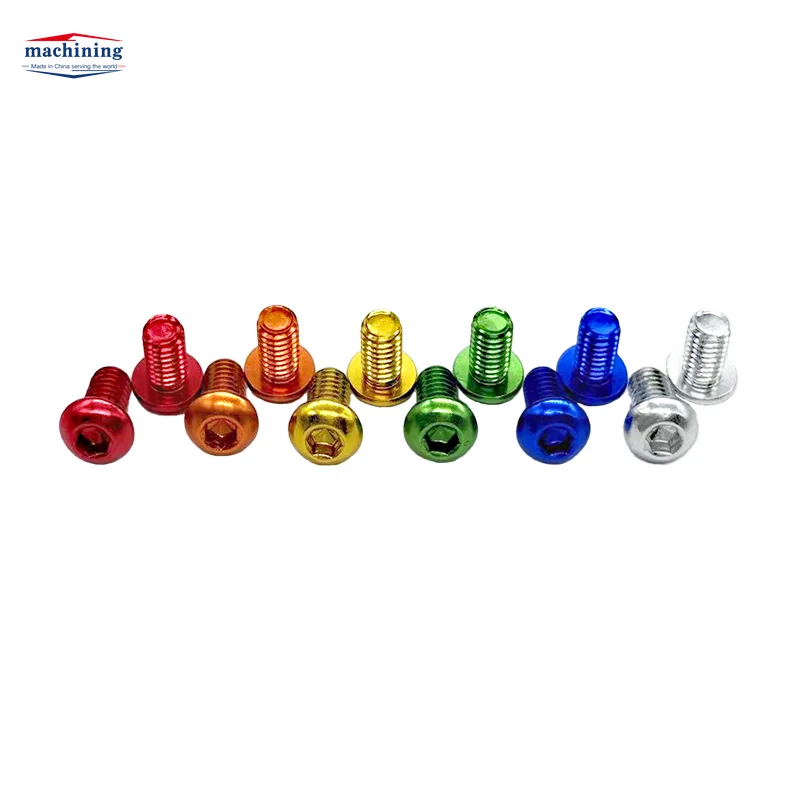

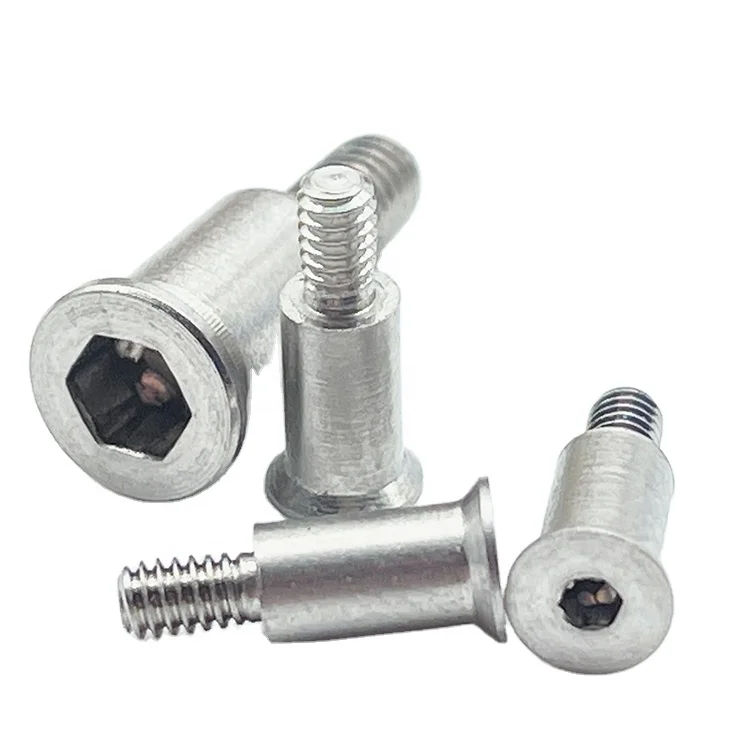

Нестандартные винты с шестигранной головкой из нержавеющей стали
11,03 ₽
Шпильки для сварочных работ ISO 13918 Купить гибкие упоры шпильки
1,11 ₽ - 3,31 ₽

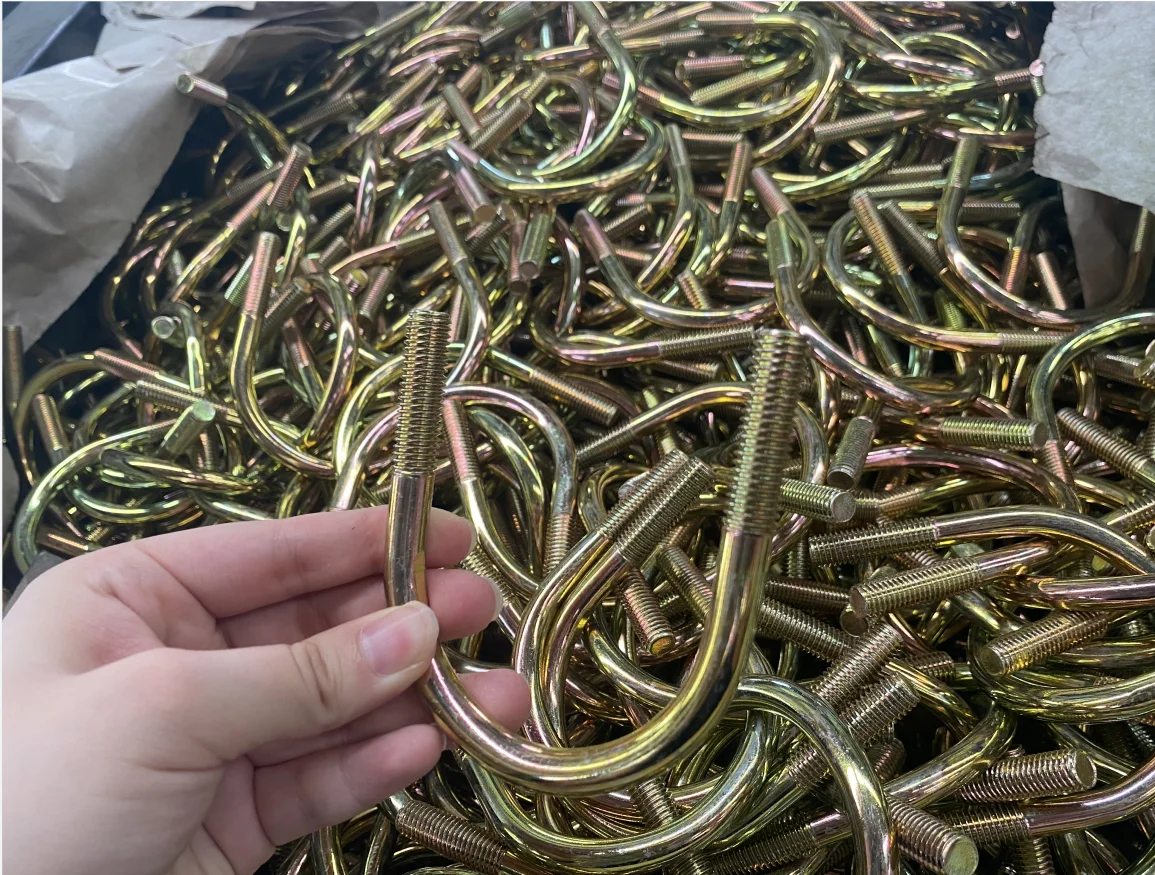

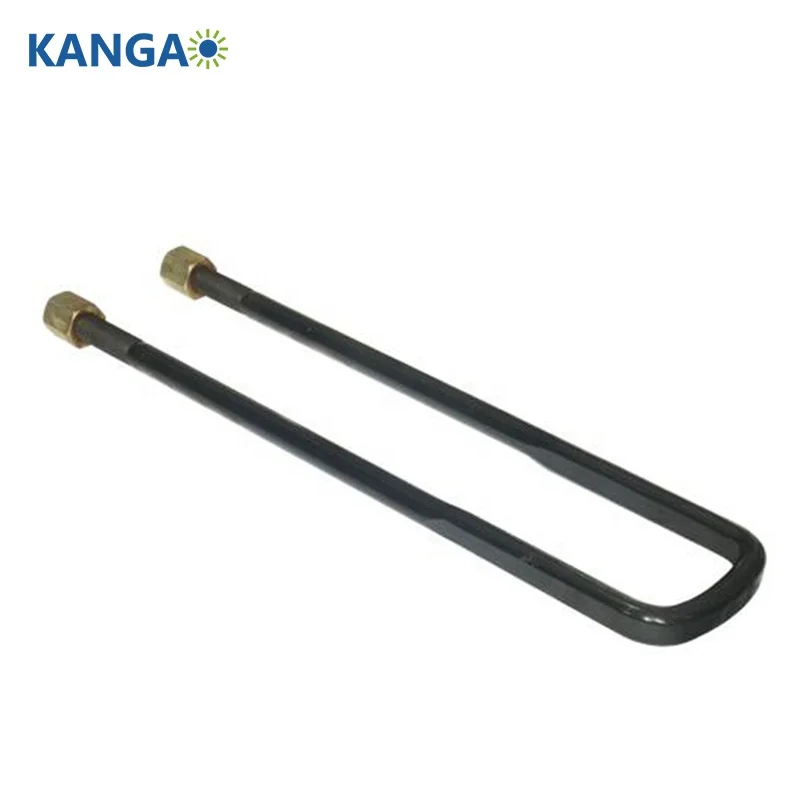

U-образные болты для подвески и прицепа
