Индивидуальные холодильные медные ребризированные трубки охладитель конденсатора и испарителя новая запасная часть для применения в морозильной камере

Описание и отзывы

Характеристики

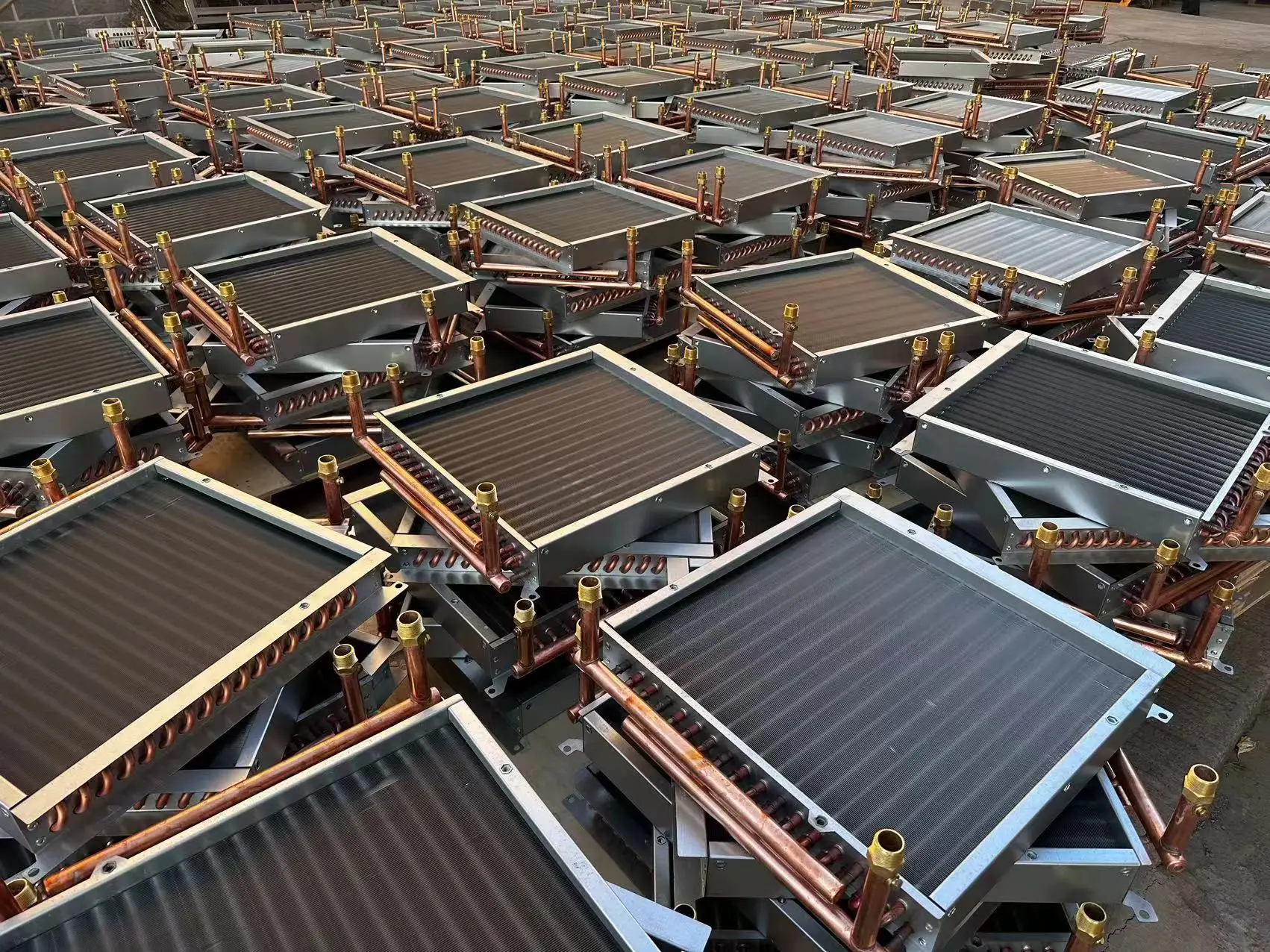

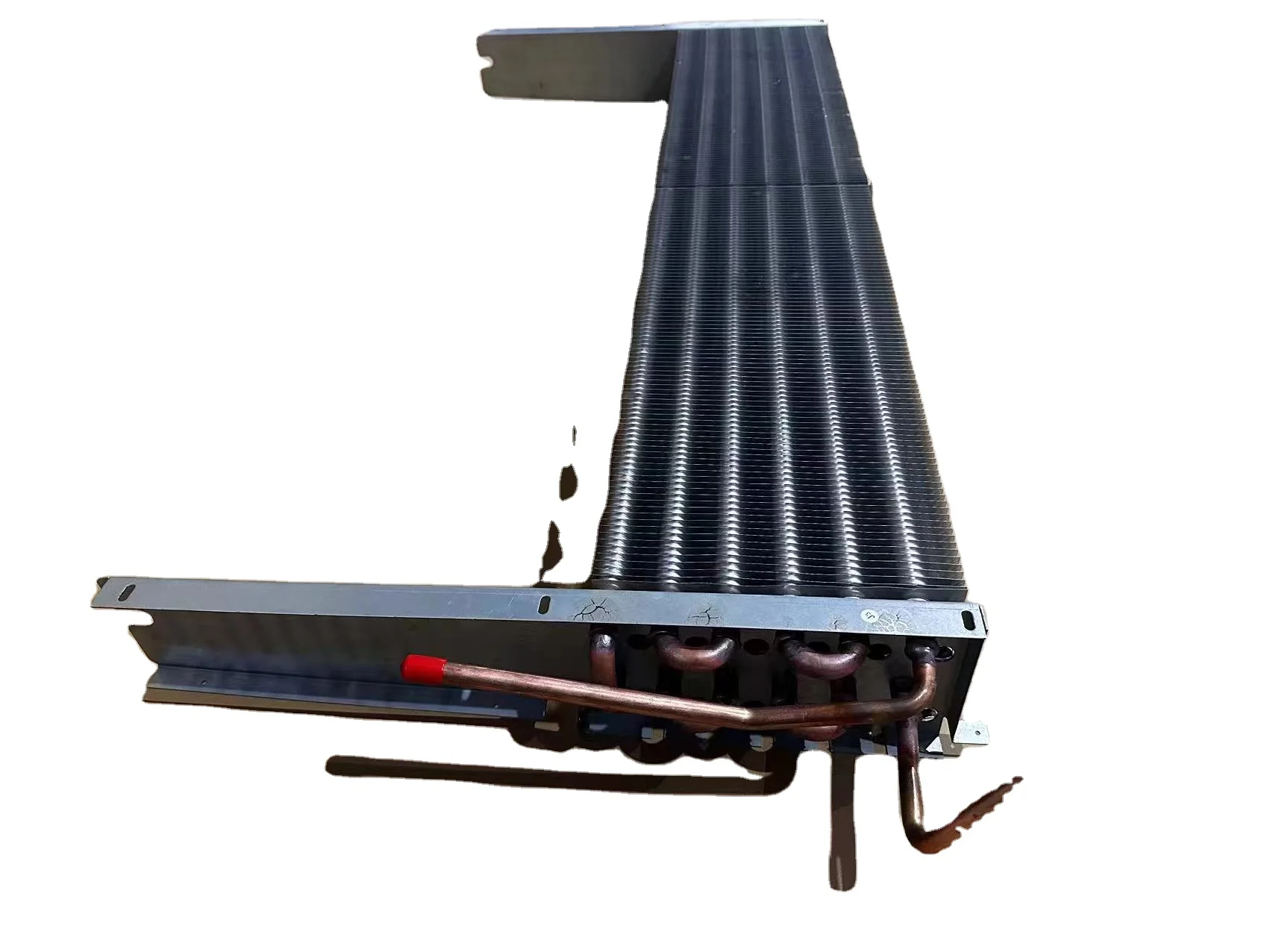

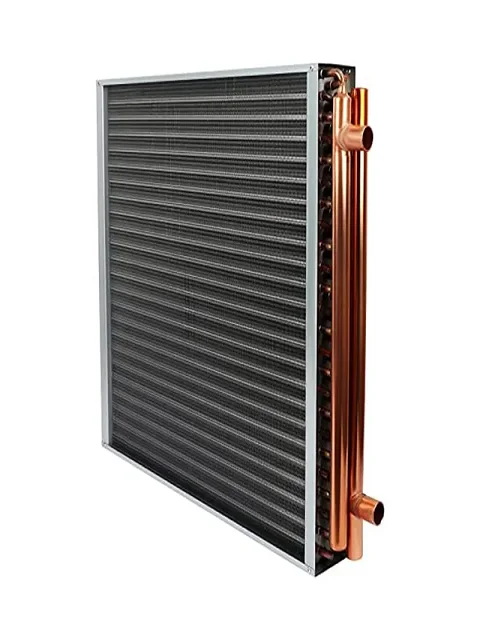

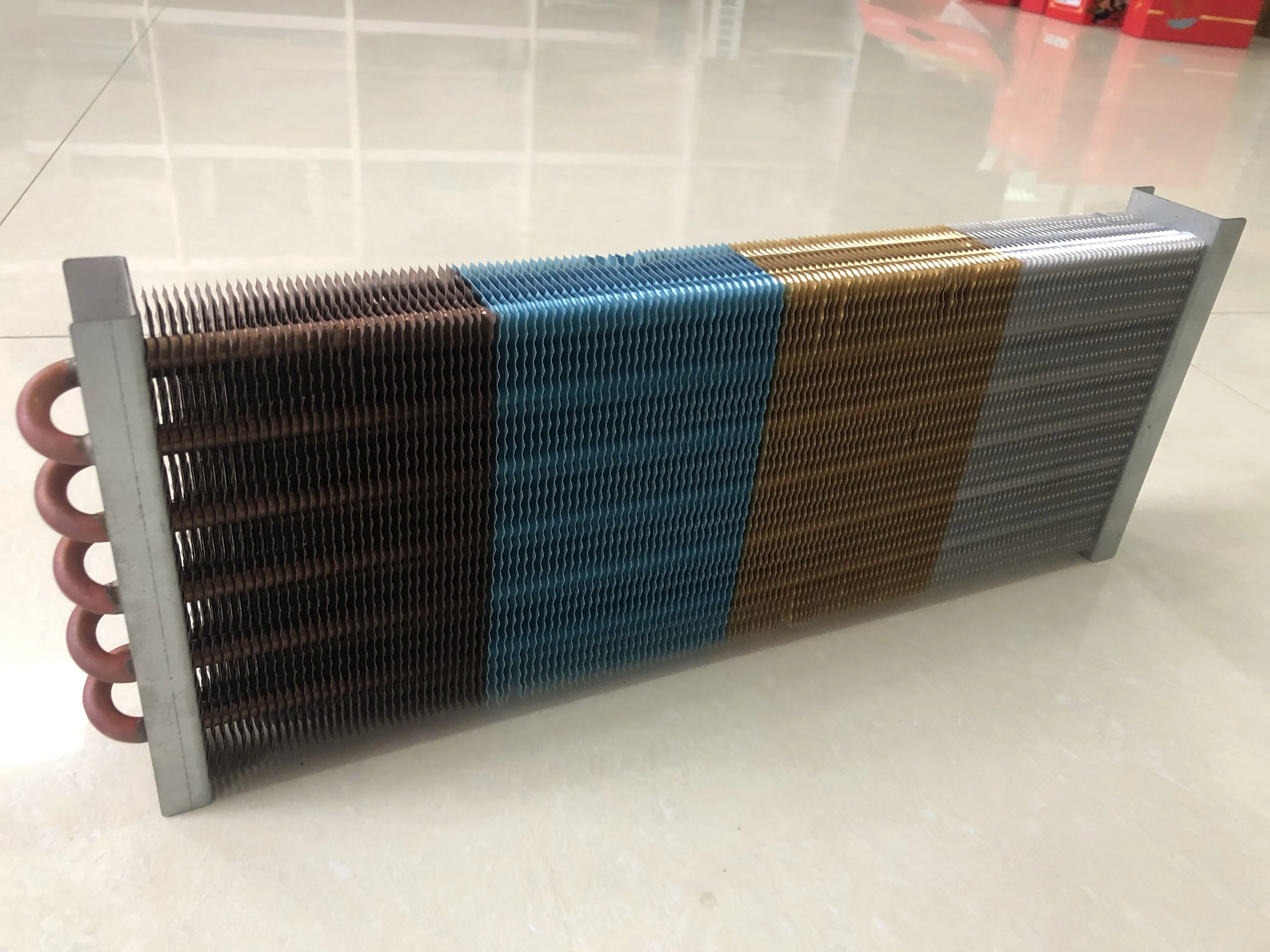

Copper Tube Aluminium finned copper tube evaporator coil For Freezer

Raw Material : copper tube , aluminium fin , galvanized plate and stainless steel plate

1. Size of copper pipe :diameter :7/7.94/9.52mm,Inner Grooved Or smooth tube .


2. Auminium foil : Hydrophilic or bare


3. Fin type :Louver Fin , Flat fin , corrugated fin


4. Pitch of fins can be adjusted between 1.8-5.8mm


5. Pitch of holes and pitch of rows :25x21.65mm,19.05x12.7mm,25.4x22mm ,25.4X19.05mm,25.4X15.88mm,50x50mm,38x33mm,31.75x27.5mm,21x12.7mm


6. No less than 3.0MPA Air Pressure nitrogen leak test


7. Suitable for R134A,R22,R404A,R407C refrigerant and so on.


   Mould specification list





























































































   copper tube diameter	holds and rows pitch	fin space	holds array	fin surface	fin edge type	defrost heater
   Φ15.88mm	50×50mm	4-10mm	equilateral triangle	sin-wave&corrugated	flat+wave	with
   Φ15.88mm	38Χ33mm	2.5-4mm	equilateral triangle	sin-wave&corrugated	flat+wave	with
   Φ12.7mm	31.75Χ27.5mm	3-9mm	equilateral triangle	sin-wave&corrugated	flat+wave	with
   Φ9.52mm	25Χ21.65mm	1.5-6mm	equilateral triangle	sin-wave&corrugated	flat+wave	with
   Φ9.52mm	31.75Χ27.5mm	2.5-7.5mm	equilateral triangle	sin-wave&corrugated	flat+wave	with
   Φ9.52mm	25χ21.65mm	1.5-2.5mm	equilateral triangle	louver	flat	without
   Φ7.94mm	25χ21.65mm	1.5-3.5mm	equilateral triangle	flat	flat+wave	without
   Φ7.0mm	21×12.7mm	1.3-1.8mm	equilateral triangle	louver	flat	without









1.copper tube evaporator,air-cooled evaporator,aluminum evaporator,fin type evaporator,air cooled

evaporator,cold room

evaporator,refrigeration part,coated copper tube evaporator,freezer condenser

2.it can be used in various condenser units and cold rooms,cold storage.models for different heat exchange area.

3.Fan cover could be stell or galvanized steel sheet. also can be painted with coating.

4.we also could supply according to your requirement,pls contract me for more information

We can do according to your drawing or sample.

If you have any interest ,pls feel free to contact with us at any time .
