Серия DBY электрический мембранный насос для горячего жидкого вина
42 152,45 ₽
Пневматические насосы диафрагмы с подгонянными корпусами насоса
- Категория: >>>
- Поставщик: Suzhou Asenhe Environmental Protection Technology Co. Ltd.
Сохранить в закладки 1601173639366:
Описание и отзывы
Характеристики

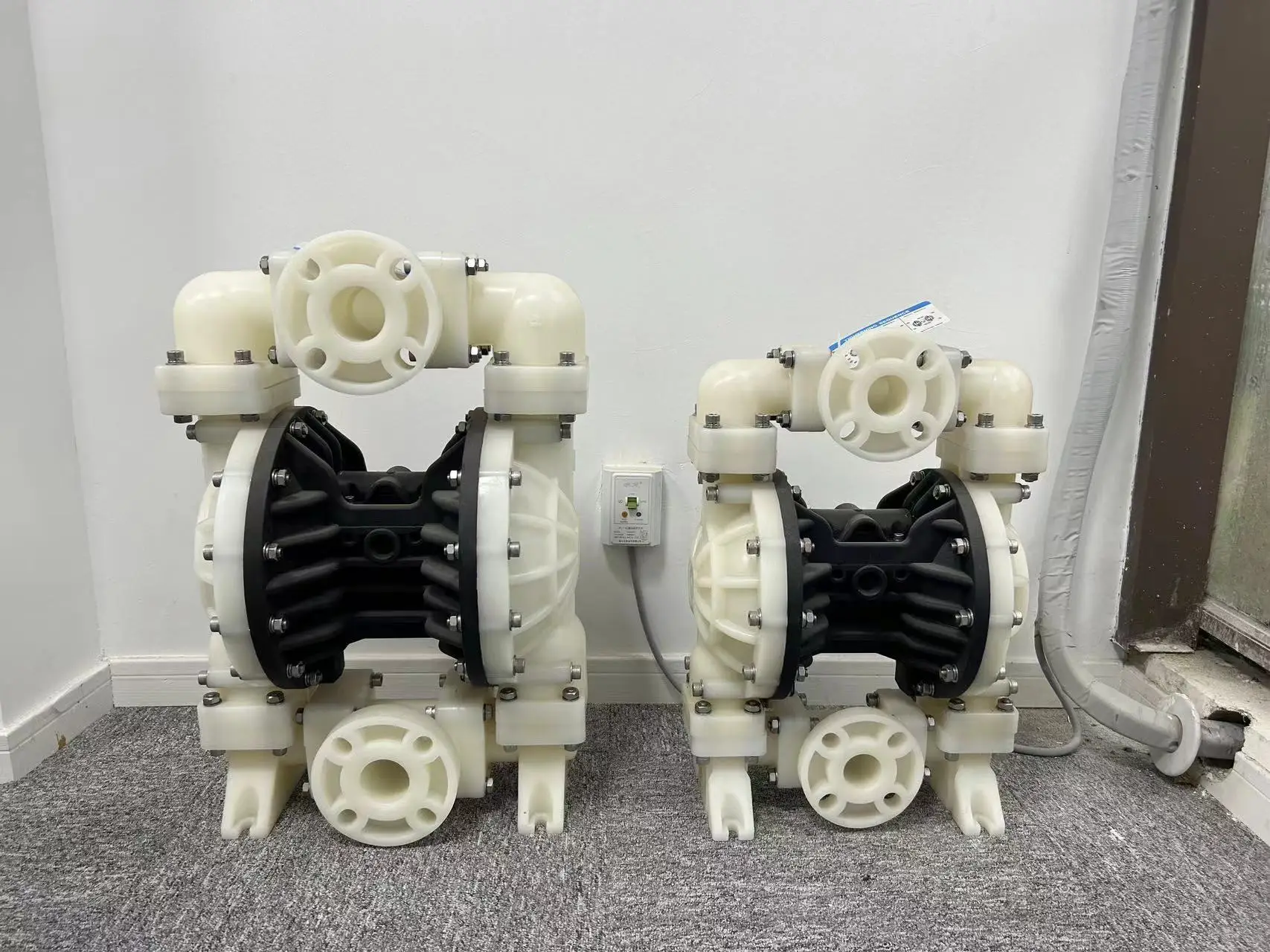

Product showcase
The advantages of our metering pump and diaphragm pump
1: More than 90% of the metering pumps on the market require special liquid lubricating oil when used, and the motor's forward and reverse rotation needs to be adjusted when starting up and running. Otherwise, the motor is prone to burning out. Our metering pump adopts advanced structural design, and we do not need to add lubricating oil for 4 to 5 years. During long-distance transportation, there will be no damage to the packaging or equipment due to oil leakage, and the motor does not need to adjust its forward and reverse rotation,it won't burn out.
2: The PTFE coating in the membrane is made of Japanese Daikin M112 powder through special nanoparticle processing. The membrane has better drawing times and elongation than its peers, and is revived by special rubber and vacuum vulcanization technology. The membrane is not easily damaged in normal use, with fewer vulnerable parts in the later stage and low maintenance costs.
3: The ball seat of the pump is made of PVDF material from Germany, which has first-class wear and corrosion resistance. The ball inside is made of ceramic with a purity of 99.99%, which has better wear and corrosion resistance than its peers.
4: All non overflow intermediates of the diaphragm pump are made of PP material, which provides stronger protection for the gas valve part. The structure of the intermediates is an integrated structure with no leakage points, better sealing performance,and stronger corrosion resistance.
5: The company has a comprehensive service system that supports pre-sales services and provides relevant technical solutions in the early stages. It also provides integrated butler style services throughout the sales and after-sales process.
2: The PTFE coating in the membrane is made of Japanese Daikin M112 powder through special nanoparticle processing. The membrane has better drawing times and elongation than its peers, and is revived by special rubber and vacuum vulcanization technology. The membrane is not easily damaged in normal use, with fewer vulnerable parts in the later stage and low maintenance costs.
3: The ball seat of the pump is made of PVDF material from Germany, which has first-class wear and corrosion resistance. The ball inside is made of ceramic with a purity of 99.99%, which has better wear and corrosion resistance than its peers.
4: All non overflow intermediates of the diaphragm pump are made of PP material, which provides stronger protection for the gas valve part. The structure of the intermediates is an integrated structure with no leakage points, better sealing performance,and stronger corrosion resistance.
5: The company has a comprehensive service system that supports pre-sales services and provides relevant technical solutions in the early stages. It also provides integrated butler style services throughout the sales and after-sales process.
Specification and Technical Parameters Table
series | (L/H)Traffic | （W） Power | （mm） Diaphragm diameter | （BAR） Maximum pressure | Flow adjustment | Pumphead material | Connect | ||
Hose | Hard tube | ||||||||
OP10 | 30 | 60 | 64 | 10 | Canbe adjusted manually operation | PPG/PTFE/SUS304 | Hose diameter 9mm× external diameter15mm | DN15 | |
OP20 | 40 | 60 | 64 | ||||||
OP30 | 50 | 60 | 64 | ||||||
OP50 | 70 | 60 | 64 | 6 | |||||
OP90 | 89 | 60 | 65 | 3 | |||||
OP90-B | 100 | 60 | 65 | 3 | |||||
OP120 | 120 | 60 | 65 | 3 | |||||
OP150 | 150 | 60 | 65 | 3 | |||||
series | （L/H） Traffic | （W） Power | （mm） Diaphragm diameter | （BAR） Maximum pressure | Flow adjustment | Pumphead material | Connect |
PS120-A | 120 | 140/150 | 101 | 5 | Canbe adjusted manually operation | PVC/PTFE | DN15 |
PS150-A | 150 | ||||||
PS180-A | 180 | ||||||
PS240-A | 240 | ||||||
PS300 | 300 | 200 | 120 | 5 | DN20 | ||
PS360 | 360 | ||||||
PS400 | 400 | ||||||
PS500 | 500 | 200/400 | 120/142 | DN32 /DN40 | |||
PS600 | 600 | 200/400 | 142 | ||||
PS700 | 700 | ||||||
PS800 | 800 | 400/750 | 168 | 3 | |||
PS900 | 900 | ||||||
PS1000 | 980/1000 | 170 | |||||
PS1200 | 1200 | 750/400 | |||||
PS1500 | 1500 | 750/1100 | 170/210 | PVC |
Asenhe | flow (L/min) | lift(M) | caliber | pressure（bar) | material quality | ||||
PP/304/AL/TF | |||||||||
AS15 | 57 | 84 | DN15 | 8.4 | |||||
AS25 | 157 | 84 | DN25 | 8.4 | |||||
AS40 | 358 | 84 | DN40 | 8.4 | |||||
8.4 | |||||||||
AS50 | 587 | 84 | DN50 | 8.4 | |||||
AS80 | 1060 | 84 | DN80 | 8.4 | |||||

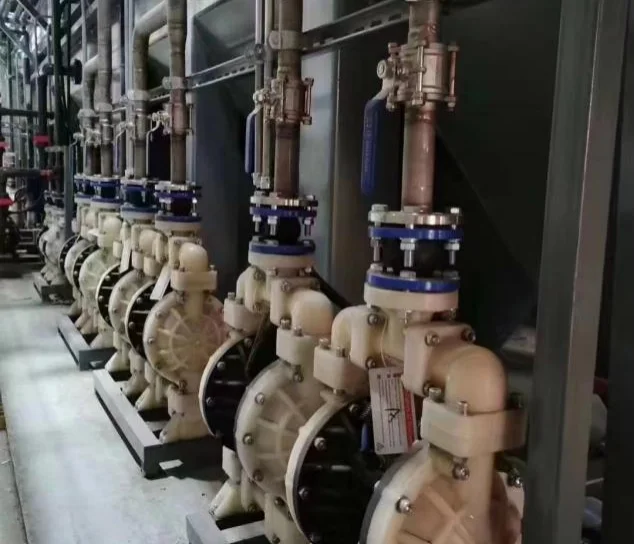

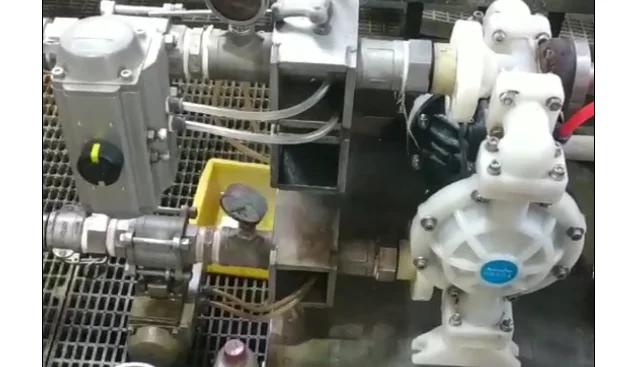

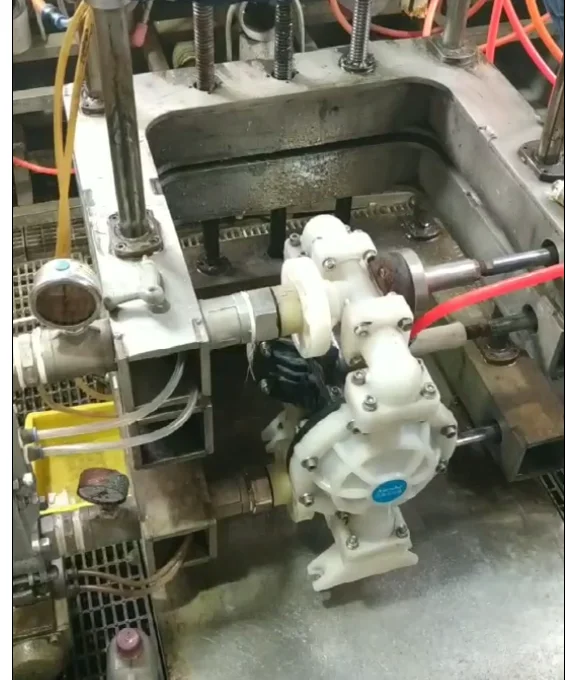

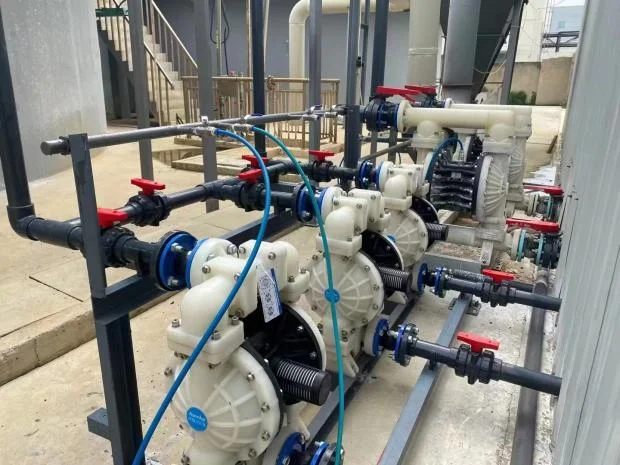

Application cases
Company Introduction
Suzhou Asenhe Environmental Protection Technology Co., Ltd. was established on January 26,2011 in Suzhou, China. It is a high-tech enterprise dedicated to the research and development, production, and sales of various metering pumps, diaphragm pumps, water quality buoy monitoring equipment, as well as various marine monitoring buoys for water treatment. Our products are widely used in oceans, rivers, lakes, and water treatment. The product can be customized according to customer needs and can provide customers with a one-stop smart solution.
Main products: metering pumps, diaphragm pumps, monitoring buoys, ocean monitoring buoys, and various water quality monitoring sensors.
Main products: metering pumps, diaphragm pumps, monitoring buoys, ocean monitoring buoys, and various water quality monitoring sensors.
FAQ
1.Are you a trader or a manufacturer?
We are a factory, the source manufacturer.
2.How long is your delivery time?
Products with regular configurations are available in stock.
3.Why did you choose us?
A.We have 13 years of experience in the industry.
B.can be customised according to customer needs.
C.the company has strong technical research and development strength.
D.we are manufacturers, the company has an advantage in the price of similar products.
E.the company has this perfect service system can provide pre-sales programmes and sales, after-sales service support.
Похожие товары

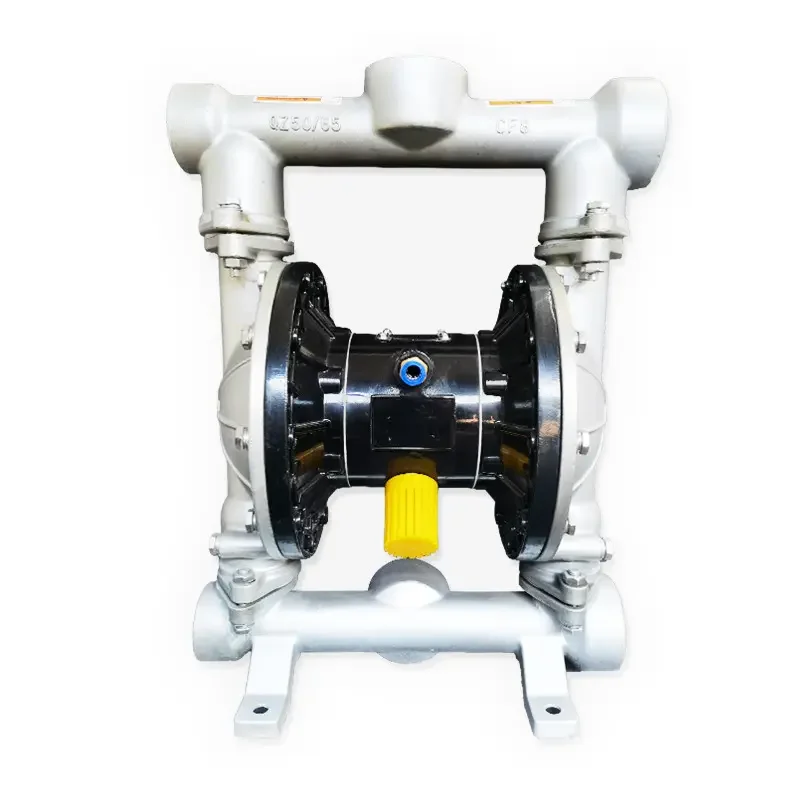

Дешевая цена пневматический мембранный насос QBY3-25 из нержавеющей стали для подачи пищевых напитков

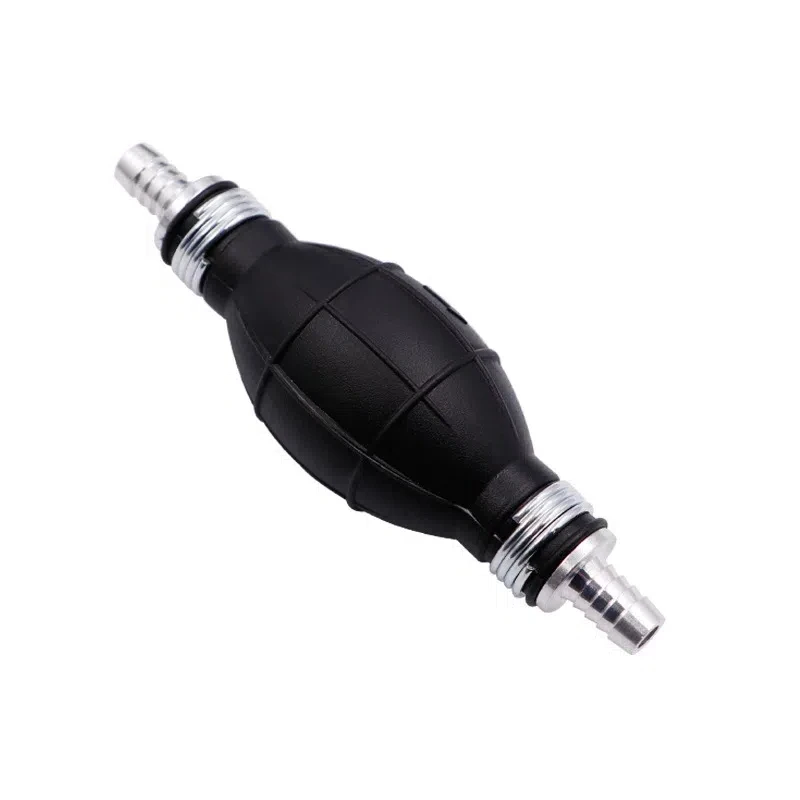

Автомобильный ручной насосный насос для масляного амортизатора
122,03 ₽ - 133,12 ₽
Бесшумный 12 В BLDC микро Бесщеточный Водяной насос центробежный водяной
198,57 ₽ - 532,46 ₽

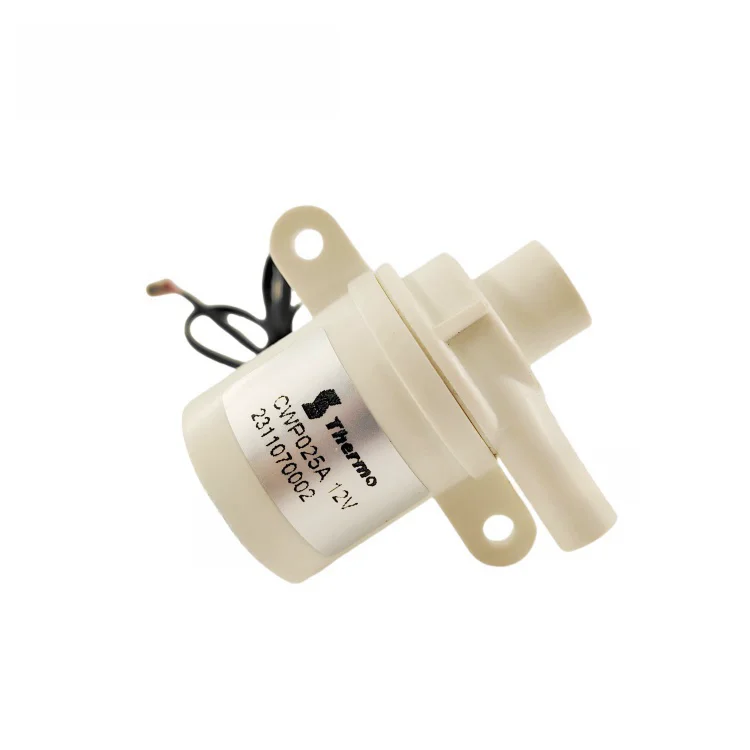

Оптовая продажа самовсасывающий небольшой Электрический бесшумный водяной насос для кофемашины
168,61 ₽ - 247,37 ₽
Автомобильный ручной насосный насос для масляного амортизатора
117,59 ₽ - 119,81 ₽

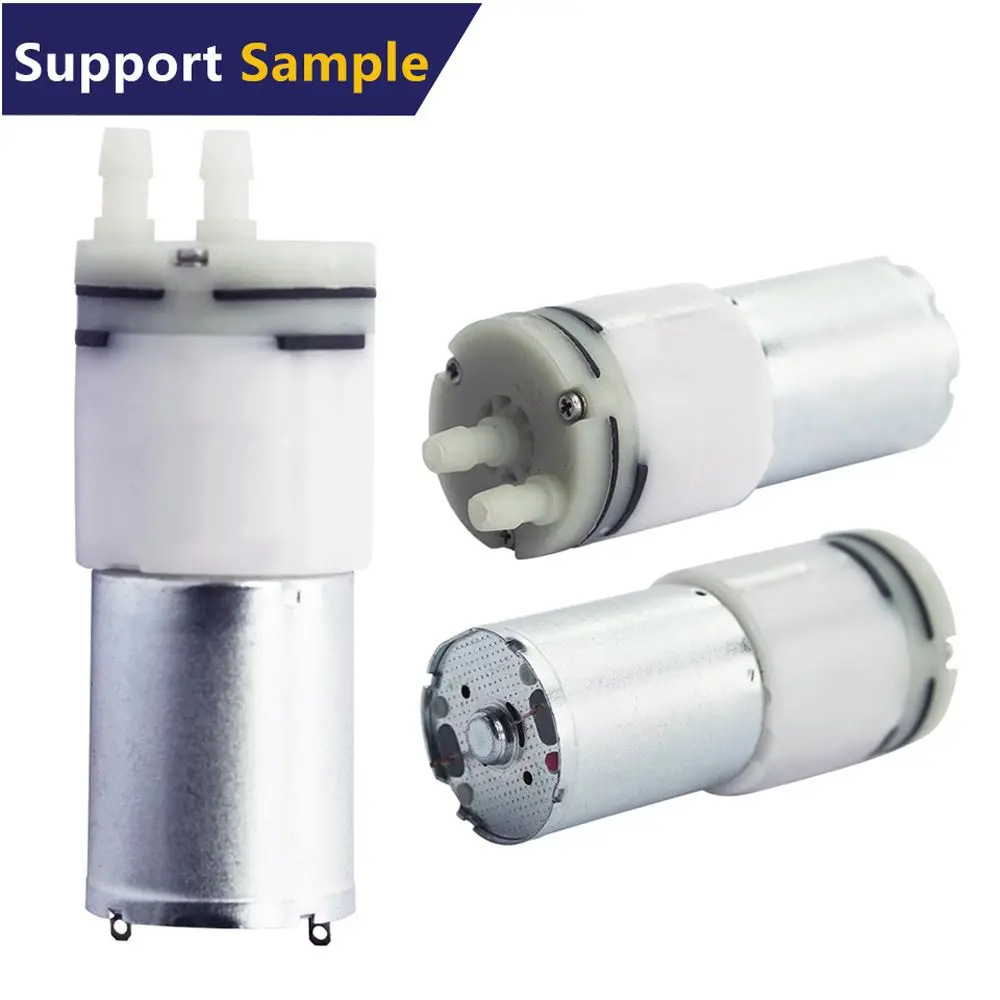

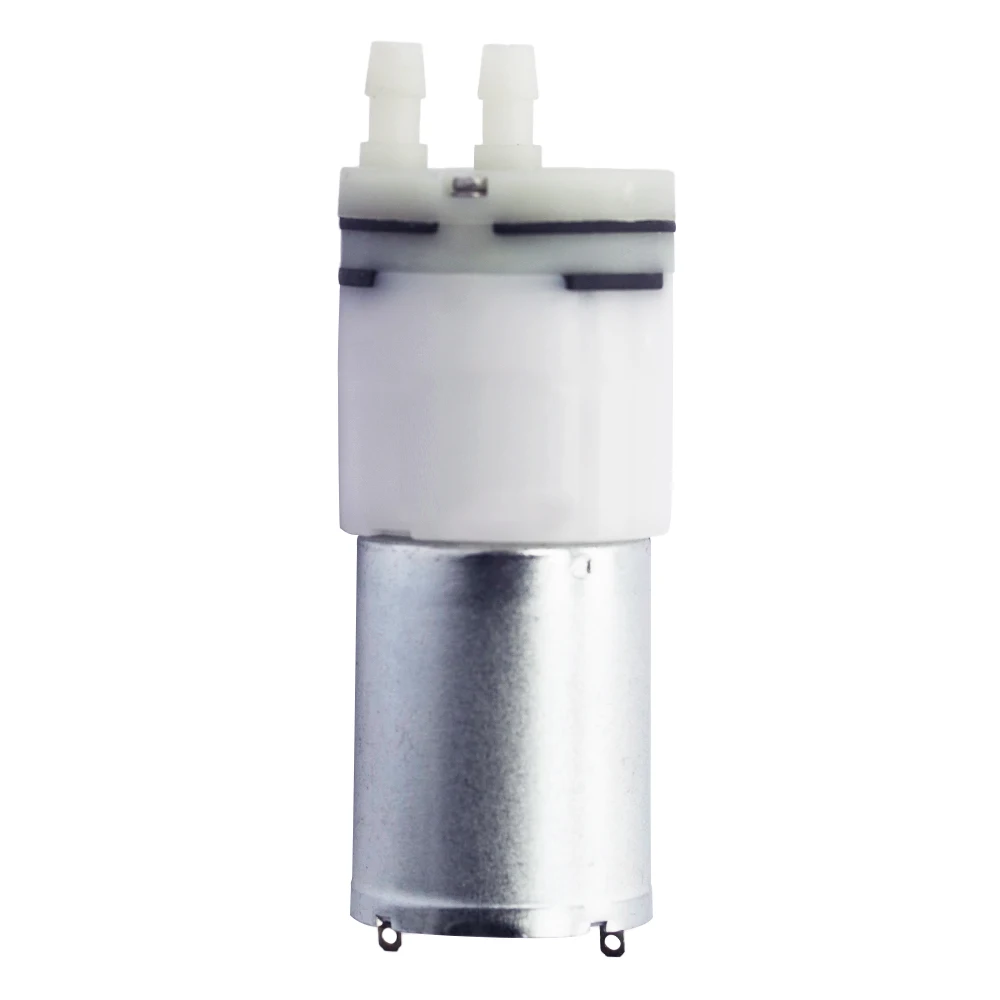

Микро-водяной насос постоянного тока 12 В
168,61 ₽ - 247,37 ₽

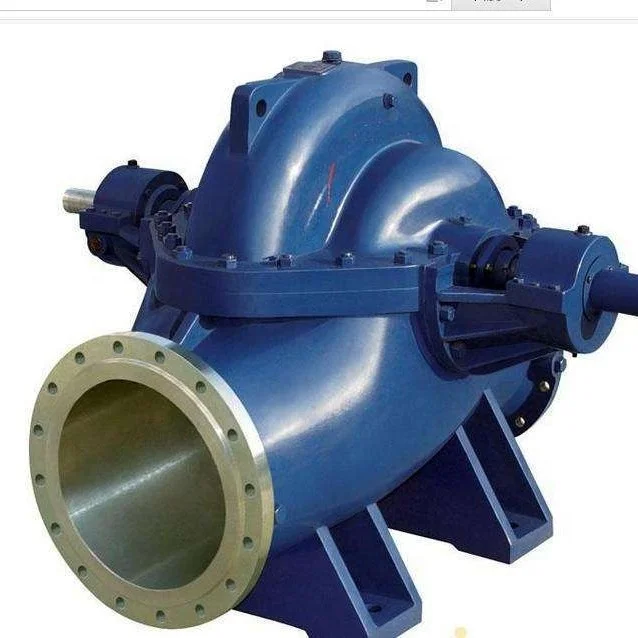

MS Китай поставщик большой поток воды двойной всасывающий насос для lrrigation центробежный
