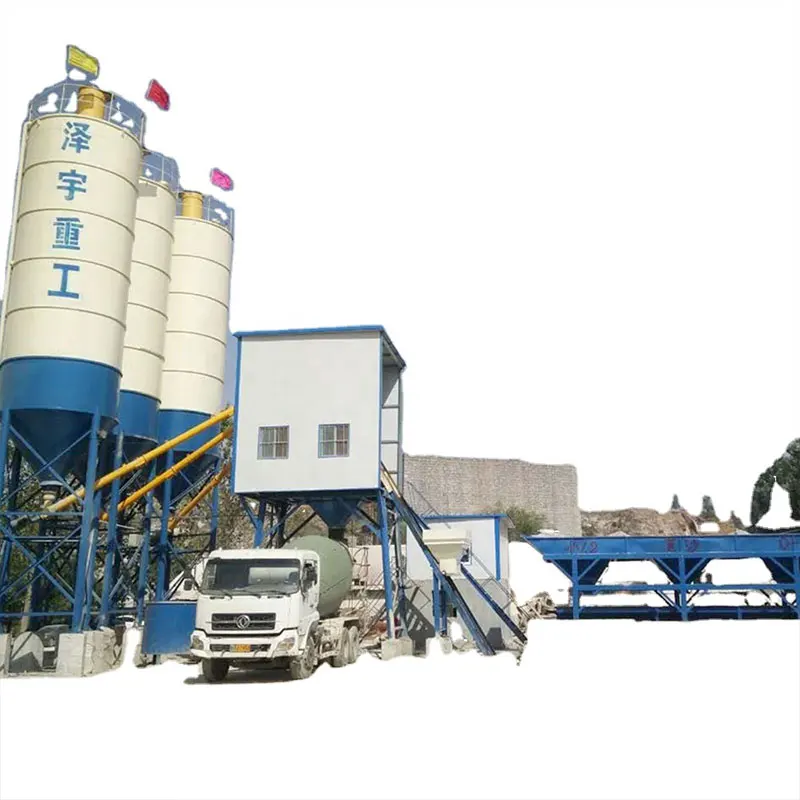

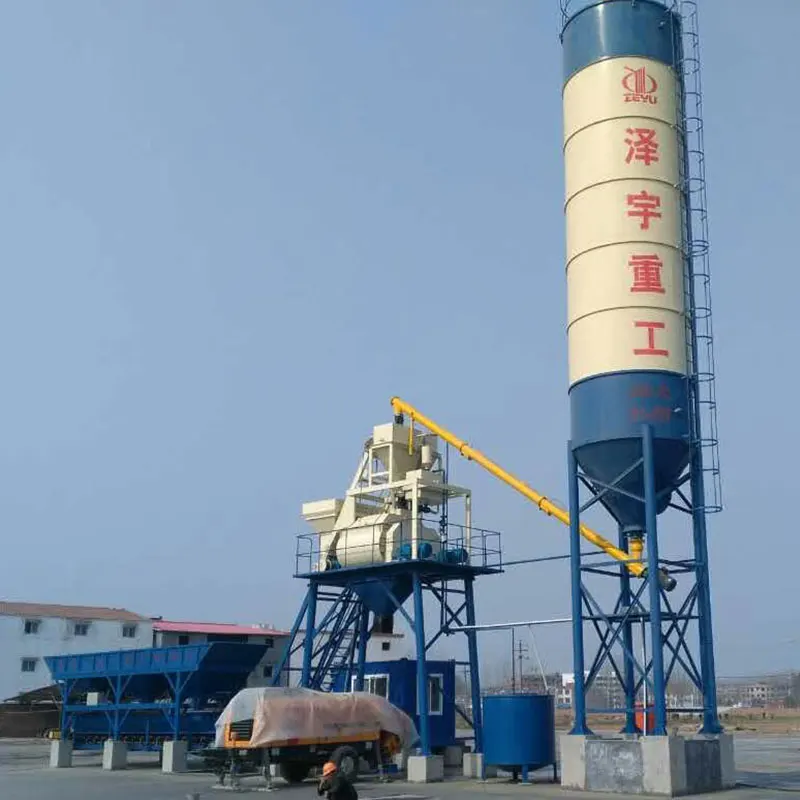

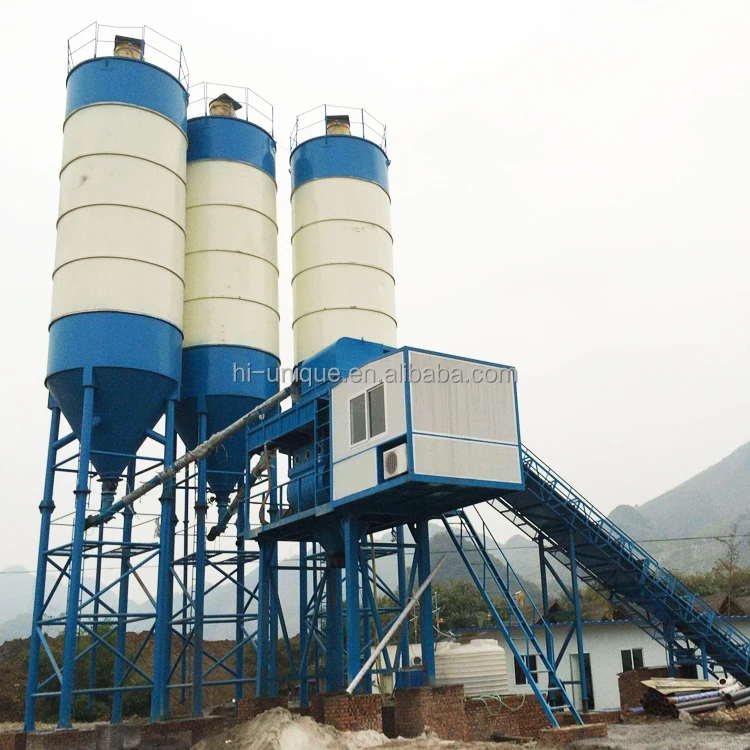

Компактная цементная смесительная установка полная автоматизация бетоносмесительная 90 кубических метров
10 416 598,00 ₽ - 10 745 543,20 ₽
W привлекательная цена длительный срок службы 50 м3/ч компактный бетонный завод HZS50 небольшой
- Категория: >>>
- Поставщик: Jinan Zeyu Machinery Equipment Co. Ltd.
Сохранить в закладки 1601173659260:
Описание и отзывы
Характеристики
Product Overview
·Lifting Hopper For Aggretage Loading
·Three/Four Bins Batching MachineCumulative/Single aggregate Measurement
·25,40,50,75Cubic Meters/Hour Production Capacity
·Three/Four Bins Batching MachineCumulative/Single aggregate Measurement
·25,40,50,75Cubic Meters/Hour Production Capacity

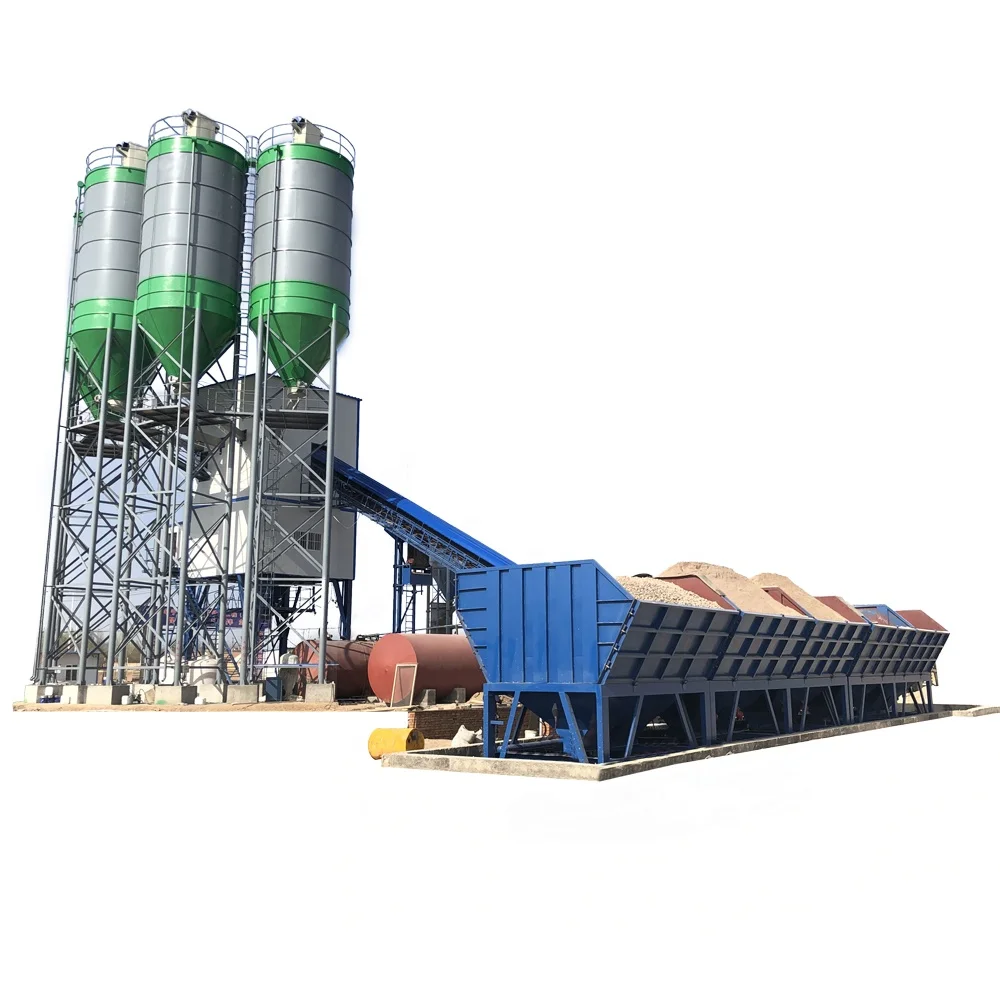

·Belt Conveyor For Aggreate Loading
·Pre-Storage Bin Included
·Four/Three Bins Batching Machine
·Single/Cumulative Aggregate Measurement
·60,90,120,180,240,270Cubic Meters/Hour Production Capacity
·Pre-Storage Bin Included
·Four/Three Bins Batching Machine
·Single/Cumulative Aggregate Measurement
·60,90,120,180,240,270Cubic Meters/Hour Production Capacity

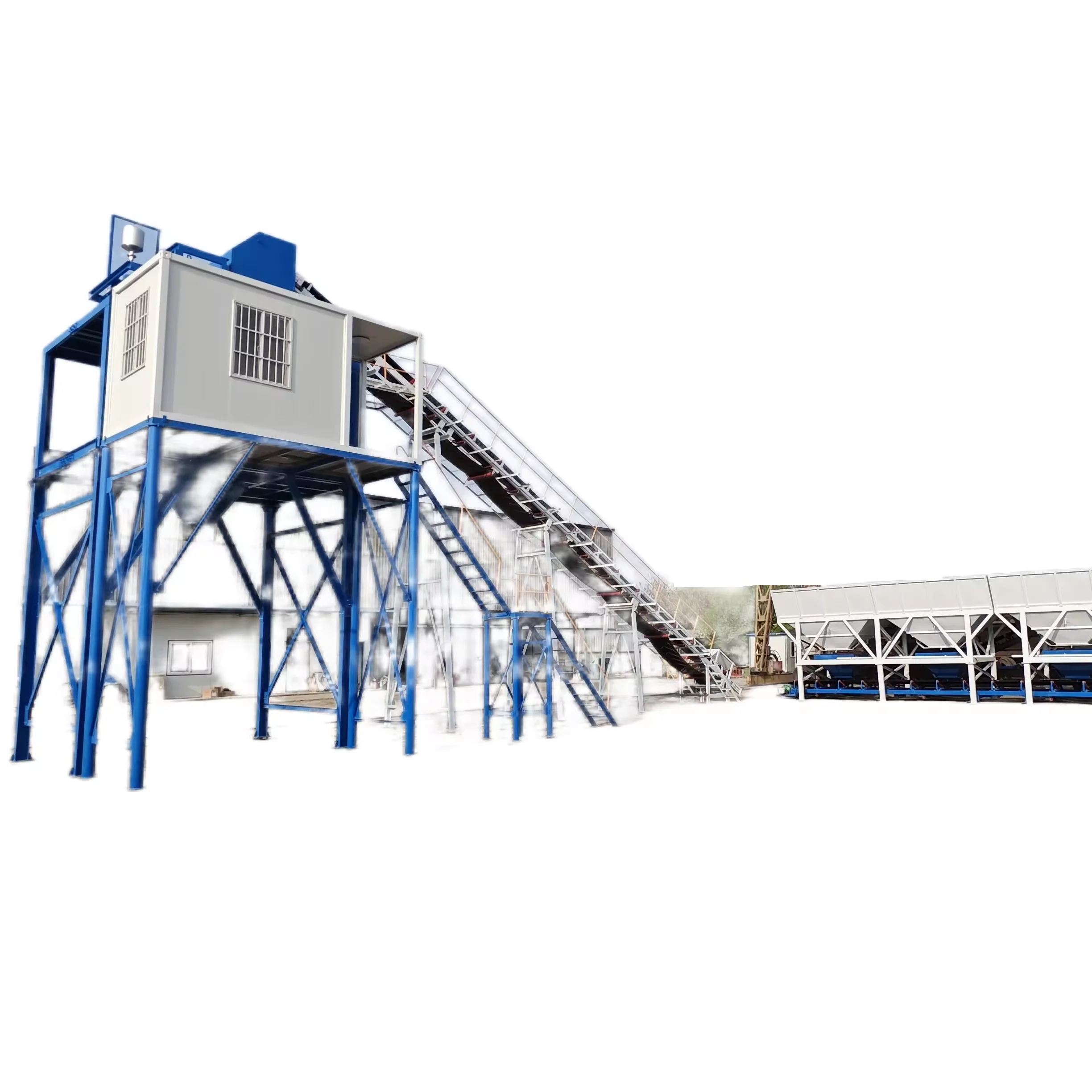

·Complete Production Line, Easy Installation
·Highly Integrated, Removable, Cover A Small Area
·35, 50/60, 75/90, 120 Cubic Meters/Hour Production Capacity
·Highly Integrated, Removable, Cover A Small Area
·35, 50/60, 75/90, 120 Cubic Meters/Hour Production Capacity

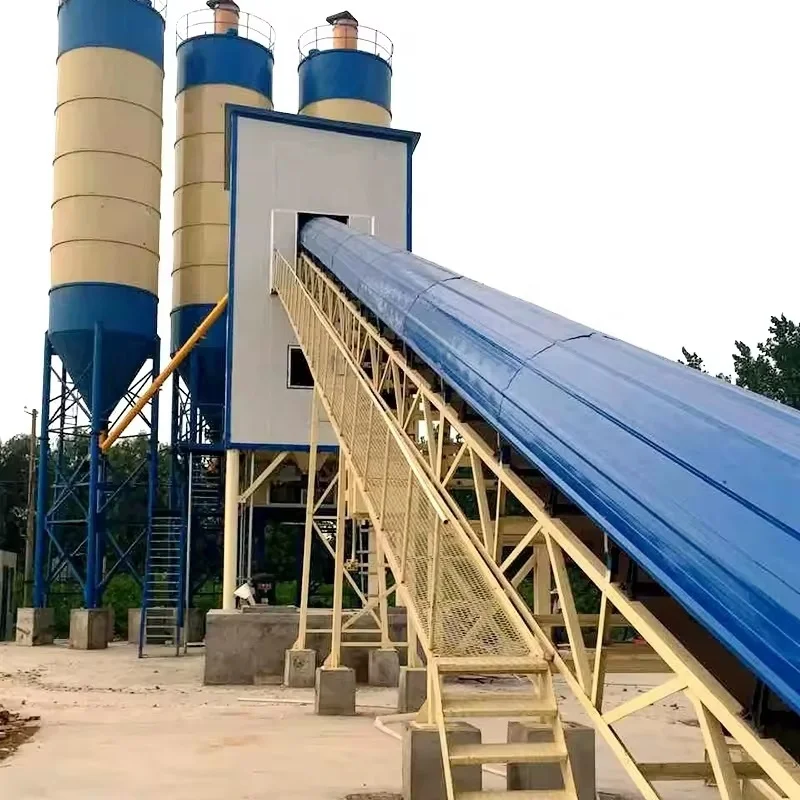

·Fully enclosed main building, effectively preventing noise leakage during mixing with belt conveyors, feeders, and mixers
·Fully enclosed conveyor belt conveyor, effectively preventing dust leakage
·Equipped with dust removal system
·25、35、 50、60,、75、90,、120、180、240、270、 Cubic Meters/Hour Production Capacity
·Fully enclosed conveyor belt conveyor, effectively preventing dust leakage
·Equipped with dust removal system
·25、35、 50、60,、75、90,、120、180、240、270、 Cubic Meters/Hour Production Capacity
Product Details
·High Efficiency - combined with German Liebherr, Italy Sigoma technology
·Durable - Q345 material original plate
·Stable Quality - shell all tooling production
·Precision - automatic CNC cutting machine cutting
·Easy Replacement And Maintenance/Stable Operation - separate seal and bearing
·Durable - Q345 material original plate
·Stable Quality - shell all tooling production
·Precision - automatic CNC cutting machine cutting
·Easy Replacement And Maintenance/Stable Operation - separate seal and bearing

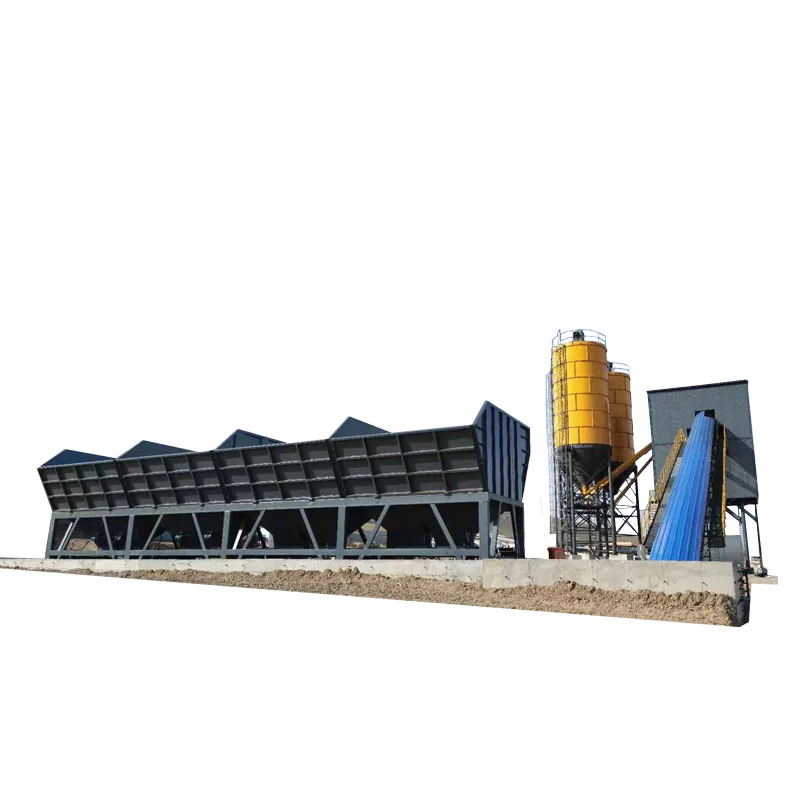

Aggregate Storage Bin
Aggregate batching machine includes cumulative / single measurement batching way which mainly for sand , stone
Aggregate Pre-storage Bin
Aggregate storage bin could have aggregate material ready for once mixing , in order to improve the production efficiency
Powder Silo
Powder silo mostly for cement , flyash and mineral powder material
Additive Storage Bin
Additive storage bin is use for additive material storage water common comes from water well or lake
Flat Belt Conveyor
Use for aggregate material transmission after batching and weighing
Lifting Hopper
Use for loading the aggregate material into mixing system

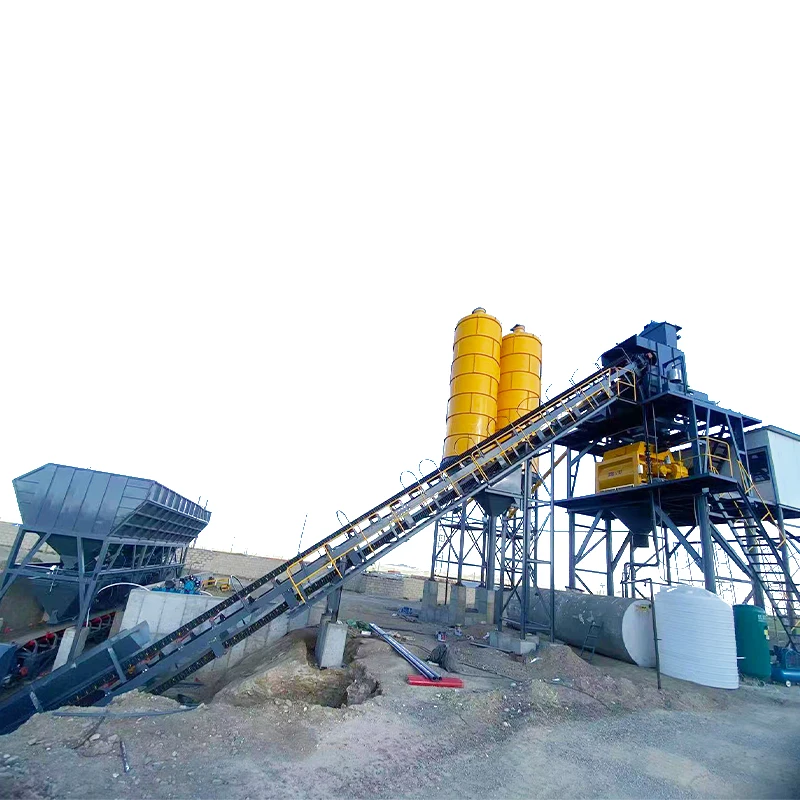

Inclined Belt Conveyor
Use for loading the aggregate material into mixing system
Conveying System
Use for transmission of powder material from storage into mixing system
Single Measurement
There is a measuring hopper below each type of aggregate bin, and three tension sensors are hung through suspension bolts for weighing
Cumulative Measurement
There is only one measuring hopper under the aggregate bin, and four tension sensors are hung through suspension bolts for weighing
Single Measurement
The powder is transported to the powder measuring hopper through a screw conveyor and weighed by sensors on the measuring hopper
Water Metering Bucket
Directly transport water to the water metering hopper through a submersible pump
Additive Metering Hopper
Transport water to the metering hopper through sewage pump
Control Room Electric Control Cabinet Operation Console
With the function of ratio storage, automatic compensation of drop, compensation of sand and stone moisture content (sand and stone moisture content tester needs to be ordered separately), it can accurately and conveniently input, adjust and modify the set value and formula number of each material
Product Parameters
HZS25 | HZS35 | HZS50 | HZS75 | |
Theoretical Productivity | 25m3/h | 35m3/h | 50m3/h | 75 m3/h |
Model Of Mixer | JS500 | JS750 | JS1000 | JS1500 |
Mixing Motor Power | 18.5kw | 30kw | 2x18.5kw | 2x30kw |
Cycle Period | 60s | 60s | 60s | 60s |
Volume Of Mixer | 500l | 7501 | 10001 | 15001 |
Aggregate | ≤80mm | ≤80mm | ≤80mm | ≤80mm |
Volume Of Cement Silo | 2x100t | 2x100t | 3x100t | 3x100t |
Capacity Of Batching Plant | 8001 | 12001 | 16001 | 24001 |
Volume Of Aggregate Bins | 3x4m3 | 3x4m3 | 3x6m3 | 3x6m3 |
Quantity of aggregate | 3 | 3 | 3 | 3 |
Productivity Of Aggregate Beltconveyor | 100t/h | 150t/h | 200t/h | 250t/h |
Max. Productivity Of Screw Conveyor | 40 t/h | 40 t/h | 80 t/h | 80 t/h |
Unloading Height | 1.6m | 3.8m | 4.0m | 4.0m |
Total Power Of The Plant | 55kw | 75kw | 105kw | 150kw |
Measuring Range And Precision Of Aggregate | (1000-2000)±2% kg | (1000-3000)±2% kg | 1000-4000)±2% kg | (1000-4000)±2% kg |
Measuring Range And Precision Of Cement | (100-300)±1% kg | (150-500)±1% kg | (200-600)±1% kg | (200-800)±1% kg |
Measuring Range And Precision Of Coal Ash | （100-300)±1% kg | (100-400)±1% kg | ||
Measuring Range And Precision Of Water | (100-200)±1% kg | 100-300)±1% kg | (100-450)±1% kg | (100-600)±1% kg |
Measuring Range And Precision Of Admixture | (0-20)±1% kg | (0-20)±1% kg | (10-50)±1% kg | (10-50)±1% kg |
HZS60 | HZS90 | HZS120 | HZS180 | HZS240 | HZS270 | |
Theoretical Productivity | 60 m3/h | 90 m3/h | 120 m3/h | 180 m3/h | 240m3/h | 270m3/h |
Model Of Mixer | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 | JS4500 |
Mixing Motor Power | 2x18.5kw | 2x30kw | 2x37kw | 2x55kw | 2x75kw | 2x75kw |
Cycle Period | 60s | 60s | 60s | 60s | 60s | 60s |
Volume Of Mixer | 1000l | 1500l | 2000l | 3000l | 4000l | 4500l |
Aggregate | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm |
Volume Of Cement Silo | 4x100t | 4x100t | 4x200t | 4x200t | 4x300t | 4x300t |
Capacity 0f Batching Plant | 1600l | 2400l | 32001 | 4800l | 6400l | 7200l |
Volume Of Aggregate Bins | 4x8m3 | 4x12m3 | 4x20m3 | 4x25 m3 | 4*30m3 | 4*30m3 |
Quantity Of Aggregate | 4 | 4 | 4 | 4 | 4 | 4 |
Productivity Of Aggregate Beltconveyor | 250 m3/h | 350 m3/h | 500 m3/h | 750 m3/h | 1200 m3/h | 1200 m3/h |
Max. Productivity Of Screw Conveyor | 40 t/h | 80 t/h | 80 t/h | 110 t/h | 160 t/h | 160 t/h |
Unloading Height | 4.0m | 4.0m | 4.0m | 4.0m | 4.0m | 4.0m |
Total Power Of The Plant | 150kw | 164kw | 210kw | 268kw | 363kw | 363kw |
Measuring Range And Precision Of Aggregate | (600-2000)≤±2% | (600-3000)≤±2% | (1000-3600)≤±2% | (1200-4000)≤±2% | (1600-6400)≤±2% | (1600-7200)≤±2% |
Measuring Range And Precision Of Cement | (200-600)≤±1% | (200-1000)≤±1% | (300-1800)≤±1% | (300-2400)≤±1% | (500-3000)≤±1% | (600-3200)≤±1% |
Measuring Range And Precision Of Coal Ash | (100-400)≤±1% | (200-600)≤±1% | (200-900)≤±1% | (200-1200)≤±1% | (300-1500)≤±2% | (400-1600)≤±2% |
Measuring Range And Precision Of Water | (150-300)≤±1% | (200-500)≤±1% | (200-700)≤±1% | (200-1000)≤±1% | (300-1400)≤±1% | (360-1500)≤±1% |
Measuring Range And Precision Of Admixture | (20-60)≤±1% | (20-60)≤±1% | (30-100)≤±1% | (36-120)≤±1% | (36-120)≤±1% | (36-120)≤±1% |

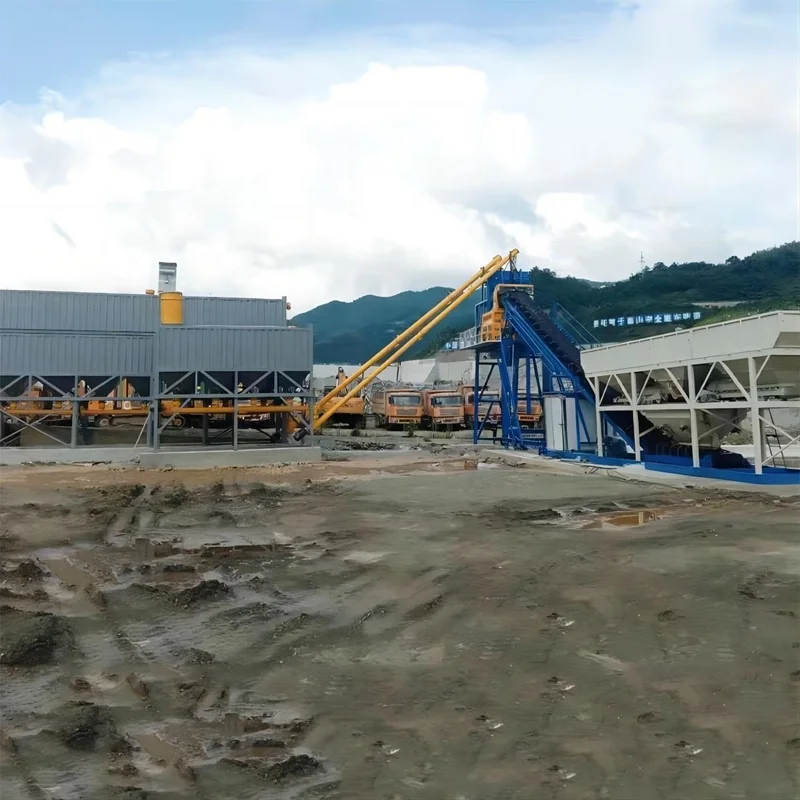

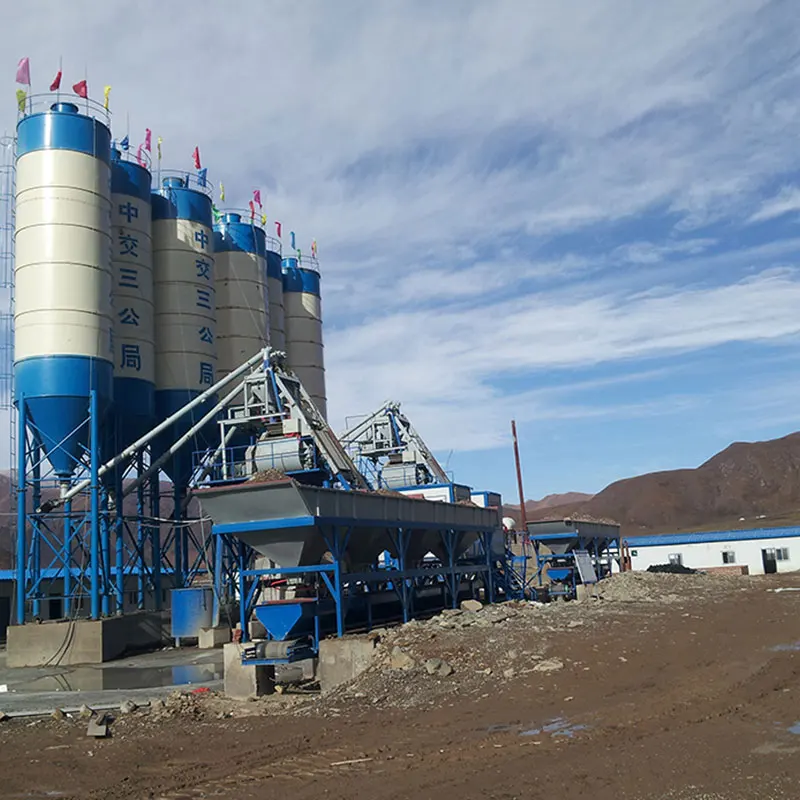

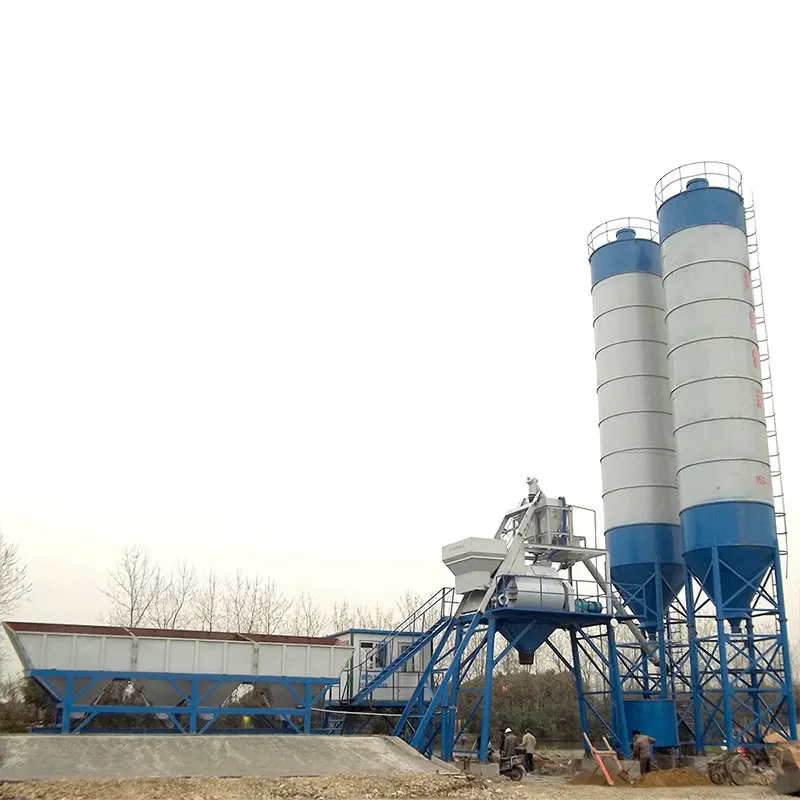

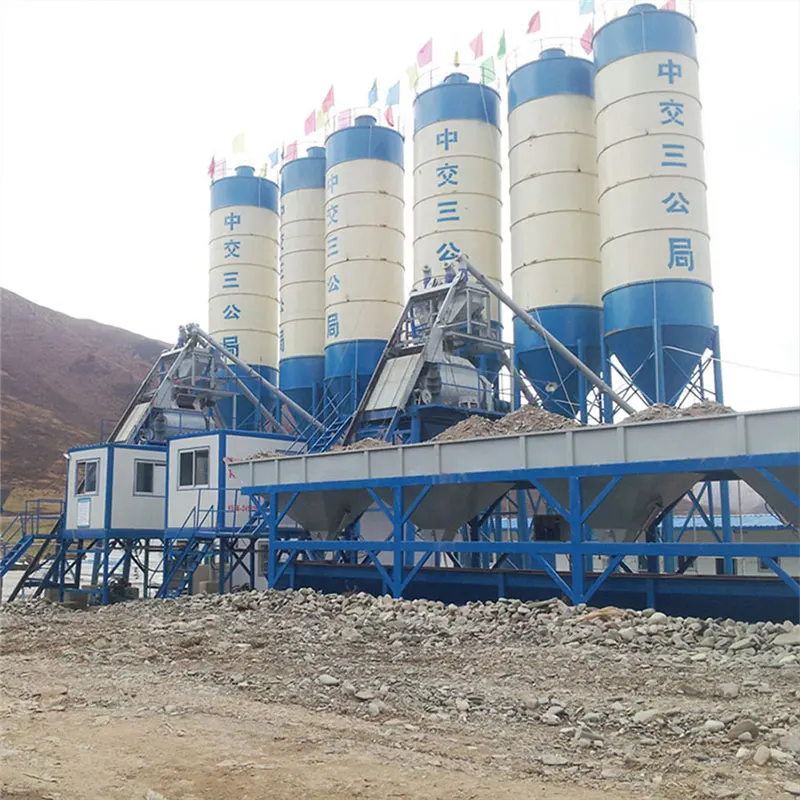

Project Cases
Our services
About us
GLOBAL ZEYU is a professional manufacturer engaged in the research development production sale and service of concrete machinery,machinery, includint quality concrete batching plant, JS concrete mixers, screw conveyor, bolted cement silo, sand stone separator, etc.
Adhering to the professional philosophy of quality-oriented, leading technology, rapid response, high-quality and advanced technology, GLOBAL ZEYU intsists creating value for customers continiously!
Adhering to the professional philosophy of quality-oriented, leading technology, rapid response, high-quality and advanced technology, GLOBAL ZEYU intsists creating value for customers continiously!
Company Profile
·Immediate response
·Be your businiss partner, technical assistant
·Feasibility analysis, engineering design
·Confirm proposal drawings and specifications
·Visit our factory for reference
·Be your businiss partner, technical assistant
·Feasibility analysis, engineering design
·Confirm proposal drawings and specifications
·Visit our factory for reference
·Training how to install and use the machine
·Engineers aviable to serve overseas
·Track the use situation of the equipment regularly
·Sufficient spare parts in stock provide for equipment whole life
·The whole machine three guarantees 2 years
·7*24 hours uninterrupted service guidance
·Engineers aviable to serve overseas
·Track the use situation of the equipment regularly
·Sufficient spare parts in stock provide for equipment whole life
·The whole machine three guarantees 2 years
·7*24 hours uninterrupted service guidance
Logistics
FAQ
Jinan Zeyu Machinery Equipment Co., Ltd.
Q: Are you a trading company or a manufacturer?
A: We are munufacture. We can design and manufacturer according to actual requirements.
Welcome to visit our factory!
Q: What kind of products do you have?
1. Stationary concrete batching plant series from HZS25 to HZS180.
2. Mobile concrete batching plant.
3. Concrete mixer machine.
4. Portable drum concrete mixer with diesel engine.
5. Spare parts including screw conveyor, bolted cement silo, etc.
Q: What are the terms of payment in your formal trade?
A: We accept T/T term, L/C term and Alibaba Trade Assurance Order Online.
T/T: 30%T/T prepayment , 70% paid by T/T before delivery.
L/C: 100% irrevocable L/C at sight.
Q: What's your after-sale service?
A: 24 months warranty for main parts since departure. Able to provide On-site installation, debugging, workers training. Make sure that your workers can operate properly and know daily maintenance well.
Q:What's your delivery time?
A: Ready for delivering in 30-45 days after the 30% of the total amout is paid as deposit. (Concrete batching plant)
B: Ready for delivering in 7-10 days if the goods are in stock. Or in 15-20 days if the goods are not in stock. (Concrete mixer)
Q. How long do you warranty your concrete batching plant?
A: The product warranty period is 2 year, excluding the wearing parts, and we offer our customers wearing parts all the time at favorable price.
Q: What to do if the machine encounters a malfunction?
A: Email us or call us showing us photos about what happens, and our service is on line24/7, and then we will get back to you immediately. We provide on-site technical personnel services upon request.
Q.How can we install the plant?
A: We will make installation drawing before shipping, and our engineer will go oversea to provide guidance and training on installation after everything is ready set at customer's construction site.
Q: Do you have CE certificate for your concrete batching plant?
A: Yes, we have. It is our patent products, certificated by CE.
Q: Are you a trading company or a manufacturer?
A: We are munufacture. We can design and manufacturer according to actual requirements.
Welcome to visit our factory!
Q: What kind of products do you have?
1. Stationary concrete batching plant series from HZS25 to HZS180.
2. Mobile concrete batching plant.
3. Concrete mixer machine.
4. Portable drum concrete mixer with diesel engine.
5. Spare parts including screw conveyor, bolted cement silo, etc.
Q: What are the terms of payment in your formal trade?
A: We accept T/T term, L/C term and Alibaba Trade Assurance Order Online.
T/T: 30%T/T prepayment , 70% paid by T/T before delivery.
L/C: 100% irrevocable L/C at sight.
Q: What's your after-sale service?
A: 24 months warranty for main parts since departure. Able to provide On-site installation, debugging, workers training. Make sure that your workers can operate properly and know daily maintenance well.
Q:What's your delivery time?
A: Ready for delivering in 30-45 days after the 30% of the total amout is paid as deposit. (Concrete batching plant)
B: Ready for delivering in 7-10 days if the goods are in stock. Or in 15-20 days if the goods are not in stock. (Concrete mixer)
Q. How long do you warranty your concrete batching plant?
A: The product warranty period is 2 year, excluding the wearing parts, and we offer our customers wearing parts all the time at favorable price.
Q: What to do if the machine encounters a malfunction?
A: Email us or call us showing us photos about what happens, and our service is on line24/7, and then we will get back to you immediately. We provide on-site technical personnel services upon request.
Q.How can we install the plant?
A: We will make installation drawing before shipping, and our engineer will go oversea to provide guidance and training on installation after everything is ready set at customer's construction site.
Q: Do you have CE certificate for your concrete batching plant?
A: Yes, we have. It is our patent products, certificated by CE.
Похожие товары
Китай официальный ленточный Бетоносмесительный завод ZHUCHENG HZS90 50 60 70 80 90 м3/ч датчик производительности Лидер продаж
13 925 346,80 ₽ - 14 226 879,90 ₽
Mhzs180 небольшой площади недорогой мобильный Бетоносмесительный завод сделано в Китае
10 964 840,00 ₽ - 13 157 808,00 ₽
Высококачественная бетоносмесительная установка 120 кубических метров по заводской цене
9 320 114,00 ₽ - 9 649 059,20 ₽
Распродажа ленточный конвейер бетонный завод компоновка 60 кубических метров
548 242,00 ₽
Хорошая цена высокое качество HLS60 бетоносмесительная установка 3 года гарантии заводская 60 кубических метров в час влажный бетон
7 346 442,80 ₽ - 7 565 739,60 ₽
Горячая распродажа HLS60 бетоносмесительная установка 3 Года Гарантии Заводская цена 60 кубических метров в час влажный бетон
7 346 442,80 ₽ - 7 565 739,60 ₽
HLS60 бетонный завод 5 лет гарантии заводская цена 60 кубических метров в час влажный бетон
12 280 620,80 ₽ - 12 390 269,20 ₽
Новые поступления
Новинки товаров от производителей по оптовым ценам
Оригинальные oem-носки простые грелки для ног женские вязаные
5,25-6,25 $
Мужские Нескользящие Утепленные ботинки для
19,80-25,50 $
Автоматические компоненты 16B универсальный шаровой упаковочный конвейер модульный китайский поставщик система передачи
1-1,50 $
Хромированная стальная мебель ножки стола металлическая основа журнального столика
Лучшее качество 2000 Вт портативная электростанция солнечный генератор сертифицированный LiFePO4 чистый синусоидальный инвертор фонарик
Changan 4*2 Электрический небольшой моющий грузовик высокого давления для продажи от производителя
3 890-4 890 $
45-тонный экологически чистый контейнерный штабелер SANY SRSC45C30 ISO сертифицированный кран
35 700-53 550 $
CL0126 304 U-образная металлическая плитка внутренняя отделка для плитки из нержавеющей стали Декоративная полоса
0,68-2,88 $
