Лазерный очиститель 100 Вт
- Категория: >>>
- Поставщик: Wuhan Chuyu Optoelectronic Technology Co. Ltd.
Сохранить в закладки 1601173698040:
Описание и отзывы
Характеристики
Technical Parameter
Model No | CY-M100X | CY-M200X | CY-M300X | ||||
Laser Power | Laser Power | 300W | 100w | 200w | |||
Single Pulse Energy | Single Pulse Energy | 1.5MJ | |||||
Wavelength | Wavelength | 1064nm | |||||
Frequency | Frequency | 1-4000 KHz | |||||
Pulse Duration | Pulse Duration | 2~500 ns | |||||
Cleaning Width | Cleaning Width | F163:0~110/ F254:0~175/F330:0~200 (mm) | |||||
Power Consumption | Power Consumption | 400W | 500W | 600w | |||
Cleaning Mode | Cleaning Mode | 7 modes | |||||
Cooling Method | Cooling Method | built-in air cooled | |||||
Rust (20um) | Rust (20μm) | 4.0㎡ /h | 8.0㎡ /h | 10.0㎡ /h | |||
Oil (20um) | Oil (20μm) | 4.5㎡ /h | 9.0㎡ /h | 11.0㎡ /h | |||
Oxide Film | Oxide Film | 3.0㎡ /h | 6.0㎡ /h | 8.0㎡ /h | |||
Painting(12opm | Painting(12μm) | 1.0㎡ /h | 2.0㎡ /h | 3.0㎡ /h | |||
Power Supply | Power Supply | AC220V,50/60Hz | |||||
Power Consumption | Power Consumption | 800~1000w | |||||
Dimensions | Dimensions | 580*290*600 mm | 680*380*720 mm | ||||
Weight | Weight | Host: 38kg (100W) | Host: 50kg (200W) | HostL: 55kg (300W) | |||
Ambient Environment | Ambient Environment | 0~40℃ | |||||

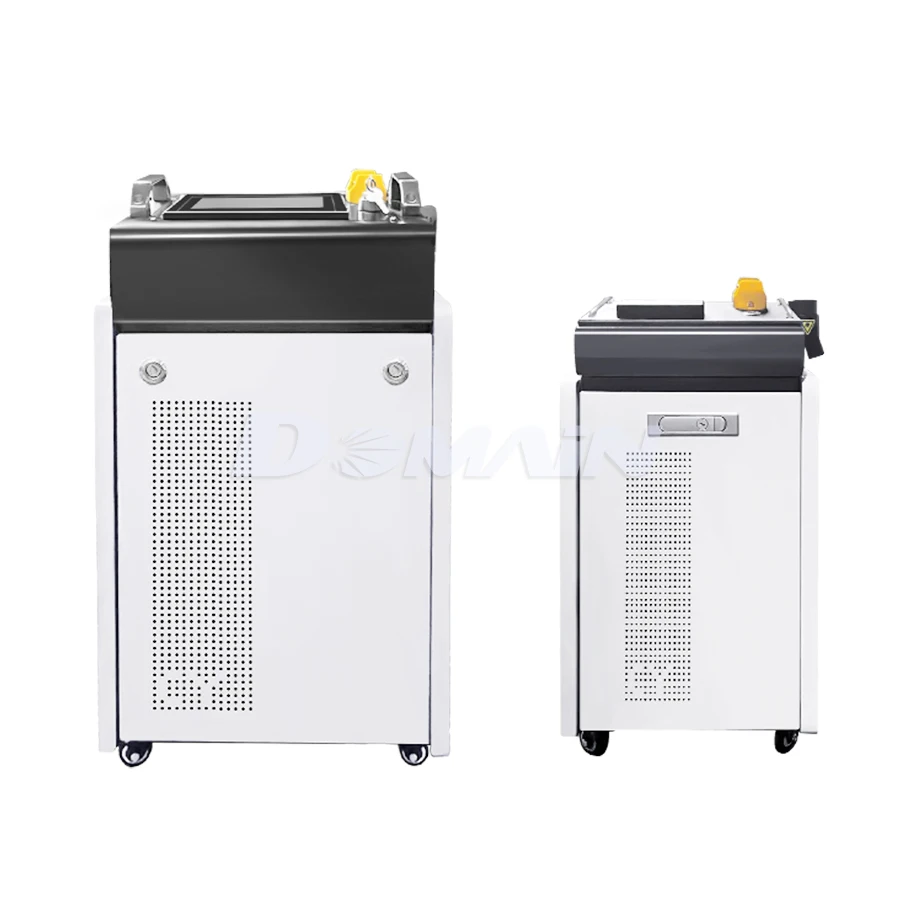

Product Detail

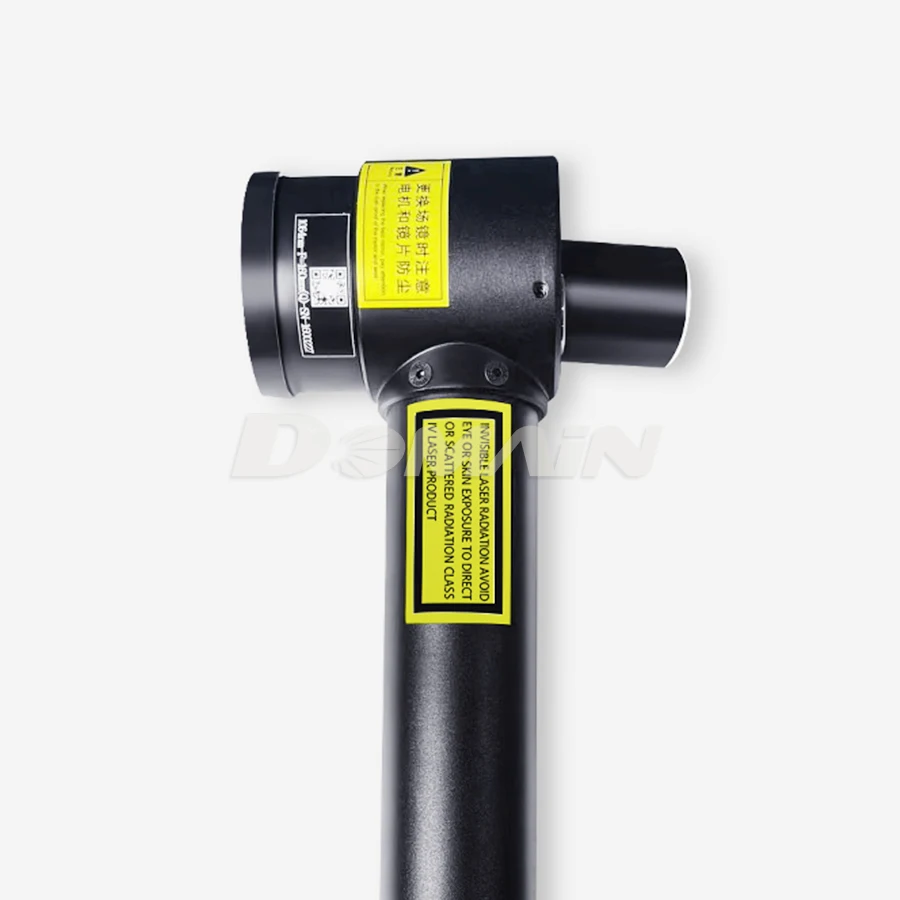

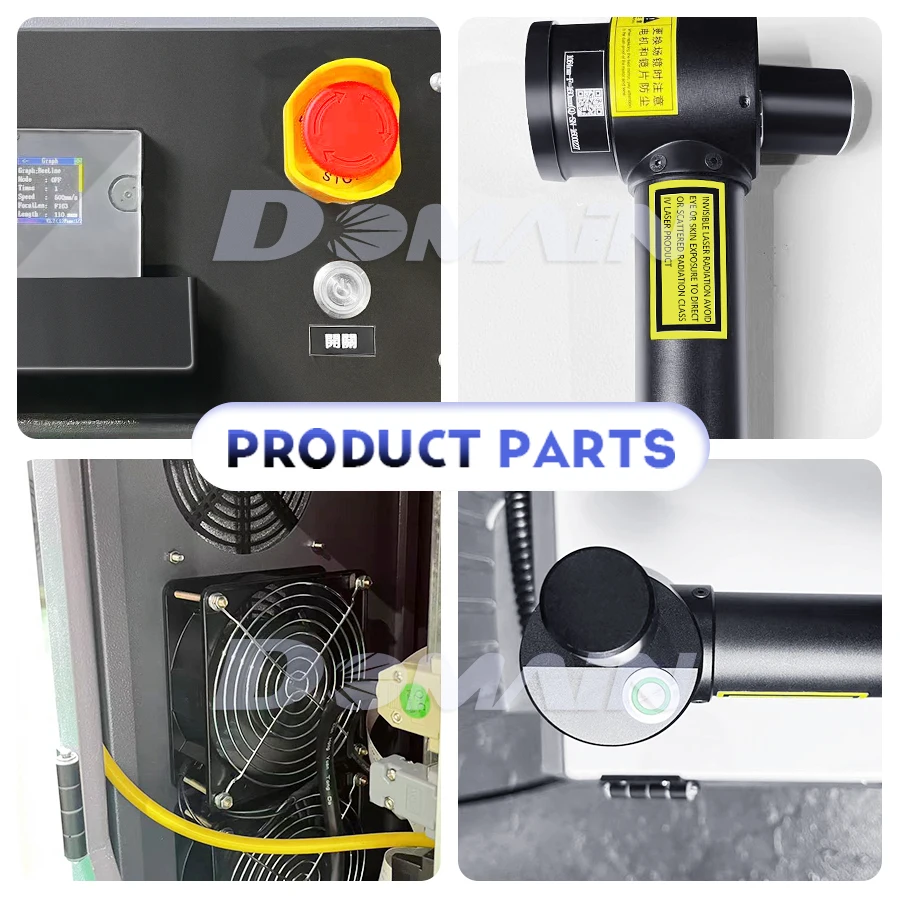

Product Parts
Related Products
Samples Show
Applications:
Laser cleaning is a new generation of non-destructive surface treatment high-tech products.
Because of its easy installation and operation, availability of automation, air-cooled all-in-one
cabient design, durable and compact structure, it’s now widely applied in removing of
oil/rust/coating/painting/oxide on metal surface, stone building surface attachment,
rubber tire mold residue, and etc. Laser cleaning is considered to be an effective
and eco-friendly way of surface cleaning compared to traditional chemical or mechanical way.
Because of its easy installation and operation, availability of automation, air-cooled all-in-one
cabient design, durable and compact structure, it’s now widely applied in removing of
oil/rust/coating/painting/oxide on metal surface, stone building surface attachment,
rubber tire mold residue, and etc. Laser cleaning is considered to be an effective
and eco-friendly way of surface cleaning compared to traditional chemical or mechanical way.
Company Introduction
Packaging and Delivery
FAQ
Q1：What's your warranty policy?
>> We offer 1 year free overall warranty and life-time technical support to our customers .Thorough check will be done with the help of customer when any problem comes out. After professional diagnosis, we will send you any necessary part via international express and guide you how to replace them in the form of image or video. We’ll cover all the expenses relative.
Q2：Is this machine stable to use and is it complicated to maintain?
>> YAG laser welder is already very mature and of cause stable to use after more than 20 years development. It is known as easy operation and easy maintenance. Based on the statistics figure of 2013,our total rework rate is only 0.5% and failure rate only 3%. For daily maintenance, you just need to change the water in the chiller tank every two weeks and do some regular cleaning work.
Q2：How can I do if the machine goes wrong?
>> If happens, you can contact our sales directly. We will offer engineer delivery service.
But, pls don't try to fix the machine by yourself or someone else. We will response within 12 hours as soon as we can do for you!
But, pls don't try to fix the machine by yourself or someone else. We will response within 12 hours as soon as we can do for you!
