Заводская цена, оборудование для производства труб из нержавеющей стали, стальная прокатная мельница
6 425 396,24 ₽ - 6 447 325,92 ₽
Машина для лазерной сварки труб Jopar производства круглых/квадратных/прямоугольных
- Категория: >>>
- Поставщик: Foshan Jopar Machinery Co. Ltd.
Сохранить в закладки 1601173842059:
Описание и отзывы
Характеристики
Product Description

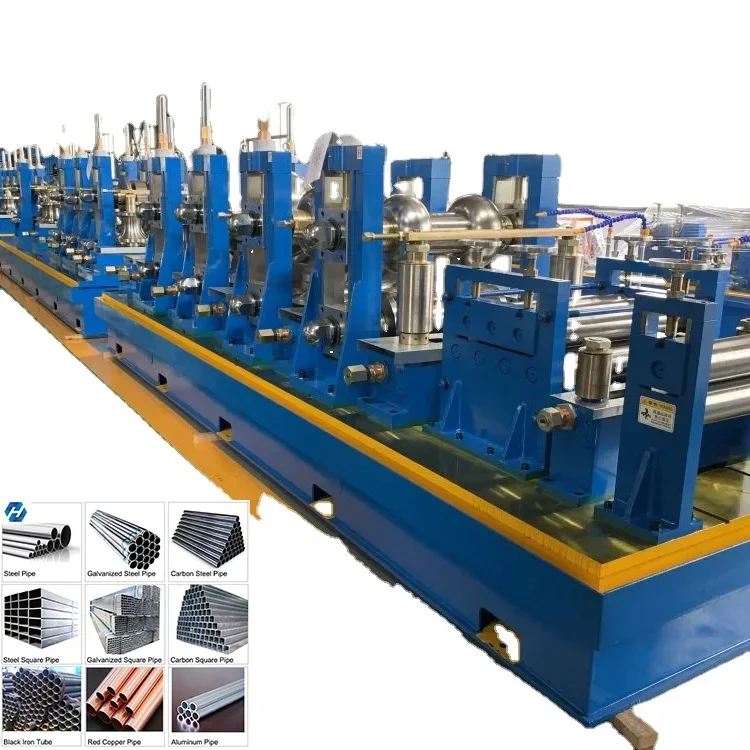

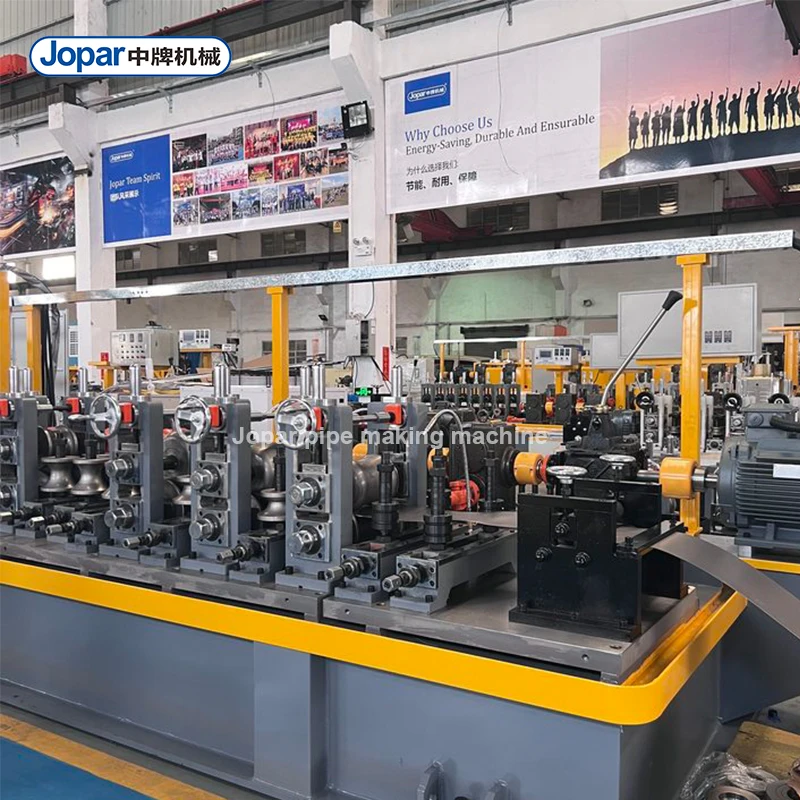

Jopar High Precision Pipe Making Machine
ZP-P40 stainless steel tube mill mainly useds for the production of industrial stainless steel tube,be widely used in many areas, such as:chemical engineering, medicine, winery, petroleum, food, automobile, paper-making industry, air conditioning and so on.The tube mill is newly designed based on practical producing and acquiring the advantages of equipment home and abroad，which is also convenient in operation and maintenance.
Part 1:Un-Coiler
Two options
Manual expansion mandrel
Each side loaded capacity: ≤5T
Manual expansion mandrel
Each side loaded capacity: ≤5T

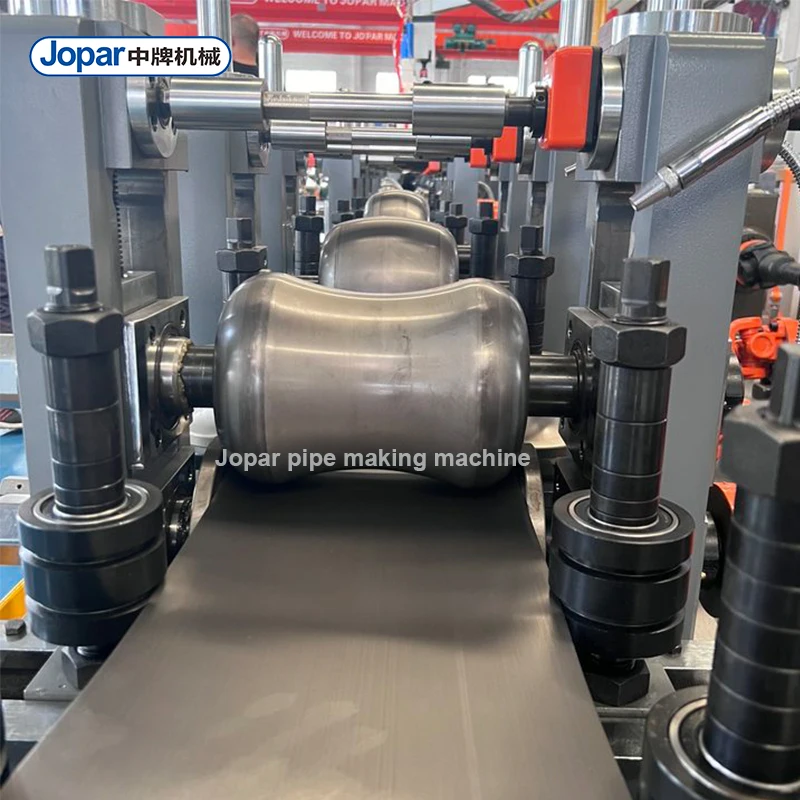

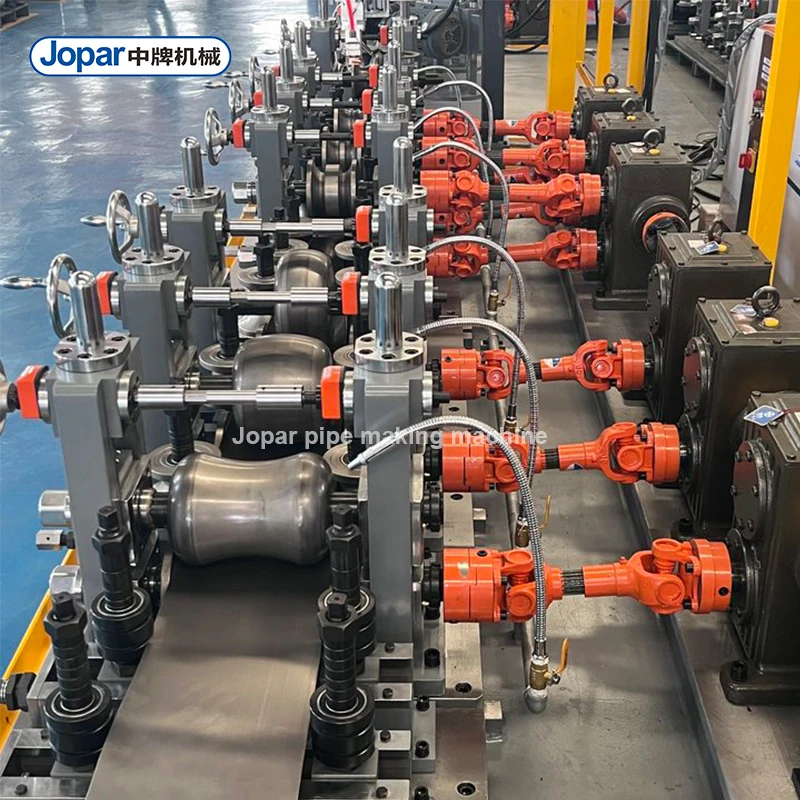

Part 2:Forming Section
Feeding equipment: 2 roller guide apparatus 3 break down+3 by-pass+3 fin pass
Horizontal Shaft.: 40mm
Vertical Shaft : 25mm
Arrangement: 3-3-1-4 or 4-4-1-4 or customized
Horizontal Stand:
Needle Bearings in operation side Horizontal Stand,it is easy to change and adjust roll sets, will take roughly 40 minutes to change full set roll sets
Horizontal Stand:
Needle Bearings in operation side Horizontal Stand,it is easy to change and adjust roll sets, will take roughly 40 minutes to change full set roll sets
Part 3:Welding Section
Welding tracking system
The welding automatic correction
The welding arc voltage automatic control
Tungsten needle ablation alarm
Tungsten Intelligent alarm inform replacement function
The welding automatic correction
The welding arc voltage automatic control
Tungsten needle ablation alarm
Tungsten Intelligent alarm inform replacement function
Part 4:Seam Polishing Section
Totally enclosed automatic Grinding head In automatically pressing down polishing system by electric motor, one engineer can operate five set tube mill. And it can make grinding section cleaner and grinding more stable.Totally Enclosed box with grinding head can make grinding section cleaner.
Part 5: Sizing &Turk-Head
Straightening and sizing for pipes
To reset the roundness of pipes Turk Head: 2 Units
To reset the roundness of pipes Turk Head: 2 Units

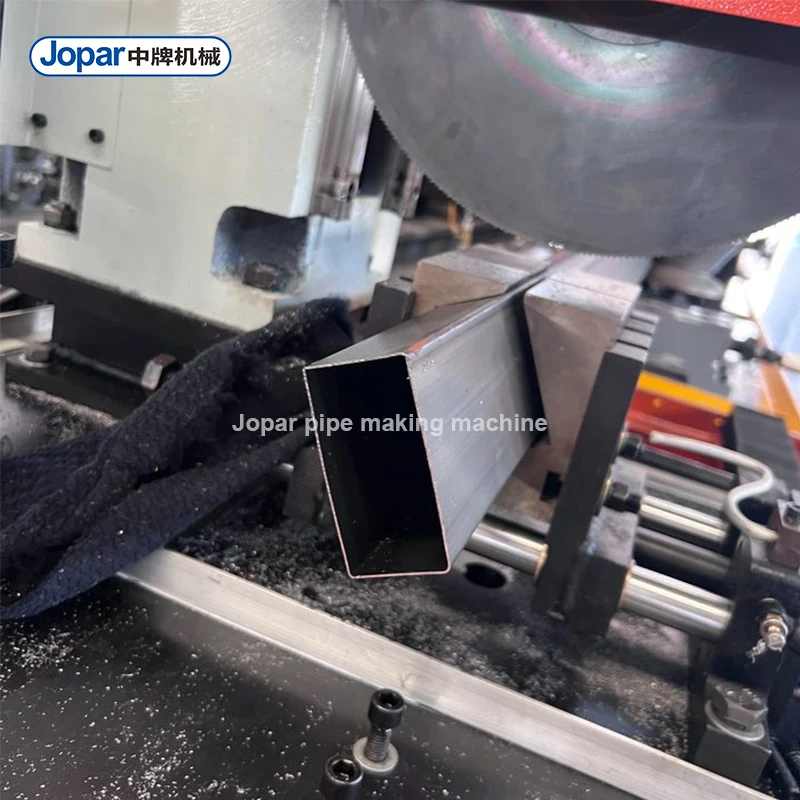

Part 6: Cutting Section
Friction Saw Cutter Auto-mechanical Operational panel Cutting length: 4-10m
Metal Saw Cutter
Less burr in the end of the pipe
Metal Saw Cutter
Less burr in the end of the pipe
Part 7: Run-out table
6m/customized length
TECHNICAL PARAMETERS
Model | Horizontal Shaft Size | Vertical Shaft Size | Out Diameter Range | Thickness | Drive Motor | Dimension | ||||||
ZP-P40 | 40mm | 25mm | 8-51mm | 0.5-2.0mm | 7.5kw+7.5kw | 21m*1.3m | ||||||
ZP-P50 | 50mm | 30mm | 25-76mm | 0.5-3.0mm | 11kw+11kw | 23m*1.5m | ||||||
ZP-P60 | 60mm | 40mm | 50-114mm | 0.6-3.5mm | 15kw+15kw | 25m*1.6m | ||||||
ZP-P80 | 80mm | 50mm | 89-168mm | 1.0-4.5mm | 18.5kw+18.5kw | 32m*2.5m | ||||||
ZP-P100 | 100mm | 60mm | 114-219mm | 1.0-5.0mm | 22kw+22kw | 43m*3.0m | ||||||
OFFERING THE PRFESSIONAL WELDED TUBE SOLUTIONS | ||||||||||||

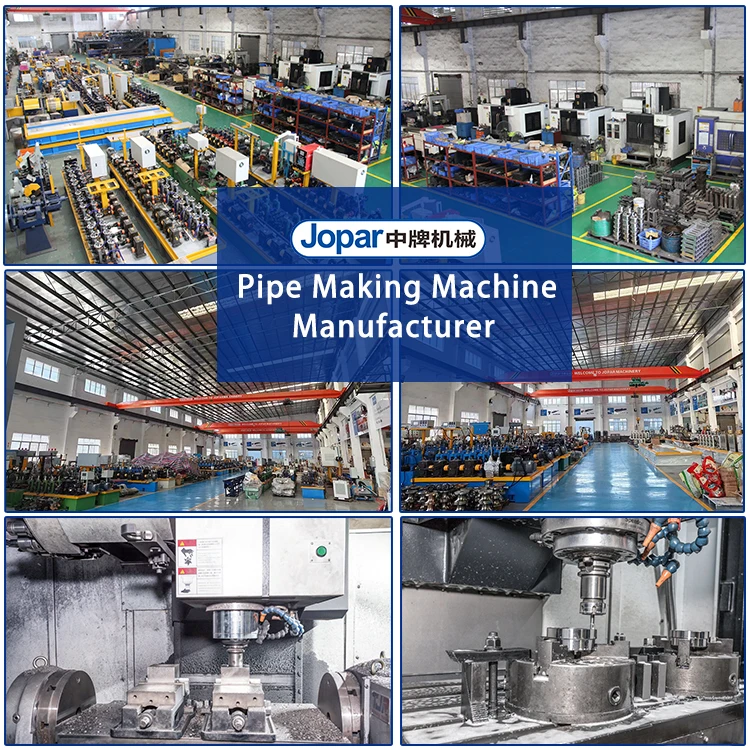

Company Profile
FAQ
Q: Which products your company are manufacturing?
A:Our products included Stainless steel pipe making machine, Polishing machine, Embossing machine, Slitting machine and Roll sets
etc, Also we have much experiences in this field.
Q: What advantage for the machine?
A:We have Adopt first class suppliers. like Siemens Motor, ZhuJiang Gearbox, Dongfeng Auto Parts on the machine.
Q: Can you print the company name or logo on the products?
A: Yes. We can print your logo or company name on the products by Stamping or Coating
Q: What payment terms you can accept?
A: We can accept payment terms by T/T(30% deposit, 70% before shipment), D/P or L/C at sight
Q: When is your company delivery time?
A: Our delivery time is within 45 days , It depend on your quantity.
Q: How many workers will need to operate the machine?
A: If the worker know how to operation the machine, then one worker can operate two machine in the same time.
Q: How long will take to change the roller on the machine?
A: If one worker to change the roller, will need about 3 hours to change , But sometime is according to the worker whether have
enough familiar to decide.
Q: How many tons for normal machine to production per month?
A: Our machine is according to the model to decide , under the situation, one machine can produce 70 tons per month.
Q: Whether your machine can ensure ovality to make the pipe?
A: Yes, our machine component used top famous CNC from Taiwan, to make the component will have high accuracy. We assurance 100% of
tube will ovality . also we testing the machine before delivery.
Q: How we get from the machine for after service?
A: We will supply technical support for installation , operation and maintain etc ,Also we can arrange the technical engineer to
your company .
A:Our products included Stainless steel pipe making machine, Polishing machine, Embossing machine, Slitting machine and Roll sets
etc, Also we have much experiences in this field.
Q: What advantage for the machine?
A:We have Adopt first class suppliers. like Siemens Motor, ZhuJiang Gearbox, Dongfeng Auto Parts on the machine.
Q: Can you print the company name or logo on the products?
A: Yes. We can print your logo or company name on the products by Stamping or Coating
Q: What payment terms you can accept?
A: We can accept payment terms by T/T(30% deposit, 70% before shipment), D/P or L/C at sight
Q: When is your company delivery time?
A: Our delivery time is within 45 days , It depend on your quantity.
Q: How many workers will need to operate the machine?
A: If the worker know how to operation the machine, then one worker can operate two machine in the same time.
Q: How long will take to change the roller on the machine?
A: If one worker to change the roller, will need about 3 hours to change , But sometime is according to the worker whether have
enough familiar to decide.
Q: How many tons for normal machine to production per month?
A: Our machine is according to the model to decide , under the situation, one machine can produce 70 tons per month.
Q: Whether your machine can ensure ovality to make the pipe?
A: Yes, our machine component used top famous CNC from Taiwan, to make the component will have high accuracy. We assurance 100% of
tube will ovality . also we testing the machine before delivery.
Q: How we get from the machine for after service?
A: We will supply technical support for installation , operation and maintain etc ,Also we can arrange the technical engineer to
your company .
Contact US
Похожие товары

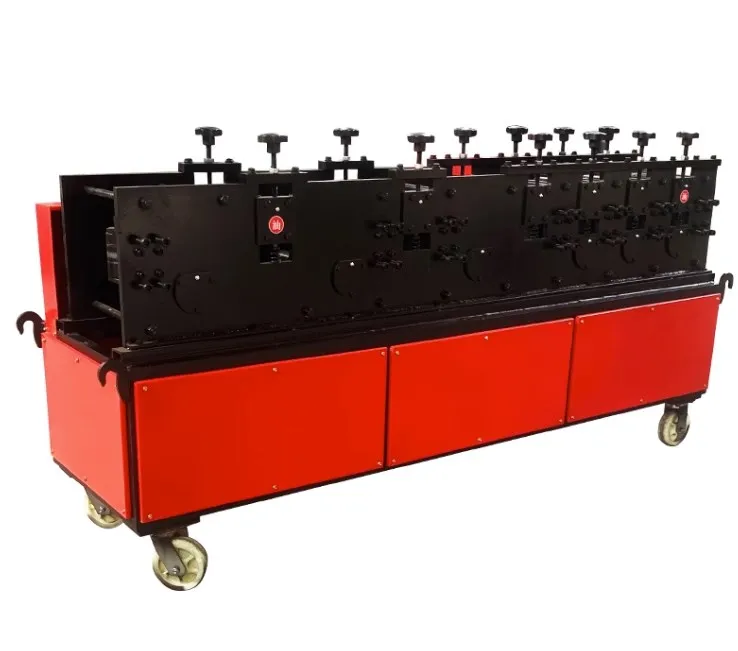

HRF, заводская цена, трубная мельница, машина для производства железных труб, машины для производства труб, стальная трубная мельница
1 864 022,80 ₽ - 2 741 210,00 ₽

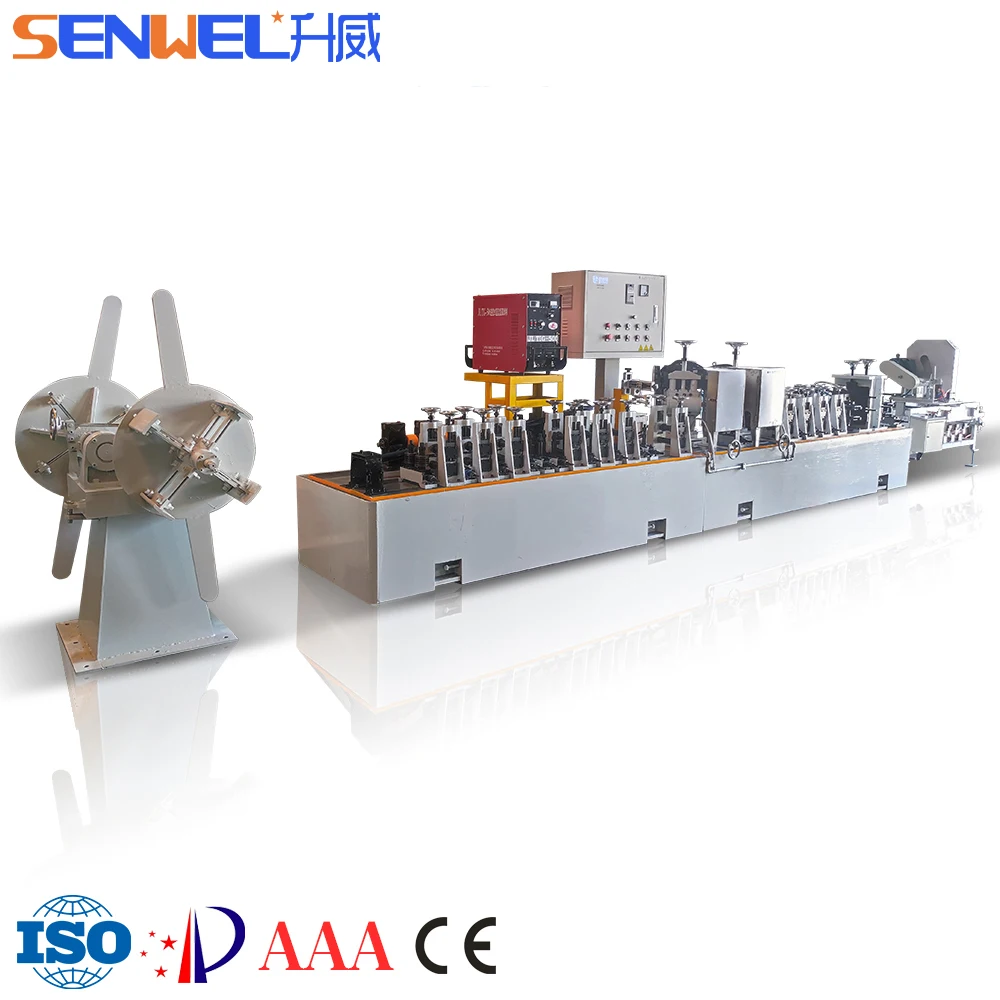

Металлическая железная круглая труба для квадратной трубы формовочная машина/круглая
4 300,00 $ - 4 500,00 $

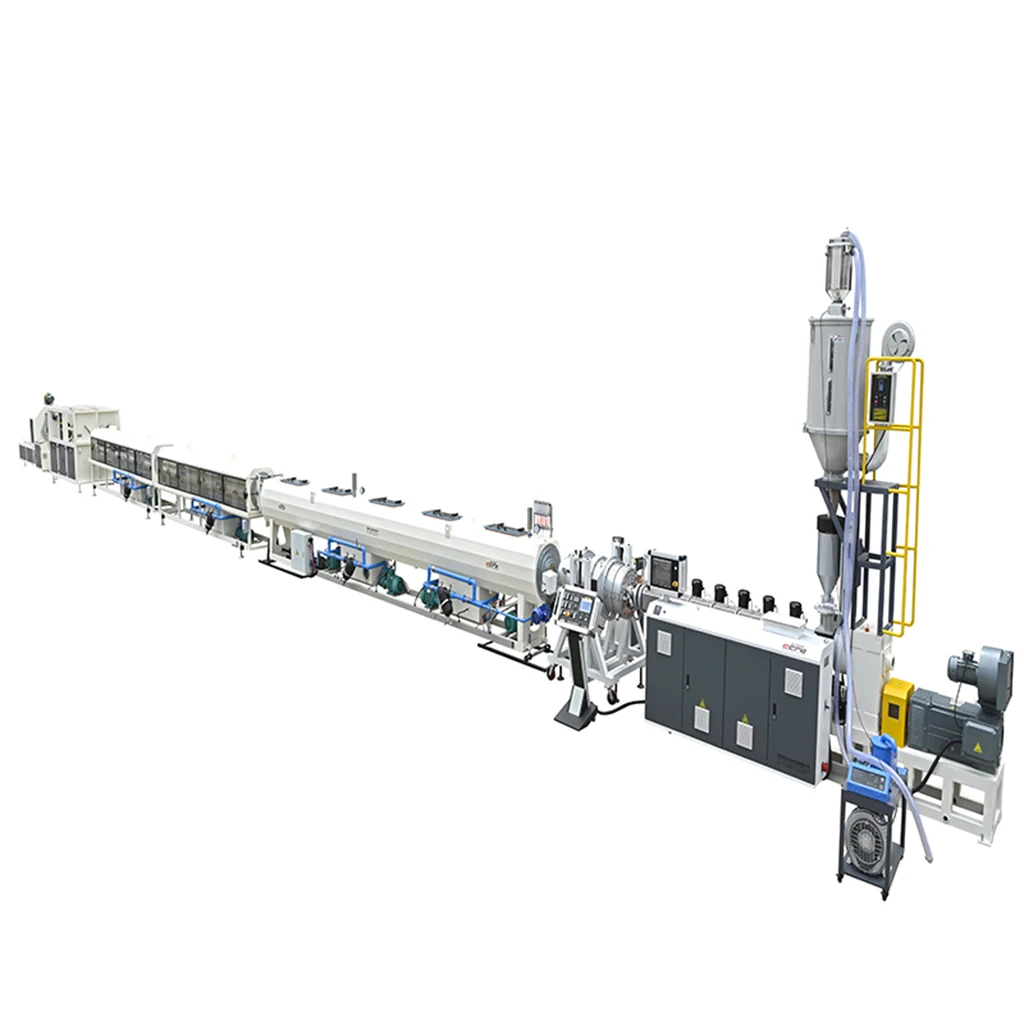

Высококачественная линия по производству труб для водоснабжения, стабильная пластиковая экструзионная машина, экструдер для экструзионной пластиковой линии
1 644 726,00 ₽ - 2 192 968,00 ₽

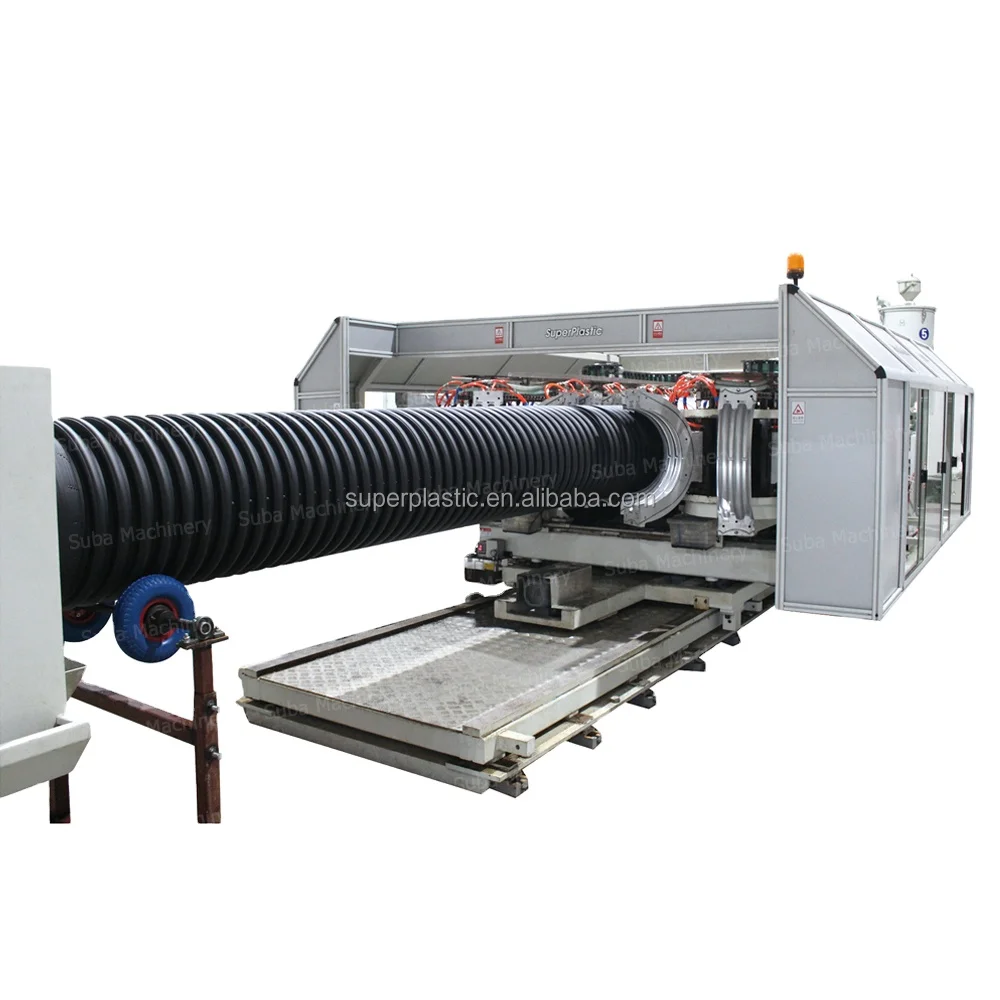

Стабильный тип, высокоскоростные hdpe пластиковые гофрированные трубы, машина, экструзионная линия
43 640 063,20 ₽

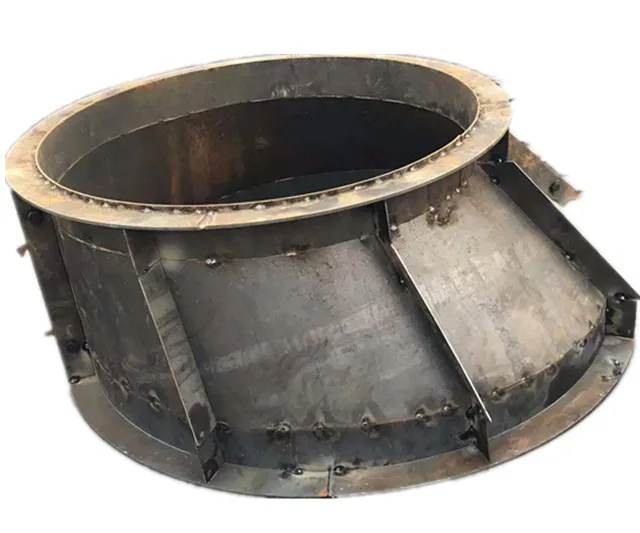

Подгонянная стальная форма камеры осмотра бетона, формы камеры дренажа
657 890,40 ₽

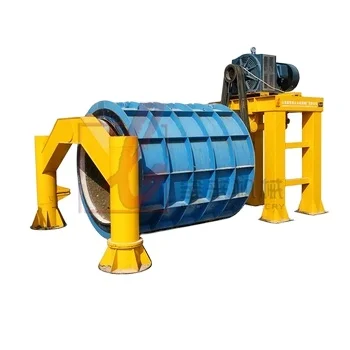

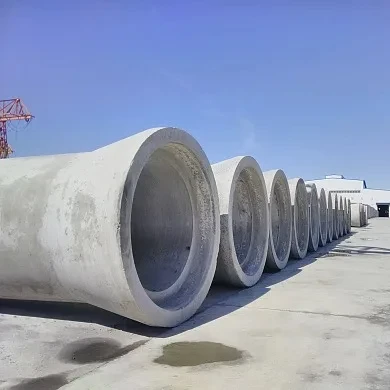

Предварительно напряженная бетонная цилиндрическая труба, труба RCC вся производственная линия
