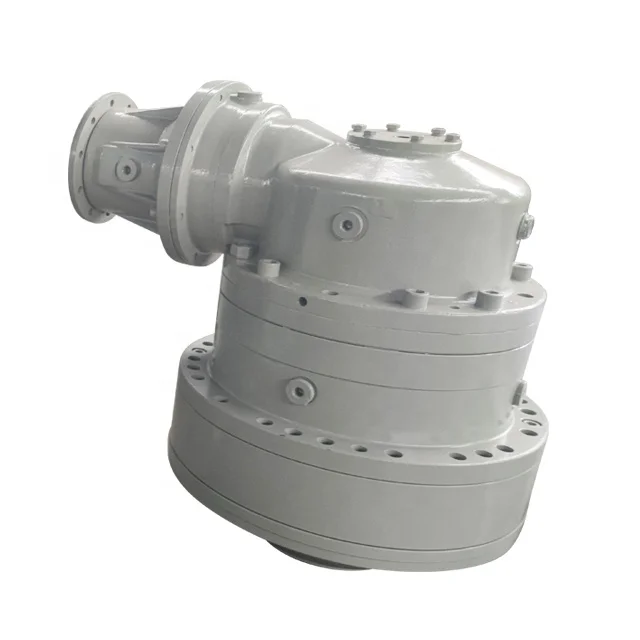

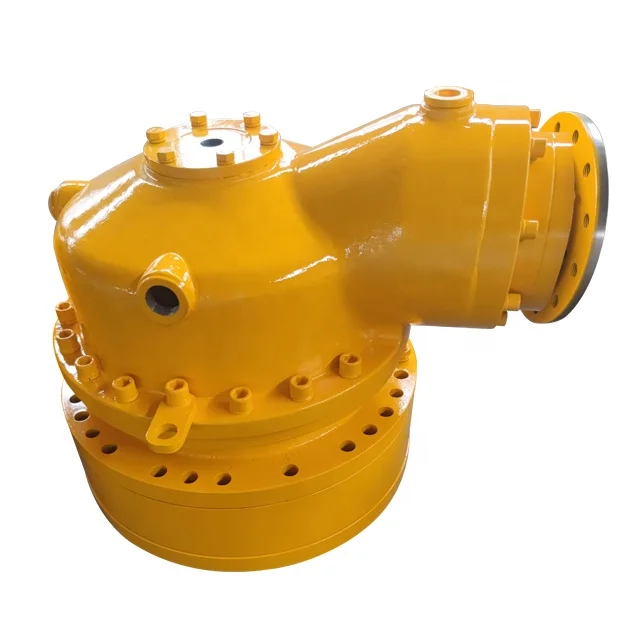

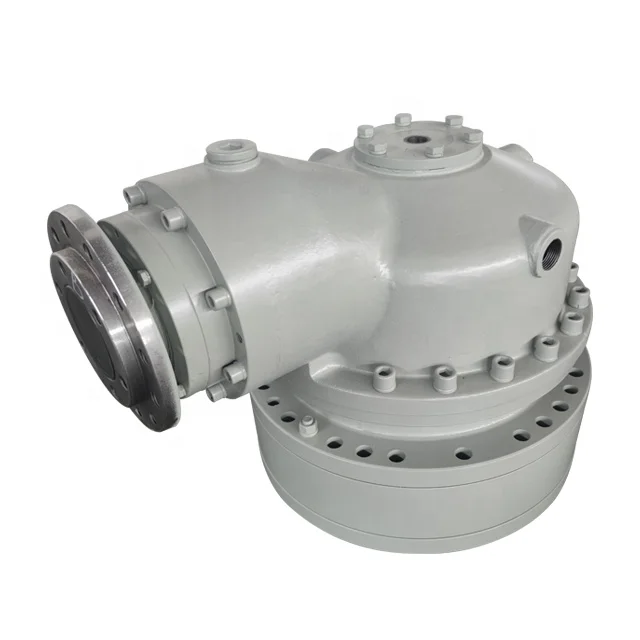

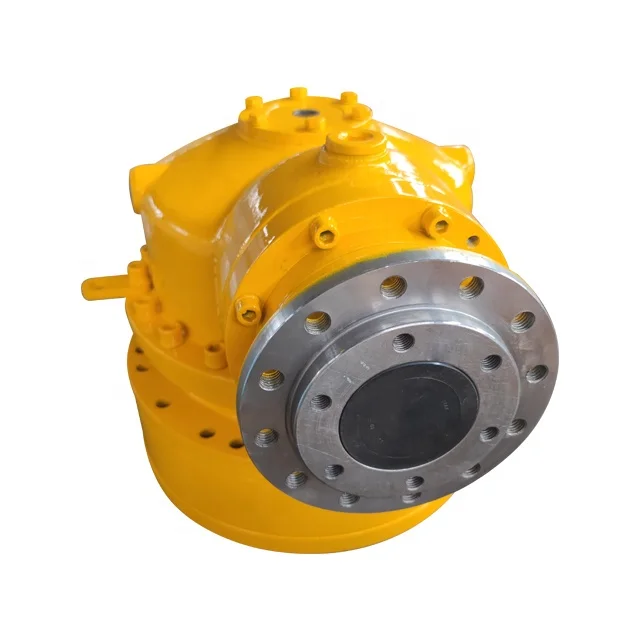

OEM планетарный редуктор для бетономешалки 311R2 коробка передач заводская цена продажи
- Категория: >>>
- Поставщик: Hangzhou Zhiwei Automation Co. ltdHangzhou ltd
Сохранить в закладки 1601174188527:
Описание и отзывы
Характеристики
Products Description
Gearbox for concrete mixer， concrete batching plant
The concrete mixer reducer is an independent component composed of gear transmission, worm transmission, and gear-worm transmission enclosed in a rigid shell. It is often used as a reduction transmission device between the prime mover and the working machine. It plays the role of matching speed and transmitting torque between the prime mover and the working machine or actuator, and is widely used in modern machinery. Concrete mixer reducer function 1. Reduce the speed and increase the output torque at the same time. The torque output ratio is based on the motor output multiplied by the reduction ratio, but be careful not to exceed the rated torque of the reducer; 2. Deceleration also reduces the inertia of the load. The reduction of inertia is the square of the reduction ratio.
It adopts the common form and installation size design of foreign reducers of the same type, and can be interchanged with the same type of reducers at home and abroad. The gear parts are produced outsourced by professional gear factories with high precision and reliable quality. The shell and other parts are cast in floating sand molds and processed by machining centers with high precision, good shape and position tolerances, high strength and good appearance quality. Using high-end bearings and seals, good quality and long life.
Installation manual
When installing the planetary reducer, please be sure to strictly follow the installation and use-related matters below and assemble and use it carefully. The first step is to confirm whether the motor and reducer are intact before installation, and strictly check whether the dimensions of the parts connecting the motor and the reducer match. Here are the dimensions and coordination of the positioning boss of the motor, the input shaft and the groove of the reducer. tolerance. The second step is to unscrew the screws on the dust-proof hole on the outside of the reducer flange, adjust the PCS system clamping ring to align the side hole with the dust-proof hole, and insert the inner hexagon to tighten. After that, remove the motor shaft key. The third step is to naturally connect the motor and reducer. When connecting, it must be ensured that the concentricity of the output shaft of the reducer and the input shaft of the motor is consistent, and that the outer flanges of the two are parallel. If the concentricity is inconsistent, it will cause the motor shaft to break or the reducer gear to wear.
Product Paramenters
TYPE | n1(r/min) | n2(r/min) | i | P1(KW) | P2(KW) | Tmax(Nm) | Pt(KW |
X307R2 | 1400 | 71 | 19.8 | 50 | 6380 | 12500 | 35 |
X307R2 | 1400 | 59 | 23.5 | 50 | 7500 | 12500 | 35 |
X309R2 | 1400 | 91 | 15.5 | 50 | 4970 | 18000 | 35 |
X309R2 | 1400 | 71 | 19.8 | 50 | 6380 | 18000 | 35 |
X309R2 | 1400 | 59 | 23.5 | 50 | 7500 | 18000 | 35 |
X310R2 | 1400 | 76 | 18.4 | 96 | 11300 | 25000 | 55 |
X310R2 | 1400 | 62 | 22.7 | 76 | 10900 | 25000 | 55 |
X310R2 | 1400 | 52 | 27 | 72 | 12500 | 25000 | 55 |
X311R2 | 1400 | 62 | 22.8 | 74 | 10800 | 40000 | 75 |
X311R2 | 1400 | 55.3 | 25.3 | 96 | 15600 | 40000 | 90 |
X311R2 | 1400 | 52 | 27 | 74 | 12800 | 40000 | 75 |
X311R3 | 1400 | 26.4 | 53 | 50 | 16500 | 40000 | 40 |
Company Profile
Exhibition
Certifications
FAQ
1.Q:What's the shipping method?
A:By express way.such as fedex,dhl,tnt and so on; by air;by sea. Shipping cost is decided by shipping ways& product actual weight
&volume and your detailed address.
2.Q:What's the Payment method?
A: We support various payment way(T/T,Visa card,Western union, Moneygram,Secure payment-Escrow,etc) T/T
3.Q:Can we print our own brand or logo on your products?
A: Yes, it is our pleasure to be one your OEM manufacturer in China to meet your OEM request
4.Q: Why do some goods have difference between website picture and practical items?
A: Because difference of light and browser,also different batches ,material may be little difference.such as lining, so note
products to be previl in kind, sometime,the picture is for reference only.these are allowed in actual case.If any question, please tell us before order and ask clearly.
A:By express way.such as fedex,dhl,tnt and so on; by air;by sea. Shipping cost is decided by shipping ways& product actual weight
&volume and your detailed address.
2.Q:What's the Payment method?
A: We support various payment way(T/T,Visa card,Western union, Moneygram,Secure payment-Escrow,etc) T/T
3.Q:Can we print our own brand or logo on your products?
A: Yes, it is our pleasure to be one your OEM manufacturer in China to meet your OEM request
4.Q: Why do some goods have difference between website picture and practical items?
A: Because difference of light and browser,also different batches ,material may be little difference.such as lining, so note
products to be previl in kind, sometime,the picture is for reference only.these are allowed in actual case.If any question, please tell us before order and ask clearly.
Похожие товары
Генератор 6D125 PC300-324V 30A 2C95-57600-812-6150 0-33000-5880
7,90-9,90 $
Высококачественный осевой поршневой насос серии 90 90R075NN1V6R7C7C04FA3454524 гидравлический 90L 90R полной Гидравлический
5 090,00-6 090,00 $
Гидравлическое оборудование для мини-экскаватора
280,00-300,00 $
Гидравлический шестеренный пилотный насос AP2D28 AP2D25 AP2D18 для экскаватора Doosan DH60 DH55 Hyundai R60 Volvo EC55
80,00-100,00 $
Резиновые гусеницы для экскаватора 230x72x42 комбайна сельскохозяйственная машина 200x72 230x72 заводская цена
50,00-100,00 $
3304 3306 дизельный двигатель экскаватор части гильзы цилиндра 110-5800 1105800
35,00-60,00 $

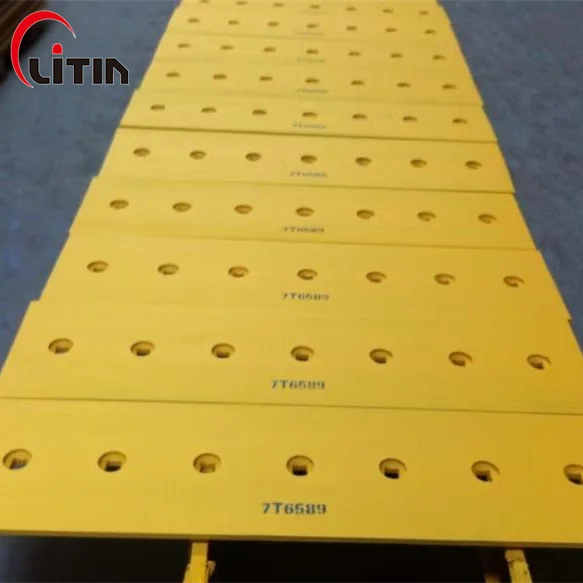

Запчасти для бульдозера LITIAN 9U 8SU 1U4943 7T9126 торцевая насадка бренда CAT
