Предлагаемая установка нет необходимости в раскопках забор из алюминиевого сплава или оцинкованной стали экологически чистый и здоровый
12,00 $
Сельский забор или полевой для ограждения лошадей
- Категория: >>>
- Поставщик: Hebei Tiedi Metal Products Co. Ltd.Hebei Ltd.
Сохранить в закладки 1601174454076:
Описание и отзывы
Характеристики
High Quality Galvanized Grassland Wire Mesh Deer Field Fence Cattle Farm Fence
Field fence / Farm Fence
Field fence is woven of hot dipped galvanized wire, the special hinged joints to reinforce the intersection of the horizontal and vertical wires, enhancing the impact resistance and resilience of the fence to absorb large impact energy and to spring back to its original shape quickly.
Materials | High-tensile steel wire , Galvanized wire and Zinc-aluminum alloy wire | ||||||
Knot Types | Fixed Knot , Hinge Knot and Square Knot | ||||||
Wire diameter | General main wire 1.8-2.5mm Edge wire 2.0-2.8mm | ||||||
Mesh Opening | 7.5cm,15cm,30cm | ||||||
Height | 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m, 2.0m, 2.3m, 2.6m Etc | ||||||
Packing | Plastic film, in wooden pallet, in bulk | ||||||

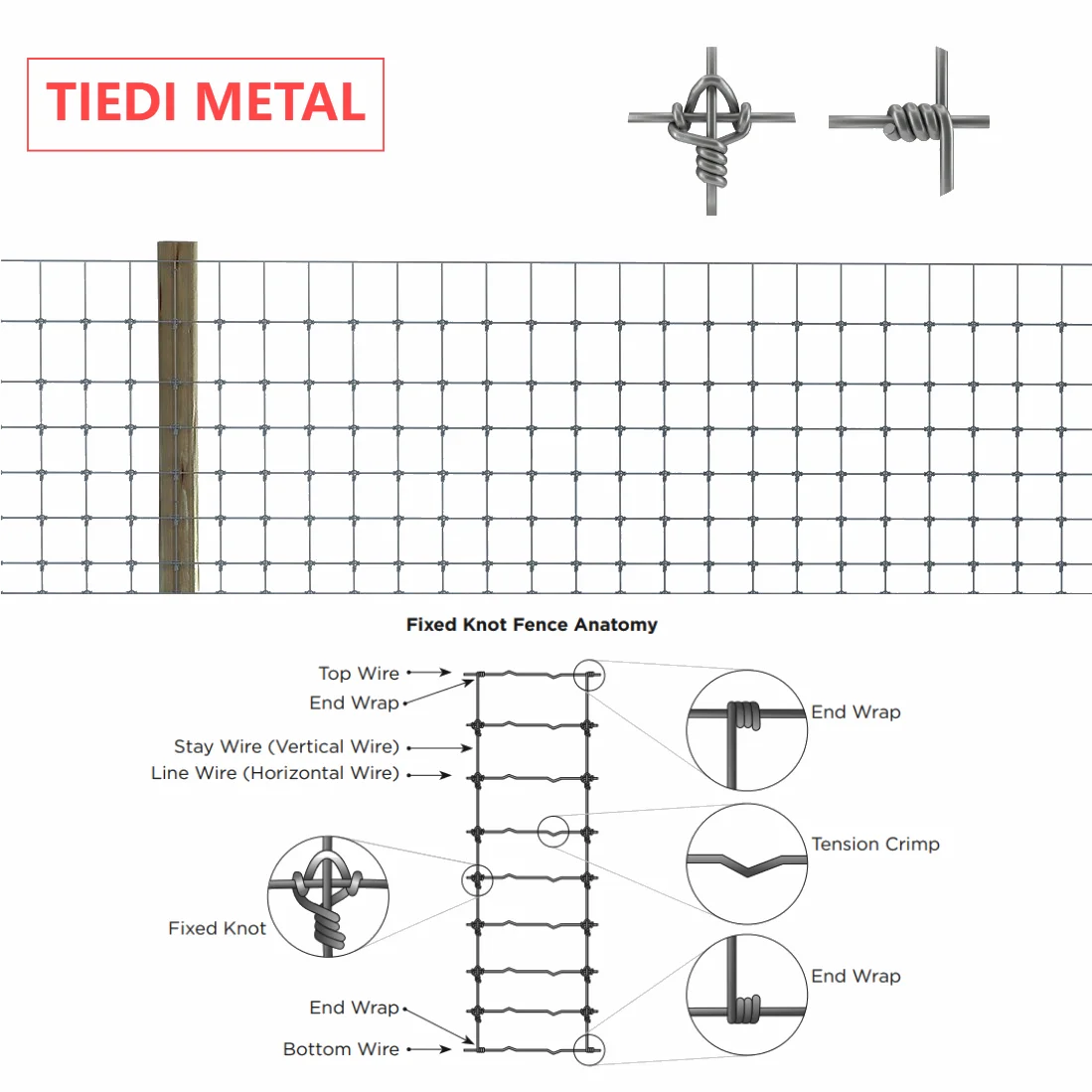

Fixed Knot Field Fence
Fixed Knot Fence
Fixed Knot Fence is made of high tensile strength galvanized steel wires with a fixed knot design in variety of heights and spacing. It is the most common and widely used types of deer fence.
✔ Higher strength than hinge joint fence.
✔ Different height options.
✔ Different horizontal wire spacing for different strength requirements.
✔ Different vertical wire spacing for different animals or poultry.
✔ Ideal for cattle, deer, horse and even camel.
✔ Different height options.
✔ Different horizontal wire spacing for different strength requirements.
✔ Different vertical wire spacing for different animals or poultry.
✔ Ideal for cattle, deer, horse and even camel.
Dimensions:
● Material: Heavy galvanized mild steel carbon wire , PVC coated finish or other treatment also offered.
● Horizontal wires: 2.50 mm, (Tensile strength: 1200–1400 N/mm2) ● Vertical wires: 2.50 mm, (Tensile strength: 820–970 N/mm2)
● Node wires: 2.24 mm, (Tensile strength: 400–550 N/mm2)
● Zinc coating: 230–350 g/m2.
● Node wires: 2.24 mm, (Tensile strength: 400–550 N/mm2)
● Zinc coating: 230–350 g/m2.
● Roll length: 10m-100m or According to customer requirements.
● Vertical wire distance available: 7.5cm, 15cm, 30cm.
Popular Specifications of Fixed Knot Fence | ||||||
Types | Fence height (cm) | Number of horizontal wires | Distance of vertical wires (cm) | |||
TDFKF100/8/15 | 100 | 8 | 15 | |||
TDFKF100/8/30 | 100 | 8 | 30 | |||
TDFKF120/9/15 | 120 | 9 | 15 | |||
TDFKF120/9/30 | 120 | 9 | 30 | |||
TDFKF150/11/15 | 150 | 11 | 15 | |||
TDFKF150/11/30 | 150 | 11 | 30 | |||
TDFKF150/14/15 | 150 | 14 | 15 | |||
TDFKF160/20/15 | 160 | 20 | 15 | |||
TDFKF160/23/15 | 160 | 23 | 15 | |||
TDFKF180/13/15 | 180 | 13 | 15 | |||
TDFKF180/24/15 | 180 | 24 | 15 | |||
TDFKF200/18/15 | 200 | 18 | 15 | |||
TDFKF220/26/15 | 220 | 26 | 15 | |||
Note : The fence can be customized according to your required if above specification is not satisfied with you. | ||||||
Hinge Joint Fence
Hinge Joint Fence
Hinge Joint Fence, also called farm fence, has four wrap hinge joint, in which two vertical stay wires wrap together to form hinged joint. This knot acts as a hinge that gives under pressure, then springs back into shape.
✔ Different height options for different animals.
✔ Different horizontal wire spacing for different growth period.
✔ Different vertical wire spacing for different tensile strength.
✔ Suitable for chicken, rabbit, cat, horse, sheep, deer and even camel.
✔ Different horizontal wire spacing for different growth period.
✔ Different vertical wire spacing for different tensile strength.
✔ Suitable for chicken, rabbit, cat, horse, sheep, deer and even camel.
Dimensions:
● Materials : Zinc-aluminum alloy wire or galvanized low carbon steel wire.
● Line wire diameter : 1.6/2.0/2.5/3.0 mm
● Top and bottom wire diameter : 2.0/2.5/3.0/3.7 mm
● Roll length: 10m-100m or According to customer requirements.
● Line wire diameter : 1.6/2.0/2.5/3.0 mm
● Top and bottom wire diameter : 2.0/2.5/3.0/3.7 mm
● Roll length: 10m-100m or According to customer requirements.
● Vertical wire distance available: 5cm, 10cm, 15cm, 20cm, 30cm, 40cm.
Popular Specifications of Hinge Joint Fence | ||||||||
Types | Fence Height (mm) | Horizontal Wires Number | Distance Between The Vertical Wires (mm) | Mesh Opening Number – Mesh Height (mm) | ||||
TDHJF1050/13/15 | 1050 | 13 | 150 | 6–75, 6–100 | ||||
TDHJF1250/15/15 | 1250 | 15 | 150 | 6–75, 8–100 | ||||
TDHJF1550/18/15 | 1550 | 18 | 150 | 6–75, 11–100 | ||||
TDHJF1550/15/15 | 1550 | 15 | 150 | 11–100, 3–150 | ||||
TDHJF1850/20/15 | 1850 | 20 | 150 | 6–75, 11–100, 2–150 | ||||
TDHJF1850/16/15 | 1850 | 16 | 150 | 10–100, 3–150, 2–200 | ||||
TDHJF1950/17/15 | 1950 | 17 | 150 | 11–100, 3–150, 2–200 | ||||
TDHJF2000/21/15 | 2000 | 21 | 150 | 6–75, 11–100, 3–150 | ||||
TDHJF2400/23/15 | 2400 | 23 | 150 | 6–75, 11–100, 3–150, 2–200 | ||||
Note : The fence can be customized according to your required if above specification is not satisfied with you. | ||||||||
Square Knot Fence
Square Knot Fence
Square Knot fence has S-shaped knots to strengthen the intersection that are made by fixing a single wire to the intersection of two wires, horizontal and vertical.
✔ Different height options.
✔ Different vertical wire spacing for different animals or poultry.
✔ Different horizontal wire spacing for different strength requirements.
✔ smooth, animals won't be scrathed or cut.
✔ Widely used in horse,cattle, sheep, goats, chicken.
Dimensions:
● Materials : Hot dipped galvanized steel wire
● Wire diameter : 2.0mm, 2.5mm
● Mesh Size : 50mm,100mm, 150mm (2'',4'',6'')
● Roll length : 10m-100m or According to customer requirements.
Get Free Sample now! Send Inquiry.
Product Display
Advantages:
*High utility value.
*Good cultivation.
*Easy installation and fixation, Save materials and installation time.
*HDG material for longevity and excel correction and trust resistance.
*Easy installation and fixation, Save materials and installation time.
*HDG material for longevity and excel correction and trust resistance.
More Questions
If you have more question, please contact us for best service.
Contact Now!
Applications
WHY CHOOSE US
1.Professional: 20+years of production experience.
2.High Efficiency: Rapid product development and Stable production lead times.
3.Quick Response: 7 x 24 hours on-line service,ensure timely and effective communication.
4.Benefit: Rich market experience will help you expand your market.
5.Strictly quality control: ISO certificated enterprise ensure they meet international standards.
6.Supply Capacity: We have sufficient production capacity and inventory to meet orders of various scales.
5.Strictly quality control: ISO certificated enterprise ensure they meet international standards.
6.Supply Capacity: We have sufficient production capacity and inventory to meet orders of various scales.
7.Good reputation: We strictly abide by the contract and never cheat our customers.
8.Competitive Price: Large orders can be discounted.
9.Reliable after-sales service: Quality issues, we are sure to give you full compensation in any way, money back or free reorder.
Company Profile
We have both real factory and trading company, mainly produce and sell metal mesh products.
▶Location:
Our factory (Anping Tiedi Metal Products Co.,Ltd) located in the hometown of Wire Mesh - Anping County, Hebei Province,China.
Our trading company (Hebei Tiedi International Trade Co., Ltd) is located in Shijiazhuang city, Hebei Province, China.
Established:
We have been in providing the products in this field for 20 years. Our company is a manufacture of metal wire mesh certified by Alibaba.
Factory floor area : 16650 square meters.
Workshop : 8188 m².
Equipment : 21 production lines (56 sets)
▶Top Market:
America, Canada, Germany, England, France, Russia, Singapore, Australia, New Zealand, Brazil,Saudi Arab, Philippines, Vietnam, etc. Over 30 countries and areas.
▶Main Products:
• Welded wire mesh, Razor wire & Barbed Wire, Steel Grating, Hexagonal Wire Mesh, Gabion Box, Expanded & Perforated Metal Mesh, Dog Cage, chicken pen.
• 3D Wire Mesh Fence, Double Wire Mesh Fence, 358 Security Fence, Airport Fence, Temporary Fence, Chain link Fence, Crowd Control Barriers, Pet Fence and so on.
▶Our Service:
1> Free Sample can be offered.
2> OEM & ODM order are accepted.
3> Design and customization services are accepted.
4> Free Drawings or install instruction can be offered.
5> Good Quality + Factory Price + Quick Response + Reliable Service.
6> Provide visualization services to view production progress anytime and anywhere.
7> We make every effort to ensure timely delivery of goods and provide timely logistics tracking information.
8> The third-party inspection is accepted. we will send production photos to customers if there is no inspection from the third-party.
9> Warranty: Our product can last for 10 years at least. different products have different life time.Depending on different products and usage environments, Usually we will provide 5-10 years guarantee.
2> OEM & ODM order are accepted.
3> Design and customization services are accepted.
4> Free Drawings or install instruction can be offered.
5> Good Quality + Factory Price + Quick Response + Reliable Service.
6> Provide visualization services to view production progress anytime and anywhere.
7> We make every effort to ensure timely delivery of goods and provide timely logistics tracking information.
8> The third-party inspection is accepted. we will send production photos to customers if there is no inspection from the third-party.
9> Warranty: Our product can last for 10 years at least. different products have different life time.Depending on different products and usage environments, Usually we will provide 5-10 years guarantee.
FAQ
Q1: Are you a real factory? Or a trading company?
A: Yes, we have been in providing the products in this field for 20+ years.We have both real factory ( Anping Tiedi Metal Products Co.,Ltd ) and trading company ( Hebei Tiedi International Trade Co., Ltd ), mainly produce and sell metal mesh products.
Q2: Can you design and make as customers' request?
A:We support customization requirements from customers and provide corresponding solutions and services.
A:We support customization requirements from customers and provide corresponding solutions and services.
Q3: What is the minimum order quantity?
A:We can provide different minimum order quantities according to customer requirements to meet various purchasing needs.
Q4: How can I place an order and get the best price?
A:1. Please tell us the specifications of the product, such as size,color,quantity,packaging and your port.
2. After all details of the order were confirmed, we will send you our signed and stamped proforma invoice.
3. You can transfer the deposit by T/T(Telegraphic Transfer), Paypal, Western Union, MoneyGram, Credit Card etc.
4. You could also place the order by Trade Assurance on Alibaba which will protect your payment secure and benefit throughly.
5. In the receipt of your deposit, we will arrange the production and will send you the pictures of goods after it was finished.
6. The balance payment will be paid after your confirmation, and we will arrange the air freight or sea freight accordingly to the CBM of the goods.
Q5: Can I get a lower price if I make a large order?
A: Of course, cheaper price with large order.
Q6: How do you control the goods quality?
A: 1. After the final confirmation of the order,we would pre-produce a sample before mass production and strictly check the raw material, color and size of the sample.
2. Our salesman would trace every phase of production.
3. After finished the production, our QC will check the overall quality.If not pass our standard will rework.
4. When packing the products, our Packing Department will check the products again.
5. Before shipment, the final inspection will be carried out,and we will send a test report or test images and videos.
6. Any small problem happening in our product will be solved at the most prompt time.
Q7: If the quality is not met my request, how do you solve this problem?
A: First of all, we don’t allow any defective products to leave our factory.We do strict quality inspection in every step. But if there is any problem, we will guarantee to solve it within 2 working days after your pictures or videos proof.
Q8: Do you have quality guaranteed?
A:Our product can last for 10 years at least. different products have different life time.Depending on different products and usage environments, Usually we will provide 5-10 years guarantee.
Q9: How is your after sale?
A: After the goods are sent, we will track them in real time and give you timely feedback. After you receive the goods, we will have a dedicated staff to return visits, if there is a problem, we will reply to you within 2 working days.
Q10: What's the lead time?
A: Normally our lead time is 15-30 days after we received the down payment. Urgent order can be negotiated.
Q11: How do we ship the goods?
A:We will quote you the ocean freight, if the goods is not large, it will be loaded by air freight or Express. No matter any ways of transportation, our forwarders will provide professional service to ensure the goods arrives at your place smoothly.
Q12: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost. And all the sample cost will be refunded after you place the order.
