Промышленная гибридная солнечная энергетическая система полный комплект 50 кВт 100 300 500 генератор солнечной энергии
- Категория: >>>
- Поставщик: United Energy Co. Ltd.United Ltd.
Сохранить в закладки 1601174535166:
Описание и отзывы
Характеристики
Products Description
Warranty
How it work
Electrical Characteristics:
Model | SE-30KW-HY | SE-50KW-HY | SE-100KW-HY | ||
Half Cut Mono 560W Solar Panel | 55 Pieces | 91 Pieces | 180 Pieces | ||
PV Combiner Box | 5 Input 1 output 1Piece | 7 Input 1 output 1Piece | 5 Input 1 output /3PCS 3 Input 1 output /1PCS | ||
Hybrid Inverter | HPS30 | HPS50 | HPS100 | ||
High Voltage LiFePo4 Battery Bank | 30Kwh | 50Kwh | 100Kwh | ||
DC Cable 4mm2 | 500 meter | 1000 meter | 1500 meter | ||
MC4 Connector | 20 Pairs | 30 Pairs | 90 Pairs | ||
Mounting System | Customized Product Based On Installation Roof/Ground | ||||
PV Installation Tools | Wire Cable Cutter & Stripper, Disassembly Tool | ||||
Model | SE-120KW-HY | SE-150KW-HY | SE-200KW-HY | ||
Half Cut Mono 560W Solar Panel | 216 Pieces | 264 Pieces | 360 Pieces | ||
PV Combiner Box | 6 Input 1 output /3PCS 3 Input 1 output /1PCS | 8 Input 1 output /3PCS 3 Input 1 output /1PCS | 5 Input 1 output /6PCS 3 Input 1 output /2PCS | ||
Hybrid Inverter | HPS120 | HPS150 | HPS100/2PCS | ||
High Voltage LiFePo4 Battery Bank | 120Kwh | 150Kwh | 200Kwh | ||
DC Cable 4mm2 | 1800 meter | 2400 meter | 3000 meter | ||
MC4 Connector | 100 Pairs | 120 Pairs | 180 Pairs | ||
Mounting System | Customized Product Based On Installation Roof/Ground | ||||
PV Installation Tools | Wire Cable Cutter & Stripper, Disassembly Tool | ||||
Model | SE-300KW-HY | SE-400KW-HY | SE-500KW-HY | ||
Half Cut Mono 560W Solar Panel | 540 Pieces | 720 Pieces | 900 Pieces | ||
PV Combiner Box | 5 Input 1 output /9PCS 3 Input 1 output /3PCS | 5 Input 1 output /12PCS 3 Input 1 output /4PCS | 5 Input 1 output /15PCS 3 Input 1 output /5PCS | ||
Hybrid Inverter | HPS100/3PCS | HPS100/4PCS | HPS100/5PCS | ||
High Voltage LiFePo4 Battery Bank | 300Kwh | 400Kwh | 500Kwh | ||
DC Cable 4mm2 | 4500 meter | 6000 meter | 7500 meter | ||
MC4 Connector | 270 Pairs | 360 Pairs | 450 Pairs | ||
Mounting System | Customized Product Based On Installation Roof/Ground | ||||
PV Installation Tools | Wire Cable Cutter & Stripper, Disassembly Tool | ||||

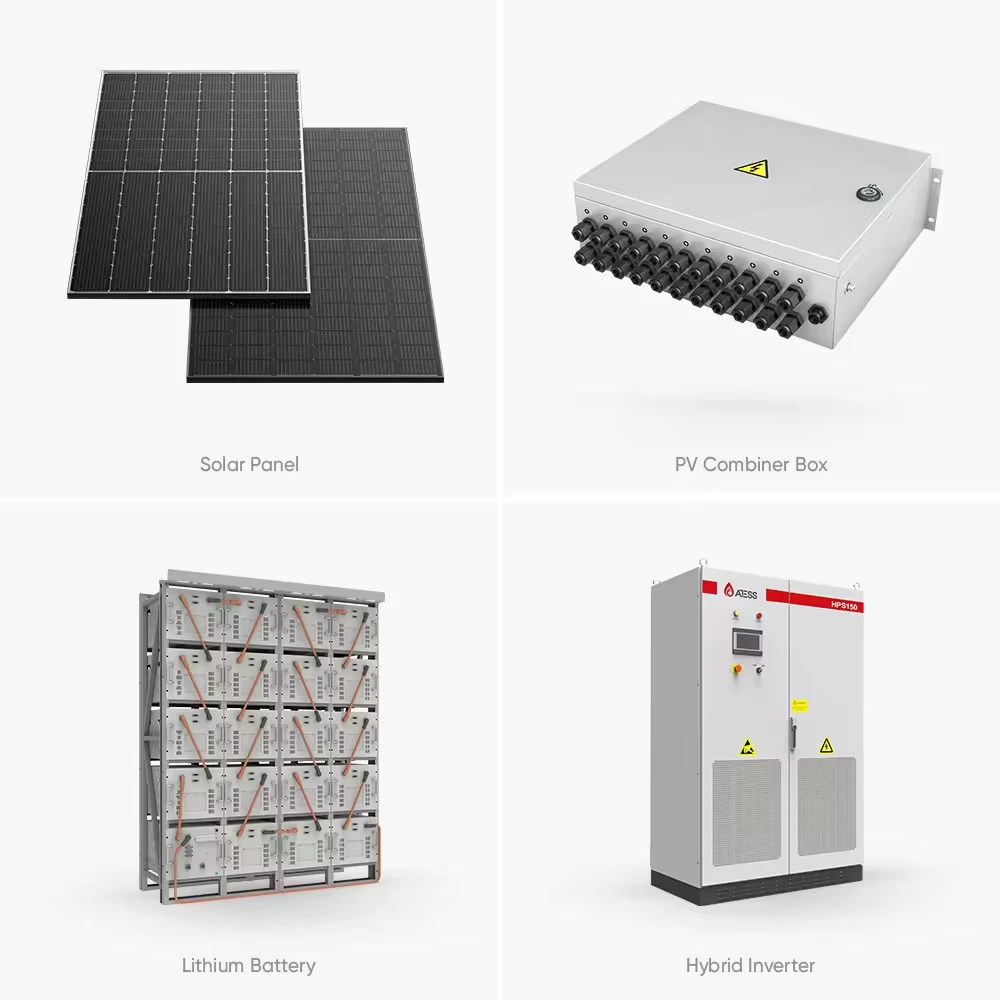

System Components
Half Cut Mono 560W Solar Panel
Peak Power Watts: 560W
Maximum Power Voltage: 42.06V Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm
Weight:26.9 kg
Maximum Power Voltage: 42.06V Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm
Weight:26.9 kg

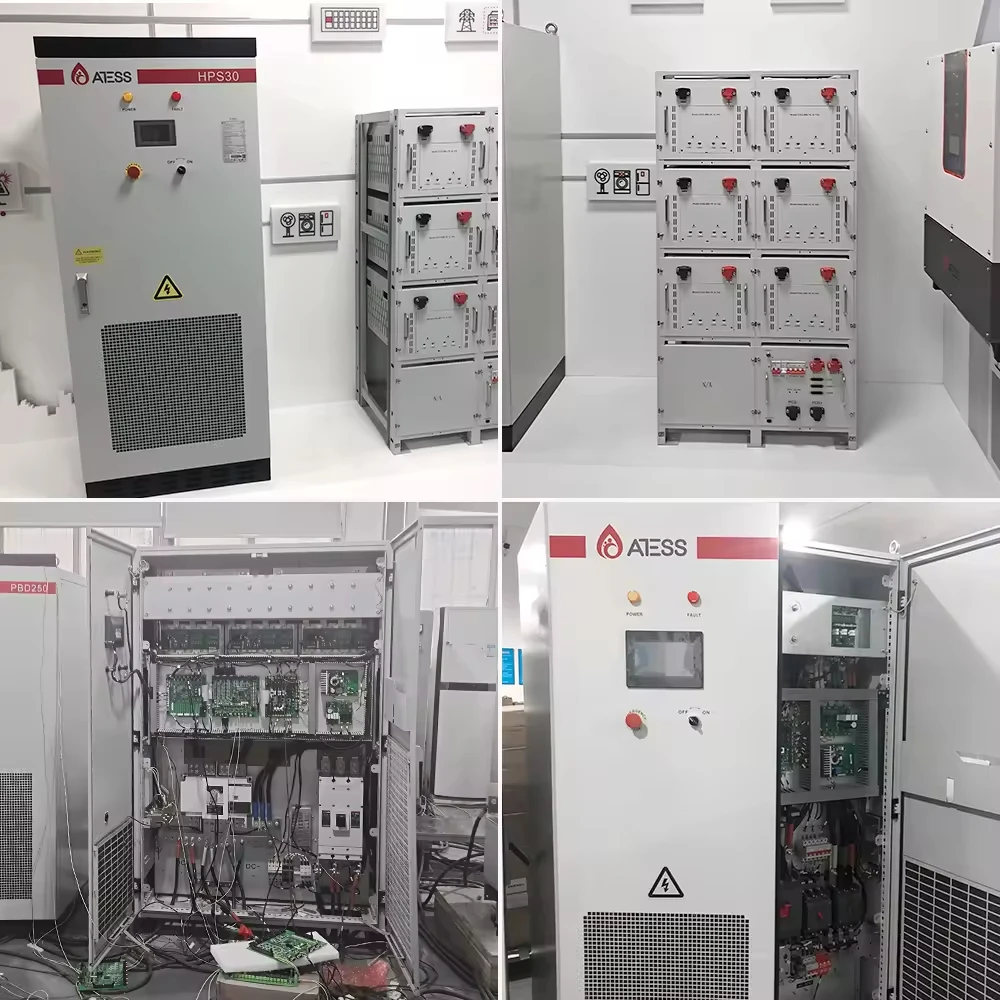

Hybrid Inverter Charger
All in one hybrid inverter. Seamless on / off grid transfer.Programmable working mode.Supports remote control of DG.Touchscreen
LCD. CE , MEA , PEA , EN 61000-6-4:2007+A1:2011 , EN61000-6-2:2005 , EN62109-1:2010 , EN62109-2:2011.
LCD. CE , MEA , PEA , EN 61000-6-4:2007+A1:2011 , EN61000-6-2:2005 , EN62109-1:2010 , EN62109-2:2011.
Monitoring System
Up to 32 inverters connection.
Multi-function and high performance.
Local webserver for easy configuration.
Support external sensor to realize zero-export function.
Multi-function and high performance.
Local webserver for easy configuration.
Support external sensor to realize zero-export function.
High Voltage LiFePo4 Battery Bank
Easy installation and maintenance Local and remote management,standard rack&module design, front maintenance.High density
LFP high-capacity Li-Ion battery with aluminum shell,over 130wh/kg. Self-developed 3-level BMS, complex protection, safe and
reliable. Long cycle life, 6000 cycles.
LFP high-capacity Li-Ion battery with aluminum shell,over 130wh/kg. Self-developed 3-level BMS, complex protection, safe and
reliable. Long cycle life, 6000 cycles.
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt. Mid & End Clamps: 35,40,45,50mm L Foot Asphalt Shingle Moount & Hanger Bolt
Optional Cable Clip & Tie Optional Ground Clip & Lugs Optional
Optional Cable Clip & Tie Optional Ground Clip & Lugs Optional
DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
DC & AC Disconnect Switch
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
PV Combiner Box
IP Rating: IP65
Rated Voltage: 1000VDC
Input cable terminal: 4-6mm2
Rated Voltage: 1000VDC
Input cable terminal: 4-6mm2
Product Packaging

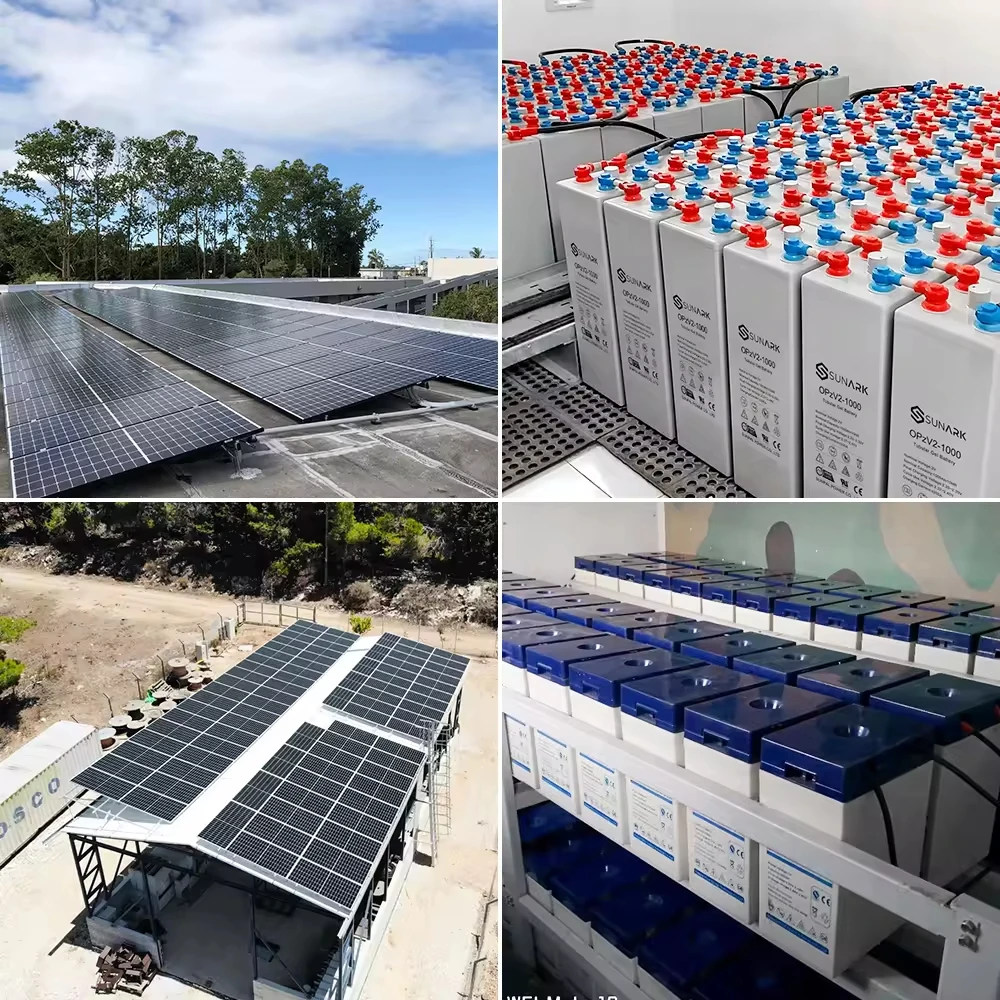

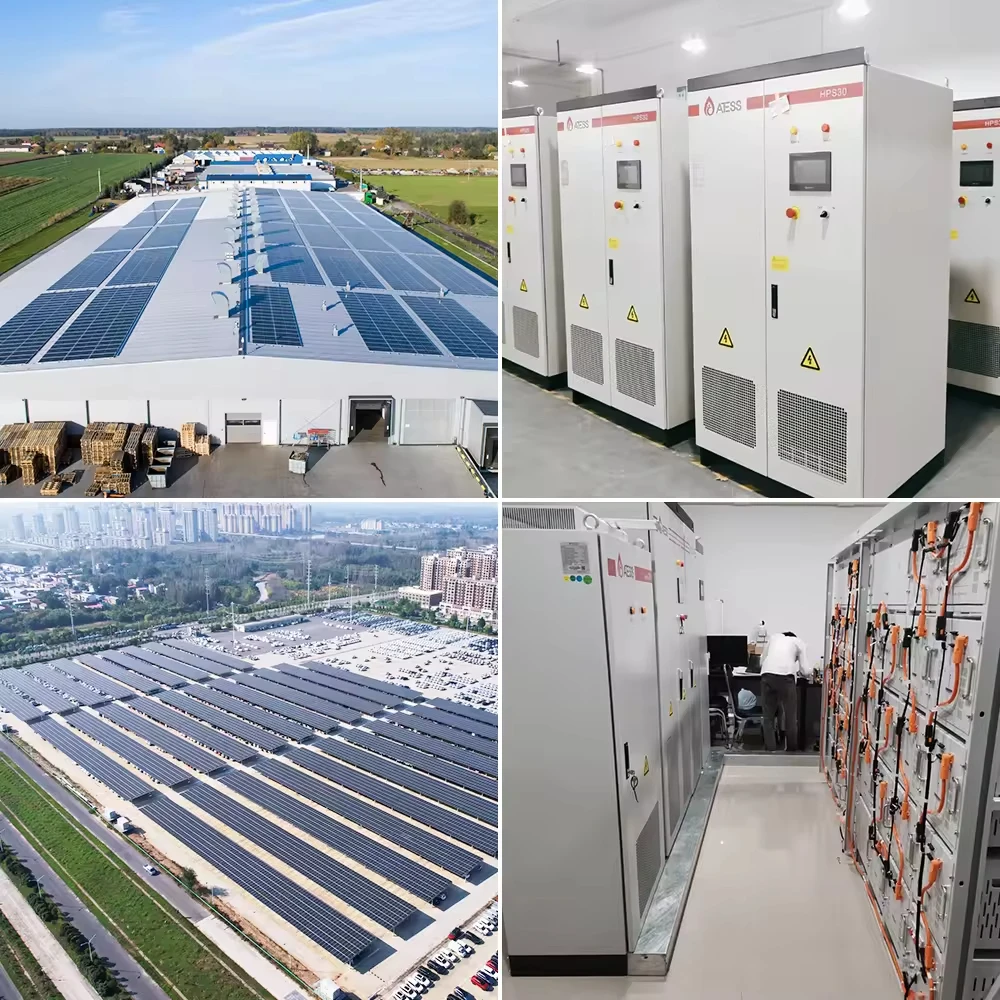

Applications

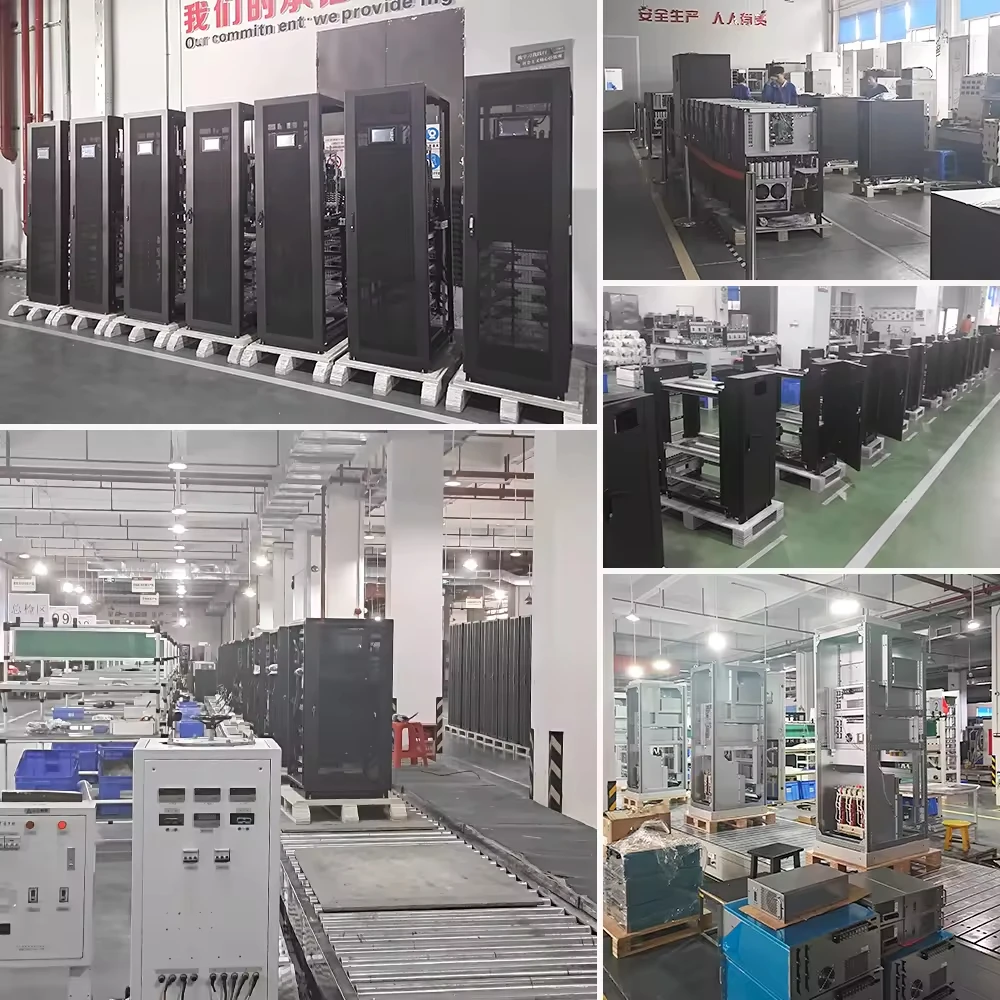

Company Profile
United Energy focusing on R&D and manufacture of solar energy systems, meet EU and U.S. regulations, dedicated to making safer and more efficient Solar Energy Solutions.50%+ of the sales engineers are having 10+ years experience you can always trust UE teamsince they have developed 5,000+ overseas distributors and Installers from ground up.
Customer Feedback
What are UE's customers saying?
"Very friendly and honest seller. Will buy again!"
"finally had a chance settled it up to tested it outi can say its time to repeat order. i love the product quality."
What are UE 's customers saying?
“Hello Jason,good morning.Finally we got the 30KW hybrid solar system and 100KW on grid installed,now all working great.Our boss is very happy with the result, and we will need your help create United Energy brand here in the US. Thank you for all kind generosity and service you provide we would appreciate if you can send product pictures and technical details so we can start advertising here on our website.”
FAQ
1, Where is your factory located?
United Energy's China manufacturing center in Hefei Anhui, and Wuxi Jiangsu. Vietnam factory in HCM city to convenient US customers without anti-dumping tax.
2, Are you a factory or a trading company?
We are solar panel factory with over 14 years experience, factory inspection is welcome anytime.
2, Are you a factory or a trading company?
We are solar panel factory with over 14 years experience, factory inspection is welcome anytime.
3，What solar panel technology are you currently adopting?
Available power range? We currently have PERC, HJT, TOPCON, and shingle technology, power range between 5W-800W
4, Do you have MOQ?
We do not have MOQ, small order is welcome to test our quality. Fully confident that you will love our
quality and service.
quality and service.
5，What's the strength of your company?
① We are the Top 10 manufacturers in the PV industry, guarantee that each solar panel receives 100% quality inspection, and corresponding test reports can be provided (EL, IV, Flash Test Report)
②Owns a team of 30+ engineers who can help you design a complete system solution to help you maximize system efficiency.
