ICF EPS пенопалубка цементного блока изолированные бетонные формы Блок настенная
- Категория: >>>
- Поставщик: Langfang Jiuzheng New Building Material Co. Ltd.
Сохранить в закладки 1601174609766:
Описание и отзывы
Характеристики
ICF EPS Foam Cement Block Formwork Insulated Concrete Forms Block ICF Wall System
Product Description
Insulating Concrete Forms (ICF’s) are an expanded polystyrene formwork used to build concrete exterior walls (and or internal walls) of a residential or commercial building. Reinforcing steel is added into the cavity inside between two foam layers to reinforce the concrete core. This cures and hardens into a single monolithic concrete wall. The foam panel stays in place. This combination of concrete, steel, and foam creates an incredibly strong and energy-efficient structure without adding insulation.
IFC Block is a simple, fast to construct, energy-efficient, Insulated Concrete Formwork (ICF) System complete with battens,insulation and a solid core of concrete of 100mm and up to 600mm, all in a single system.
IFC Block is a simple, fast to construct, energy-efficient, Insulated Concrete Formwork (ICF) System complete with battens,insulation and a solid core of concrete of 100mm and up to 600mm, all in a single system.
Straight Block
The Straight Block typically makes up between 80-85% of the ICF wall assembly on most residential and commercial jobs.

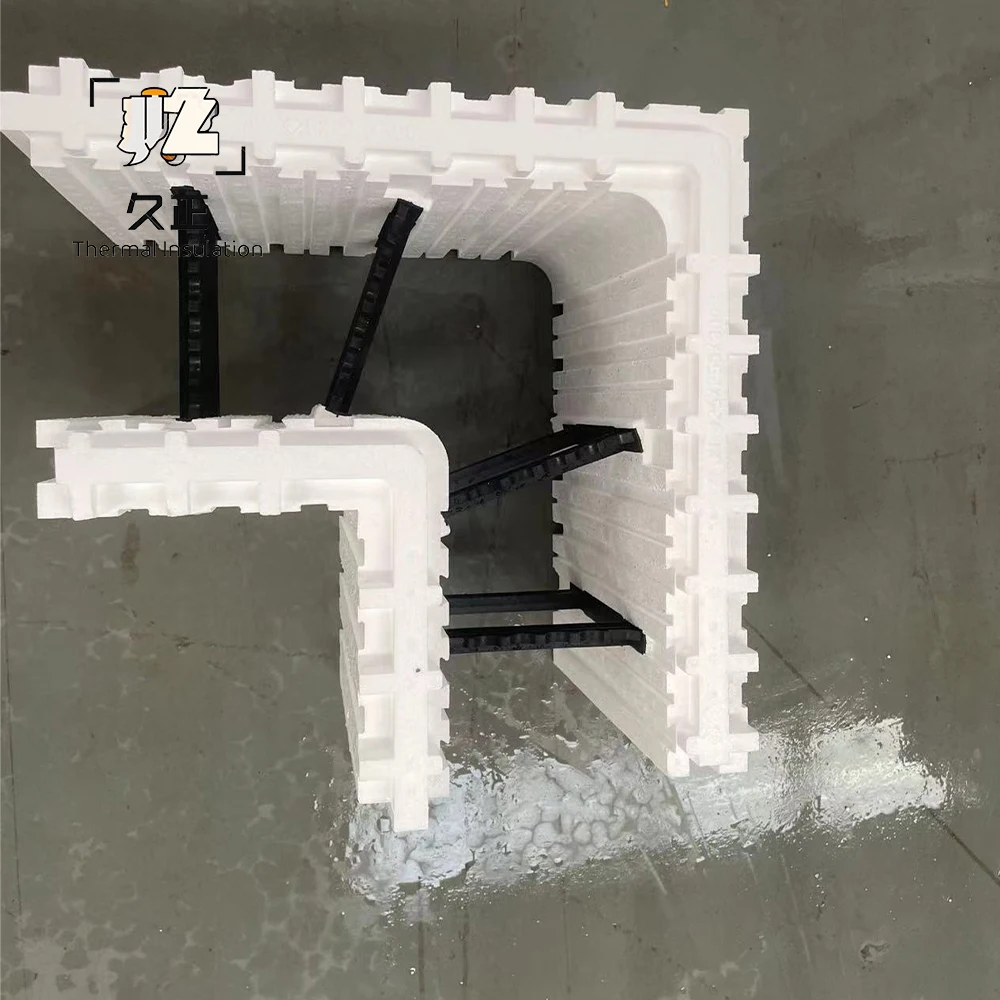

Corner Block
The 90 Degree Corner Block typically makes up 15-20% of the ICF wall assembly on most residential and commercial jobs.
T Block
The T-Block (Short Leg) typically makes up 1-2% of the ICF wall assembly on most residential and commercial jobs.
Brick-Ledge Block
The Corbel Ledge Block typically makes up 1-2% of the ICF wall assembly on most residential and commercial jobs.
45 Degree Angle Block
The 45 Degree Angle Block typically makes up less than 5% of the ICF wall assembly on most residential and commercial jobs.
Radius Block
The Taper-Top Block typically makes up 1-2% of the ICF wall assembly on most residential and commercial jobs.
Curb Block
Transition T Block
Half Straight Block
ICF BLOCKS FEATURES:
Energy Efficiency
Continuous insulation without thermal bridges or “insulation gaps”, as is common in framed construction.
Thermal mass, when used well and combined with passive solar design, can play an important role in further reductions in energy use, especially in climates where it is common to have outside temperatures swing above inside temperatures during the day and below at night.
Strength
Insulating concrete forms create a structural concrete wall, either monolithic or post and beam, that is up to ten times stronger than wood framed structures.
Sound Absorption
ICF walls have much lower rates of acoustic transmission. Standard thickness ICF walls have shown sound transmission coefficients (STC) between 46 and 72 compared to 36 for standard fiberglass insulation and drywall. The level of sound attenuation achieved is a function of wall thickness, mass, component materials and air tightness.
Energy Efficiency
Continuous insulation without thermal bridges or “insulation gaps”, as is common in framed construction.
Thermal mass, when used well and combined with passive solar design, can play an important role in further reductions in energy use, especially in climates where it is common to have outside temperatures swing above inside temperatures during the day and below at night.
Strength
Insulating concrete forms create a structural concrete wall, either monolithic or post and beam, that is up to ten times stronger than wood framed structures.
Sound Absorption
ICF walls have much lower rates of acoustic transmission. Standard thickness ICF walls have shown sound transmission coefficients (STC) between 46 and 72 compared to 36 for standard fiberglass insulation and drywall. The level of sound attenuation achieved is a function of wall thickness, mass, component materials and air tightness.

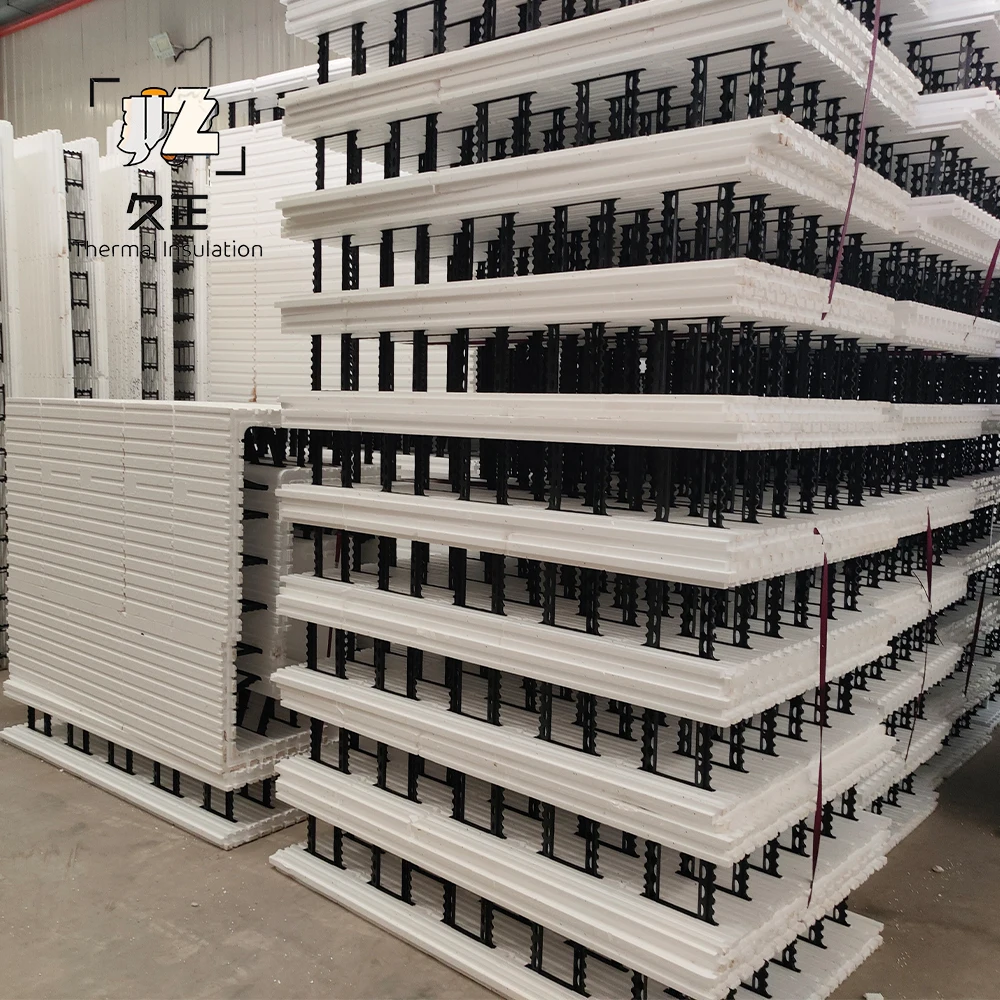

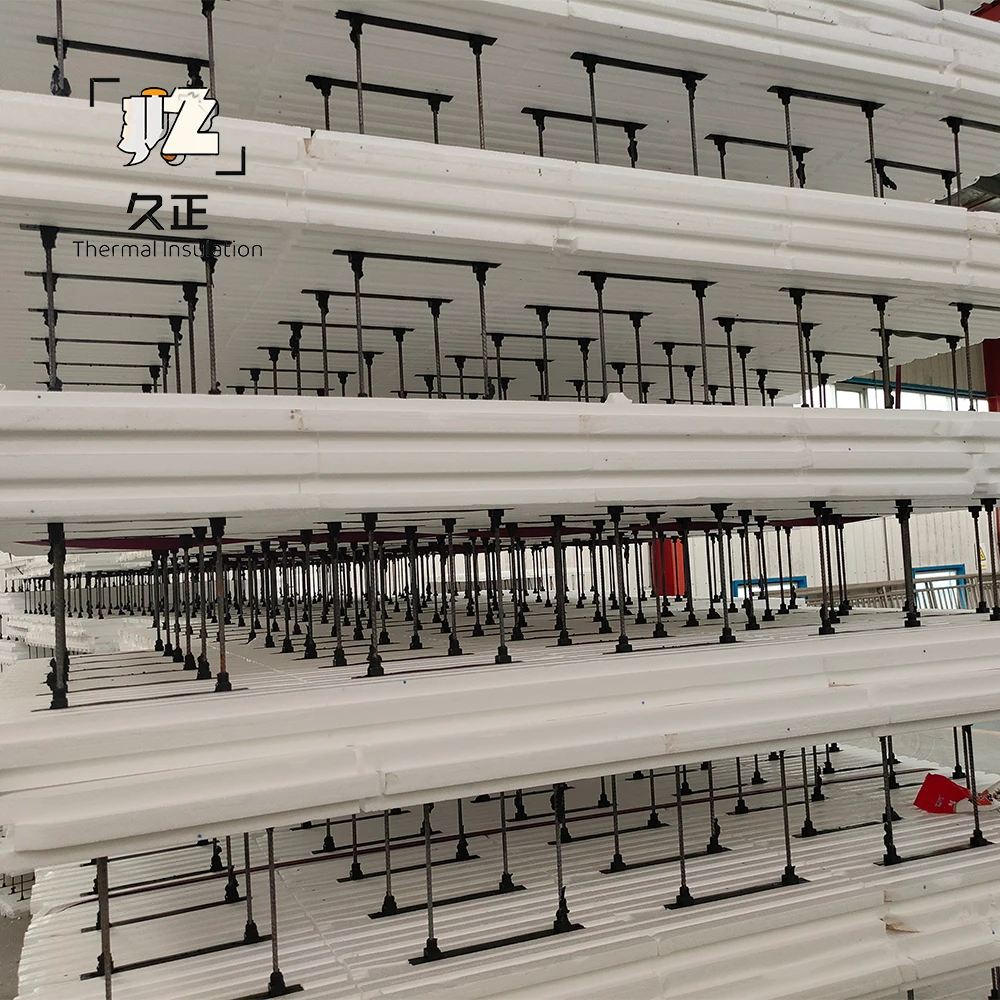

Workshop

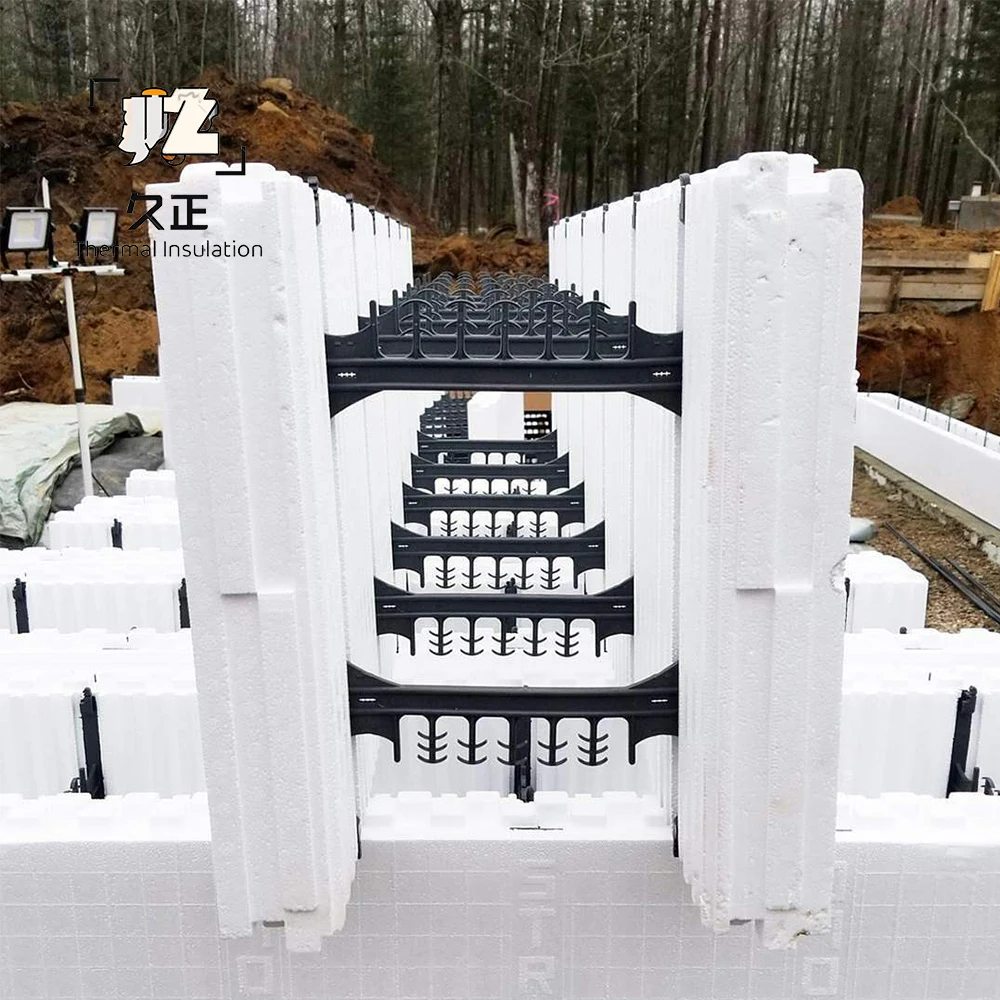

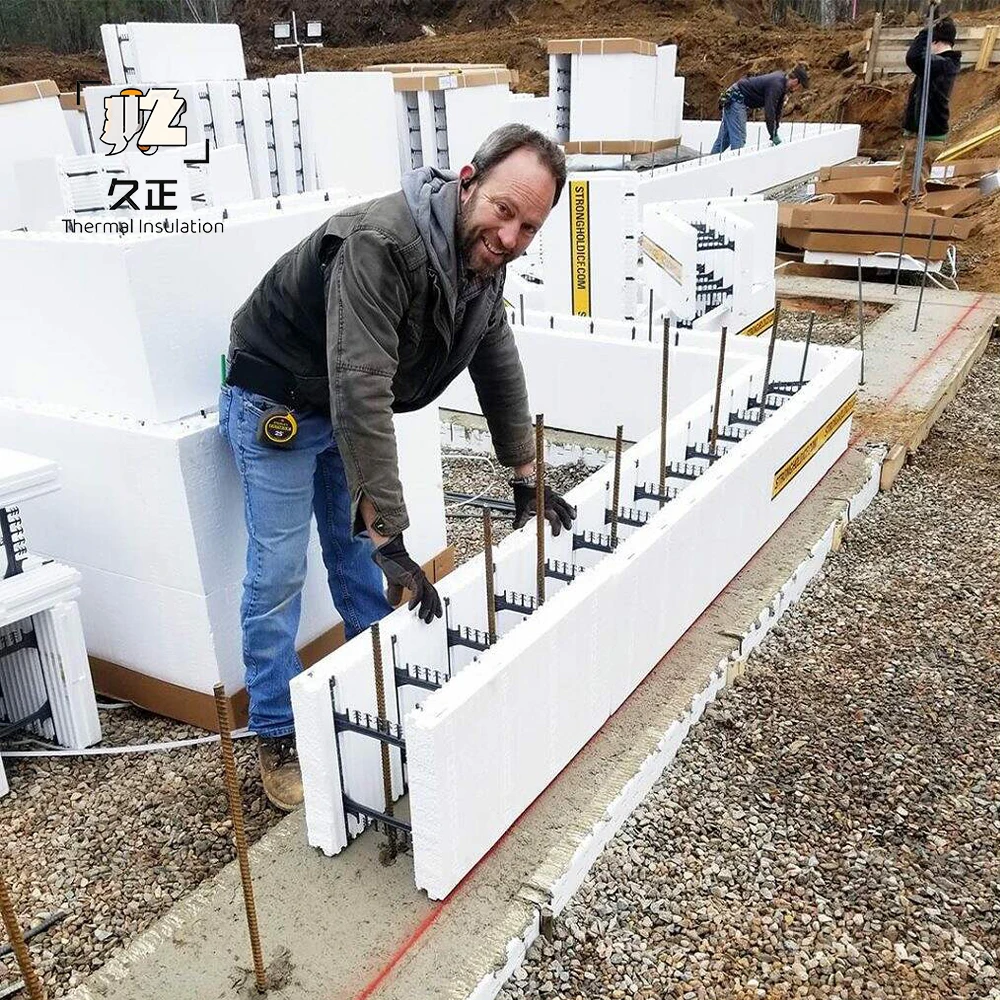

Application
Company Profile
Langfang JiuZheng New Building Materials Co., Ltd is an AAA Credit enterprise with ISO9001:2015 / SGS/ CE certification was Founded in 2001,located in AnCi District,Langfang City,Hebei Province. We are a professional manufacturer and exporter that is concerned with Insulation Material in China,Our Main Products is including First class Glass Wool,Rock Wool,Ceramic Fiber,XPS Board,EPS Foam Board,Sandwich Panel and Also Dealing with the EPS exterior wall decorative lines. Through continuous Technological innovation and Product upgrading, we have 8 production line of Glass wool,6 Production line of Rock Wool,and 2 line of XPS Board.We have been exporting for over 15 years ,with our products exported to over 60 countries and our products are greatly appreciated in a variety of different markets throughout the world. Our Service Purpose is to Solve yours problems all related with the Insulation Material and Exterior Decorative which have the great quality and competitive price. It is Widely used
in the field of Construction,ships,Building space sound Insulation and thermal Insulation.Our Perspective:Quality and Service is Our Priority.
We are waiting for your contact.
in the field of Construction,ships,Building space sound Insulation and thermal Insulation.Our Perspective:Quality and Service is Our Priority.
We are waiting for your contact.
Exhibition
FAQ
1.Q:You are manufacture factory or trading company?
A:We are manufacture factory. Founded in 2001,You are welcomed to visit us at any time.
2.Q:What is your difference with other products?
A:Our factory has about 23 years production experience,and we export by ourselves from 2008,Get the Customers good feedback.Our products is Environment friendly,From the raw Material till the loading,we have Appointed QC to trace the goods,so can ensure the goods to the Customer is A Class.
3.Q:What's the delivery time?
A:Yes,that is depends on the Quantity and Size that Customer ordered.Generally speaking,from we got the deposit,we are hopeful to load within 20 days.We can discuss about the delivery time if you are urgent.
4.Q:What's the payment term?
A:We can do FOB,CNF,CIF,EXW.Payment by T/T, PayPal, LC Or Alibaba trade assurance.
FOB:30% Deposit and 70% Balance Before Shipment.
CIF:30% Deposit and 70% Balance When you get the copy of B/L.
5:Q:Can I have a Sample if I have a willing to place Order?
A:Yes,sure,we can offer free samples for your check,but you need to pay the freight.And once our order confirmed,we can deduct the sample freight from our Order Amount.
2.Q:What is your difference with other products?
A:Our factory has about 23 years production experience,and we export by ourselves from 2008,Get the Customers good feedback.Our products is Environment friendly,From the raw Material till the loading,we have Appointed QC to trace the goods,so can ensure the goods to the Customer is A Class.
3.Q:What's the delivery time?
A:Yes,that is depends on the Quantity and Size that Customer ordered.Generally speaking,from we got the deposit,we are hopeful to load within 20 days.We can discuss about the delivery time if you are urgent.
4.Q:What's the payment term?
A:We can do FOB,CNF,CIF,EXW.Payment by T/T, PayPal, LC Or Alibaba trade assurance.
FOB:30% Deposit and 70% Balance Before Shipment.
CIF:30% Deposit and 70% Balance When you get the copy of B/L.
5:Q:Can I have a Sample if I have a willing to place Order?
A:Yes,sure,we can offer free samples for your check,but you need to pay the freight.And once our order confirmed,we can deduct the sample freight from our Order Amount.
