Высококачественный Алмазный сверлильный станок/сверлильный станок для резки бетона
8 500,00-10 980,00 $
Лидер продаж алмазная буровая установка оборудование для алмазного керна сверлильный станок горнодобывающей промышленности
- Категория: >>>
- Поставщик: Henan Xuanhua Imp.& Exp. Trading Co. Ltd.Henan Ltd.
Сохранить в закладки 1601174927784:
Описание и отзывы
Характеристики
Product Description

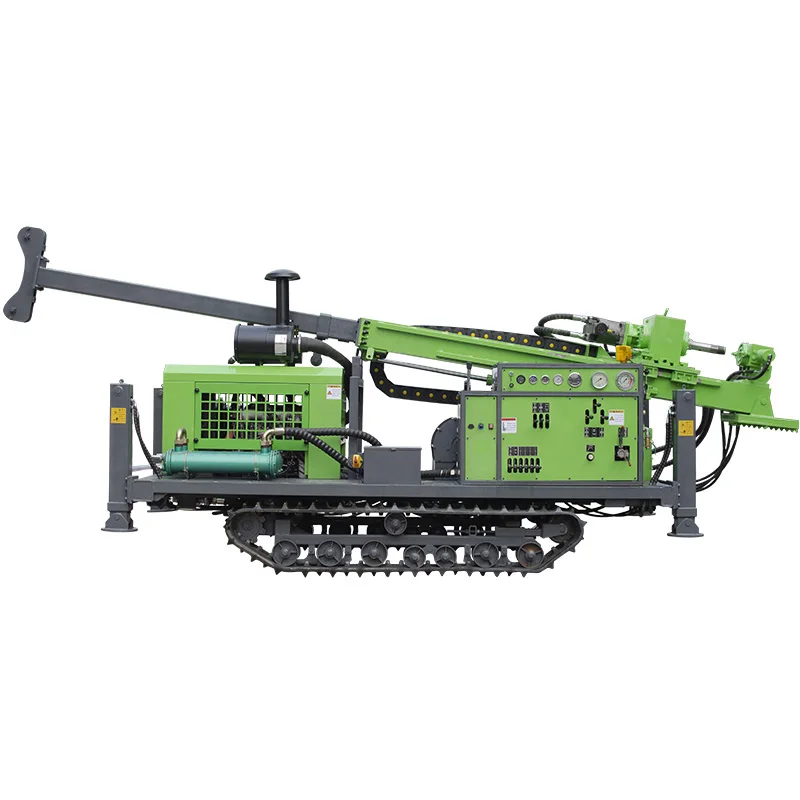

YCD series full hydraulic core drilling rig is a new type of drilling rig developed by our company on the basis of referring to the advanced technology of similar drilling rigs at home and abroad. It is mainly suitable for the drilling of solid mineral deposits, and can also be used for engineering geology, shallow oil, natural gas, groundwater drilling, and can also be used for engineering drilling such as tunnel ventilation, drainage, and dam grouting.

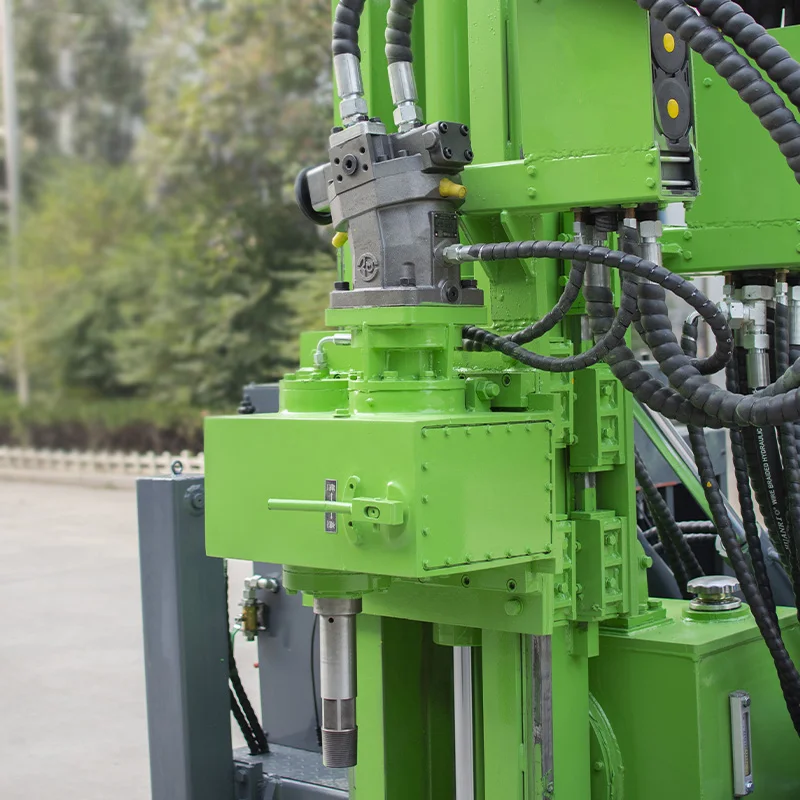

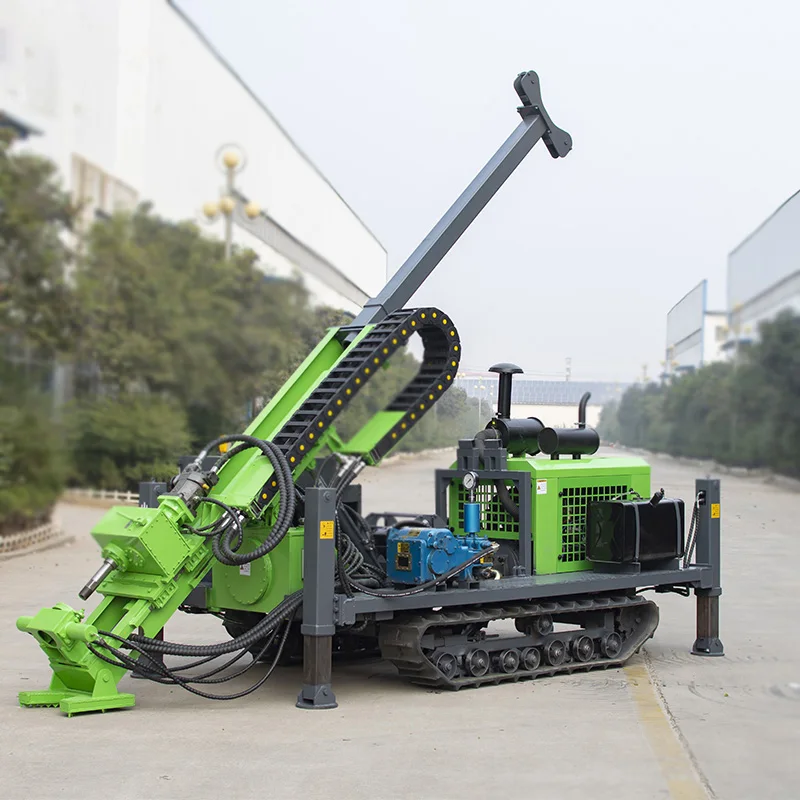

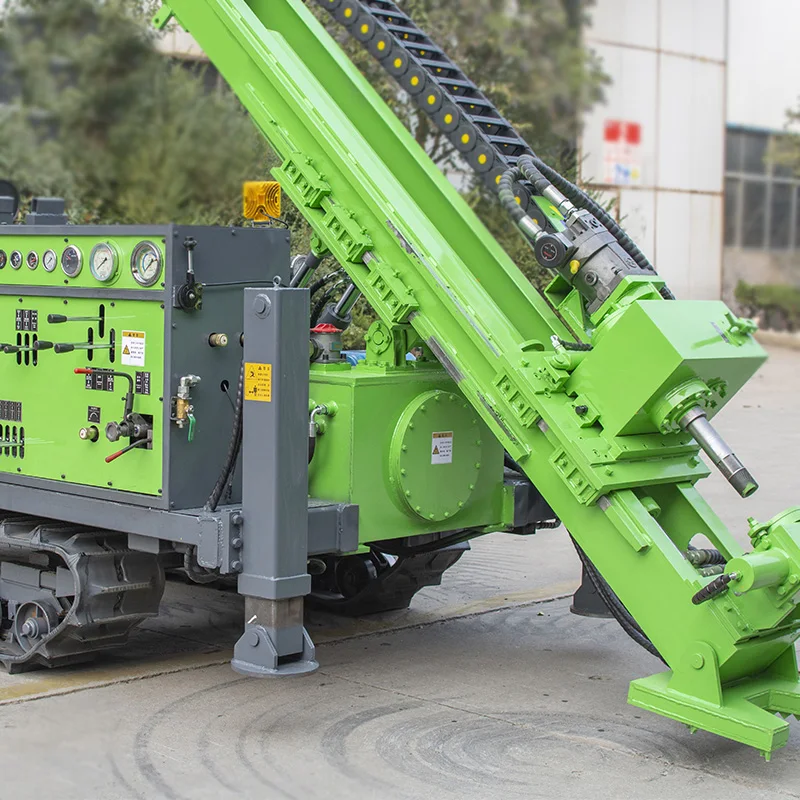

The drilling rig is driven by full hydraulic pressure, the rotation of the power head is driven by an axial piston pump and an inclined-axis piston motor, and the structure is advanced with two mechanical gears and stepless speed regulation. The power head adopts an oil cylinder chain double-speed feeding mechanism, which is stable and reliable in movement, and has a lateral translation mechanism of the power head. The mast adopts an oil cylinder to lift and fall to slide as a whole, and can drill holes within the range of 0-90°. Hydraulic system adopts load sensitive control, high working efficiency,large torque.

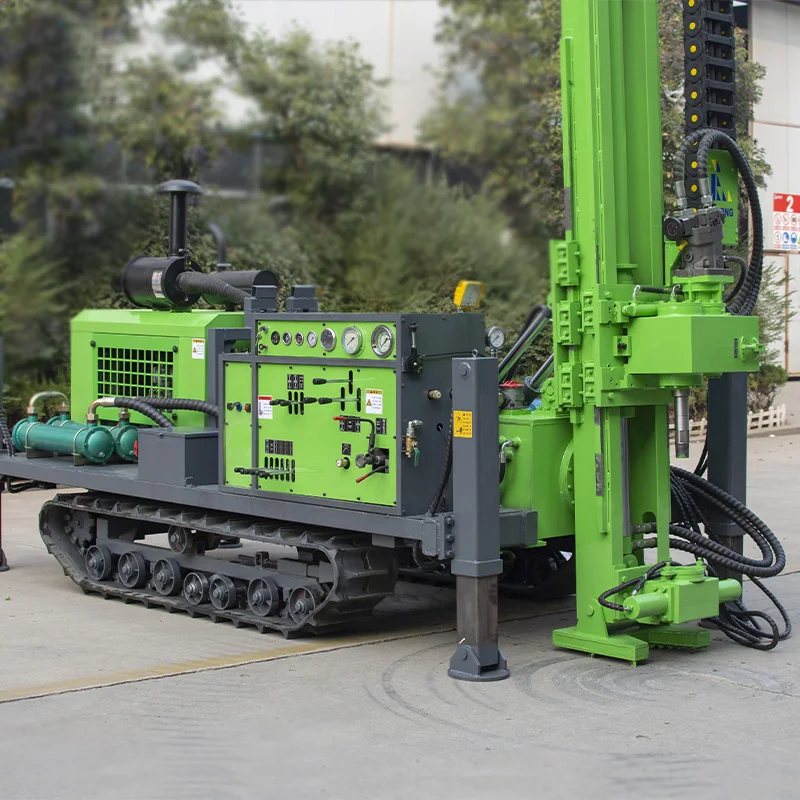

The drilling rig is equipped with hydraulic trojan grippers, hydraulic leveling legs, retractable mast and other devices to facilitate the rapid positioning of the drilling rig. Equipped with wireless remote control crawler, it is suitable for various terrains and controls the crawling of the drilling rig within a safe distance to prevent sudden danger.
The drilling rig is driven by full hydraulic pressure, the rotation of the power head is driven by an axial piston pump and an inclined-axis piston motor, and the structure is advanced with two mechanical gears and stepless speed regulation. The power head adopts an oil cylinder chain double-speed feeding mechanism, which is stable and reliable in movement, and has a lateral translation mechanism of the power head. The mast adopts an oil cylinder to lift and fall to slide as a whole, and can drill holes within the range of 0-90°. Hydraulic system adopts load sensitive control, high working efficiency,large torque.
The drilling rig is equipped with hydraulic trojan grippers, hydraulic leveling legs, retractable mast and other devices to facilitate the rapid positioning of the drilling rig. Equipped with wireless remote control crawler, it is suitable for various terrains and controls the crawling of the drilling rig within a safe distance to prevent sudden danger.
Main Technical Parameters
Model | YCQ-130T | YCD-600 | YCD-800 | |
Drilling capacity | BTW (m) | 650 | 1200 | |
Dimensions(mm) | NTW (m) | 600 | 1000 | |
Borehole Dia.(mm) | HTW (m) | 300 | 800 | |
Drilling Depth(m) | PQ (m) | \\ | 600 | |
Hydraulic system | Rated pressure (Mpa) | main pump95ml/r.32MPa auxiliary pump80ml/r.25MPa | main pump95ml/r.32MPa auxiliary pump80ml/r.25MPa | |
Waalking Speed (km/h) | Cooling method | Air cooling | 2-stage air-cooled plus 1-stage water-cooled | |
Diesel engine | Model | Yuchai four-cylinder 92kW | Yuchai 6-cylinder 92kw | |
Power(kw) | Rated power (Kw) | 92 | 92 | |
Distance off Ground (mm) | Rated speed (rpm) | 2200 | 2200 | |
Power head | Max torque (N.m) | 1400 | 1800 | |
Air Consumption (m³/min) | Max speed (rpm) | 1400 | 1400 | |
Drill Pipe Dia.(mm) | Stroke (m) | 1.8 | 1.8 | |
Dill Pipe Length(m) | Through hole diameter (mm) | 95 | 95 | |
Rig Lifting Force(T) | Lifting force (KN) | 240 | 300 | |
Swing Speed(rpm) | Propulsion (KN) | 120 | 150 | |
Winch | Capacity (m) | 800 | 1000 | |
Lifting force (KN) | 15 | 20 | ||
Lifting speed (m/min) | 110 | 110 | ||
Wire rope diameter (mm) | 6 | 6 | ||
Drilling tower | Full height（m） | 6.1 | 6 | |
Drilling angle (°) | 45-90 | 0-90 | ||
Sliding stroke (mm) | 800 | 1200 | ||
Gripper parameters | BQ/NQ/HQ/PQ | Gripper Hole 146mm | ||
Chassis | Maximum climbing angle (°) | 6/20 | 6/20 | |
Maximum driving speed(km/h) | 2 | 2 | ||
Transport size | L*W*H (mm) | 4500*1900*2300 | 4500*2050*2900 | |
Weight（t） | 2200-3000 | 4.6 | 6 | |
Construction Cass
CONSTRUCTION CASS
For the air drilling rig, it also called DTH drilling rig or percussion drilling rig, working with air compressor, which good performance in hard rock layer drilling.The model from YCQ-130T to YCQ-600, it can drill from 50-600 m in depth. Which can finish one 200m well within one day.
