Оптовая продажа от производителя упаковка из чистого графита высокого давления с масляным погружением

Оптовая продажа от производителя упаковка из чистого графита высокого давления с масляным погружением

Категория: >>>
Поставщик: Hejian Jiuling Trading Co. Ltd.Hejian Ltd.

Цена:6,50-7,80 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Specification

Place of Origin	Hebei, China
Product name	Black PTFE packing
Size	Customer Demand
Application	Shaft seals for industries such as food, medicine, papermaking, chemical fiber, and fine chemicals
Color	WHITE AND BLACK
Feature	The tensile strength and high thermal conductivity, as well as the low friction coefficient, make it stable and long-lasting.
Type	1-6
Material Type	F4 raw material with warp braided
MOQ	1 kilogram
Packing	Carton
Sample	Freely

Product Description

DESCRIPTION

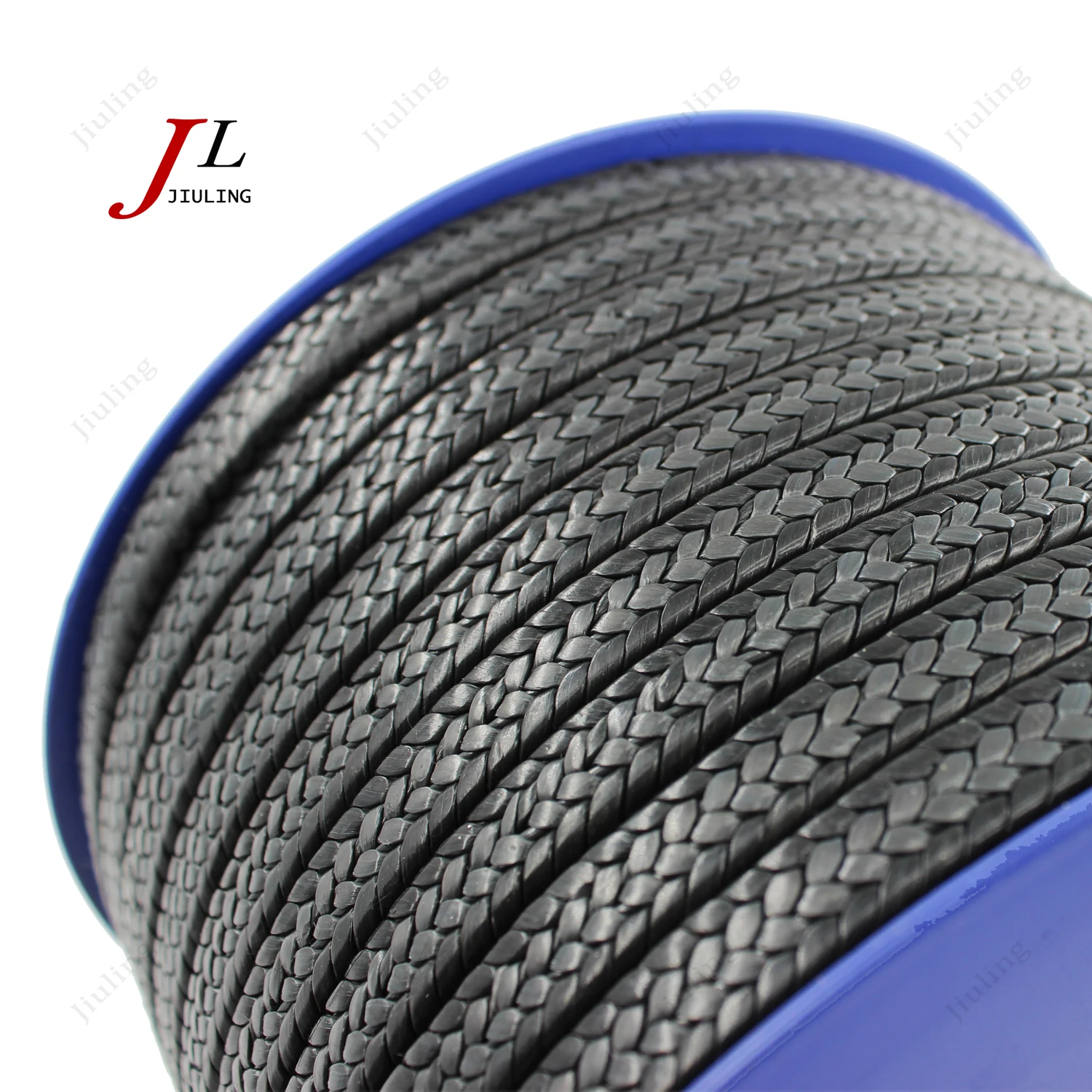

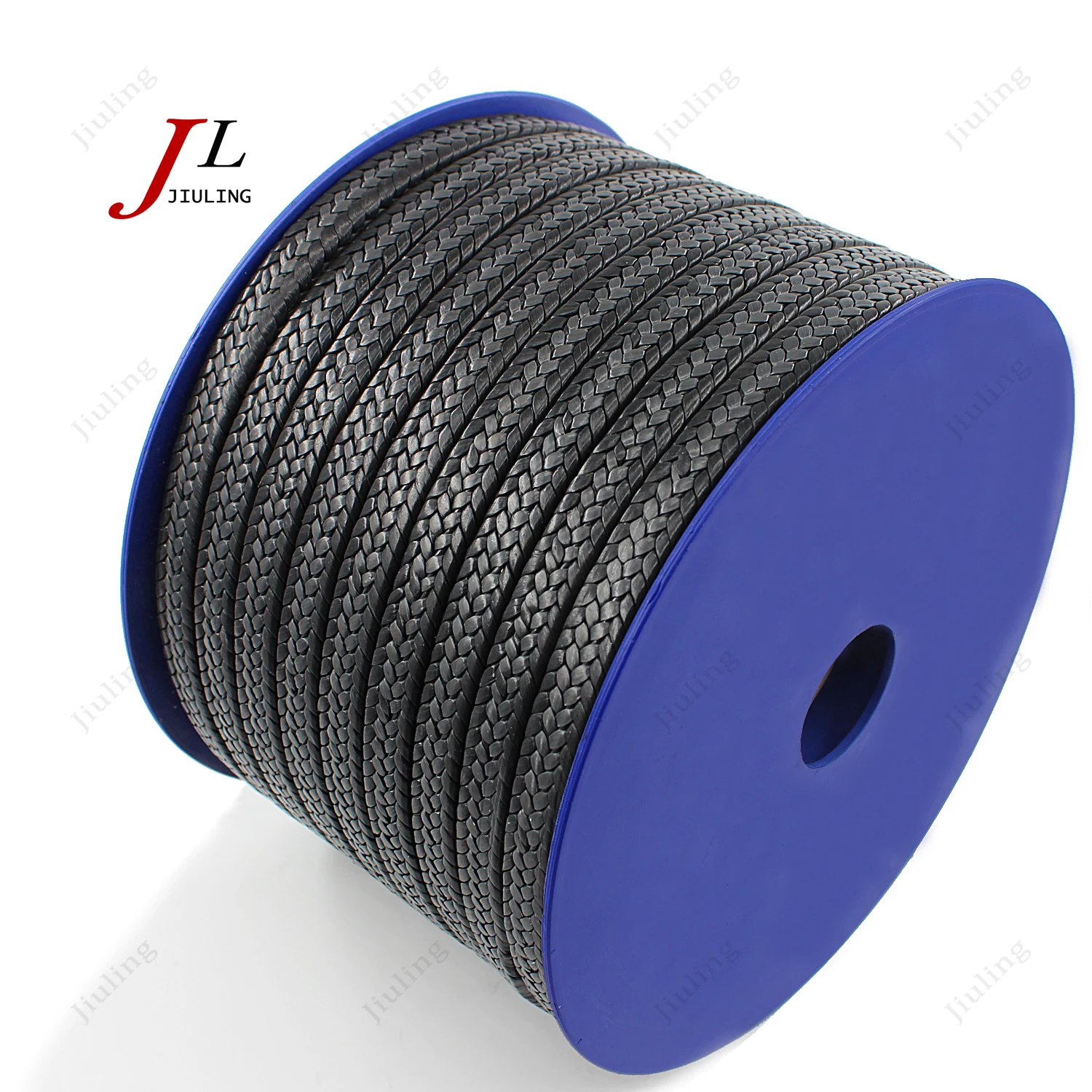

Black PTFE packing is woven from polytetrafluoroethylene wire containing graphite particles. It has strong tensile strength and high thermal conductivity, and its low friction coefficient makes it stable and long-lasting. It is recommended to be used for shaft sealing in industries such as food, medicine, papermaking, chemical fibers, and fine chemicals. It can also be used for sealing media such as water, steam, solvents, mixers, heat exchangers, and centrifugal pumps. Suitable for most media except for strongly oxidizing media. Black PTFE pan roots come in two types: high-strength and ordinary strength.

SERVICE LIMITS

__________________________________________________________________________________________________________________________________________

ITEM	Rotating	Reciprocating	Static
Pressure Psi bar Kg/cm2	100	100	150
Shaft speed M/s	4	2

Density g/cm3	1.3
Temperature °C	-150~+260
PH range	0-14

STOCK DIMENSIONS

ADVANTAGES

The polytetrafluoroethylene braided packing is made of F4 raw material with warp braided (impregnated) molding. It has goodchemical stability, good self-lubricating performance and constant strength under high temperature and humid environment, easy toload and remove.

BASIC TYPES

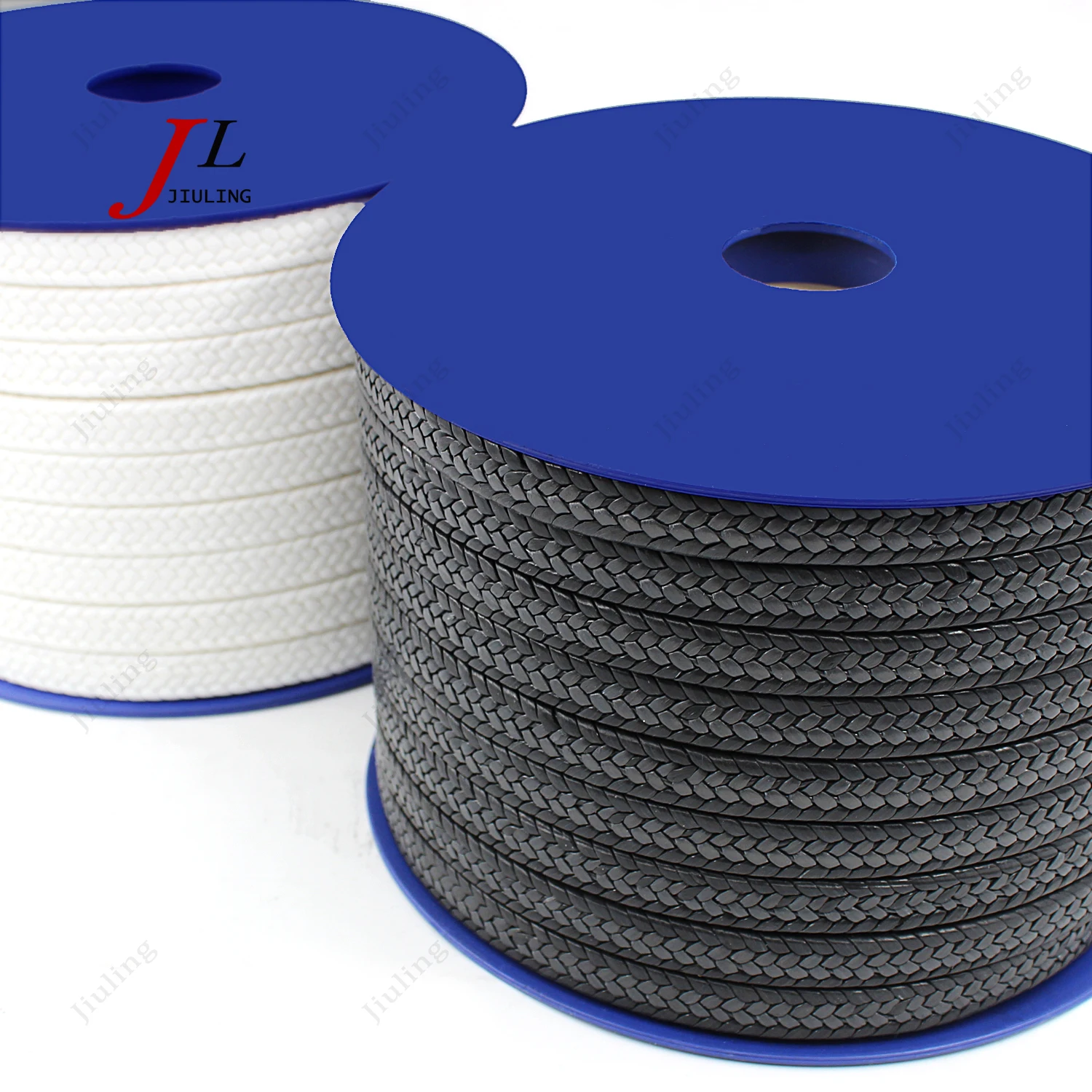

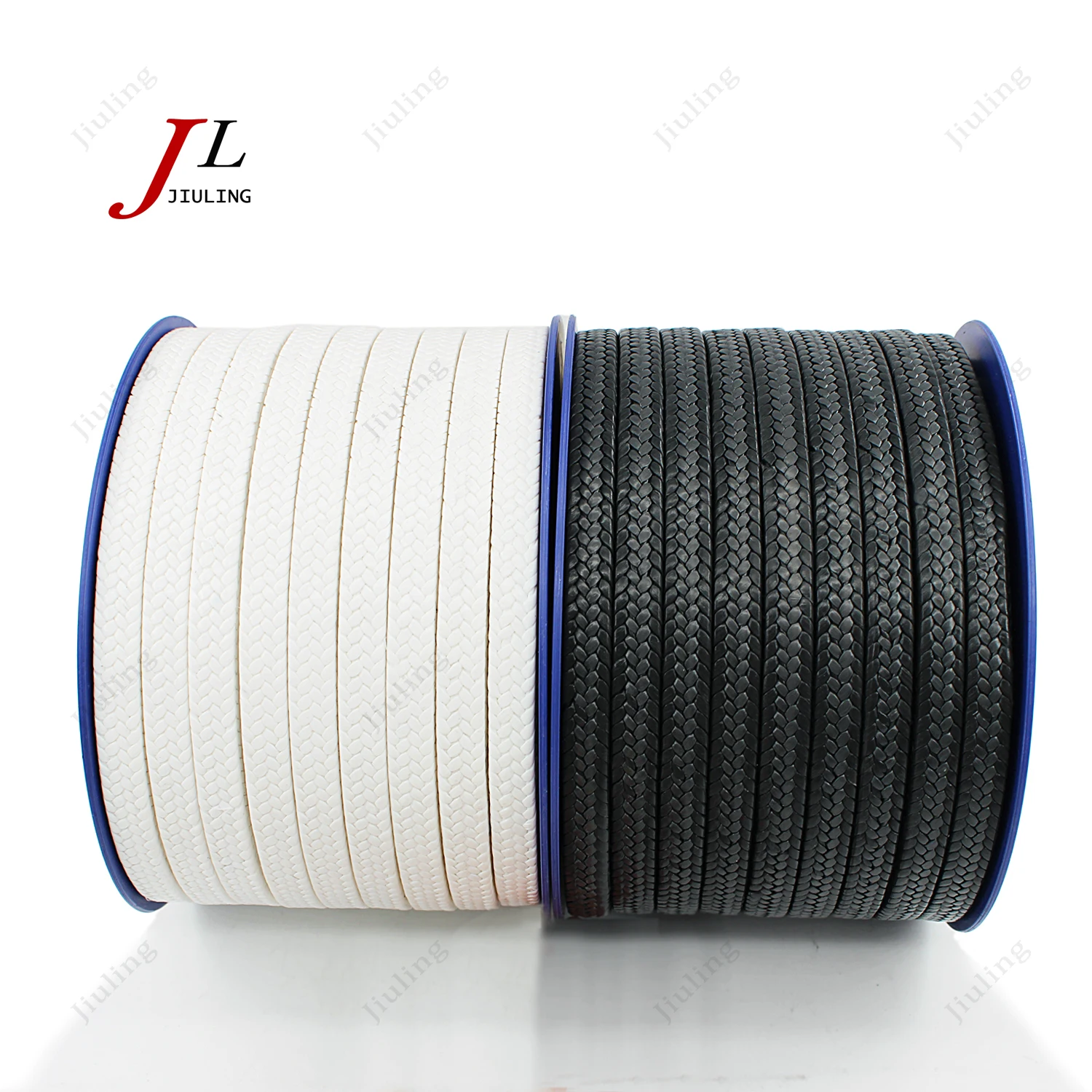

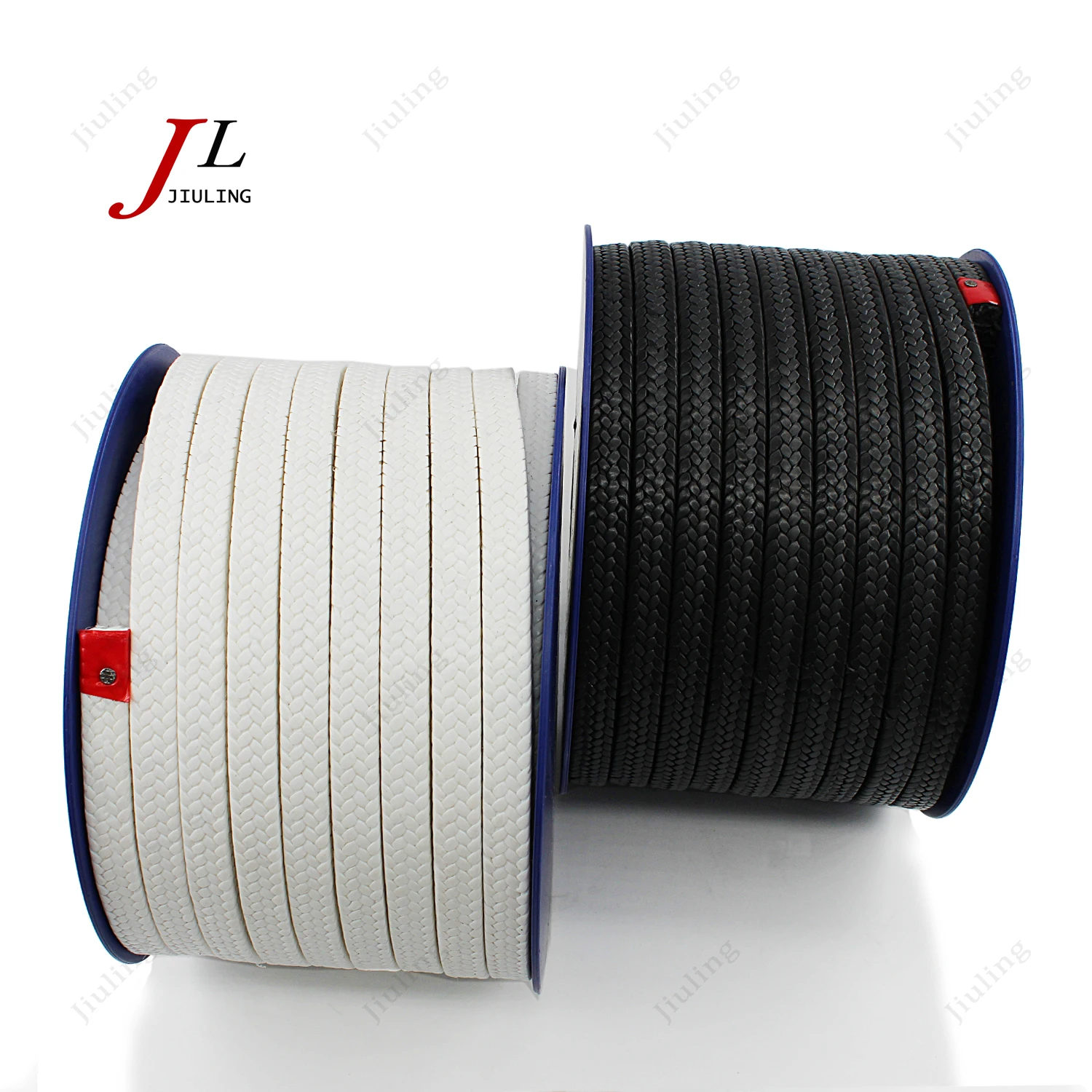

Teflon packing can be divided into aramid woven black teflon packing, white teflon packing, aramid wrapped angle black teflon packing, oil-containing black teflon packing, oil-free black teflon packing, cut wire teflon packing, oil-containing white teflon packing.

1: Aramid interwoven black tetrafluorocarbon packing to aramid fiber and black tetrafluorocarbon as raw materials, using a special process of mixed weaving, high-strength aramid material interwoven in the packing inside, so that products more
wear-resistant. It synthesizes the excellent performance of aramid fiber and black teflon fiber, makes the product more
wear-resistant, and is suitable for dynamic sealing with high line speed and high medium pressure. Can be used in chemical, agricultural chemistry, petrochemical, pharmaceutical, sugar, paper, power and other industries, reciprocating pumps, mixers,mixers, reactors, valves and other equipment. Suitable for water, sewage, oil, grease, weak acid and weak alkali solution,acid-base solution, grinding medium.

2: white tetrafluorocarbon polytetrafluoroethylene made of pure fibers. Can be used in chemical industry, food, medicine,
paper, chemical fiber, fine chemicals and other operations do not allow pollution, applicable to all chemical media except soluble alkali metals and free fluorine ions.

3: oil-containing black PTFE packing is composed of graphite and anti-corrosion lubricant of PTFE woven. It has a strong tear strength and high thermal conductivity, low friction coefficient and it has a stable and long life. Can be used for food,
medicine, paper, chemical fiber, fine chemical industry shaft seal, also can be used to seal water, steam, solvent and other media mixer, mixer, pressure heater and centrifugal pump. Suitable for most media except strong oxidizing media.

4:Oil-free black teflon packing is woven from polytetrafluoroethylene threads containing graphite particles.

5:Cut Wire Teflon packing by the sintering and fully stretched strands of Teflon braided, and Teflon in the complete impregnation, in the weaving process again impregnated. With flexible features, dimensional stability, has a good compression, anti-extrusion and high structural strength and density. It is one of the best packing effect in industrial field. Is a general-purpose packing, can be used in food, medicine, paper, chemical fiber and other industries, especially high-pressure valves, piston pumps, mixers, mixers, high peripheral speed shaft, rod, piston, valve, expansion joint and other equipment. Applicable to all chemical media except soluble alkali metals and free fluorine ions.

6:Oiled white PTFE packing is woven from pure PTFE thread and treated with special lubricant silicone oil. It will not change the volume of the packing box when it is used for a long time with minimum pressure. Its low coefficient of friction prevents the shaft from heating even at high peripheral speeds. Suitable for high concentration and strong corrosion and oxidation of chemical products used in corrosion-resistant medium mechanical seal. Can be used with the food industry, medicine, paper, chemical fiber, fine chemicals, etc. do not allow pollution of the pump, valve, flange equipment.

Company Profile

Hejian Jiuling international commercial trading company founded in 2024, is a foreign trade enterprise of import and export trade jointly founded by some manufacturers. The main projects are: building materials (including glass fiber mesh cloth, insulation nails, Angle steel, and various thermal insulation building materials). Sealing products (stainless steel sealing products, graphite sealing products, PTFE sealing products, etc.) and a variety of communication cables, hardware products, glass products and plastic products import and export business, at present, the company's trade scale continues to expand,our products are saled around the world,and with a good reputation to win the trust of domestic and foreign customers, we provide customers with a large number of high-quality and low prices products.Work with win-win cooperation as the goal. We sincerely hope: you and I go hand in hand to build a better cooperation!

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Selling Units:	Single item
Single package size:	100X100X100 cm
Single gross weight:	1.000 kg

FAQ

1. who are we?
We are based in Hebei, China, start from 2020.Supported by several factories。

2. how can we guarantee quality?
Always final Inspection before shipment;

3.what can you buy from us?
Spiral Wound Gaskets,Ring Joint Gasket,Lens Gasket,Kammprofile Gasket,Graphite Gasketasbestos sheet, graphite sheet ,ptfe sheet
etc.

4.what is the moq?
50 pieces

5.Do you supply customization?
Yes, we offer customization as per your requirment.

6.Do you have a discount ?
Depend on amount

7. how soon you will deliver goods?
generally it is 3-7 days but depend on quantities.

8.Do you support packaging customization?
if you order large amount,we would like to offer.
