115VAC 400Hz 280kwh 180kva система аккумулирования энергии для буксируемой машины источник питания статическое преобразование частоты

Сохранить в закладки 1601175166726:


Цена:13 554 487,50 ₽ - 15 181 026,00 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

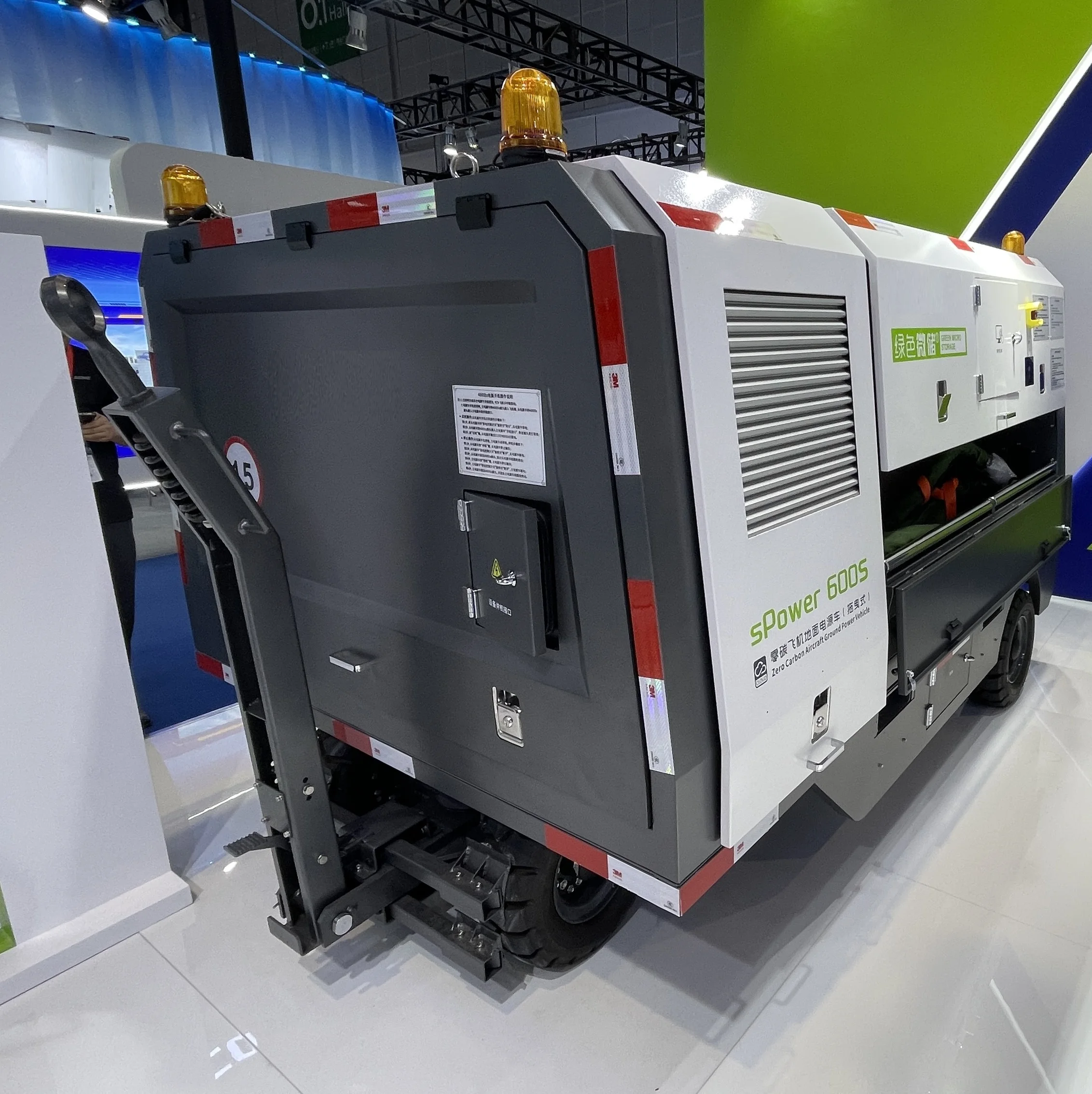

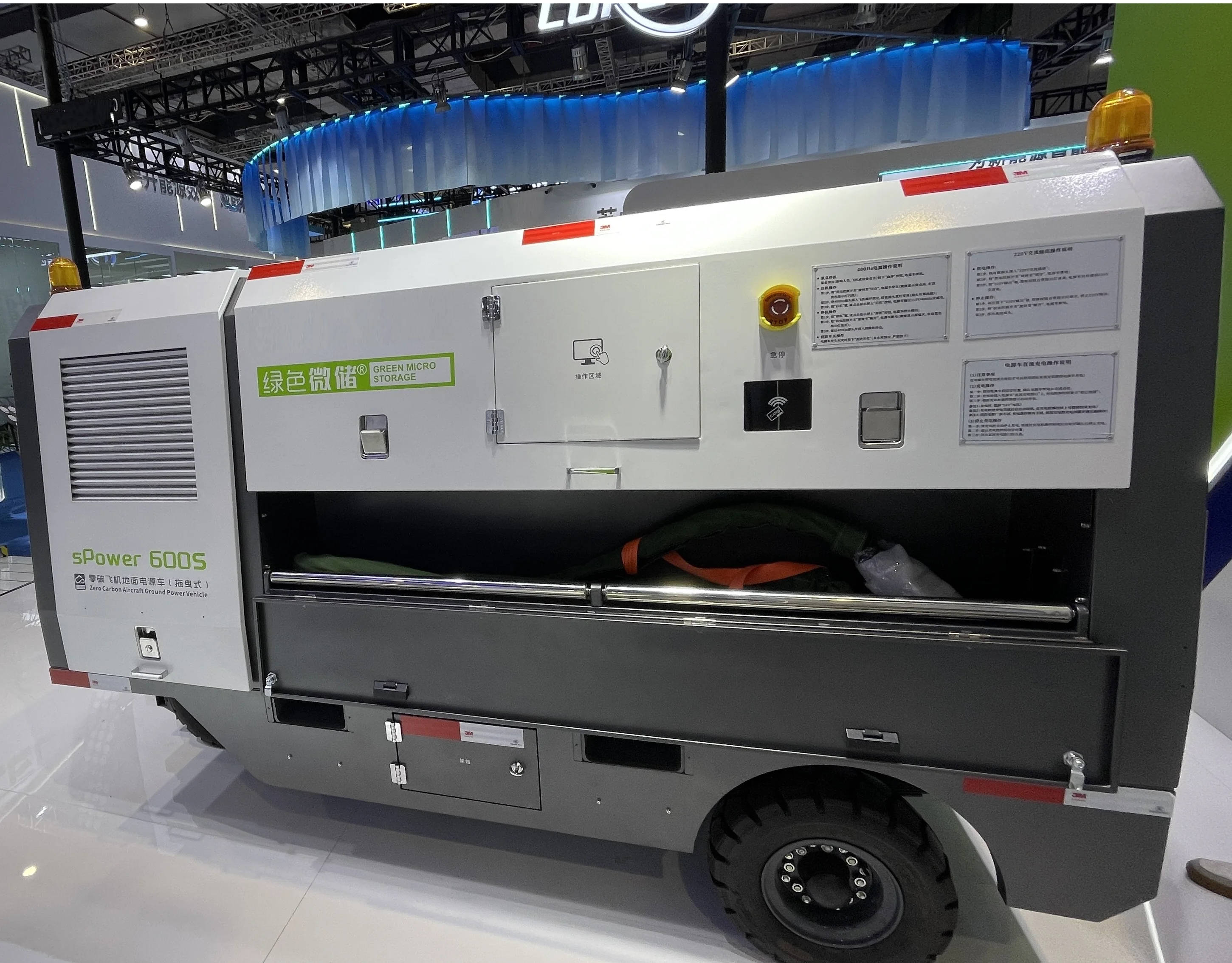

115VAC 400Hz 280kWh 180kVA Towed Aircraft Ground Energy Storage System Power Supply Static Frequency Conversion Power








Product Introduction:


1.It could be applied to civil aviation airport, actively respond to“ Blue Sky Defense Battle”, replace mobile fuel APU power supply, and provide clean, efficient and stable 400Hz power supply for aircraft. Replace aircraft auxiliary power units (APUs) to power aircraft, minimize carbon dioxide and pollutant emissions caused by APU burning aviation fuel, and reduce APU costs for airlines by more than 60%.

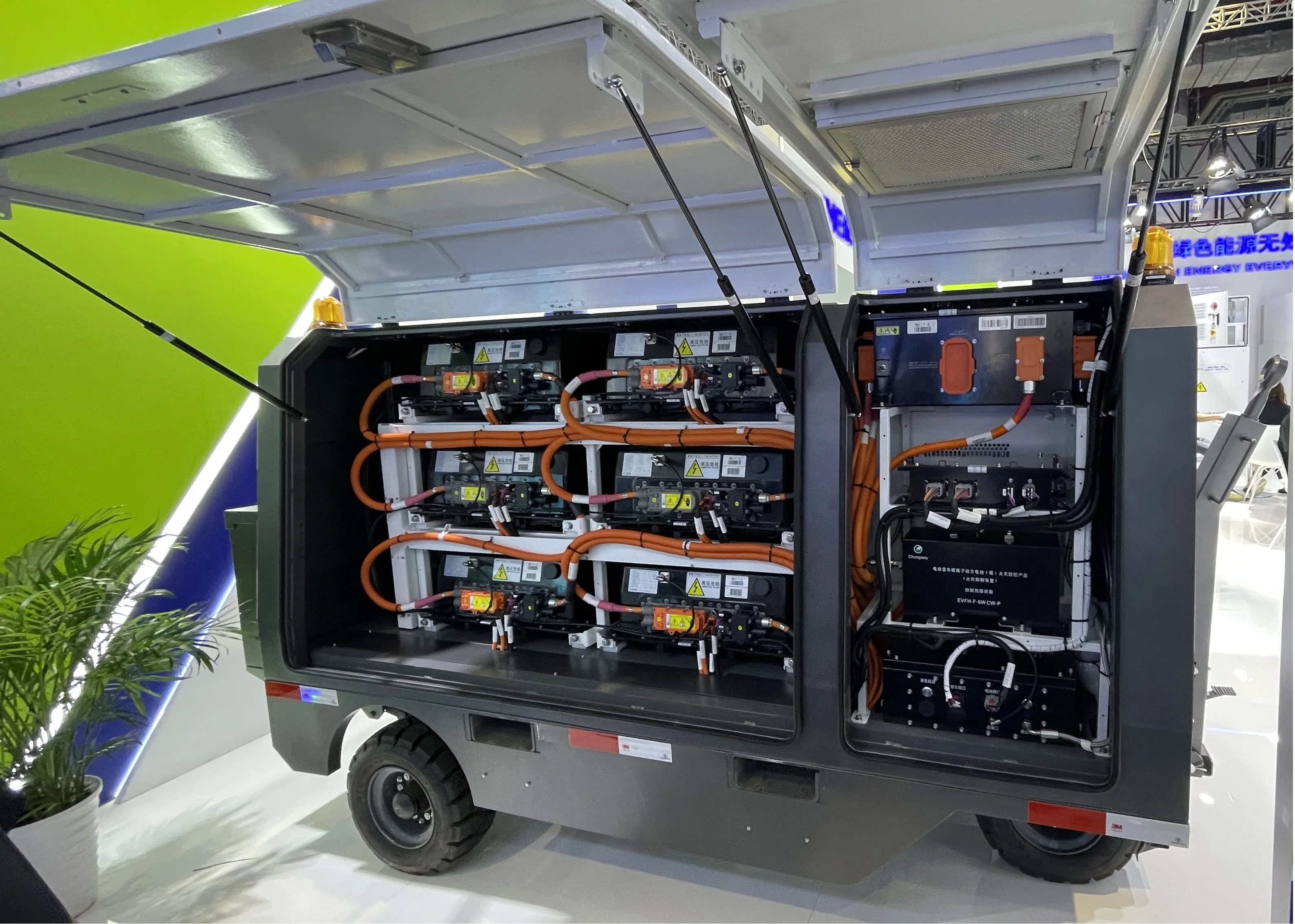

2. This aircraft ground Static Frequency Conversion Power, towed chassis and energy storage battery are integrated into the mobile energy storage Static Frequency Conversion Power, which is easy to move and suitable for a variety of aircraft positions.
3. Modularization configuration, 115V/400Hz, 28VDC dual power output .
4. Meet the power supply requirements of various civil aviation aircrafts.





Features:


1. Safe and Reliable


Adopt Dual fire fighting system: with battery module level automatic fire fighting system and whole vehicle mobile fire fighting system


2. Reliable Power Supply


With dual power supply: Power supply from both power grid and battery, will not be affected by power grid suddenly went out.


3. Intelligent Diagnosis


Full-process diagnosis, accurate fault location, and easy maintenance


4. Cloud Services


With cloud platform, digital equipment management, and improved operation and maintenance efficiency


5. Actual Use Verification

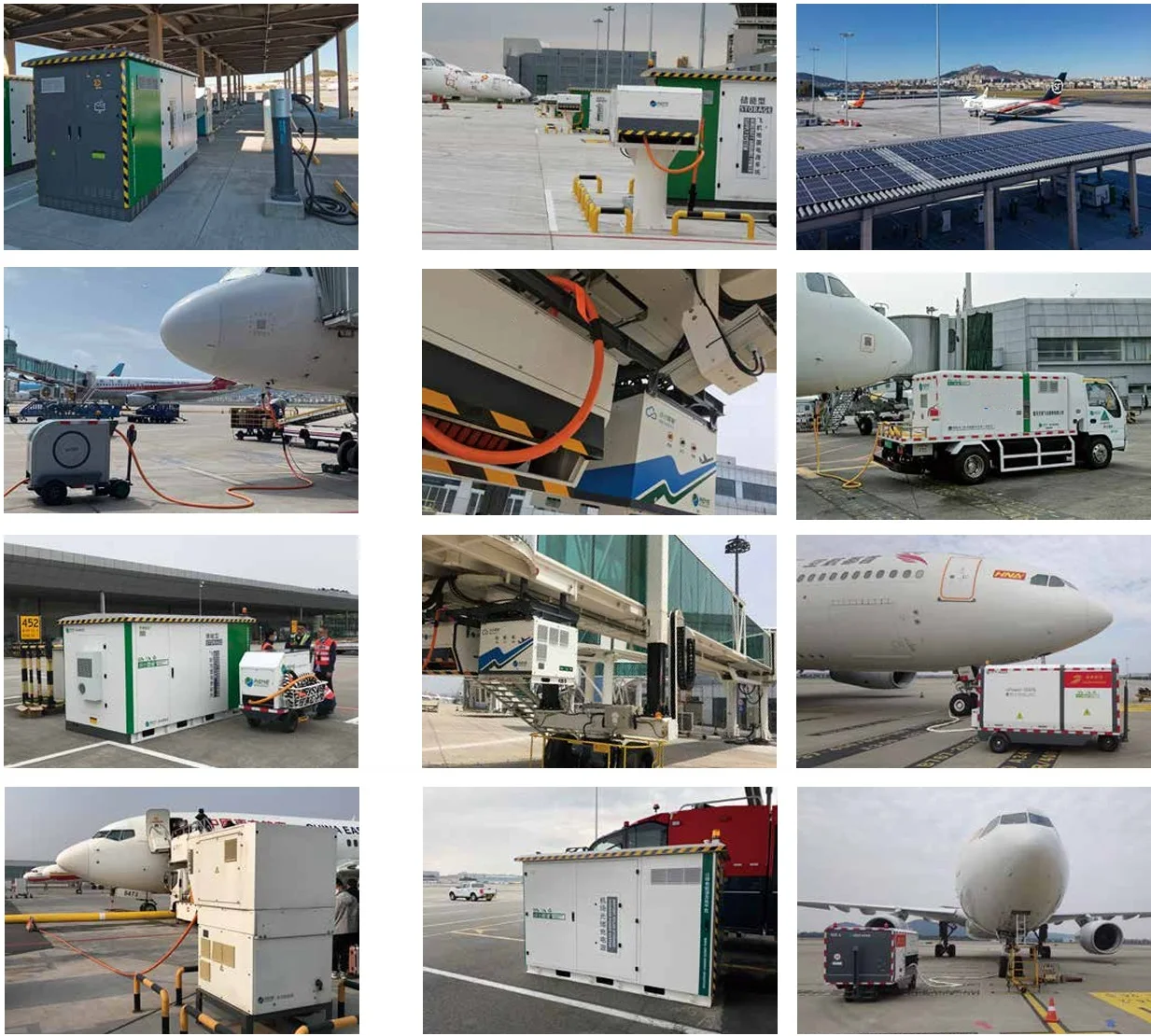

The products have been running stably in several major domestic airports for more than 10 years





Specification:
































































































































































































































Specification ItemParameters
DC ChargingConnection ModeStandard DC Charger Interface
Maximum Charging Voltage700Vdc
Charging Power150kW
Maximum Charging current250A
Battery Compartment InputRated Voltage618.24V
Rated Capacity280kWh
Minimum Voltage480V
Maximum Voltage700.8V
Max Continuous Charging Current250A
Max Continuous Discharge Current400A
Peak Discharge Current900A
400Hz OutputRated Power180kVA
Rated Voltage115VAC
Rated Frequency400Hz
Connection Mode3P+N
Power Factor0.7~1.0
Voltage Harmonic<0.7%
Overload Capacity110%Duration of 60min
125%Duration of 20min
150%Duration of 15min
200%Duration of 30.8s
300%Duration of 10.7s
400%Duration of 1.6s
DC
Output
Rated Current800A
Continuous Operating Current800A
Rated Voltage28V
DC
Overload
125%Duration of 303s
275%Duration of 2.2s
ProtectionDegree of ProtectionIP55
Uninterrupted Power TransmissionWith
Output Over voltage/ Undervoltage ProtectionWith
Overload ProtectionWith
Internal Over-temperature ProtectionWith
Output Short Circuit ProtectionWith
Output N Line Disconnection ProtectionWith
Output N Line Voltage MonitoringWith
Leakage Current MonitoringWith
Input Over voltage/ Undervoltage ProtectionWith
Input Over/Under Frequency  ProtectionWith
Input Over Current ProtectionWith
EfficiencyCompound Efficiency>95%
Static Loss50W
No-load Loss1kW
EnvironmentOperating Temperature-35℃~55℃
Relative Humidity0~100% (No Condensation)
Noise Level≤64dB
Working Altitude<2000m
OtherMean Time Between Failures (MTBF)>15000 Hours
Mean Time to Repair (MTTR)<20 Minutes
StructureDimensions (L*W*H) 5910*2010*2330mm
Weight5000kg
































Factory Production.png
