Top Sale 4 Axis 3D 1325 Stone CNC ATC Router Marble Granite Stone Engraving With Rotary Turn Table
Products Description
TechPro 4 Axis Stone CNC Router Features :
1. The machine bed is welded with thick-walled steel pipes and is tempered at high temperature to ensure that the machine body does not deform, has good rigidity and high strength.

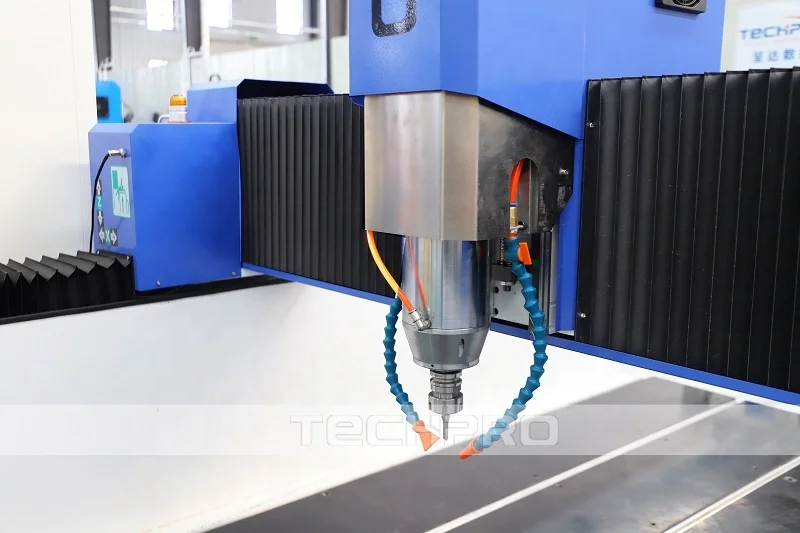

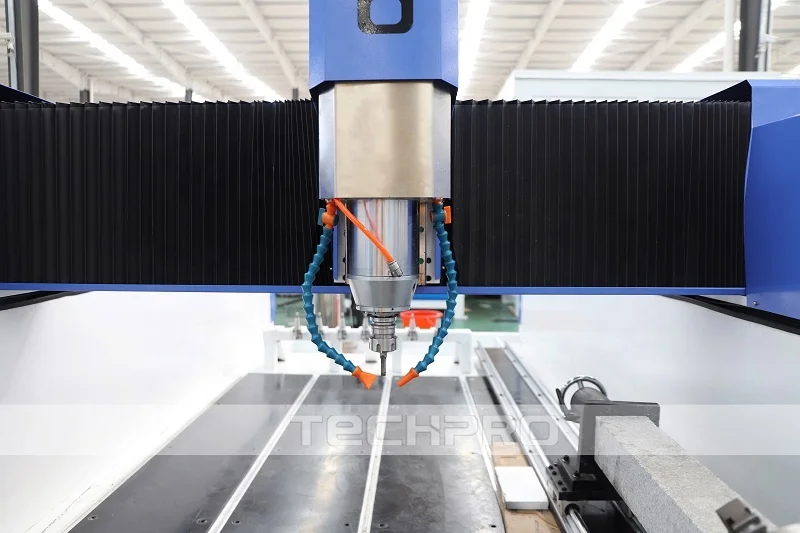

2. The spindle adopt high speed 5.5kw/7.5kw ATC water cooling spindle high performance for long time.
3. Under the dust cover, you will see: X axis and Y axis adopt good quality rack and pinion, Z axis adopt Taiwan TBI ball screw. The four axis adopt Hiwin/PMI linear guide rails, high precision.
5. High-precision screws and guide rails: All screws and guide rails are imported. The X and Y axis adopt oil-immersed lubrication method. In addition, the effective waterproof and dustproof structure ensures high processing accuracy and maximizes the service life of the screw and guide rail.
6. This is T slot table with steel water tank, you can easy to fix the material and water tank will not rust.
7. The design software is Artcam English version, it’s practical and easy to learn,We provide the training videos.
2. The spindle adopt high speed 5.5kw/7.5kw ATC water cooling spindle high performance for long time.
3. Under the dust cover, you will see: X axis and Y axis adopt good quality rack and pinion, Z axis adopt Taiwan TBI ball screw. The four axis adopt Hiwin/PMI linear guide rails, high precision.

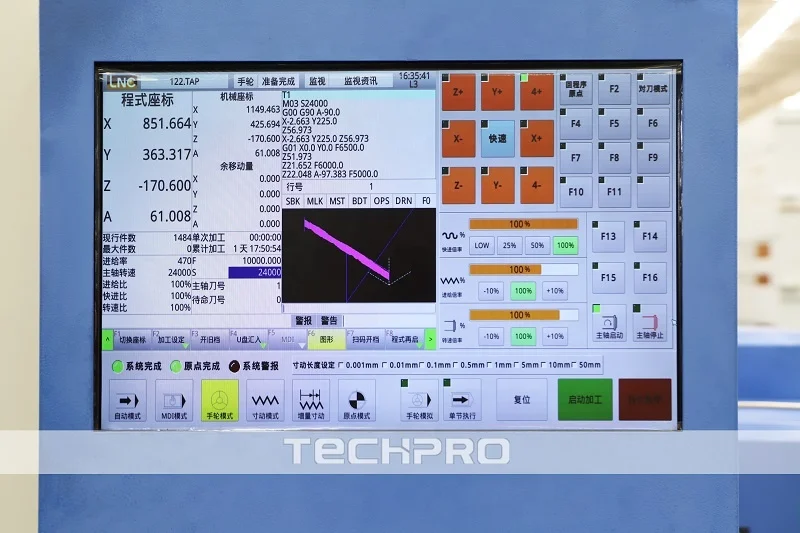

4. TechPro 4 axis stone cnc router cutting machine adopts adopt Taiwan LNC control system, easy to operate, able to support various drawing team building, can realize the processing of two heads with different processes, and improve processing efficiency.
5. High-precision screws and guide rails: All screws and guide rails are imported. The X and Y axis adopt oil-immersed lubrication method. In addition, the effective waterproof and dustproof structure ensures high processing accuracy and maximizes the service life of the screw and guide rail.
6. This is T slot table with steel water tank, you can easy to fix the material and water tank will not rust.
7. The design software is Artcam English version, it’s practical and easy to learn,We provide the training videos.
Application of TechPro 4 Axis Stone CNC Machine :
1. Applied materials:
①. Stone Industry: It is suitable for stone industry, stone tablet processing industry, artistic relief, advertising industry, decoration and decoration industry, ceramic industry and construction industry, etc.
②. Woodworking Industry: Chair, door, window, bed, cabinet, kitchen ware and other furniture; Redwood classical and antique furniture, Exquisite European furniture, decorative products sculpture.
③. Metal Industry: Engraving and cutting of soft metals such as aluminum and copper.
The stone engraving machine is suitable for three-dimensional relief, pointed bottom engraving, flat bottom engraving, line engraving, chamfering, drilling, etc. of various stones such as marble, granite, jade, blue stone, black stone, etc. It is specifically used for stone engraving, stone relief, stone positive engraving, stone negative engraving, stone line engraving,stone cutting, stone hollowing.
It is suitable for stone industry, stone tablet processing industry, artistic relief, advertising industry, decoration and decoration industry, ceramic industry and construction industry, etc.
2. Applied Industry:It is suitable for stone industry, stone tablet processing industry, artistic relief, advertising industry, decoration and decoration industry, ceramic industry and construction industry, etc.
①. Stone Industry: It is suitable for stone industry, stone tablet processing industry, artistic relief, advertising industry, decoration and decoration industry, ceramic industry and construction industry, etc.
②. Woodworking Industry: Chair, door, window, bed, cabinet, kitchen ware and other furniture; Redwood classical and antique furniture, Exquisite European furniture, decorative products sculpture.
③. Metal Industry: Engraving and cutting of soft metals such as aluminum and copper.
Machine Configuration
Model | TPS1325ER |
Working Area | 1300*2500*450mm (Optional 1500*3000 / 2000*3000mm) |
Control System | Taiwan LNC 4 axis control system |
Spindle | China HQD 5.5kw ATC water cooling spindle ( 0-24000rpm ) |
4 Axis Processing | X Y Z A axis |
Motor and Driver | China Leadshine AC servo motor and driver 1500W |
Inverter | China Fuling inverter |
Table Surface | T-Slot with PVC table + Water Tank |
Bed Structure | Heavy Duty 10mm Steel machine bed; 12-14mm Moving Steel Gantry |
Lubrication System | Automatic manual lubrication system |
Transmission | X,Y axis: rack and pinion transmission; Z axis: Taiwan TBI ball screw X,Y,Z axis: Taiwan Hiwin square guide rails with 30mm |
Automatic Tools Changer | 8Pcs linear automatic tools holder changer |

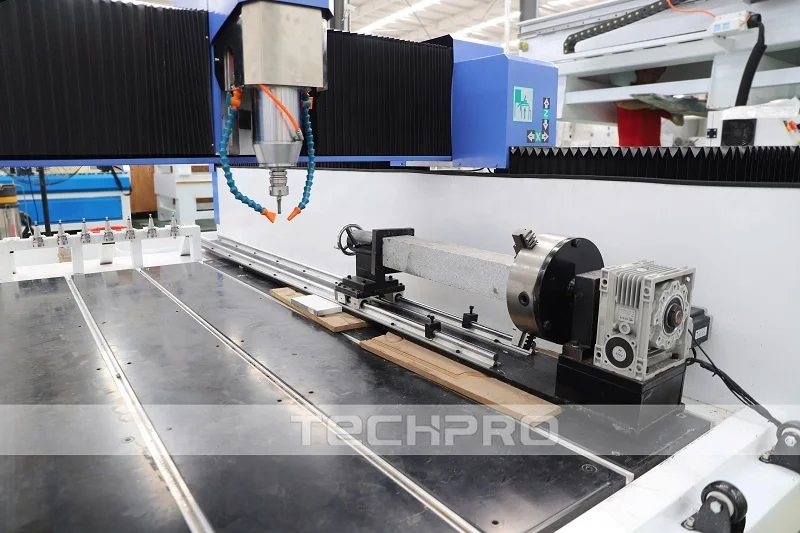

Rotary Device | Rotary diameter 300mm and Length: 2500mm with 4 claws |
Electric Parts | French Schneider electrical components |
Others Parts | Japan Omron limited switch, automatic tools sensor |
Software | Artcam/Ucancam / Aspire /Fushion360 etc |
Working Voltage | 380V or 220V /3 Phase/1 Phase |
Optional | Double Head Type Design |
12Pcs Linear Automatic Tool Changer | |
Laser Head for Engraving | |
Japan Yaskawa Servo Motor and Driver |
