Смеситель для корма животных машина гранулирования птицы производства древесных гранул курицы 200 кг/ч
199,00-219,00 $
Лидер продаж многофункциональный экструдер для кормов домашних животных 100% экспортная качественная мини экструдированная машина пищевых продуктов
- Категория: >>>
- Поставщик: Henan Sunshine Industry Co. Ltd.Henan Ltd.
Сохранить в закладки 1601177750401:
Описание и отзывы
Характеристики
Products Description

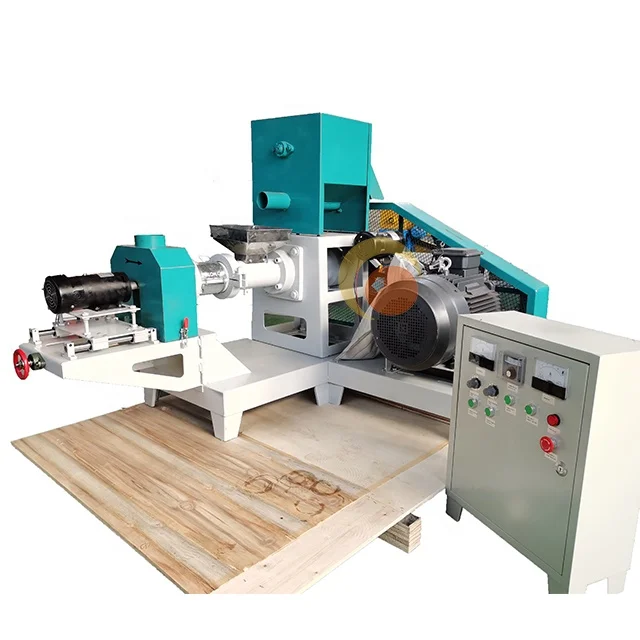

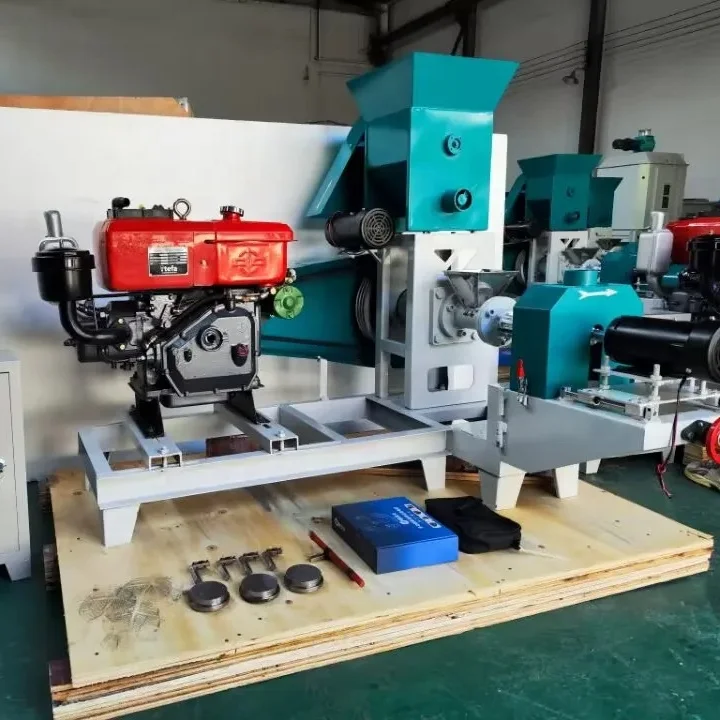

SUNSHINE Industrials Pet/Fish feed extruder machine advantages
1. The extrusion cavity sleeve adopts an inner and outer double-layer structure, so the part that directly contacts the material is only the inner sleeve. If it is worn, the inner sleeve can be directly replaced. Some small manufacturers' sleeves are integrated, so the cost of replacement will definitely be high.
2. The spiral, sleeve and die in the extrusion cavity are all made of 40Cr alloy material, which greatly improves the overall wear resistance.
3. All motors are pure copper national standard motors with a one-year warranty. Some small manufacturers are equipped with ordinary non-standard copper wire or copper-clad aluminum motors. Although this reduces production costs, it also greatly increases the failure rate during customer use.
4. The cooling circulation oil system is added to models 120 and above to reduce the temperature in the bearing box and prevent the high temperature generated in the bearing box for a long time, which will easily damage the bearing.
5. The pressure bearing in the bearing box adopts imported brands, which increases the service life of the bearing and reduces the occurrence of failures.
5. The pressure bearing in the bearing box adopts imported brands, which increases the service life of the bearing and reduces the occurrence of failures.
Model | Capacity | Screw Diameter | Main Power | Feeding Power | Cutting Power |
DGP-40 | 30-40KG/H | 40mm | 5.5kw | 0.4kw | 0.4kw |
DGP-50 | 60-80KG/H | 50mm | 11kw | 0.4kw | 0.4kw |
DGP-60 | 120-150KG/H | 60mm | 15kw | 0.4kw | 0.4kw |
DGP-70 | 180-250KG/H | 70mm | 18.5kw | 0.4kw | 0.4kw |
DGP-80 | 300-350KG/H | 80mm | 22kw | 0.4kw | 0.6kw |
DGP-90 | 400-450KG/H | 90mm | 37kw | 0.4kw | 1.5kw |
DGP-120 | 500-700KG/H | 120mm | 55kw | 0.4kw | 2.2kw |
DGP-135 | 700-800KG/H | 133mm | 75KW | 0.4kw | 2.2kw |
DGP-160 | 1000-1200KG/H | 155mm | 90kw | 0.75-1.1kw | 3.0kw |
DGP-200 | 1800-2000KG/H | 195mm | 132kw | 1.5kw | 3.0-4.0kw |

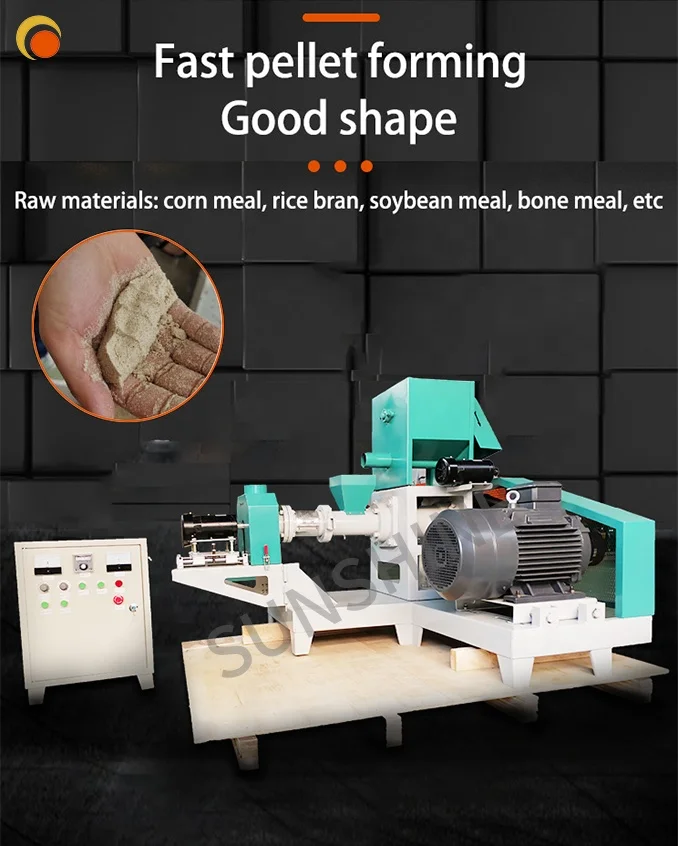

Fish/Pet feed extruder machine features
1. The food puffing machine has the characteristics of small size, light weight, compact structure, simple operation and considerable economic benefits, and has won praise from users;
2.This puffed snack puffing machine is used for puffing and extrusion of rice, corn, sorghum rice, yellow rice and other raw materials, and can add a variety of spices;
3. The original flavor can be puffed more than 90 times by self-heating. It can also replace the mold to make puffed food in the form of hollow stick, peanut, plum, biscuit, cross, crescent, etc. The taste is crispy and suitable for all ages;
4. Diversified extrusion products, with self-breaking forming device, equipped with molds.
5. Ingredients: Add sweet sodium, various flavors, mint, food coloring, etc. to make the puffed granules complete in color, aroma and taste.
6.The particles can float on the water surface for at least 12 hours. No water was pumped out;The diameter of feed particles is 0.9-8mm, and the length is adjustable;The particles are smooth and nutritious.
2.This puffed snack puffing machine is used for puffing and extrusion of rice, corn, sorghum rice, yellow rice and other raw materials, and can add a variety of spices;
3. The original flavor can be puffed more than 90 times by self-heating. It can also replace the mold to make puffed food in the form of hollow stick, peanut, plum, biscuit, cross, crescent, etc. The taste is crispy and suitable for all ages;
4. Diversified extrusion products, with self-breaking forming device, equipped with molds.
5. Ingredients: Add sweet sodium, various flavors, mint, food coloring, etc. to make the puffed granules complete in color, aroma and taste.
6.The particles can float on the water surface for at least 12 hours. No water was pumped out;The diameter of feed particles is 0.9-8mm, and the length is adjustable;The particles are smooth and nutritious.
SUNSHINE Industrial Pet/Fish feed extruder machine has a pair of screws and sleeves, which have the functions of mixing and kneading. After the raw materials enter the extrusion chamber, the materials are squeezed, rubbed, sheared, etc. between the screw sleeves, and the internal pressure continues to rise, up to 4Mpa, and the temperature continues to rise, up to 140 degrees Celsius. In the 3-7s time, the temperature and pressure rise sharply, and the organizational structure of the material changes, so that the starch is further gelatinized, the protein is denatured, the crude fiber is destroyed, and harmful bacteria such as Salmonella are killed. The high-temperature and high-pressure material comes out of the discharge port, and its pressure is suddenly released in an instant, and the water is partially flashed. After cooling, the material has a loose and porous structure, and the expanded material is in the form of lumps, flocs or coarse crumbs.
Product Paramenters
Pet/Fish feed extruder machine working principle of extrusion puffing:
The raw materials are fed into the screw extrusion cavity evenly by the feeder. The spatial volume of the extrusion cavity gradually decreases along the material's forward direction, and the expansion pressure on the material gradually increases. At the same time, the movement of the material in the extrusion cavity is accompanied by strong shearing, kneading and friction. Sometimes, according to needs, an electric heating plate can be installed outside the puffing cavity for auxiliary heating. As a result of the combined effect, the material temperature rises sharply, and the starch in the material gelatinizes. The whole material becomes a molten plastic colloid. At the moment when the material is discharged from the extrusion die hole, the pressure suddenly drops to 0.1Mpa, and the water quickly turns into steam and increases the volume, so that the volume of the material also expands rapidly, and the water vapor further evaporates and dissipates to reduce the water content of the material, and the temperature also drops rapidly. The material condenses immediately, and many micropores appear in the condensed colloid material. The continuously extruded columnar or sheet puffed products are cut by a rotary cutter and cooled, and sometimes they need to be dried and sprayed with additives (such as oils, vitamins, etc.) and other post-processing processes.
The structure of the pet/fish feed extruder machine:
1. The feeder is to ensure uniform and stable feeding, and adjust the feeding amount according to the rated current value of the extrusion motor. Generally, an electromagnetic speed regulating motor or a frequency converter is used for speed regulation to change the feeding amount of the feeder. The outlet of the feed hopper often uses a spiral agitator to feed the extrusion and expansion section.
2. The expansion chamber is composed of a screw, a screw sleeve, a template, a clamp, etc. The screw and the screw sleeve are combined in sections, and the compression degree can be adjusted according to the type and requirements of the extruded feed to change the expansion degree of the extruded feed.
3. The extrusion mechanism is divided into 3 sections in terms of collapse according to its function and position:
Feeding section: The screw pitch of this section is larger, and it mainly transports and compresses the material so that the material fills the spiral groove.
Compression section: The screw groove of this section of the screw changes from deep to shallow along the direction of material movement, compressing the material.
Extrusion section: The screw groove is shallower, the pitch gradually decreases, the extrusion pressure can reach 3.0-10Mpa, and the temperature can reach 120-150 degrees Celsius. This section has the highest pressure and temperature, so the wear of the screw and the sleeve is also the most serious.
The outlet of the extrusion section is a template. The shape of the template is designed with different die holes according to the needs of different feeds. The material is extruded from the die hole of the template and enters the atmosphere. The pressure and temperature drop sharply, causing its volume to expand rapidly, and the water evaporates quickly, dehydrates and solidifies to become expanded material.
2. The expansion chamber is composed of a screw, a screw sleeve, a template, a clamp, etc. The screw and the screw sleeve are combined in sections, and the compression degree can be adjusted according to the type and requirements of the extruded feed to change the expansion degree of the extruded feed.
3. The extrusion mechanism is divided into 3 sections in terms of collapse according to its function and position:
Feeding section: The screw pitch of this section is larger, and it mainly transports and compresses the material so that the material fills the spiral groove.
Compression section: The screw groove of this section of the screw changes from deep to shallow along the direction of material movement, compressing the material.
Extrusion section: The screw groove is shallower, the pitch gradually decreases, the extrusion pressure can reach 3.0-10Mpa, and the temperature can reach 120-150 degrees Celsius. This section has the highest pressure and temperature, so the wear of the screw and the sleeve is also the most serious.
The outlet of the extrusion section is a template. The shape of the template is designed with different die holes according to the needs of different feeds. The material is extruded from the die hole of the template and enters the atmosphere. The pressure and temperature drop sharply, causing its volume to expand rapidly, and the water evaporates quickly, dehydrates and solidifies to become expanded material.
SUNSHINE Industrial Pet/Fish feed extruder machine features:
1. The internationally advanced pelletizing structure adopts the soft knife fitting form to achieve stepless speed change, and can cut the output material into the required length products at will, and it is not easy to produce burrs.
2. The design is novel and unique, the structure is simple, easy to install and disassemble, and easy to operate.
3. The screw sleeve and screw are made of special wear-resistant and high-temperature alloy steel materials, and are formed by heat treatment, which has the advantages of wear resistance and long life.
4. A unique booster die device is set inside to ensure the feed yield and quality; and an electric heating device is equipped to improve the feed expansion rate.
5. The main motor adopts a high-quality Y series three-phase motor to ensure strong power.
6. The speed-adjusting feeding device is more convenient to operate, the feeding is uniform, and the machine is prevented from being blocked.

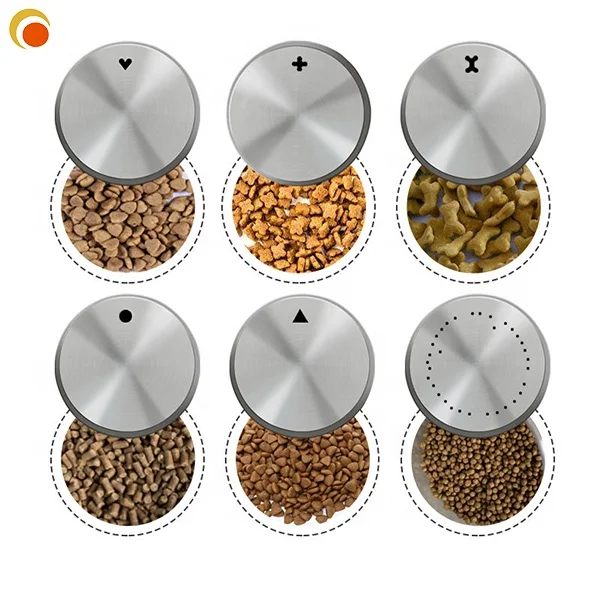

7. The discharge template is easy to replace. If you need feed with different apertures, you only need to replace the required aperture template.
8. The floating pellet extruded feed produced can float on the water surface for at least 12 hours without being scattered. Fish and poultry like to eat and are easy to digest. Artificial observation of the food intake of frogs and fish can be convenient, which will not cause feed waste and will not pollute the water quality. The material is effectively killed by high temperature and high pressure, such as E. coli and salmonella, which ensures the hygiene of the feed, is conducive to the denaturation and absorption of protein and the gelatinization of starch, and is easy for fish and livestock to absorb. Generally, the use of puffed floating fish feed saves 8%-15% of feed compared with powdered or granular feed.
9. It can produce sinking aquatic products and livestock pellet feed, which can eliminate most of the toxins and anti-nutritional factors of antitrypsin and urease contained in the material, thus facilitating the digestion and absorption of animals and improving the digestibility and utilization rate of nutrients.
2. The design is novel and unique, the structure is simple, easy to install and disassemble, and easy to operate.
3. The screw sleeve and screw are made of special wear-resistant and high-temperature alloy steel materials, and are formed by heat treatment, which has the advantages of wear resistance and long life.
4. A unique booster die device is set inside to ensure the feed yield and quality; and an electric heating device is equipped to improve the feed expansion rate.
5. The main motor adopts a high-quality Y series three-phase motor to ensure strong power.
6. The speed-adjusting feeding device is more convenient to operate, the feeding is uniform, and the machine is prevented from being blocked.
7. The discharge template is easy to replace. If you need feed with different apertures, you only need to replace the required aperture template.
8. The floating pellet extruded feed produced can float on the water surface for at least 12 hours without being scattered. Fish and poultry like to eat and are easy to digest. Artificial observation of the food intake of frogs and fish can be convenient, which will not cause feed waste and will not pollute the water quality. The material is effectively killed by high temperature and high pressure, such as E. coli and salmonella, which ensures the hygiene of the feed, is conducive to the denaturation and absorption of protein and the gelatinization of starch, and is easy for fish and livestock to absorb. Generally, the use of puffed floating fish feed saves 8%-15% of feed compared with powdered or granular feed.
9. It can produce sinking aquatic products and livestock pellet feed, which can eliminate most of the toxins and anti-nutritional factors of antitrypsin and urease contained in the material, thus facilitating the digestion and absorption of animals and improving the digestibility and utilization rate of nutrients.
Product packaging
We use plywood case for packaging,delivery by sea/air/train/car/DDP

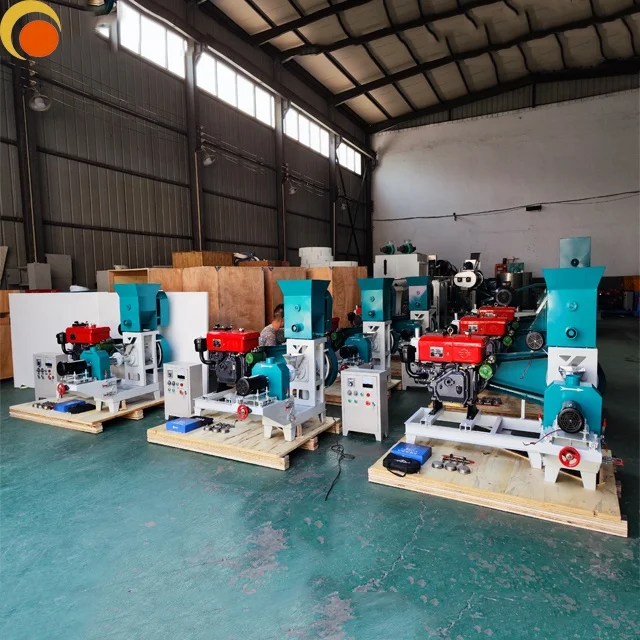

Factory & Customer Real Shots
Customer Testimonials
Related Products
Company Profile
Henan Sunshine Industry Co.,Ltd is a manufacturing enterprise,integrating scientific research,production and marketing.The mainproducts are feed pellet machine and feed pellet production line,fish feed extruder machine .Our company regards the product quality as the life of our exterprise.We have ISO,CE,SGS certificate.Our pellet machines are the recommended products in China machinery industry.,At the same time, we are also introducing international advanced technologies and processes, coupled with a comprehensive and complete modern production operation management system. High-quality requirements,excellence in manufacturing,and long-term and extensive technical experience have continuously improved the quality of our company's products and services.All products and projects can run effectively, stably and reliably,Win a great reputation in domestic and abroad.We have exported more than 100countries like USA,Ecuador,Peru, Germany,Mexico, Canada, Spain, Tanzania,Saudi Arabia,Russia,Singapore, Thailand,India etc.Quality is life,Efficiency is guarantee,service is foundation,Innovate is our motive power,reputation is premise,Brand is target.
FAQ
Q:I know little for feed machine and production line, what should i do?
Q.How do you control the quality?
A: We insist on "quality is life" and always pay great attention to quality control from beginning to end. Our one-year warranty and CE&SGS certificate also give you peace of mind.
Q:If the machine has a little problem when produce and can not solve, what should i do?
A:Please tell us your requirement, such as what kind of feed you want produce, the output you want per hour, how many raw materials you use and so on, we will design the flow diagram for you, and further our engineer will designer the whole feed factory for you depend on your site.
Q:Our worker can not know how to operate the production line, what should i do?
A:We have installation and after-sale service team, our engineer can go to give customer installation guide. If customer need, our whole engineer team also go to customer's country.
Q.How do you control the quality?
Q:If the machine has a little problem when produce and can not solve, what should i do?
A: Please contact us immediately, by email, WhatsApp, WEChat or telphone. Our worker will give you the solution.
Похожие товары

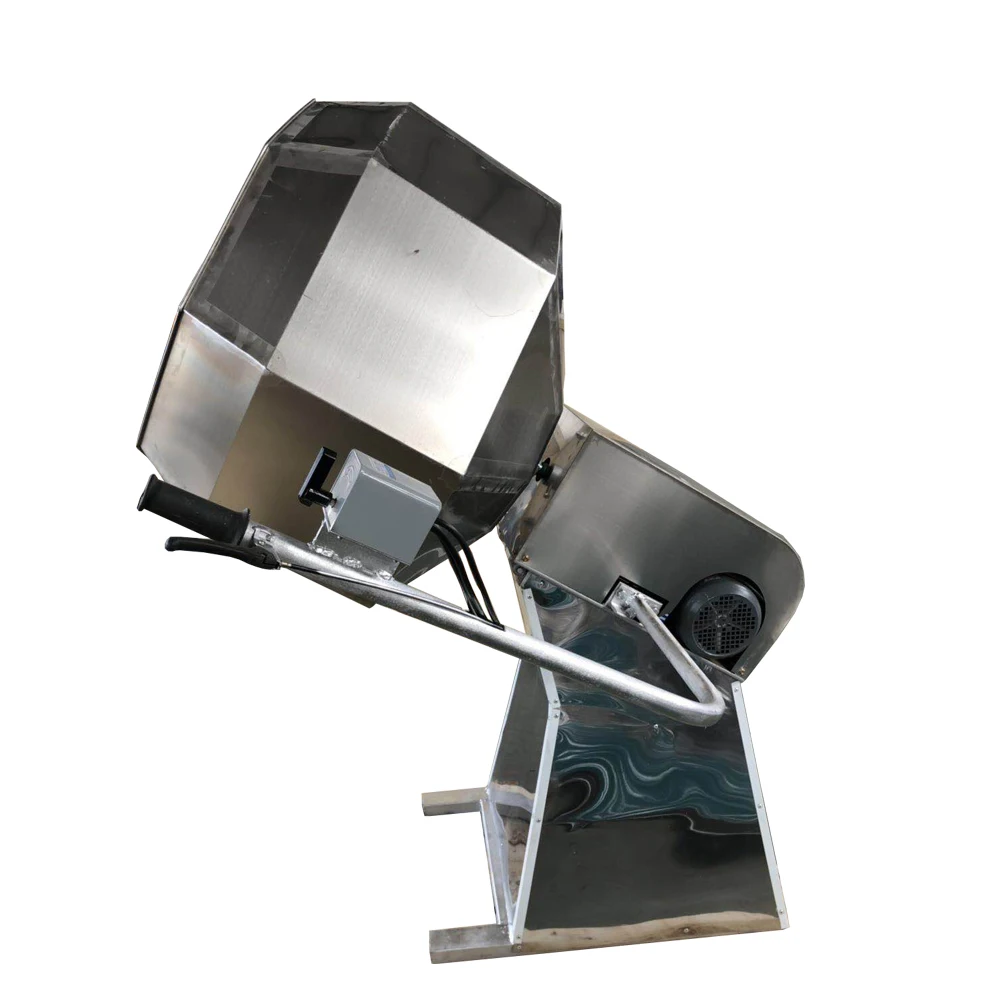

Миндальная машина для смешивания ароматизаторов шоколада смеситель орехового покрытия
Кукурузная мельница
32,00-37,50 $

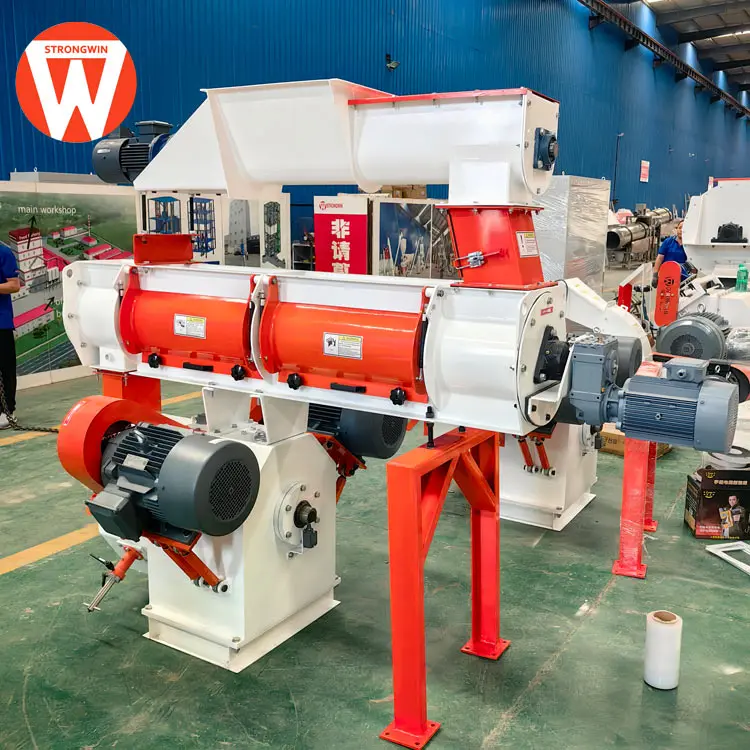

Машина для обработки кормов Strongwin мельница мелкого корма животных 1000 кг 2000
Автоматическая машина для производства древесных опилок
350,00 $

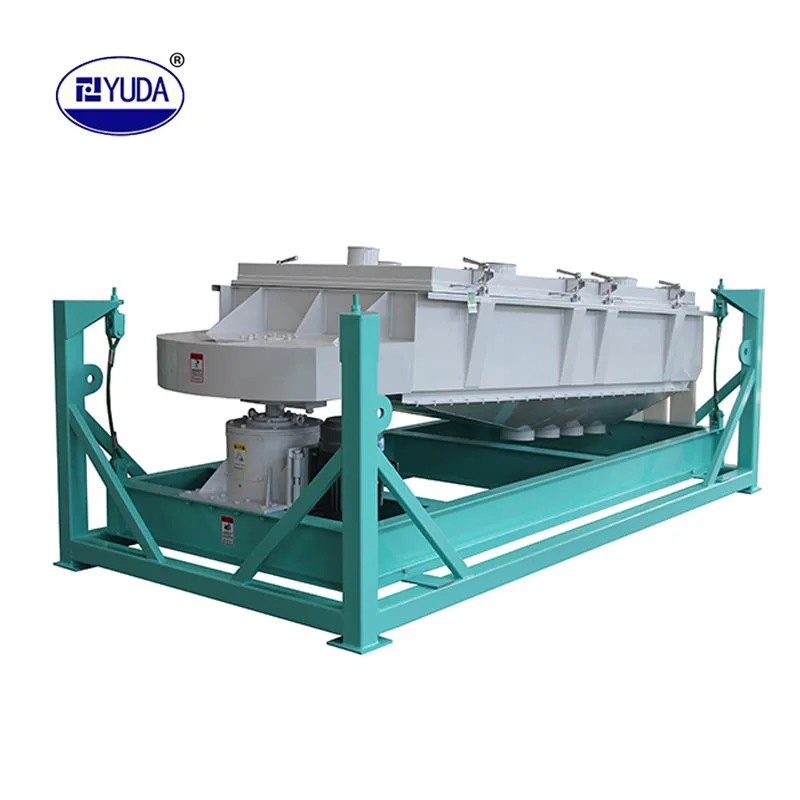

Серия YUDA SFJH ротационный просеиватель для кормов животных
