Factory Direct sale Concrete Mixer with Pump Diesel engine drive concrete mixer pump with 100m pipes






Product Description

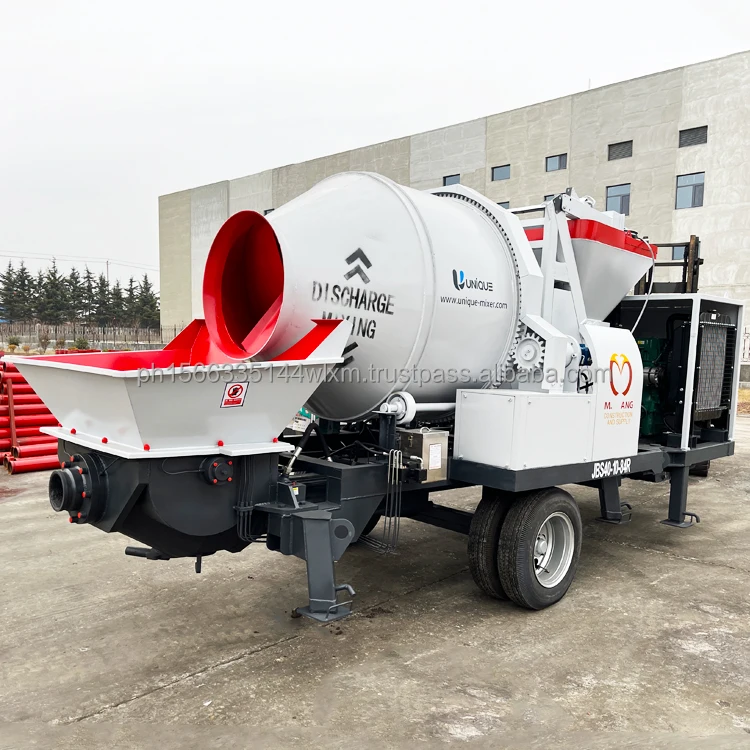

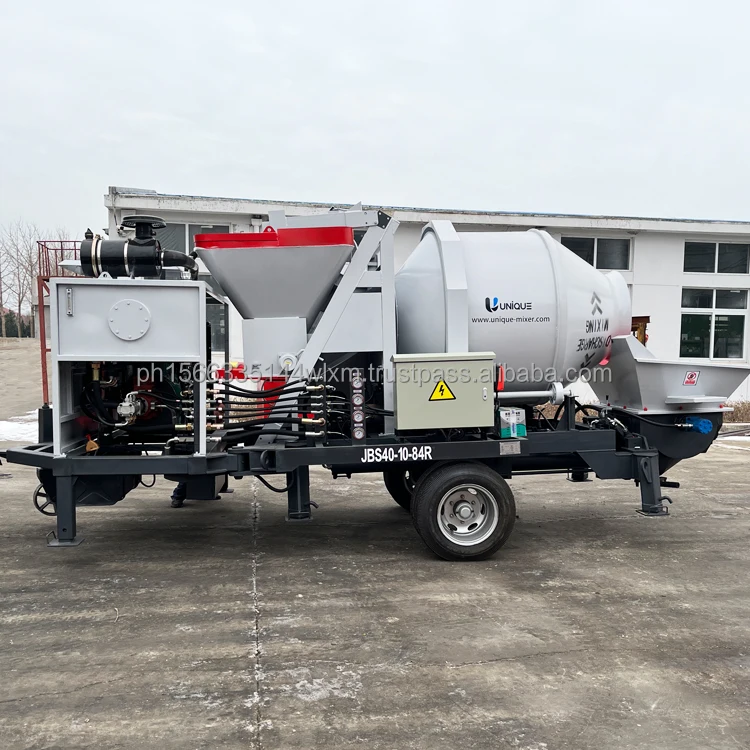

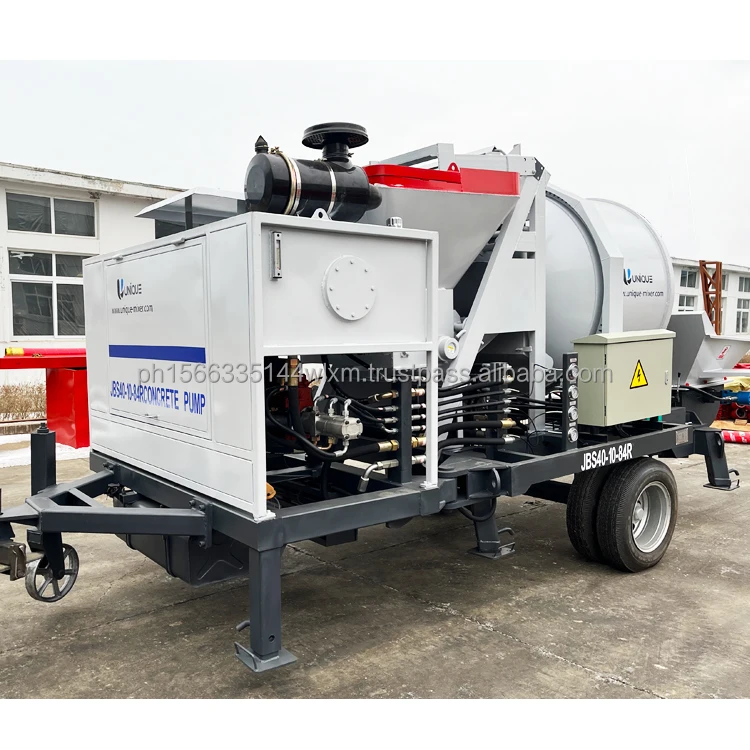

JBS concrete mixer with pump is combines the concrete mixer and concrete pump together, achieving integration of pump station.





1. It combines mixer and pump together, easy and flexible to move, high mobility.
2. It can be done by only one operator to complete mixing and pumping, saving labors.
3. The machine has two functions. Mixer and pump can work independently, also can join each other quickly without dismounting the machine.







JBS40-40JBS40-45































































































































Concrete

JBS30




JBS40




JBS30




JBS40
















Transfer Pump













Max. theoretical output



30m3/h




40m3/h




30m3/h




40m3/h



Theo. pumping pressure



9Mpa




10Mpa




10Mpa




10Mpa



Max. conveyor height



140m




160m




140m




160m



Max. distance



350m




500m




350m




500m



Distribution cylinder



The S tube placed valve



Power type



Motor




Motor




Diesel




Diesel



Motor power



37kw




45kw




62kw




82kw



Main oil pump capacity



71ml/min




112ml/min




71ml/min




112ml/min



Hopper capacity



550L




550L




550L




550L



Max. aggregate diameter



20/30mm




30/40mm




20/30mm




30/40mm








Concrete Mixer


Loading capacity



560L




720L




560L




720L



Unloading capacity



350L




450L




350L




450L



Mixing motor



5.5x2kw




5.5x2kw




/




/



Hoisting motor



4.5kw




4.5kw




/




/






Total



Dimension



4270x2350

x2980mm




4800x2200

x2800mm




4800x2200

x2800mm




6000x2200

x2800mm



Weight



3300kg




5000kg




5500kg




6000kg






JBS details-1JBS details-2

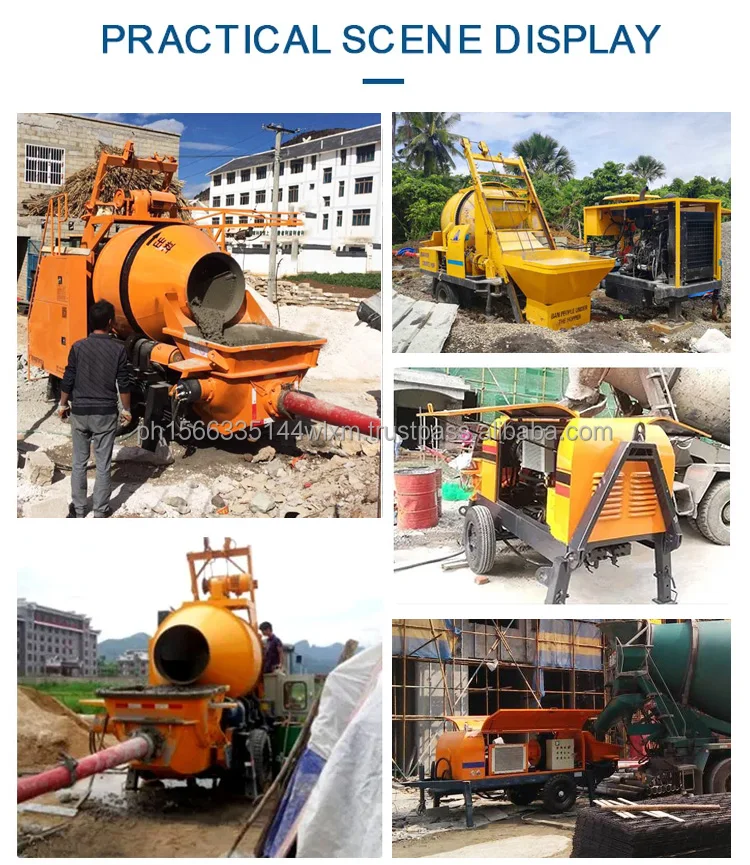

JBS-application 4.jpg

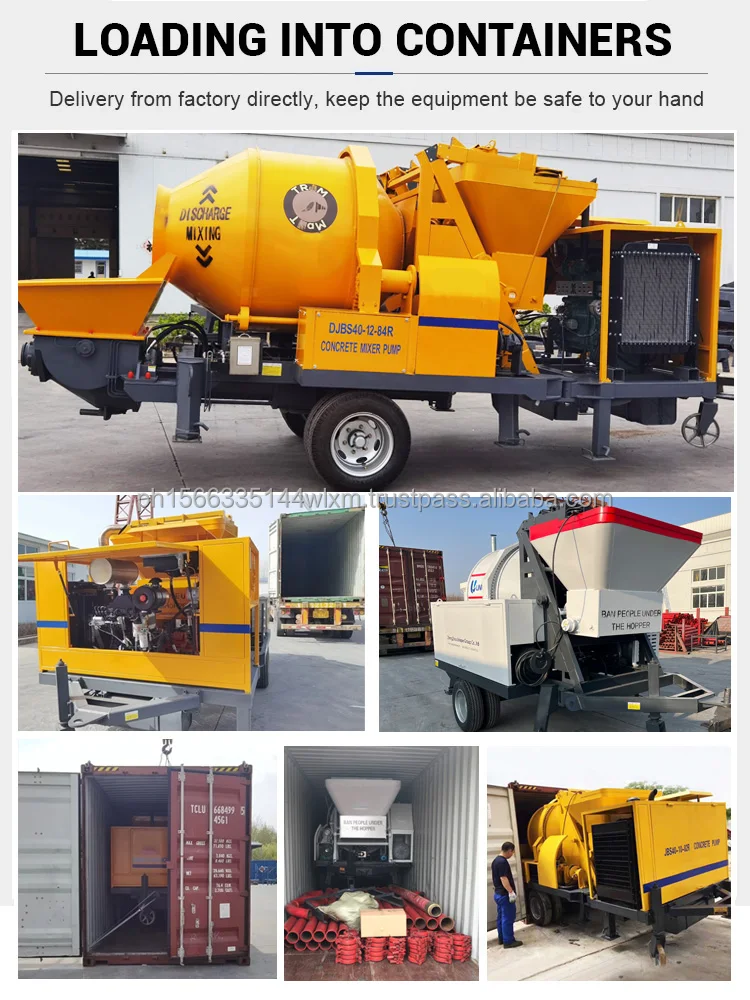

Packaging & Shipping


JBS Ship -1.jpg





Company Information


Zhengzhou Unique Industrial Equipment Co., Ltd is a leader in the R&D, manufacture, and distribution of Construction Machinery in China. Our main products are : Concrete Mixers, Concrete Mixing Plants, Mobile Concrete Batching Plants, Tower Cranes, Building Hoists, Concrete Pumps and Block Making Machines and etc…










Certificate-1








customer show


JS2000-9JS2000-10





FAQ


Q1: Are you trading Company or Factory?
We are factory. We have been engaged in the production of concrete machine for more than 30 years.





Q2: What's the lead time for regular order?
Generally it is around 7 days if the goods in stock. If there is no goods in stock, it will be about 20 days, subject to the quantity you ordered.





Q3: What is your payment method?
30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.





Q4: What is the capacity of your concrete mixer pump?
We have 30m-40m3/h, diesel or electric two types.





Q5: How long and high you want to pump?
We can provide 2 floors to 12 floors. Please let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.





Q6: Do you provide after-sale service?
Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.





Q7: Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.
