1 5 МВт централизованный преобразователь постоянного тока высокой мощности
- Категория: >>>
- Поставщик: Zhejiang Shengyang New Energy Co. Ltd.
Сохранить в закладки 1601180450971:
Описание и отзывы
Характеристики
Products Description
Features: 1. Three level topology, with a maximum efficiency of 99%
2. Equipped with bidirectional converter and battery management
3. Intelligent stepless speed regulation, wide temperature operation capability, 45 "C without derating
4. Wide DC working voltage range, flexible DC terminal configuration
5. Highly integrated, small footprint, convenient and efficient transportation, lifting, installation, and maintenance
6. Capable of PO, VF, SVG, VSG, and other functions
7. Supports high/low voltage traversal
8. Equipped with anti islanding protection function
9. Multiple communication interfaces, including Ethernet, RS485, CAN, etc., supporting various communication methods such as IEC61850, IEC104, Modbus, CAN, etc
2. Equipped with bidirectional converter and battery management
3. Intelligent stepless speed regulation, wide temperature operation capability, 45 "C without derating
4. Wide DC working voltage range, flexible DC terminal configuration
5. Highly integrated, small footprint, convenient and efficient transportation, lifting, installation, and maintenance
6. Capable of PO, VF, SVG, VSG, and other functions
7. Supports high/low voltage traversal
8. Equipped with anti islanding protection function
9. Multiple communication interfaces, including Ethernet, RS485, CAN, etc., supporting various communication methods such as IEC61850, IEC104, Modbus, CAN, etc
Model | CRF-LYP PCS-1500/0.69-N | CRF-LYP PCS-1725/0.69-N |
Communication access method | Three phase three wire | Three phase three wire + PE |
Rated AC power | 1500kW | 1725kW |
Overload capacity | 110%: Continuous operation | 110%: Continuous operation |
120%: not less than 1 minute | 120%: not less than 1 minute | |
Maximum current | 1380A | 1588A |
Rated grid frequency | 50Hz | 50Hz |
Grid frequency range | 45~55Hz | 45~55Hz |
THD | ≤ 3% (rated power) | ≤ 3% (rated power) |
Rated output voltage | 690V | 690V |
Output voltage range | 669~710.7Vac | 669~710.7Vac |
DC voltage range | 1000V~1500V | 1000V~1500V |
Maximum DC current | 1500A | 1936A |
Charge discharge conversion time | ＜80ms | ＜80ms |
Size | 1000*2340*1400mm | 1000*2340*1400mm |
Weight | ＜1700KG | ＜1700KG |

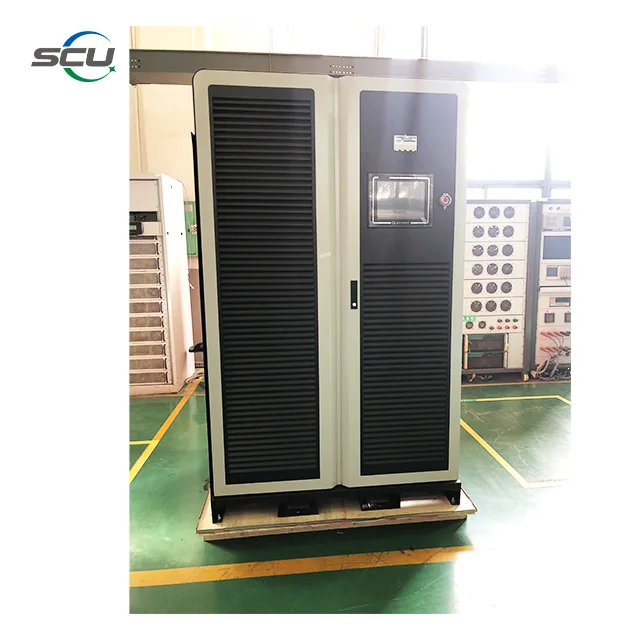

High Power Energy Storage Converter
This product is a high-power centralized energy storage converter that can achieve AC/DC conversion between the power grid and the battery, completing bidirectional energy flow between the two. It is the main actuator and core component of the energy storage
system. This product has multiple operating modes such as PQ and VF.VSG, and has functions such as real-time adjustable active and reactive power, primary frequency regulation, and high and low voltage traversal. Through advanced control strategies, it can
achieve charging and discharging management of the battery system.
system. This product has multiple operating modes such as PQ and VF.VSG, and has functions such as real-time adjustable active and reactive power, primary frequency regulation, and high and low voltage traversal. Through advanced control strategies, it can
achieve charging and discharging management of the battery system.
Product Packaging

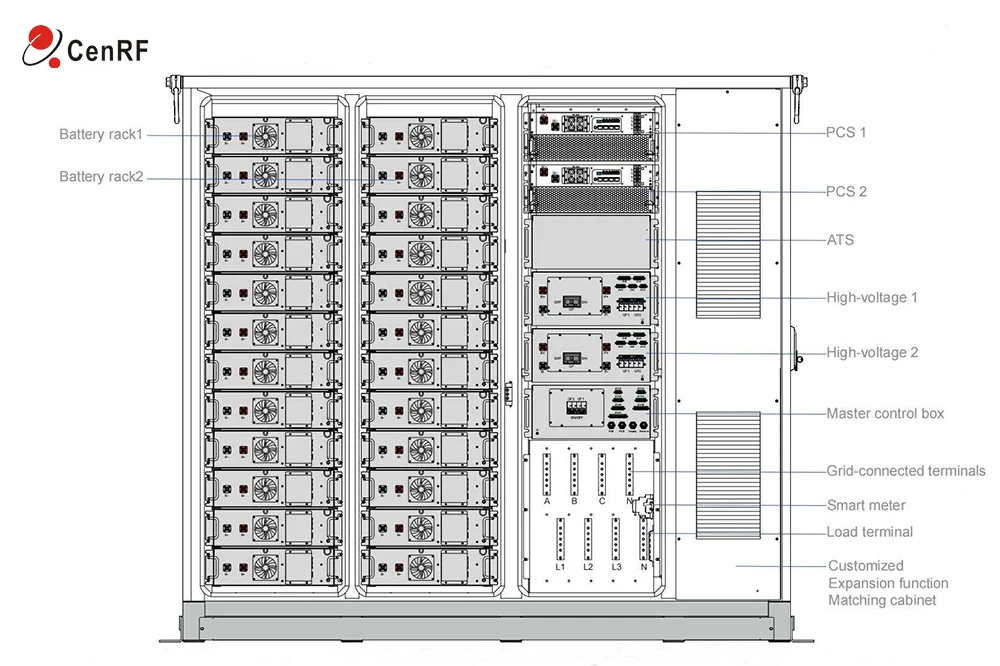

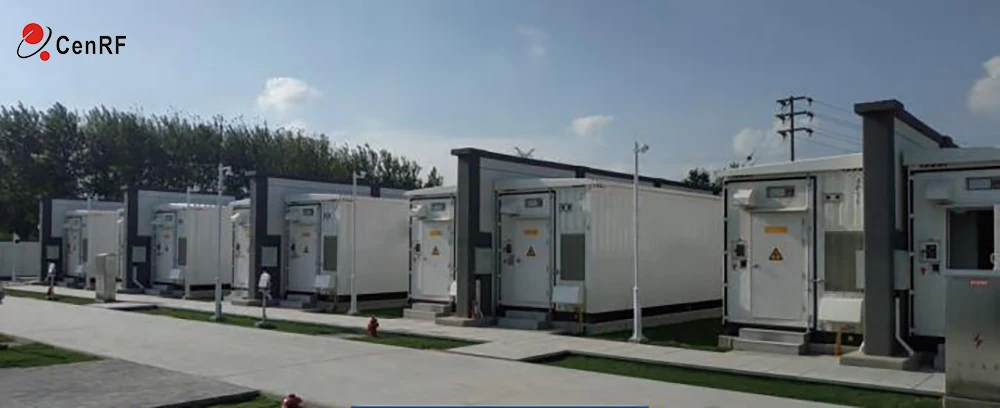

Engineering Pictures
Company Profile
Zhejiang Shengyang New Energy Co., Ltd.
Zhejiang Shengyang New Energy Co., Ltd., a new energy company established in 2000, is mainly engaged in energy storage battery pack, portable power supply, household energy storage system, inverter and other products to respond to the national goal of carbon neutrality, reduce carbon emissions and bring green new energy to the world.
Shengyang is willing to create maximum value for the interests of customers,since its establishment, we have obtained 8 patents, and been recognized as a national high-tech enterprise. We have passed the ISO9001 quality management system certification, and our products have obtained CE, MSDS, IEC and other international certification.
Certifications
Service Guarantee
FAQ
Q：Are you a factory or trading company?
A：We are a group company, an enterprise integrating industry and trade,welcome to visit our factory.
Q:What is the delivery time?
A:The lead time for stock delivery is 3-7 working days. The production lead time of futures is 15-30 working days according to the quantity of orders.
Q:Do you have OEM&ODM service?
A:The content that the product can be customized is not limited to color, logo, shape, packaging, etc. You can send us the details you need to customize.
Q:Can your company provide Technical Support?
A:Yes. We have experienced technical experts who are willing to help you deal with technical problems.And we do test every component after installation to ensure we've delivered the signal solution you needed.
Q:How to get the price list?
A:The buyer provides the company information and specific procurement requirements. We will provide our company's product catalog and price list.
Q:How to become our agent and partner?
A:Having a strong willingness to cooperate and having industry background and resources Welcome to contact us: Cell phone: +86 18969122786 Email: sales@cenrf.com
Похожие товары

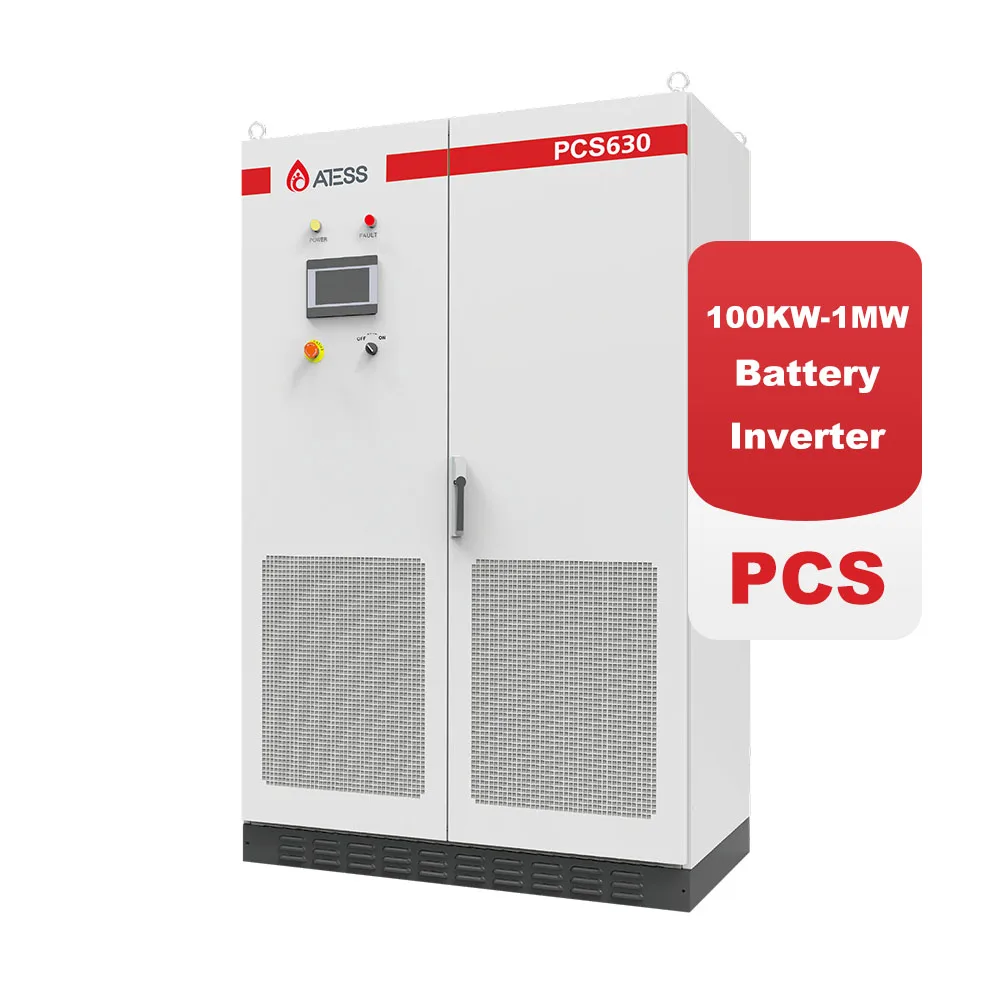

Двунаправленный инвертор 100 кВт-1000 кВт для системы применимый как переменного так и постоянного тока преобразования солнечного инвертора
Система преобразования мощности 30 кВт шт. автономный и встроенный солнечный инвертор двунаправленный

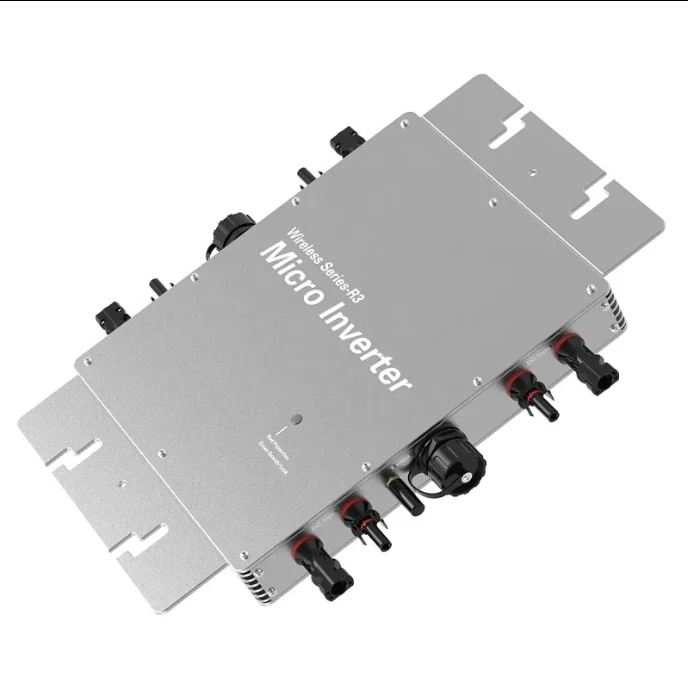

Лидер продаж 12 лет производитель 2000 Вт 2400 водонепроницаемый солнечный инвертор IP67 микро
4 396,22 ₽

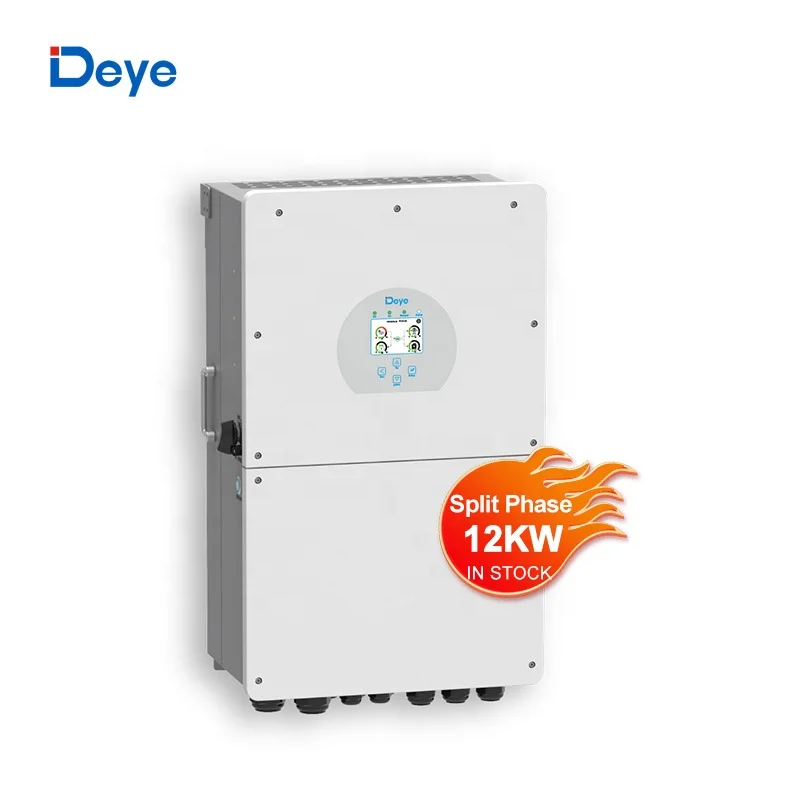

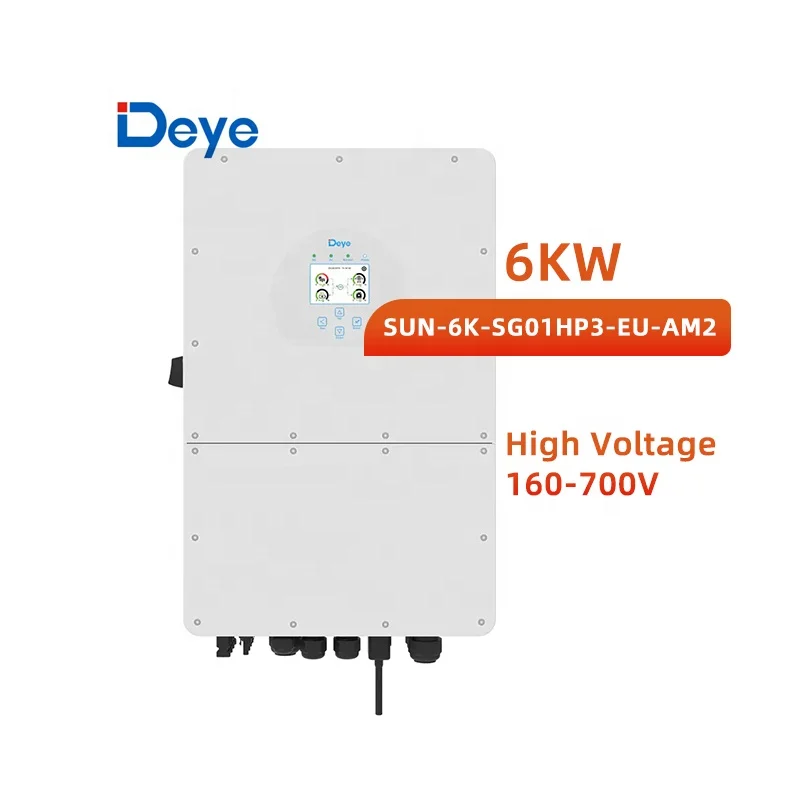

Deye SUN-6/8/10/12/15/20K-SG01HP3-EU-AM2 10 кВт 12 20 трехфазный Гибридный инвертор для хранения энергии с высоковольтной батареей
110 098,20 ₽ - 127 290,71 ₽
Модульный преобразователь для солнечной энергии двунаправленный переменного тока в постоянный ток встроенный модуль постоянного MPPT
1 267 396,60 ₽ - 1 322 500,80 ₽
Однофазный Гибридный солнечный инвертор Deye DC с соединением переменного тока 5 кВт 6 10 12 аккумулятором 48 В LiFePO4
146 466,97 ₽ - 163 108,44 ₽

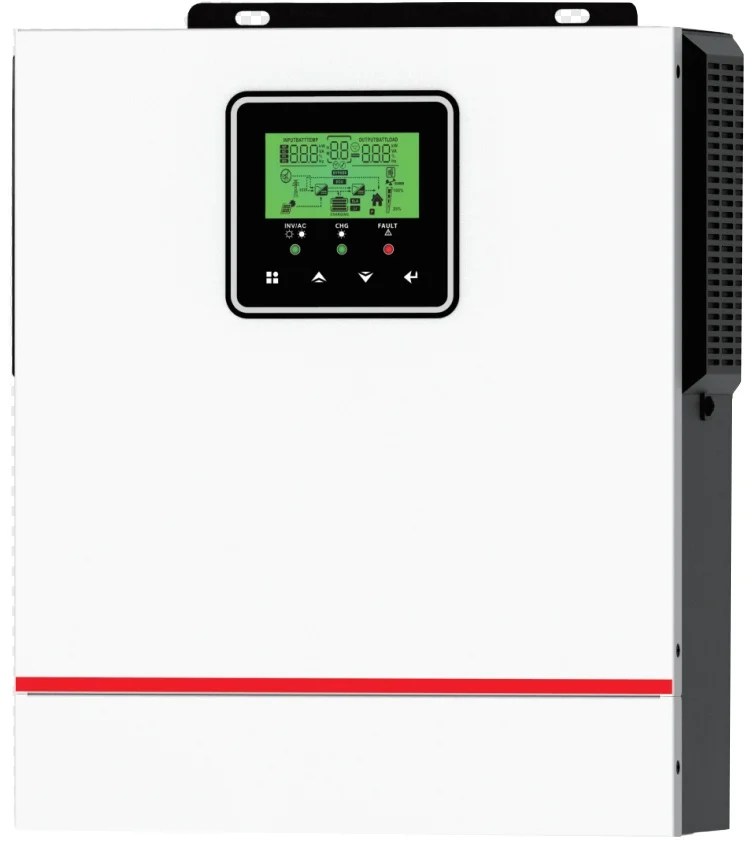

KZL2415S401500VA/1500 Вт автономный Однофазный инвертор 24 В аккумулятор 40 А MPPT 30-150 1200 PV-Преобразователь мощности IP65 трансформатор
