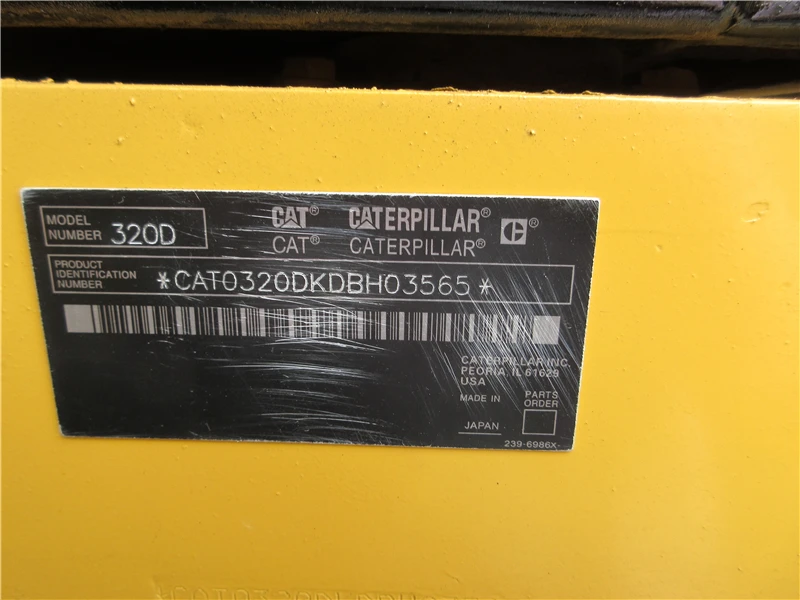

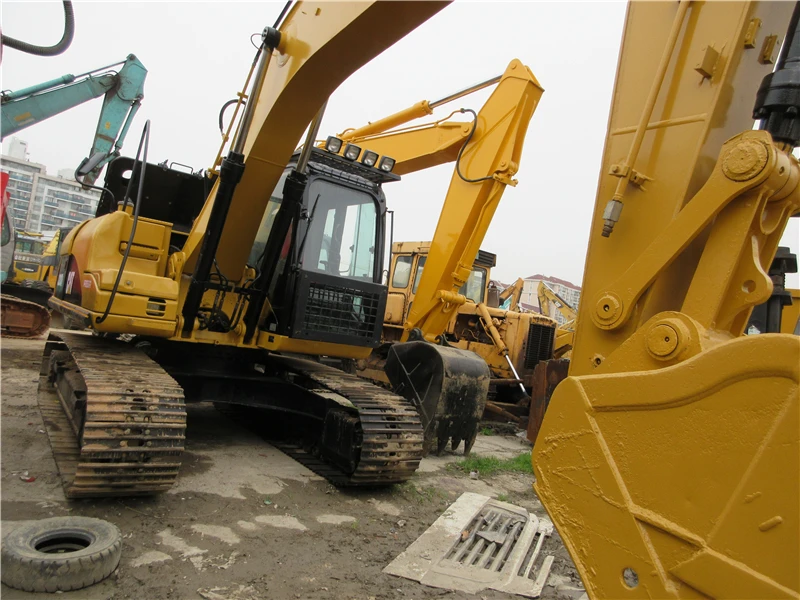

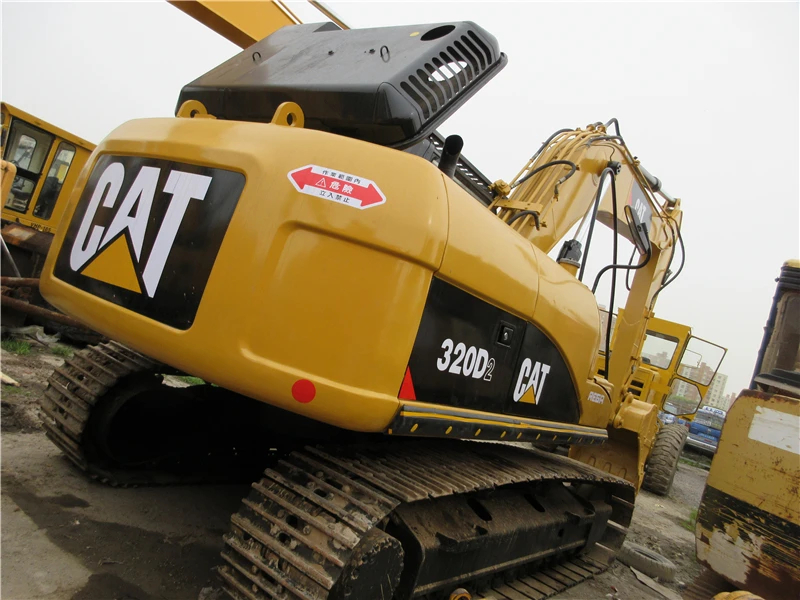

Parameter configuration of Caterpillar 320D hydraulic excavator

specifications

Working weight of the whole machine (kg) 20930

Bucket capacity (m ³) one

Boom length (mm) 5700

Stick length (mm) 2900

Origin Xuzhou

Tonnage (ton) 20

Power Traditional Power

Bucket Backhoe

Manufacturer joint venture/import

Power Traditional Power

performance

Rotation speed (rpm) 11.5

Walking speed (km/h) 3.5/5.7

Climbing ability (%) 70/35 °

Ground specific voltage (Kpa) 6

Bucket excavation force (kN) 140.1

Dipper arm excavation force (kN) 106.4

dynamic system

Engine model Carter C6.4ACERT

Rated power (kW/rpm) 103/2000

Displacement (L) 6.37

Number of cylinders (6)

Cylinder diameter x stroke (mm) 102 x 130

Cooling method: water cooling

hydraulic system

Maximum flow rate of main pump (l/min) 205

Working hydraulic oil circuit (Mpa) 35

Hydraulic circuit for walking (Mpa) 35

Rotary hydraulic circuit (Mpa) 25

Pilot oil circuit (MPa) 3.9

Boom oil cylinder - number x cylinder diameter x stroke (mm) 2-120 x 1260

Stick oil cylinder - number x cylinder diameter x stroke (mm) 1-140 x 1504

Bucket oil cylinder - number x cylinder diameter x stroke (mm) 1-120 x 1104

Is the hydraulic crushing pipeline standard? No

Oil capacity

Fuel tank (L) 410

Hydraulic oil tank (L) 120

Hydraulic system (L) 260 (including oil tank)

Engine oil change quantity (L) 30

Cooling liquid (L) 25

Main body size

Total length of transportation (mm) 9460

Total transportation width (mm) 2800

Total transportation height (mm) 3050

Full height of cab (mm) 2950

Balance weight ground clearance (mm) 1020

Track grounding length (mm) 3265

Total length of track (mm) 4075

Track shoe width (mm) 600

Total width of track (mm) 2800

Track gauge (mm) 2200

Minimum ground clearance (mm) 450

Rear end turning radius (mm) 2750

Scope of work

Maximum excavation radius of the parking surface (mm) 9850

Maximum excavation depth (mm) 6710

Maximum excavation height (mm) 9840

Maximum unloading height (mm) 6500

Maximum vertical excavation depth (mm) 6180

Maximum effective excavation depth (mm) 6540

Bulldozer width x height (mm) without bulldozer blade

Bulldozer lifting or pushing depth (mm) without bulldozer
