215 Профессиональный эквалайзер двойной 15 полосный аудио процессор графический для дома звуковой системы

Сохранить в закладки 1601180569888:


Цена:21,99-23,99 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description

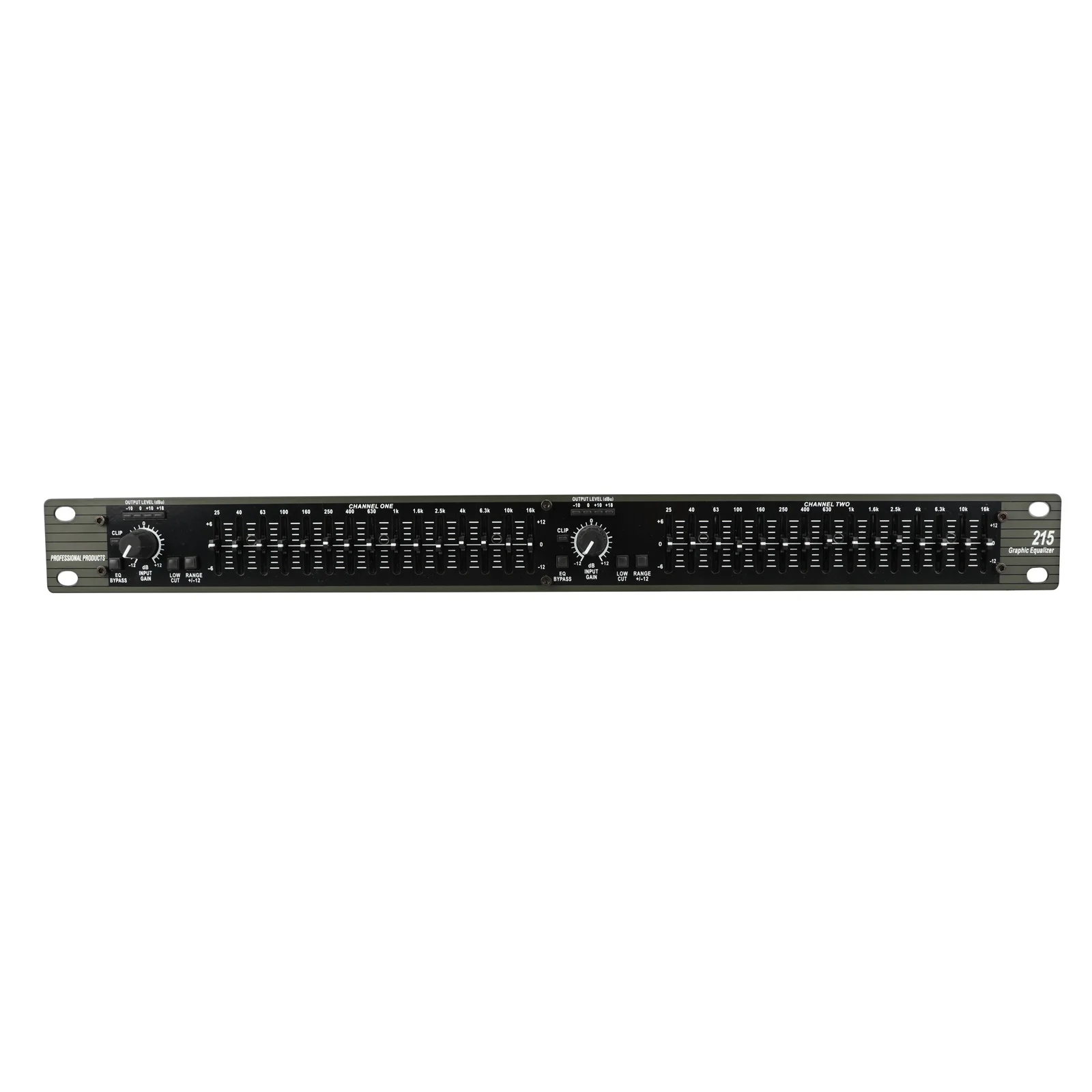

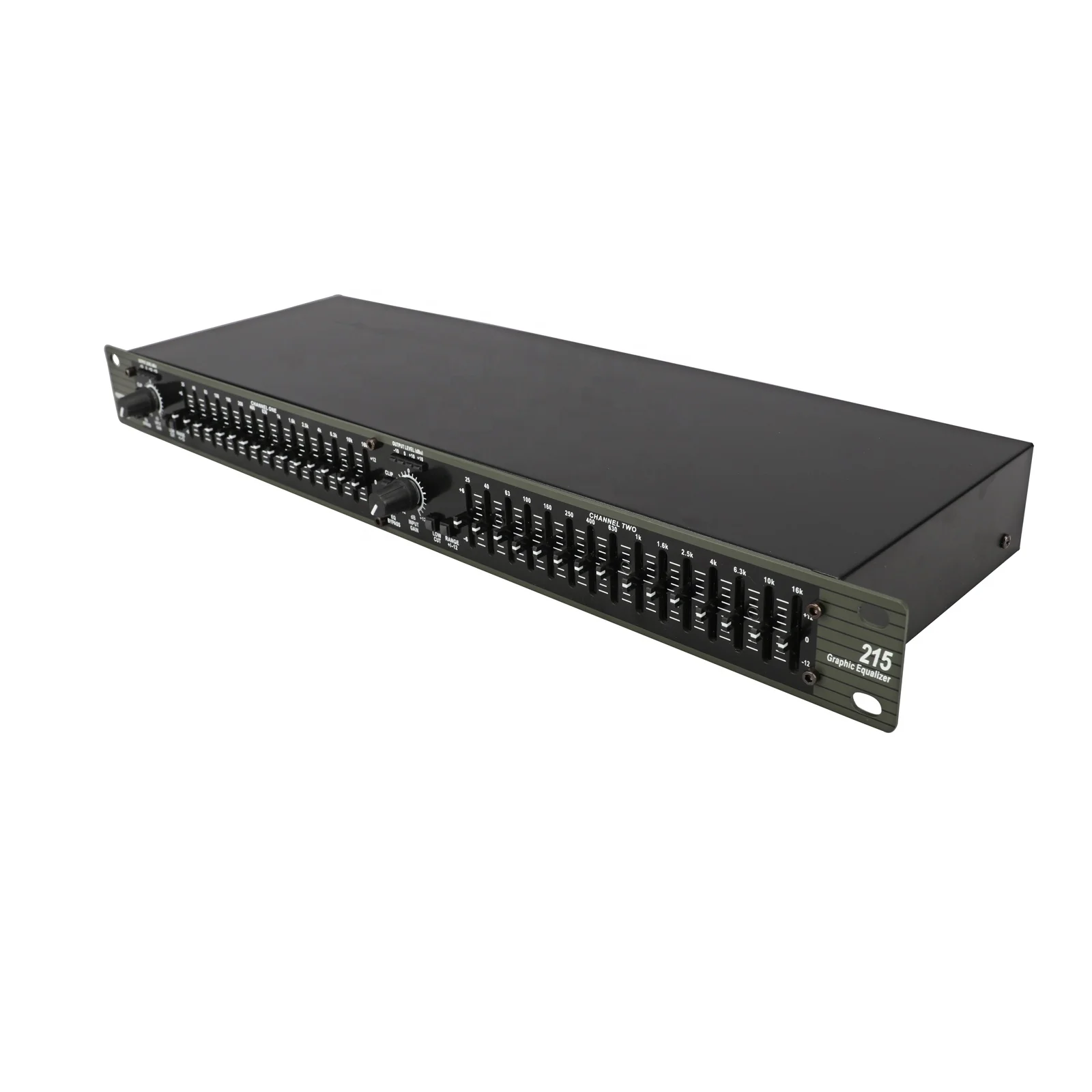

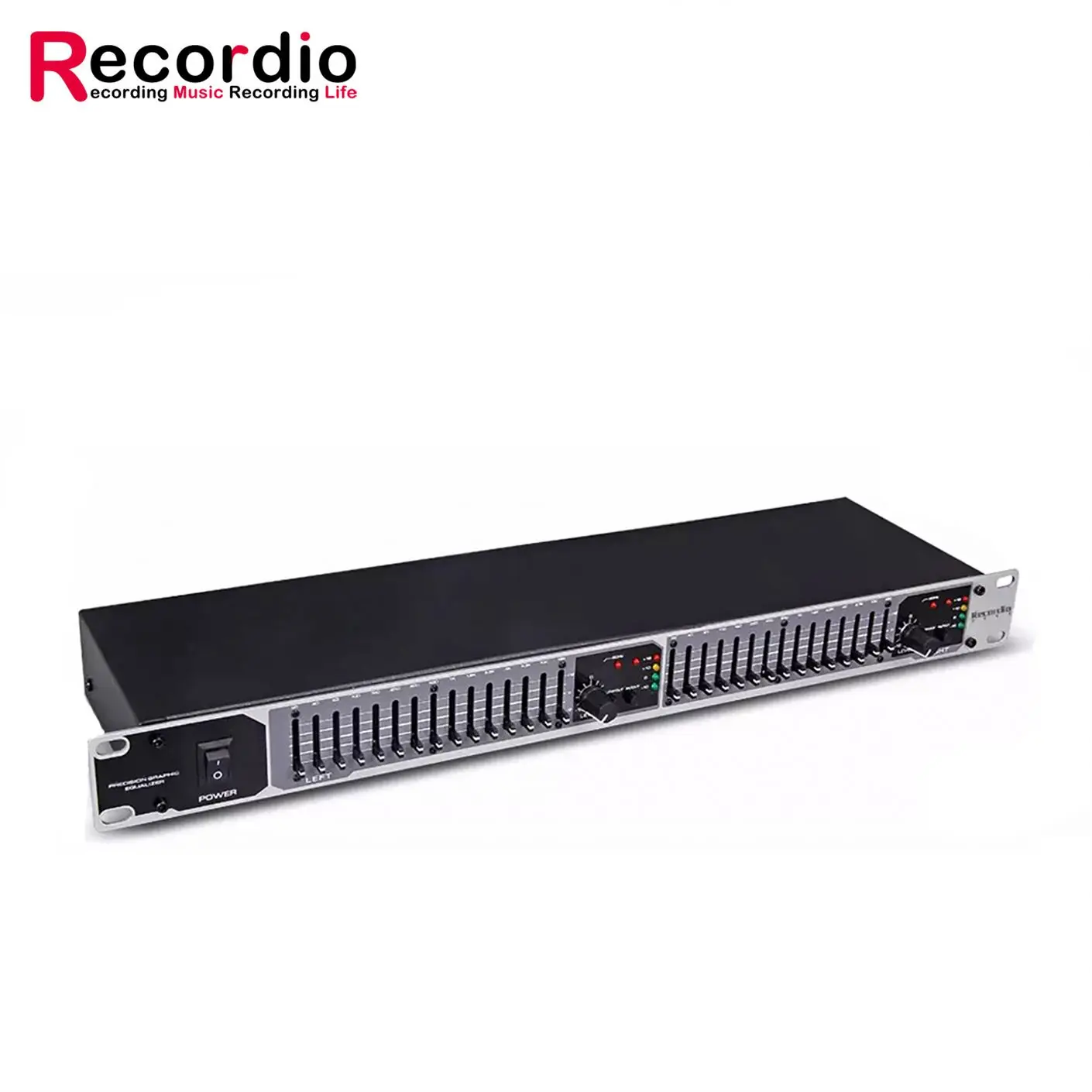

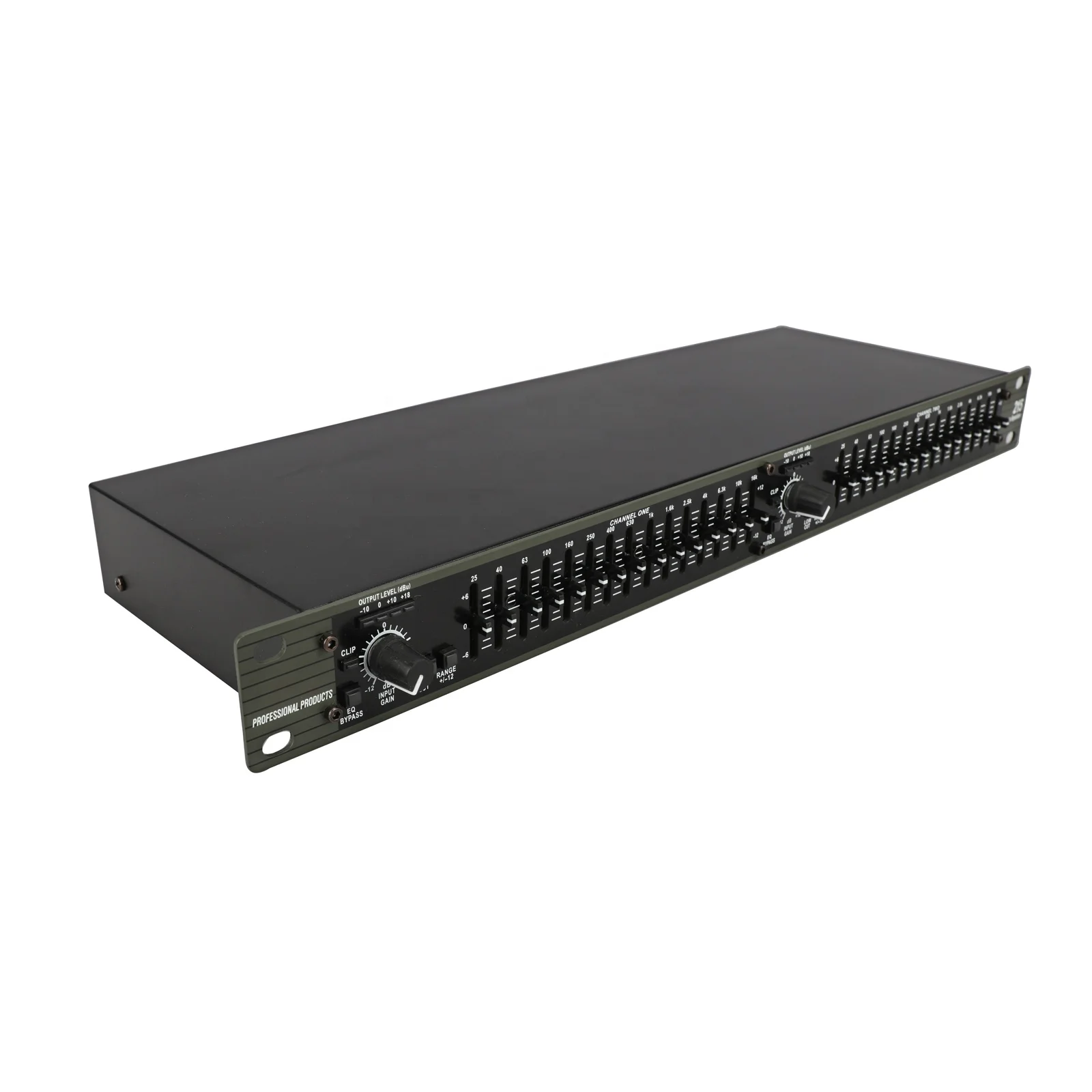

product description.png215SUB Professional Equalizer Audio Processor Audio Graphic Equalizer for Sound System

























Model215
Features




Dual 15-band,1/3-octave Constant Q frequency bands


Switchable boost/cut ranges of ± 6 or ± 12 dB


Front panel bypass switch


±12 dB input gain range


4-segment LED ladders for monitoring output levels


XLR and TRS Inpts and Outputs


Frequency Response of <10Hz to >50kHz


Dynamic range of greater than 108dB





Specifications

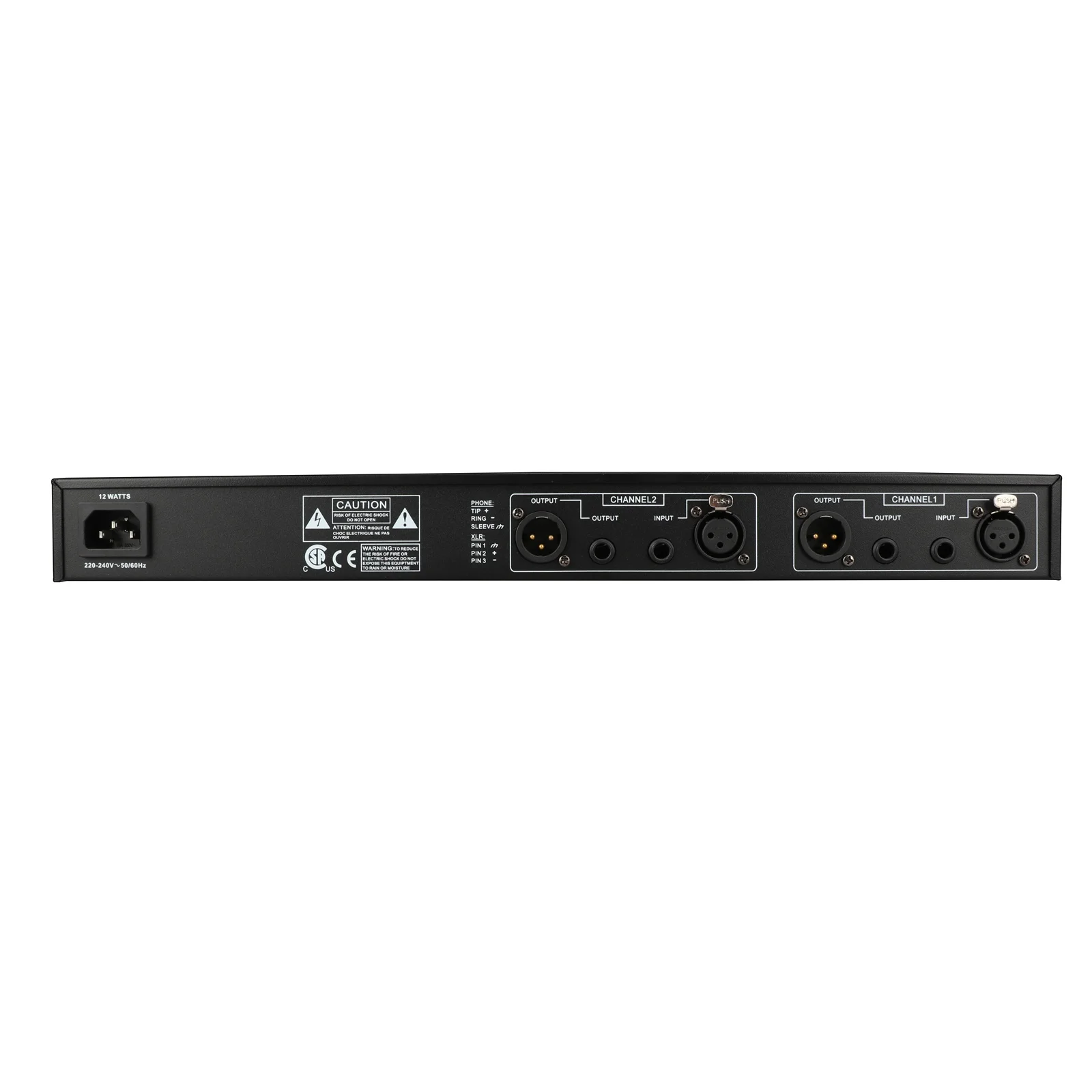

Input Connectors: 1/4" TRS, female XLR (pin 2 hot)


Input Type: Electronically balanced/unbalanced, RF filtered


Input lmpedance: Balanced 40 kOhm, unbalanced 20 kOhm


Max Input: >+21dBu balanced or unbalancedCMRR: >40dB, typically >55dB at 1kHz


Output Connectors: 1/4" TRS, male XLR (pin 2 hot)


Output Type: lmpedance-balanced/unbalanced, RF filtered


Output Impedance: Balanced 100 ohm, unbalanced 50 ohm


Max Output: >+21dBu balanced/unbalanced into 2 kOhm or greater;>+18dBm balanced/unbalanced (into 600 ohm)


Bandwidth: 20Hz to 20kHz,+0.5/-1dB


Frequency Response:<10Hz to >50kHz,+0.5/-3dB


Dynamic Range: Typically >112dB


Signal to Noise Ratio: Typically >95dBTHD+Noise: <0.003%
Interchannel Crosstalk: <-90db, 20Hz to 20kHz


Bypass Switch: Bypasses the graphic equalizer section in the signal path


Low cut Switch: Activates the 50Hz 12dB/octave Bessel high-pass filter


Range Switch: Selects either +/- 6dB or +/- 12dB slider boost/cut range


Operating Voltage: 100VAC-240VAC 50/60Hz


Power Consumption: 15W
Power Connector: lEC receptacle


Unit Weight: 4.8 lbs.(2.2 kg)
Shipping Weight: 6.2 lbs.(2.8kg)


Dimensions:1.75"(4.4cm)Hx6'(15.24cm)D x19'(48.26cm)W





Packing57.5*30*64CM/10pcs/27.5KG











Production workshop







Company Information


 company profile...png


Enping XUNGUAN Electronics Co., Ltd. is located in the audio production base in China - Enping City, Jiangmen, Guangdong Province, with more than 10 years experience in Audio development. Our main products include mixing console, power amplifier, wireless microphone, speaker, wired microphone, feedback suppressor, audio processor, equalizer, compressor, processor, etc. OEM and ODM are welcome.


Fast shipment and good after-sales service can save your time. More fresh designs gives you full service.


company profile..jpg


company profile.png

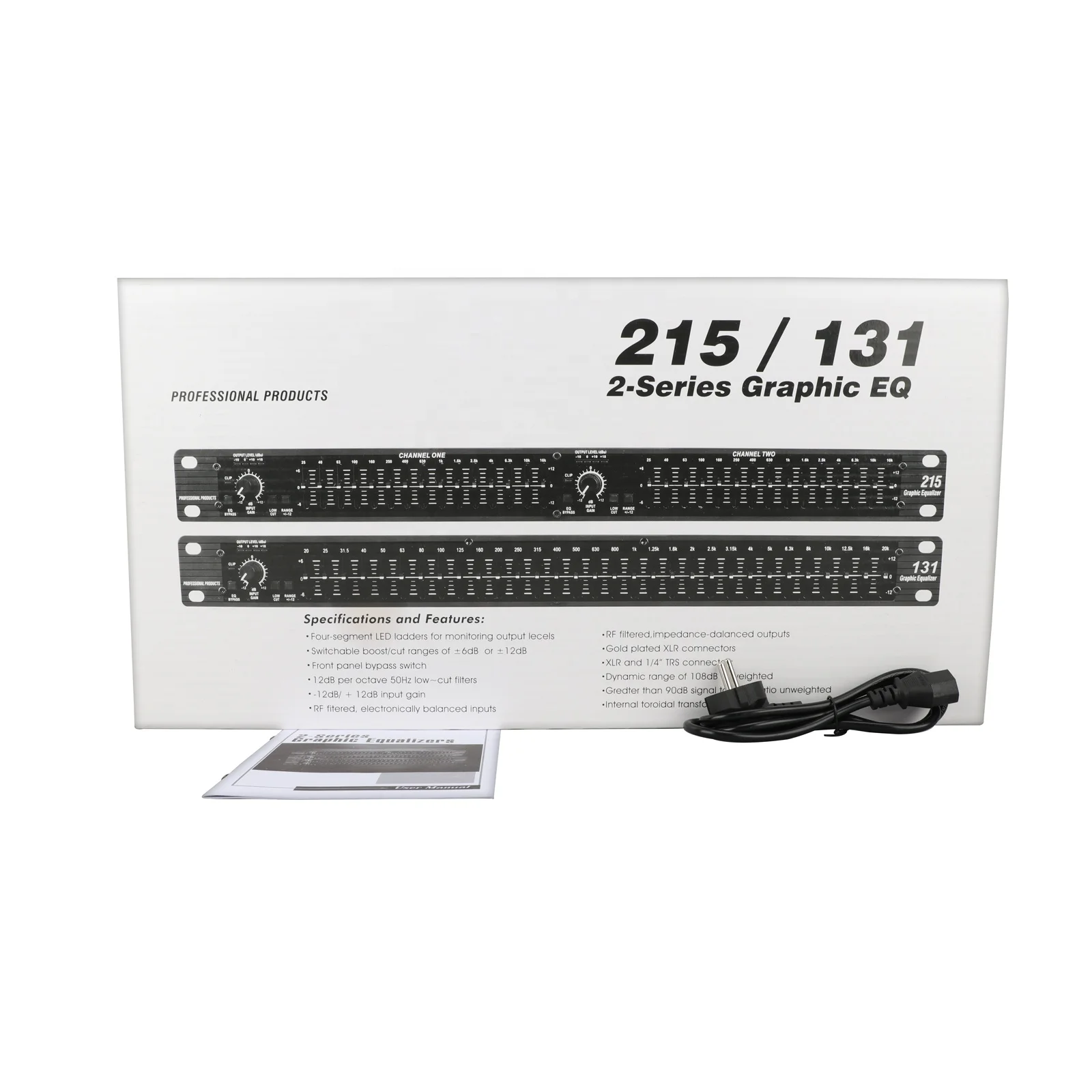

Packaging & Shipping


Packing Delivery.pngshipping ways.pngloading.png





FAQ




Q1: What is the MOQ?


 A: 1 carton





Q2: When you can ship the goods?


A: 3-7 days for small order; 30-45day for big order.





Q3: How about your payment terms?


A: TT, western union, paying with credit card/E-checking/TT by TA (Trade assurance) is the safest method of online transaction.





Q4: How does your company control the quality?


A: Quality comes first. We pay more attention to quality from the raw material to the finished productions.





Q5:How long is your guarantee period of production?


A: 1 year. If any problems during this period, we will send the replacement to you for repair. And inclduing some accessories for each shipment for backup.





Any other questions contact us via TM or send inquiry of  the product in anytimes. We supply 24 hours service.back to home.jpg
