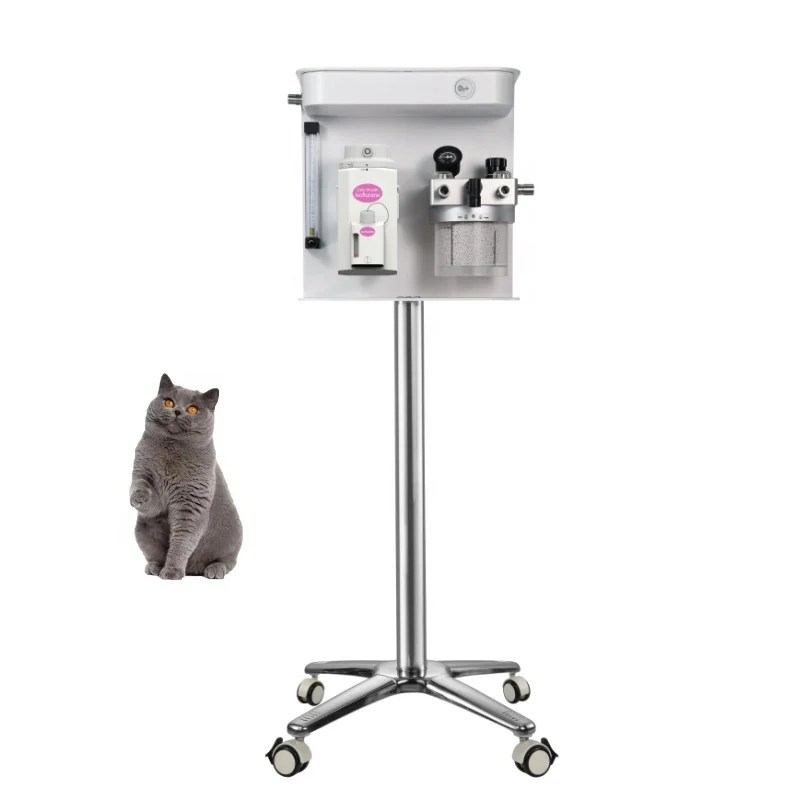

Аппарат для ветеринарной анестезии

WS-50 is an advanced,multi functional and classical anesthesia device.Integrated design with pipeline concealed that no tubes exposed and lower

leakage risk, creating a simple and comfortable operating space.

WS-50 adopts the latest technology to combine adjustable APL,intuitive ACGO toggle,scientific AGSS,high-precision flowmeter,two ventilation modes

(rebreathing and non-rebreathing)and high performance vaporizers compatible with different anesthetics and filling ways.

WS-50 is widely used in veterinary hospitals,labs and animal clinics,etc.

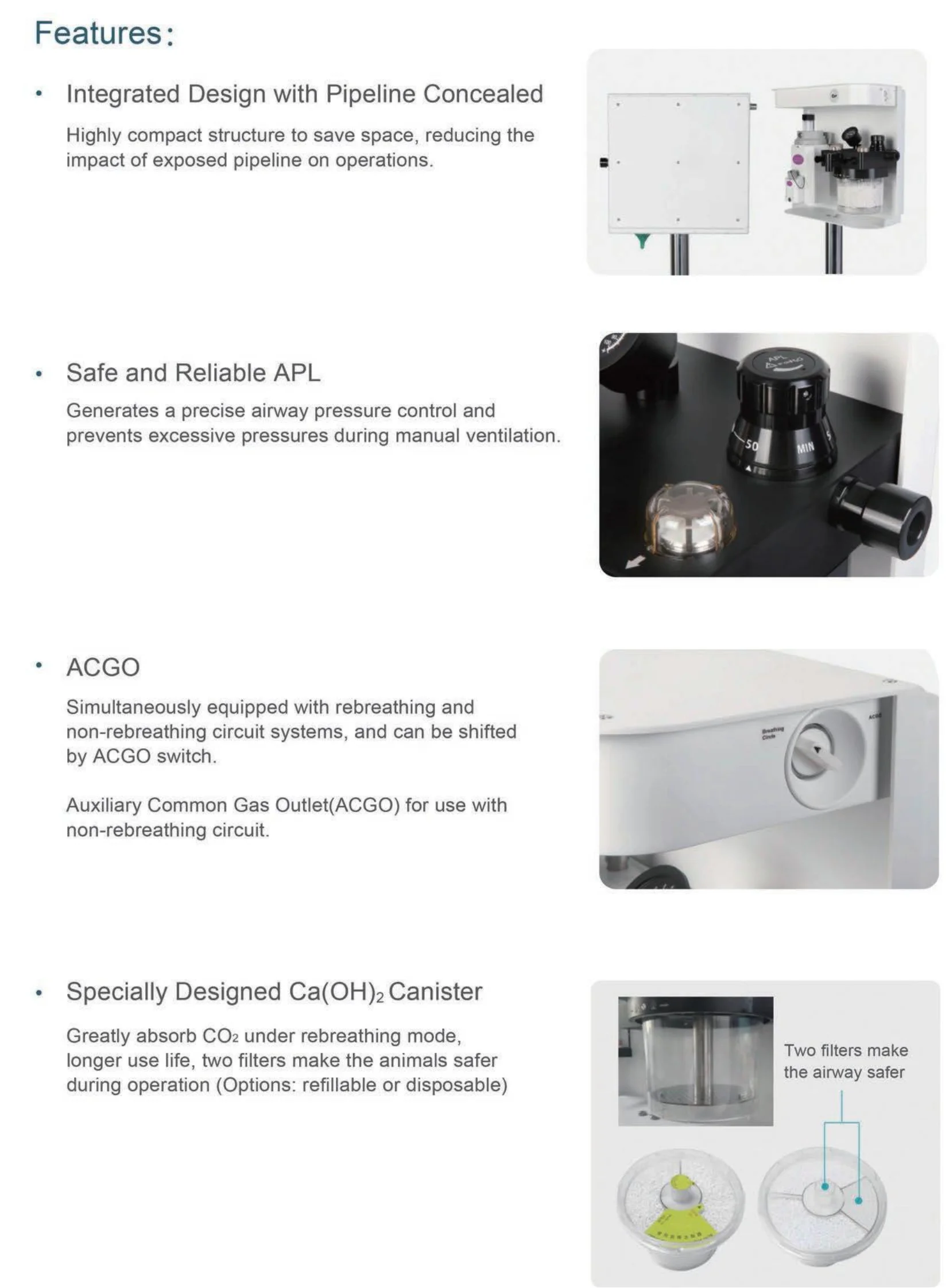

Features:

·Integrated Design with Pipeline Concealed

Highly compact structure to save space,reducing the impact of exposed pipeline on operations.

·Safe and Reliable APL

Generates a precise airway pressure control and prevents excessive pressures during manual ventilation.

·ACGO

Simultaneously equipped with rebreathing and non-rebreathing circuit systems,and can be shifted by ACGO switch

Auxiliary Common Gas Outlet(ACGO)for use withnon-rebreathing circuit.

·Specially Designed Ca(OH)2Canister

Greatly absorb CO2under rebreathing mode,longer use life,two filters make the animals safer during operation (Options:refillable or disposable)

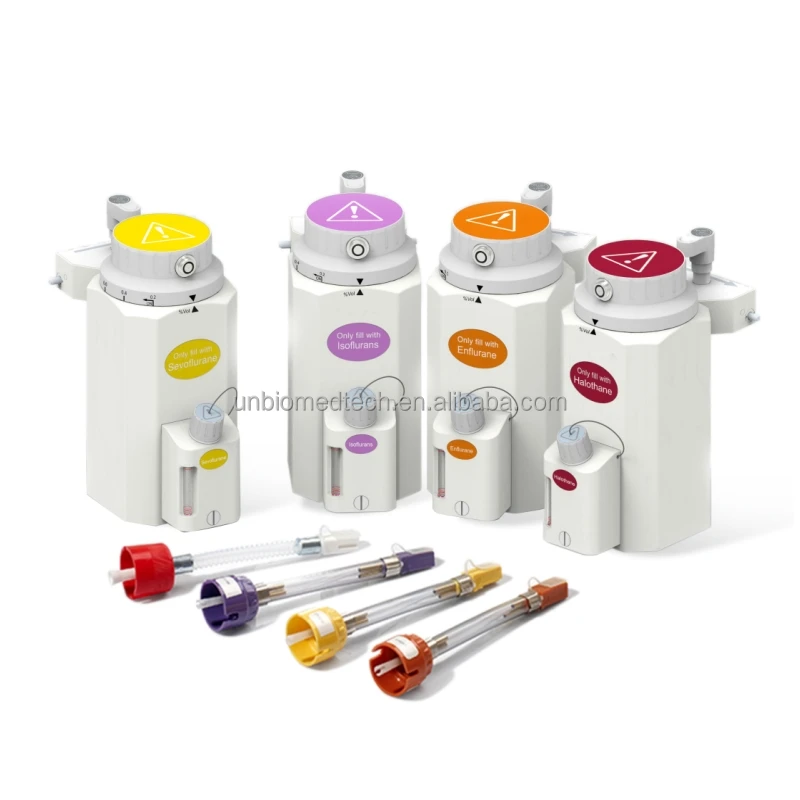

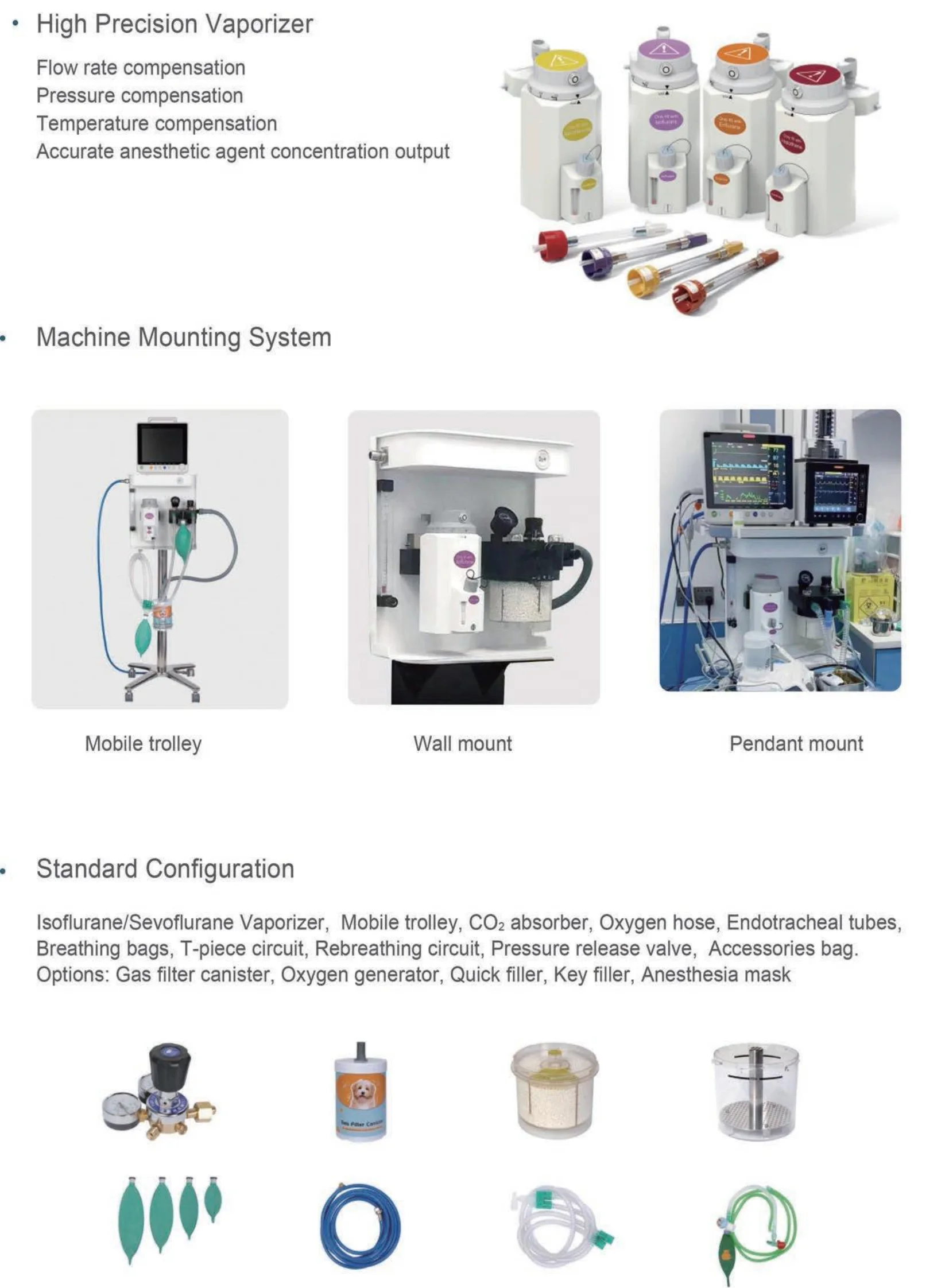

·High Precision Vaporizer

Flow rate compensation

Pressure compensation

Temperature compensation

Accurate anesthetic agent concentration output

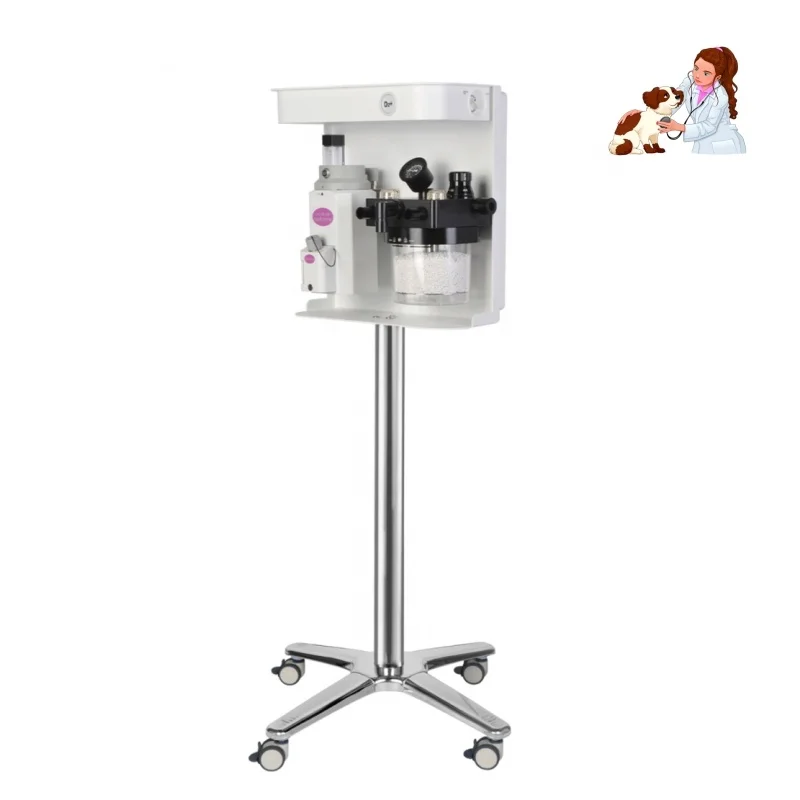

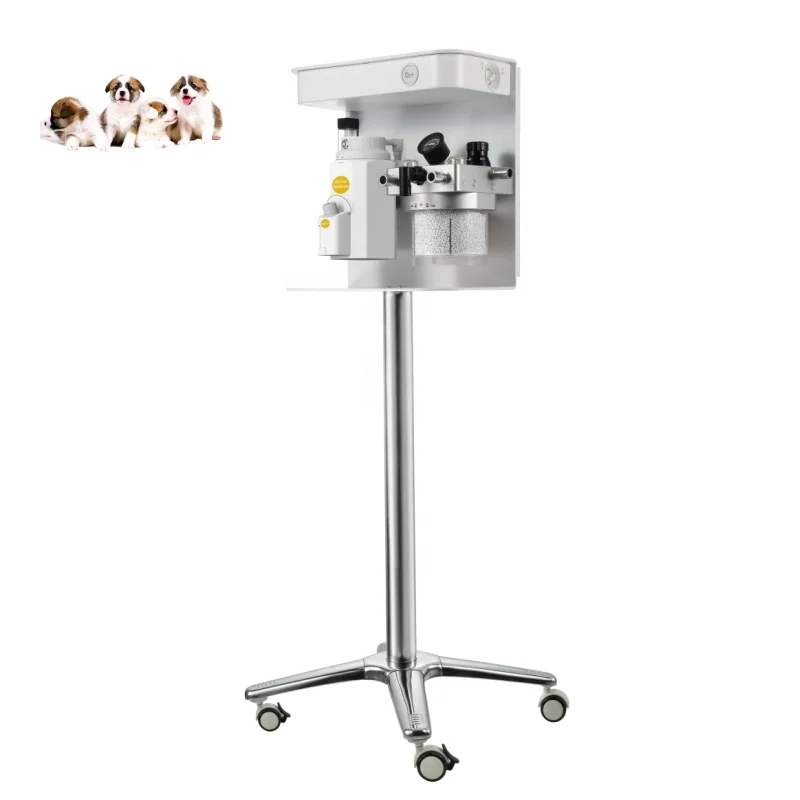

·Machine Mounting System

Mobile trolley

Wall mount

Pendant mount

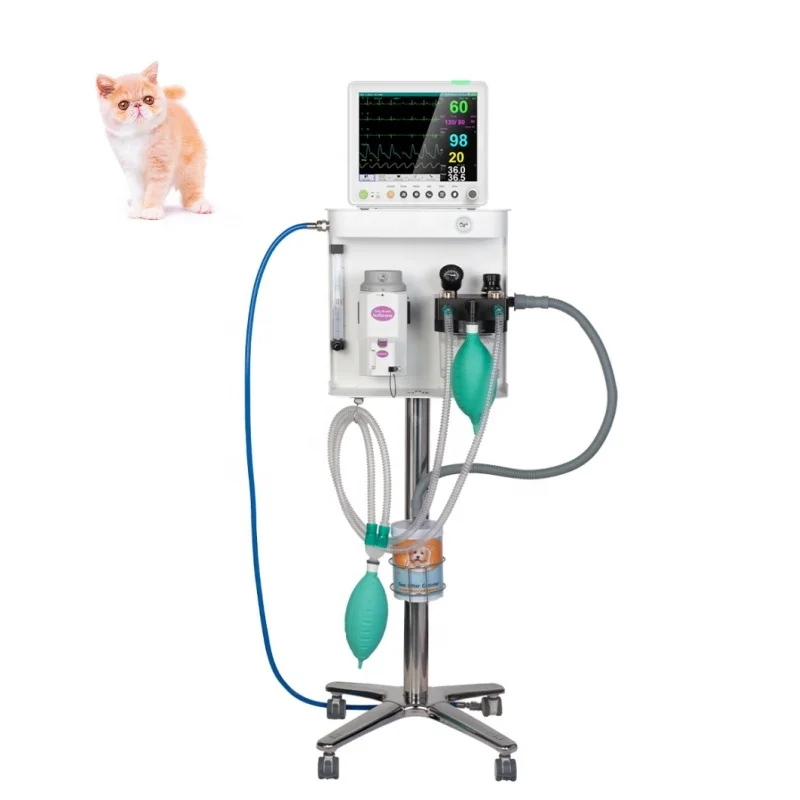

Standard Configuration

Isoflurane/Sevoflurane Vaporizer, Mobile trolley,CO2absorber,Oxygen hose,Endotracheal tubes,Breathing bags,T-piece circuit,Rebreathing circuit,

Pressure release valve,Accessories bag.Options:Gas filter canister,Oxygen generator,Quick filler,Key filler,Anesthesia mask

Specification

Dimensions(mm)    500(W)X500(D)X1310(H)mm

Weight        43 kg

Materials     All materials in contact with patient gas are latex free

Gas supply    0.2-0.4Mpa

Flowmeter    O20-4L/min,optional:0-10L

O2flush       25L/min -75L/min

Anesthesia rebreathing circuit

CO,absorber   Ca(OH)2canister,1500ml(options:disposable or refllable)

Adjustment range of APL   0-50cm H2O

Vaporizer with flow,temperature and pressure compensation

Vaporizer

Isoflurane 0.2-6VOL%

Sevoflurane0.2-8VOL%

Enflurane 0.2-8VOL%

Vaporizer mounting system

Selectatec@interlock

Breathing bag   0.5L,1L,2L,3L

Breathing system connectors

Exhalation port  OD 22mm/conical

Inhalation port   OD 22mm/ID 15mm conical

Manual bag port   OD 22mm/ID 15mm conical

Airway pressure gauge      -20-100cmH2O

AGSS Anesthesia gas scavenging canister,Outdoor drain pipe
