Main Parameters | ||
Main body | Left and right side panels, front steel plate, back panel, top panel, lower cabinet can be made of 1.0~1.2mm thick steel plate, the surface is sprayed by epoxy powder electrostatic assembly line automation and high temperature curing. | |
Side Plate Column | Detachable body is convenient for replacement and maintenance of electric components, water valves, air valves, etc. | |
Deflector | Adopting 5mm thick solid-core resistant sheet has good anti-corrosion and chemical resistance. The deflector plate fixing piece is made of PP high quality material and molded in one piece. | |
Moving Windows | Glass on both sides of the PP clamping strip package, handles PP one-piece molding, free lifting, sliding door up and down the sliding device using a belt transmission structure. | |
Structures | Stepless arbitrary stay, the sliding door guide rail is made of corrosion-resistant polyvinyl chloride material. | |
Fixed Windows | Epoxy resin powder not electrostatic spraying high temperature curing, and frame embedded in 5mm thick tempered glass. | |
Countertops | Adopt 12.7mm thick solid core physicochemical board, acid and alkali resistance, impact resistance, corrosion resistance, formaldehyde to E1 level standard. | |
Exhaust outlet | Adopt PP air collector, outlet diameter 250mm round hole, casing connection, reduce gas disturbance. | |
Connection | All internal connections are hidden arrangement and corrosion resistant, no exposed screws. |
Product name | Specification (mm) | unit |

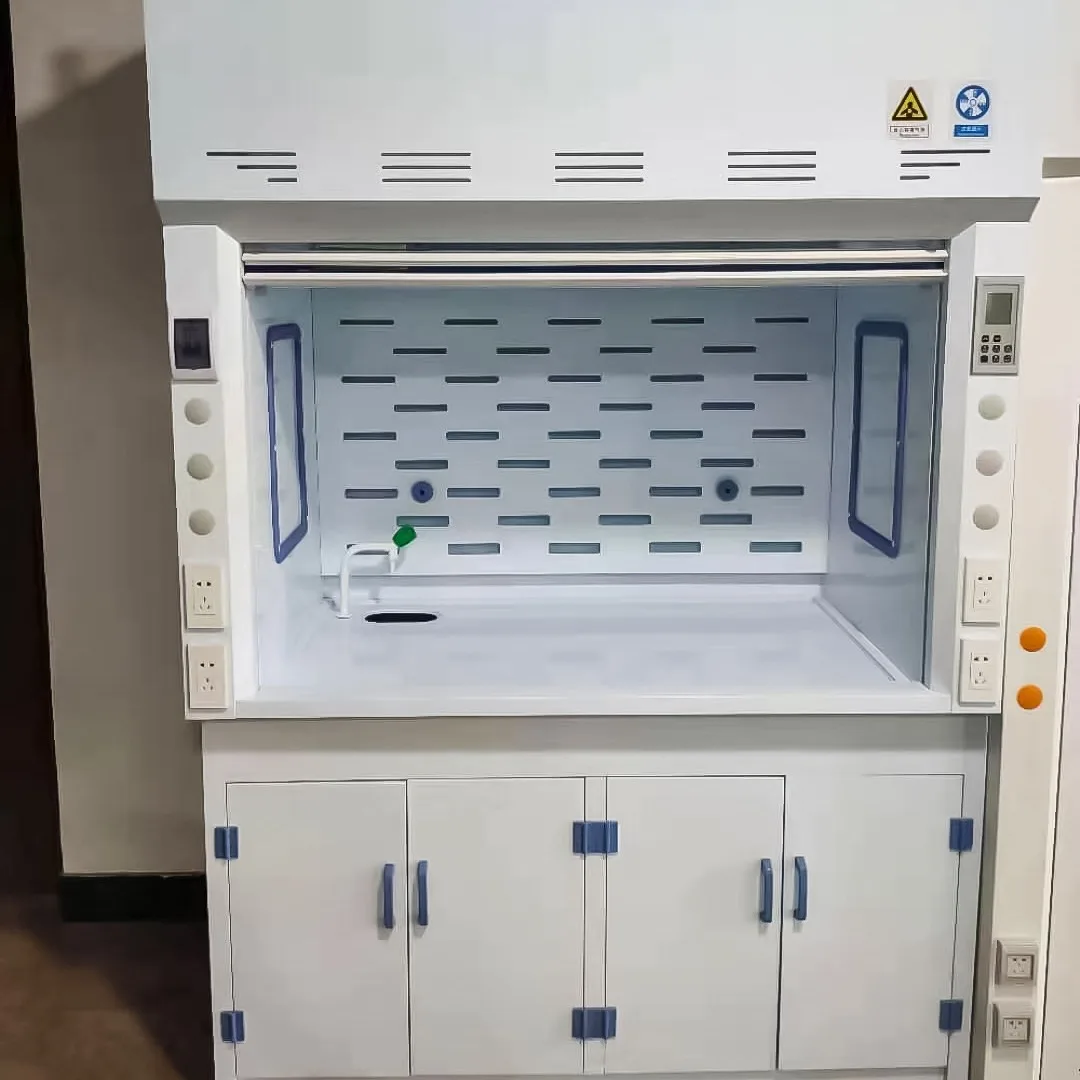

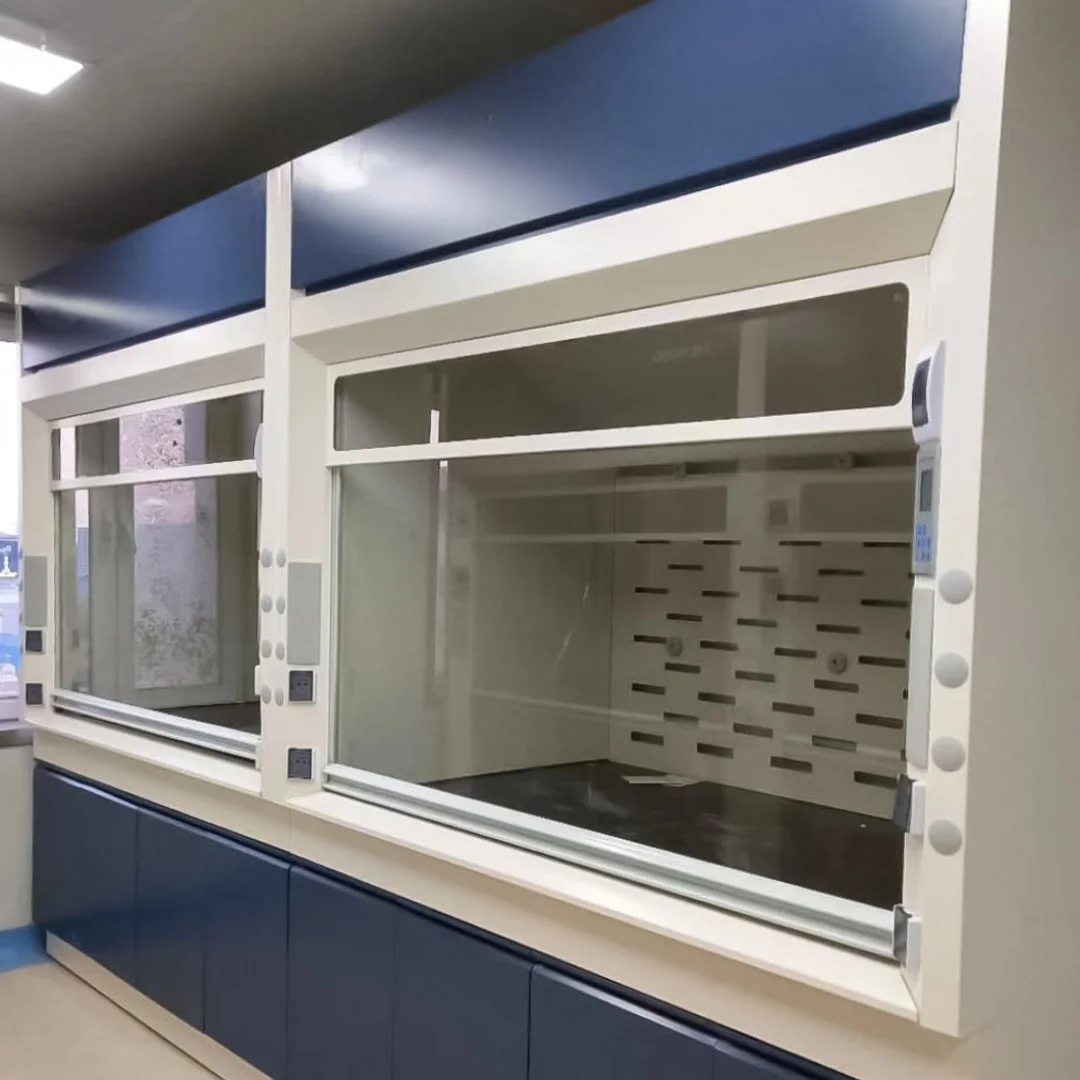

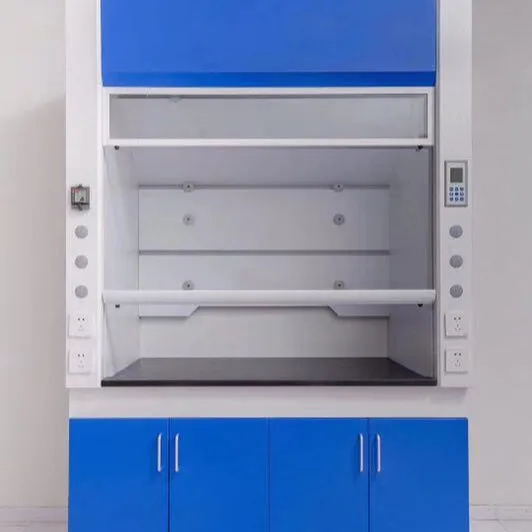

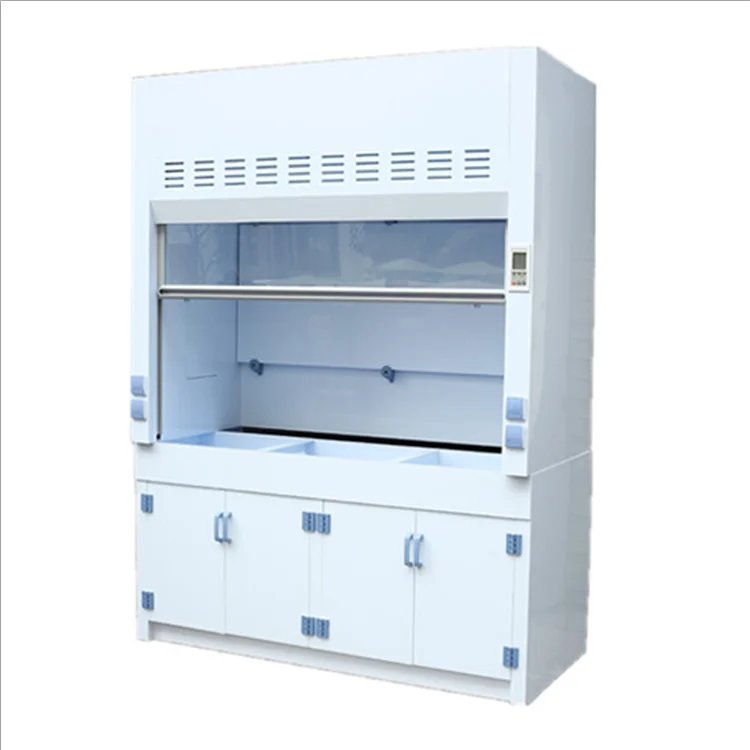

A1 Ventilation Cabinet (belt type, LED light) Countertop and water not included" | 1200*850*2350 | set |
1500*850*2350 | set | |
1800*850*2350 | set |
