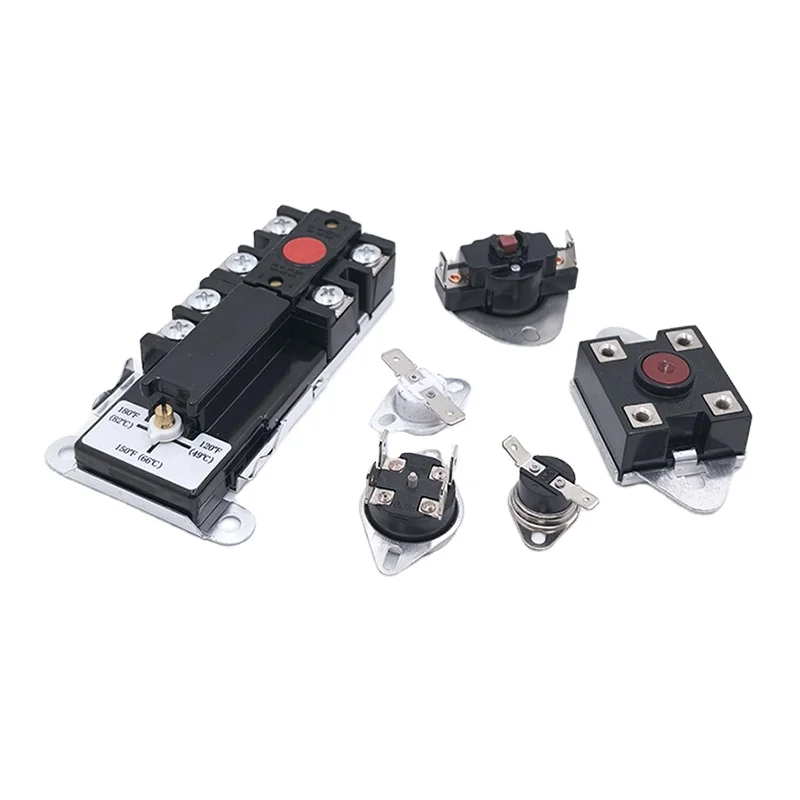

JIHUI Высококачественный протектор двигателя термоторный выключатель
- Категория: >>>
- Поставщик: Foshan Jihui Electric Appliance Co. Ltd.Foshan Ltd.
Сохранить в закладки 1601181603486:
Описание и отзывы
Характеристики
Place of Origin | HUBEI, China | ||||||
Type | Other Home Appliance Parts | ||||||
Brand Name | JAFLY | ||||||
Model Number | KSD9700,KSD301,17AM,KSD302,01-F,S02 | ||||||
Certification | CQC,TUV ,UL,VDE | ||||||
Temperature | -10~300°C | ||||||
Accuracy | ±3C,±5℃ | ||||||
Voltage | 12/24VDC,125/250VAC | ||||||
Product name | electronic auto reset switch bimetal thermosta | ||||||
Current | 1A~50A | ||||||
Contact | 812037382@qq.com | ||||||
型号规格 Type specification | 动作温度(℃) Operating temperature | 复位温度(℃) Reset temperature | 型号 Type specification | 动作温度(℃) Operating temperature | 复位温(C) Reset temperature |
17AM016A5 | 45±5 | 30±15 | 17AM027A5 | 100±5 | 67±15 |
17AM017A5 | 50±5 | 36±15 | 17AM028A5 | 105±5 | 70±15 |
17AM018A5 | 55±5 | 38±15 | 17AM029A5 | 110±5 | 72±15 |
17AM019A5 | 60±5 | 40±15 | 17AM030A5 | 115±5 | 75±15 |
17AM020A5 | 65±5 | 45±15 | 17AM031A5 | 120±5 | 78±15 |
17AM021A5 | 70±5 | 50±15 | 17AM032A5 | 125±5 | 82±15 |
17AM022A5 | 75±5 | 55±15 | 17AM033A5 | 130±5 | 85±15 |
17AM023A5 | 80±5 | 57±15 | 17AM034A5 | 135±5 | 90±15 |
17AM024A5 | 85±5 | 60±15 | 17AM035A5 | 140±5 | 93±15 |
17AM025A5 | 90±5 | 62±15 | 17AM036A5 | 145±5 | 95±15 |
17AM026A5 | 95±5 | 65±15 | 17AM037A5 | 150±5 | 100±15 |
17AM038A5 | 155±5 | 102±15 | 17AM041A5 | 170±5 | 115±15 |
17AM039A5 | 160±5 | 105±15 | 17AM042A5 | 175±5 | 118±15 |
17AM040A5 | 165±5 | 110±15 | 17AM043A5 | 180±5 | 120±15 |
型号规格 Type specification | 动作温度(℃) Operating temperature | 复位温度(℃) Reset temperature | 型号 Type specification | 动作温度(℃) Operating temperature | 复位温(℃) Reset temperature |
KSD301-B(K)T(D)-45℃ | 45±5 | 25±5 | KSD301-B(K)T(D)-150℃ | 150±5 | 130±5 |
KSD301-B(K)T(D)-50℃ | 50±5 | 30±5 | KSD301-B(K)T-155℃ | 155±5 | 130±5 |
KSD301-B(K)T(D)-55°C | 55±5 | 35±5 | KSD301-B(K)T-160℃ | 160±5 | 135±5 |
KSD301-B(K)T(D)-60℃ | 60±5 | 40±5 | KSD301-B(K)T-165°C | 165±5 | 140±5 |
KSD301-B(K)T(D)-65°C | 65±5 | 45±5 | KSD301-B(K)T-170℃ | 170±5 | 145±5 |
KSD301-B(K)T(D)-70℃ | 70±5 | 50±5 | KSD301-B(K)T-175°C | 175±5 | 150±5 |
KSD301-B(K)T(D)-75℃ | 75±5 | 55±5 | KSD301-B(K)T-180℃ | 180±5 | 155±5 |
KSD301-B(K)T(D)-80℃ | 80±5 | 60±5 | KSD301-B(K)T-185℃ | 185±5 | 160±5 |
KSD301-B(K)T(D)-85℃ | 85±5 | 65±5 | KSD301-B(K)T-190℃ | 190±5 | 165±5 |
KSD301-B(K)T(D)-90℃ | 90±5 | 70±5 | KSD301-B(K)T(D)-195℃ | 195±5 | 170±5 |
KSD301-B(K)T(D)-95℃ | 95±5 | 75±5 | KSD301-B(K)T-200℃ | 200±5 | 175±5 |
KSD301-B(K)T(D)-100°C | 100±5 | 80±5 | KSD301-B(K)T-205℃ | 205±5 | 175±5 |
KSD301-B(K)T(D)-105°C | 105±5 | 85±5 | KSD301-B(K)T-210℃ | 210±5 | 180±5 |
KSD301-B(K)T(D)-110°C | 110±5 | 90±5 | KSD301-B(K)T-215°C | 215±5 | 185±5 |
KSD301-B(K)T(D)-115°C | 115±5 | 95±5 | KSD301-B(K)T-220℃ | 220±5 | 190±5 |
KSD301-B(K)T(D)-120°C | 120±5 | 100±5 | KSD301-B(K)T-225°C | 225±5 | 195±5 |
KSD301-B(K)T(D)-125°C | 125±5 | 105±5 | KSD301-B(K)T-230℃ | 230±5 | 200±5 |
KSD301-B(K)T(D)-130°C | 130±5 | 110±5 | KSD301-B(K)T-235℃ | 235±5 | 205±5 |
KSD301-B(K)T(D)-135°C | 135±5 | 115±5 | KSD301-B(K)T-240℃ | 240±5 | 210±5 |
KSD301-B(K)T(D)-140°C | 140±5 | 120±5 | KSD301-B(K)T-245℃ | 245±5 | 215±5 |
KSD301-B(K)T(D)-145°C | 145±5 | 125±5 | KSD301-B(K)T-250°C | 250±5 | 220±5 |
产品型号 Product Model | 动作温度(℃) Operating temperature | 复位温度(℃) Reset temperature | 产品型号 Product Model | 动作温度(℃) Operating temperature | 复位温(℃) Reset temperature |
BW-XXX-45℃ | 45±5 | 25±8 | BW-XXX-150°C | 150±5 | 110±15 |
BW-XXX-50℃ | 50±5 | 30±8 | BW-XXX-155℃ | 155±5 | 115±15 |
BW-XXX-55°C | 55±5 | 35±10 | BW-XXX-160℃ | 160±5 | 120±15 |
BW-XXX-60°C | 60±5 | 40±10 | BW-XXX-165℃ | 165±5 | 125±15 |
BW-XXX-65°C | 65±5 | 45±10 | BW-XXX-170°C | 170±5 | 130±15 |
BW-XXX-70°C | 70±5 | 45±15 | BW-XXX-175°C | 175±5 | 135±15 |
BW-XXX-75°C | 75±5 | 50±15 | BW-XXX-180°C | 180±5 | 140±15 |
BW-XXX-80°C | 80±5 | 55±15 | BW-XXX-185℃ | 185±5 | 145±15 |
BW-XXX-85°C | 85±5 | 55±15 | BW-XXX-190°C | 190±5 | 150±15 |
BW-XXX-90°C | 90±5 | 60±15 | BW-XXX-195°C | 195±5 | 155±15 |
BW-XXX-95℃ | 95±5 | 65±15 | BW-XXX-200°C | 200±5 | 160±15 |
BW-XXX-100℃ | 100±5 | 65±15 | BW-XXX-205°C | 205±5 | 165±15 |
BW-XXX-105℃ | 105±5 | 70±15 | BW-XXX-210℃ | 210±5 | 170±15 |
BW-XXX-110°C | 110±5 | 75±15 | BW-XXX-215°C | 215±5 | 175±15 |
BW-XXX-115°C | 115±5 | 75±15 | BW-XxX-220°C | 220±5 | 180±15 |
BW-XXX-120°C | 120±5 | 80±15 | BW-XXX-225°C | 225±5 | 185±15 |
BW-XXX-125℃ | 125±5 | 85±15 | BW-XXX-230°C | 230±5 | 190±15 |
BW-XXX-130℃ | 130±5 | 90±15 | BW-XXX-235°C | 235±5 | 195±15 |
BW-XXX-135℃ | 135±5 | 95±15 | BW-XXX-240°C | 240±5 | 200±15 |
BW-XXX-140°C | 140±5 | 100±15 | BW-XXX-245°C | 245±5 | 205±15 |
BW-XXX-145℃ | 145±5 | 105±15 | BW-XXX-250℃ | 250±5 | 210±15 |
产品尺寸 Product size | L(mm) | W(mm) | H(mm) |
BW-ABJ | 19 | 7.4 | 3.55 |
BW-ABS | 19 | 8.0 | 4.2 |
BW-BBJ | 16 | 6.6 | 3.05 |
BW-BBS | 16 | 7.2 | 3.8 |
Hubei Jihui Electrical Appliance Co.,Ltd was established in 2006 and located in Foshan city, Guangdong province, until 2015 when she was moved to Yichang city, Hubei province. The company is a professional manufacturer engaged in R&D and production of thermostat (thermal protector), with capital assets of more than 50 million CNY and an area occupation of 13 thousand square meters. Applying advanced technologies and auto devices introduced abroad, the company mainly produces BW series, KSD series, 17AM series, Heavy current series, 02 series and motor protectors, with a yearly capacity of up to 500 million pieces of product.
Having acquired more than 10 certificates of patent, the company is a Hi-tech research enterprise of Hubei, with complete quality management and control methods. ISO 9001：2000 is fully conducted to setup and then improve the company’s quality management system, and thus safety standards and Environmental Protection certificates such as CQC, VDE, UL, CB and SGS are acquired.
Our excellent quality and outstanding services deeply favored and highly appreciated by honored clients. Our products are hot-sales in domestic market, Euro, US, Japan and South-east Asia.
Survive with quality and benefit with management as operation purpose, Service first, Integrity first and excellence pursue as management concept, Equality, Mutual benefit and Joint Development as principle, Jihui sincerely wishes to be at your service with heart and soul so as to create a glorious future!
Having acquired more than 10 certificates of patent, the company is a Hi-tech research enterprise of Hubei, with complete quality management and control methods. ISO 9001：2000 is fully conducted to setup and then improve the company’s quality management system, and thus safety standards and Environmental Protection certificates such as CQC, VDE, UL, CB and SGS are acquired.
Our excellent quality and outstanding services deeply favored and highly appreciated by honored clients. Our products are hot-sales in domestic market, Euro, US, Japan and South-east Asia.
Survive with quality and benefit with management as operation purpose, Service first, Integrity first and excellence pursue as management concept, Equality, Mutual benefit and Joint Development as principle, Jihui sincerely wishes to be at your service with heart and soul so as to create a glorious future!
Q1: Are you a trading company or a manufacturer?
A1: We are the manufacturer.
Q2: How long is your delivery time?
A2: 5 days with stock, 7-12 days without stock, depending on order quantity.
Q3: Can you provide samples?
A3: 10pcs sample is available for free.
Q4: Payment terms?
A4: 50% in advance and the rest before shipment.
Q5: What is your MOQ?
A5:Minimum order for one batch, minimum quantity1000pcs.
Q6: What is the conventional voltage and current?
A6: 250V 5A.
Q7: What is the temperature range?
A7: 60-150°C, a range every 5°C, special temperature can also be customized.
Похожие товары
Мини-терморегулятор 250 В 10А
0,06-0,07 $
Оптовый торговец 150 градусов 10A 250V открытый или закрытный 17AM перегрузки тепловой протектор для переключателя двигателя
0,20-0,25 $

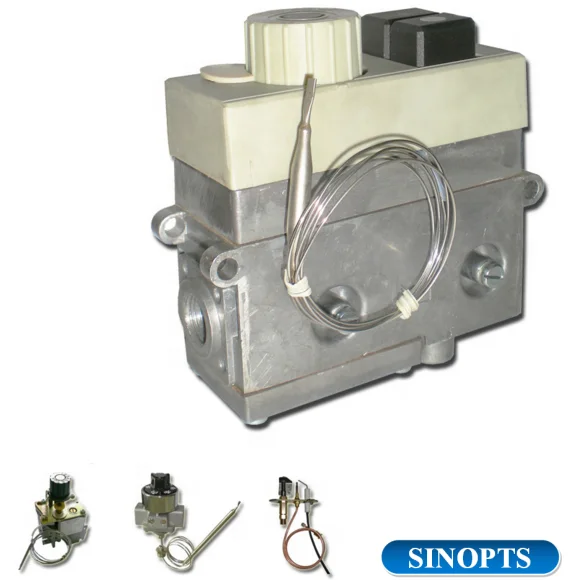

Sinopts духоварка многофункциональное управление газом термостатический Регулятор газа 710 minisit
