Пропановые машины, мощные бетонные напольные шлифовальные машины
5 661,00 $

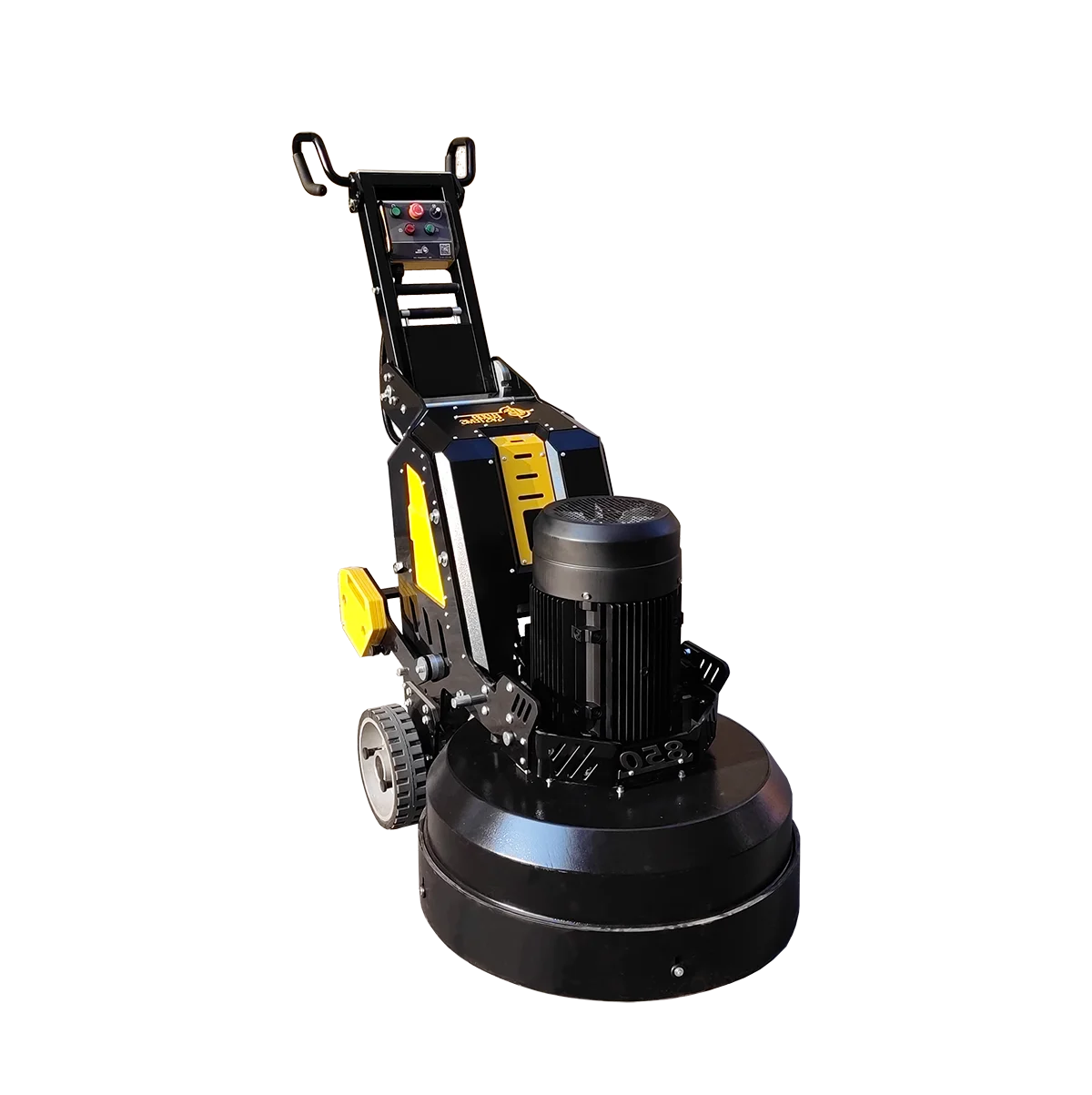

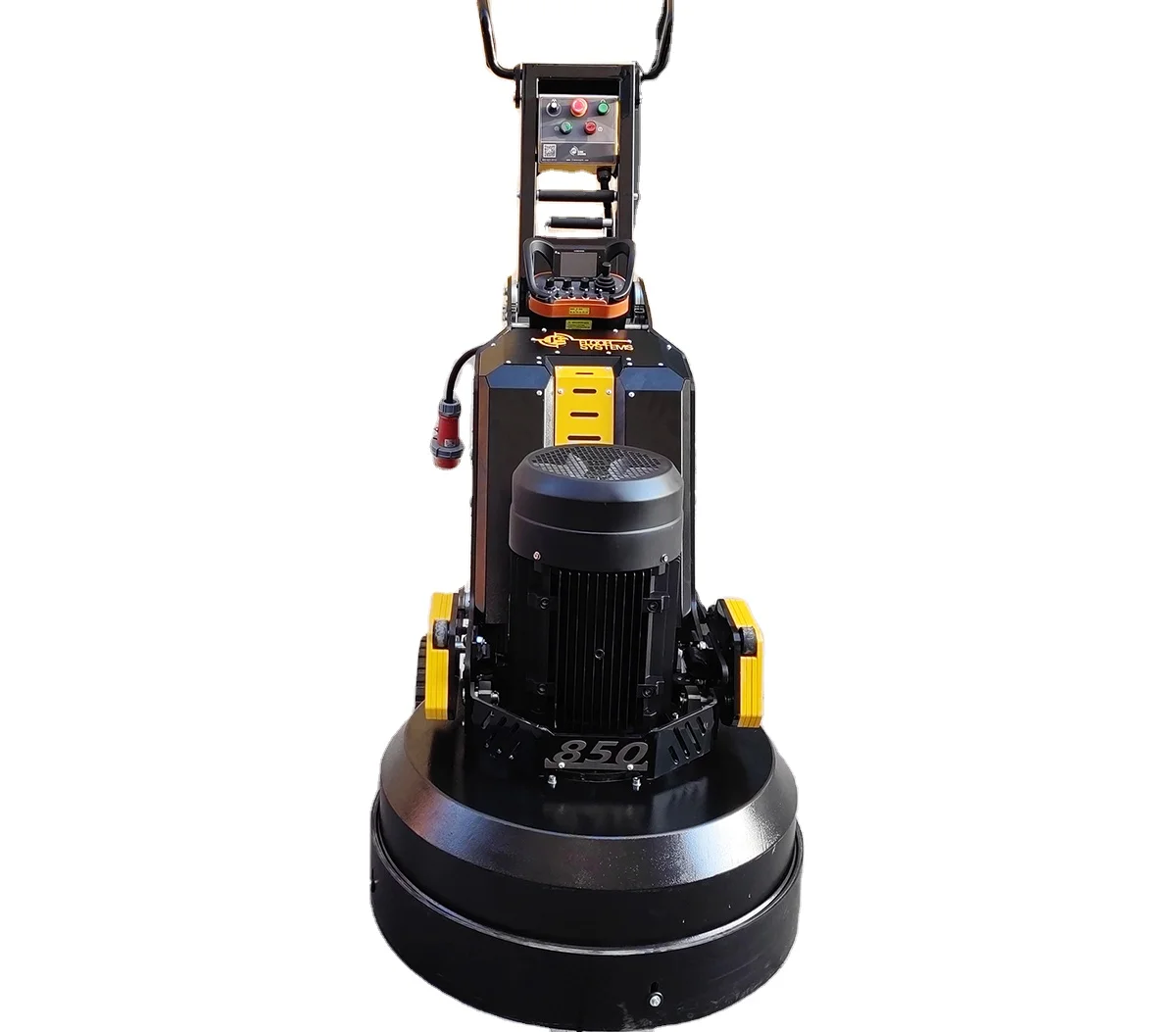

GCR850 дистанционная шлифовальная машина 34 дюйма дешевая цена оптовая продажа 850 мм хорошее качество полировщик пола
- Категория: >>>
- Поставщик: Shanghai Jiansong Industry And Trade Co. Ltd.
Сохранить в закладки 1601182101135:
Описание и отзывы
Характеристики
Contact us :
Mr. Neal
Email: neal@jiansongsh.com
Tel/Whatsapp: +86 182-0527-4398
Product Description
1.Grinding concrete/epoxy floor/ solidified floor/ terrazzo floor /granite floor /natural marble floor /diamond abrasion resistant floor lf leveling cement,etc ,
2. places requiring surface treatment
3. Removal of paint, epoxy, glue and other coatings from concrete
4. Preparation of concrete for installation of new flooring/coating
5. Elimination of irregularities in concrete
6. Repair of damaged concrete
7. Renovation works
Remote control floor grinding machine | ||||

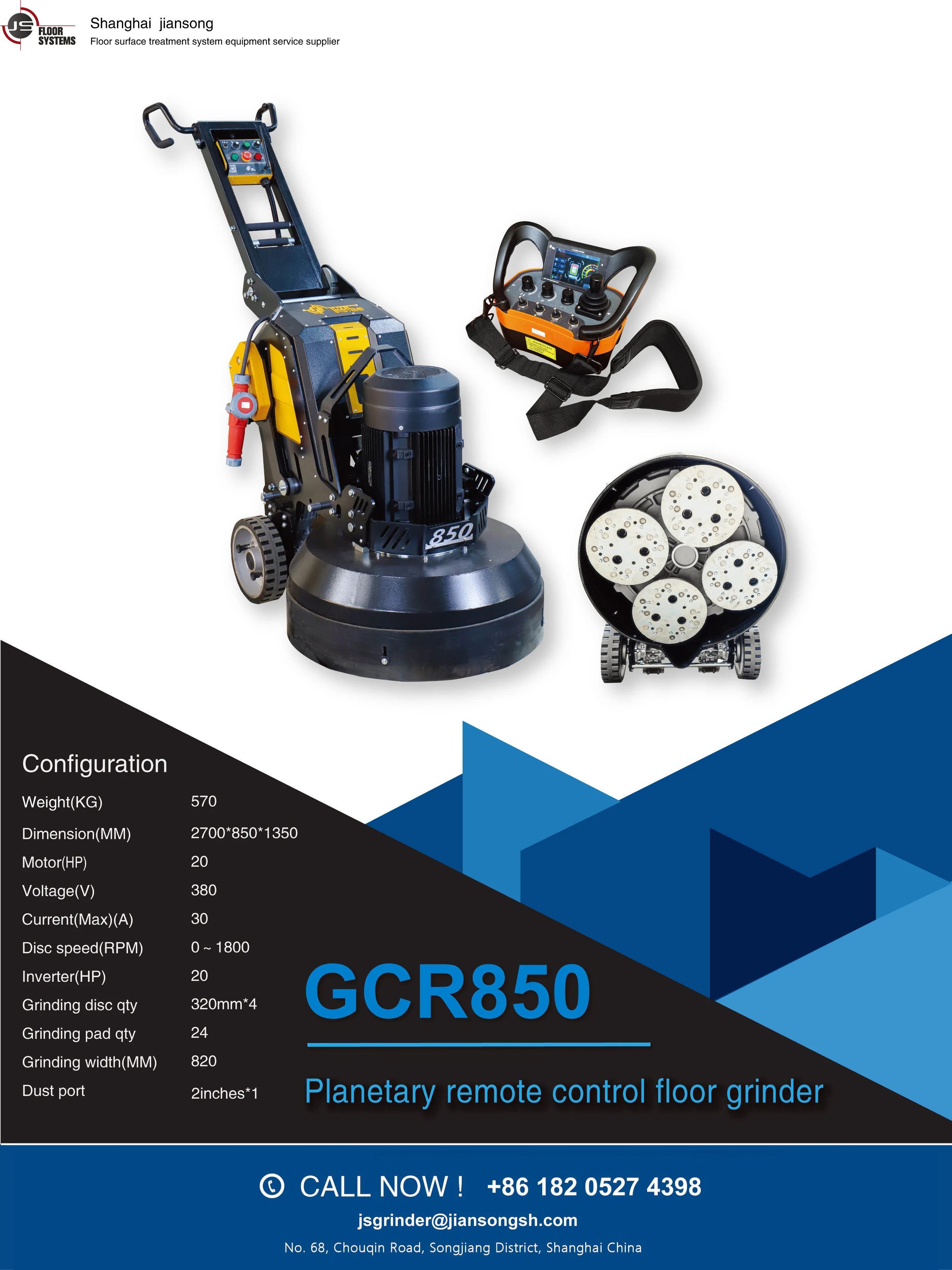

Model | GCR850 | R950 | ||
Control Type | Remote control | |||
Motor(HP) | 20HP | 30HP | ||
Inverter | 20HP | 30HP | ||
Current(A) | 37A | 44A | ||
Speed | Big disc 0-300(RPM) Small disc 0-1800(RPM) | |||
Weight(KG) | 560KG | 635KG | ||
Water tank | × | 60L | ||
Grinding heads | 4 | 4 | ||
Dust port | 50MM | 50MM | ||
Dimention(mm) | 2100*850*1150 | 2880*950*1540 | ||
Customized | Available | |||
What is a planetary grinder?
The base of a planetary grinder consists of a large main disc (the round gear box).
Three or four smaller discs mount to the main disc, and these smaller discs turn at a different speed than the main disc.
The smaller discs all lie along the same plane and make contact with the floor simultaneously, while the larger main disc lies on a different plane and does not make contact with the floor.
What's the advantage of JS planetary floor grinder?
Double layer gear, no belt
Aluminum integral casting gear box
Quick-change magnetic tooling systems
Variable-speed soft start
Both grinding and polishing, both wet and dry
Be good at high gloss and smooth surface polishing
Gear-driven forced planetary drive provides durability and flexibility of equipment.
The double layer gear systems drive the grinding plates, large main disc (gear box) runs at 0-300 RPM, smaller discs run at 0-1800 RPM.
Planetary grinder can be used for all grinding and polishing applications (wet or dry), adhesives and coating removal, surface repair and flattening of concrete, terrazzo, etc.
The base of a planetary grinder consists of a large main disc (the round gear box).
Three or four smaller discs mount to the main disc, and these smaller discs turn at a different speed than the main disc.
The smaller discs all lie along the same plane and make contact with the floor simultaneously, while the larger main disc lies on a different plane and does not make contact with the floor.
What's the advantage of JS planetary floor grinder?
Double layer gear, no belt
Aluminum integral casting gear box
Quick-change magnetic tooling systems
Variable-speed soft start
Both grinding and polishing, both wet and dry
Be good at high gloss and smooth surface polishing
Gear-driven forced planetary drive provides durability and flexibility of equipment.
The double layer gear systems drive the grinding plates, large main disc (gear box) runs at 0-300 RPM, smaller discs run at 0-1800 RPM.
Planetary grinder can be used for all grinding and polishing applications (wet or dry), adhesives and coating removal, surface repair and flattening of concrete, terrazzo, etc.
Detailed Images

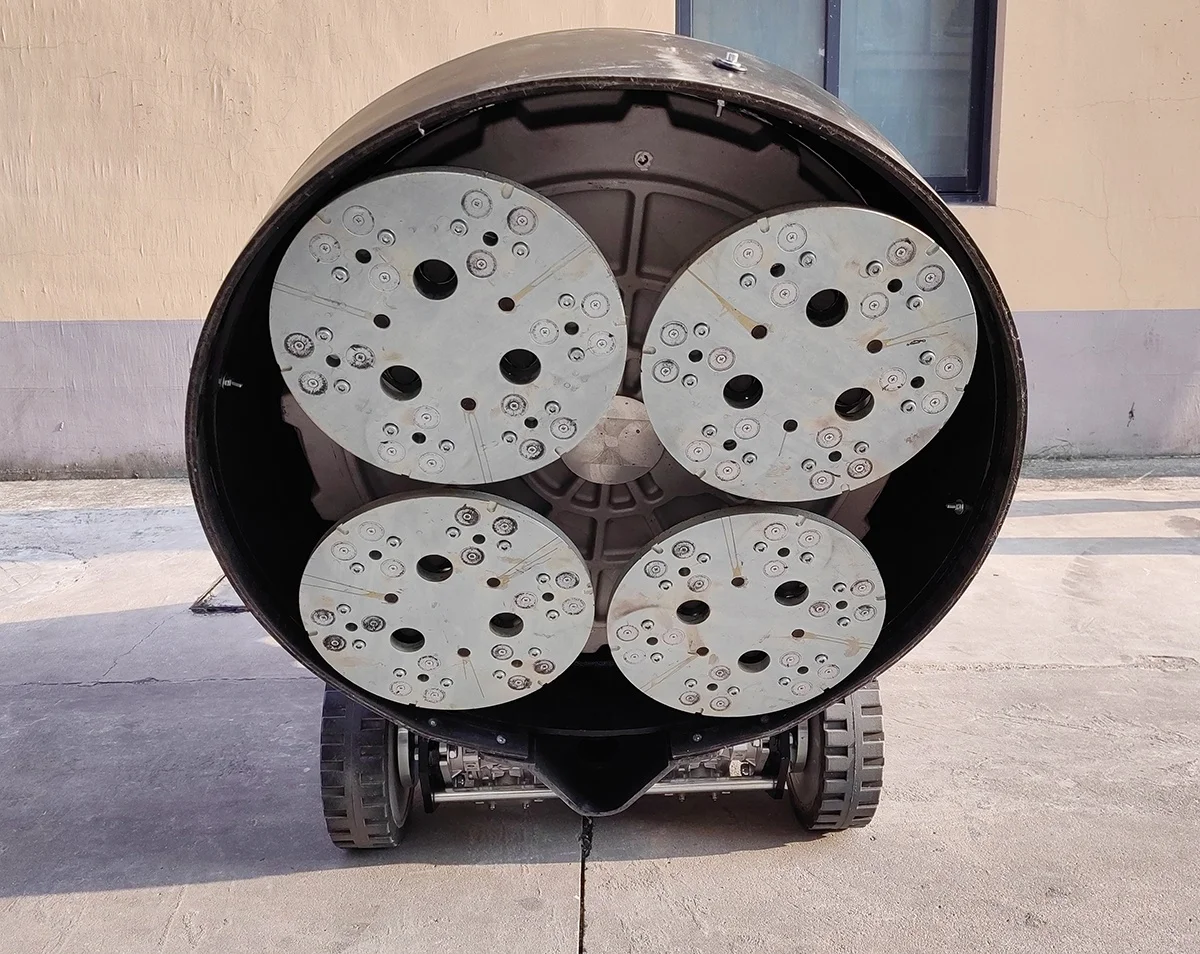

\\ 4 plates /
\\ extra weights /
\\ outlet /
\\ handle control /
\\ dust absorption pore /
\\ wheels lock /
\\ handle angle adjustment /
\\ resin pads adapters /
\\ Siemens/EMM motor /

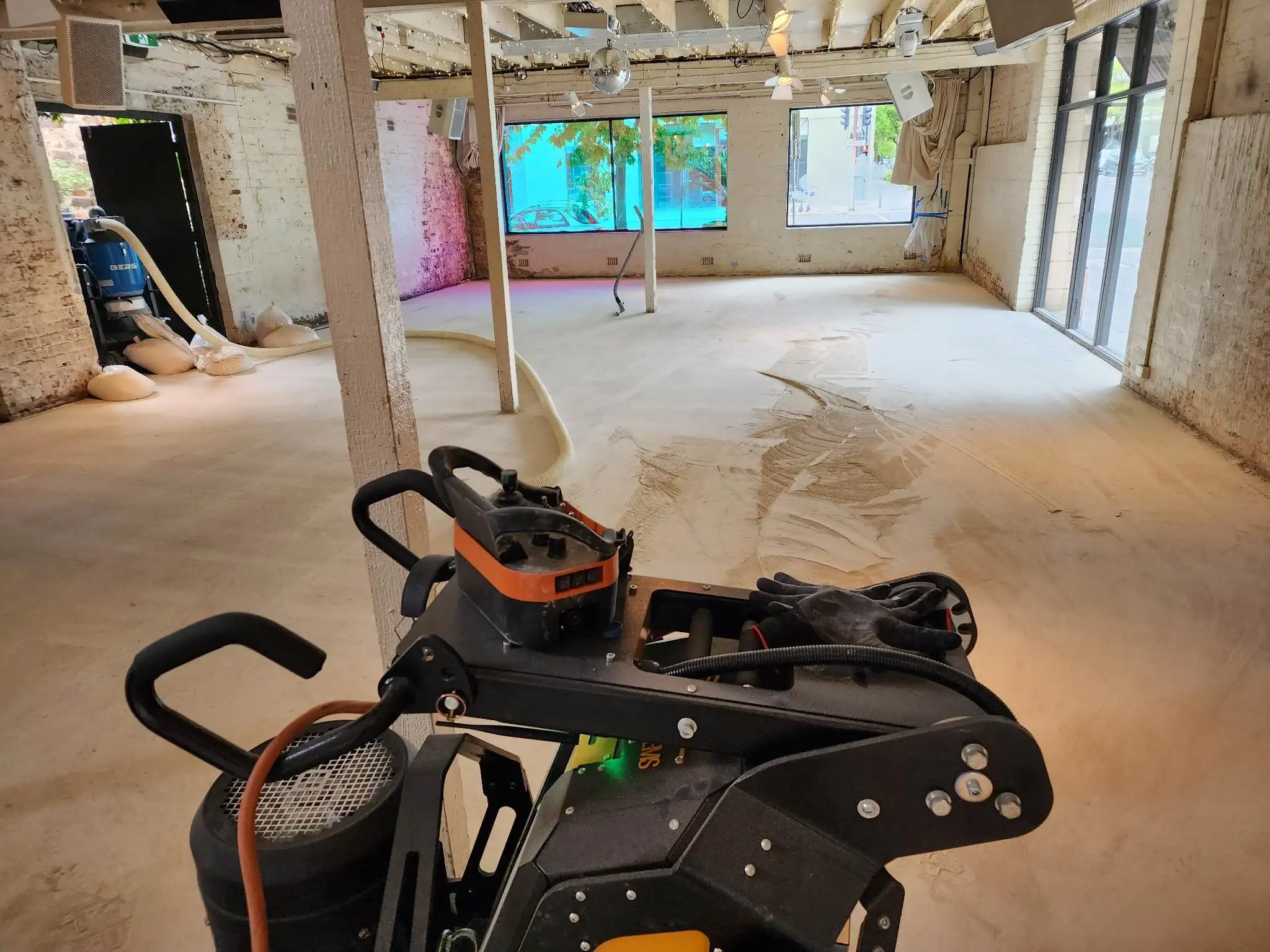

Application
Packing&Shipping
Related Products
FAQ
Q1: Do you make the metal and resin pads yourself?
A1: Yes, we have our own diamond workshop and make the diamond tools ourselves.
Q2: How long is production time for one container?
A2: For hand push machine is 2-3 weeks, for remote control models usually take 3-4 weeks.
Q3: You are based in Shanghai?
A3: Yes.
Q4: Do you have any advantages over other suppliers in terms of design?
A4: Yes. For example, we use seamless plastic water tank, aluminum casting mold grinder head which is stronger and add grinding pressure.
Q5: What is the warranty on the products?
A5: 1 year warranty for machine.
Q6: Do you recommend buying spare parts already with the order?
A6: Yes, we will recommend some spare parts.
Q7: What parts are usually needed for replacements?
A7: Resin pad holder, rubber cushion, dust skirt, switch.
Q8: Does your gear quality better than those from other company?
A8: Yes, we make the gear our own. JS gear is skewed tooth and being heat treatment processed which guarantee stable performance and long life time. But many company don’t use such gear because this gear need high-precision process. We make the gears with CNC machine.
Q9: Do you offer diagrams for electrical and electronic layout for your machines?
A9: Yes, come with machines.
Q10: Is your company ISO registered and approved?
A10: Yes, we have got ISO, CE and SGS certificates.
A1: Yes, we have our own diamond workshop and make the diamond tools ourselves.
Q2: How long is production time for one container?
A2: For hand push machine is 2-3 weeks, for remote control models usually take 3-4 weeks.
Q3: You are based in Shanghai?
A3: Yes.
Q4: Do you have any advantages over other suppliers in terms of design?
A4: Yes. For example, we use seamless plastic water tank, aluminum casting mold grinder head which is stronger and add grinding pressure.
Q5: What is the warranty on the products?
A5: 1 year warranty for machine.
Q6: Do you recommend buying spare parts already with the order?
A6: Yes, we will recommend some spare parts.
Q7: What parts are usually needed for replacements?
A7: Resin pad holder, rubber cushion, dust skirt, switch.
Q8: Does your gear quality better than those from other company?
A8: Yes, we make the gear our own. JS gear is skewed tooth and being heat treatment processed which guarantee stable performance and long life time. But many company don’t use such gear because this gear need high-precision process. We make the gears with CNC machine.
Q9: Do you offer diagrams for electrical and electronic layout for your machines?
A9: Yes, come with machines.
Q10: Is your company ISO registered and approved?
A10: Yes, we have got ISO, CE and SGS certificates.
Certifications
Company Introduction
JS Floor Systems has been established in 2009. Specializing in floor grinders, polishers, burnishers, scrubbers, vacuum cleaners and diamond tools. Our factory locates in Shanghai & Suzhou, China with professional R&D, technical support, production and sales team. Our service
and products are appreciated by customers all over the world.
Exhibition
Our Services & Strength
2. Prefessional and Technical support on line or video;
3. Certificate: CE, SGS, ISO9001;
4. After-sales: 24hours a day, 7days a week.
Contact us :
Mr. Neal
Email: neal@jiansongsh.com
Tel/Whatsapp: +86 182-0527-4398
