Product Description

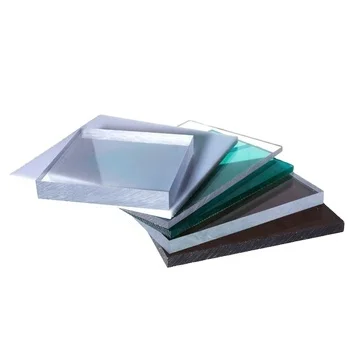

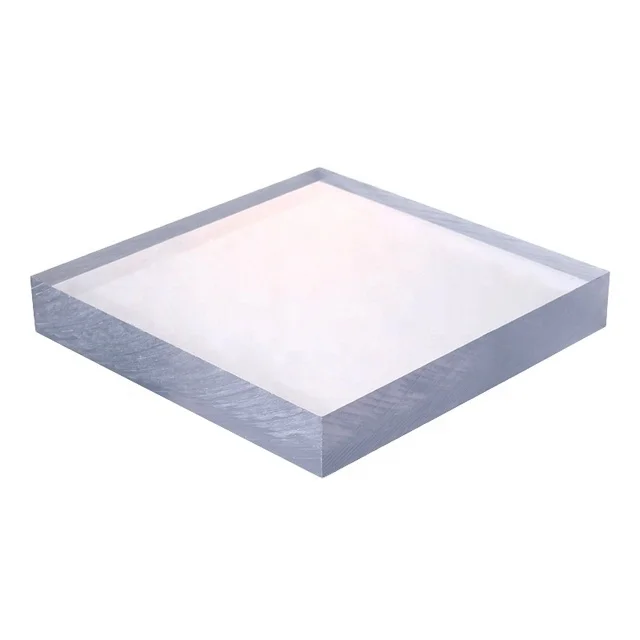

PC POLYCARBONATE SHEET - Solid Sheet
UNIKO PC solid sheet adopts Europe advanced co-extrusion technology, using polycarbonate (abbr.PC) as main material, Surface is co-extruded 50um UV protective layer.
Product Name | Polycarbonate Sheet | Type | PC Solid Sheet |

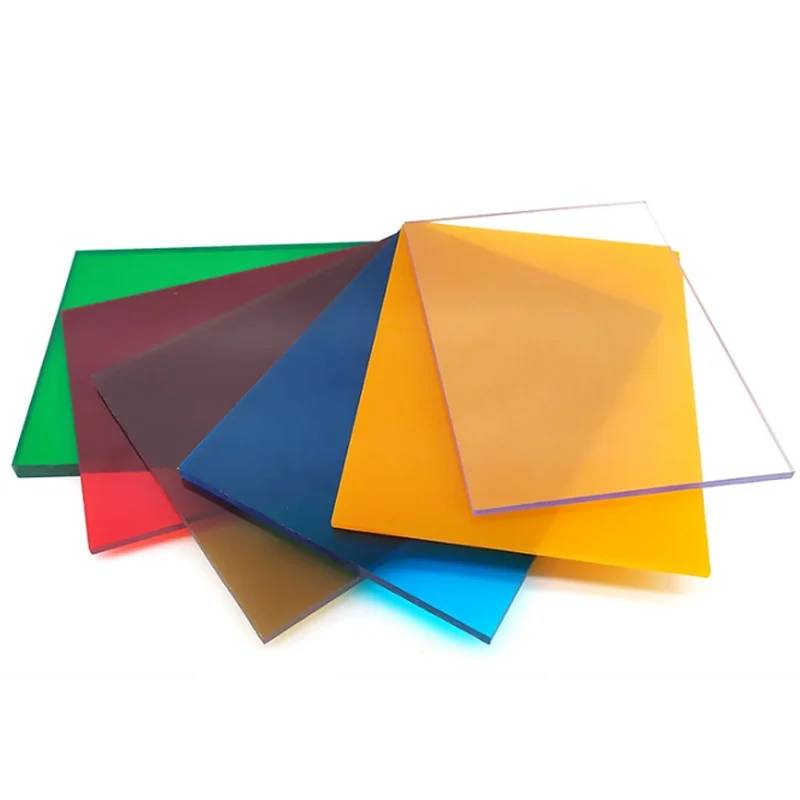

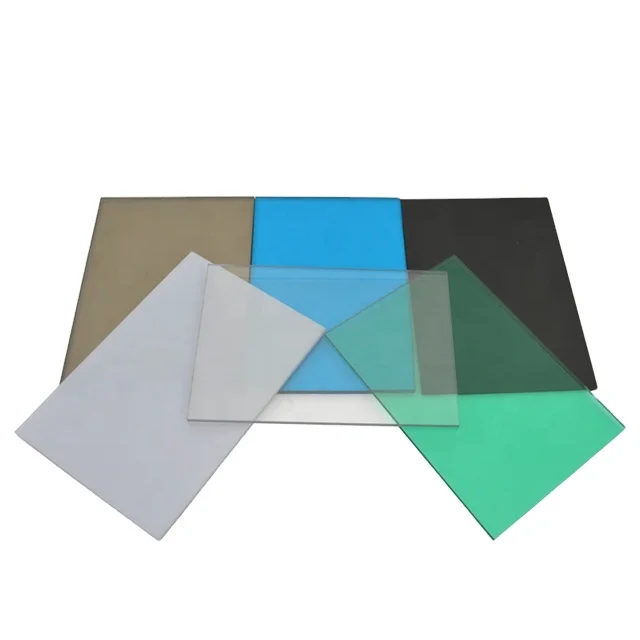

Brand | UNIKO | Colour | Clear,Brown,Green,Blue,Opal |
Surface | Coated 50um UV protective film | Place of Product | Guangdong Province,China |
Width | 1220/1560/1820/2100mm | Length | 0~50m |
Thickness | 1.2~20mm | Packing | Pack in bulk with protection film |
UV - PC POLYCARBONATE Solid Sheet possesses the feature of good light transmission, excellent weather resistance, excellent temperature resistance, flame retardant, super strong impact resistance, good soundp insulation, portability, durable and ect.
Main features of polycarbonate sheet:
1. Good light transmission
- Light transmittance of PC solid sheet is up to 88%
2. Excellent weather resistance
2. Excellent weather resistance
- Co-extruded UV protective layer on the surface can block the ultraviolet ray pass through the sheet. It makes the sheet not easily become aged or yellow. thereby greatly extend the life of sheet.The effect is more obvious in areas with strong ultraviolet ray.
3. Excellent temperature resistance
3. Excellent temperature resistance
- Between -40ºC to 120 ºC. It will not become deformed and will not appear any obvious quality degradation of mechanical properties.
4. Flame resistance
4. Flame resistance
- It belongs to Grade-B flame retardant by GB8624-2006 test.it will extinguish automatically when it is away from the fire.

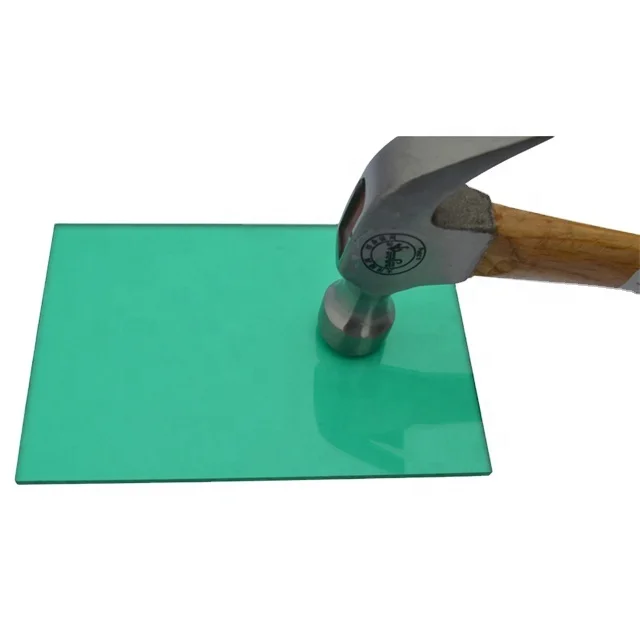

5. Super-strong Impact resistance
5. Super-strong Impact resistance
- The impact strength of PC solid sheet is 250 to 300 times stronger than the common glass with the same thickness, 30 times strongerthan acrylic sheet, 2 times stronger than toughened glass. It is a superior quality material for bulletproof glass.
6.Good sound insulation
- The noise can be effectively reduced.
7.Portability
6.Good sound insulation
- The noise can be effectively reduced.
7.Portability
- Light in weight, Density of PC solid sheet is only half of that from general glass. It is easy to be loaded,unloaded and installed.which help save cost of transportation and frame support.
Details Images
Installation Instructions
Installation Method 1- by inserting
a.Cut off 5~10mm wide of inserted protective film before PC sheet are inserted.
b.It must leave suitable quantity inserted, the space allowing their expanding or shrinking with the change of temperature and right thickness of PC sheet.
b.It must leave suitable quantity inserted, the space allowing their expanding or shrinking with the change of temperature and right thickness of PC sheet.
Installation Method 2 - by screws
a. Enlarge the aperture of any bolt or rivet much be enlarged to allow PC sheet expanding or shrinking with change of temperature.Generally, the aperture shall be 50% bigger than the diameter of bolt. Use aluminum rivet. Self-drilling screw must be abandoned.
b.Use silica gel to fill all apertures and cover their exposing parts to prevent PC sheet from map cracking by cleanser which may inserted in apertures.
c.The head of rivet should be 1.5~2.0 times bigger that the stem.Use gasket to fill between PC sheet and rivet head to prevent PC sheet getting directs pressure from rivet head, then lessen their pressure in this way.
d.Don't tighten screw too much in case stress may cause stress.
e.Don't use PVC gasket and water-proof adhesive tape with asphalt content.
f.Fix the metal pressing strip on long and short edges of PC sheet.Remain a space for their expanding, Strengthen installation stability.(see the following drawing for the exact installation)
b.Use silica gel to fill all apertures and cover their exposing parts to prevent PC sheet from map cracking by cleanser which may inserted in apertures.
c.The head of rivet should be 1.5~2.0 times bigger that the stem.Use gasket to fill between PC sheet and rivet head to prevent PC sheet getting directs pressure from rivet head, then lessen their pressure in this way.
d.Don't tighten screw too much in case stress may cause stress.
e.Don't use PVC gasket and water-proof adhesive tape with asphalt content.
f.Fix the metal pressing strip on long and short edges of PC sheet.Remain a space for their expanding, Strengthen installation stability.(see the following drawing for the exact installation)
APPLICATION

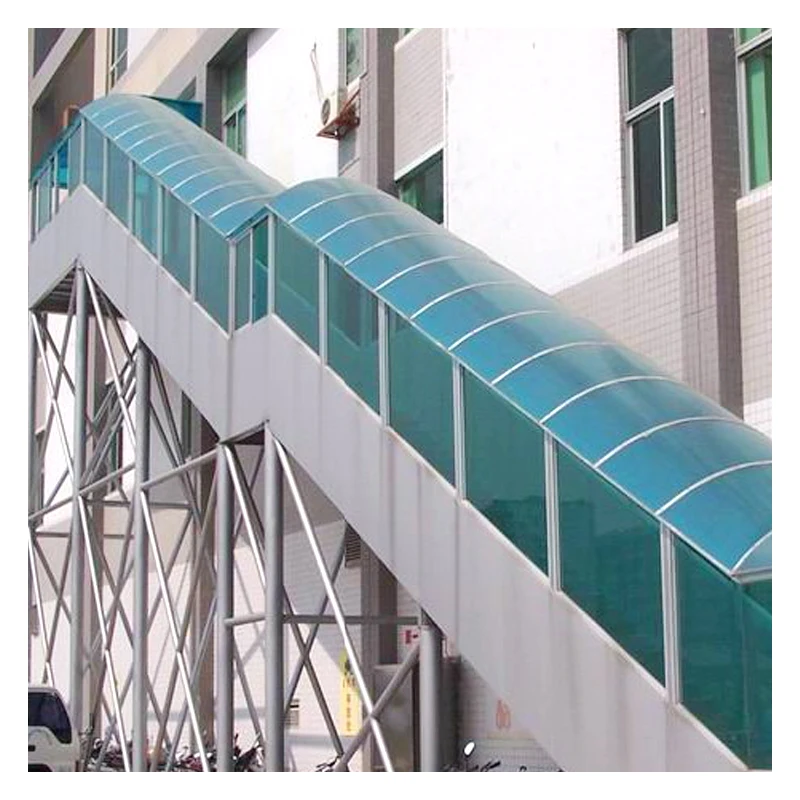

UNIKO Polycarbonate Sheet use as skylight for public building,industrial building and residential building,canopy roof,carport,sunshine house,stadium roof,swimming pool cover,waiting room roof of railway station,bus station and airport, shop corridor, hotel atrium,greenhouse,sound barrier walls for free way and urban viaduct,advertising light boxes,interior partition or screen decoration and so on.
Packing&Shipping
PC Panel / Polycarbonate Sheets / Sunhouse Roof / roofing Sheets packing and shipping:
Company Introduction
Foshan Uniko Building Material Co., Ltd is located in the beautiful ceramic capital of China--Foshan City of Guangdong. It is a modern enterprise of professional research, sales of synthetic resin roof tiles, ASA-PVC composite roof tile, APVC plastic roof tile, UPVC roof sheets and other building materials, PC solid sheet, PC hollow sheet and PC transparent corrugated sheet, We adopt international leading production technology and strictly implement ISO9001 international quality management system. Which ensure quality of products is excellent.
Related Products
- Spanish / Royal style ASA PVC roof tile,1050mm width
- Roma style ASA PVC roof tile,1050mm width
- Chinese style ASA PVC roof tile,1080mm width
- Classical style ASA PVC roof tile,1030mm width
- One Piece plastic resin tile, spanish style & classical style for choice.
UPVC Roof Tile Series:
- Corrugated wave profile,circular pvc roofing sheet, big wave pvc roofing sheet,720/930/1130mm profile for choice.- Trapezoidal profile,we have 900/1130/1360mm width pvc roof tile for choice.
- Wide span / High Pit profile,it is new popular roofing sheet with wide range 250mm space.
- Greca profile, this plastic pvc roofing sheet special use on farm as ceiling or wall.
- UPVC paritition wall sheet, this profile designs similar to grill panel, mainly use as wall panel for farm plant.
- Hollow PVC Sheet / Twin-wall sheet, this sandwish pvc roofing sheet have two layers and 10mm thickness, widely use in tropical rainforest climate zone.

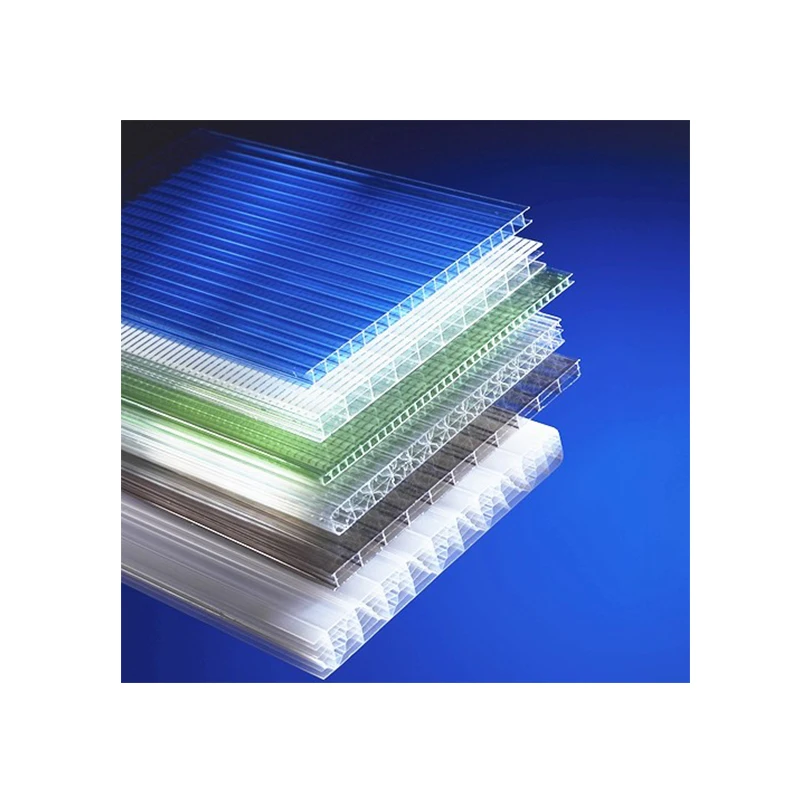

UV-PC Polycarbonate Sheet Series:
- PC solid sheet, light transmittance up to 88% for sheds/roofs and sun house etc.
- PC diamond / embossed / abrasive sheet,fuzzy effect special for indoor partition.
- PC crystal hollow sheet,excellent impact resistance with multi layers,more durable option.

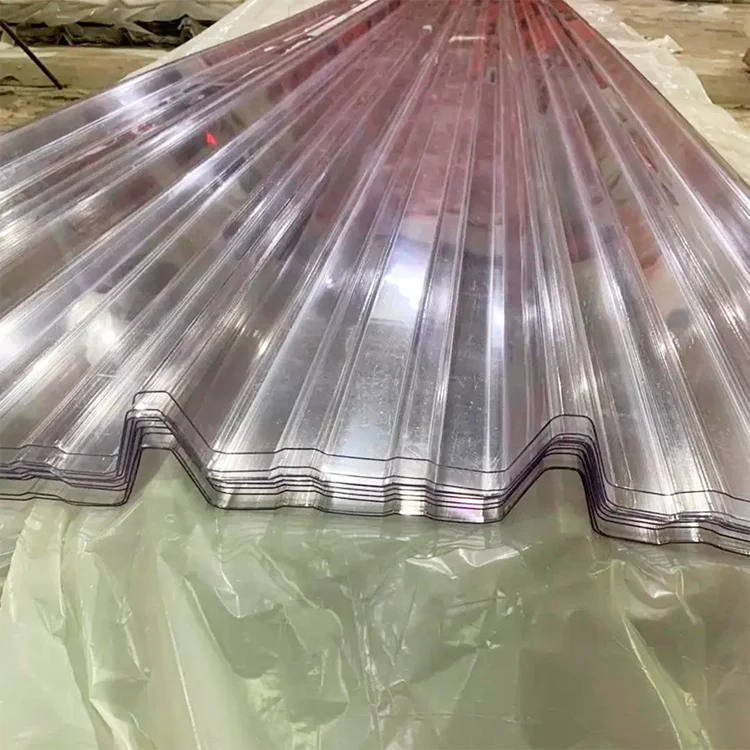

- PC transparent corrugated sheet,good light transmission up to 85%~90%,skylight for greenhouse.
