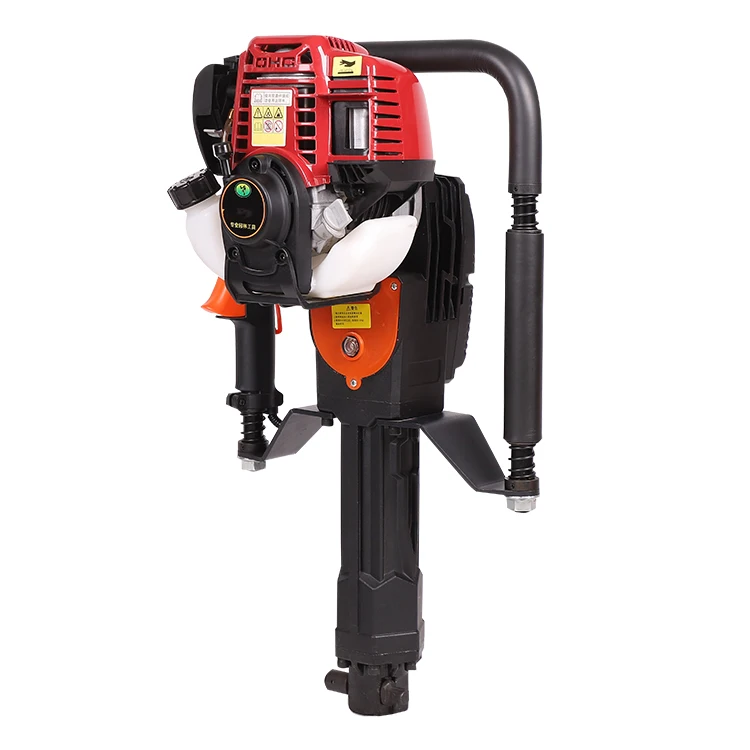

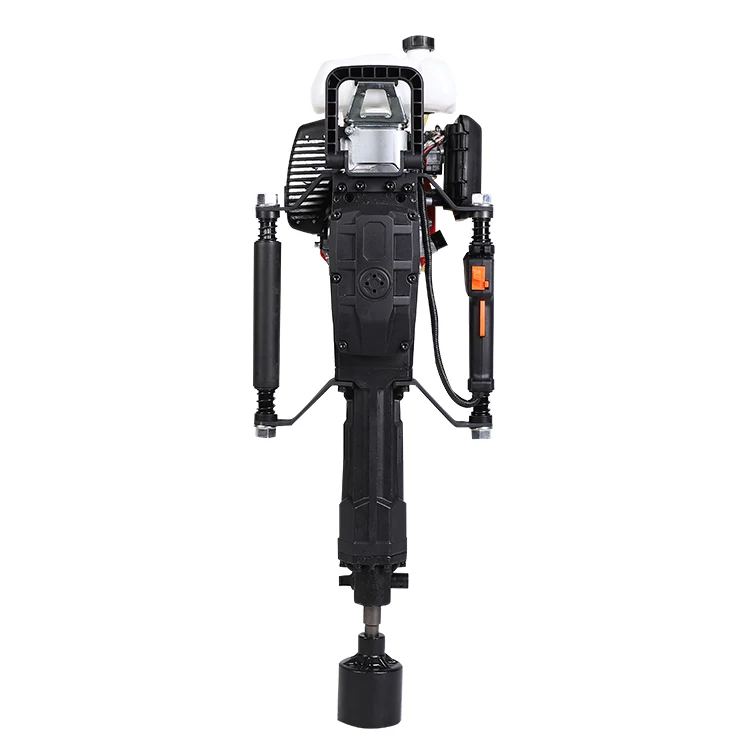

120mm Fence Pole Portable Hammer Pile Petrol Powered Guardrail Post Driver
There are three models post drivers for different request. Honda GX35 engine optional, if you need Honda engine, please contact sales.
DPD-80, compact and light design for 20-80mm posts
DPD-100, semi heavy duty, the most popular one, max. piling diam 100mm.
DPD-120, heavy duty usae, N.W23kg, max.piling diam.120mm
Model | DPD-80 | DPD-100 | DPD-120 |
Max piling diameter | 80mm (3'') | 100mm (4'') | 120mm (4.7'') |
Engine Type | 4-stroke,single-cylinder, air-cooled, 140FA Gasoline engine | 2-stroke,single-cylinder,air-cooled | 4-stroke,single-cylinder, air-cooled, 140FA Gasoline engine |
Displacement | 37.7CC | 51.7 CC | 37.7CC |
Fuel | 0.17 US gal(0.64L) | 1 L | 0.17 US gal(0.65L) |
Oil capacity | 0.12L | / | 0.12L |
Fuel: mixed oil | / | 25:1 | / |
Max power and speed | 1.3HP 6500r/min | 1.4 kw / 6500 r/min | 1.0 kw / 6500 r/min |
Max torque and speed | 1.63N.M /5500 (r/min) | / | / |
Fuel Consumption Rate | ≤ 0.8L/h | ≤ 610 g/kw.h | ≤ 480 g/kw.h |
Impact Frequency | 1500-2000bpm | 820-1200bpm | 900-1320bpm |
Impact Energy | up to 43.4J | 25-50 J | 25-55 J |
Carburetor type | H129-1C4/H629-1C4 | Diaphragm type | Diaphragm type |
Spark plug type | CMR5H | Electron ignition | Electron ignition |
Starter system | Hand pull start | Hand pull start | Hand pull start |
N.W | 14kg | 18.5kg | 22.5kg |
DPD-80:
What's Included?
1 x piling sleeve 45mm
1 x piling sleeve 55mm
1 x piling sleeve 73mm
1 x adaptor 80mm
1 x tools kit

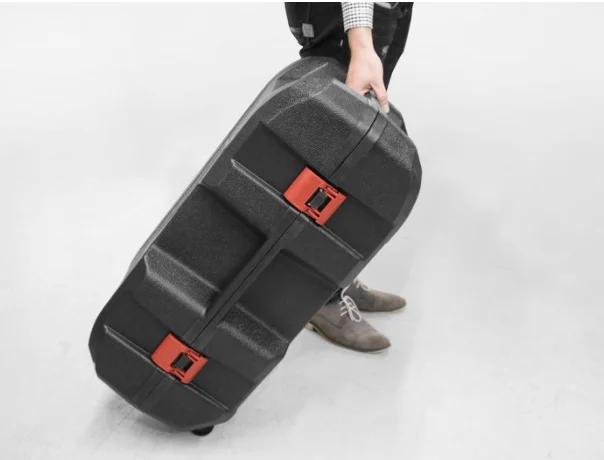

1 x blow plastic case
DPD-100:
What's Included?
1 x post driver DPD-100 with 100mm adaptor
1 x 60-78mm plastic sleeve and retainer
1 x oil mixture pot
1 x tool kit
1 x 120mm adapter (option)
1 x 46-60mm sleeve (option)
1 x 20-45mm sleeve (option)

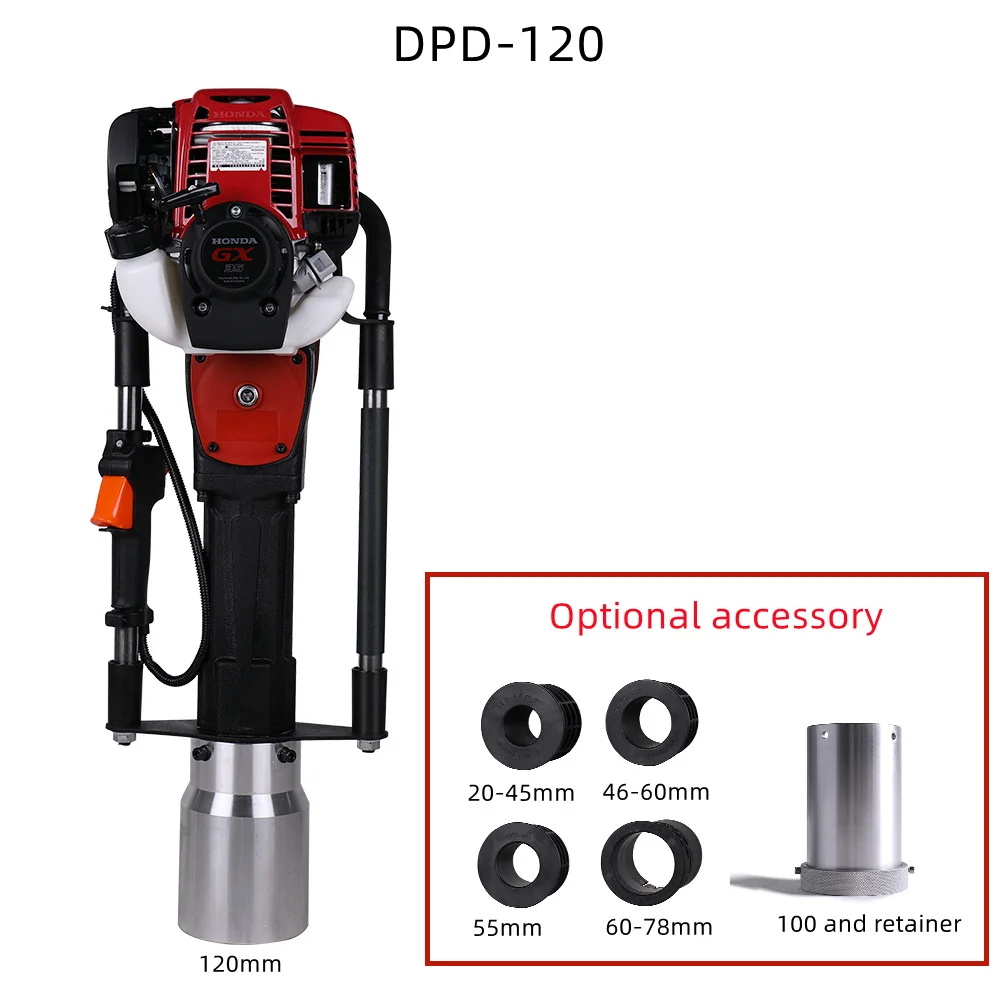

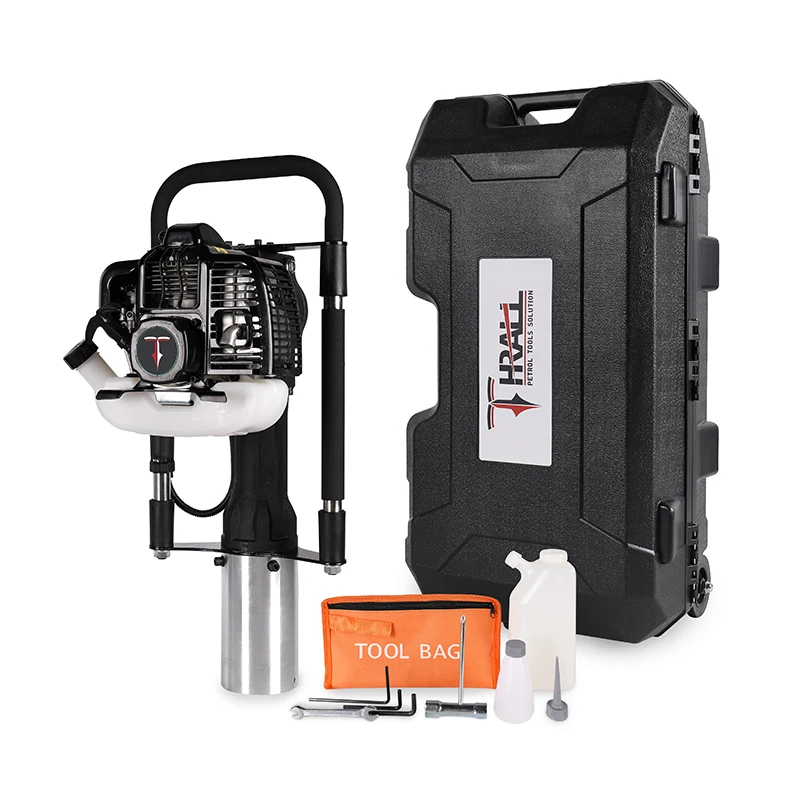

DPD-120:
What's Included?
1 x post driver DPD-120 with 120mm adaptor
1 x oil mixture pot
1 x tool kit

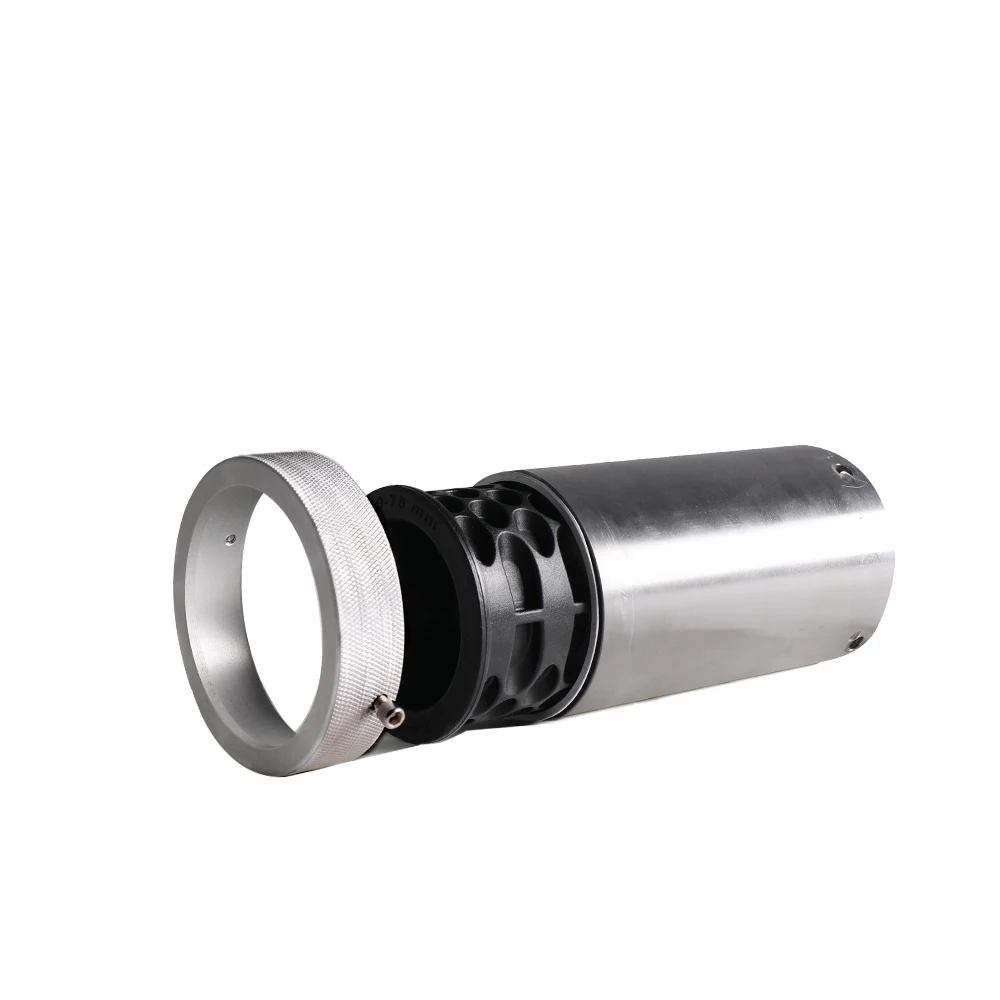

1 x 100mm adaptor and retainer (option)
1 x 60-78mm plastic sleeve (option)
1 x 46-60mm sleeve (option)
1 x 20-45mm sleeve (option)
Applications
– Fencing – Timber and Angle Iron Posts
– Landscaping – Tree Stakes
– Nurseries – Tree and plant support
– Vineyards – Especially steep hillsides
– Farming – Sheep and cattle fencing
– Construction – Temporary fencing/shuttering/ground pinning
– Contractors – Tent Stakes/Ground Anchors/Signage
– Festival/Fair Organisers – Signage/Temporary fencing
Packing: firm carton or wooden pack
Shipping:
Shipping Notice:
1.Less than 45 KG , Door to Door express (DHL, FedEx, TNT, etc.) is better
Sending details warehouse address for checking cost
2.More than 45 KG, Air freight is more cost-efficient
Sending nearest airport name for checking cost
3.Heavy duty or bulk order, sea freight is normally selection
Sending nearest seaport name for checking cost
SALES & SERVICE
AS a customer-oriented company, we try to put ourself in customer's position and carry out daily operations in an efficient manner.
To us,sold a machines is not the end of the deal but the start of a partnership and friendship.
* A well organized professional sales-support team
* Export to more than 40 countries
* OEM orders and customers' drawing are welcome
* NO MOQ
* Up to 1 year quality warranty
* Quick response
* Rapid parts supply for after service
We are keen to listen to our customers' voice and meet their demands,wore more flexible and react more quickly,we keep building reputation for honest and reliable business conduct among our worldwide customers. If you need more details about our products, please feel free to let us know.
To us, your satisfaction is our final purpose.
In the 2005s a German came to China and brought the latest German technology in diamond core drilling industry. Then a new China-Germany joint venture company was established in 2005.
Armed with little more than determination we produced our first professional core drill rig and core drill motor with German design and technology.
As the years passed,we continued the tradition of innovation and technical achievements, now we have two brands in our company. Bycon for diamond tools and construction machinery. Thrall for petrol tools include petrol post driver, petrol breaker, petrol hammer drill...
FAQ
Yes, As long as the order quantity reach to the MOQ.
2.Could I paint my own color?
Yes, As long as the order quantity reach to the MOQ.
3.Could I order trail small order?
Yes,we have no MOQ for standard version products. The price is different from different order quantity.
4.What is the delivery time?
Normally 15-30 days after payment in general condition.
5.What points need to be confirmed before placing the order?
Voltage and frequency,Plug type.
