Изготовленные на заказ детали для обработки станков с ЧПУ
7 163,74 ₽ - 7 714,80 ₽
Высококачественное Литье под давлением
- Категория: >>>
- Поставщик: Jiangsu Shengrong High End Equipment Manufacturing Industry Co. Ltd.
Сохранить в закладки 1601183987648:
Описание и отзывы
Характеристики
Products Description
1. Material: Gray Iron or Ductile Iron, Steel
Gray iron HT200-350 (GG20-35, FC200-350);Ductile Iron QT400-QT700(GGG40-GGG70,FCD400-FCD700)
2. Surface treatment: Shot blast, painting; Heat treatment is optional;
3. Custom according to your drawing, specification or samples;
Gray iron HT200-350 (GG20-35, FC200-350);Ductile Iron QT400-QT700(GGG40-GGG70,FCD400-FCD700)
2. Surface treatment: Shot blast, painting; Heat treatment is optional;
3. Custom according to your drawing, specification or samples;
4: CNC machining according to your drawing
Material | Gray Iron Casting/Ductile Iron Casting | ||||||
Process | Resin sand casting/shell mold casting/lost foam casting + CNC machining | ||||||
Casting Tolerance | CT9-10 for Machine Molding Process, CT8-9 for Shell Molding and Lost Foam Molding Casting Process CT10-11 for Manual Molding Sand casting Process | ||||||
Casting surface roughness | Ra 12.5-25 um | ||||||
Casting weight range | 0.5kg to 10tons per piece | ||||||
Casting Size | As Requirement/As drawing | ||||||
Machining surface roughness | As Requirement | ||||||
Material standard | GB, ASTM, AISI, DIN, BS, JIS, NF, AS, AAR | ||||||
Surface treatment | KTL (E-coating), Zinc plating, Mirror Polishing, Sand Blasting, Acid pickling, black oxide, Painting, Hot galvanizing, Powder coating, and Nickel plating. | ||||||
Service available | OEM & ODM | ||||||
Quality control/Testing facility | spectrometer,tensile test, hardness test, metallography microscope. Ultrasonic test, 100% inspection | ||||||
Application | Train & railway, automobile& truck, construction machinery, forklift, agricultural machinery, shipbuilding, petroleum machinery,construction, valves and pumps, electric machine, hardware, power equipment, and so on. | ||||||
Mechanical character
Grey Iron Grade in GB 9439 Gray iron Castings | ||||||
Gray Iron Grade | Single Specimen Tensile Strength σb≥/Mpa | Wall Thickness /mm | Tensile Strength σb≥/Mpa | |||
HT100 | 100 | >2.5~10 | 130 | |||
>10~20 | 100 | |||||
>20~30 | 90 | |||||
>30~40 | 80 | |||||
HT150 | 150 | >2.5~10 | 175 | |||
>10~20 | 145 | |||||
>20~30 | 130 | |||||
>30~40 | 120 | |||||
HT200 | 200 | >2.5~10 | 220 | |||
>10~20 | 195 | |||||
>20~30 | 170 | |||||
>30~40 | 160 | |||||
HT250 | 250 | >2.5~10 | 270 | |||
>10~20 | 240 | |||||
>20~30 | 220 | |||||
>30~40 | 200 | |||||
HT300 | 300 | >10~20 | 290 | |||
>20~30 | 250 | |||||
>30~40 | 230 | |||||
HT350 | 350 | >10~20 | 340 | |||
>20~30 | 290 | |||||
>30~40 | 260 | |||||
Ductile Iron Grade in GB1348 Ductile Iron Castings | ||||||||
Iron Grade | Wall Thickness /mm | Tensile Strength(Min Mpa) | Yield Strength(Min Mpa) | elongation % Min | ||||
QT400-18A | >30~60 | 390 | 250 | 18 | ||||
>60~200 | 370 | 240 | 12 | |||||
QT400-15A | >30~60 | 390 | 250 | 15 | ||||
>60~200 | 370 | 240 | 12 | |||||
QT500-7A | >30~60 | 450 | 300 | 7 | ||||
>60~200 | 420 | 290 | 5 | |||||
QT600-3A | >30~60 | 600 | 360 | 3 | ||||
>60~200 | 550 | 430 | 1 | |||||
QT700-2A | >30~60 | 700 | 400 | 2 | ||||
>60~200 | 650 | 380 | 1 | |||||
Gray Iron Material Grades | ||||||||||||||||
Country | Standard | Equivalent Grades of Grey Iron (Gray Cast Iron) | ||||||||||||||
ISO | ISO 185 | 100 | 150 | 200 | 250 | 300 | 350 | - | ||||||||
China | GB 9439 | HT100 | HT150 | HT200 | HT250 | HT300 | HT350 | - | ||||||||
USA | ASTM A48 | - | NO.20 | NO.30 | NO.35 | NO.40 | NO.50 | NO.55 | ||||||||
NO.25 | NO.45 | NO.60 | ||||||||||||||
Germany | DIN 1691 | GG10 | GG15 | GG20 | GG25 | GG30 | GG35 | GG40 | ||||||||
Austria | ||||||||||||||||
European | EN 1561 | EN-GJL-100 | EN-GJL-150 | EN-GJL-200 | EN-GJL-250 | EN-GJL-300 | EN-GJL-350 | |||||||||
Japan | JIS G5501 | FC100 | FC150 | FC200 | FC250 | FC300 | FC350 | - | ||||||||
Italy | UNI 5007 | G10 | G15 | G20 | G25 | G30 | G35 | - | ||||||||
France | NF A32-101 | - | FGL150 | FGL200 | FGL250 | FGL300 | FGL350 | FGL400 | ||||||||
UK | BS 1452 | 100 | 150 | 200 | 250 | 300 | 350 | - | ||||||||
India | IS 210 | - | FG150 | FG200 | FG260 | FG300 | FG350 | FG400 | ||||||||
Spain | UNF | - | FG15 | FG20 | FG25 | FG30 | FG35 | - | ||||||||
Belgium | NBN 830-01 | FGG10 | FGG15 | FGG20 | FGG25 | FGG30 | FGG35 | FGG40 | ||||||||
Australia | AS 1830 | - | T150 | T220 | T260 | T300 | T350 | T400 | ||||||||
Sweden | SS 14 01 | O110 | O115 | O120 | O125 | O130 | O135 | O140 | ||||||||
Norway | NS11 100 | SJG100 | SJG150 | SJG200 | SJG250 | SJG300 | SJG350 | - | ||||||||
Ductile /Nodular Cast Iron Material Grades | ||||||||||||||||
Country | Standard | Equivalent Grades of Ductile iron (SG Iron, Nodular Graphite Iron) | ||||||||||||||
ISO | ISO 1083 | 400-15 | 450-10 | 500-7 | 600-3 | 700-2 | 800-2 | 900-2 | ||||||||
400-18 | ||||||||||||||||
China | GB 1348 | QT400-18 | QT450-10 | QT500-7 | QT600-3 | QT700-2 | QT800-2 | QT900-2 | ||||||||
USA | ASTM A536 | 60-40-18 | 60-42-10 | 70-50-05 | 80-55-06 | 100-70-03 | 120-90-02 | — | ||||||||
65-45-12 | 80-60-03 | |||||||||||||||
Germany | DIN 1693 | GGG40 | — | GGG50 | GGG60 | GGG70 | GGG80 | — | ||||||||
Austria | ||||||||||||||||
European | EN 1563 | EN-GJS-400-15 | EN-GJS-450-10 | EN-GJS-500-7 | EN-GJS-600-3 | EN-GJS-700-2 | EN-GJS-800-2 | EN-GJS-900-2 | ||||||||
EN-GJS-400-18 | ||||||||||||||||
Italy | UNI 4544 | GS370-17 | GS400-12 | GS500-7 | GS600-2 | GS700-2 | GS800-2 | — | ||||||||
France | NF A32-201 | FGS370-17 | FGS400-12 | FGS500-7 | FGS600-2 | FGS700-2 | FGS800-2 | — | ||||||||
UK | BS 2789 | 400/17 | 420/12 | 500/7 | 600/7 | 700/2 | 800/2 | 900/2 | ||||||||

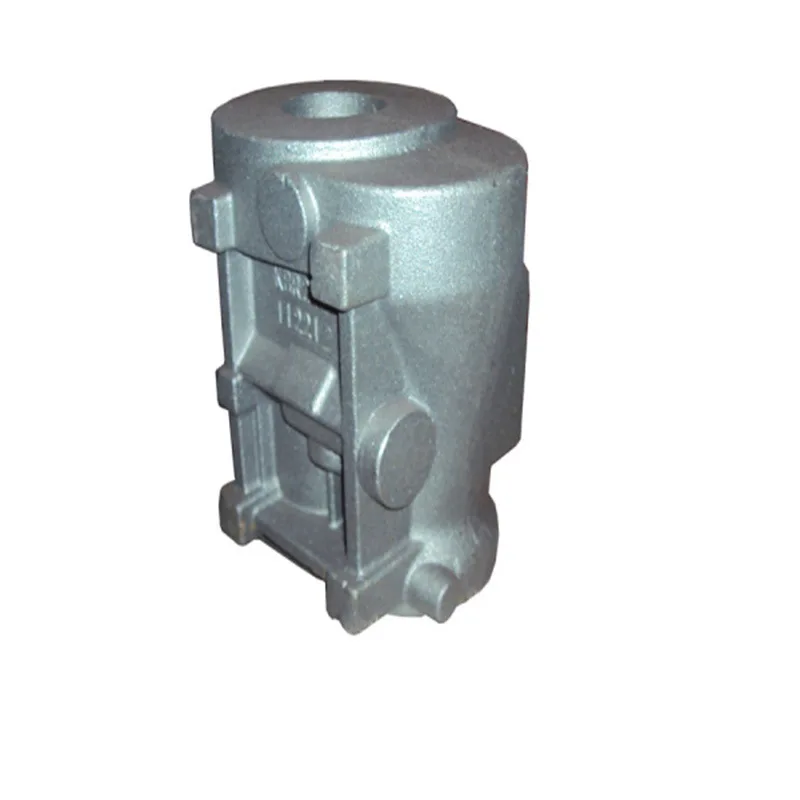

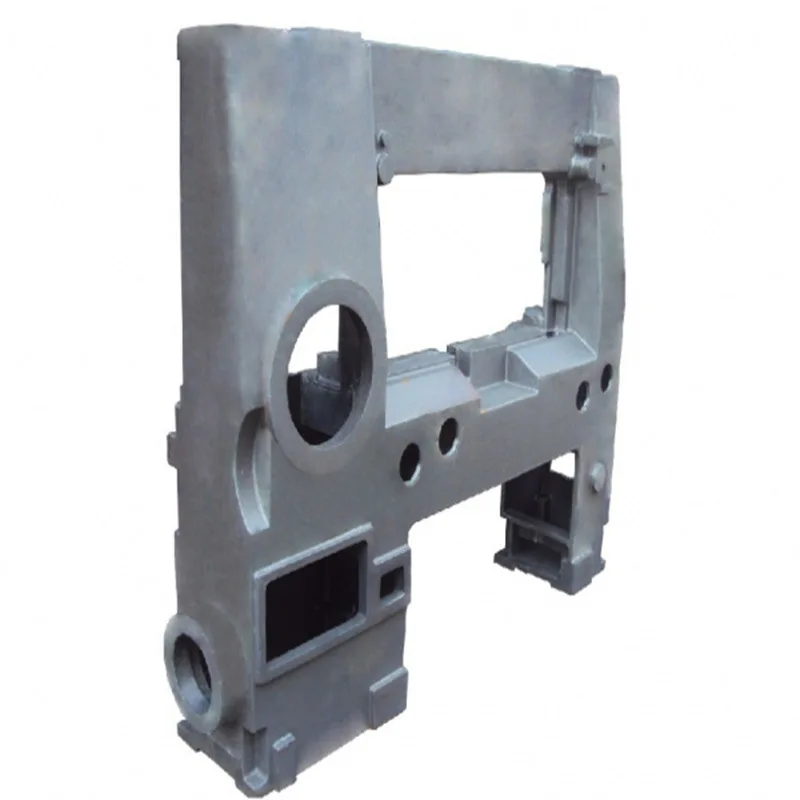

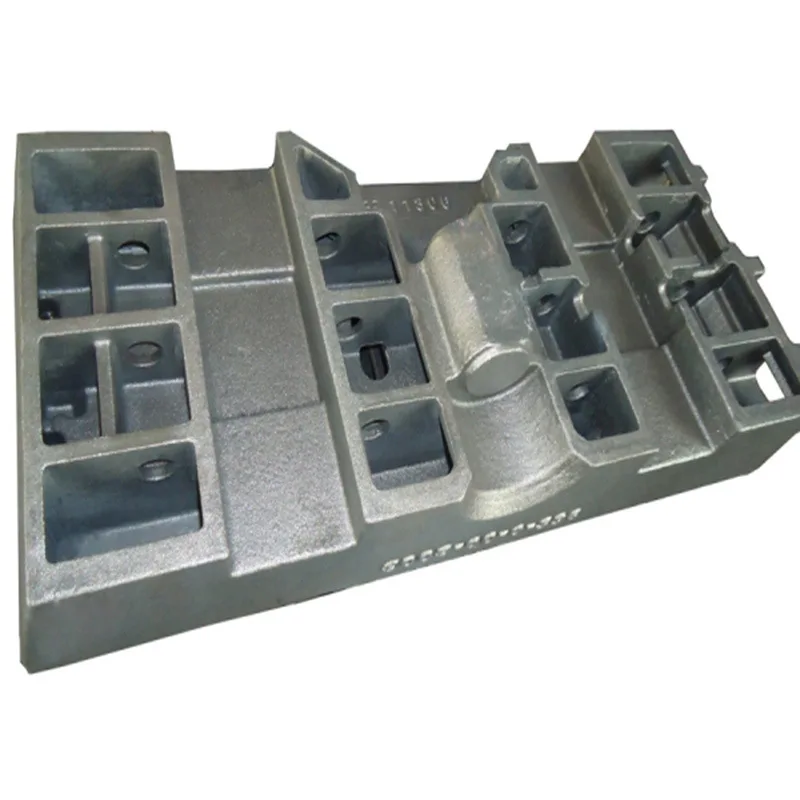

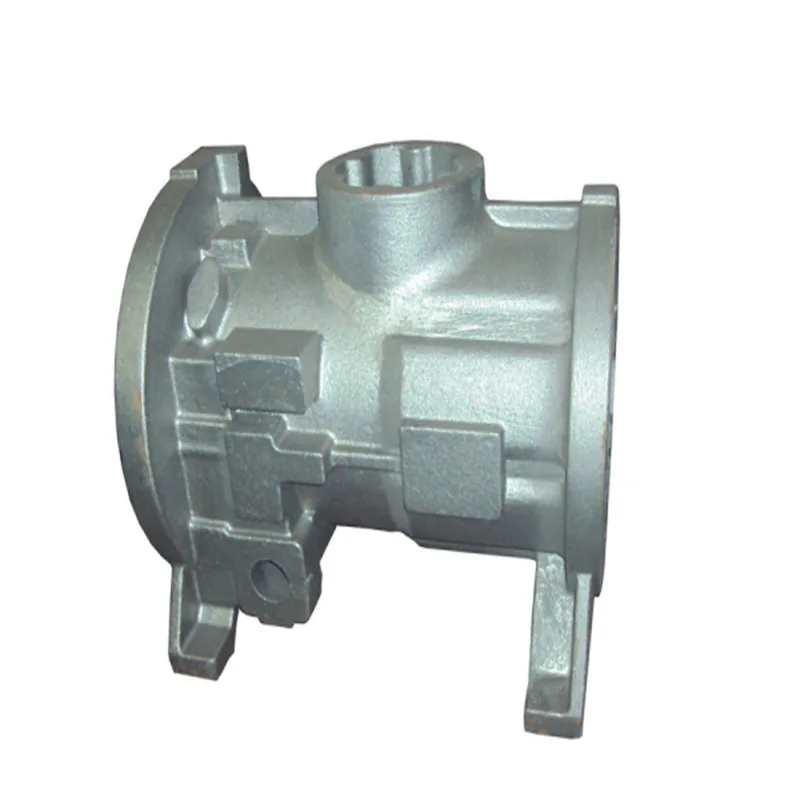

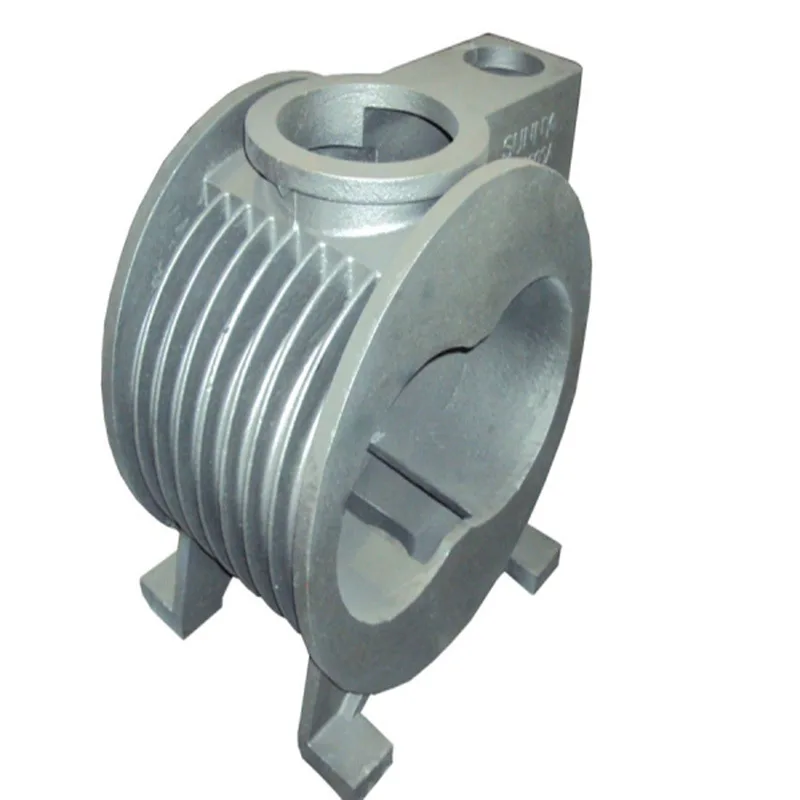

Details Images
Company Profile
Jiangsu Shengrong High-end Equipment Manufacturing Industry Co., Ltd. is a professional Gray cast iron/Ductile iron/steel casting foundry in Jiangsu province in China,We produce iron casting parts:Machinery Bases,Construction machinery parts, Industrial pump parts,Gearbox parts,Automotive parts,Agriculture machine parts and OEM part. We have passed quality management system ISO 9001 and IATF16949. Our factory located in Maba Town, Xuyi County, Huai'an City, Jiangsu province, covering an area of about 245 acres with new standardized factory building more than 200,000 square meters, office building of 6,000 square meters.
Our company produces ductile iron and gray cast iron series products, with an annual output of 30,000 tons,products are exported to the United States, Germany, Italy, Russia, Brazil, Vietnam, the Middle East and other regions. The casting parts from 1kgs to10000kgs
Our company has a modern workshop, complete casting production equipment, advanced physical and chemical analysis, testing equipment, constantly importing the world's advanced technology and a large number of professional technical personnel, expanding advanced production and testing equipment, so that make our products can meet the different requirements of customers
Jiangsu Shengrong does our best to provide high-quality foundry machinery parts for the market, Serves domestic and foreign customers with the most cost-effective products, and make our contributing to China's foundry industry.
Our company produces ductile iron and gray cast iron series products, with an annual output of 30,000 tons,products are exported to the United States, Germany, Italy, Russia, Brazil, Vietnam, the Middle East and other regions. The casting parts from 1kgs to10000kgs
Our company has a modern workshop, complete casting production equipment, advanced physical and chemical analysis, testing equipment, constantly importing the world's advanced technology and a large number of professional technical personnel, expanding advanced production and testing equipment, so that make our products can meet the different requirements of customers
Jiangsu Shengrong does our best to provide high-quality foundry machinery parts for the market, Serves domestic and foreign customers with the most cost-effective products, and make our contributing to China's foundry industry.
What we can do
Our equipment and test
Customer Visiting
Product packaging
FAQ
Q1. Can I get samples?
Yes. You need send us the detailed drawing, we will offer you price and lead time
Q2. Can I use my own logo or design on the goods?
Yes, we provide OEM/ODM your logo and design can be made on the products.
Q3. What is the casting process? And Machining?
Sand casting+lost foam casting+CNC machining
Q4. How is the production capacity of your factory?
Annual production 30000 tons
Q5. When will it be shipped?
Shipment within 40 days after the order is confirmed.
Q6. Sample time
Samples will be shipped within 30 days after receiving the customer's mold fee
Yes. You need send us the detailed drawing, we will offer you price and lead time
Q2. Can I use my own logo or design on the goods?
Yes, we provide OEM/ODM your logo and design can be made on the products.
Q3. What is the casting process? And Machining?
Sand casting+lost foam casting+CNC machining
Q4. How is the production capacity of your factory?
Annual production 30000 tons
Q5. When will it be shipped?
Shipment within 40 days after the order is confirmed.
Q6. Sample time
Samples will be shipped within 30 days after receiving the customer's mold fee
