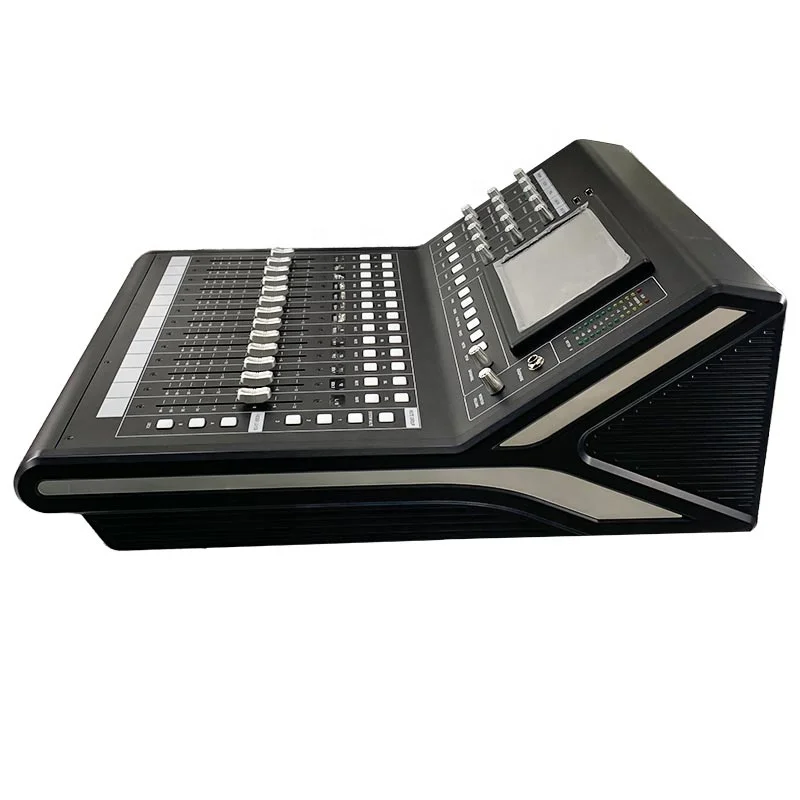

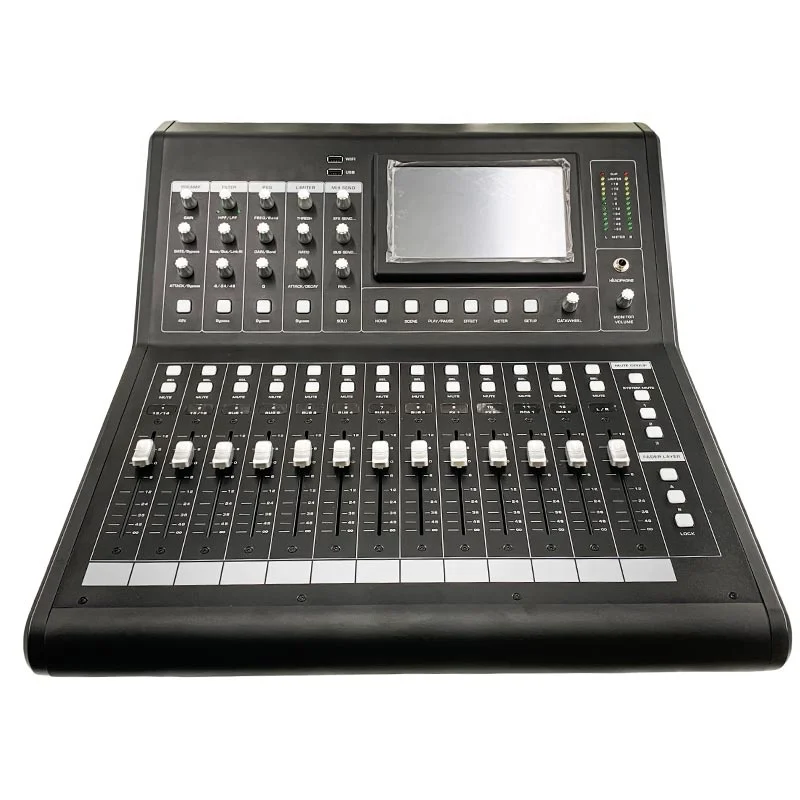

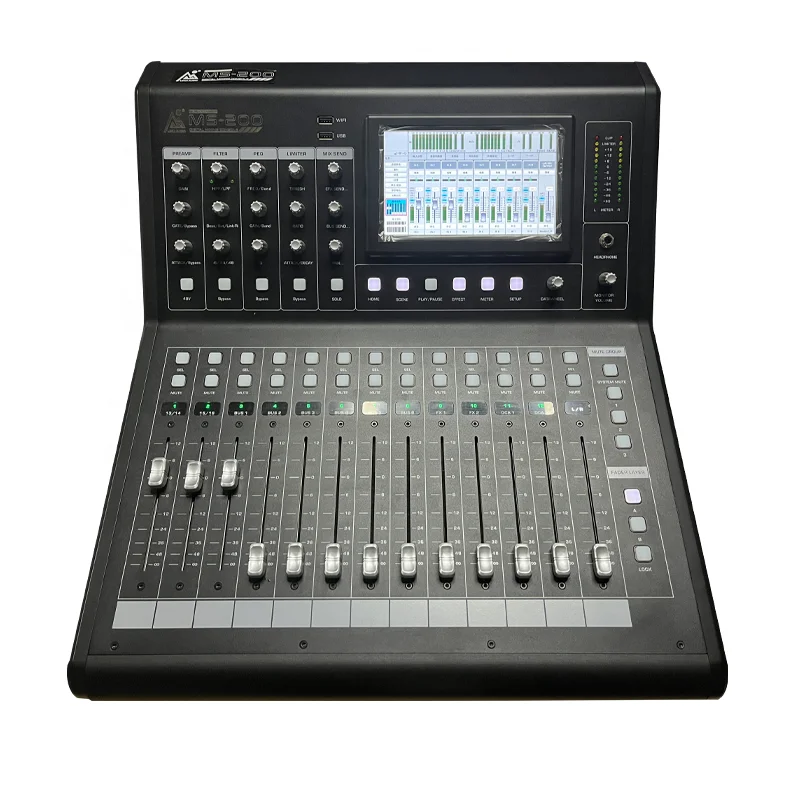

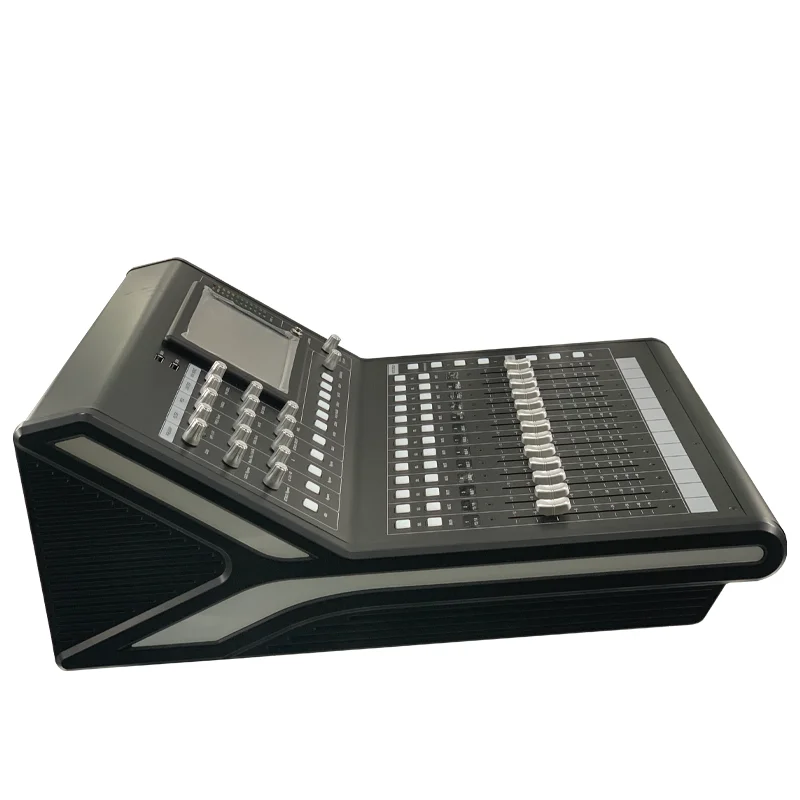

Профессиональный высокопроизводительный цифровой микшер MS200 для профессионального этапа с мощным процессором DSP
- Категория: >>>
- Поставщик: Dongguang Lihui Technology Company Limited
Сохранить в закладки 1601184689210:
Описание и отзывы
Характеристики
Products Description
Master Level 、Microphone Amplifier Circuitry Of the 16 analogue inputs, 14 digital gain microphone amplifier channels、smooth 1dB
step gain adjustment、the signal through the high-performance low-latency 24-bit analogue-to-digital converter、very small
distortion and ultra-low noise floor、 multi-functional parameter adjustable; digital gain brought about by the good consistency of
the effective prevention of misuse; these are analogue mixing consoles can not be compared. Microphone amplifier noise floor:
30dBu microphone amplifier gain -86.8dBu without weighting (AP test AES17-20Khz) Microphone amplifier Noise Floor: 40dBu
microphone amplifier gain -80dBu without weighthing (AP Test AES17-20Khz) Powerful DSP Processor MS-200 digital mixer using
ADSP-21489 400Mhz, can provide more powerful DSP processing capabilities, such as the provision of all-pass filters, dynamic
equalisation DEQ and other advanced algorithms, from analogue to digital mixer upgrade or replacement, MS-200 will be your best
choice of the you . Sound Mixing Speed Having the strong ability of dispose and the function of advanced ,can call out sound
mixing interference speedily ,and adjustment immediately ;once you start to use MS-200 ,you will fell the convenience and speed
which brought by the design of software operation ;it's convenience for our operation experience ,making all of people to enjoy
the convenience and strong function of digital mixer. Touch Control 1024x600 true color resistive touch screen, digital encoder
and dedicated buttons form the DMG18 operation panel, which can quickly and easily perform all Settings; Friendly software
interface, clear navigation design, even without consulting the manual, you can understand the operation, special buttons and
on-screen navigation buttons will quickly guide you to each function module; Such as level meter, PEQ, Limiter, USB recording and
playback, scene storage, system Settings, etc. Touch Screen Error Tolerance USB Mouse When the touch screen fails to work, you can
plug in a standard USB mouse into the USB port and use it immediately without rebooting. Chinese and English Operation Interface -
Simplify the Complexity In today's information explosion era, the manual has become a thing of the past the appearance of the
Chinese and English appear, you can completely ignore the manual, directly and quickly get started on the operation, reducing the
operator's knowledge of the mixing console terminology, but also reduces the threshold for the application of the unit's personnel
employment. Thirteen 100mm Electric Faders Electric faders come as standard on digital consoles, and the MS-200 instantly
manipulates all channels and main outputs in a compact space: 1 LR main channel fader, 12 channel faders, and 2 fader layers for
easy and fast switching. 2 Built-in Effectors The built-in effects simplify system wiring for concerts and performances; the unit
comes with its own effects modules such as Classic Reverb and Big Room Reverb; and FX sound effects can be returned to the mix
using a dedicated return channel without taking up mono and stereo input channels. 100 Scene Storage Scene storage is one of the
most practical and significant features that distinguishes it from analogue mixing consoles. The MS-200 can store 100 complete
scenes, all of which can be exported to an external storage device for storage and backup; so that they can be called up in a
timely manner at a later stage. PEQ Scenes PEQ Scene storage is used to store patterns for individual input channels. The best
state of your pre-show tuning can be stored in the system and recalled on any input channel; e.g., singers, instruments before a
performance. USB Playback and Recording MS-200 is able to identify the Chinese and English song names in the USB electronic disc,
with fast forward, next song, quick pause and other functions, which is very convenient for on-site operation; and it supports the
playback of APE, FLAC, MP3, WAV lossless audio formats. ARM processor + Linux system Samsung 4418 quad-core 1.4G high-performance
ARM processor, easy to drive the touch screen display and interface, USB playback recording, 22-second quick start; Linux system
is stable and efficient, no fear of viruses so that it has better security. Function Introduce ■ 7" resistive touch screen
1024x600 resolution ■ 13 x 100mm electric faders ■ English and Chinese interfaces can be switched at any time without reboot ■
Built-in USB recording and playback function ■ Can play APE, FLAC, MP3, WAV lossless audio format ■ USB player can recognize
Chinese song titles ■ Built-in 16 channels of independent feedback suppressor ■ Built-in 16-channel automatic mixing ■ Integrated
speaker manager ■ Open third-party control protocols TCP / IP, RS-232 control commands ■ With 2 DCA ■ iPad touch screen
full-featured control, real-time data synchronisation ■ Optional WIFI hotspot ■ Support 8 terminals at the same time control ■
Built-in 2 effects modules■ ARM firmw
step gain adjustment、the signal through the high-performance low-latency 24-bit analogue-to-digital converter、very small
distortion and ultra-low noise floor、 multi-functional parameter adjustable; digital gain brought about by the good consistency of
the effective prevention of misuse; these are analogue mixing consoles can not be compared. Microphone amplifier noise floor:
30dBu microphone amplifier gain -86.8dBu without weighting (AP test AES17-20Khz) Microphone amplifier Noise Floor: 40dBu
microphone amplifier gain -80dBu without weighthing (AP Test AES17-20Khz) Powerful DSP Processor MS-200 digital mixer using
ADSP-21489 400Mhz, can provide more powerful DSP processing capabilities, such as the provision of all-pass filters, dynamic
equalisation DEQ and other advanced algorithms, from analogue to digital mixer upgrade or replacement, MS-200 will be your best
choice of the you . Sound Mixing Speed Having the strong ability of dispose and the function of advanced ,can call out sound
mixing interference speedily ,and adjustment immediately ;once you start to use MS-200 ,you will fell the convenience and speed
which brought by the design of software operation ;it's convenience for our operation experience ,making all of people to enjoy
the convenience and strong function of digital mixer. Touch Control 1024x600 true color resistive touch screen, digital encoder
and dedicated buttons form the DMG18 operation panel, which can quickly and easily perform all Settings; Friendly software
interface, clear navigation design, even without consulting the manual, you can understand the operation, special buttons and
on-screen navigation buttons will quickly guide you to each function module; Such as level meter, PEQ, Limiter, USB recording and
playback, scene storage, system Settings, etc. Touch Screen Error Tolerance USB Mouse When the touch screen fails to work, you can
plug in a standard USB mouse into the USB port and use it immediately without rebooting. Chinese and English Operation Interface -
Simplify the Complexity In today's information explosion era, the manual has become a thing of the past the appearance of the
Chinese and English appear, you can completely ignore the manual, directly and quickly get started on the operation, reducing the
operator's knowledge of the mixing console terminology, but also reduces the threshold for the application of the unit's personnel
employment. Thirteen 100mm Electric Faders Electric faders come as standard on digital consoles, and the MS-200 instantly
manipulates all channels and main outputs in a compact space: 1 LR main channel fader, 12 channel faders, and 2 fader layers for
easy and fast switching. 2 Built-in Effectors The built-in effects simplify system wiring for concerts and performances; the unit
comes with its own effects modules such as Classic Reverb and Big Room Reverb; and FX sound effects can be returned to the mix
using a dedicated return channel without taking up mono and stereo input channels. 100 Scene Storage Scene storage is one of the
most practical and significant features that distinguishes it from analogue mixing consoles. The MS-200 can store 100 complete
scenes, all of which can be exported to an external storage device for storage and backup; so that they can be called up in a
timely manner at a later stage. PEQ Scenes PEQ Scene storage is used to store patterns for individual input channels. The best
state of your pre-show tuning can be stored in the system and recalled on any input channel; e.g., singers, instruments before a
performance. USB Playback and Recording MS-200 is able to identify the Chinese and English song names in the USB electronic disc,
with fast forward, next song, quick pause and other functions, which is very convenient for on-site operation; and it supports the
playback of APE, FLAC, MP3, WAV lossless audio formats. ARM processor + Linux system Samsung 4418 quad-core 1.4G high-performance
ARM processor, easy to drive the touch screen display and interface, USB playback recording, 22-second quick start; Linux system
is stable and efficient, no fear of viruses so that it has better security. Function Introduce ■ 7" resistive touch screen
1024x600 resolution ■ 13 x 100mm electric faders ■ English and Chinese interfaces can be switched at any time without reboot ■
Built-in USB recording and playback function ■ Can play APE, FLAC, MP3, WAV lossless audio format ■ USB player can recognize
Chinese song titles ■ Built-in 16 channels of independent feedback suppressor ■ Built-in 16-channel automatic mixing ■ Integrated
speaker manager ■ Open third-party control protocols TCP / IP, RS-232 control commands ■ With 2 DCA ■ iPad touch screen
full-featured control, real-time data synchronisation ■ Optional WIFI hotspot ■ Support 8 terminals at the same time control ■
Built-in 2 effects modules■ ARM firmw
Customization Process
OEM&ODM
We have over 20 designers and over 30 engineers who can provide you with excellent customized plans.
From appearance, power, access, pre sales consultation and after-sales service, we are all happy to discuss with you.And the products we sell have a two-year warranty service guarantee
From appearance, power, access, pre sales consultation and after-sales service, we are all happy to discuss with you.And the products we sell have a two-year warranty service guarantee
Custom Outlook
Regarding the appearance design, you can use our designer drawings or process them to customize your Amplifier Housing
Custom amp board
Circuit board design, you can choose the size, channel, power, and heat dissipation that need to be customized to perfectly fit your sales market
Company Profile
Dongguan Lihui Technology Co., LTD
a high-tech professional audio equipment manufacturing enterprise that integrates research and development, production, sales, and service. The company specializes in the research and development, production, andmanufacturing of household amplifiers, D-level amplifiers, Dsp amplifier templates, card package speakers, stage speakerspower amplifiers, high-end speakers, wooden speakers,subwoofers, and other products, We have our own independentproduction line, a complete and scientific quality management system,and a technical research and development team withnearly 20 years of experience. Currently, we independently research and develop ampllfier and speaker production, amplifieassembly, electronic circuit design and production, and assembly, as well as a well-equipped international trade and after-salesservice personnel.
At present, the product has been widely used in large theaters,theaters, performance venues, sports venues, professionalcinemas,entertainment venues, commercial music broadcasting, conference halls, schools, and xhibition centers. it has beenexported to foreign countries and has received unanimous praise from a large number of users for its excellent quality, affordableprice, fast supply, and good service. We have fuly implemented the ISO9001:2000 quality assurance system, ISO14001environmental protection system, and 5S management. The products produced by the company have passed CE, FCC, RoHS, andother certifications. All employees of Lihui are grateful for the patronage and supportcustomers,ane welcome tocall to discuss business
Feedback＆Exhibit
Product certificate
Packaging ＆ Delivery
We support all modes of transportation, and as long as you place an order, we will follow up on your entire transportation processuntil the product is safely delivered to you
FAQ
Q1. Can I have a sample order for it?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-15 days, mass production time needs 10-20 days for order quantity more than
Q3. Do you have any MOQ limit for your products order?
A: Low MOQ, 1pc for sample checking is available for some models
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years/1 year warranty to our products. depends on which series
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we can offer you spare part with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i ncluding re-call according to real situation.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-15 days, mass production time needs 10-20 days for order quantity more than
Q3. Do you have any MOQ limit for your products order?
A: Low MOQ, 1pc for sample checking is available for some models
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years/1 year warranty to our products. depends on which series
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we can offer you spare part with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i ncluding re-call according to real situation.
Похожие товары
Dsp компрессорное контрольное оборудование для аудио-и видеоконференций
18 216,60 ₽

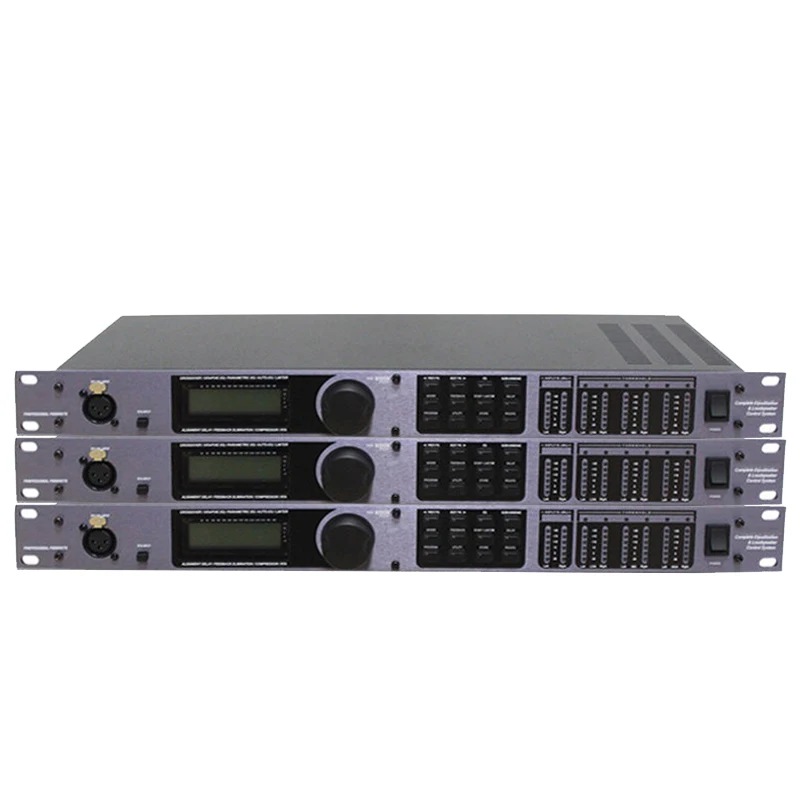

Vosiner dsp аудио процессор плата D160 Профессиональный 2 в 6 выход динамик управление
19 651,85 ₽ - 21 197,50 ₽

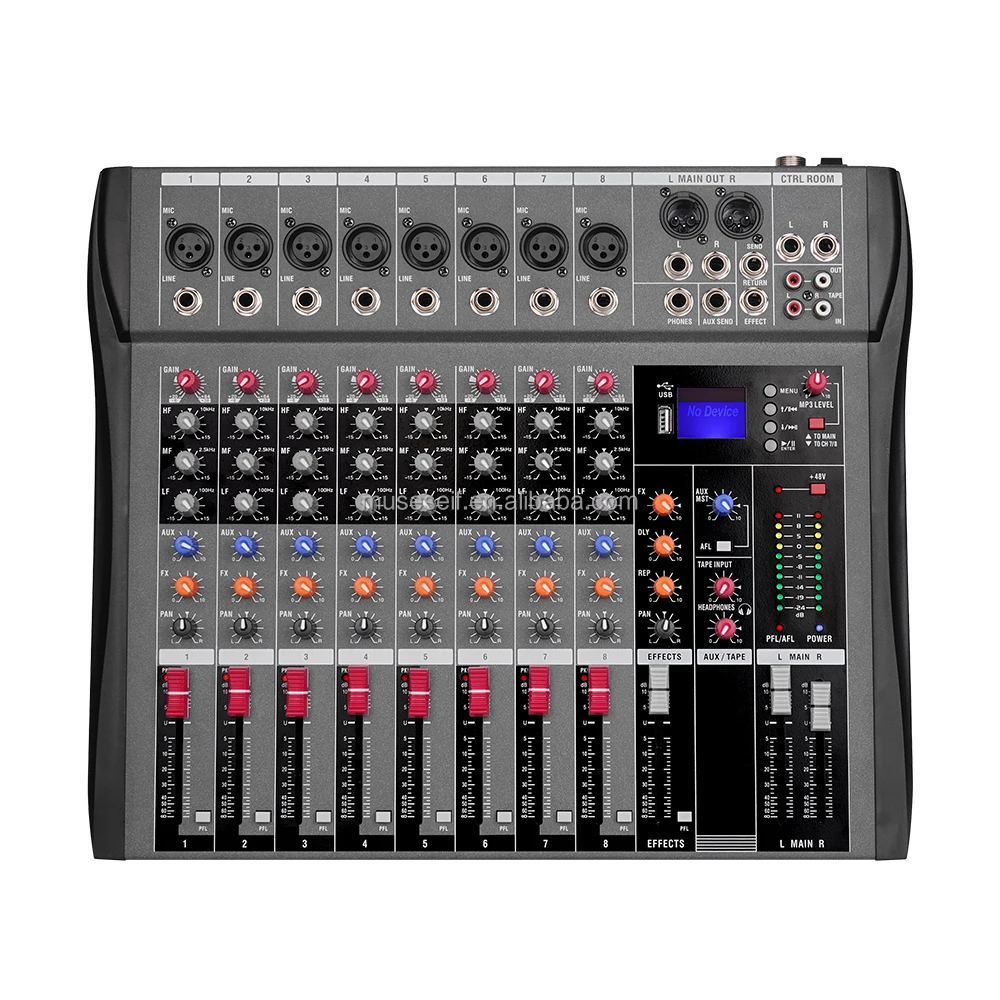

EIF // CT8 профессиональная звуковая система DJ 8-канальный аудио цифровой микшер с Bluetooth студийной микшированием консоли
6 734,62 ₽ - 7 176,24 ₽

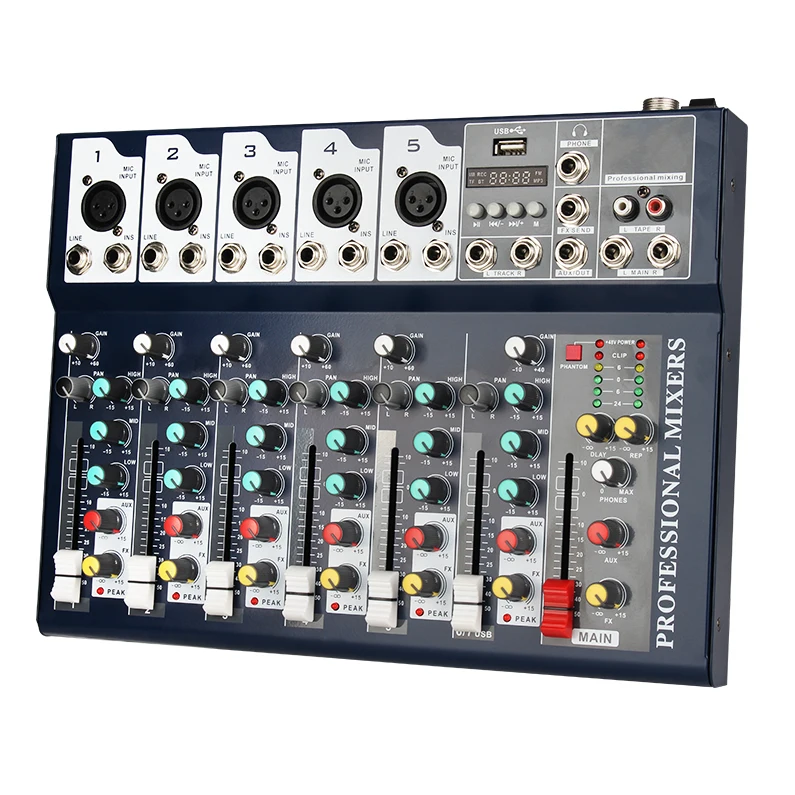

Оптовая Продажа с фабрики хорошая цена аудиосистема dj диско-Музыкальный Многофункциональный микшер цифровой профессиональный аудио

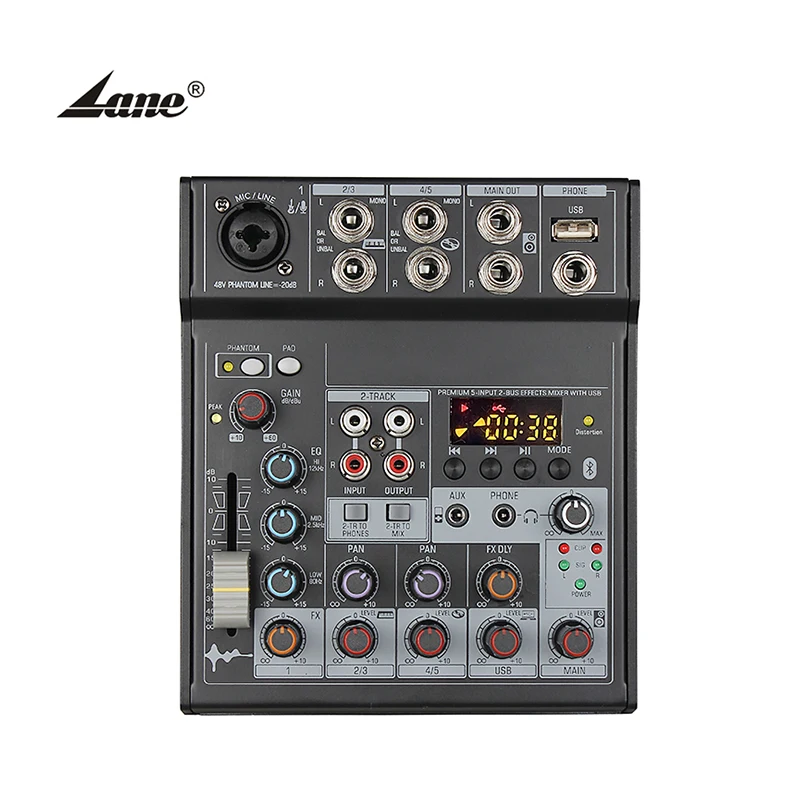

LANE TG502 профессиональный аудио dj микшер звуковой системы контроллер с эффектами
2 097,67 ₽ - 2 428,88 ₽

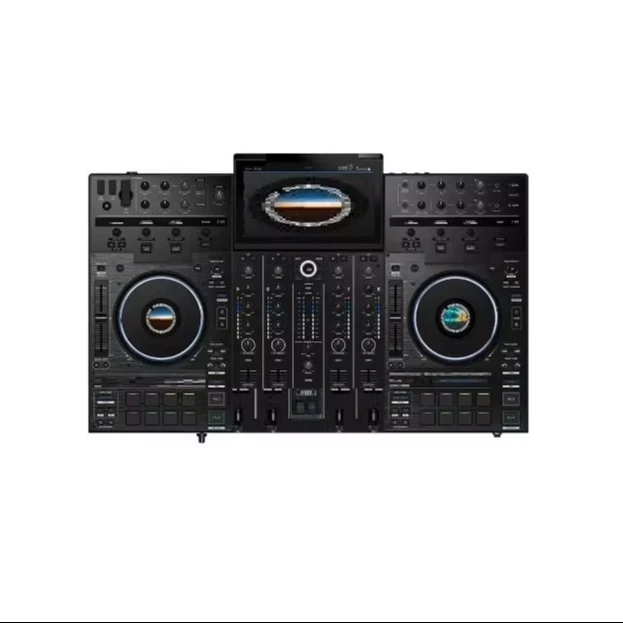

DE DJ Prime 4 автономная система Smart консоль
57 409,88 ₽

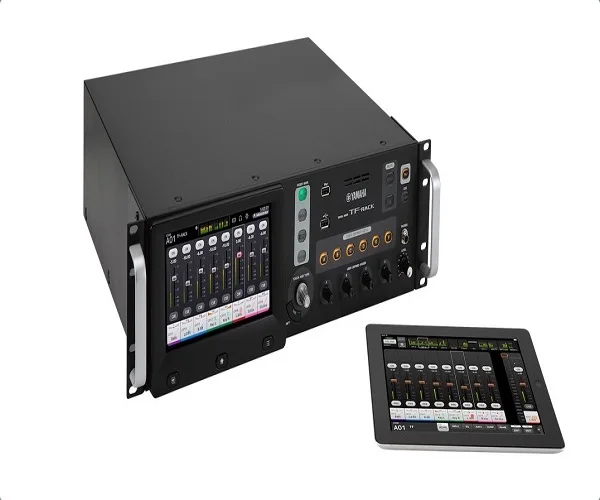

Новый оригинальный TF-RACK Rackmount цифровой миксер
