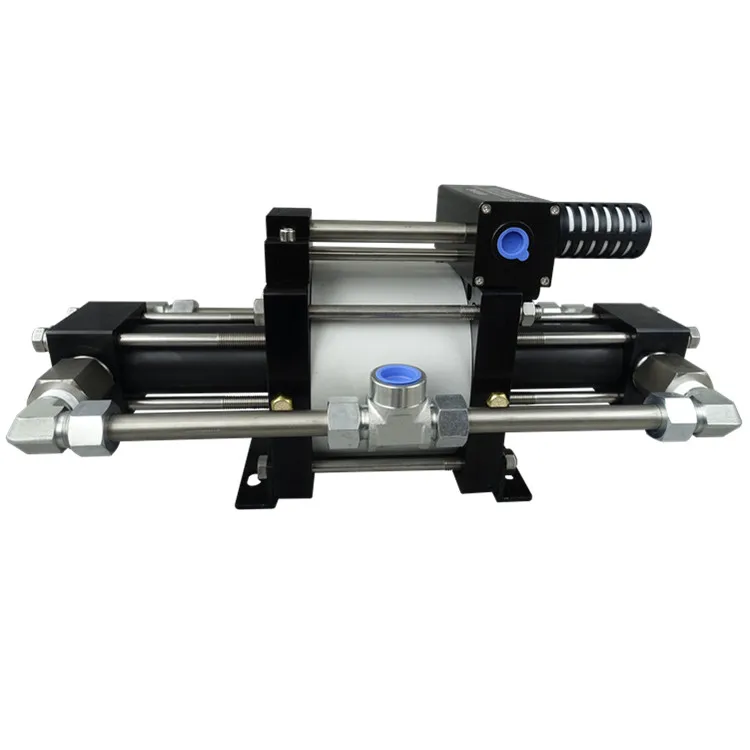

WYAT10 Co2 насос для заправки СО2 с высоким потоком воздуха
- Категория: >>>
- Поставщик: Chongqing Weiyun Technology Development Co. Ltd.
Сохранить в закладки 1601184885266:
Описание и отзывы
Характеристики
Product Description

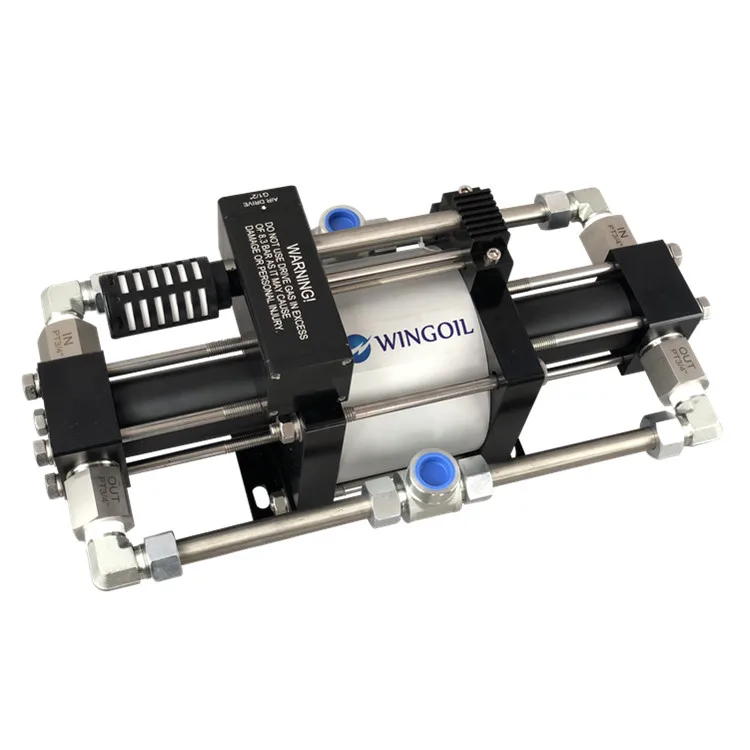

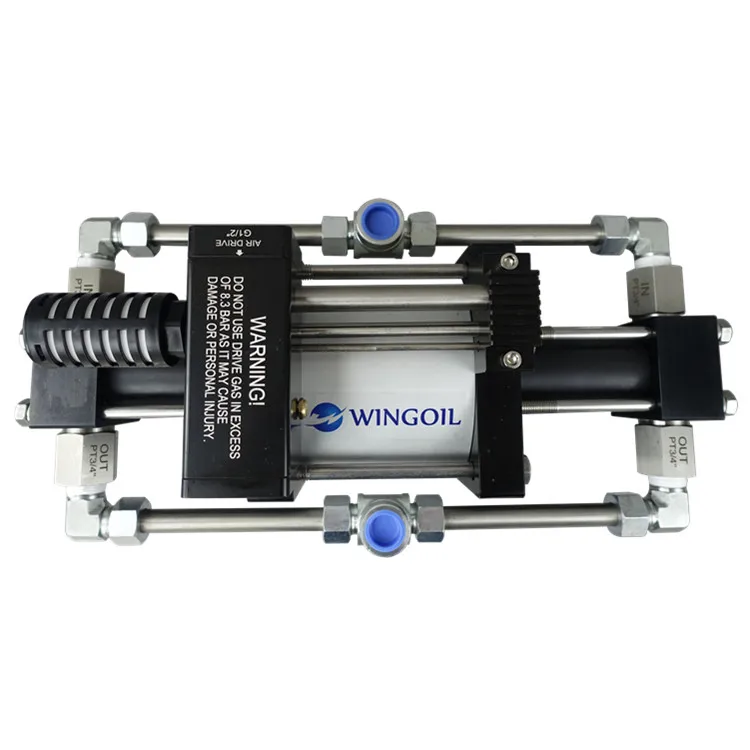

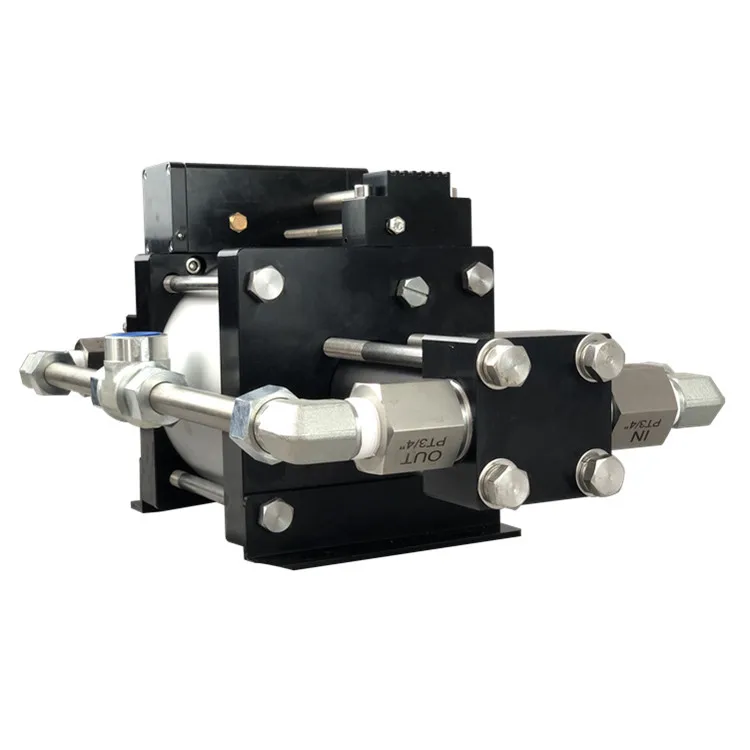

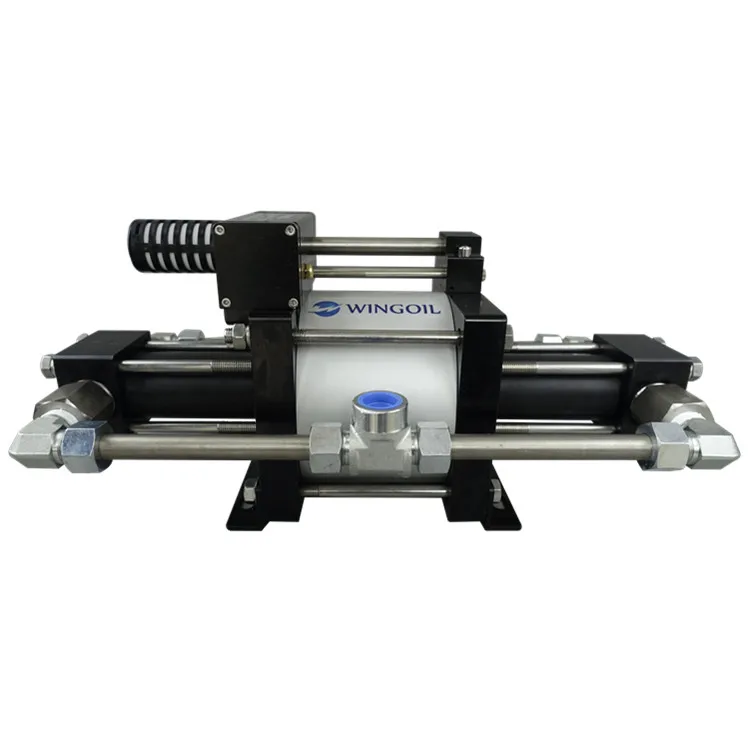

WYAT series gas-liquid booster pump is a single-drive double-acting liquid booster pump with compressed air, which has the advantages of high safety, high output pressure and larger flow.
Features
1. Output pressure can reach up to 3320bar, and the output flow is larger than that of the AH series under the same pressure ratio;
2. Gas drive ensures that the medium does not generate heat, sparks and flames during the transmission process, and the pressurization is safe;
3. Driving gas pipeline does not need to be lubricated, which saves costs and prevents pollution;
4. It is suitable for most liquids and liquefied gases, and can maintain pressure without energy consumption at a predetermined pressure, automatically absorb liquid, automatically maintain pressure, and automatically replenish pressure;
5. Product has compact structure, strong reliability and application fields.
Application scenarios
1. WYAT series gas-liquid booster pump is suitable for occasions with high output pressure and flow requirements;
2. Hydraulic test/burst test (including but not limited to valves, pressure vessels, pressure switches, hoses, BOPs and other pressurized components;
3. Boosting of vehicle braking system;
4. Calibration of pressure gauges and sensors;
5. Water jet for cutting and cleaning;
6. Leak test, oil and gas well shutdown system;
7. Operation and control of wellhead equipment;
8. Lifting of hydraulic lifting structure.
Features
1. Output pressure can reach up to 3320bar, and the output flow is larger than that of the AH series under the same pressure ratio;
2. Gas drive ensures that the medium does not generate heat, sparks and flames during the transmission process, and the pressurization is safe;
3. Driving gas pipeline does not need to be lubricated, which saves costs and prevents pollution;
4. It is suitable for most liquids and liquefied gases, and can maintain pressure without energy consumption at a predetermined pressure, automatically absorb liquid, automatically maintain pressure, and automatically replenish pressure;
5. Product has compact structure, strong reliability and application fields.
Main features
1. WYAT series is based on static pressure, when the driving air pressure is 7bar, the air consumption is 1.0m3/min;
2. Driving pressure is 1bar-8.3bar (14.5-120.35psi), and the WYAT series is a single driving piston (Φ160mm)
3. High-pressure end is made of stainless steel, and the driving part is made of aluminum alloy;
4. Medium of WYAT series standard products is water and oil, and the order code is: WYAT64 (series code + boost ratio)
Description of special products:
About medium: WYAT series can be applied to various media such as brake fluid and liquefied gas, order code such as: WYAT10-CO2(series code + boost ratio + boost medium)
About the interface: If you need a special interface, please specify when ordering.
1. WYAT series is based on static pressure, when the driving air pressure is 7bar, the air consumption is 1.0m3/min;
2. Driving pressure is 1bar-8.3bar (14.5-120.35psi), and the WYAT series is a single driving piston (Φ160mm)
3. High-pressure end is made of stainless steel, and the driving part is made of aluminum alloy;
4. Medium of WYAT series standard products is water and oil, and the order code is: WYAT64 (series code + boost ratio)
Description of special products:
About medium: WYAT series can be applied to various media such as brake fluid and liquefied gas, order code such as: WYAT10-CO2(series code + boost ratio + boost medium)
About the interface: If you need a special interface, please specify when ordering.
Application scenarios
1. WYAT series gas-liquid booster pump is suitable for occasions with high output pressure and flow requirements;
2. Hydraulic test/burst test (including but not limited to valves, pressure vessels, pressure switches, hoses, BOPs and other pressurized components;
3. Boosting of vehicle braking system;
4. Calibration of pressure gauges and sensors;
5. Water jet for cutting and cleaning;
6. Leak test, oil and gas well shutdown system;
7. Operation and control of wellhead equipment;
8. Lifting of hydraulic lifting structure.
Company Profile
Packing & Delivery
By Sea: Cheapest but longest option 18~30 days by sea delivery for mass shipment
By Air: More expensive than sea delivery, But cheaper than express 5~7 days by air to airport
By Express: Door to door service,the fastest and most expensive one, 3~5 day for DHL /Fedex /UPS/TNT express
By Air: More expensive than sea delivery, But cheaper than express 5~7 days by air to airport
By Express: Door to door service,the fastest and most expensive one, 3~5 day for DHL /Fedex /UPS/TNT express
FAQ
How do I select a correct model?
1.Free to inform us that your inlet gas pressure range
1.Free to inform us that your inlet gas pressure range
2.Kindly advise your needed output pressure for connecting machine
3.Should be kindly informed the gas flow at the rated pressure for calculating the suitable pressure ratio base on customer's requirement
4.Feel kindly advise us the avaible air driven pressure 5.Then we can suggest a suitable model base on above technical data
What is the warranty for product?
1.We have 1 Year Warranty for product and can send some easy wear out repairing parts for fixing the pump such as important seal kits
4.Feel kindly advise us the avaible air driven pressure 5.Then we can suggest a suitable model base on above technical data
What is the warranty for product?
1.We have 1 Year Warranty for product and can send some easy wear out repairing parts for fixing the pump such as important seal kits
2.Customer should cover the to-and fro shipping cost for repairing if goods is out of warranty peroid
Похожие товары
Шестеренчатый микро-магнитный приводной насос марки 0,28 мл/об./0,35 мл/об./0,90 мл/об./об.
23 629,62 ₽ - 26 866,56 ₽
Дозирование винт ПУНП клей винтовой насос промышленность
77 686,42 ₽ - 80 923,35 ₽

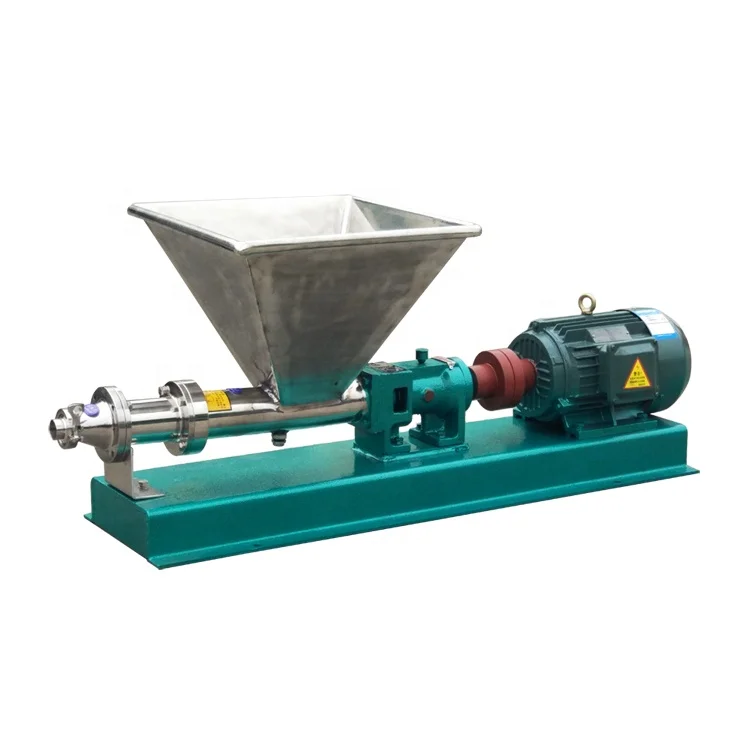

Индустриальный винтовой насос из нержавеющей стали
64 738,68 ₽ - 67 975,62 ₽

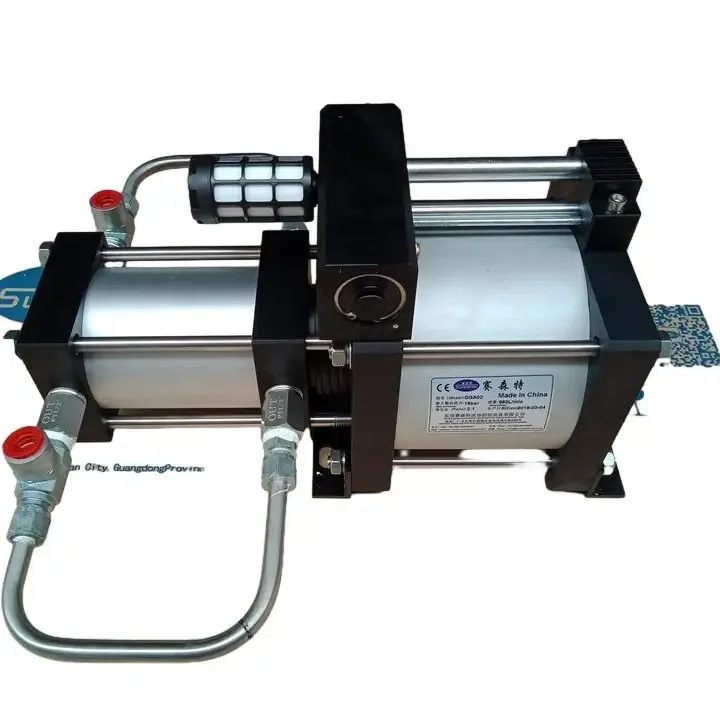

Высококачественный пневматический газовый бустерный насос сжатого воздуха для использования в автомобильной промышленности
64 738,68 ₽ - 107 897,80 ₽

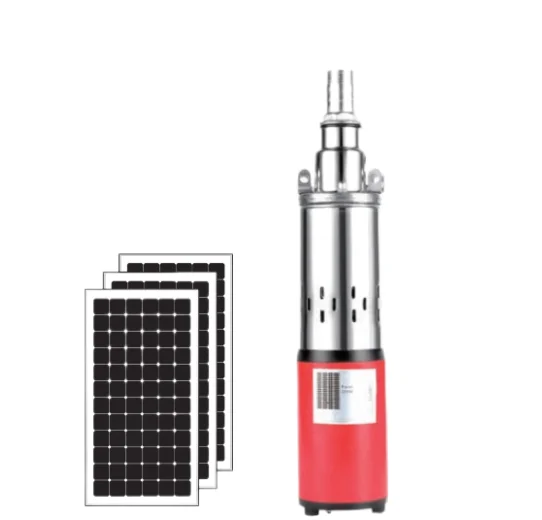

Насос FLY 220 В/50 Гц 1 дюйм 'винтовой насос для глубоких скважин на солнечной батарее для сельского хозяйства и домашнего хозяйства с солнечными панелями
3 236,94 ₽ - 3 776,43 ₽

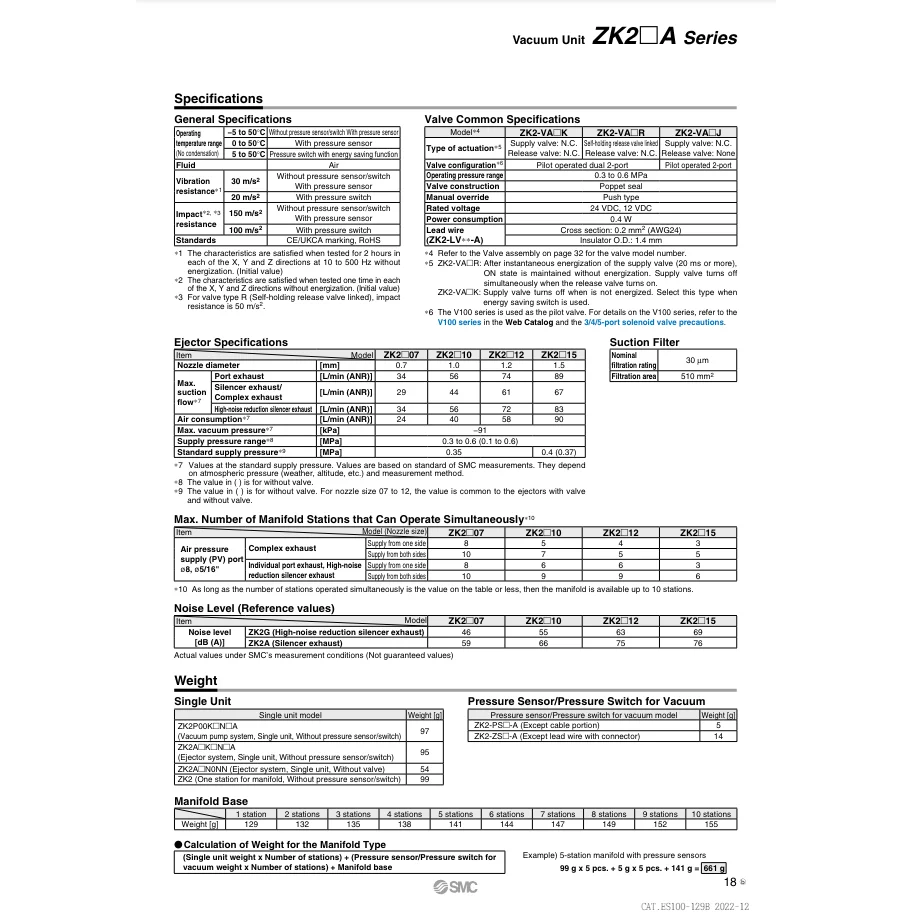

[SMC Пневматика] эжекторная система ZK2B12K5ALA-06-B вакуумного блока
14 566,21 ₽

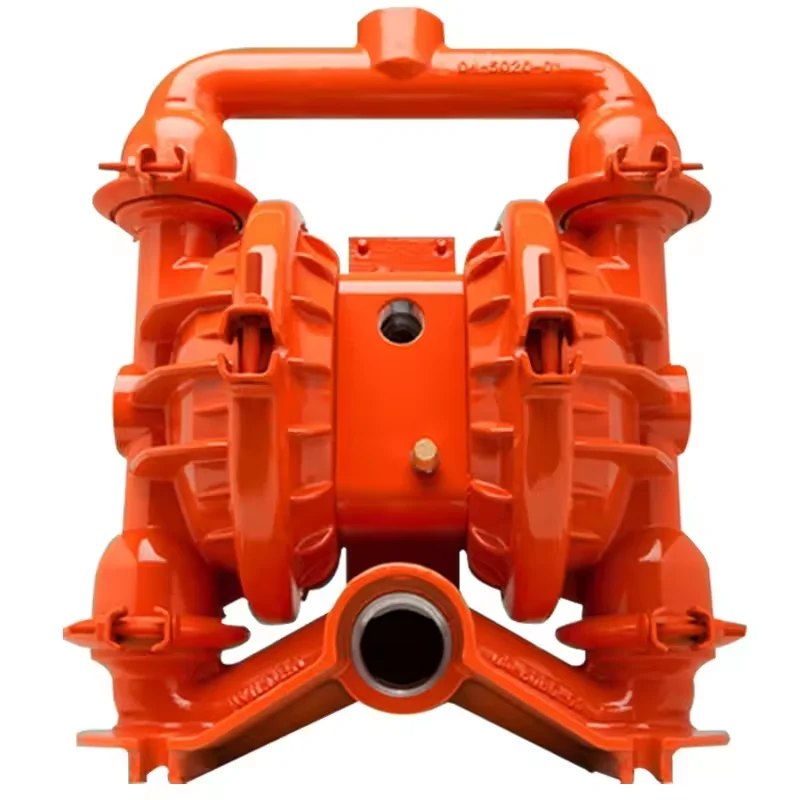

Лидер продаж, оригинальная гидравлика и пневматика, двойной диафрагма P4 AODD, газовый масляный насос
