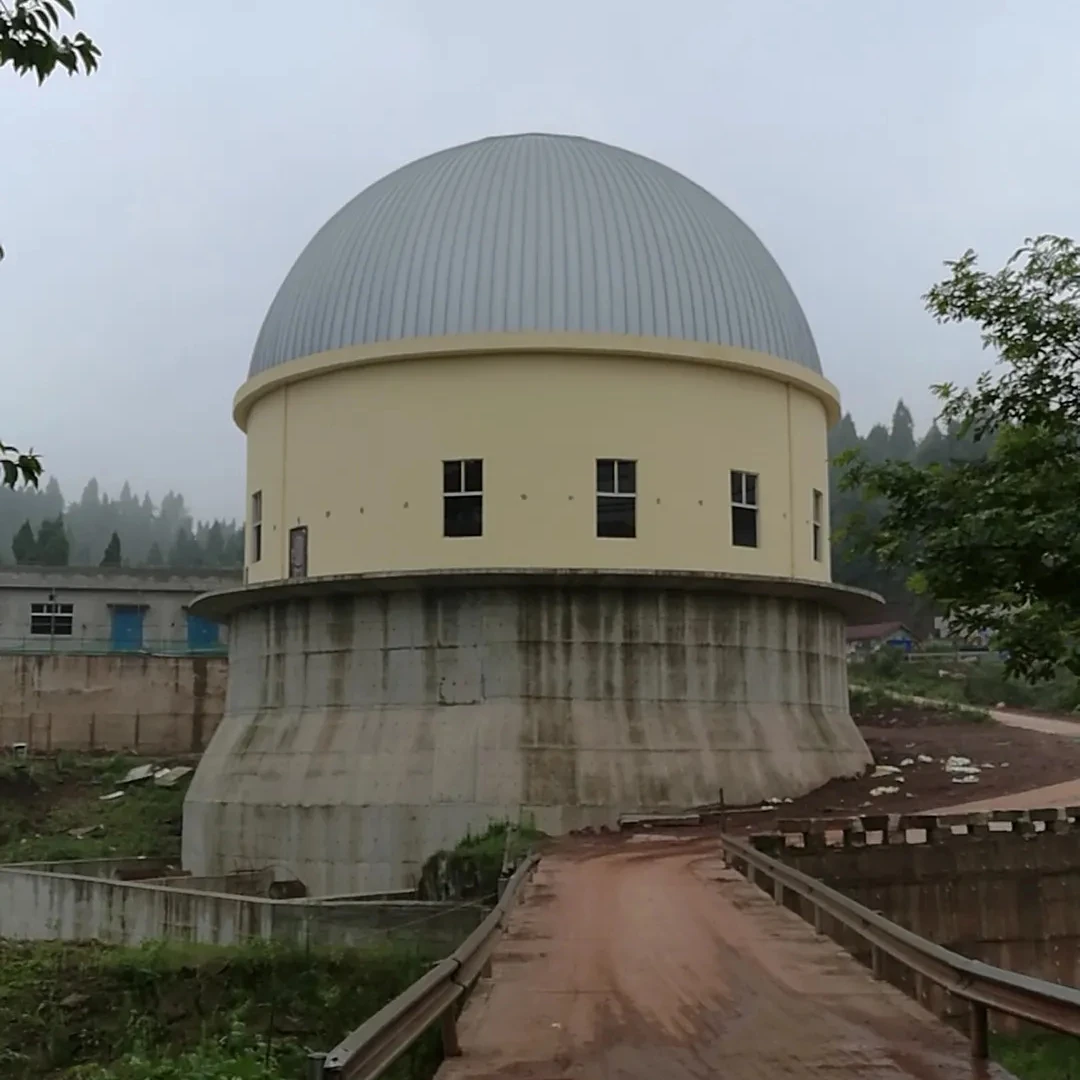

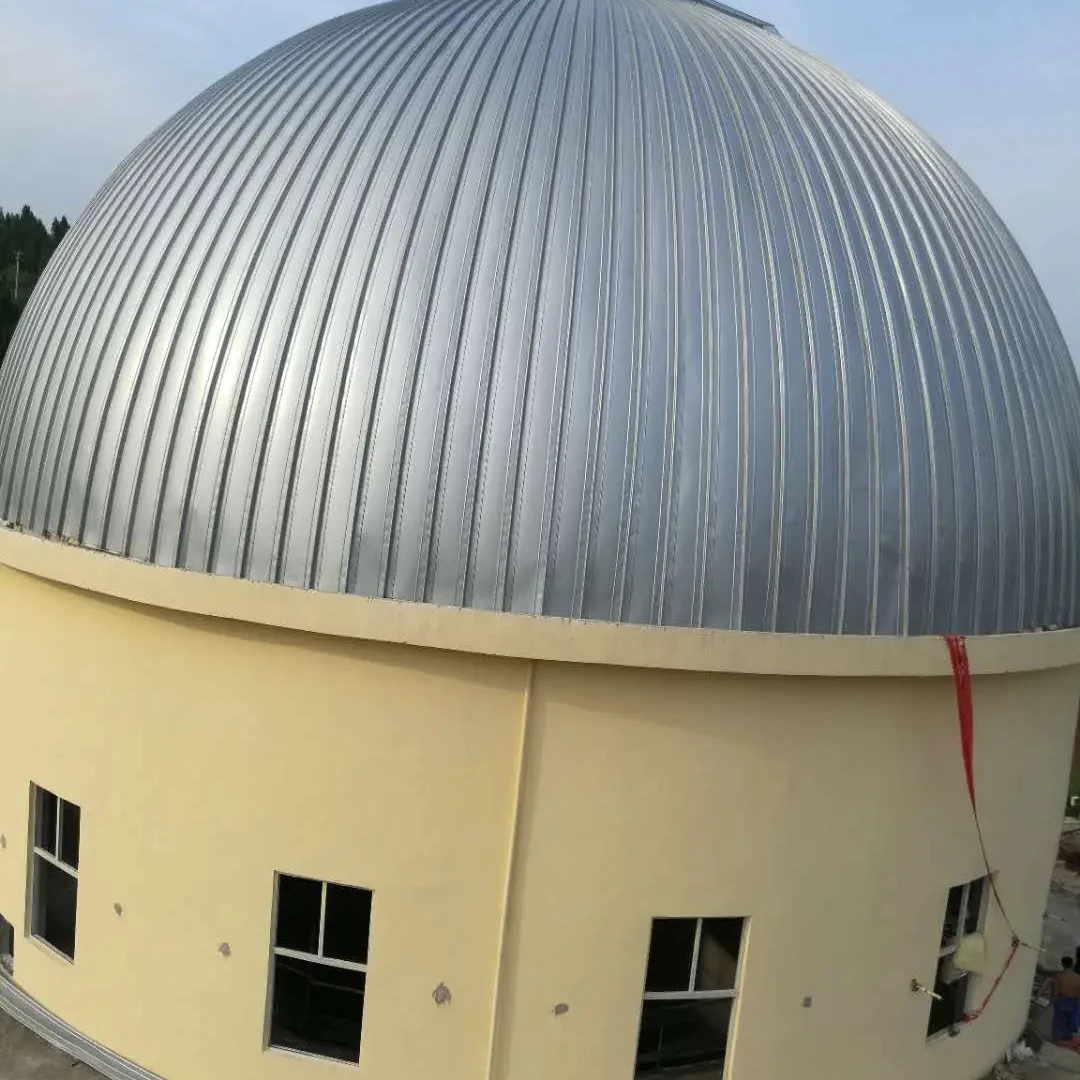

Стильная сборная складская башня для хранения воды со стальным куполом и алюминиевой крышей

Сохранить в закладки 1601187231364:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Products Description








Ⅰ. Material grade
1.Carbon structural steel: Q235.
2.High-strength structural steel :Q345
3.Special purpose steel

ⅡQuality standard
1.Certificate: ISO9001:2000
2.Code for design of steel structure: GB 50017-2003
3.Technical code of cold-formed thin-wall steel structure: GB50018-2002
4.Load code for the design of building structures. GB 50009-2006
5.Construction quality acceptance of steel: GB50205-2001
6.Code for design, construction and acceptance of high strength for steel structure, JGJ82-2011
7.Technical specification for welding of steel structure building: JGJ 81-2002
8.Technical specification for steel Structures of tall buildings: (JGJ99-98)

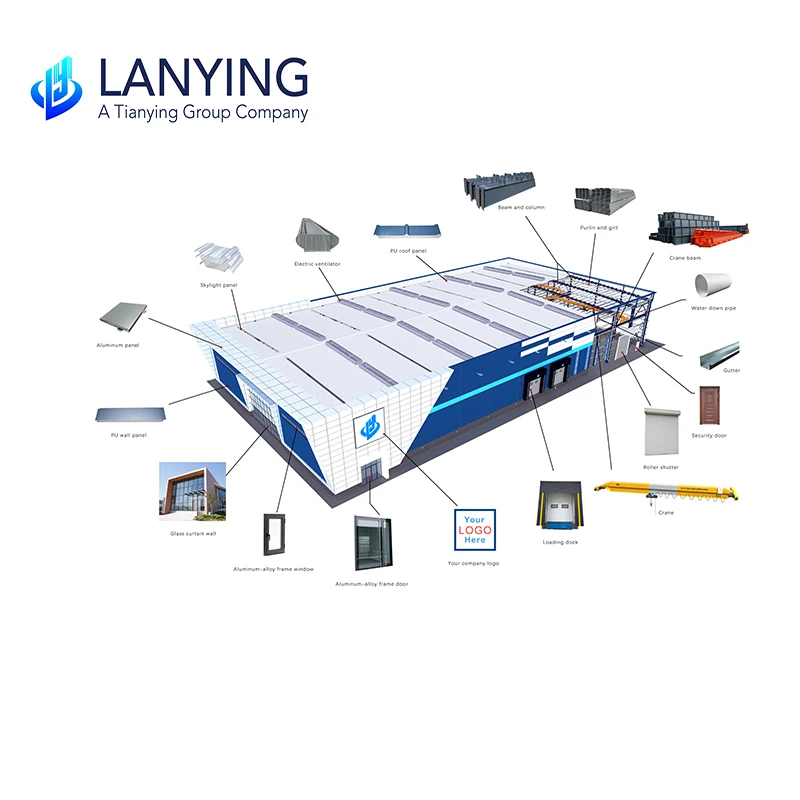

Ⅲ. Structure Assembly

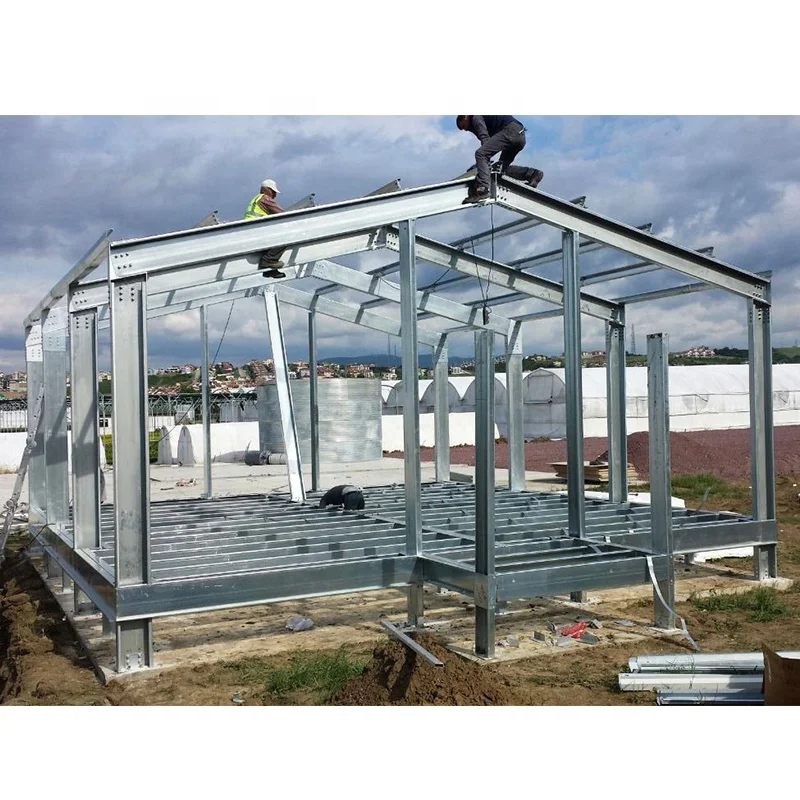

1.Steel Framework:
Component: H-Column, H-Beam & C/Z-Purlin
Connection of steel structure method: Welding, Bolted
2.Surface treatment: Painting, Galvanized
3.Roof &Wall: colored steel tiles or colored steel sandwich panel as per
request
4.Doors: Rolling or Pushing, as request


Structure type

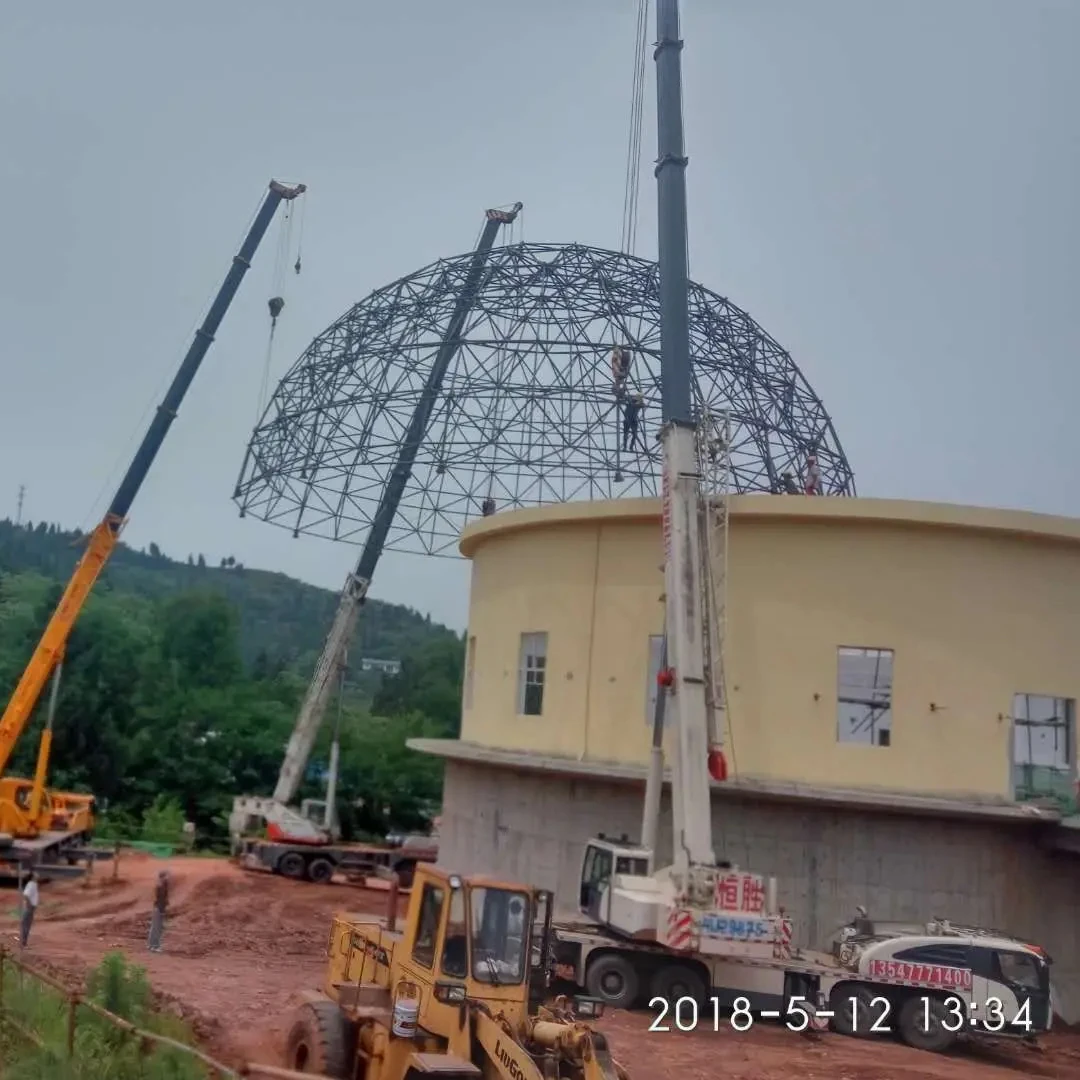

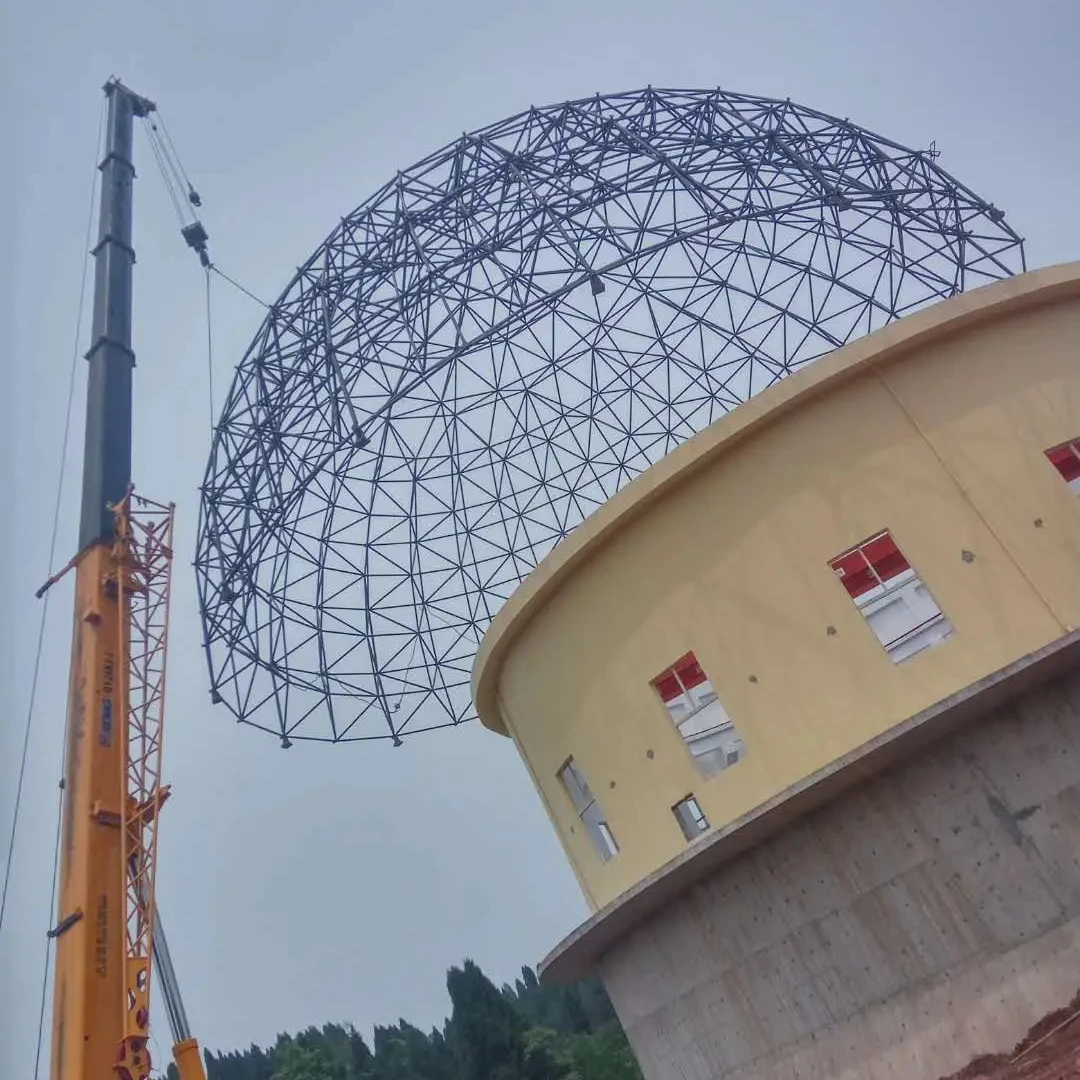

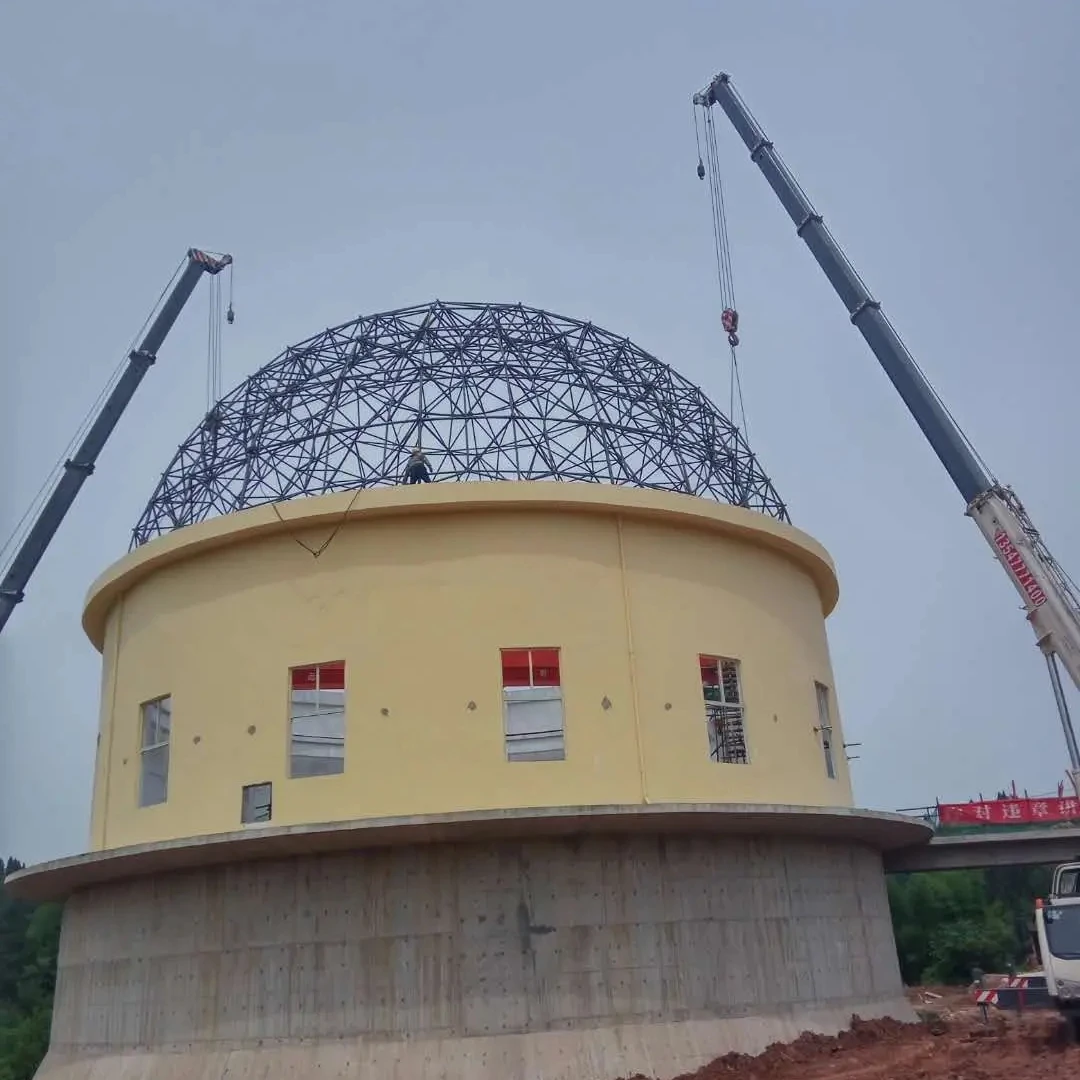

Bolted ball jointed space frame
Shape
Any
Design code
NSCP
Wind load
2(200kph)
Earthquake load
4(Z=0.4)
Live load
50kg/sq.m
Dust load
10kg/sq.m
Temperature
+/-30°C
Snow load
Anchor,ordinary,high strength bolt
Bolt ball
Steel #45, epoxy zinc primer with PU paint
Tube
Steel Q235, epoxy zinc primer with PU paint
Sleeve
Steel Q235 & #45, galvanization
Roof & Wall panel
Al Mg Mn Panel roofing, steel sheet




Production Process






Sample Room




FAQ




Package&Shipment

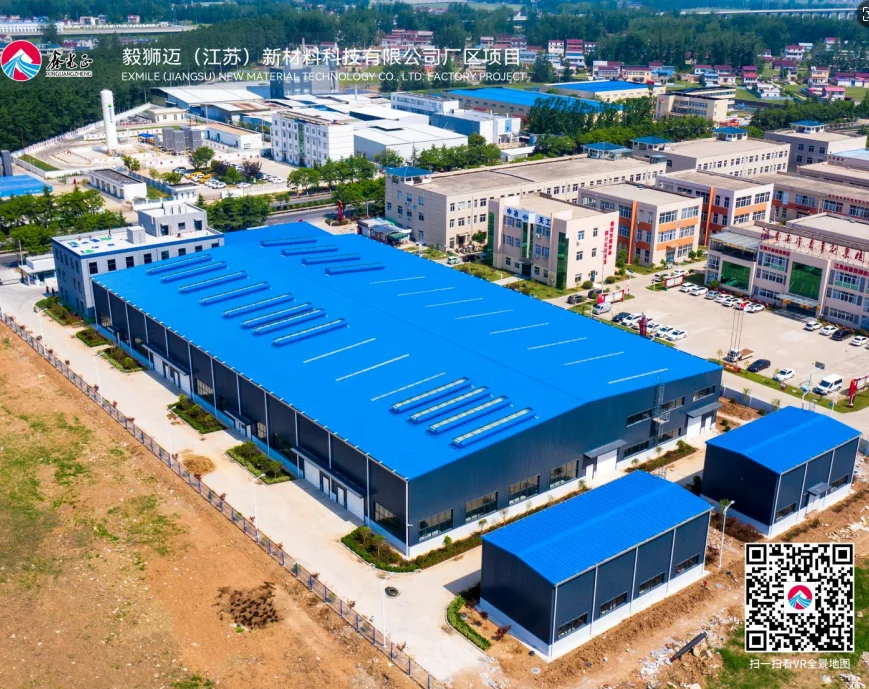

Company Profile
