Силиконовые уплотнительные кольца высокого давления
- Категория: >>>
- Поставщик: Hebei Jiyu Import and Export Trade Co. LTD
Сохранить в закладки 1601187324155:
Описание и отзывы
Характеристики
Factory direct selling heat resistant seal oring FKM silicone NBR rubber sealing o ring silicone o-ring
As a source manufacturer of seals, we can produce most oring product according to your drawings, not just the products on this
page.
As a source manufacturer of seals, we can produce most oring product according to your drawings, not just the products on this
page.
You can send an inquiry to know more products and get samples.
Specification
产地 | 中国河北 |
尺寸 | 标准尺寸或自定义尺寸（根据客户要求） |
品牌名称 | JIYU |
型号 | O形圈机械密封 |
名称 | 液压 O形圈 |
颜色 | 绿色、白色、棕色、黑色、灰色、红色等 |
硬度 | 30-90 硬度 A |
标准 | AS568 |
温度 | -40 ~ 210 ℃ |
中等 | 空气，水 |
最小起订量 | 取决于库存和规模 |
材料类型 | 丁腈橡胶、三元乙丙橡胶、硅胶、丁腈橡胶、HNBR、FKM、FPM、FFKM |
应用 | 工业，液压机器 |
Our Advantages
As all raw materials are bought from foreign famous factories, latest managerial operation model makes the products from the company match the equivalent under the international standard level.with the advanced producing machine and test equipment.
The operation system chasing for low cost of the product provides the customers with reasonable price products. And it can provide many kinds of factories with relative products under the help of powerful research and developing human resource.
As all raw materials are bought from foreign famous factories, latest managerial operation model makes the products from the company match the equivalent under the international standard level.with the advanced producing machine and test equipment.
The operation system chasing for low cost of the product provides the customers with reasonable price products. And it can provide many kinds of factories with relative products under the help of powerful research and developing human resource.
Packing and delivery.
1. China Industrial machinery hydraulic TC oil sealed inner packing plastic bag.
2. China Industrial machinery hydraulic TC oil seal carton.
3. Made in China industrial machinery hydraulic TC oil seal can be packed according to your requirements.
2. China Industrial machinery hydraulic TC oil seal carton.
3. Made in China industrial machinery hydraulic TC oil seal can be packed according to your requirements.
O-ring description
JIYU橡胶o形圈密封件 | ||||||||
材料 | 硬度 (肖氏A) | 温度 | 尺寸 | |||||
标准尺寸 | 可用 | |||||||
NBR (布纳，丁腈) FKM(FPM) 三元乙丙橡胶 硅树脂 (VMQ) HNBR FFKM PU 聚四氟乙烯 | 60-90 70-90 60-90 10-70 60-90 70-90 90 ~ 95(D) 60 ~ 70(D) | -55 ℃-110 ℃ -20 ℃-250 ℃ -45 ℃-150 ℃ -60 ℃-280 ℃ -48 ℃-180 ℃ -18 ℃-326 ℃ -40 ℃-90 ℃ -100 ℃-280 ℃ | AS-568 (美国) JIS-B2401 (日本) DIN-3771 (德国) BS-1516 (英国) ISO3601 (国际) R (法国) | 密封件直径从0.5-3500毫米 | ||||
阻力 | 颜色 | 证书 | 应用 | |||||
液压油 发动机机油 化学 臭氧 蒸汽和热水 低温 高温 | 黑色 棕色 红色 绿色 白色 蓝色 清除 定制 | IS09001 ISO14001 TS16949 RoHS 到达 F D A UL94V0 | 汽车工业 建筑机械机床设备 食品健康 水处理 化学加工 液压气动 工业制造 | |||||
O-ring material
Service temperature
For NBR, the service temperature can be designed from -55 °C to 100 °C or up to 130 °C, depending on the acrylonitrile content
And the formula.
For NBR, the service temperature can be designed from -55 °C to 100 °C or up to 130 °C, depending on the acrylonitrile content
And the formula.
Application
NBR compounds have excellent wear resistance, non-polar oils and solvents, water and permeability (higher acrylonitrile)
The content will be better). NBR can also be used at low temperatures under conditions of dilute acid, base and salt solutions.
NBR compounds have excellent wear resistance, non-polar oils and solvents, water and permeability (higher acrylonitrile)
The content will be better). NBR can also be used at low temperatures under conditions of dilute acid, base and salt solutions.
Service temperature
For the general type of Viton, in static applications, the use temperature is best limited to between -26 and 232 °C, butIn dynamic applications, the use temperature can reach 275 °C in a short time, and it is suitable for between -15 °C and 200 °C.
Application
Because FKM has excellent resistance to high temperature, oil, solvent, flame, chemical and weather resistance, it is usually applied
Automotive, chemical processing, aerospace and many other industries
Because FKM has excellent resistance to high temperature, oil, solvent, flame, chemical and weather resistance, it is usually applied
Automotive, chemical processing, aerospace and many other industries

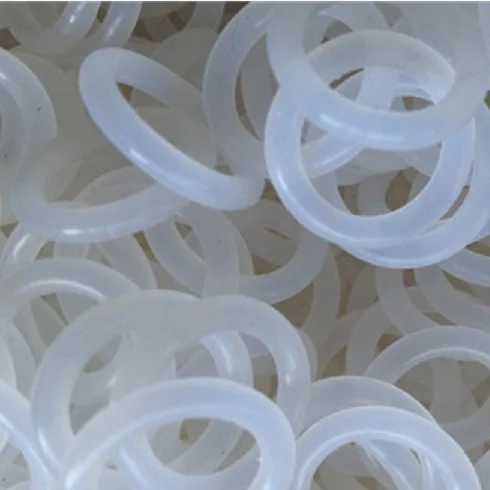

Silicone O-ring (Q, MQ, VMQ, PVMQ)
*Service temperature
For silicone, the use temperature is -60 °C to 225 °C. Some special types can be used for extreme temperatures up to 300 °C
Down to -100 °C.
For silicone, the use temperature is -60 °C to 225 °C. Some special types can be used for extreme temperatures up to 300 °C
Down to -100 °C.
Application
Silicone rubber performs well in environmental and temperature extremes. It is commonly used in automotive and aerospace
Industries where flexibility and longevity are important. It is also a suitable material for parts that require food grade
Handling equipment and appliances.
Industries where flexibility and longevity are important. It is also a suitable material for parts that require food grade
Handling equipment and appliances.
-45 to 120 °C
Application
PU has high mechanical strength, high wear resistance, abrasion resistance and extrusion resistance, high pressure load capacity, and high elongation against tearing and breaking.
PU is suitable for mineral oils and greases, hydraulic oils, silicone oils and greases, highly non-flammable hydraulic oils HFA and HFB and water up to 50 ° C.
PU has high mechanical strength, high wear resistance, abrasion resistance and extrusion resistance, high pressure load capacity, and high elongation against tearing and breaking.
PU is suitable for mineral oils and greases, hydraulic oils, silicone oils and greases, highly non-flammable hydraulic oils HFA and HFB and water up to 50 ° C.
Service temperature
Compared to other plastics, PTFE has lower mechanical properties, but its properties remain at useful levels over a wide temperature range of -100 °F to + 400 °F (-73 °C to 204 °C).
Compared to other plastics, PTFE has lower mechanical properties, but its properties remain at useful levels over a wide temperature range of -100 °F to + 400 °F (-73 °C to 204 °C).
Application
PTFE is a commonly used sealing material for the manufacture of wear rings, gaskets, O-rings, washers, etc., which can be found in metallurgy
Machinery, petrochemical machinery, engineering machinery, light industry machinery.
PTFE is a commonly used sealing material for the manufacture of wear rings, gaskets, O-rings, washers, etc., which can be found in metallurgy
Machinery, petrochemical machinery, engineering machinery, light industry machinery.
Ethylene propylene rubber (EPM, EPDM)
Service temperature
For EPDM, the operating temperature can be designed from -55 °c to 125 °c or up to 150 °c (for peroxide curing systems).
For EPDM, the operating temperature can be designed from -55 °c to 125 °c or up to 150 °c (for peroxide curing systems).
Application
In phosphate based hydraulic fluids and glycol based brake fluid systems, ethylene-propylene rubber is used
The seal. EPDM is also commonly used in hot water or steam applications up to 150 °c.
In phosphate based hydraulic fluids and glycol based brake fluid systems, ethylene-propylene rubber is used
The seal. EPDM is also commonly used in hot water or steam applications up to 150 °c.
Fluorosilicone rubber
Service temperature
Fluorosilicone rubber has good physical and mechanical properties and chemical stability, can be in -60 ~
200 °C and short term use below 250 °C.
Application
It is mainly used for the preparation of heat-resistant, oil-resistant and acid-resistant rubber products. Like seals,
Rubber hoses, rubber MATS, tapes, films, fuel tanks and impregnating products are also used
Wire and equipment anticorrosive lining, etc., widely used in aviation industry, petroleum industry, automotive industry,
Chemical industry and other fields.
Fluorosilicone rubber has good physical and mechanical properties and chemical stability, can be in -60 ~
200 °C and short term use below 250 °C.
Application
It is mainly used for the preparation of heat-resistant, oil-resistant and acid-resistant rubber products. Like seals,
Rubber hoses, rubber MATS, tapes, films, fuel tanks and impregnating products are also used
Wire and equipment anticorrosive lining, etc., widely used in aviation industry, petroleum industry, automotive industry,
Chemical industry and other fields.
FFKM oring (Perfluoroelastomer)
Service temperature
It has the elasticity and thermal and chemical stability of teflon. Long-term operating temperature -39 ~ 288 ℃, short-term up to 315 ℃.
Application
Makes the seal resistant to various media, such as rocket fuel, navel orange, oxidizer, nitrous oxide, fuming nitric acid
Acid, etc., used in aerospace, aviation, chemical, petroleum, nuclear energy and other industrial sectors.
It has the elasticity and thermal and chemical stability of teflon. Long-term operating temperature -39 ~ 288 ℃, short-term up to 315 ℃.
Application
Makes the seal resistant to various media, such as rocket fuel, navel orange, oxidizer, nitrous oxide, fuming nitric acid
Acid, etc., used in aerospace, aviation, chemical, petroleum, nuclear energy and other industrial sectors.
Hydrogenated nitrile butadiene rubber
HNBR High temperature resistance 130 ~ 180 ℃, cold resistance -55 ~-38 ℃, excellent mechanical properties. It can better meet the requirements of the automotive industry compared to other polymers.
Application
Hydrogenated nitrile butadiene rubber is widely used in oil field, automobile industry and so on
Hydrogenated nitrile butadiene rubber is widely used in oil field, automobile industry and so on
Service temperature
For ACM, the operating temperature can be designed from -10 to 150 °C.Application
It is used for diaphragms and hoses in automotive applications. Good heat resistance, ozone resistance and oil resistance. It is usually attacked by water, alcohols, dialcohols and aromatics. The molecular structure consists of ethyl acrylate (EA), butyl acrylate (BA) and methoxyethyl
Acrylic ester (MEA). High BA content improves low temperature resistance and high MEA content improves oil resistance.
It is used for diaphragms and hoses in automotive applications. Good heat resistance, ozone resistance and oil resistance. It is usually attacked by water, alcohols, dialcohols and aromatics. The molecular structure consists of ethyl acrylate (EA), butyl acrylate (BA) and methoxyethyl
Acrylic ester (MEA). High BA content improves low temperature resistance and high MEA content improves oil resistance.
Our advantage
FAQ
Q:JIYU What is the advantage about your company?
A:Our company has professional team and professional production line.
Q: JIYU Who are We? Are you a trading company or a manufacturer?
A:We are manufacturers. Our headquarters is located in Hebei, China, starting 2010, sales to the domestic market (33.00%), North America (15.00%), South America (10.00%), Western Europe (8.00%), Eastern Europe (6.00%), Southern Europe (6.00%), Southeast Asia (5.00%), the Middle East (5.00%), China (5.00%). Northern Europe (5.00%), Oceania (2.00%), South Asia (2.00%)
Q:JIYU What are the materials of O-rings?
A:Rubber: NBR, FKM, EPDM, VMQ, HNBR, FFKM, etc.
Plastics: polytetrafluoroethylene, polyurethane, etc.
Metal: Gold, silver, aluminum, stainless steel, copper, etc.
Plastics: polytetrafluoroethylene, polyurethane, etc.
Metal: Gold, silver, aluminum, stainless steel, copper, etc.
Q:JIYU What is the stock status of O-rings?
A:JIYU Large stock of nitrile rings, silicone rings, FKM/VITON ORING
Q:JIYU What is the normal delivery time for product orders?
A:The average delivery time of the sample is 1-2 weeks. If the mold production is involved, the delivery cycle of the productionmold is 10 days, and the average production time after the sample is approved is 2-4 weeks.
Q: JIYU What if I can't see the type of sealing element I need?
A:We have too many products. Sometimes we can't put them all on Alibaba. Just send us the data of the product you need, and we will customize it for you.Welcome to contact me anytime!
