Электрическая печатная машина LC с полным серводвигателем пластмассовый продукт тамповка печать для промышленности канцелярские товары игрушки

Сохранить в закладки 1601189757934:


Цена:9 500,00-9 800,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики









product information

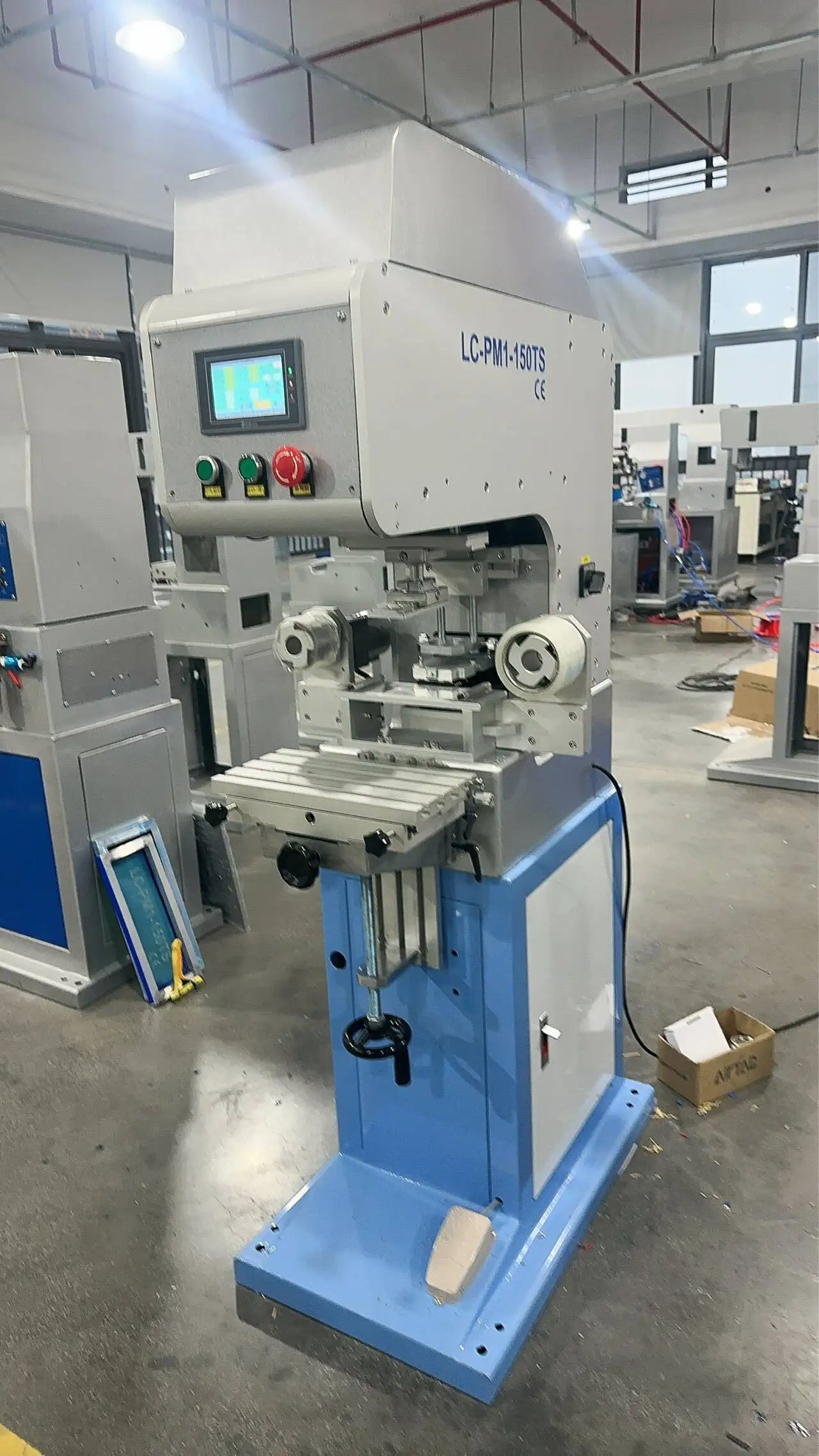

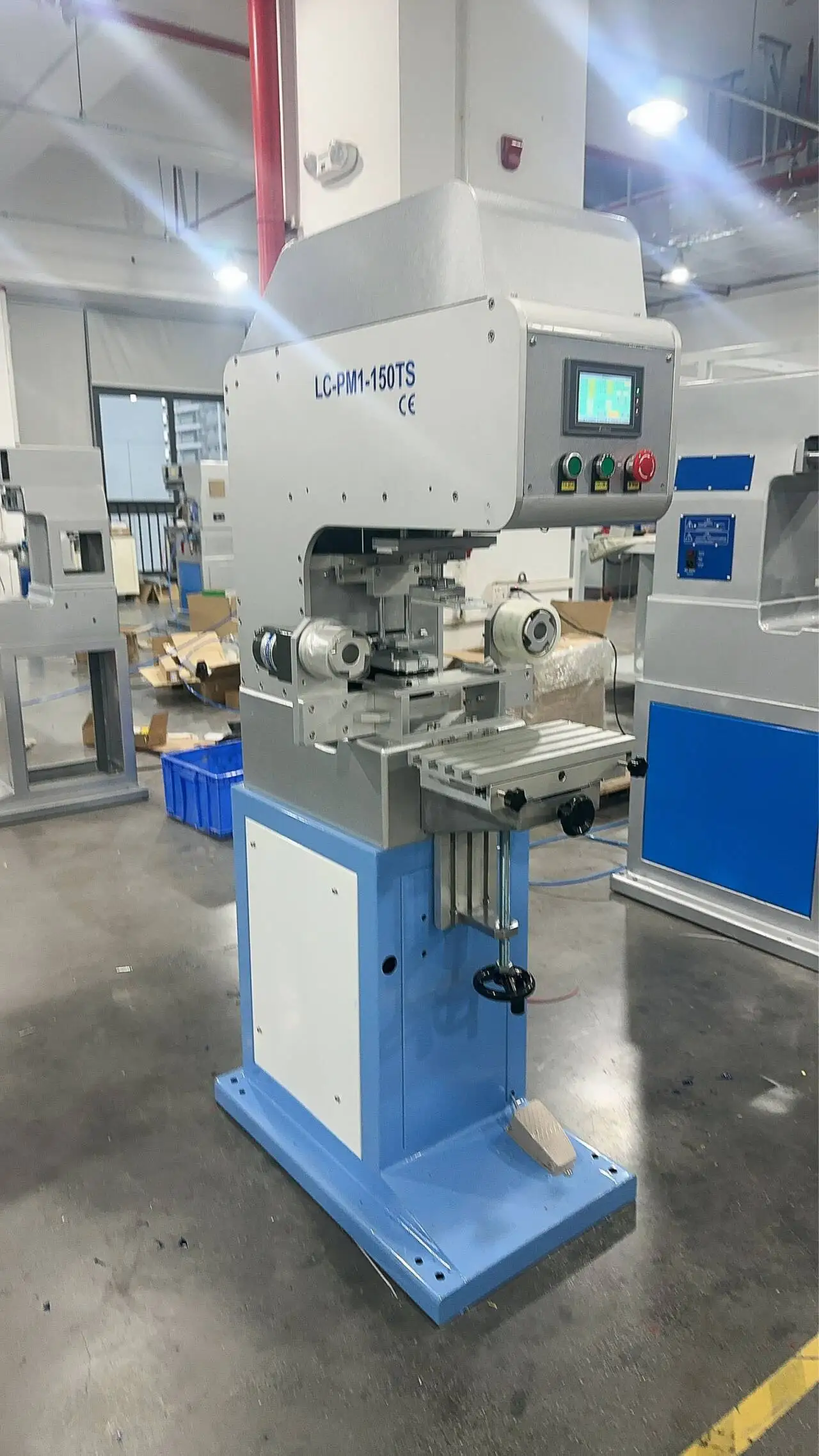

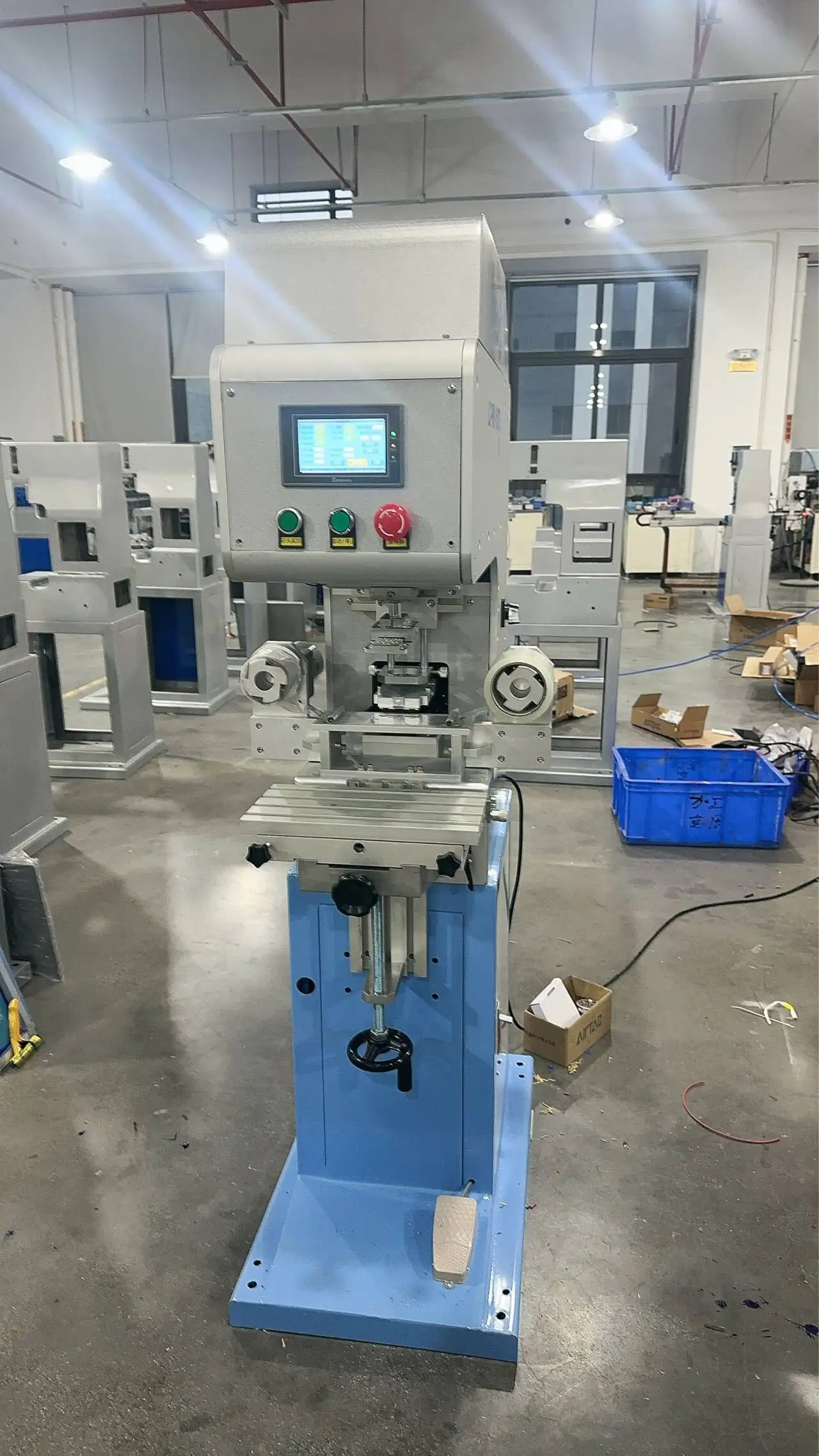

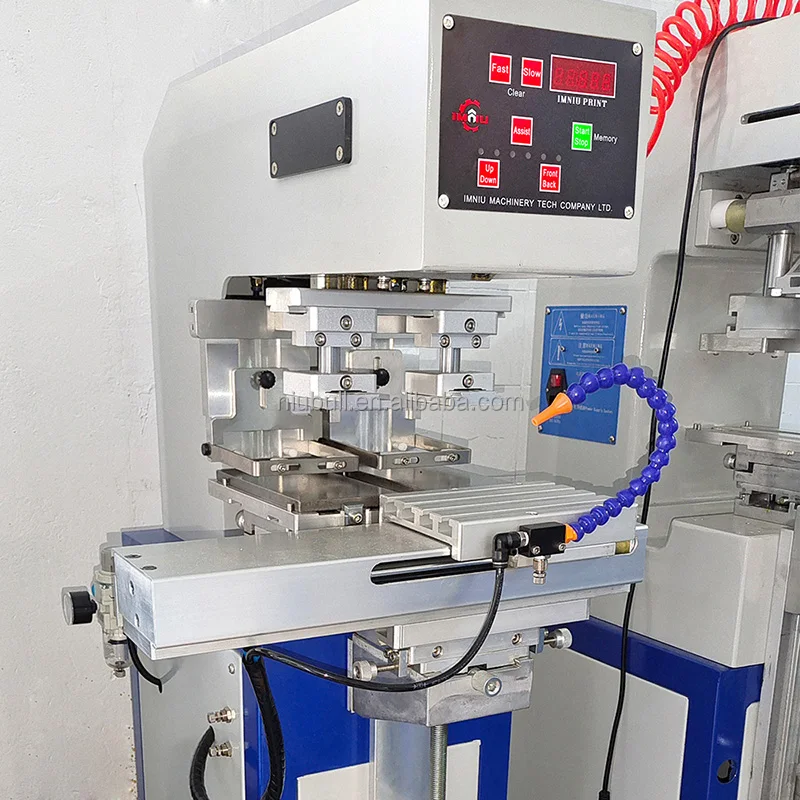

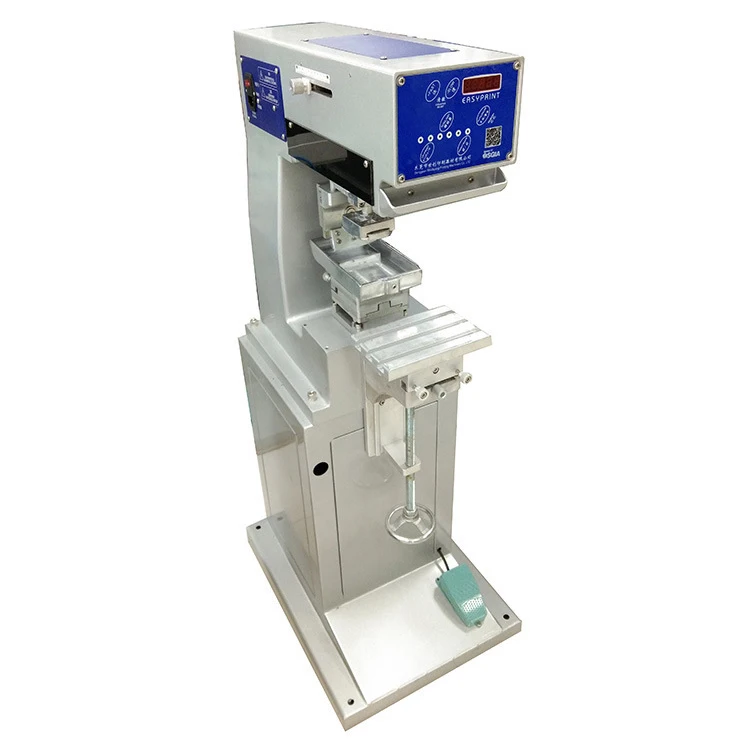

Fully electric drive pad printing machine with servo control



It is applied for print various kind of material,such as metal,glass,chinaware,plastic and so on.It also suitable for small printing area like plane, cambered and irregular surface,such as the button in mobile phone,golf ball and the ball head,toys,pen,mouse,electronic appliance,crafts and so on


Model Number
 LC-PM1-150TS
Operation
Electric
 Printing Colors
1 color
Max Printing area
50*60mm
Plate area
70*140 mm
Sealed ink cup diameter
60mm
Max printing speed
 1800PCS/H
Wattage
220V/ 50Hz 110V/60Hz


Advantages:
1.This machine is PLC+touch screen control and fully electric drive, does not require any air source. All parameter can be set on the touch screen. And it has memory system to save 20 product parameter settings,, easy to operate, accurate printing and stable running.
2.set servo motor and PLC touch screen control
3.For this machine, steel plates moving rear and back, and the servo motor accurately controls the printing head to move up and down, ensuring accurate printing effect. It is particularly suitable for logo printing of medical products and electronic high-tech products.
4.Equipped with automatic rubber pad cleaning system for better printing effect
5.High quality steel frame structure, surface in temperature paint, light weight and solid structure, beautiful and practical.
6.Independently adjustable rubber head up and down stroke and speed.All moving components are controlled by servo motors and PLC screen touch control, with an accuracy greater than 5 times that of pneumatic type pad printing machine.
7.Each of the cliches ink dishes can be X, Y, angle independent tuning, chromatic accurate, and improve efficiency.




Oil cup design: avoid volatilization, save ink, environmental protection
