Китайские производители прямые продажи шлифовальная машина мобильная молотковая дробилка дизельная малогабаритная в каменной промышленности
227 015,88-232 836,80 ₽
Челюстная дробилка в Танцании небольшая Мобильная бетонная щековая заводская цена
- Категория: >>>
- Поставщик: Gongyi City Xiangrui Machinery Manufacturing Co. Ltd.Gongyi Ltd.
Сохранить в закладки 1601189816526:
Описание и отзывы
Характеристики
We are a real source factory, we will guarantee to have a video conference with you at any time, and on the premise of ensuring product quality, let you buy with confidence, use more assured.
We revolve around finding reputable overseas distributors, cultivating strong international relationships, and providing exceptional product after-sales support. Doing a good job in product after-sales service is our aim to achieve a mutually beneficial cooperation vision. We eagerly look forward to a fruitful and pleasant partnership with you.
We revolve around finding reputable overseas distributors, cultivating strong international relationships, and providing exceptional product after-sales support. Doing a good job in product after-sales service is our aim to achieve a mutually beneficial cooperation vision. We eagerly look forward to a fruitful and pleasant partnership with you.
Products Description

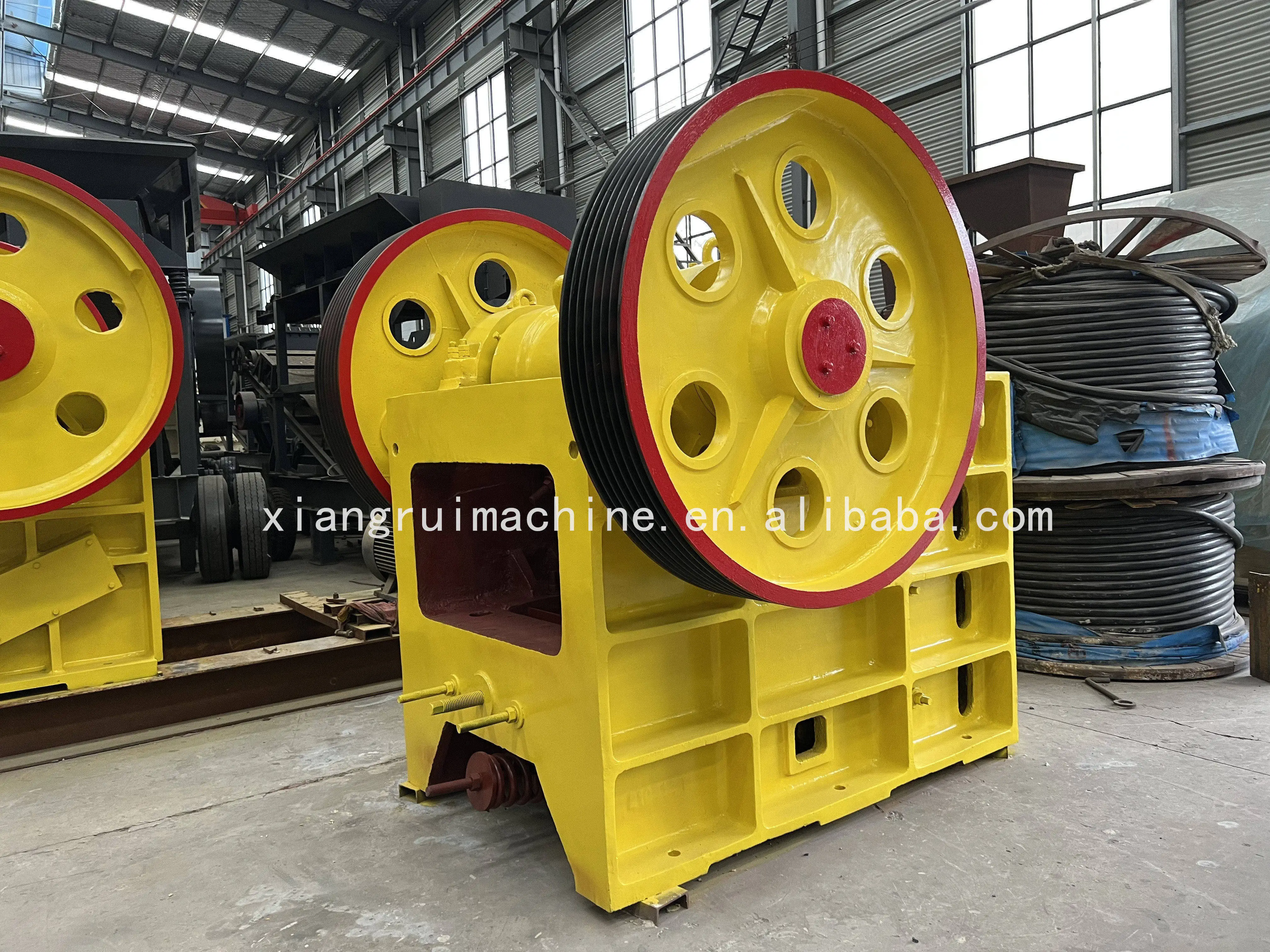

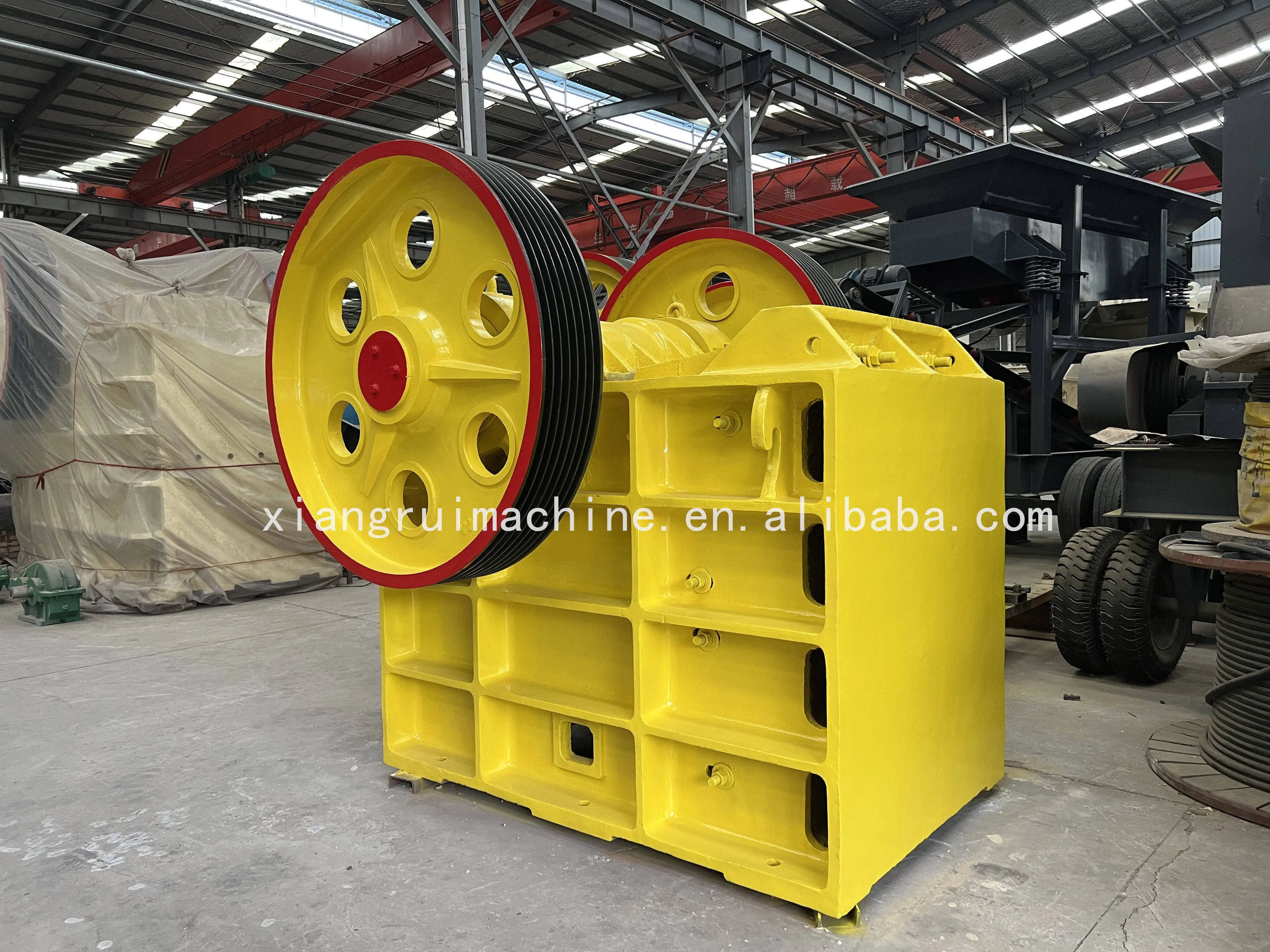

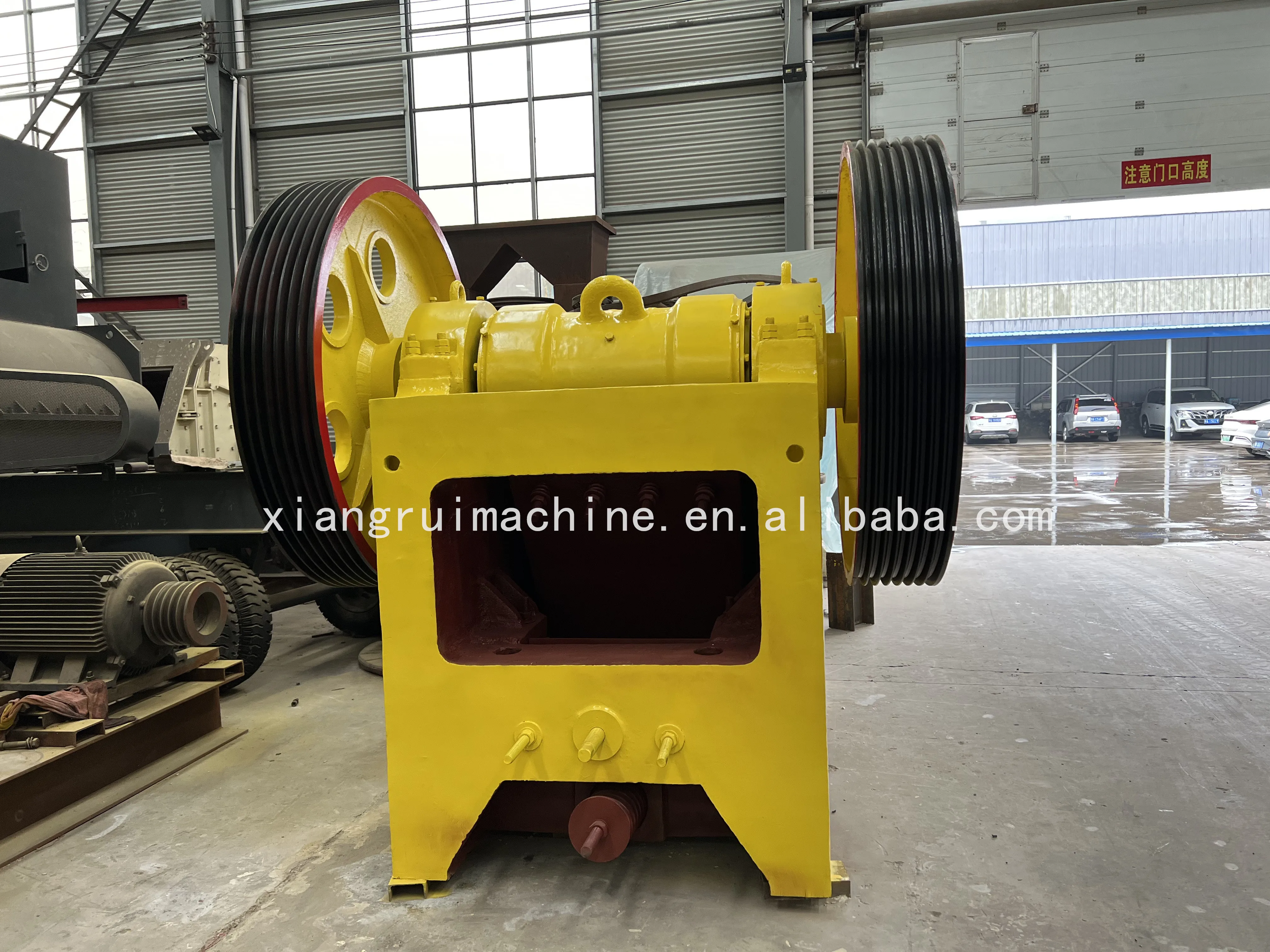

Jaw Crusher
Jaw crusher is a commonly used crushing equipment. It consists of two jaws, the movable jaw and the static jaw, which form a crushing chamber. It stimulates the movement of the two jaws of the animal to complete the material crushing operation. As a first-time crusher, it is mainly used to crush large ores or rocks into smaller sizes for further secondary or fine crushing.
Its working principle is based on the extrusion crushing mechanism. It mainly consists of a fixed jaw plate and a movable jaw plate, forming a “V” shaped crushing chamber between the two jaw plates. When working, the motor drives the eccentric shaft to rotate through the pulley, so that the movable jaw plate reciprocates under the action of the eccentric shaft. When the movable jaw plate is close to the fixed jaw plate, the material is crushed by crushing; when the movable jaw plate is far away from the fixed jaw plate, the crushed material falls down under the action of gravity, thus completing the crushing process. The process is repeated until the material is crushed to the required size and discharged through the discharge opening.
The crusher is suitable for coarse and medium crushing of rocks, ores and other materials of various hardness, featuring simple structure, reliable operation and convenient maintenance.
Product Paramenters
Model | Power | Discharge Size | Weight | Capacity |
PE 150*250 | 5.5KW | 15~40mm | 0.8T | 2-3t/h |
PE 200*300 | 7.5KW | 15~50mm | 1.2T | 4-7t/h |
PE 200*350 | 11KW | 18~60mm | 1.4T | 8-10t/h |
PE 250*400 | 15KW | 20~60mm | 1.7T | 20t/h |
PE 300*500 | 22KW | 30~80mm | 3.2T | 40t/h |
PE 400*600 | 30KW | 40~100mm | 5.6T | 60t/h |
PE 500*750 | 55KW | 50~100mm | 10T | 120t/h |
PE 600*900 | 75KW | 65~160mm | 16T | 180t/h |
PE 750*1060 | 90KW | 80~240mm | 29T | 240 t/h |
How it works
1.Eccentric shaft 2.Swing jaw die
3.Swing jaw 4.Flywheel
5.Cheek plate 6.Stationary die
7.Main frame
How it works：
The motor drives the belt and pulley, through the eccentric shaft to make the moving jaw move up and down, when the moving jaw rises, the angle between the elbow plate and the moving jaw becomes larger, thereby pushing the moving jaw plate to approach the fixed jaw plate, and at the same time the material is crushed or split to achieve the purpose of crushing; When the movable jaw goes down, the angle between the elbow plate and the movable jaw becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of tie rod and spring, and the crushed material is discharged from the lower mouth of the crushing cavity.Highlight the advantages:
1：quipment saves energy The cavity type of jaw rock breaker is a deep cavity hyperboloid form, and the
structure of negative support, zero suspension, small eccentricity and high swing frequency matches the deep cavity type, so that it can obtain excellent performance of high processing capacity, low wear and low energy consumption, and the energy saving of the single machine is 15%~30%, and the energy saving of the system is more than doubled.
2：The crushing ratio is large The crushing ratio of jaw stone breaker is extremely high, the so-called size eats, effective power design makes the material get crushed many times, using advanced crushing technology, using advanced digital processing equipment, so that the internal structure is precise,improve the crushing performance, and the product particle size is uniform.
3：High productivity Reasonable crushing cavity design,good motion parameters, determined meshing angle and stroke characteristic values, provide larger crushing stroke, higher productivity and greater load capacity. Yield can be increased by 30%-50%.
4：Long service life and high service life The manufacturing process adopted, the use of advanced digital components, the selection of end production materials, to ensure the precision of the machine parts, greatly enhance its pressure resistance, wear resistance, reduce maintenance costs, and greatly extend the service life.
5：Advanced manufacturing The high-quality production materials at the end of the parts enhance the compression resistance and wear resistance of the parts, among which the moving jaw is composed of steel castings, and the eccentric shaft is processed by forging billets, etc., so that the reliability of the parts is increased, the efficiency is high and durable.
6：Wide range of applications The discharge port has a large adjustment range, reasonable structure and small footprint, which can meet the various processing needs of users and is widely used in crushing production in many industries.
Performance characteristics
The jaw crusher has a large crushing ratio, which can handle materials of various hardnesses, and is suitable for coarse crushing and secondary crushing operations.
Its design makes the product particle size uniform, which meets the requirements of different fields for material particle size. Its simple structure makes it relatively easy to repair and maintain, reducing downtime and improving production efficiency.
The jaw crusher adopts the world-class advanced design concept, the structure is relatively simple and reasonable, the machine body is firmer, the operation is stable, the work is reliable, the maintenance is convenient, the operating cost is reduced, and it is suitable for long-term operation.
As the source factory, we are trustworthy，You are welcome to contact us!
Product packaging and delivery
Shipping
We usually use wooden case packaging, if you have special needs, you can negotiate with us for customization, we can provide a variety of packaging solutions to meet the needs of sea or land transportation. Stable seismic resistance and customized protection ensure that each piece of equipment arrives safely in your country without worry.
Company Profile
Gongyi Xiangrui Machinery Manufacturing Co., Ltd.
Gongyi Xiangrui Machinery Manufacturing Co., Ltd. is a large-scale manufacturing enterprise mainly engaged in the production of brick making machine machinery and heavy mining machinery, integrating scientific research, production, sales and service. The company is located in the private science and technology park of Chuangye Road, Kangdian Town, Gongyi City, Henan Province, covering an area of more than 15,000 square meters, with 6 modern heavy-duty production workshops, advanced technology and perfect production management system. After more than 20 years of development, it has been exported to Serbia, Romania, Russia, Mongolia, Indonesia, Kazakhstan, Viet Nam, North Korea, Egypt, Ghana, Tanzania, South Africa, Canada, Chile, Bolivia, Mexico and other countries and regions.
The magnetic separator, ball mill, jaw crusher, hammer crusher, impact crusher, brick/block making machine,etc. produced by the company have been successfully applied at home and abroad. All of them are tracked and tested by quality inspection engineers; And the company has passed ISO 9001:2015 international quality system certification, ISO 45001:2018 quality, health and safety management system certification, ISO 14001:2015 environmental management system certification, five-star commodity after-sales service system certification, to ensure that users are provided with high-quality and reliable equipment.
The company can provide production line design according to customer requirements. Xiangrui Machinery pursues the business philosophy of "survival by quality, development by reputation", adheres to the production policy of "not accepting defective products, not producing defective products, and not producing defective products", and all equipment from casting - machining - assembly are checked by technical engineers at all levels, and strive to build a brand enterprise that satisfies users, so that customers can buy at ease and use comfortably! It has created more value for many enterprises and society.
FAQ
1.Q: Is your company a manufacturing company or a trading company?A: We are a direct sales factory, not an agent or trading company, quality and after-sales service are guaranteed.
2.Q: How to guarantee the quality of the machines?
A: Our products have passed ISO 9001-2000 certification. We have 20 years of experience in machine manufacturing and are constantly updating our technical concepts and applications.
3.Q: When do you ship?
A: We usually ship within 10 days after we receive full payment from the buyer.
4.Q: What are the payment terms?
A: Payments under $1000 require full payment. For payments over $1000, the advance deposit is 30% via T/T and the balance before T/T shipment is 70%. Other transaction options are also available.
5.Q: Can you provide videos?
A: We can send you a video, please contact me.
6.Q: What are your warranty terms?
A: We provide 12 months warranty for all quality issues.
7. Q: How do I install and maintain the machine?
A: We can provide you with videos, emails, pictures ..... , teach you to install or maintain the machine. If it is a large project, we can arrange an engineer to your country to help you install or maintain the machine. If you need spare parts, we can provide them free of charge or at cost price, but you need to pay the courier fee.
8.Q:Allocation and training of engineers?
A: We can provide manuals, working videos, installation videos and pictures first, or we can assign engineers to go abroad to install or train machines for users.
9.Q: Do you provide customized service?
A: We can provide customized service (color, LOGO, size, material, etc.).
10.Q: Can we visit your factory?
A: Yes, you can visit our factory anytime.
OUR SERVICES
1.24 hours online service.
2.Email: xiangruimachinery88@gmail.com
3.Can be customized according to customers' requirements.
4.Please check again before shipment.
5.Ship on time.
6.We can test the machine before shipment if customers need.
7.The more you need, the cheaper the unit price.
8.Help customers to ship.
3.Can be customized according to customers' requirements.
4.Please check again before shipment.
5.Ship on time.
6.We can test the machine before shipment if customers need.
7.The more you need, the cheaper the unit price.
8.Help customers to ship.
