Product Description
C stud roll forming machine | Cd roll forming machine | C channel roll forming machine
C stud roll forming machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc, machine details is like up type:
Machine spections
Working flow
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
| Part details | Item Name | Specification |
| Material | Raw material | Galvanized steel |
| Thickness | 0.3-0.8 mm | |
| Machine | Roller station | 12 |
| Shaft diameter | 55 mm | |
| Shaft material | 45# steel with 0.05mm chrome | |
| Roller material hardness 30-40 HRC | Cr 12 | |
| Machine size | About 4.8×0.8×1 m | |
| Machine weight | About 1.8 ton | |
| Machine color | As customer' request | |
| Working speed | 30-50 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1 mm | |
| Material | Cr 12 | |

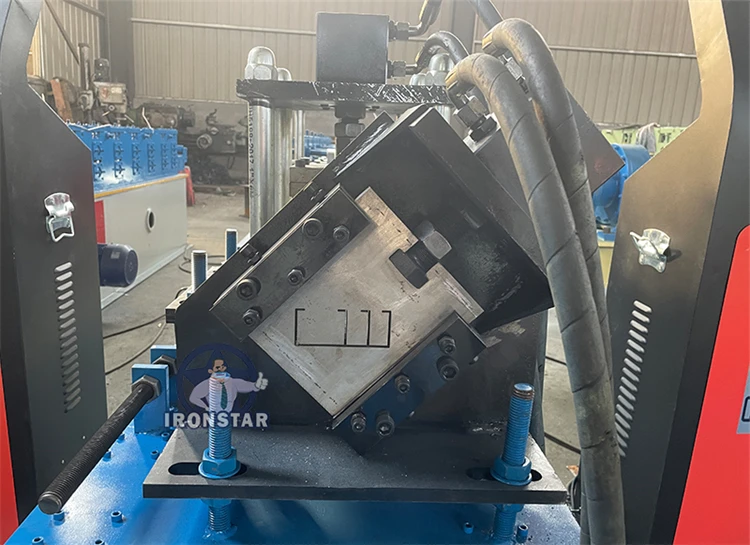

| Operate | Hydraulic cutting | |
| Power | Driving way | Chain 1 inch |
| Main power | 4 kw | |
| Pump power | 3 kw | |
| Voltage | 380v/50HZ,3P or customize as customer' request | |
| Control system | PLC brand | Delta made in Twaiwan |
| Screen | Touchable screen | |
| Language | Chinese and English or add language as customer need | |
| Decoiler | Operation | Manual |
| Weight capicatity | 3 ton | |
| Price | Free as gift | |
| Receiving table | Operation | Manual |
| Length | 3 m | |
| Price | Free as gift |

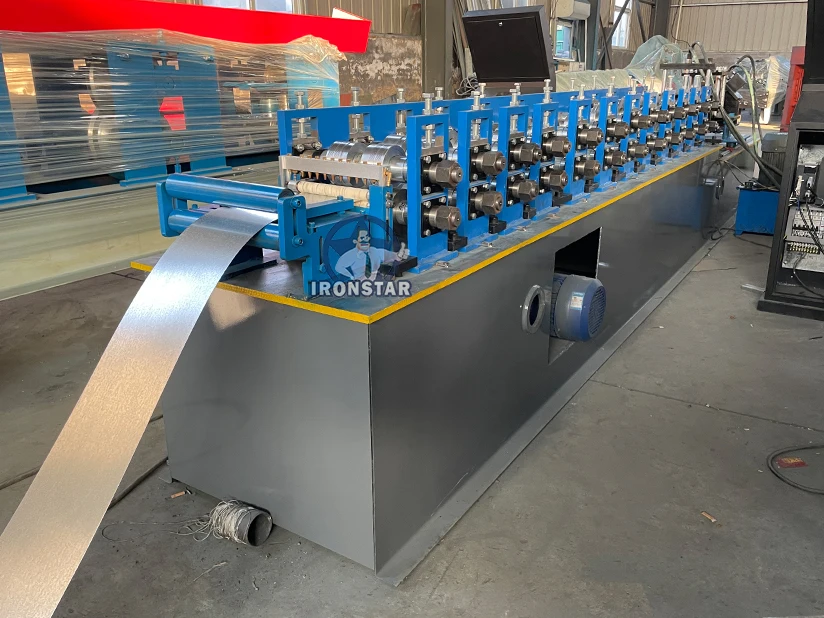

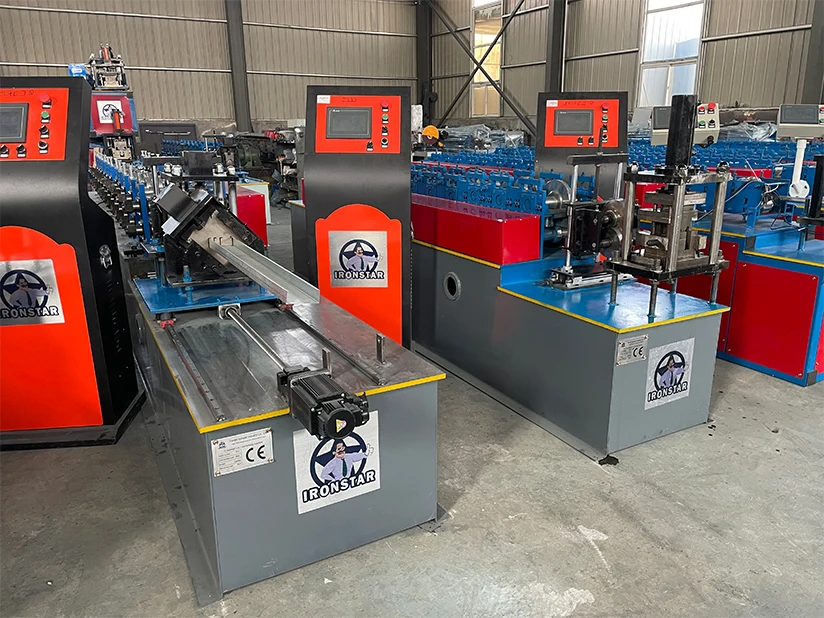

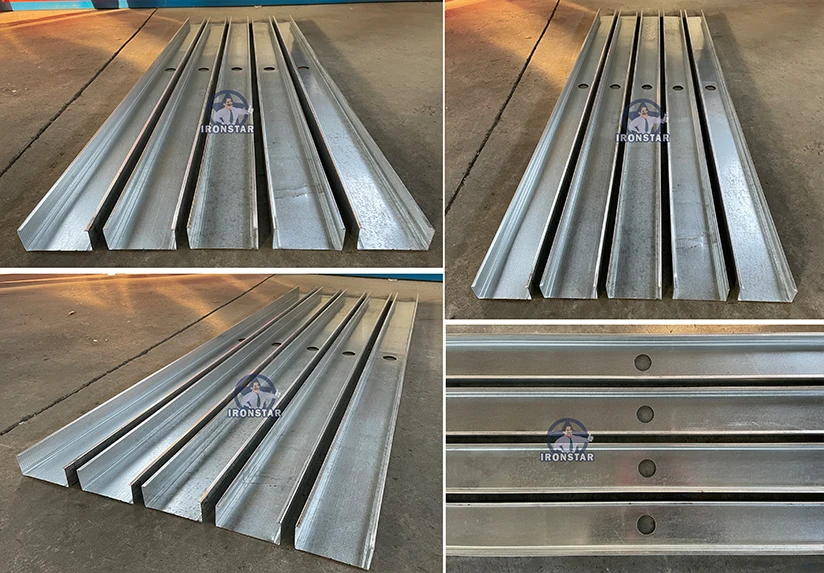

Details Images
Machine video
If u want to see the machine working video, please contact with miaomiao with any way below
More for you choose
1. Angle bead roll forming machine
Angle bead roll forming machine | Corner bead production line | Metal angle bead machine | Corner bead roll forming machine | V shape roll forming machine | Steel wall angle bar roll forming machine
Angle bead roll forming machine popular sell in many countries, size common include 20*20 mm, 25*25 mm, 27*27 mm, 30*30 mm. Product thickness common between 0.3-0.6 mm, machine details is like up type:
2. Omega profile roll forming machine
Omega profile roll forming machine | Omega channel roll forming machine | Omega channel roll forming machine | Top hat roll forming machine
Omega profile roll forming machine popular sell in many countries. Product thickness common between 0.3-0.6 mm, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc, machine details is like up type:
3. C channel 3 size in 1
roll forming machine
3 in 1 c channel machine | multiple c channel machine | C u channel roll forming machine
Multiple C channel machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc, machine details is like up type:
4. U stud (UD)
roll forming machine
U stud roll forming machine | ud roll forming machine | u channel making machine
U stud roll forming machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc, machine details is like up type:
5. U channel
roll forming machine
U channel roll forming machine | gypsum u channel making machine | U stud roll forming machine
U channel roll forming machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc, machine details is like up type:
6. T grid
roll forming machine
Spring T grid machine |T bar rolling machine | Main T machine | Cross T ceiling keel machine
T grid roll forming machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 8-15 m/min, with servo motor speed can max reach to 10-30 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc, machine details is like up type:
Company Information
Tianjin Ironstar Industry Co., ltd is one professional roll forming machine manufacturer, 26 years working experience and 400 worker provide service for you. Products mainly include: Trapezoidal steel roof/wall panel machine, Glazed tile roofing roll forming machine, C U channel, Angle bead, Omega and T bar machine, Shutter slat door, door frame roll forming machine, C&Z shape interchangeable machine, Cap ridge, water gutter roll forming machine, cutting, bending, slitting, curving machine, floor deck and other customized machine etc.
We machine sell
FAQ
1. Q: How to visit our company:
A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station(1hour), then we can pick up you to factory(40min).
A:Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west station(4.5 hours), then we can pick up you to factory(40min).
2. Q: What should I provide if I want to customized machine?
A: U need provide profile drawing, material, thickness, voltage and your special requirements.
3. Q: What is the Warranty?
A: Within 24 months, all technical staff are ready to serve you at any time.
4. Q: What can you do if the machine broken?
A: Our machine's warranty period is 24 months, if the broken parts can't repair, we will send new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.
5. Q: If need technician to workshop to debug and teach, how to do?
A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.
Похожие товары
Промышленная роликовая машина для гаражных ворот
656 128,48-735 316,40 ₽

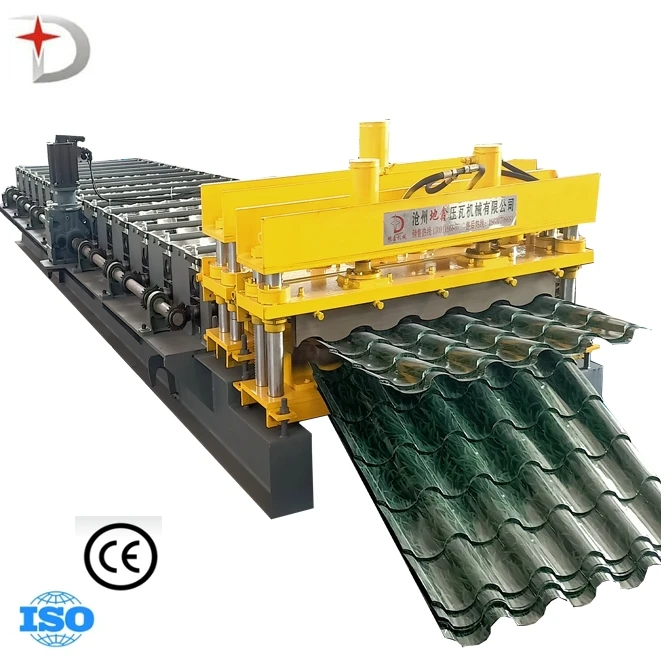

DX заводская цена на заказ оборудование для изготовления глазурованной плитки из бамбукового узла
769 254,08-995 505,28 ₽
Профессиональные производители автоматическая машина для профилирования рулонов с-образным каналом
2 262 512,00-2 828 140,00 ₽

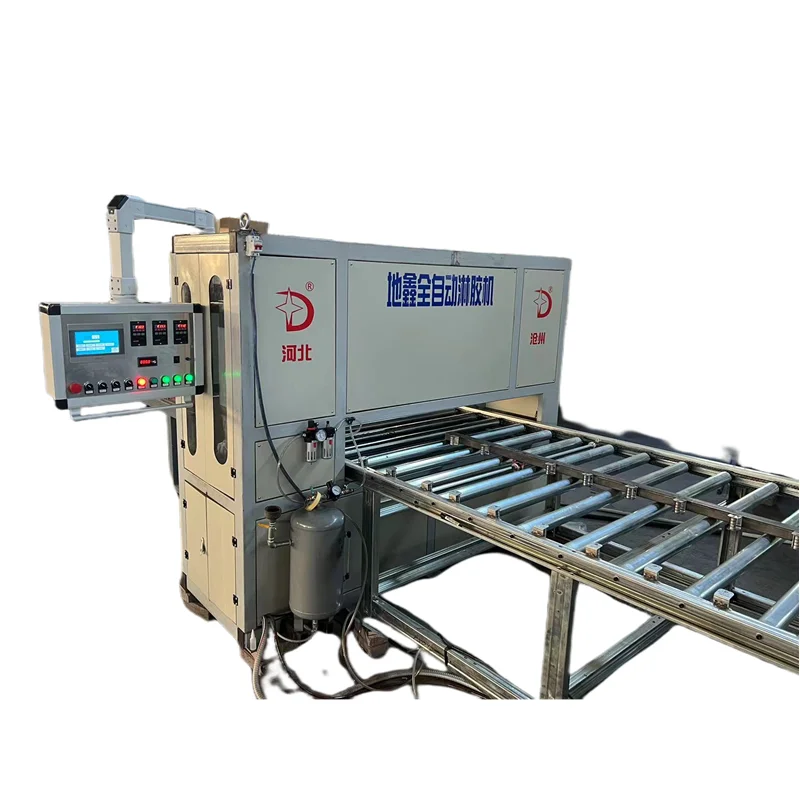

Автоматическая машина для сэндвич-склеивания картона
