Product Advantage
Overcoil prevention device
Protect the hook, wire rope and boom to prevent damage to the parts caused by collision of the hook and boom.
Extra large working radius
Working radius of 9.2 m, large span for wider coverage
High Strength Steel Plate
The arm is made of 960 high-strength plate with high strength, strong lifting capacity and long service life.
illuminated lamp
Improves the operator's line of sight, ensures operational safety and increases operational efficiency.
SEALS
Adopting seals produced by first-class manufacturers, with fine workmanship, reliable quality and long service life.
Safety valve lock
Adopting domestic first-class manufacturers, High level of safety by effectively locking up the oil circuit.
Hydraulic winch
Relying on disc springs and friction discs for braking, high efficiency, low noise, high service life.
360° Full rotary structure
360°continuous rotation, integral slewing support, easy and quick operation，easy maintenance
Hydraulic hoses
We use the highest quality high pressure hoses with a maximum burst pressure of 120 MPa.

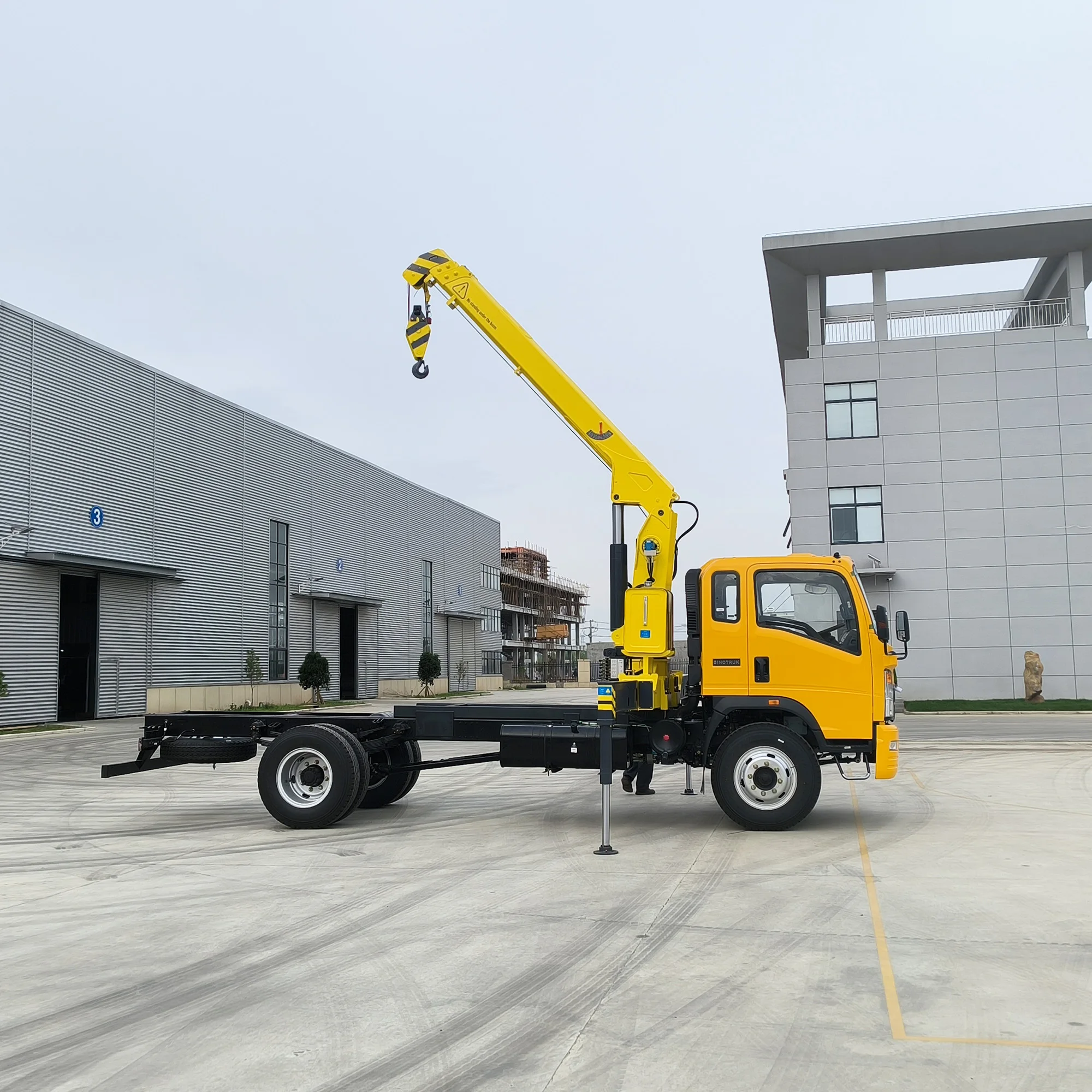

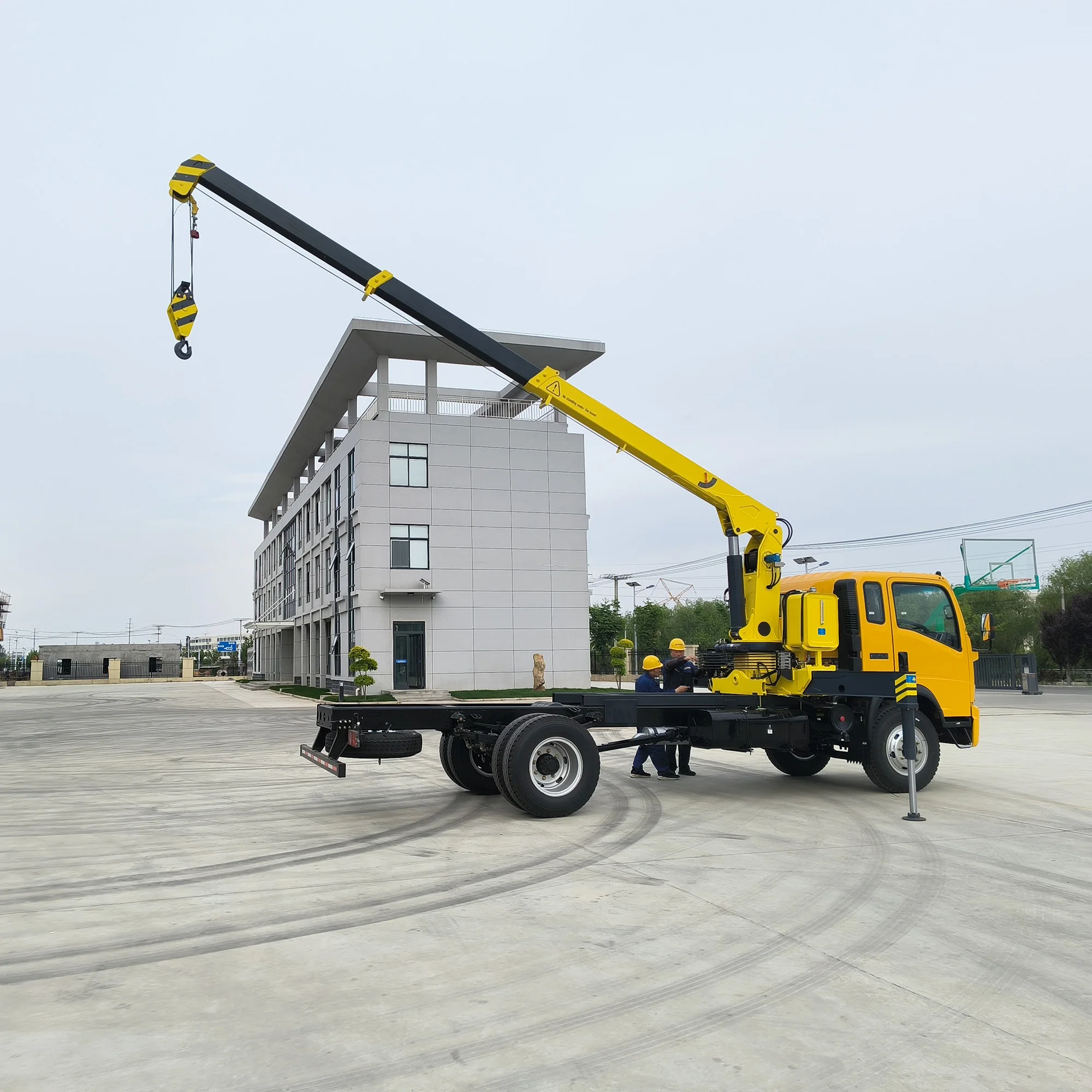

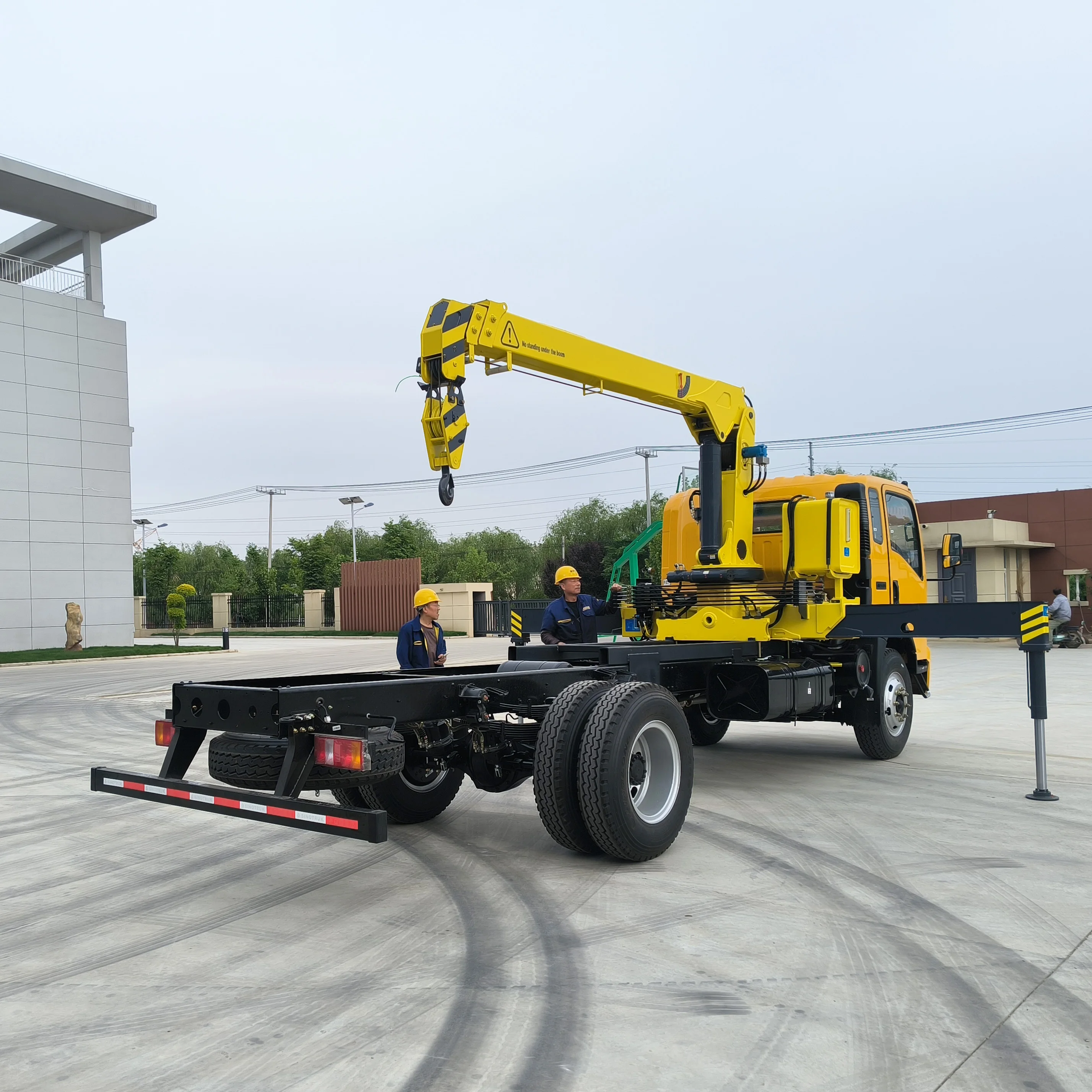

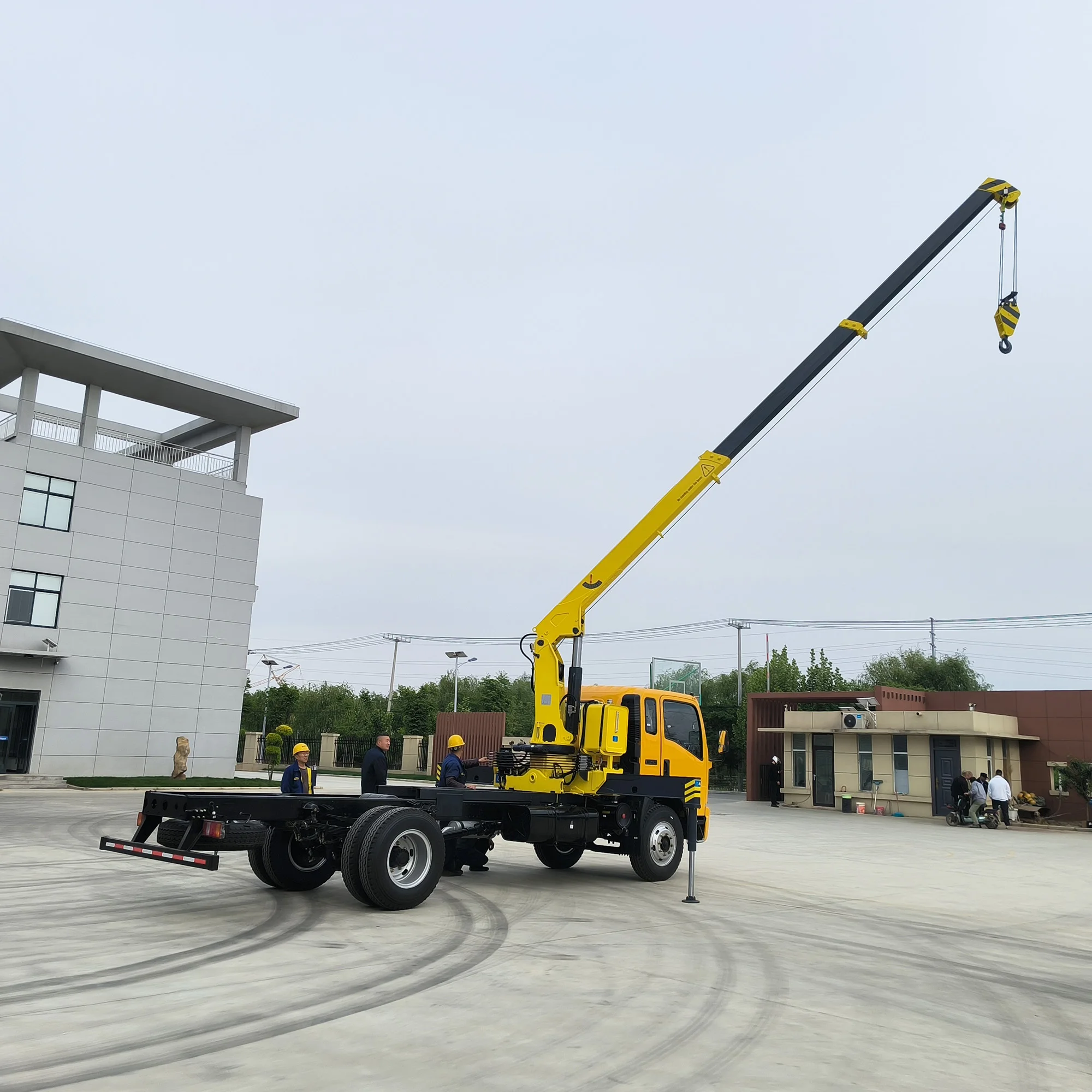

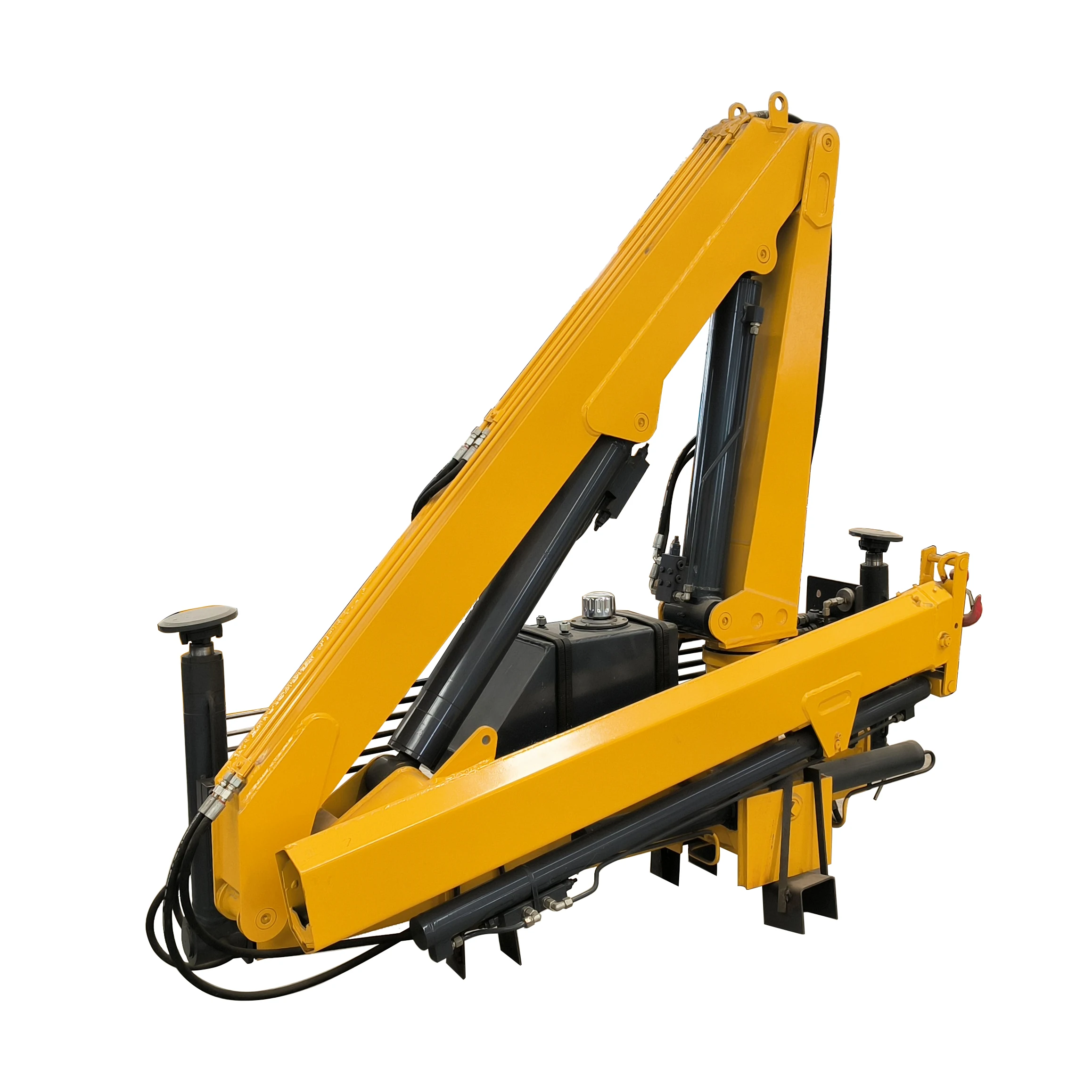

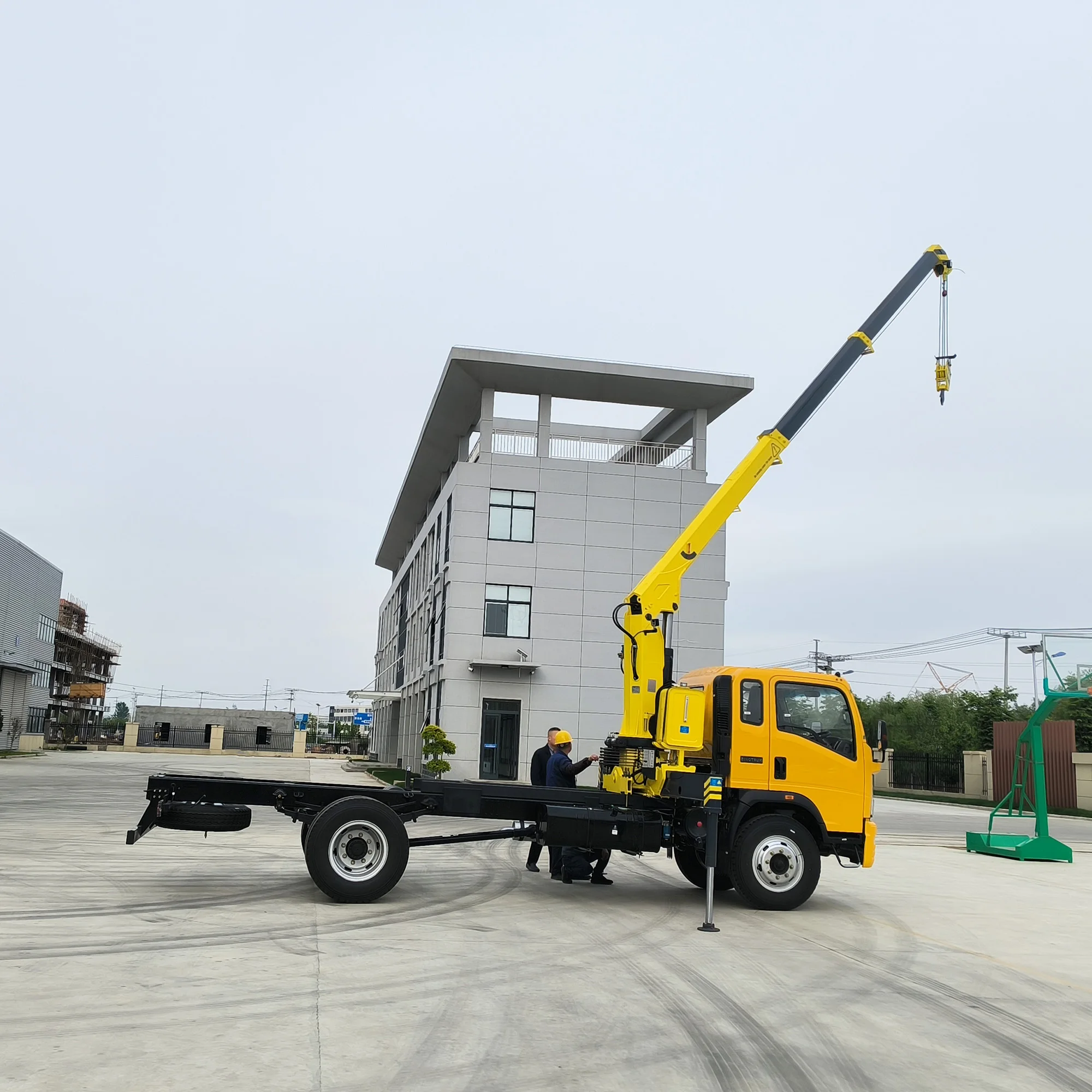

Product Paramenters & Images
Item | Unit | SQS157A-3 |
Max. Lifting Moment | Ton.M | 15.7 |
Max. Lifting Weight | Kg | 6300 |
Max. Working Radius | M | 9.2 |
Oil Tank Capacity | L | 100 |
Rotation Angle | ° | 360°Continuous Rotation |
Crane Self Weight | Kg | 2300 |
Installation Space | mm | 900 |
Outtrigger Span | mm | 5020 |
Hydraulic System Flow | L/Min | 40 |
Hydraulic System Pressure | Mpa | 20 |
Optional Wireless Remote Control
1.Coverage radius 100M
2.Multi-motion synchronized operationWireless remote control operation, savelabor, save cost,and open the field ofvision Wider, more efficient and safer
Products Case
Products Recommended
Customer Visit
Company Profile & Certifications
Xuzhou ZORY Construction Machinery Co., Ltd. specializes in designing, developing, and manufacturing truck-mounted cranes, with a focus on innovation and technology. Our product range, spanning over 22579 square meters of factory space, includes the SQ01-SQ55 series of truck-mounted cranes, marine cranes, pickup cranes, and Aerial Working Platforms.
Strict quality control system makes us pass ISO quality management system and CE certificate to ensure our product quality
Now 90% we have been exporting in bulk to EU, America, Africa, Middle east, Southeast Asia and Russia, India, Pakistan and Hong Kong etc. Over 120 countries and regions. Our products are highly praised by foreign clients.
Strict quality control system makes us pass ISO quality management system and CE certificate to ensure our product quality
Now 90% we have been exporting in bulk to EU, America, Africa, Middle east, Southeast Asia and Russia, India, Pakistan and Hong Kong etc. Over 120 countries and regions. Our products are highly praised by foreign clients.
Assembly workshop
Welding Workshop
Bending workshop
Automatic laser cutting workshop
Spray painting workshop
Finished goods workshop
Product packaging & shipping
The transportation route is long, and we use
professional packaging to ensure the safe arrival of the crane
Preventing wear and tear
Wooden cases are packed to prevent collision
Stable transportatin arrived safely
FAQ
1) How many years of your factory?
We have 16 years production and nearly 10 years experience, we exported to more than 50 countries & regions.
2) Which kind of payment you can be accepted?
Normally both of T/T & L/C at sight are ok for us.
3) How about the delivery time?
20-40 working days after received 30% T/T or L/C.
4) What's your warranty?
Normally is 1 year, if large quantities we can negotiate.We will mail the accessories to you for free if have problems within one year.
5) What's your MOQ?
MOQ: 1 set
6) Can you accept OEM service?
Yes for sure my friend.
7) Optional Attachment?
Remote Control, Basket, Auger, Grapple, Top Seat, Rear Legs
We have 16 years production and nearly 10 years experience, we exported to more than 50 countries & regions.
2) Which kind of payment you can be accepted?
Normally both of T/T & L/C at sight are ok for us.
3) How about the delivery time?
20-40 working days after received 30% T/T or L/C.
4) What's your warranty?
Normally is 1 year, if large quantities we can negotiate.We will mail the accessories to you for free if have problems within one year.
5) What's your MOQ?
MOQ: 1 set
6) Can you accept OEM service?
Yes for sure my friend.
7) Optional Attachment?
Remote Control, Basket, Auger, Grapple, Top Seat, Rear Legs
