Product Description
Product Name | 200w120ah dc 12v output solar power system |
Solar panel | 200w 18v mono solar panel |
Solar panel size | 1510*670*30mm |
Solar panel weight | 12kg |
Battery type | Ternary lithium polymer battery |
Battery capacity | 12V 120ah |
Max pulse discharge current | 40A |
Battery size | 776*147*50mm |
Battery weight | 7.2kg |
Solar controller type | PWM |
System voltage | 12V |
Solar controller size | 190*170*135mm |
U-type hoop | 8-14 U-type hoop |
Package size | 1515*675*140mm |
Package weight | 25kg |
Low cost solar power system
This solar system is equipped with 200W solar panel, 120AH lithium battery and PWM charge controller. Default output of this system is 12V DC(24VDC, 48VDC optional). So, this product provide power to devices such as ip camera, wifi camera, 4G camera, network switch, sensor, street light and so on.
We also provide other solar systems, like 360WH, 480WH, 720WH, 960WH, 1440WH, 2160WH and so on. Feel free to contact us if you have any requirements about power issue.
OEM ODM 1440wh solar portable power station kit solar 12v dc output solar panel syste
Here are what included in this kit:
1) 200w solar panel -- 1 piece
2) 12v 120ah ternary lithium battery -- 1 piece
3) PWM solar charge controller -- 1 piece(Inside battery shell)
4) Solar panel bracket -- 2 piece (To fix solar panel and battery)
5) U shape clamp -- 2 pieces
DC output solar solutions
- Long standby tiem for 12V loads
- Suitable for environment without electricity and network
- Low power consumption and long endurance Peak power tracking technology
- High conversion rate of solar controller
- Suitable for environment without electricity and network
- Low power consumption and long endurance Peak power tracking technology
- High conversion rate of solar controller
- OEM/ODM service supported
Professional solar power solutions
- Solar solution according to your request
- Comprehensive testing to ensure quality
- Bang for the buck
- Professional technical support on line
- Bang for the buck
- Professional technical support on line
Details Images
Part 1: High efficiency solar panel (200w solar panel inside)
- A grade solar cell with efficiency rate
- Toughened glass withstand 5400Pa wind and rain impact
- PPF backboard waterproofing and sealing
- IP65 junction box
- Toughened glass withstand 5400Pa wind and rain impact
- PPF backboard waterproofing and sealing
- IP65 junction box
200w Solar panel specifications | ||
Max power voltage(Vmp) | 18V | |
Max power current(Imp) | 11.11A | |
Open circuit voltage(Voc) | 21.6V | |
Short circuit current(Isc) | 12.55A | |
Module efficiency STC | 22% | |
Power tolerance | 0~3% | |
Max system voltage | 1000V | |
Cell type | 210mm | |
Number of cells | 33pcs | |
Dimension | 1510*670*30mm | |
Weight | 12kg | |
Part 2: PWM solar controller(inside battery shell)
- 20A PWM solar charge controller
- LCD real time display
- Intelligent charge management
- Intelligent charge management
Solar controller specifications | ||
System voltage | 12V DC | |
Rated charge current | 20A | |
Rated discharge current | 20A | |
Maximum solar voltage | ＜50V | |
Floating charge current | 12.6V | |
1.Industrial grade chip
2.LCD display, data adjustable
3.PWM charge management
4.Overload/short circuit protection and other protection functions
5.Dual MOS anti-backflow circuit, ultra low heat
Part 3: lithium ion battery (120ah battery inside)
After 3000 times cycles, battery performance still remains about 85%
Single Lithium battery specifications | ||
Rated capacity | 120Ah | |
Operating voltage | 7.8V ~ 12.6V | |
Overcharge protection voltage | 12.83V | |
Standard cycle life | ≥2500 | |
Dimension | 776*147*50mm | |
Weight | 7.2kg | |

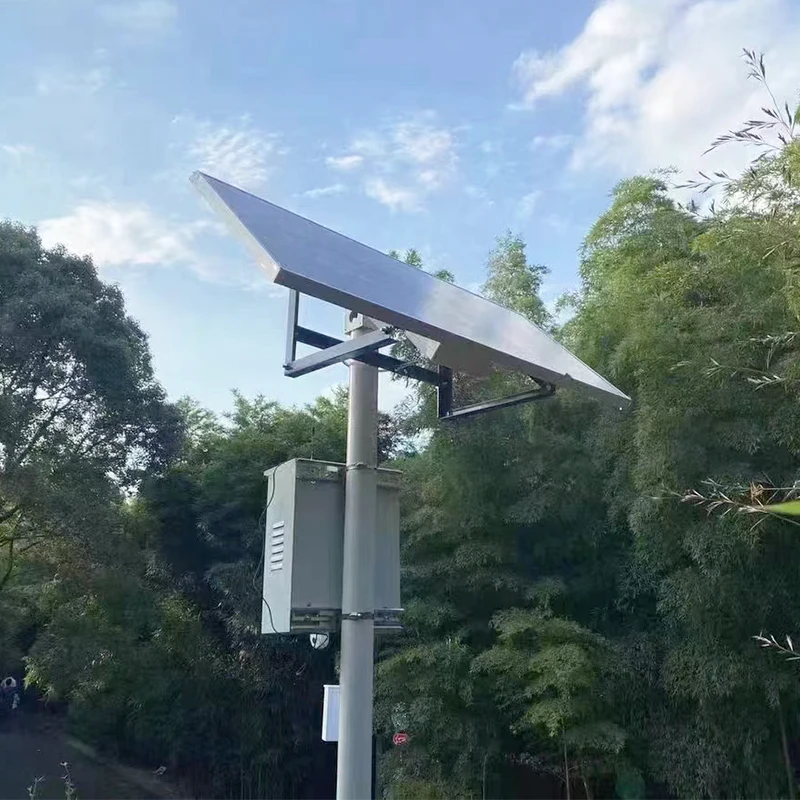

Product Usage
Wide application scenarios

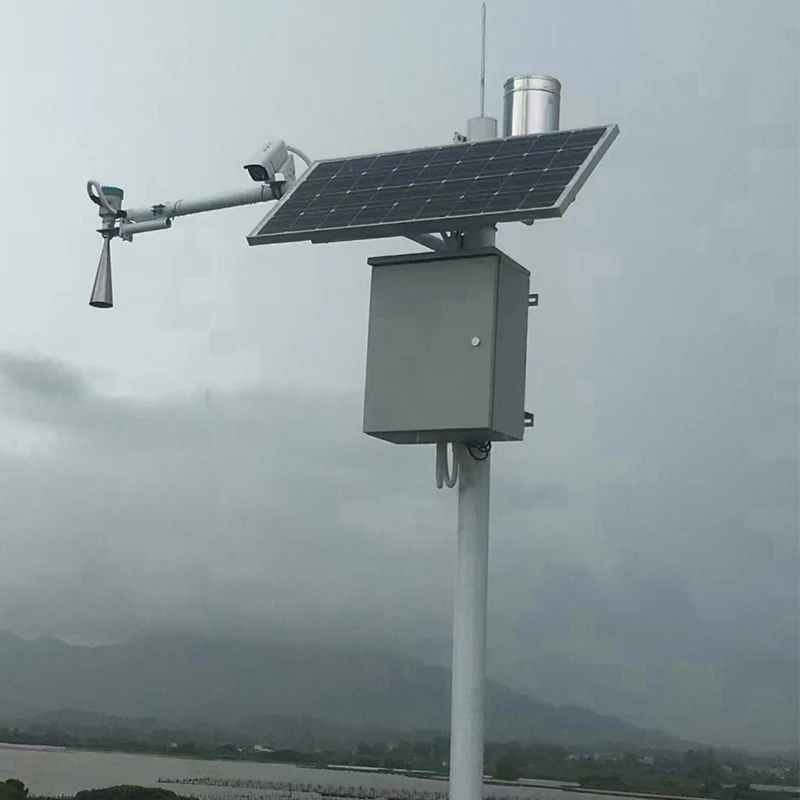

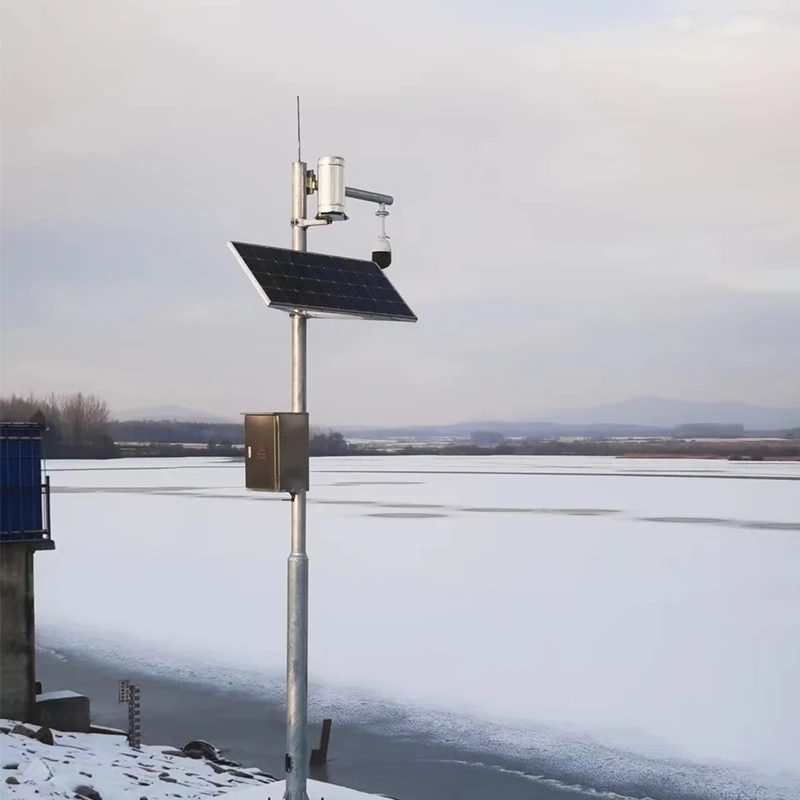

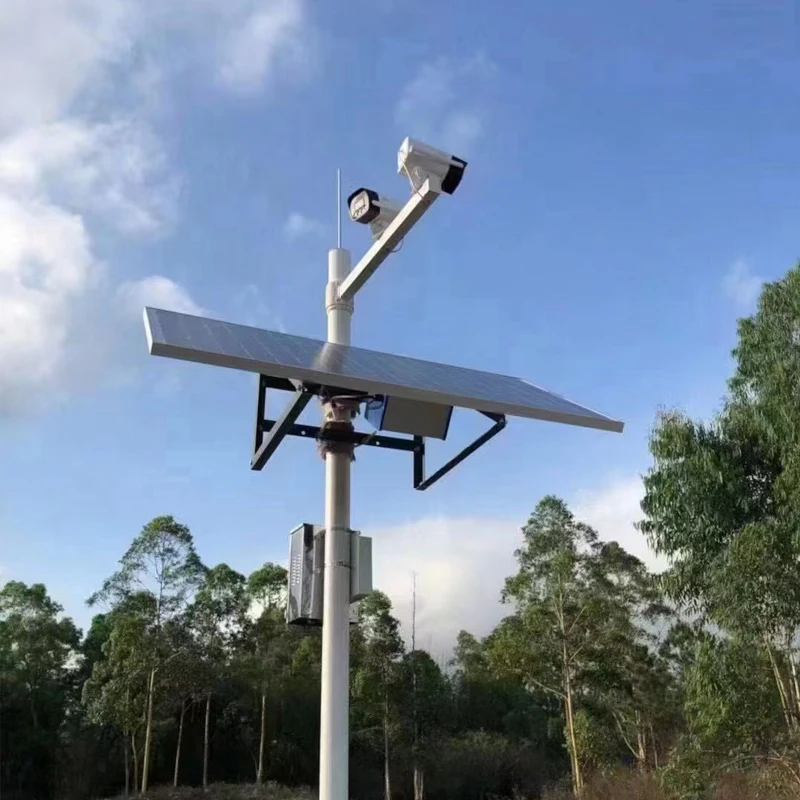

Our solar power system provides power for different application scenarios, such as CCTV camera, wifi bridge, wireless access point, smart weather station, smart hydrological monitoring station and other IoT devices.
Packing&Shipping
Company Introduction
Shandong Xiyuan Solar Energy Co., Ltd. is located in the Economic Development Zone of Zibo City, Shandong Province. It is a high-tech enterprise integrating R&D and production. The products involve monocrystalline/polycrystalline photovoltaic modules, solar street lights, photovoltaic brackets, off grid solar systems, on grid solar ystems, etc. Our products are widely used in all walks of life in the society. The sales network covers China and is exported to overseas.
The company adheres to the tenet of "customer first, pioneering and innovative", adheres to customer-centricity, keeps improving, pioneering and innovating, and is committed to providing global users with professional products and efficient solar power solutions. We sincerely welcome friends from all walks of life to come to visit, to realize win-win business opportunities and common development.
The company adheres to the tenet of "customer first, pioneering and innovative", adheres to customer-centricity, keeps improving, pioneering and innovating, and is committed to providing global users with professional products and efficient solar power solutions. We sincerely welcome friends from all walks of life to come to visit, to realize win-win business opportunities and common development.
FAQ
How can i get product price list?
Contact us by email, trade manager, skype or send inquiry to us.
Can i get samples to test before placing an order?
Yes, welcome to get samples to test and check their quality.
Can we use our logo and design?
Yes, customization is acceptable for bulk order.
What is the product warranty policy?
Twelve-month warranty. If any problems appear when you use, please feel free to contact us.
I don't know how to install it. Can you help me?
Of course. You can contact us for solution. Once we receive your inquiry, we will reply back to you within 12 - 24 hours.
How do we pay you?
We accept T / T , Western Union, PayPal, Money Gram, L/C and Alibaba Trade Assurance Order.
Contact us by email, trade manager, skype or send inquiry to us.
Can i get samples to test before placing an order?
Yes, welcome to get samples to test and check their quality.
Can we use our logo and design?
Yes, customization is acceptable for bulk order.
What is the product warranty policy?
Twelve-month warranty. If any problems appear when you use, please feel free to contact us.
I don't know how to install it. Can you help me?
Of course. You can contact us for solution. Once we receive your inquiry, we will reply back to you within 12 - 24 hours.
How do we pay you?
We accept T / T , Western Union, PayPal, Money Gram, L/C and Alibaba Trade Assurance Order.
Похожие товары
Захватывающая цена новый тип оптовая продажа Беспроводной удаленный Солнечный мониторинг
3 100,00 $
Новые энергетические продукты используемые для системы солнечных мониторов CCTV солнечная энергетическая система с солнечной панелью 60 Вт
95,00-104,00 $
Горячая распродажа 60 Вт комплект солнечных панелей легкая установка камера безопасности фара маршрутизатор непрерывного питания мониторинг
85,00-95,00 $

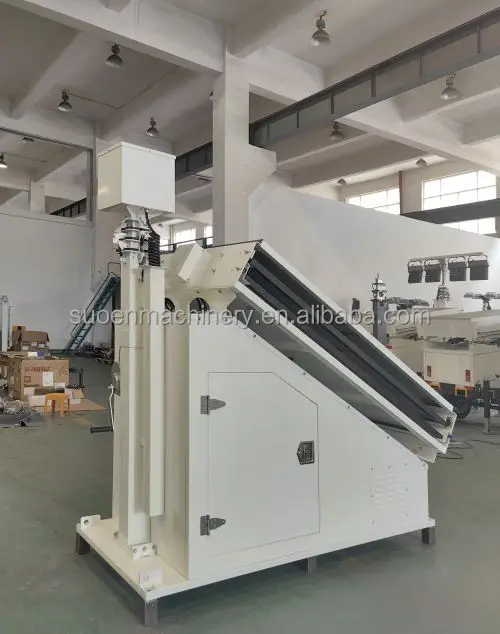

Мобильный солнечной энергии наблюдения CCTV трейлер для наружной безопасности
3 600,00-3 880,00 $

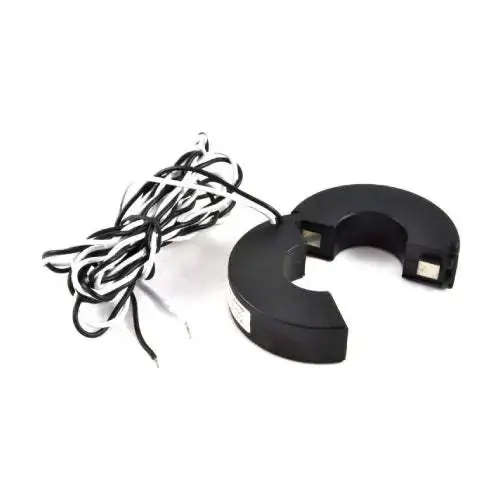

Трансформатор тока Outback-OBCT-200
