HK SP1600B WI система печати промышленный онлайн Принтер цифровой цветной струйный принтер печатная машина

Сохранить в закладки 1601191442204:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики















Device name
Single Pass Digital Printer
Device model
HK-SP1600B-WI RobotJet Brand.
Printing technology
Micro piezoelectric technology
Printing medium
All kinds of water observing materials
Ink type
Water-based Pigment or Dye Ink
Ink color
C/M/Y/K
Image format
JPG, PDF, PSD, BMP, TIFF, GIF, TGA, EPS, DCS, EPS and so on
Operating system
Win7/Win10/Win11
Language interface
Chinese/English (any other language can be customized)

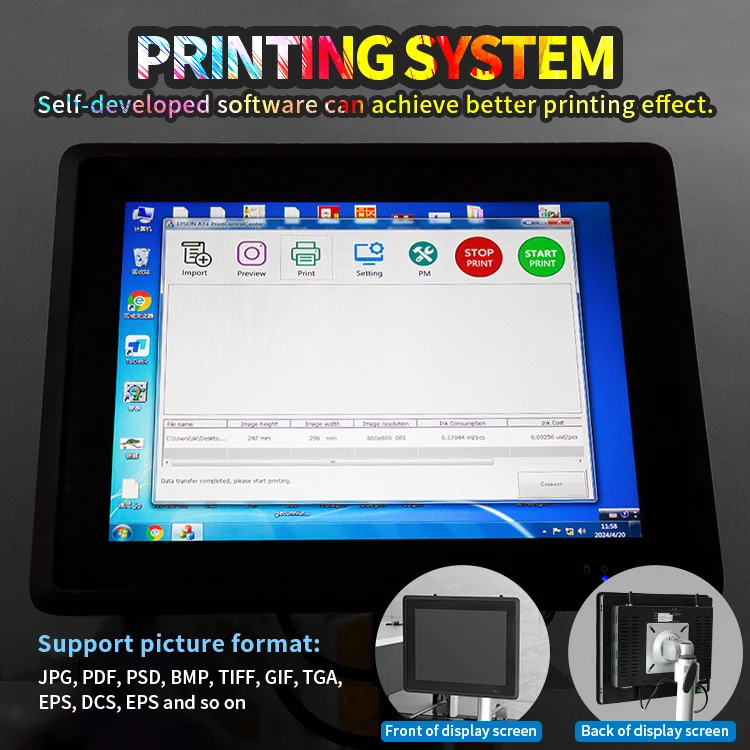

Control mode
Standard industrial-grade tablet computer, color touch screen
Working power
4000W
Input voltage
AC 110/220V, 50/60HZ
Data transmission interface
Gigabit network interface transmission
Width of conveyor belt
Standard width: 800/1300MM, any width can be customized
Length of conveyor belt
Standard length: 2000 MM, any length can be customized
Level Sensors for Printing width
The print engine has a level sensor that automatically adjusts based on material thickness.
Cleaning System
Machine have auto cleaning system for clean printer head with system control.
Strong Vacuum suction System
Conveyor belt have strong vacuum suction system free of compressor motor control.
Auto Feeder
Optional at customer demand.
After Sales Services
24/7 Online services /Life line after sales services/Engineer onsite services.

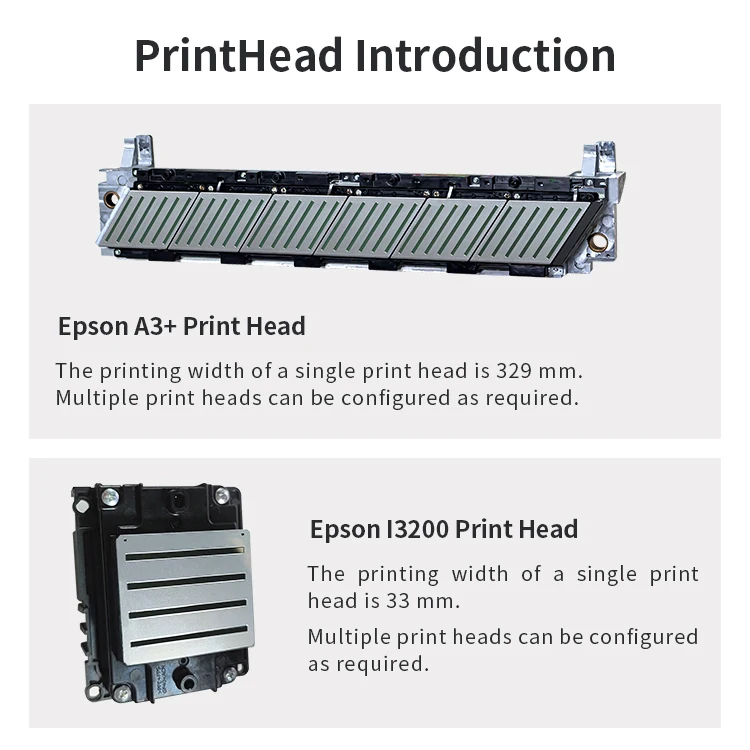

Printer heads type
Epson A3+
One print head Width
329MM
Number of printheads
1-4 (Need more wider, we can customize)
Printing width
0-1300MM(Customize )
A3+ Printing precision
1200*400 DPI / 1200*800 DPI / 1200*1600 DPI
Printing mode
Sketch / HD / Ultra HD

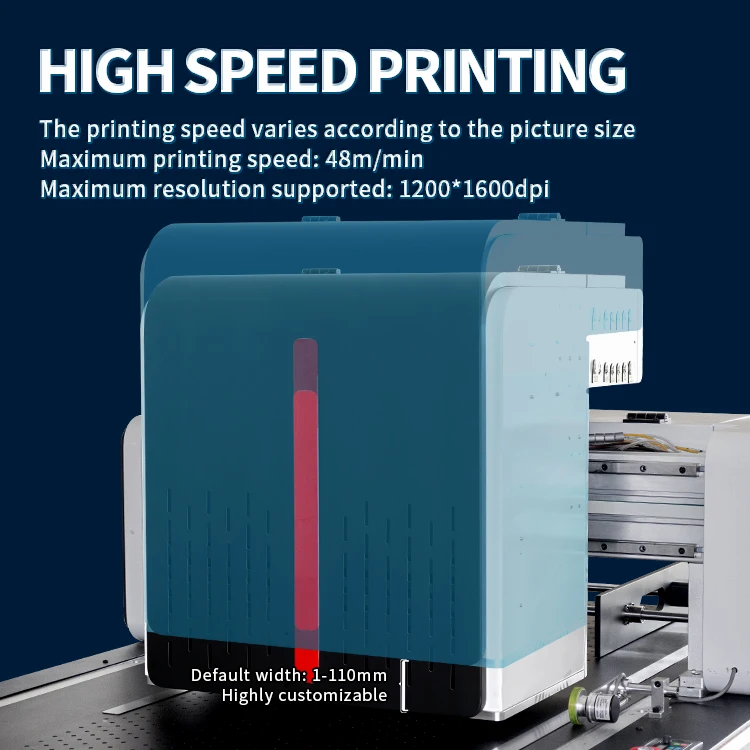

Printing speed
0-48m/min ;0-24m/min ;0-12m/min adjustable
Printer Height
0-200 MM adjustable




Printer heads type
Epson i3200
One print head Width
33MM
Number of printheads
1-40 (Need more wider, we can customize)
Printing width
0-1320 MM (Customize )
Printing precision
360*600 DPI / 720*600 DPI / 1440*600 DPI
Printing mode
Sketch / HD / Ultra HD
Printing speed
0-48m/min ;0-24m/min ;0-12m/min adjustable
Printer Height
0-200 MM adjustable














Friction Feeder
The width and length of Friction Feeder can be customized.
The number of belts depends on the width of the feeder, the wider the feeder, the more belts.

Method of excercise : Motor Driven Belt
Feeding Speed :0-48m/min adjustable
Feeding Material :Paperboard
Other Functions :Suction Device
Minimum Feeding Thickness :2MM
Maximum Feeding Width :800MM or 1300MM, Or customize other widths
Operating Power :Conveying 750W and sucking 1.5kw
Input Voltage:AC110 / AC220V,50HZ / 60HZ





Vacuum Suction Feeder

Equipment Name : Vacuum Suction Feeder
Method of excercise : Cylinder reciprocating, motor up and down
Paging Speed : 50 pieces / minute adjustable
Pagination Material : Cardboard, paper bag, plastic film, paper
Maximum Discharging Height : 300MM
Maximum Feeding width : 800MM , or customize other widths
Operating Power : 240W
Input Voltage : AC110 / AC220V,50HZ / 60HZ



The width and length of Vacuum Feeder can be customized.
The number of suction nozzles depends on the width of the feeder, the wider the feeder, the more suction nozzles.




Partial Print Display
