12x50 мм 650 нм 20 мВт ~ 100 широкое напряжение 12V24V Внешний фокус перекрестный красный лазерный модуль позиционирования гравировальный станок
- Категория: >>>
- Поставщик: Zhongshan Feixian Photoelectric Co. Ltd.
Сохранить в закладки 1601191521857:
Описание и отзывы
Характеристики
Products Description

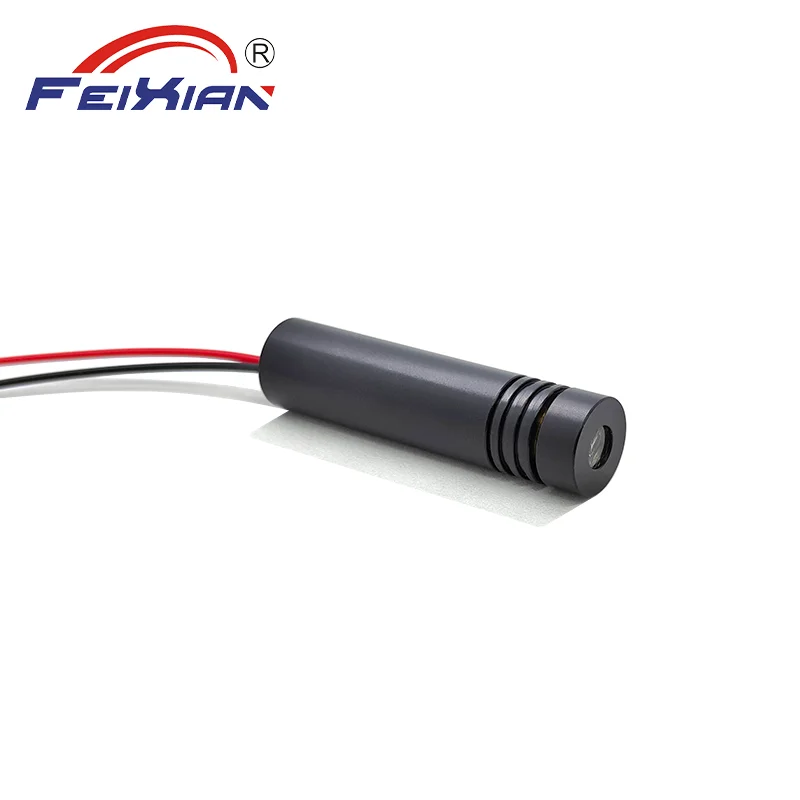

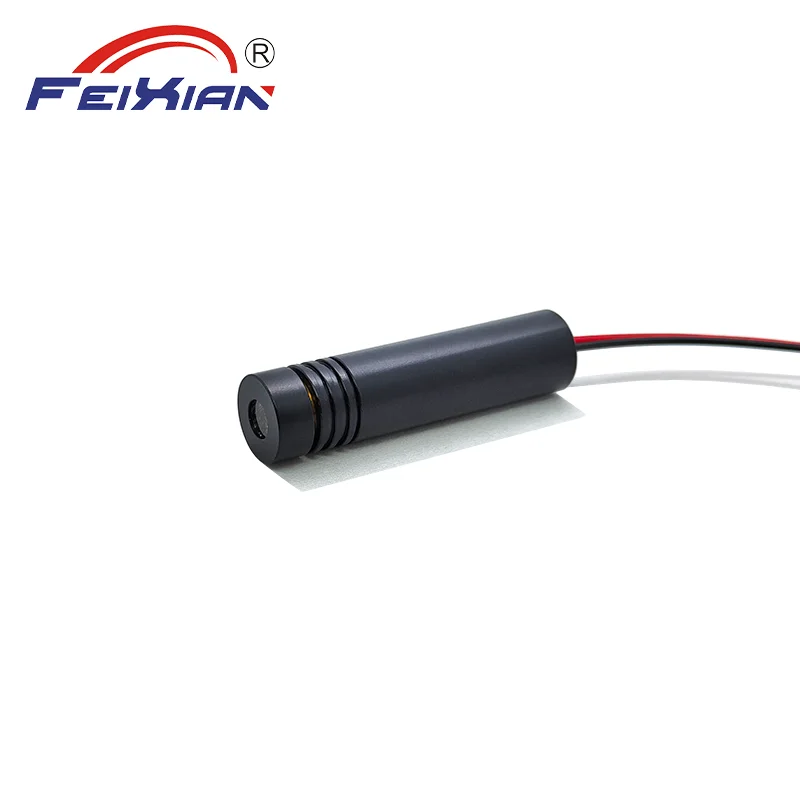

This product is a crosshair laser module, product size is 12X50mm, wide voltage 12V24V, focus mode is external focus, you can adjust the thickness of the light. This product is suitable for garment cutting machine transmitter, industrial grade crosshair laser head and so on.
Details Images
Product Paramenters
Product Code | SB2465020C, SB2465030C, SB2465050C, SB2465080C, SB24650100C |
External Dimensions | Φ12X50mm(Other sizes customizable) |
Housing Material | Aviation aluminum(All metal shell) |
Surface Treatment/Color | Black shell, with surface insulation treated with oxide mist black |
Peak Wavelength | 650nm±10nm(Other wavelengths customized) |
Output Optical Power | < 20mW, < 30mW, < 50mW, < 80mW, < 100mW(Other power customized) |
Operating Distance | < 5M(Indoor environment, laser will be affected by ambient light interference, and the distance may vary) |
Beam shape and size | Crosshair shape, Line width < 3mm at 2m (the conventional focal length is 2m; can be adjusted according to customer requirements for optimal effect) |
Light Diffusion Angle | 15°, 30°, 45°, 60°, 90°, 110° (Optional, default is 60°) |
Focal Mode | External focus |
Circuit Control | APC |
Operating Voltage | 4.8~25VDC |
Operating Current | I < 100mA(20mW), I < 110mA(30mW), I < 130mA(50mW), I < 150mA(80mW), I < 180mA(100mW) |
Operating Temperature | -10℃~+50℃ |
Storage Temperature | -20℃~+70℃ |
Mean Time To Failure | ≥ 10000 hours |

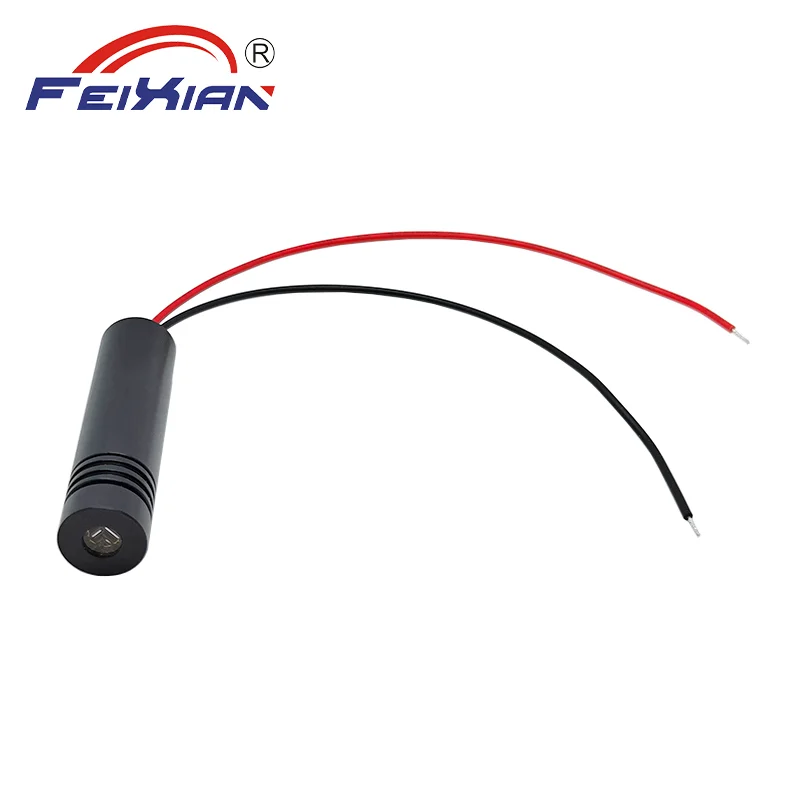

Tail Wire | 26#The red and black electronic wire is approximately 15cm long (taken together with the power adapter, equipped with a 1-meter long DC female plug cable) |
Laser Safety Class | CLASS IIIB(20mW, 30mW, 50mW, 80mW, 100mW) |
Packaging Content | One Laser |
Use To | Can be used in industrial laser positioning, aiming devices, laser flashlights, instrument equipment, medical equipment (health equipment), military, anti-counterfeiting and security, stage lighting, tools, USB drives, mobile phones, projection teaching flip pens, temperature (ranging) instruments, leveling instruments, marking instruments, level rulers, electronics enthusiasts, indoor and outdoor decoration and other products. |

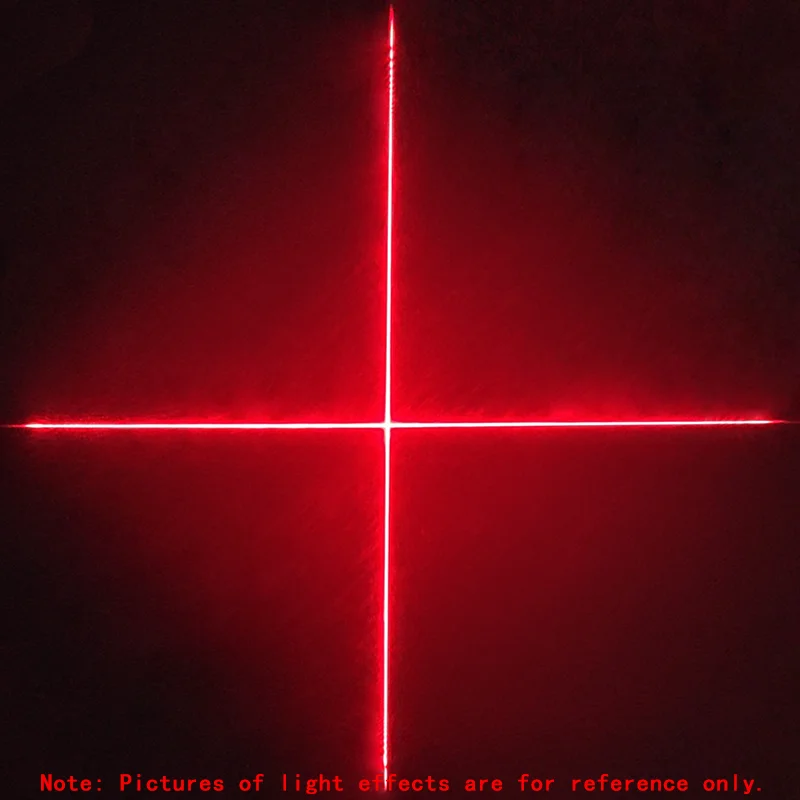

Light Effect Display
Product packaging
Note:
All of our products are always packed with anti-static bags, then packed by bubble bags, and finally packed in cardboard boxes.
Scope Of Application
Company Profile
Company Profile
Zhongshan Feixian Photoelectric Co., Ltd. was established in March 2012. It is a high-tech semiconductor laser enterprise that integrates research and development, production and sales.
The company has a group of career oriented talents who have been engaged in the design, research and development, and production management of laser products for more than ten years. With mature technical strength as the driving force for the company's development, it has formed an advanced and mature production process, which can provide high-quality, outstanding performance, and cost-effective products to domestic and foreign customers in a timely and rapid manner with quality and quantity guaranteed. With the business philosophy of "innovation, efficiency, quality, and service" and the aim of winning the market with customers, let technology change the way we live!
The company has independent brands such as FEIXIAN, SEA SPIN, and YSHINE, earning the reputation of being an excellent semiconductor laser supplier in China. It also has multiple patent certifications and a complete and
scientific quality management system.
scientific quality management system.
The main products we provide include laser diodes, laser modules, optical lenses, and laser circuits with wavelengths between 400NM and 1064NM, as well as point laser sources, straight line lasers, cross line laser modules, multi pattern laser heads, and so on.
Our products are widely used in various fields such as medical, beauty, physical therapy, communication cutting, cutting, carving, screen making, printing, stage, lighting, scanning, camera focusing, robotics, radar, security, night vision, interactive projection, geological exploration, indication and positioning, light display, AR light storage, etc.
Recommend Products
FAQ
1.Are you a manufacturer?
The products sold in our store are all independently developed and produced by our company, with absolute quality and price advantages.They can be customized according to customer requirements and specifications, and are sold in bulk retail with preferential treatment for large quantities.
2.What are the wavelengths of your laser products? What is the power achieved?
Answer:At present, our company mainly produces products with laser wavelengths of 400nm-1064nm and power between 0-10W.
3.What are the dimensions of your laser products?
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
4.What should I do if there is a problem with the product? Does your product have a warranty?
Our company's products are all made of original imported tube cores and A-grade high-quality lenses, with stable quality. In addition, we support a one-year warranty and lifetime free online technical support. If you have any questions or concerns, please feel free to contact customer service. I We will continue to serve you until you are satisfied.
5.Are the pictures or videos of your online products taken from real objects?
Answer:All product images, renderings, and videos on our store's website are taken by our company's professionals both indoors and outdoors, as well as by customers who have taken and provided them on their own usage site. Due to differences in the performance of the shooting equipment, there may inevitably be color differences or lighting effects. Please refer to the actual product for accuracy. We apologize for any inconvenience caused.
Thank you very much for purchasing our product.
We hope you have a good experience!!!
Похожие товары
16x60 мм 650 нм 30 МВт 50 100 200 Внешний фокус красный Однолинейный стеклянный объектив лазерный модуль однолинейное позиционирование лазерной линии маркер

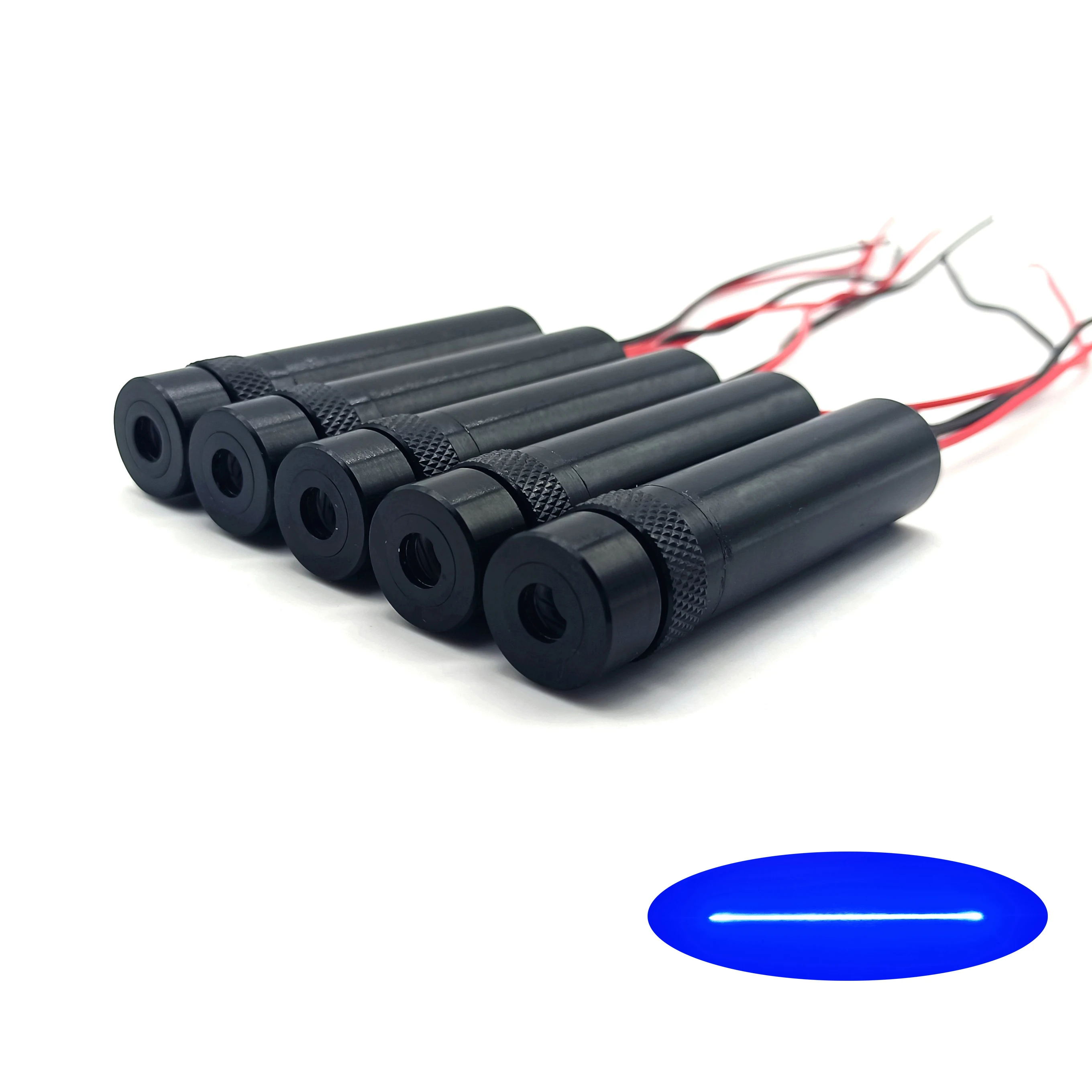

Водонепроницаемый Фокусируемый стеклянный лазерный модуль с синей линией постоянного тока нм 5 в 10 мВт 30 50 80 для позиционирования резки
16x70 мм 638 нм 30 мВт ~ 185 красный Однолинейный лазерный модуль для стеклянных линз Новый стабилизированный Линейный Маркер поворотного колеса передатчик

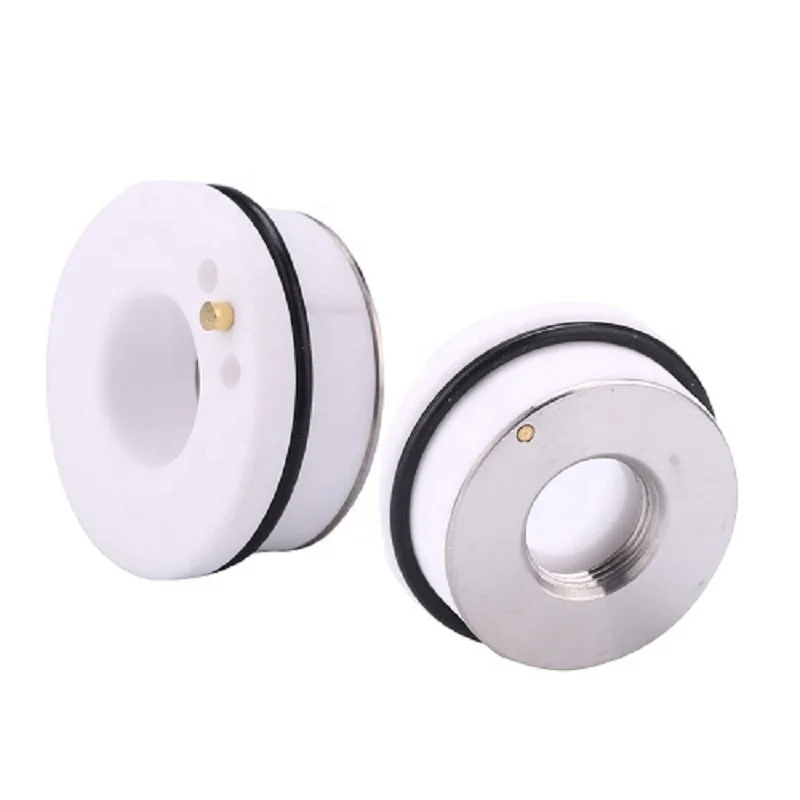

D32 D28 режущая головка керамика подходит для лазерной резки расходных материалов

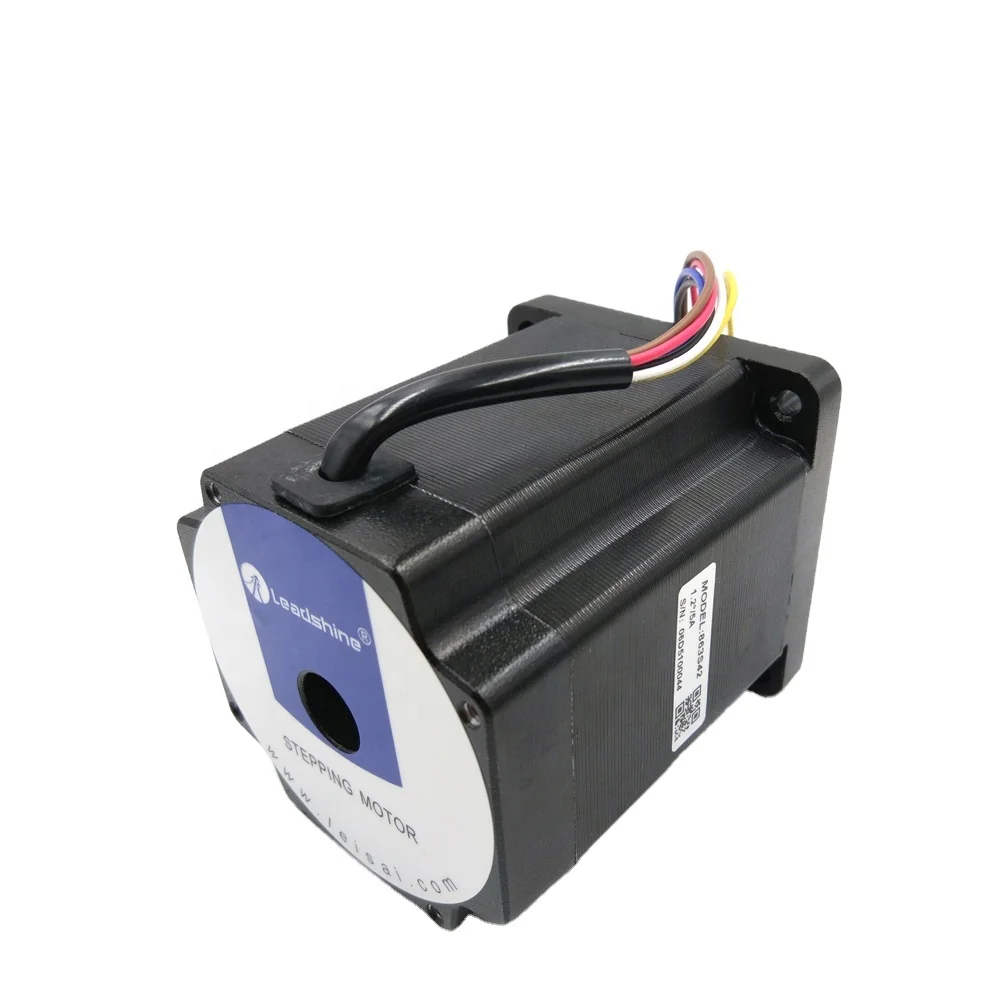

Заводская цена шаговый двигатель Leadshine Nema 34 863S42 с крутящим моментом 4 3 Н · м для лазерной резки запчасти оборудования
