Небольшое погрузочно разгрузочное оборудование Электрический вилочный погрузчик 1 5 тонны 2 3 портативный мобильный
- Категория: >>>
- Поставщик: Shandong Varyon Machinery Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601191681871:
Описание и отзывы
Характеристики
Product Information
Electric forklift is a material handling equipment that uses electricity as a power source. Electric forklift is powered by the battery to drive the motor and the motor of the hydraulic system, so as to realize the operation of driving and loading and unloading. As an important tool for modern logistics warehousing and handling, its high efficiency and environmental protection characteristics are favored.
Model Number | 1Ton | 1Ton | 1.5Ton | 2.0Ton | 2.5Ton | 3.0Ton | 3.5Ton |
Tonnage | 1Ton | 1Ton | 1.5Ton | 2.0Ton | 2.5Ton | 3.0Ton | 3.5Ton |
Standard Lift Height (M) | 3M | 3M | 3M | 3M | 3M | 3M | 3M |
Minimum Ground Clearance (cm) | 9.5cm | 9.5cm | 9.5cm | 9.5cm | 9.5cm | 9.5cm | 9.5cm |
Mast Tilt Angle (Front/Rear) (°） | 6°-12° | 6°-12° | 6°-12° | 6°-12° | 6°-12° | 6°-12° | 6°-12° |
Mast Type | 10# C-section steel | 10# C-section steel | 12# C-section steel | 12# section steel | 12# section steel | 14.8# section steel | 16# section steel |
Gradeability (Empty load/Full load) | 15/13 | 15/13 | 15/13 | 15/13 | 15/13 | 15/13 | 15/13 |
Overall dimensions (L * W * H) | 2100*1120*2150mm | 2100*1120*2150mm | 2330*1200*2150mm | 2430*1200*2150mm | 2550*1200*2150mm | 2830*1200*2200mm | 2850*1240*2300mm |
Front Axle | Small aluminum shell axle | Cast steel round tube axle | Dedicated aluminum shell integrated axle | Cast steel integrated square plate axle | Cast steel integrated axle | Large cast steel integrated axle | Large cast steel integrated square plate axle |
Tires | Front 500-8, Rear 400-8 | Front 500-8, Rear 400-8 | Front 650-10, Rear 500-8 | Front 650-10, Rear 500-8 | Front 650-10, Rear 500-8 | Front 650-10, Rear 500-8 | Front 28*9-15, Rear 650-10 |
Rear Axle | Square tube steering axle | Square tube steering axle | Steel plate axle | Steel plate axle | Steel plate axle | Steel plate axle | Large steel plate axle |
Braking Method | Oil brake | Oil brake | Oil brake | Oil brake | Oil brake | Oil brake | Oil brake |
Drive Motor Power (KW) | 3KW | 3KW | 3KW | 5KW | 5KW | 7.5KW | 10KW |
Lift Motor Power (KW) | 1.5KW | 1.5KW | 3KW | 4KW | 5KW | 7.5KW | 10KW |
Operating Voltage (V) | 60V | 60V | 60V | 60V | 60V | 60V | 60V |
Standard Battery Capacity (A) | 70A | 70A | 70A | 70A | 70Ah | 83Ah | 86Ah |
Net Weight (T) | 1.55T | 1.55T | 2.2T | 2.6T | 3.2T | 3.8T | 4.7T |
Optional Maximum Lifting Height (M) | 2-section mast up to 4 meters | 2-section mast up to 4 meters | 3-section mast 6 meters, approximately 130 kg lift | 3-section mast 6 meters, approximately 200 kg lift | 3-section mast 6 meters, approximately 400 kg lift | 3-section mast 6 meters, approximately 750 kg lift | 3-section mast 6 meters, approximately 800 kg lift |

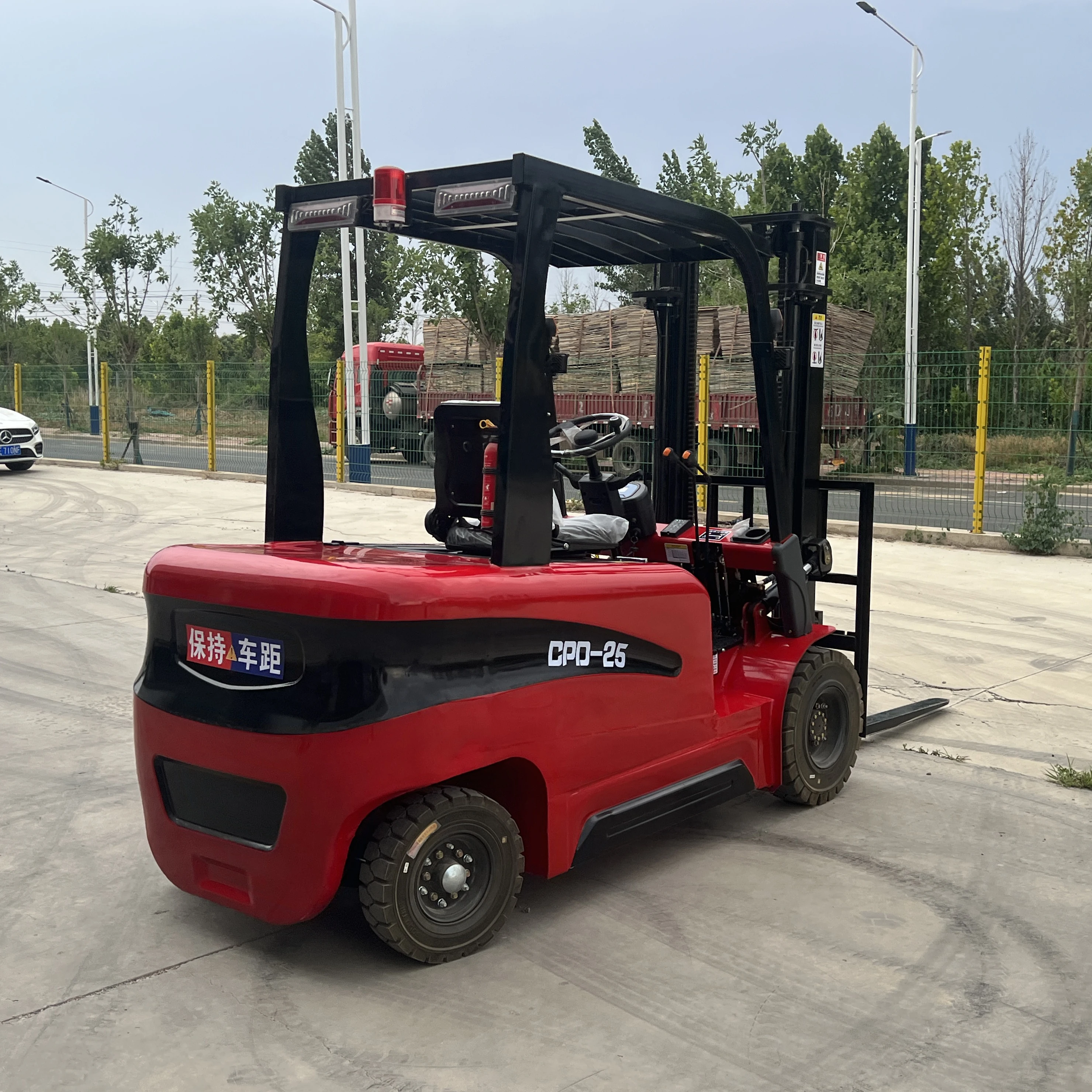

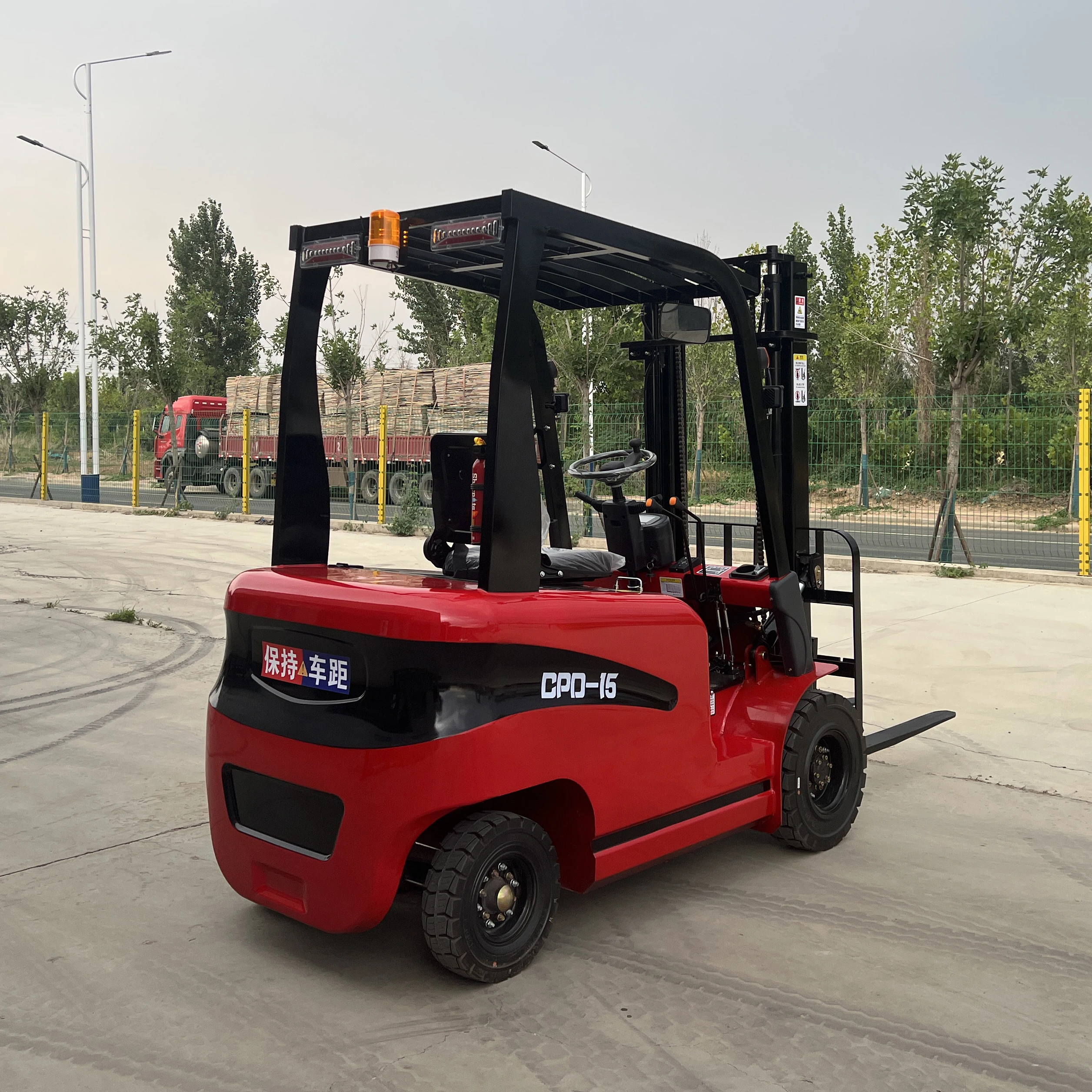

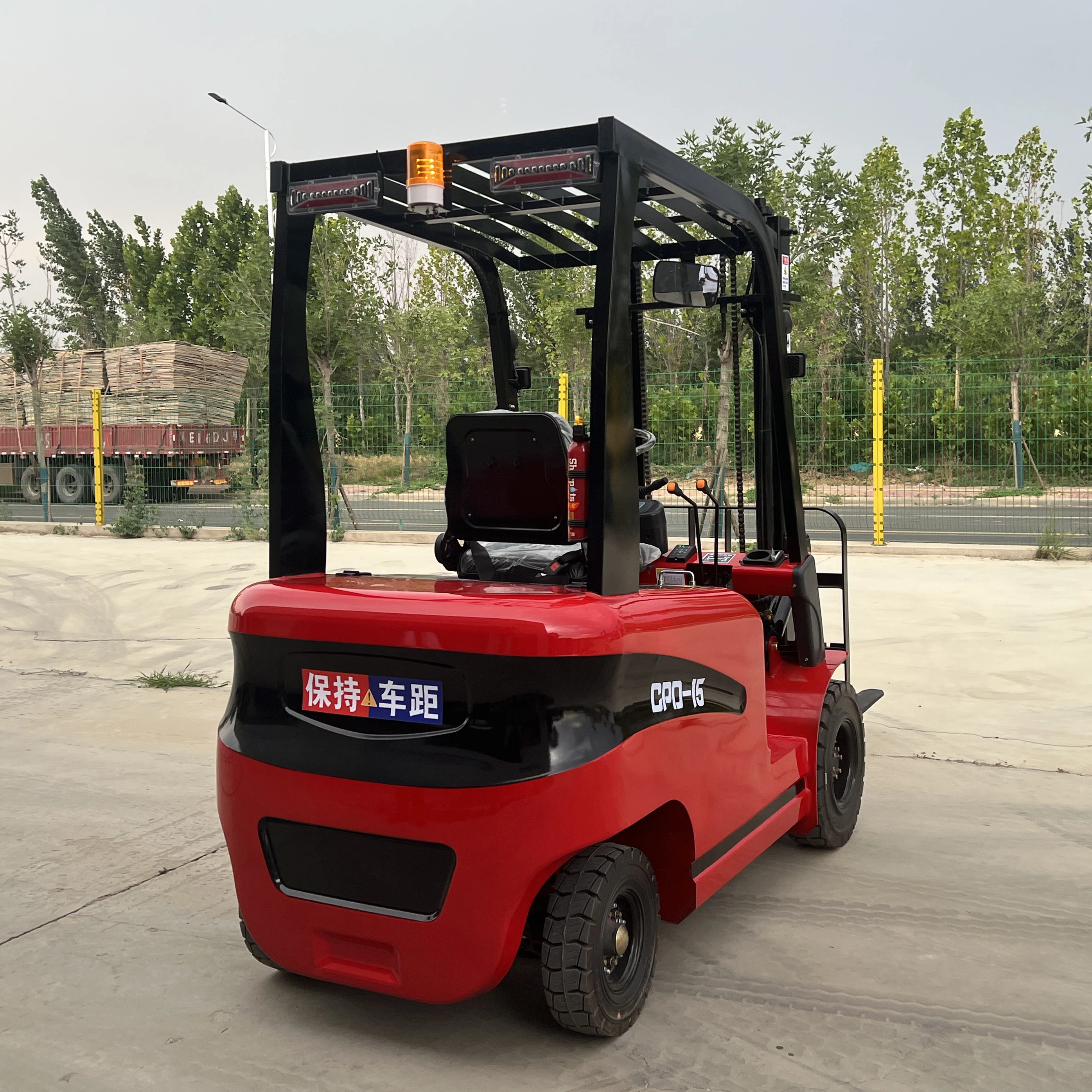

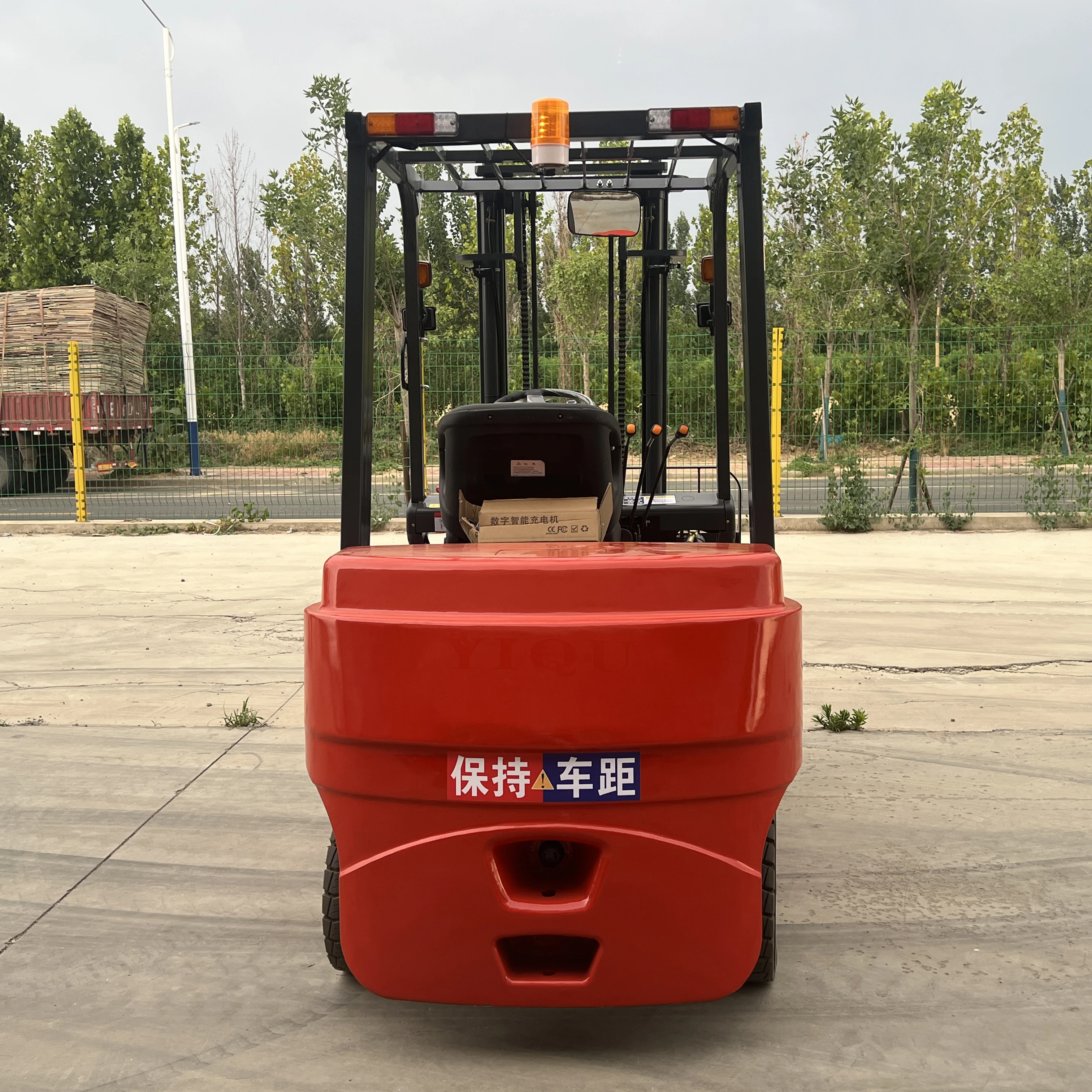

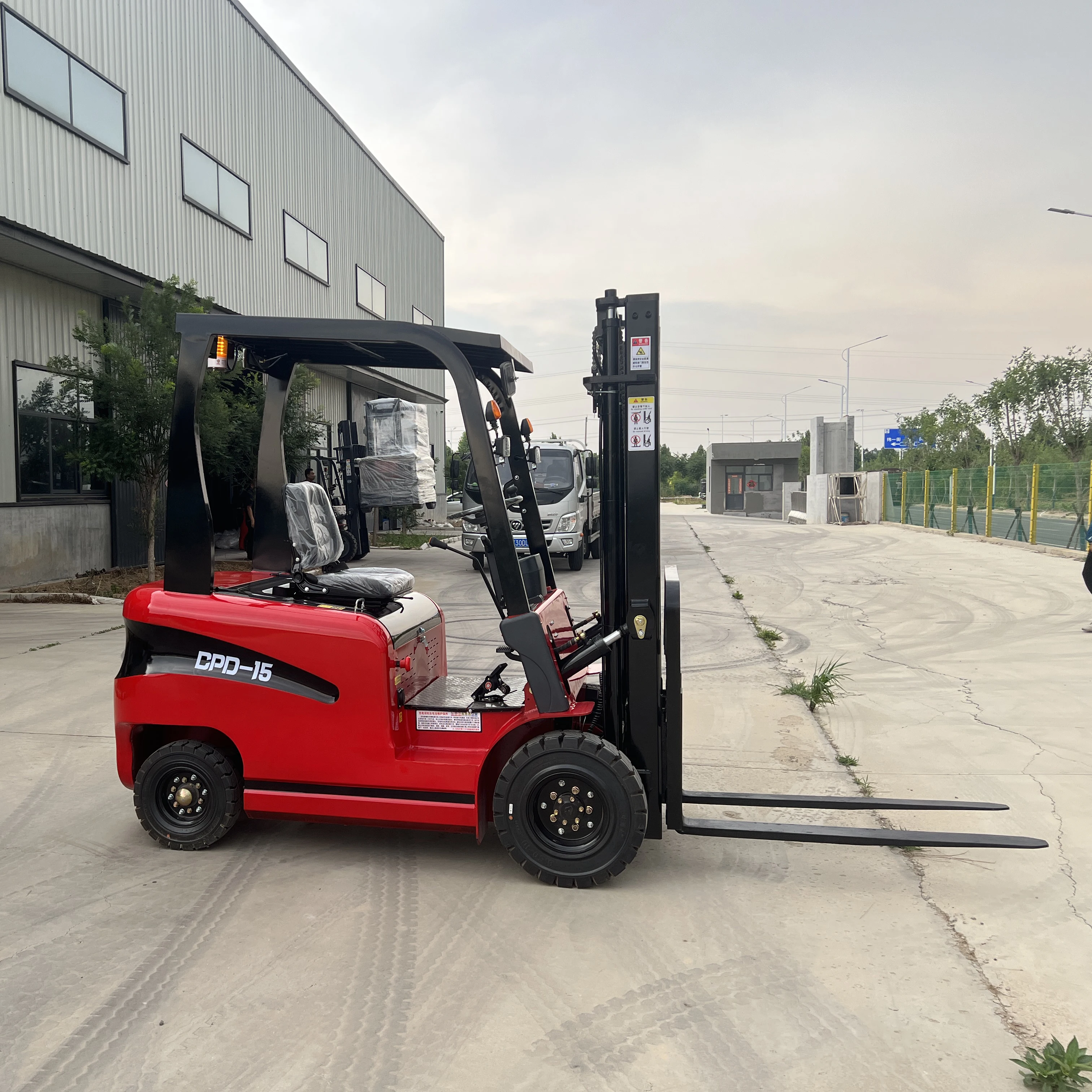

Product show
Product Feature
1.Efficient energy utilization: Electric forklifts use batteries as the power source, with high energy conversion efficiency. They can complete charging in a short time and have a long range, ensuring continuous and stable work efficiency.
2.Zero emissions and environmental protection: Electric forklifts do not produce exhaust gas and noise pollution during operation,fully meeting environmental requirements, especially suitable for indoor and enclosed space use, helping to improve the working environment and reduce environmental pollution.
3.Low maintenance cost: The electric motor and control system of electric forklifts are relatively simple, with a low failure rate and much lower maintenance cost than internal combustion forklifts. Meanwhile, the battery has a long lifespan and replacementcycle, further reducing maintenance costs.
4.Easy to operate: Electric forklifts adopt advanced control systems and user-friendly designs, making operation more convenientand safe. Drivers can easily complete actions such as forward, backward, lifting, tilting, etc., improving work efficiency.
2.Zero emissions and environmental protection: Electric forklifts do not produce exhaust gas and noise pollution during operation,fully meeting environmental requirements, especially suitable for indoor and enclosed space use, helping to improve the working environment and reduce environmental pollution.
3.Low maintenance cost: The electric motor and control system of electric forklifts are relatively simple, with a low failure rate and much lower maintenance cost than internal combustion forklifts. Meanwhile, the battery has a long lifespan and replacementcycle, further reducing maintenance costs.
4.Easy to operate: Electric forklifts adopt advanced control systems and user-friendly designs, making operation more convenientand safe. Drivers can easily complete actions such as forward, backward, lifting, tilting, etc., improving work efficiency.
Product Details
1.Thickened door frame: sturdy, durable, and not deformed.
2.LED searchlight headlights: visible at night for worry free handling.
3.Solid tires: maintenance free, wear-resistant, durable, and have a long service life.
4.Comfortable workbench: Comfortable seats, large field of view operation console.
2.LED searchlight headlights: visible at night for worry free handling.
3.Solid tires: maintenance free, wear-resistant, durable, and have a long service life.
4.Comfortable workbench: Comfortable seats, large field of view operation console.
Product Application
Electric forklifts are suitable for logistics, handling, stacking, loading and unloading operations in the industrial production field, and can be widely used in warehousing, logistics, manufacturing, processing and other fields.
Packing&Delivery
Company Information
ABOUT US
The Shandong Varyon Machinery was establishedhas been more than 10 years since the establish-ment of the factory. The orginal intention of thecompany was to facilitate one-stop procurement forcustomers and sell cost-effective machinery andequipment to the world.
The company's main products include excavators, tractors, road rollers, loaders, plate compactors,branch shredders, wood splitters, hand-held lawn mowers, knapsack lawn mowers and other smallequipment.The team currently has 20 professional foreign trade sales staff with more than 10 years offoreign trade experience. Annual sales of 30 milion.Mainly exported to Europe, Southeast Asia, SouthAmerica, North America, and other continents.There are many distribution agencies around the world: the United States, the Philippines, MalaysiaVietnam, Canada, Australia, ltaly, the Czech Republic, Spain, Portugal, etc. in developing and developed countries. And prepare to set up overseas warehouses in Gemmany to lay the foundation forglobal business
FAQ
Q1: Do you test all your goods before delivery?
Yes, we have 100% test before delivery
Q2: How to guarantee customers get the goods smoothly after they pay?
We joined the trade assurance, you can place the order by trade assurance, and the deposit will given to Alibaba. If we don't delivery products on time, the deposit will return to you.
Q3: How do you ensure the quality of your products?
Generally, our machines are the most durable type in the industry. With our experienced quality control team, we are trying to offer most of our customers the product with best quality.
Q4:How would the goods be shipped?
We can ship it by sea or by land
Q5:What method of payment do you accept?
We accept ACP,Western Union,T/T,pay pal,money gram,Secure Payment.
Yes, we have 100% test before delivery
Q2: How to guarantee customers get the goods smoothly after they pay?
We joined the trade assurance, you can place the order by trade assurance, and the deposit will given to Alibaba. If we don't delivery products on time, the deposit will return to you.
Q3: How do you ensure the quality of your products?
Generally, our machines are the most durable type in the industry. With our experienced quality control team, we are trying to offer most of our customers the product with best quality.
Q4:How would the goods be shipped?
We can ship it by sea or by land
Q5:What method of payment do you accept?
We accept ACP,Western Union,T/T,pay pal,money gram,Secure Payment.
Похожие товары
Новый дизельный деревообрабатывающий станок автоматическая пила для бревенчатого стола
1 800,00-1 860,00 $
200 ~ 1000 кг ротационная установка для установки стекла подъемный многоцелевой Электрический мобильный вакуумный стеклоподъемник всасывающая тележка
2 250,00-3 050,00 $
Машина для обшивки стен
200,00 $
Переносной пресс для станка гусеничный экскаватор гильза инструмента Строительная техника вал втулка
437,00-457,00 $

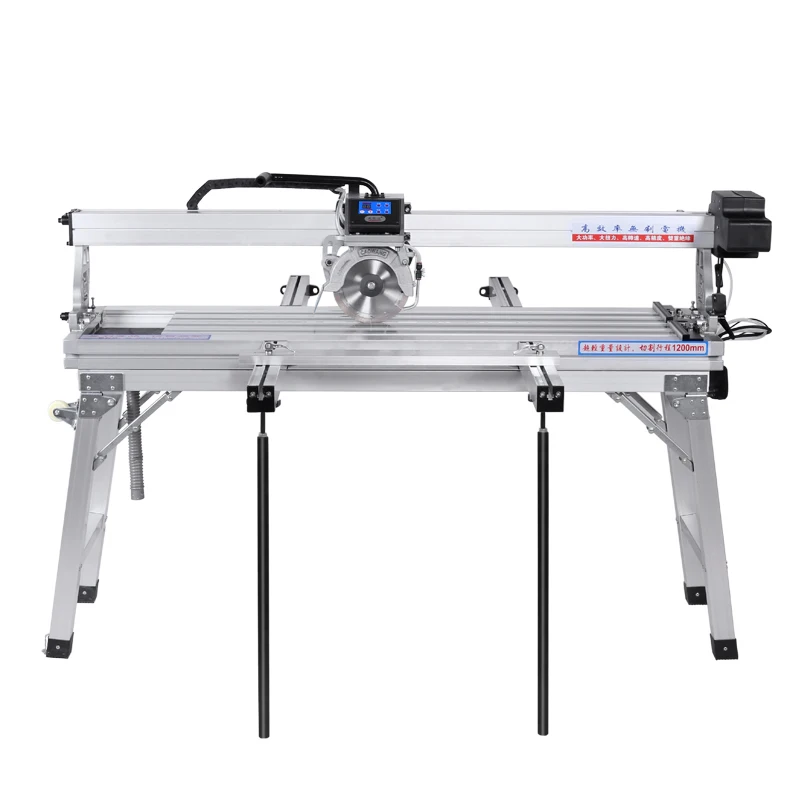

Керамическая плитка резак Полный Автоматический водяной-стол для резки ручной 45 градусов снятия фасок мульти-функциональный со шлифованной кромкой
380,00-400,00 $

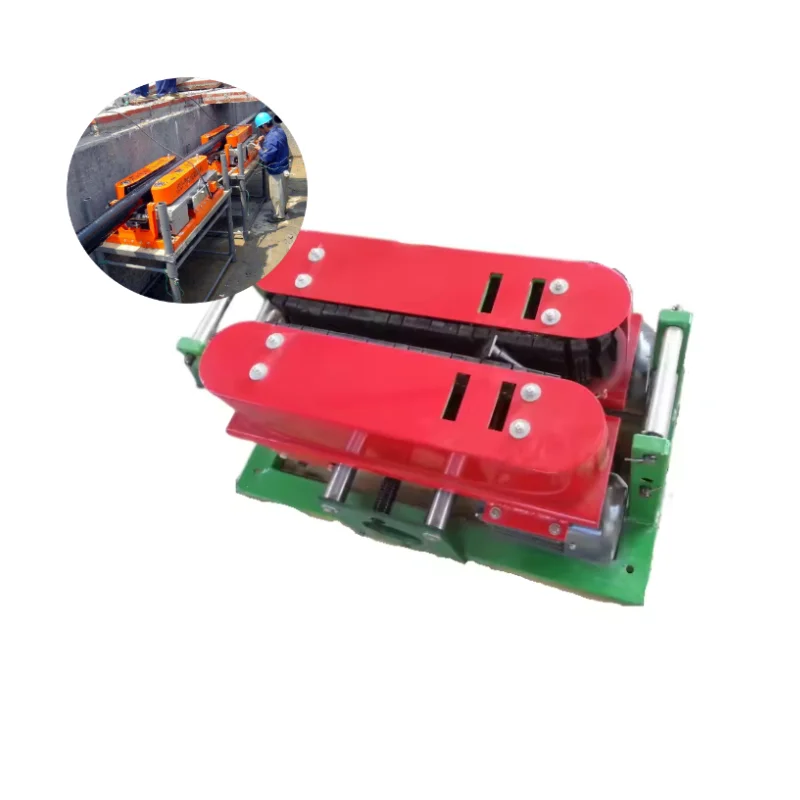

400 кг конвейерная силовая проволока и кабельная волоконно-оптическая машина 6 м/мин Кабельные Толкатели
500,00-571,00 $

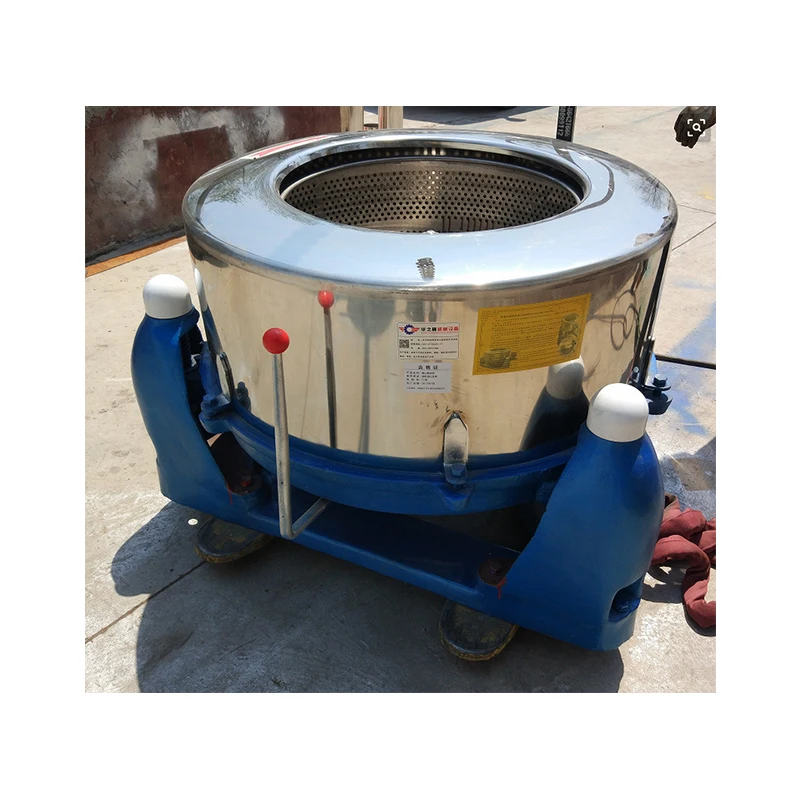

Тройной центробежный Дегидратор для обезвоживания текстиля
