Завод по производству локсов и линов криогенная 99.5% станция для производства чистого жидкого кислорода NUZHUO
56 000,00-99 000,00 $
Криогенный кислородный генератор
- Категория: >>>
- Поставщик: Hangzhou Nuzhuo Technology Group Co. Ltd.Hangzhou Ltd.
Сохранить в закладки 1601191768717:
Описание и отзывы
Характеристики

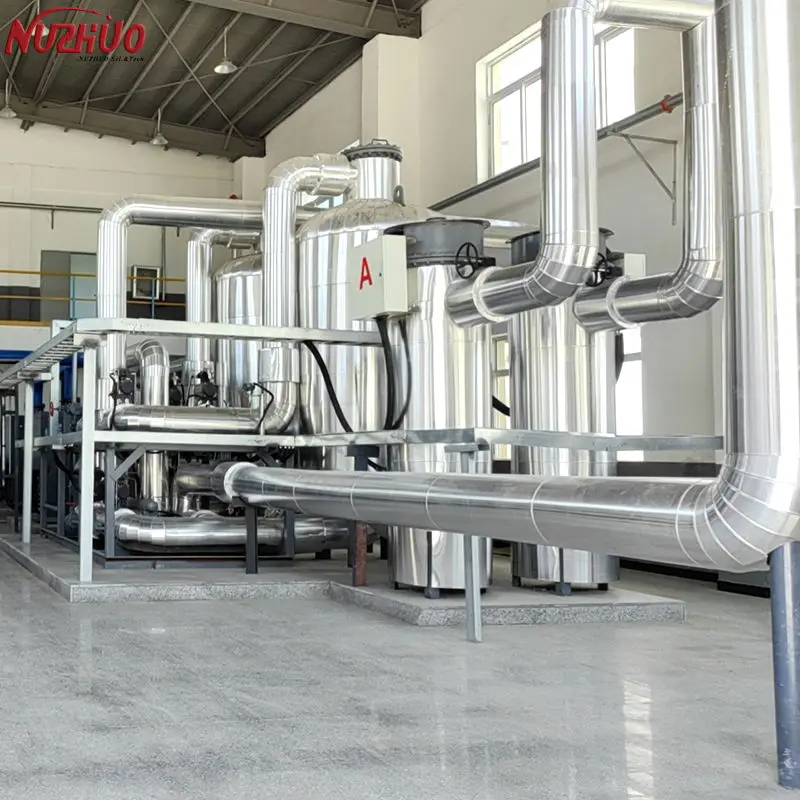

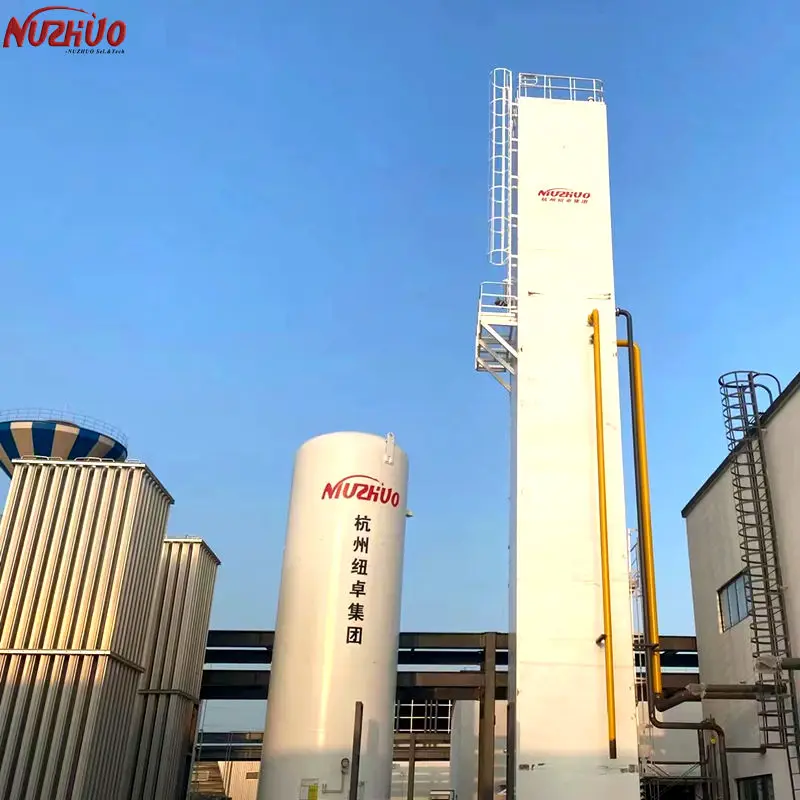

Engineering Cases
Product Description
Product Name | Cryogenic Liquid & Gaseous Oxygen Nitrogen And Argon Air Separation Unit | ||||||
Model No. | NZDO, NZDN, NZDON, NZDOAr, NZDONAr/ Simultaneously/Alternatively | ||||||
Brand | NUZHUO | ||||||

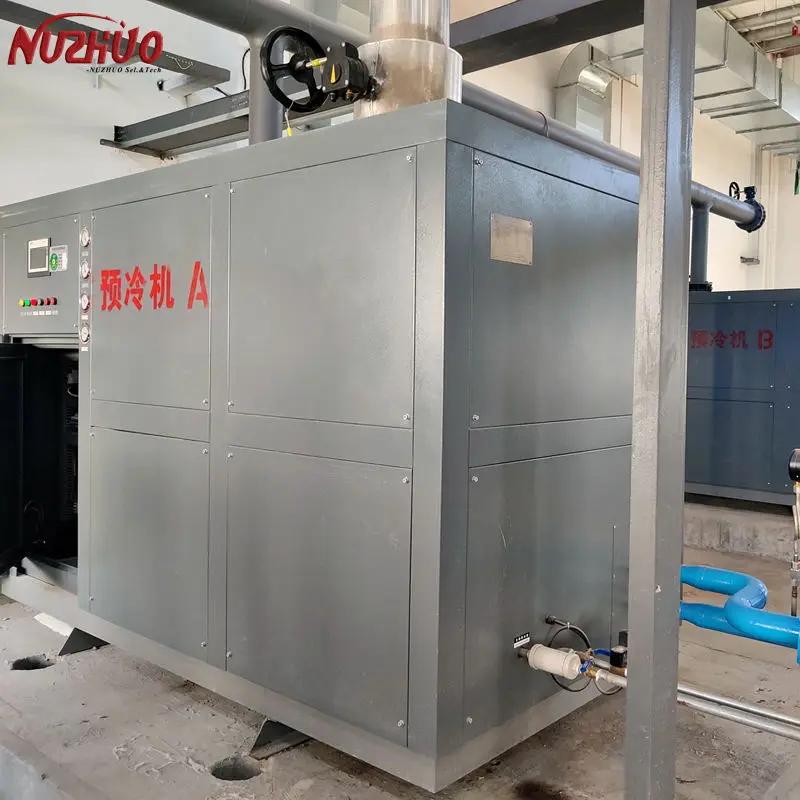

Accessories | Air compressor & Pre-cooling unit & Turbo Expander & Fractionating column | ||||||
Usage | High purity Oxygen & Nitrogen & Argon production machine | ||||||
Model | NZDON-50/50 | NZDON-80/160 | NZDON-180/300 | NZDON-260/500 | NZDON-350/700 | NZDON-550/1000 | NZDON-750/1500 | NZDONAr-1200/2000/30y | ||
O2 0utput (Nm3/h) | 5 | 50 | 80 | 180 | 260 | 350 | 550 | 750 | 1200 | |
O2 Purity (%O2) | 10 | ≥99.6 | ≥99.6 | ≥99.6 | ≥99.6 | ≥99.6 | ≥99.6 | ≥99.6 | ≥99.6 | |
N2 0utput (Nm3/h) | 20 | 50 | 160 | 300 | 500 | 700 | 1000 | 1500 | 2000 | |
N2 Purity (PPm O2) | 40 | 9.5 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | |
Liquid Argon Ouput(Nm3/h) | 60 | —— | —— | —— | —— | —— | —— | —— | 30 | |
Liquid Argon Purity(Ppm O2 + PPm N2) | —— | —— | —— | —— | —— | —— | —— | ≤1.5ppmO2 + 4 p p mN2 | ||
Liquid Argon Pressure (MPa.A) | 80 | —— | —— | —— | —— | —— | —— | —— | 0.2 | |
Consumption (Kwh/Nm3 O2) | 100 | ≤1.3 | ≤0.85 | ≤0.68 | ≤0.68 | ≤0.65 | ≤0.65 | ≤0.63 | ≤0.55 | |
Occupied Area (m3) | 150 | 145 | 150 | 160 | 180 | 250 | 420 | 450 | 800 | |
Configuration
SELF-CLEANED RAW AIR FILTER
Efficiently filter particles, oil mist and other pollutants in the air to ensure the high purity and quality of gas products produced by the cryogenic ASU.
AIR COMPRESSOR
The air in the environment is drawn into the equipment after passing through a self-cleaning filter and compressed through a series of compressors to obtain the compressed air required by ASU.
AIR PURIFICATION UNIT
The air purification system uses molecular sieves and activated alumina to adsorb and remove moisture, carbon dioxide and other hydrocarbons in the air.

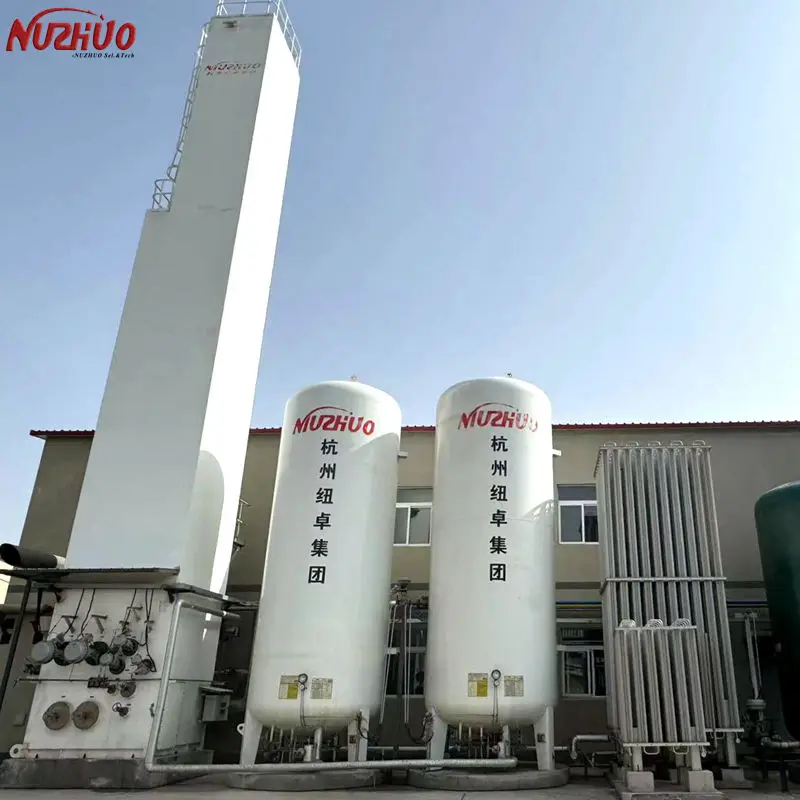

RECTIFICATION COLUMN
Obtain high purity and high quality liquid and gaseous oxygen, nitrogen and argon with low temperature and low pressure technology;
PLC SYSTEM
The PLC system uses Siemens S7-1500
Set up a control cabinet, which includes CPU modules, system communication modules, various I/0 modules, power supply modules, etc.
LOX & LIN & LAr STORAGE TANK
To storage high purity and high standard liquid oxygen, liquid nitrogen and liquid argon produced by cryogenic ASU equipment with different capacity;
VAPORIZATION CYLINDER FILLING
LOX & LIN & LAR stored in the cryogenic tank, pumped by cryogenic liquid pump, and convert to gas from by high pressure vaporizer, and then refill cylinders
Recommend Products
Company Profile

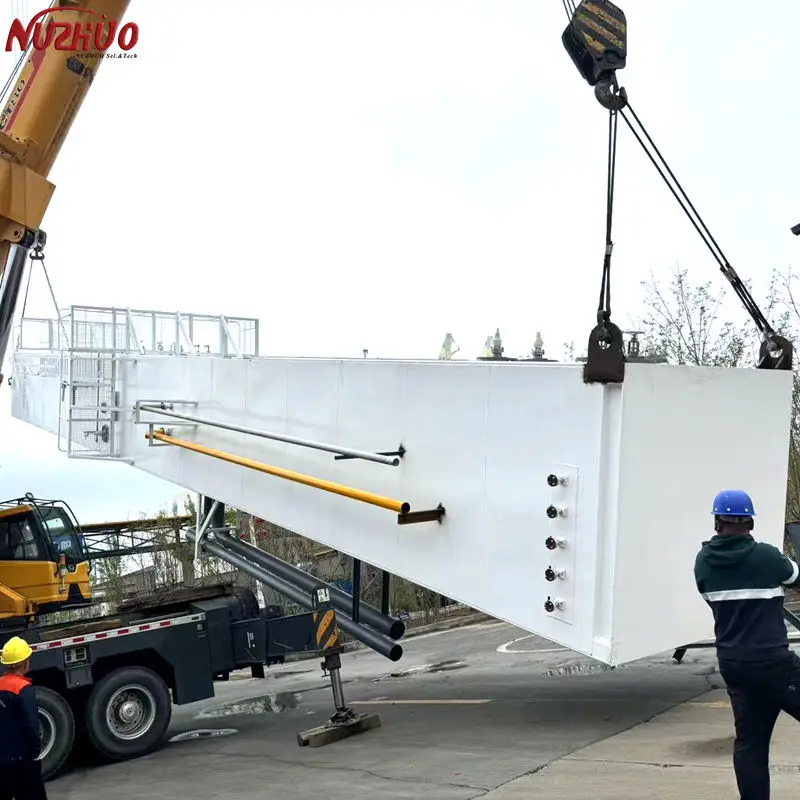

Packing & Delivery
FAQ
Q1: Are you a trading company or manufacturer?
A: Firstly. we are a manufacturer, we have our own factory and engineers.
A: Firstly. we are a manufacturer, we have our own factory and engineers.
Secondly, we have our own international trade teams to provide services for you.
Thirdly, we provide the lifetime technology support and the best after-sale service.
Q2: What is your term of payment?
A: 30%T/T in advance and balance before shipment.
Q3 How long is your delivery time?
A: Depending on what type of machine you are purchased.
Q2: What is your term of payment?
A: 30%T/T in advance and balance before shipment.
B. 30% T/T in advance and Irrevocable L/C at Sight. C. Accept negotiation.
Welcome to have a contact with our salesman: 0086-18069835230, Lyan.ji@hznuzhuo.com
Welcome to have a contact with our salesman: 0086-18069835230, Lyan.ji@hznuzhuo.com
Q3 How long is your delivery time?
Cryogenic ASU, the delivery time is at least 3 months.
Cryogenic liquid plant, the delivery time is at least 5 months.
Welcome to have a contact with our salesman: 0086-18069835230, Lyan.ji@hznuzhuo.com
Q4: What is your product quality assurance policy?
A: We offer a warranty period of 1 year, free lifetime technology support.
Q5: Do you offer OEM/ODM service?
A: Yes, please let's know your specific require. Our engineer will follow your requirement to design for you and provide detailed technical specification and commercial quotation.
Q6: Does your product used or new? RTS product or customized product?
A:Our machine is new unit, and following your specific require to design and make it.
Q4: What is your product quality assurance policy?
A: We offer a warranty period of 1 year, free lifetime technology support.
B. Supporting third-part to have a inspection, alsoprovide SGS, TUV certificated.
C. Accept negotiation.
Welcome to have a contact with our salesman: 0086-18069835230, Lyan.ji@hznuzhuo.com
Q5: Do you offer OEM/ODM service?
A: Yes, please let's know your specific require. Our engineer will follow your requirement to design for you and provide detailed technical specification and commercial quotation.
Welcome to have a contact with our salesman: 0086-18069835230, Lyan.ji@hznuzhuo.com
Q6: Does your product used or new? RTS product or customized product?
A:Our machine is new unit, and following your specific require to design and make it.
Welcome to have a contact with our salesman:0086-18069835230, Lyan.ji@hznuzhuo.com
Contact Us
Contact: Lyan.Ji Tel: +86-18069835230 Mail: Lyan.ji@hznuzhuo.com
Whatsapp: +86-18069835230
WeChat: +86-18069835230
Web: www.hznuzhuo.com
Facebook: www.facebook.com/NUZHUO Made in China: https://hznuzhuo.en.made-in-china.com/
